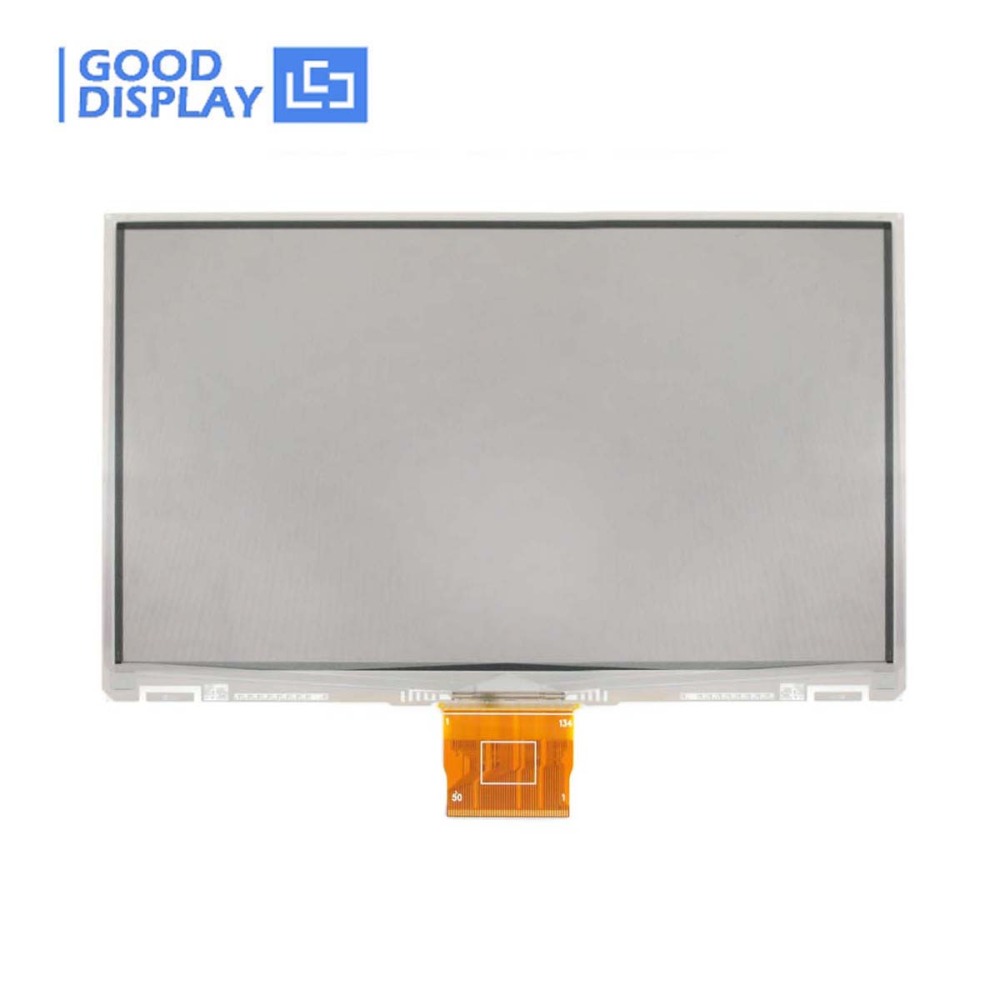

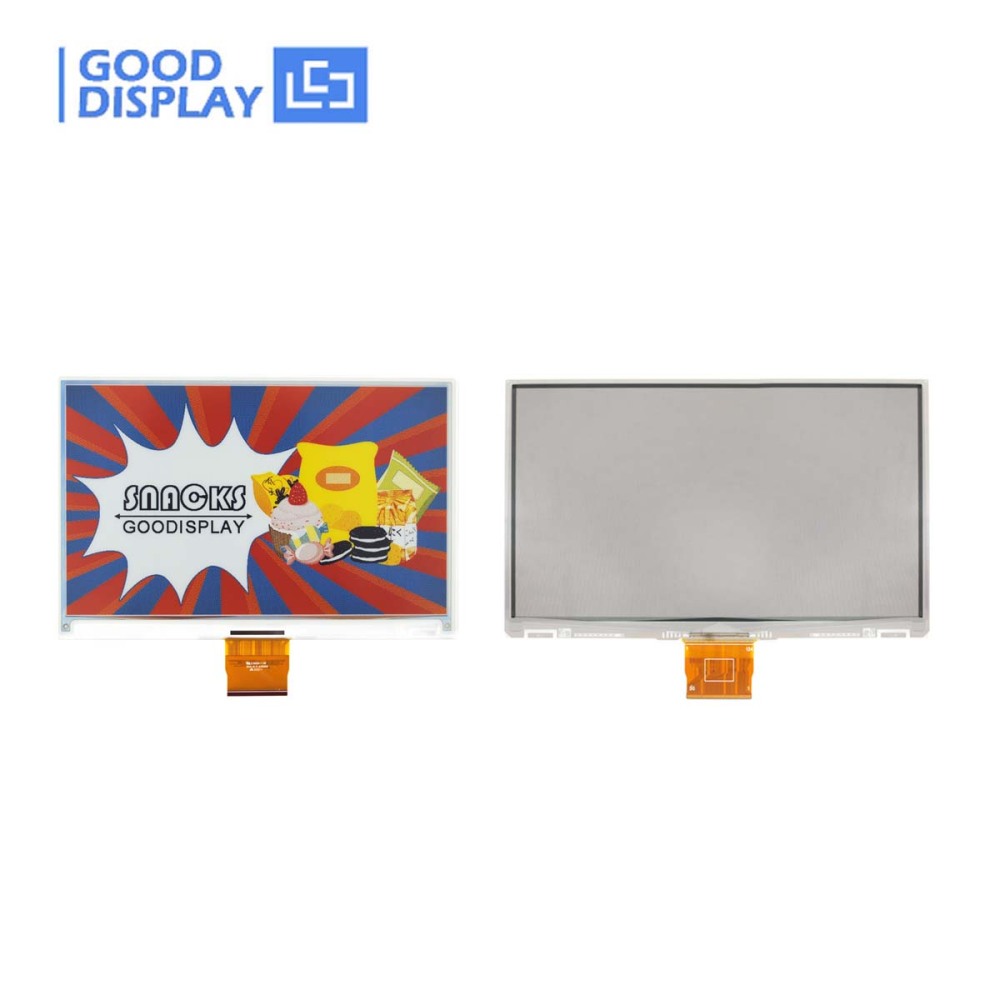

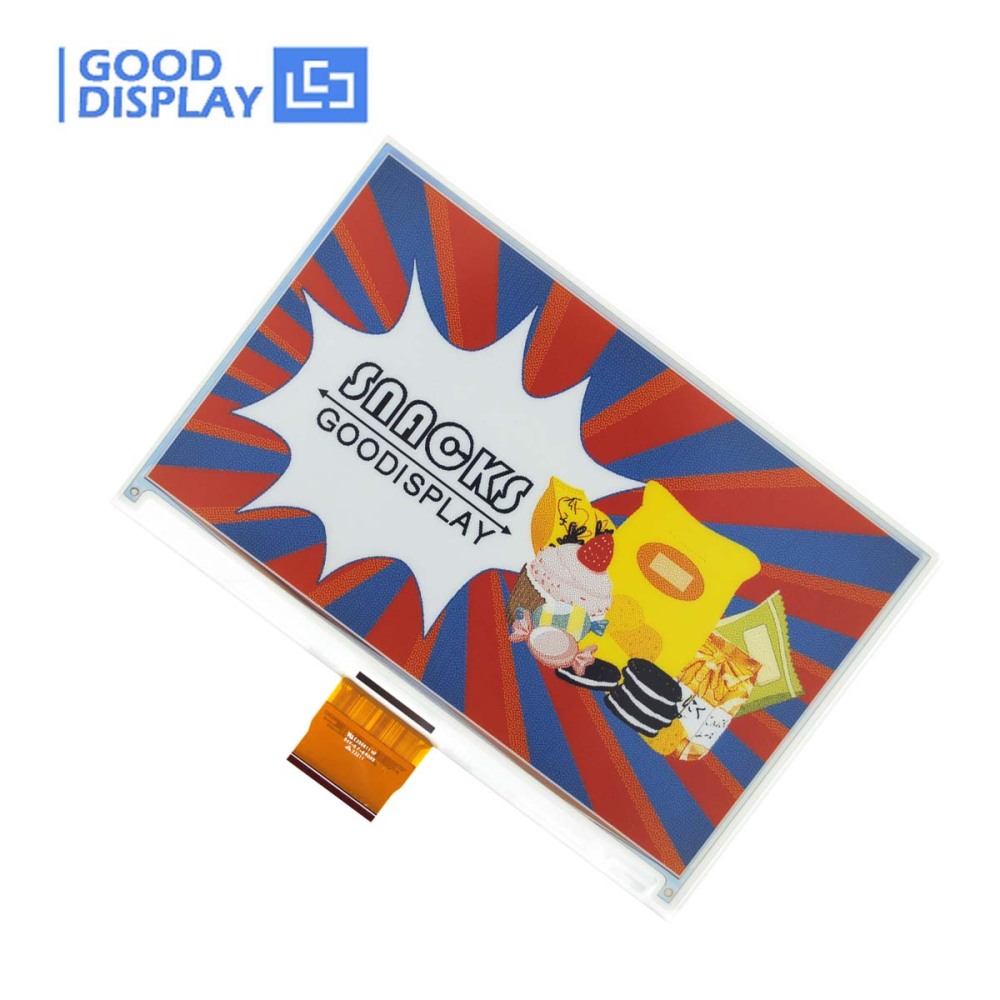

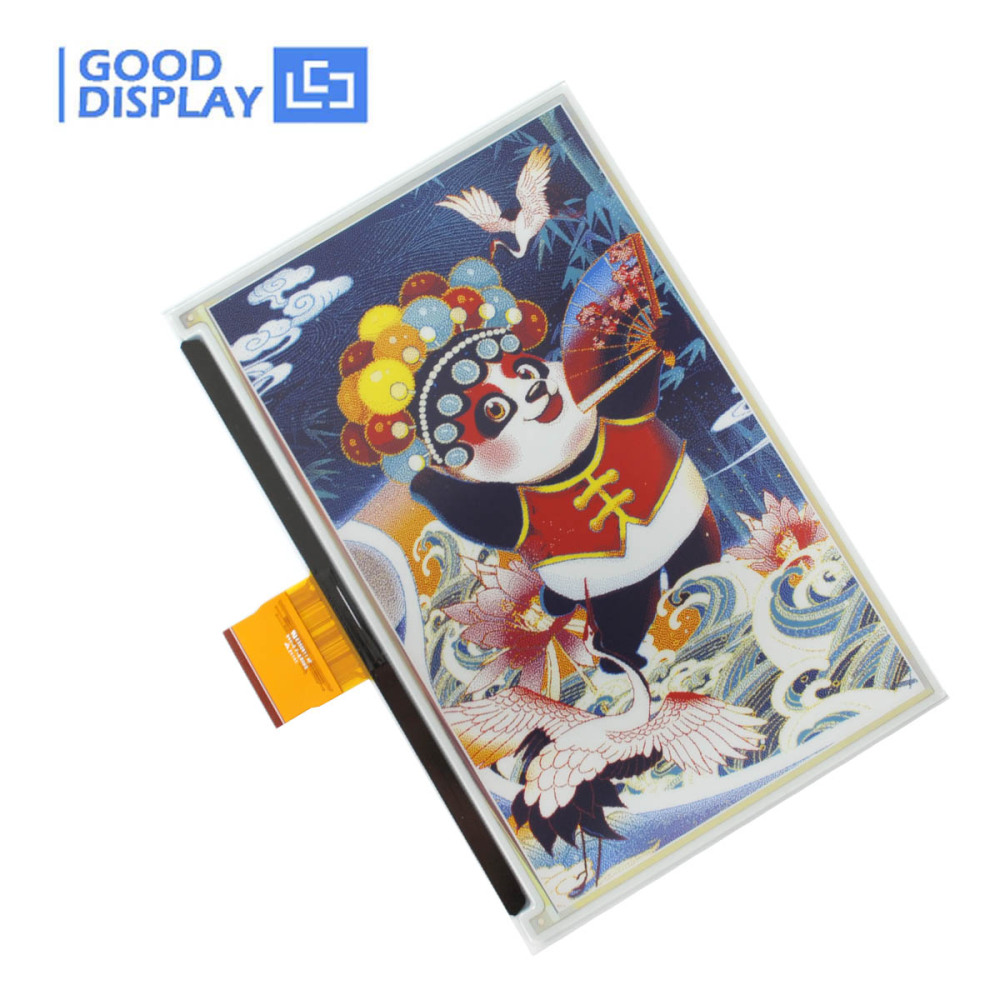

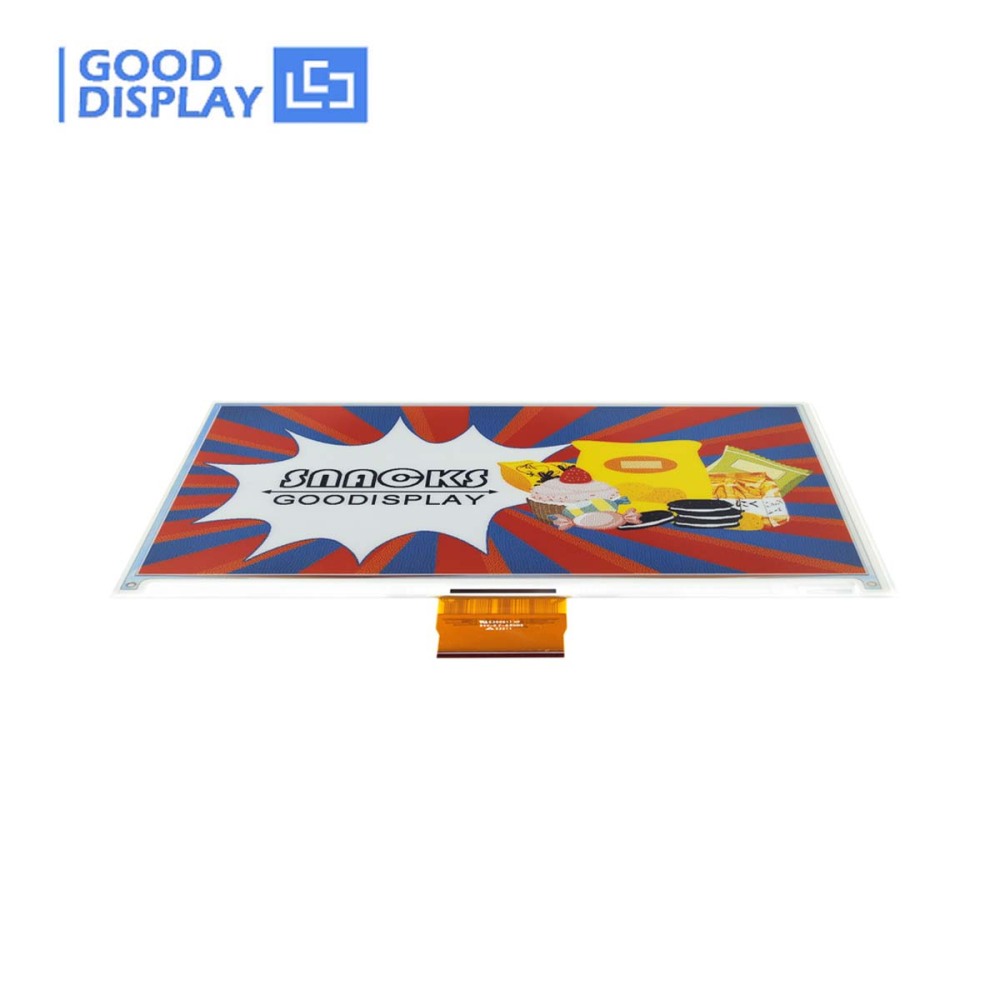

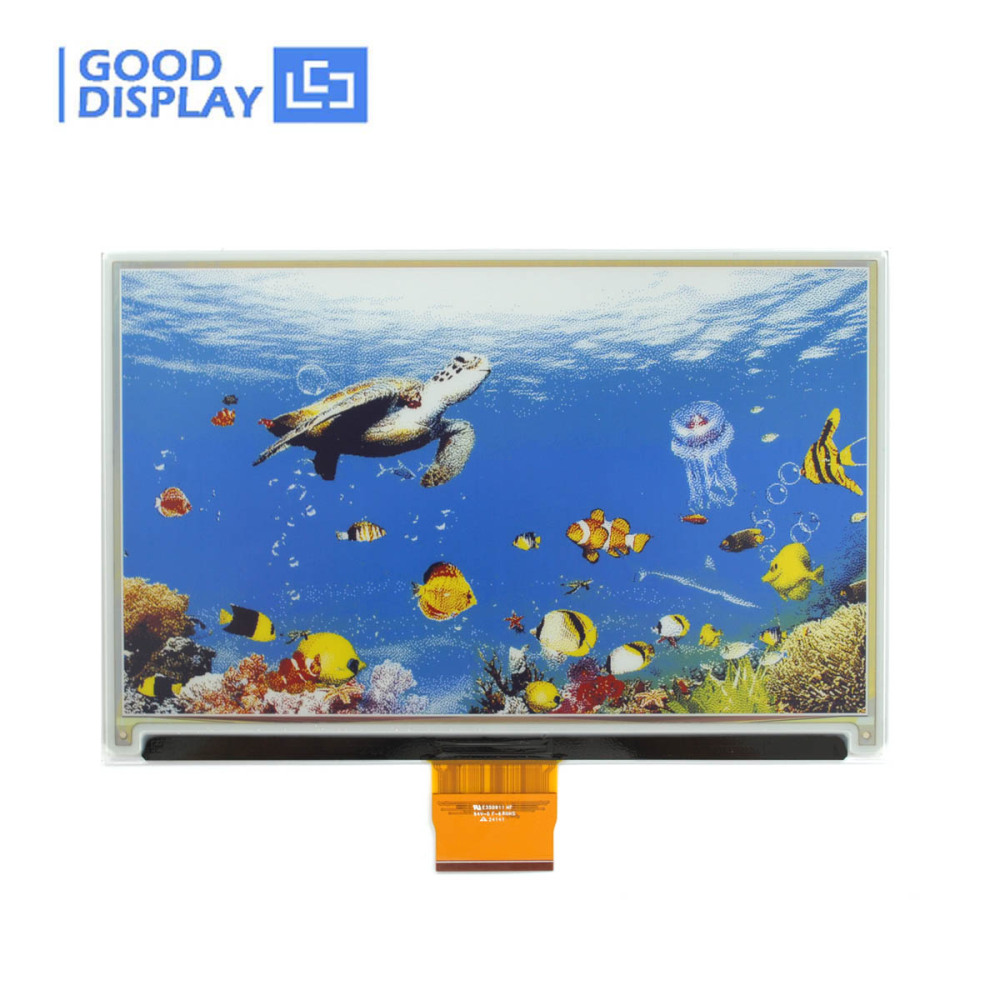

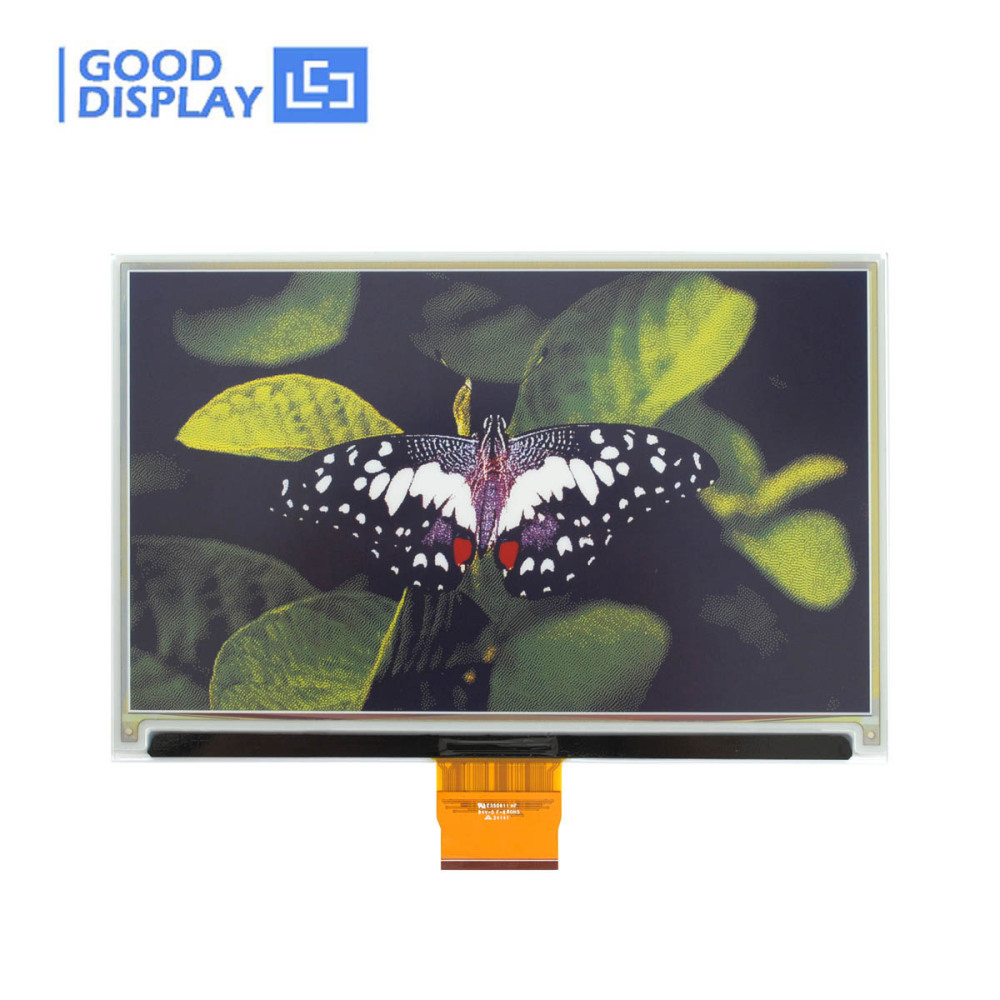

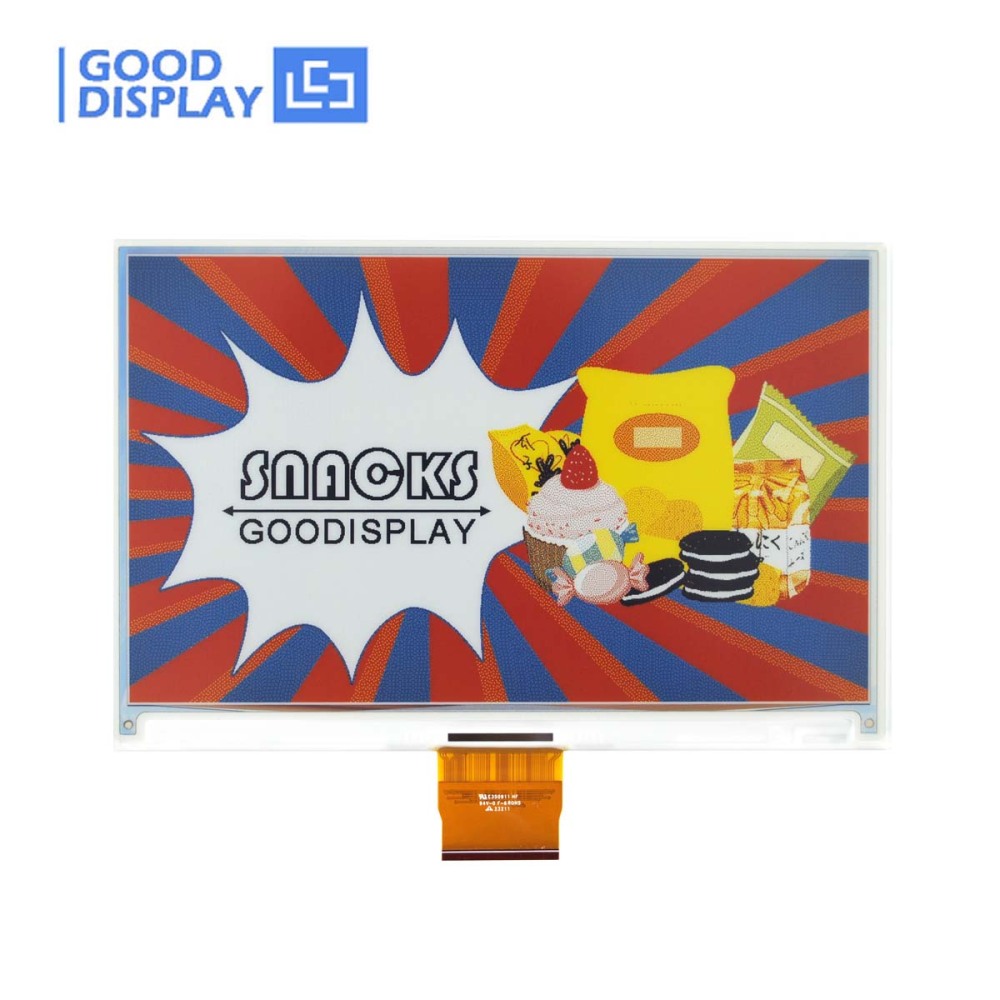

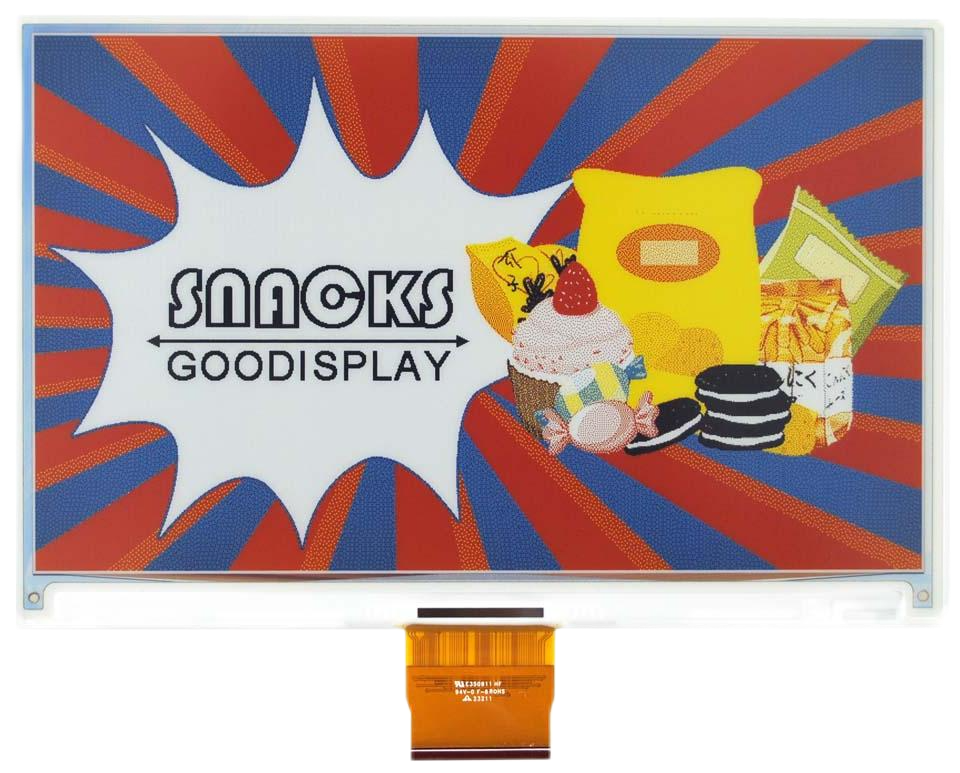

7.3-Inch E6 Color E-ink Display High-saturation 800x480 ePaper Display Module

GDEP073E01
Since the launch of color ePaper, the E6 display has distinguished itself with the highest color saturation and exceptional resolution, delivering vibrant hues that bring content to life.
Price:
USD
$59.80
$68.50
(13% OFF)

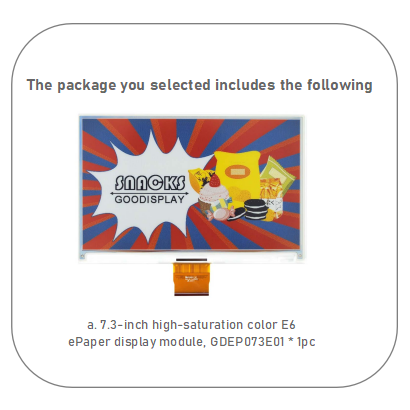

  • Product:
    EPD

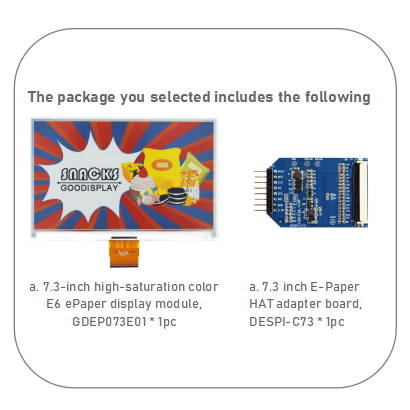

    EPD with adapter board

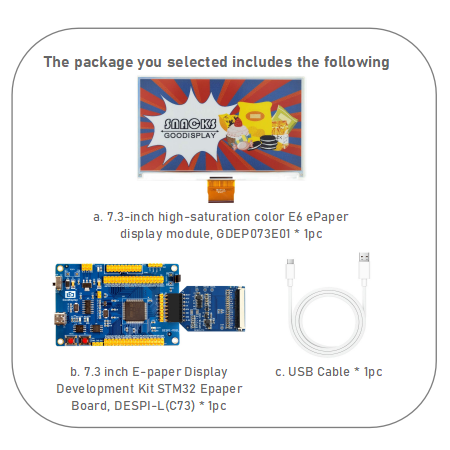

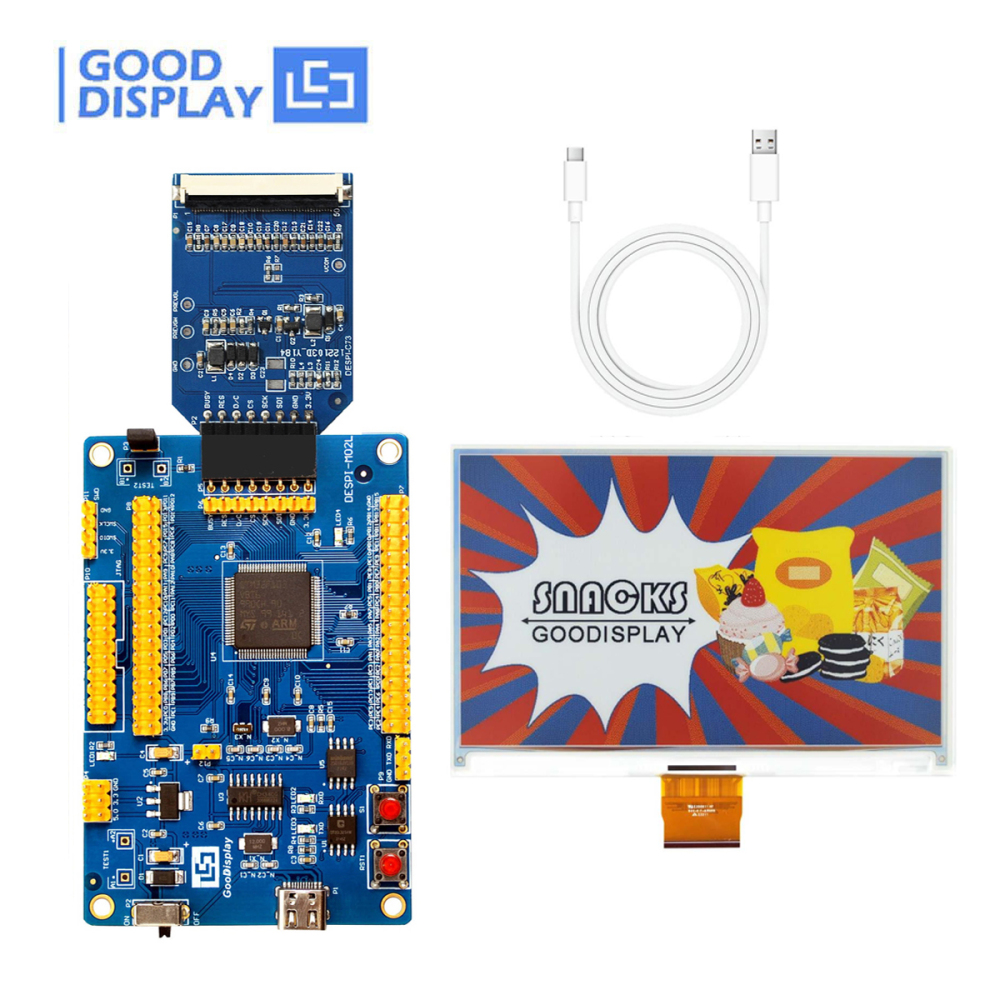

    EPD with STM32 Demo Kit

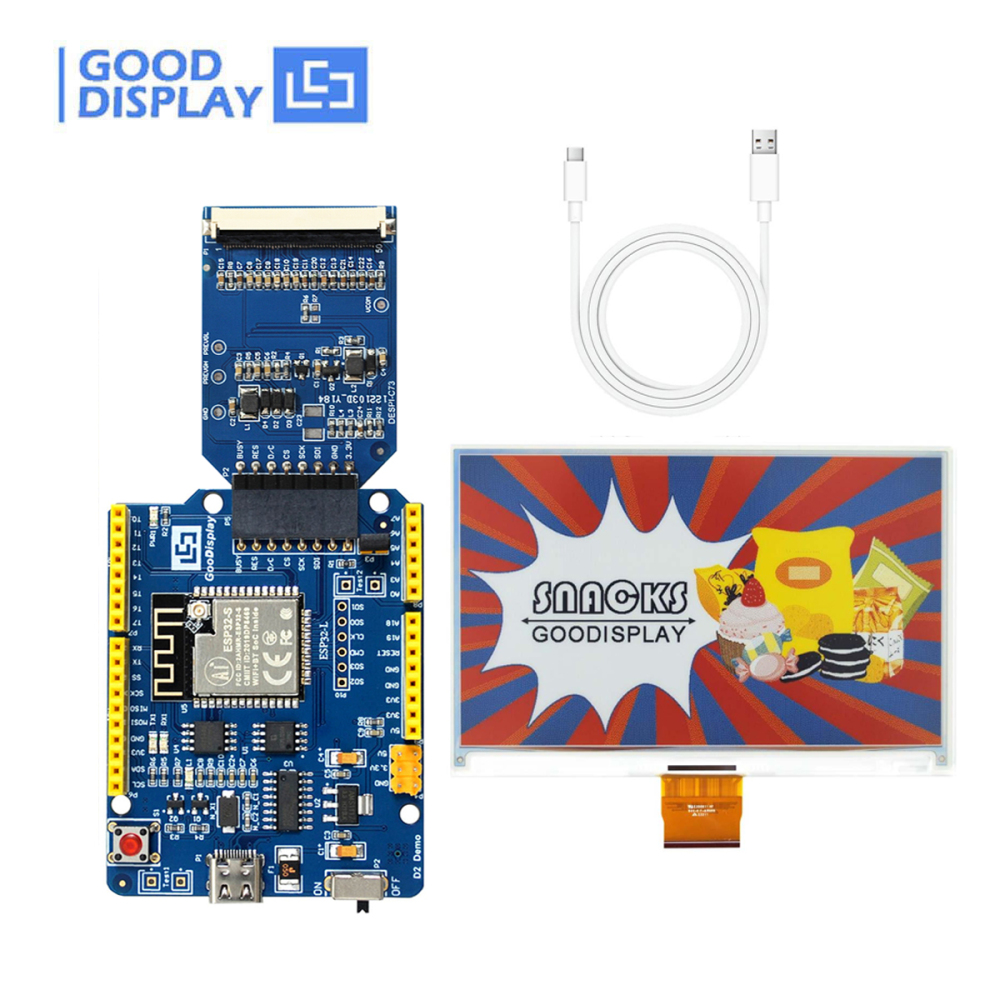

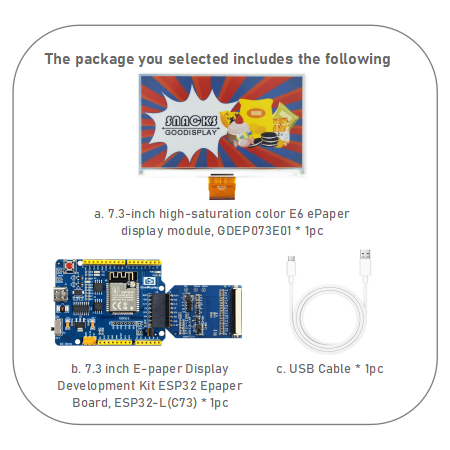

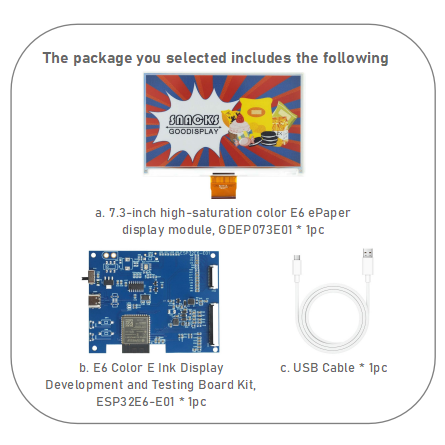

    EPD with ESP32 Demo Kit
Quantity:
-
+
(391 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(3)


7.3-Inch E6 High-Saturation Color ePaper Display The Future of Digital Reading





The E6 ePaper display stands out with its high color saturation and exceptional resolution, delivering vibrant hues. This 7.3-inch display features a bistable, pure reflection mode with a wide viewing angle of over 170 degrees, hard-coated anti-glare surface, and energy-efficient design that consumes no power when not refreshing. Operating at 3.3V and suitable for temperatures from 0-50 ℃, it is perfect for smart tags, smart home applications, and industrial instruments, offering clear, reliable information in a variety of environments.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Introducing E Ink Spectra 6, the pinnacle of color e-paper technology. Experience your favorite stories in vivid, lifelike hues and unparalleled realism, making every page come alive with rich, full-color brilliance. Dive into a new era of digital reading!
  ●  With a high resolution of 800x480, Experience the highest color saturation and exceptional resolution, making every image pop with vibrant hues.
  ●  Bistable Display: Keeps your content visible even when powered off, ensuring you save energy without compromising display quality.
  ●  Pure Reflection Mode: Enjoy natural, glare-free viewing that mimics the comfort of reading on paper.
  ●  Wide Viewing Angle: See clearly from any angle with a viewing range exceeding 170 degrees, perfect for any setting.
  ●  Anti-Glare Surface: Hard-coated for maximum readability, reducing reflections and eye strain for prolonged use.
  ●  Eco-Friendly Efficiency: Zero power consumption when the screen is not refreshing, combining cutting-edge technology with environmental consciousness. Save power, save the planet!











Technical Details

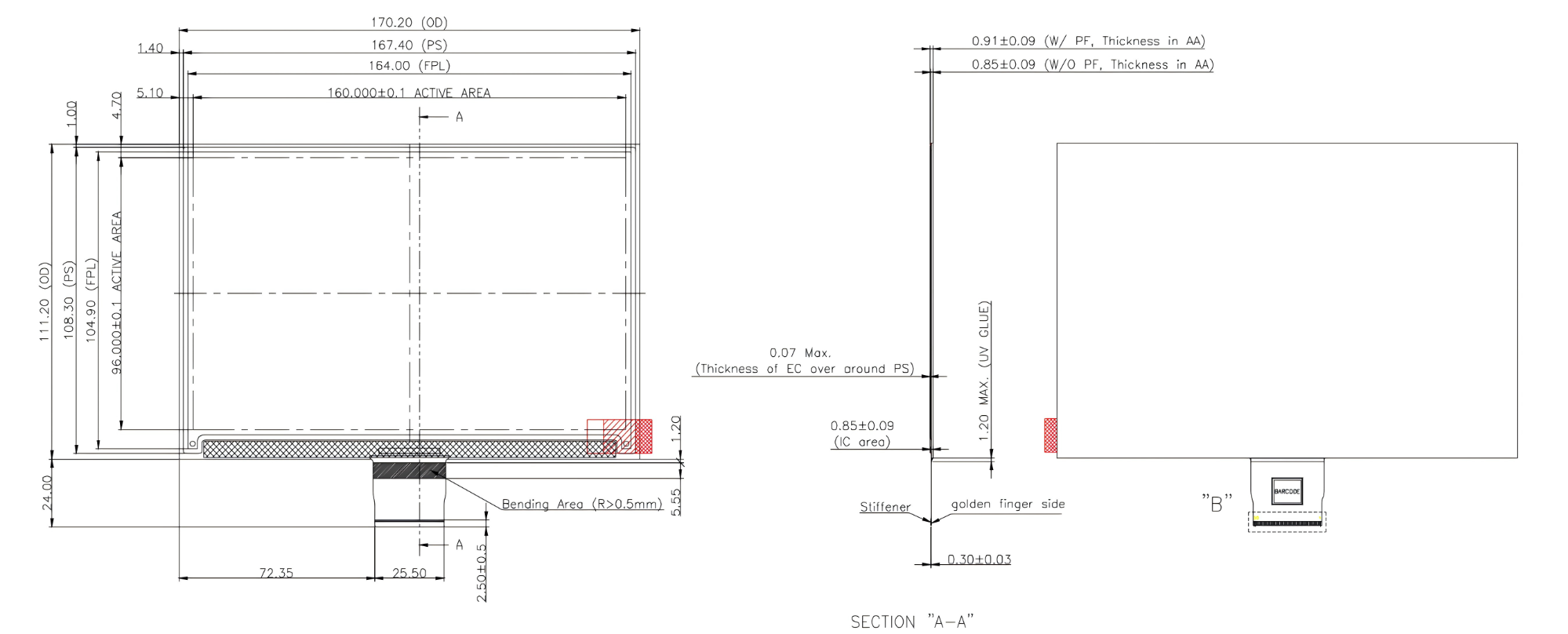

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

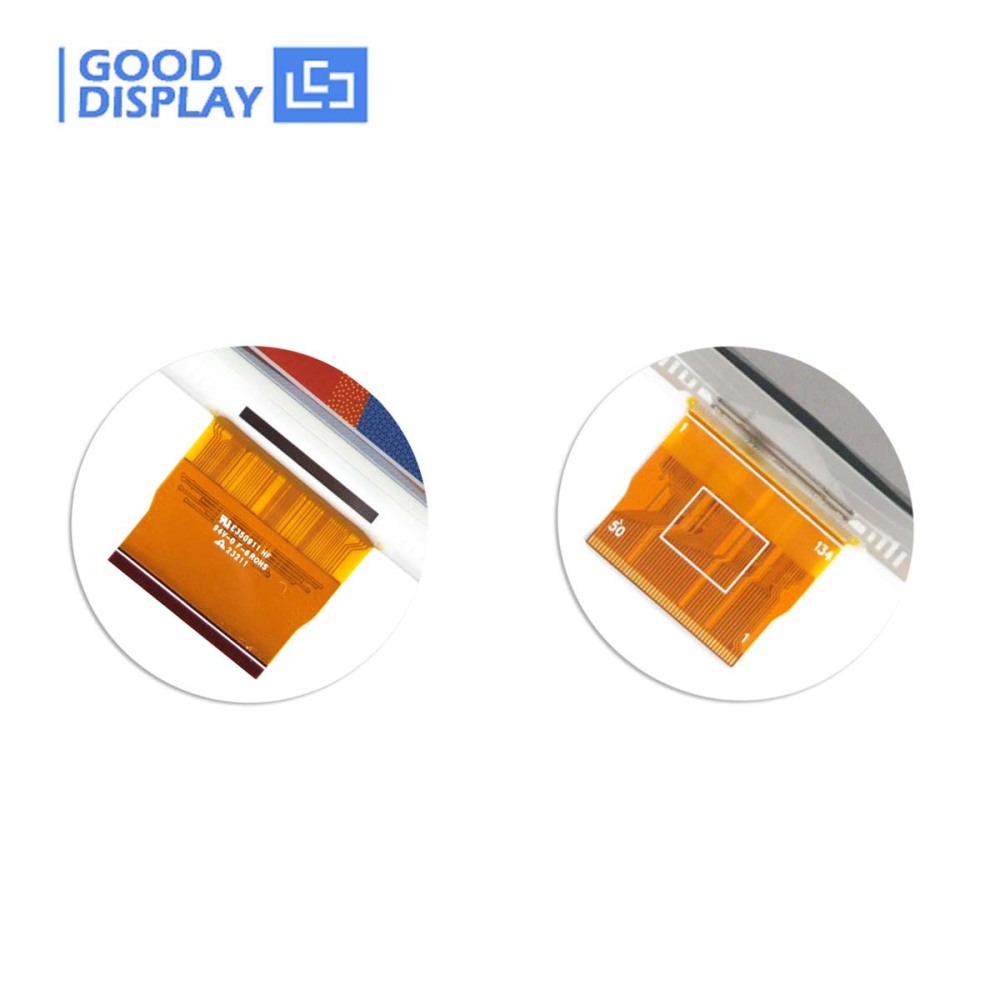

PART NUMBER GDEP073E01 CONNECTOR 50 Pin FPC
SIZE 7.3 inch TYPE Dot Matrix
RESOLUTION 800x480 IC NC
OUTLINE SIZE(mm) 170.2x111.2x0.91 INTERFACE SPI
ACTIVE SIZE(mm) 160x96 FULL REFRESH TIME(s) 14~19
PIXEL PITCH(mm) 0.2x0.2 POWER CONSUMPTION OF THE REFRESH(mW) TBD
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION (mW) TBD
STORAGE TEMP. -25℃~60℃







Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

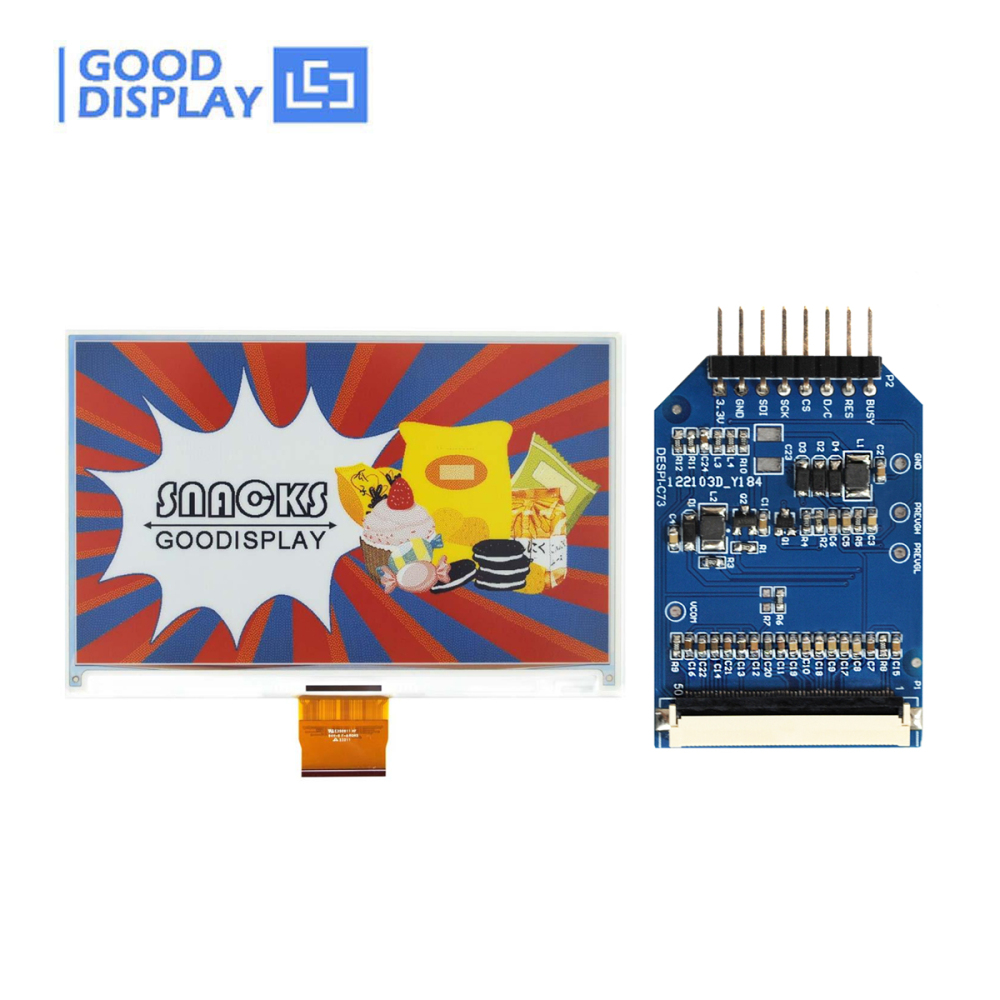

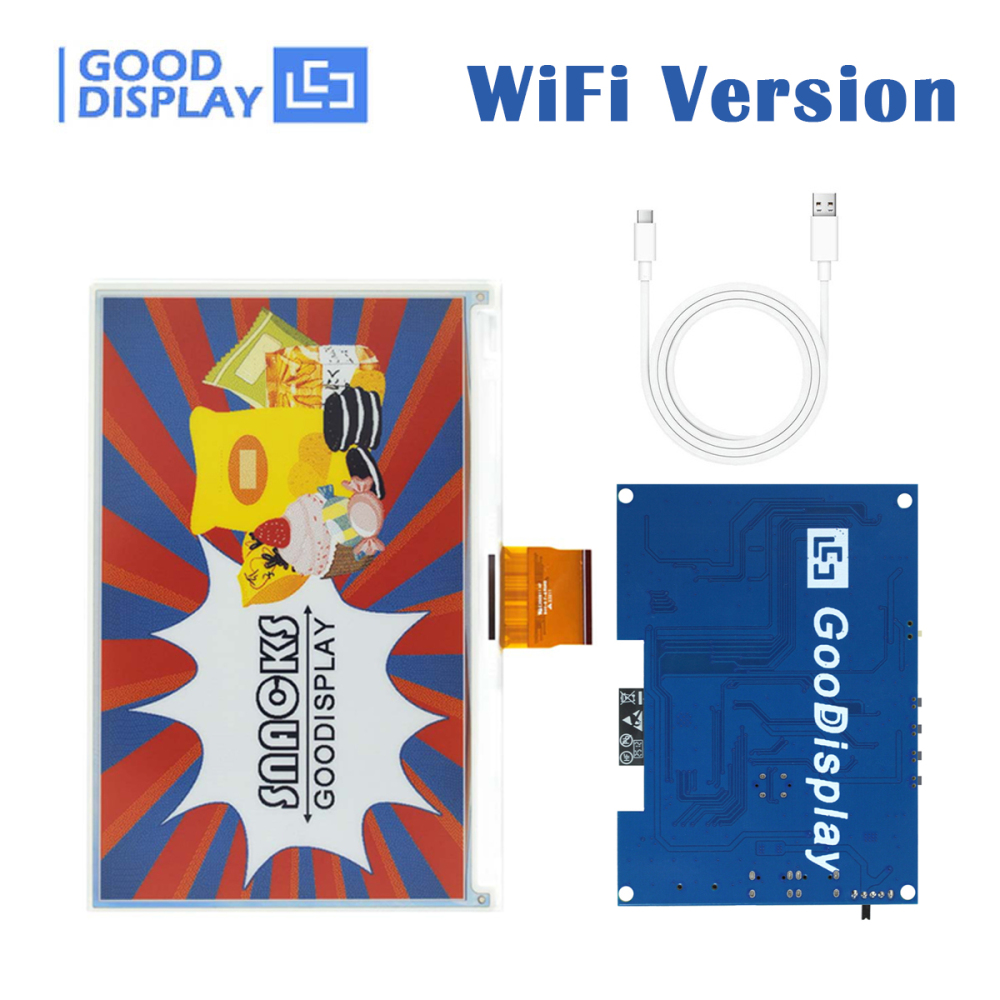

a. DESPI-C73 (E-ink Display adapter Board) b. DESPI-L(C73) (STM32 Demo Kit) c. ESP32-L(C73) (ESP32 Demo Kit) d. ESP32E6-E01(E Ink Spectra™ 6 Demo Kit)









Related Information Download

Click on the subheadings below to download

  ● GDEP073E01 Specification ● GDEP073E01 STM32 Sample Code
  ● Image2LCD Software Bitmap Conversion Instructions V1.0 ● GDEP073E01 ESP32 Sample Code
  ● GDEP073E01 Picture Production and Bitmap Conversion ● The latest Catalog of ePaper display
  ● Why can't I download the files?








Product Application

Furniture central Smart Deskplate Bus Stop Signs Smart Logistics Smart New Retail
