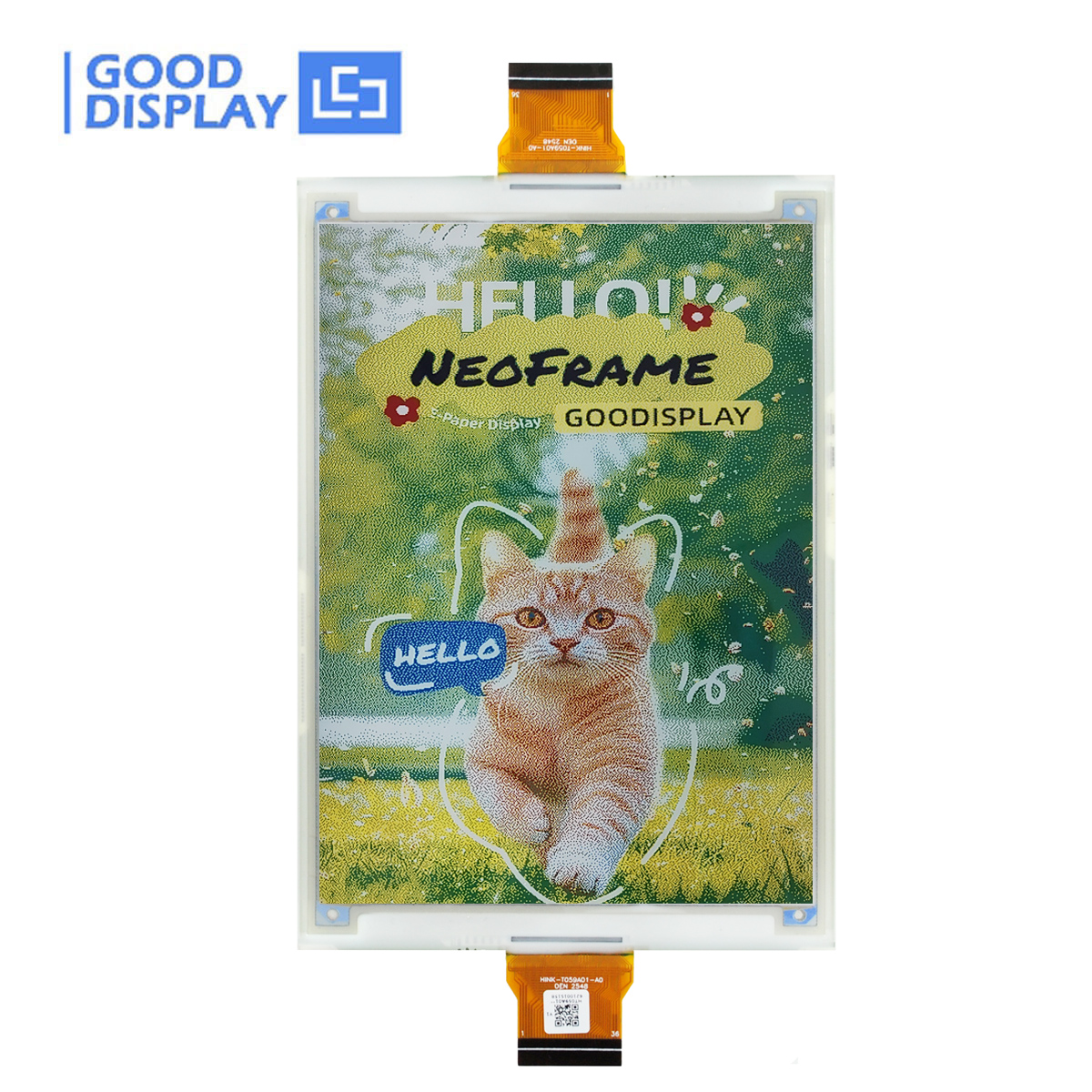

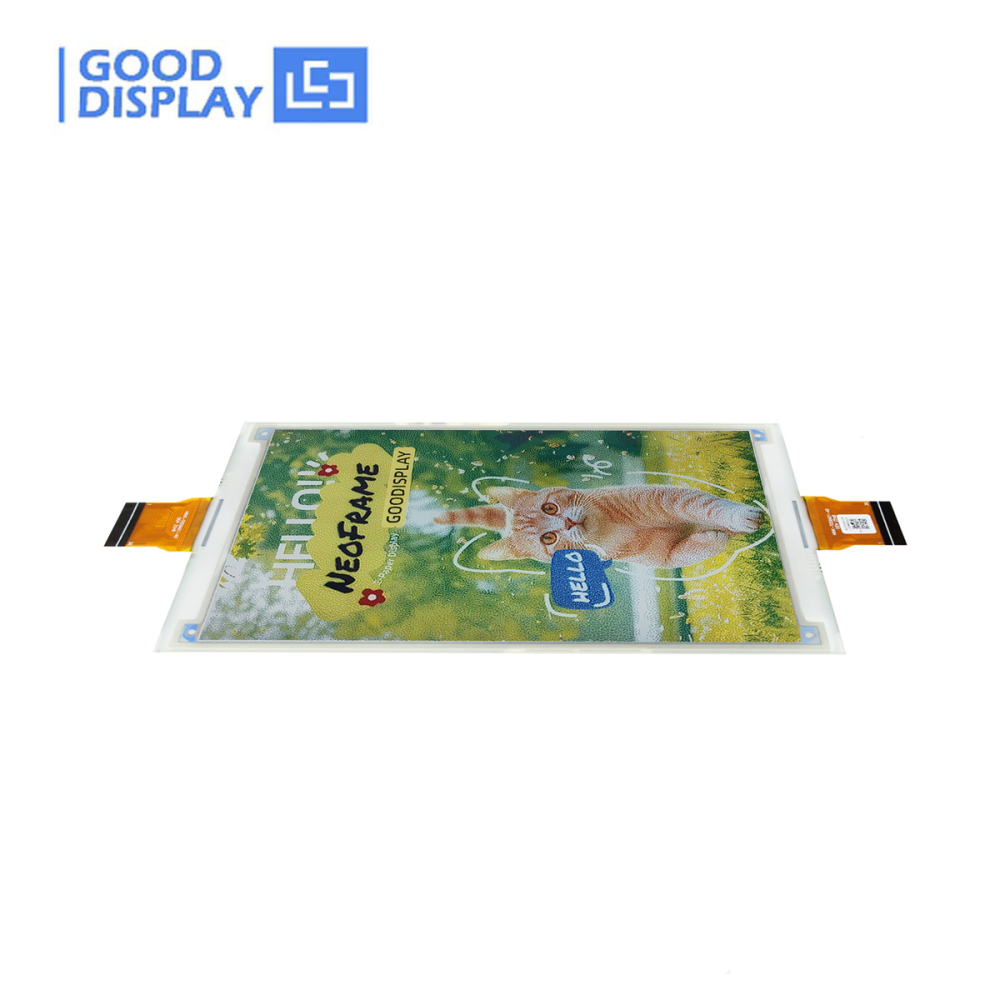

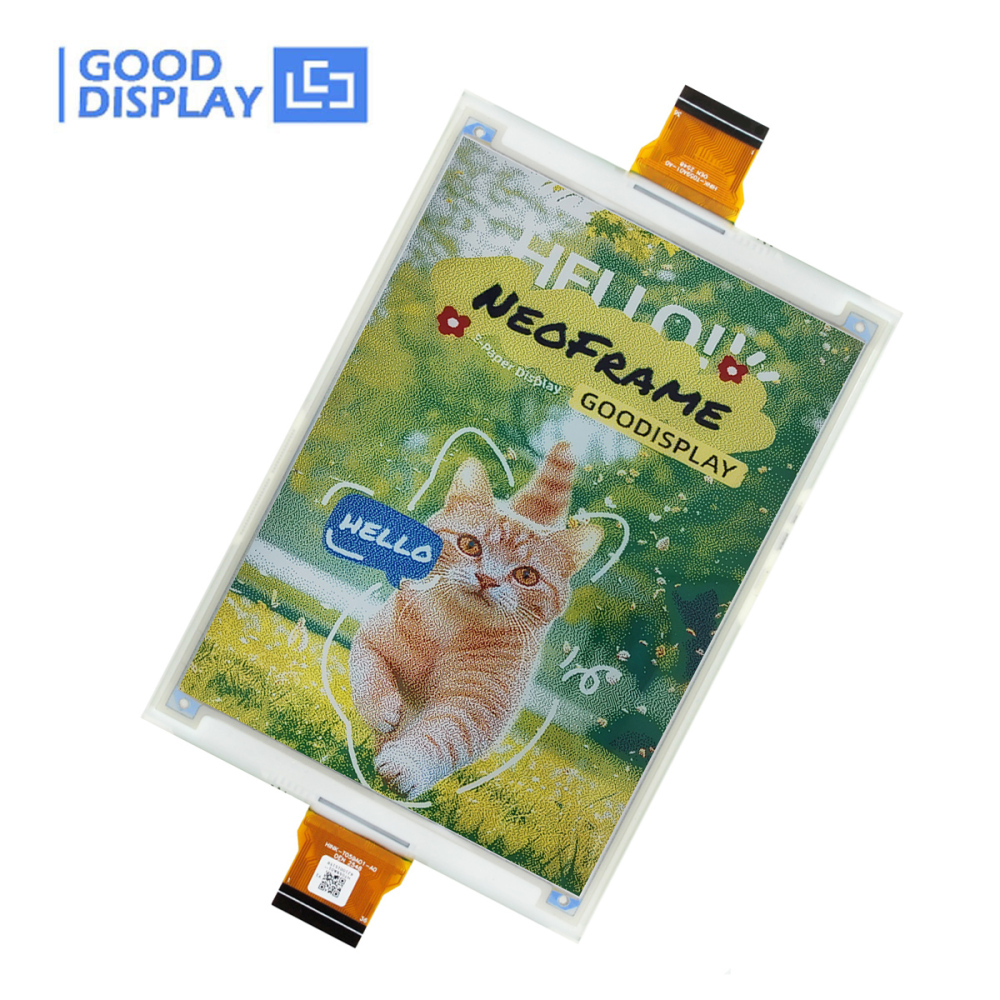

Name: 5.9" E Ink Spectra 6 Full-Color E-Paper Display 680×960 173 PPI 0.75mm ultra‑slim EPD, GDEH059E01
Brand: GOOD DISPLAY
SKU: GDEH059E01
Price: 35.91 USD
Availability: InStock

SKU: GDEH059E01

(0)

0 Sold

$35.91 ~~$39.89~~

10% OFF

Color that never fades. Power that never drains." — Native 6-color, 173 PPI, and zero standby power. The 5.9" Spectra 6™ EPD brings retail and IoT to life without the energy bill. Sunlight-readable, paper-like, and built to last 5 years. GDEH059E01.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

2% OFF WITH PURCHASE OVER 2 UNITS
5% OFF WITH PURCHASE OVER 3 UNITS

Add to Favorites (0)

1/1

Description

5.9" Full‑Color
E‑Paper Display

True 6‑color native rendering without color filters. 173 PPI, 0.75 mm ultra‑slim, and industry‑leading zero‑power standby. Built for retail, logistics, IoT, and beyond.

✦ 680 × 960 · 173 PPI
✦ 6 Native Colors
✦ 0.75 mm Ultra‑Thin
✦ SPI / I²C Interface
✦ Zero Standby Power
✦ 5‑Year Lifetime

Spectra™ 6 Technology

Color Revolution for Retail & IoT

True native color without color filter array — richer, brighter, and more power‑efficient.

173 PPI

True Native Color No CFA · No Rainbow

Spectra 6 eliminates the color filter array. Every pixel delivers full 173 PPI resolution with advanced anti‑glare coating — zero washout, zero artifacts.

Visual Excellence

0.75 mm

Ultra‑Thin · Fully Integrated Zero External Analog

At just 0.75 mm, the module integrates DC‑DC boost, oscillator, waveform LUT, VCOM, and SRAM on‑chip — drastically reducing PCB footprint and BOM.

Space Saving

ESP32 Ready

Instant Drive · Production Ready SPI / I²C Interface

Complete reference design with ESP32‑S3. Pre‑loaded waveform LUT works out‑of‑the‑box — refresh your screen with just a few lines of code.

Plug & Play

Spectra™ 6 vs Previous Gen

The Color Advantage

See the difference — native 6‑color vs. color filter array.

Spectra™ 6 · 6‑Color Native

85% NTSC 4,096 Color Depth 300% Vibrancy

⭐ Industry Benchmark

V S

Previous Generation · CFA

50% NTSC Limited Palette Baseline

— Outperformed —

Technical Data

Precision Specifications

Every parameter engineered for reliability, clarity, and seamless integration.

Parameter	Value
Part Number	GDEH059E01
Screen Size	5.9"
Color Technology	Spectra™ 6 · 6‑Color

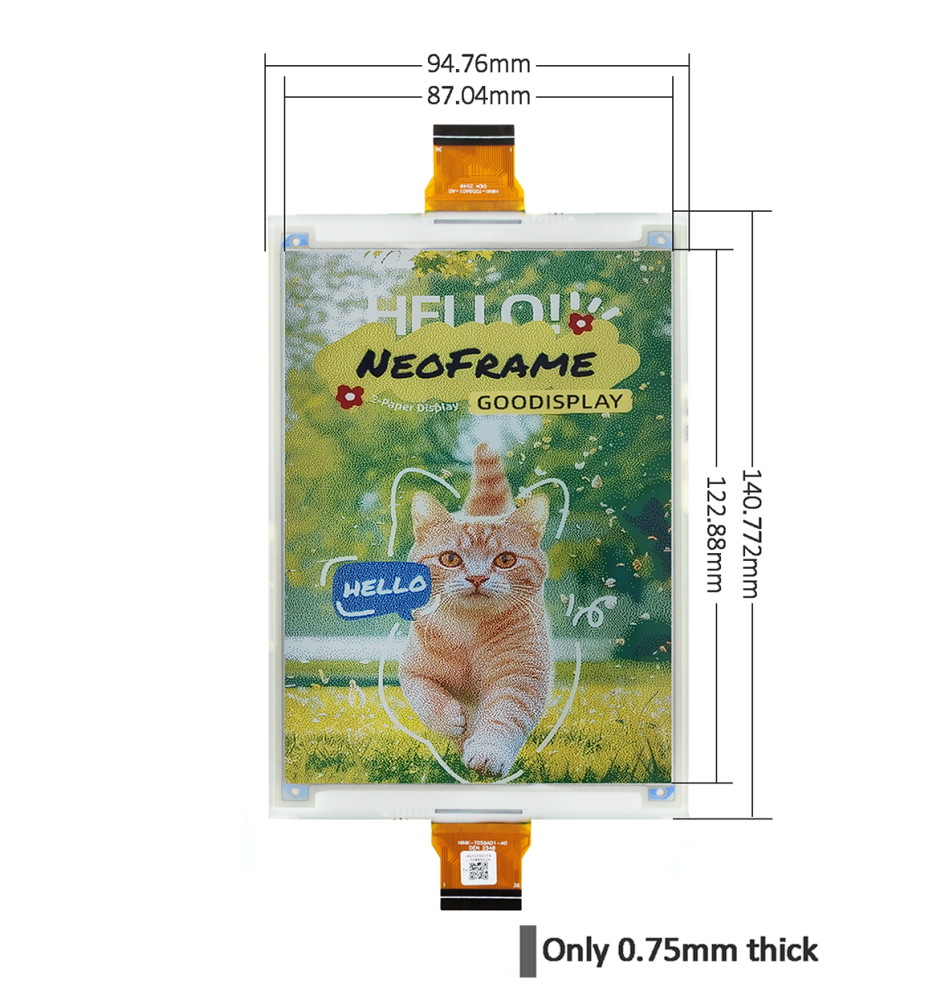

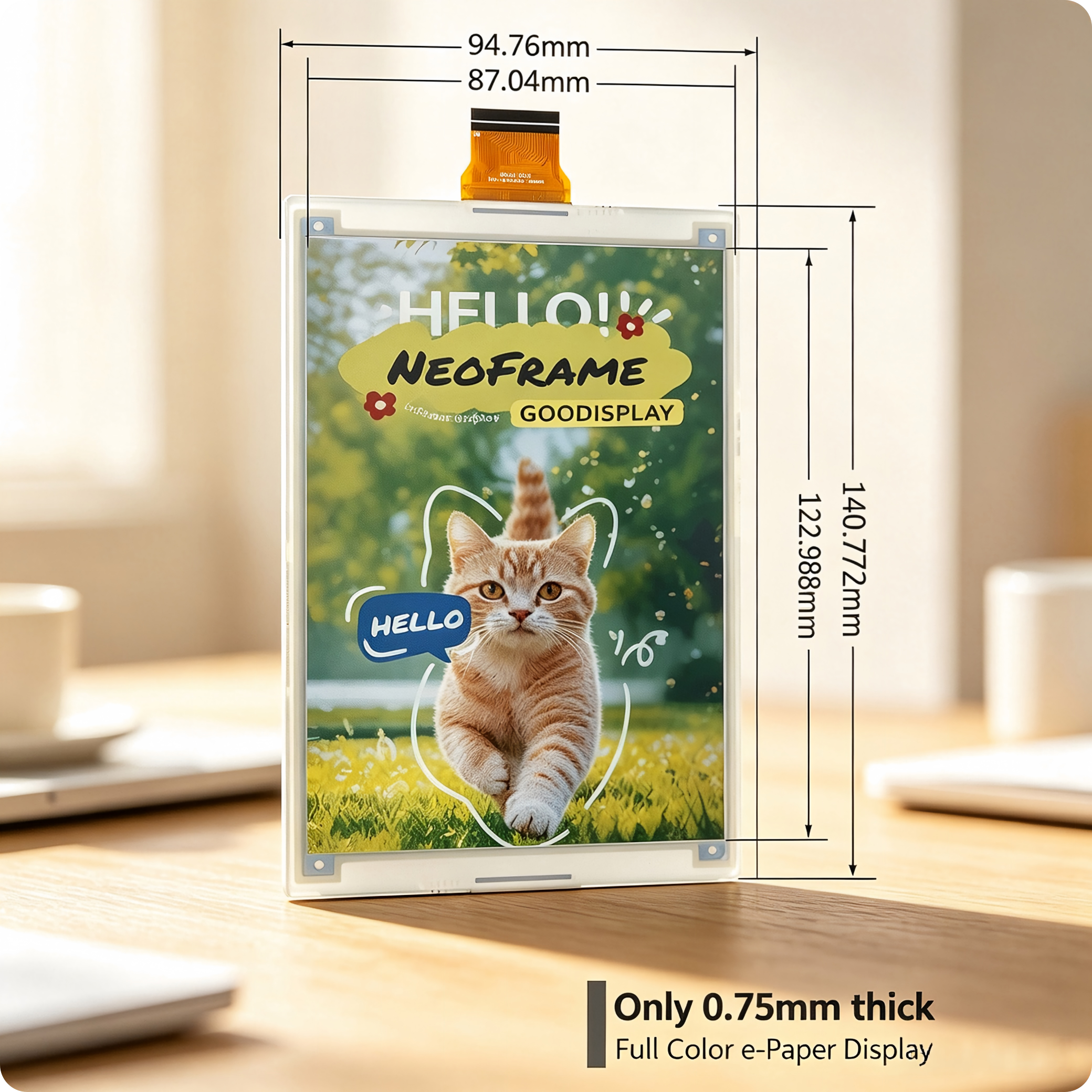

Outline (mm)	94.76 × 140.772 × 0.75
Active Area (mm)	87.04 × 122.88
Resolution	680 × 960
Pixel Pitch (mm)	0.128 × 0.128
PPI	173
Pixel Configuration	Rectangle
Operating Temperature	0 ~ 50 °C
Storage Temperature	-25 ~ 50 °C
Weight	21 ± 0.5 g
Deep Sleep Current	< 10 µA (typ.)
Supply Voltage (VDD)	2.4 V – 3.6 V
Interface	SPI / I²C
Lifetime	5 Years @ 20 °C / 60% RH

Ecosystem

Development Platform Available

Accelerate your time-to-market with our complete evaluation kit.

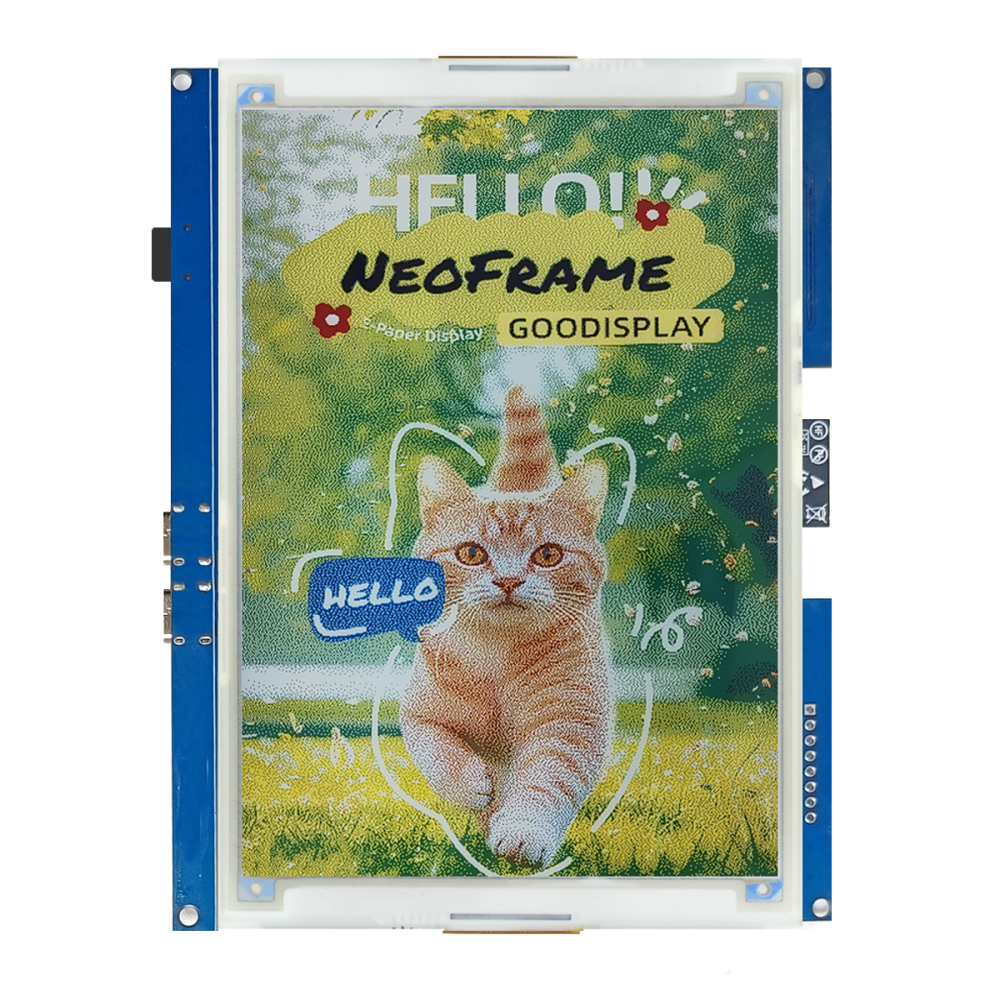

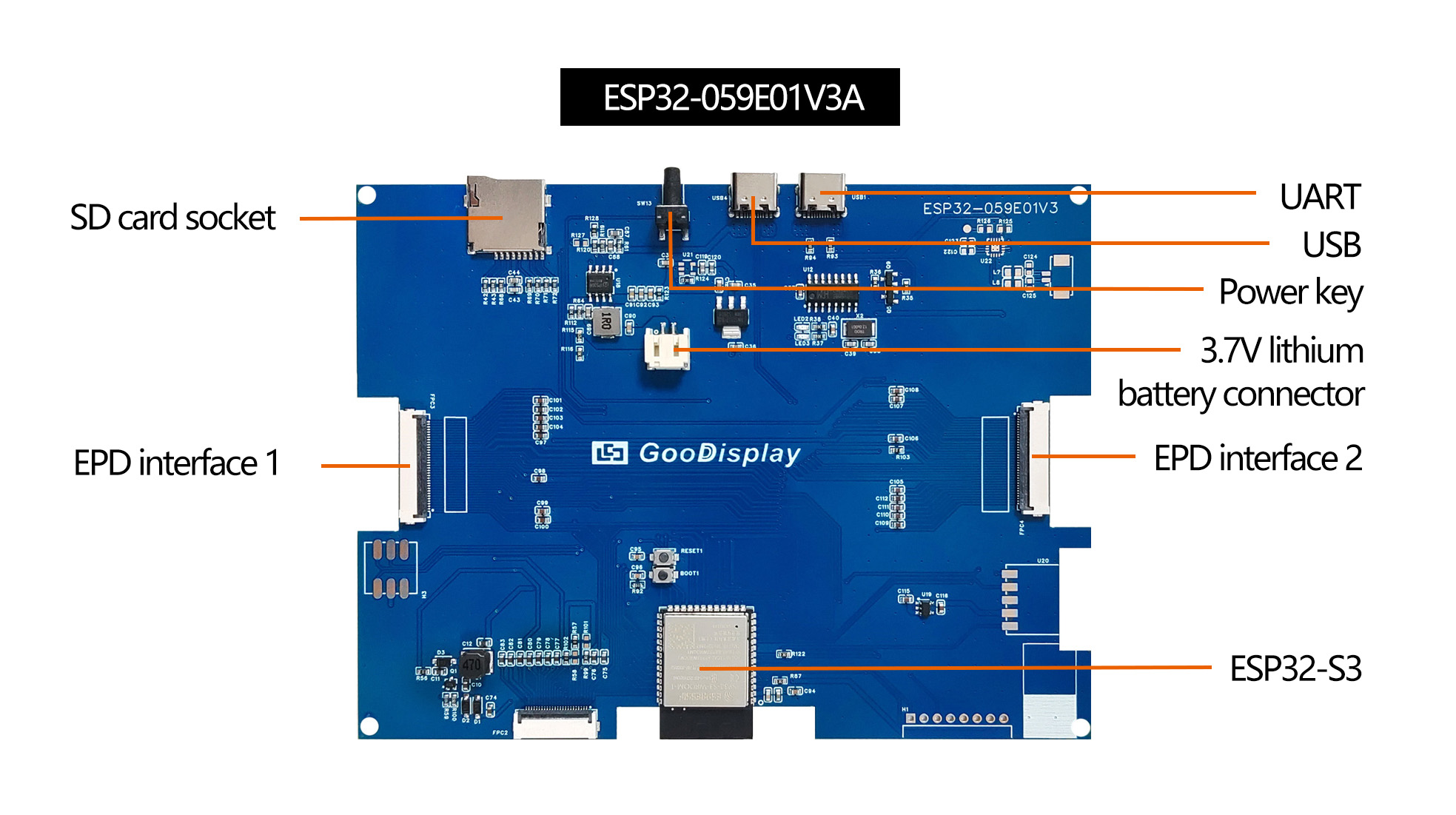

ESP32-059E01 Evaluation Kit

ESP32 core with dedicated Bluetooth & battery management
Firmware updates via SD card
Wireless image switching via Bluetooth remote control
USB-C power & programming interface

Learn More →

5.9" E-Paper Panel

GDEH059E01

ESP32 Core Board

ESP32-059E01

Complete Solution

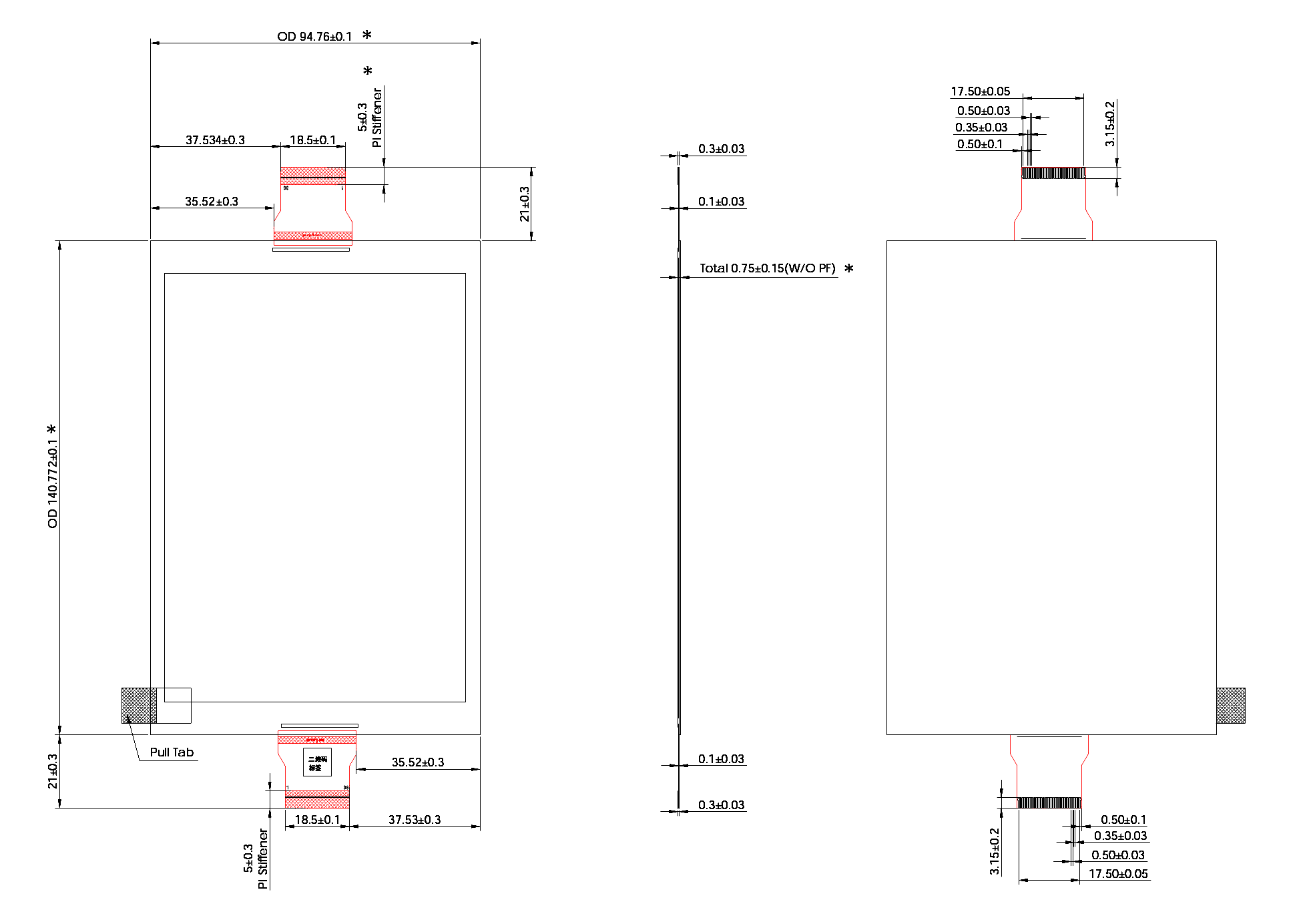

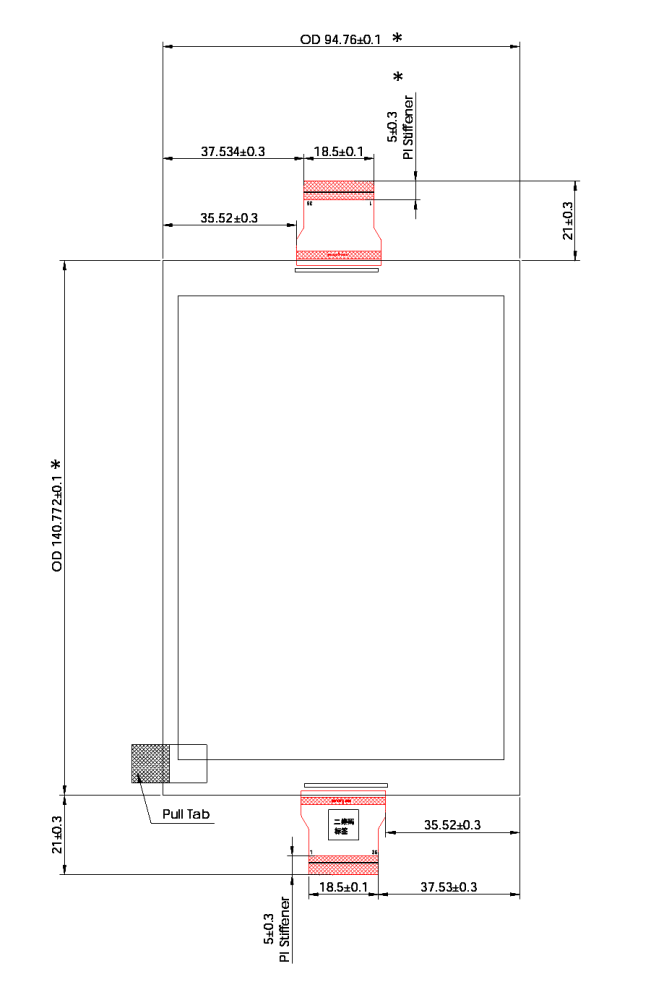

Mechanical

Drawing Detail

Precise dimensions for your enclosure and PCB layout.
Front drawing

Use Cases

Built for Real‑World Applications

From retail shelves to industrial IoT — the versatility of full‑color e‑paper.

Comics and Art Books

Provides a color reading experience close to that of physical paper books for digital comics and art e-books.

Museum/Gallery Information Signs

Used to display high-definition color images and detailed descriptions of exhibits.

E-Reader

Functions as a large-sized full-color e-notebook, suitable for reading color magazines.

Sustainability

Technology That Cares

Low power, long life, and a smaller footprint — for a better tomorrow.

Paperless Future

Each display saves ~3,000 sheets of paper annually. Over 15,000 businesses have reduced waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC‑certified packaging. 100% plastic‑free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees per 1,000 units.

Resources

Files & Downloads

Everything from datasheets to sample code — all in one place.

📄 Specifications

🛠️ Software & Tools

Explore More

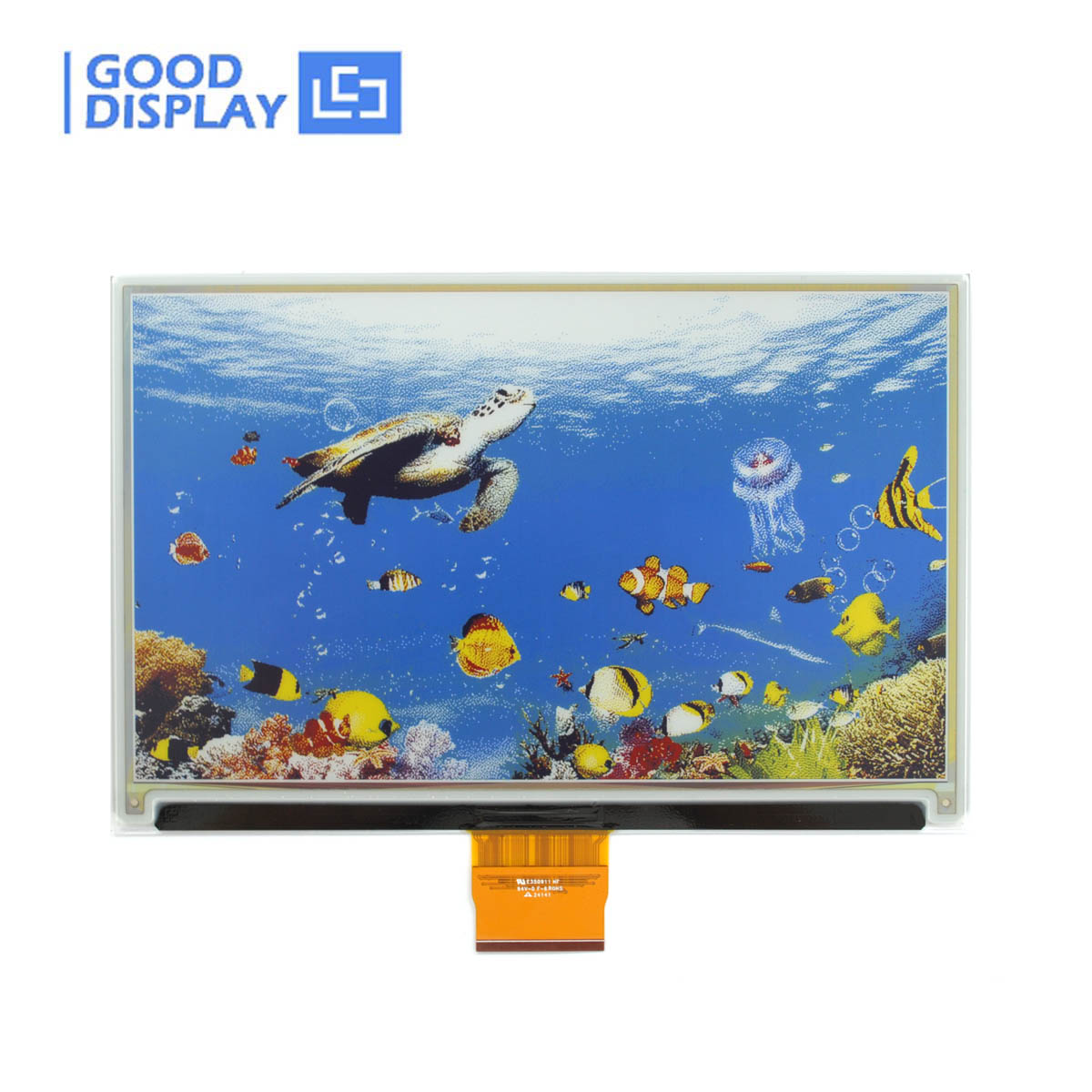

Other Spectra 6 Displays

Contact

Let's Build Together

Expert support, custom solutions, and fast turnaround.

📧 Email us

buyepaper@good-display.com

We offer front‑light, touch panel, and custom FPC options.
Visit our official website →

Certifications: CE · ISO 14001 · ISO 9001 · REACH · RoHS
