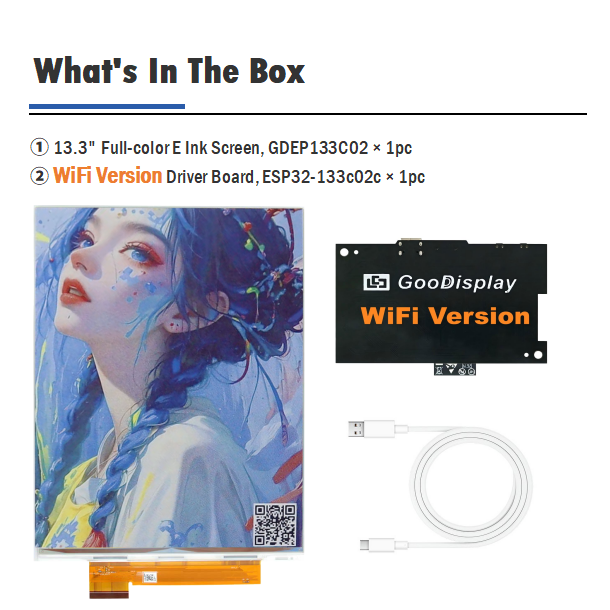

    with WIFI Version Board
    with WIFI Version Board

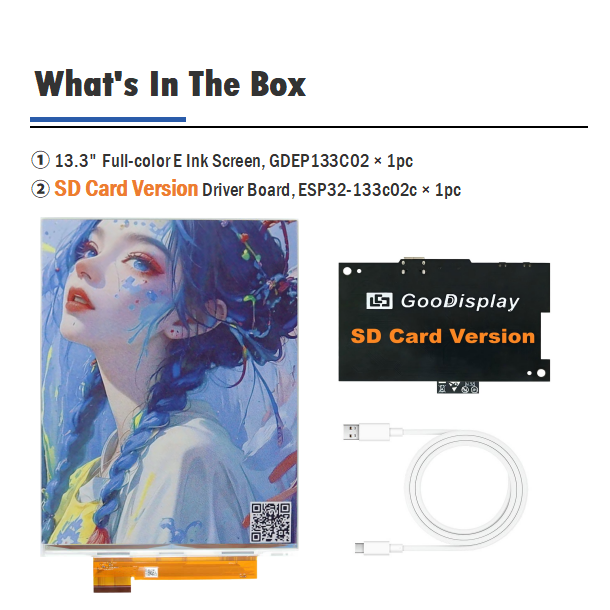

    with SD Card Version Board
    with SD Card Version Board
    Bluetooth + Li-ion Battery Version
    Bluetooth + Li-ion Battery Version
    Please select the information you wantX
Quantity:
0 in stock
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
1/1
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
  • Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI ePaper Display, GDEP133C02
Frequently Bought Together
more
Frequently Bought Together
  • Description
13.3" Spectra™ 6 · 1600×1200 · 150.38 PPI · Ready-to-Display Album Solution

GDEP133C02 13.3"
Color E Ink Spectra™ 6 Display

Six native colors — black, white, red, green, blue and yellow. 1600×1200 resolution, 150.38 PPI, QSPI interface, and 0.876 mW standby power. 64% wider color gamut than the previous generation. Ideal for dynamic ESLs, gallery signage, e-ink photo frames — and now available as a ready-to-display album solution.

One display, three update modes · Enhanced by our dedicated ESP32-133C02 / IL development boards

View Specifications Download Datasheet Album Solution

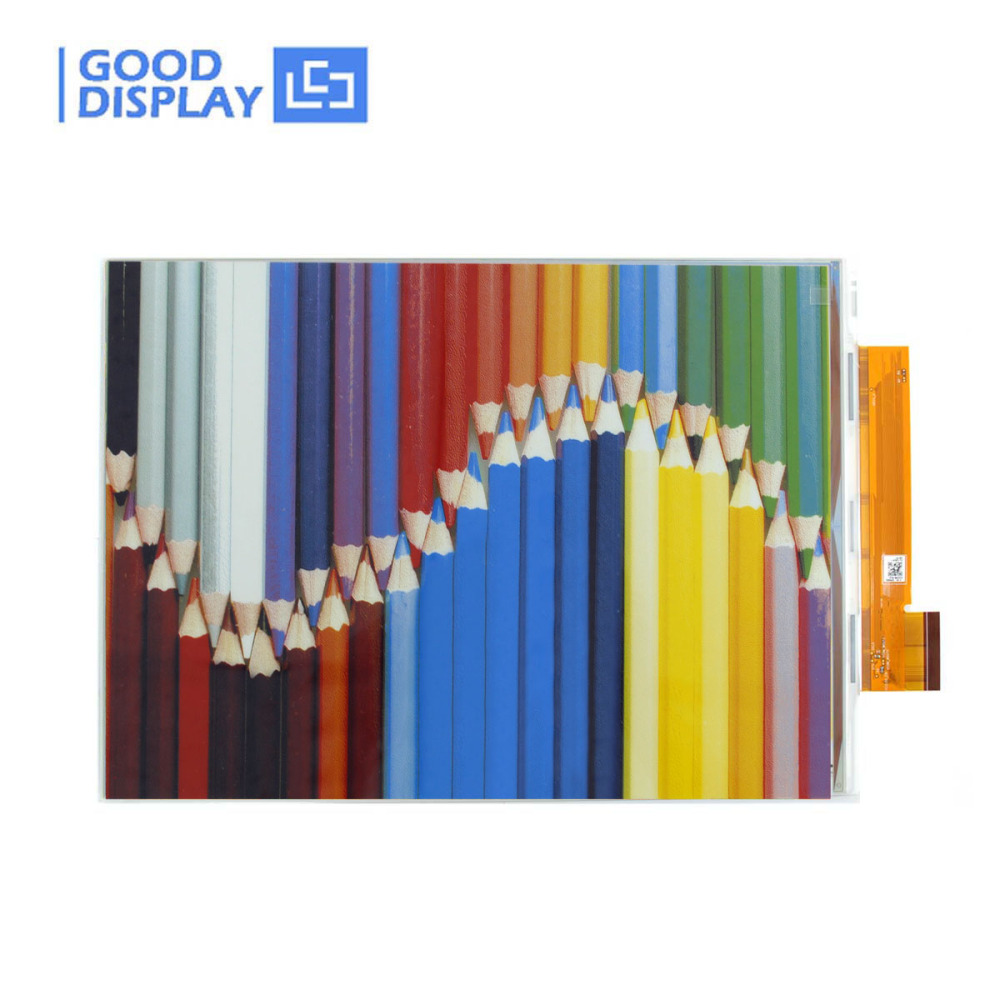

GDEP133C02 13.3 inch Spectra 6 display

Key Features

6-Color Imaging System

Advanced native color rendering with black, white, red, green, blue and yellow pigments. No color filter array — every pixel delivers full resolution with true-to-life vibrancy.

6 Native Colors    85% NTSC    300% Saturation

Ultra HD Resolution

150.38 PPI with 1600×1200 pixel density for crystal-clear content. Pairs with QSPI interface for fast, high-bandwidth image transfer on large-format panels.

1600×1200 Resolution    150.38 PPI    QSPI Interface

Wide Temperature Range

Operates flawlessly from 0°C to 50°C in any environment. Ultra-low 0.876 mW standby power and 19s full refresh deliver reliable long-term signage performance.

0–50°C Operating    0.876 mW Standby    19s Refresh

Spectra™ 6 Color Revolution

64% wider color gamut than previous generation technology

Spectra™ 6

Color depth 4,096 colors
NTSC coverage 85%
Saturation 300%
Industry Benchmark
VS

Previous Generation

Color depth Limited palette
NTSC coverage 50%
Saturation Baseline
— Outperformed —

Technical Specifications

Part Number GDEP133C02
Size 13.3 inch
Color Technology E Ink Spectra™ 6 · 6-Color
Resolution 1600 × 1200
PPI 150.38
Interface QSPI
Connector 60 Pin FPC
Outline Size 208.8 × 284.7 × 0.85 mm
Active Size 202.8 × 270.4 mm
Pixel Pitch 0.169 × 0.169 mm
Operating Temp. 0°C ~ 50°C
Storage Temp. -25°C ~ 50°C
Refresh Time 19 s (full)
Standby Power 0.876 mW
Refresh Power 150.2 mW (typ.) / 1172.2 mW (high)
Display Mode Pure reflective, bi-stable
Packaging 12 pcs/box · 7 kg · 520×330×180 mm

Product Details

GDEP133C02 technical drawing

Matching Driver Boards

One board, three update modes — choose the configuration that fits your workflow.

Mode 1

SD Card · Offline Playback

Best for standalone installations without network. Images stored on microSD and auto-played on power-up.

  • No Wi-Fi required
  • Plug-and-play on power-up
  • Ideal for remote / kiosk signage
Mode 2

Wi-Fi · Browser / PC Tool

Update over the air from any phone, tablet or PC — no app install required. Batch uploads supported via PC tool.

  • Browser Web App — scan & update
  • PC Tool — batch & repeat uploads
  • Works on Chrome, Edge, Safari

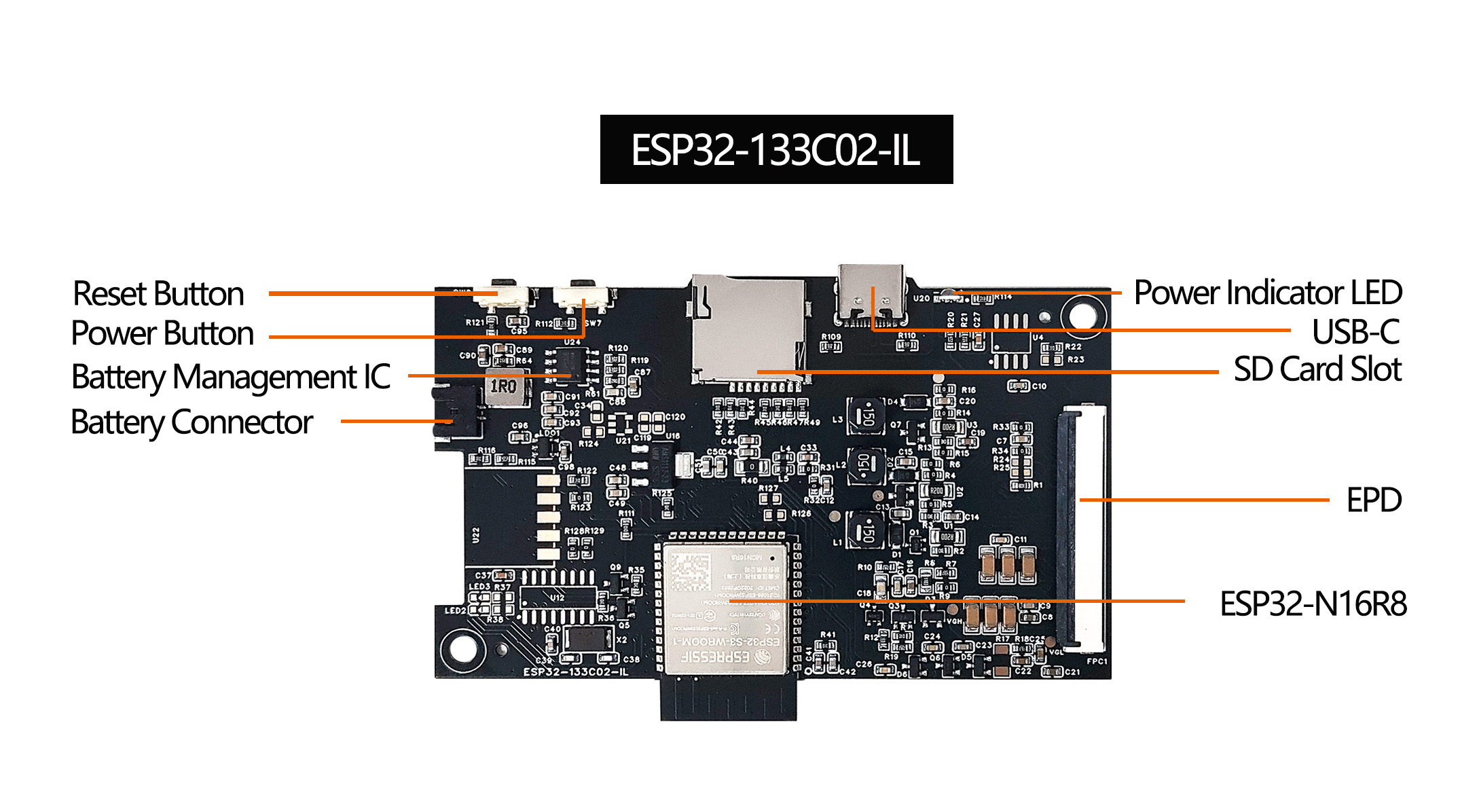

ESP32-133C02-IL Only

Bluetooth · Color Mixing

Available exclusively on the ESP32-133C02-IL upgrade board. Enables Bluetooth control and advanced color-mixing processing.

  • Bluetooth firmware — not publicly released
  • Advanced color-mixing / dithering
  • Pre-flashed on IL boards only
Firmware Flashing Notice The Bluetooth firmware on the ESP32-133C02-IL is not publicly released. Once the Wi-Fi firmware is flashed onto an IL board, it cannot be restored to Bluetooth mode. Please confirm your preferred update method before flashing. Standard ESP32-133C02 boards support SD Card + Wi-Fi only.

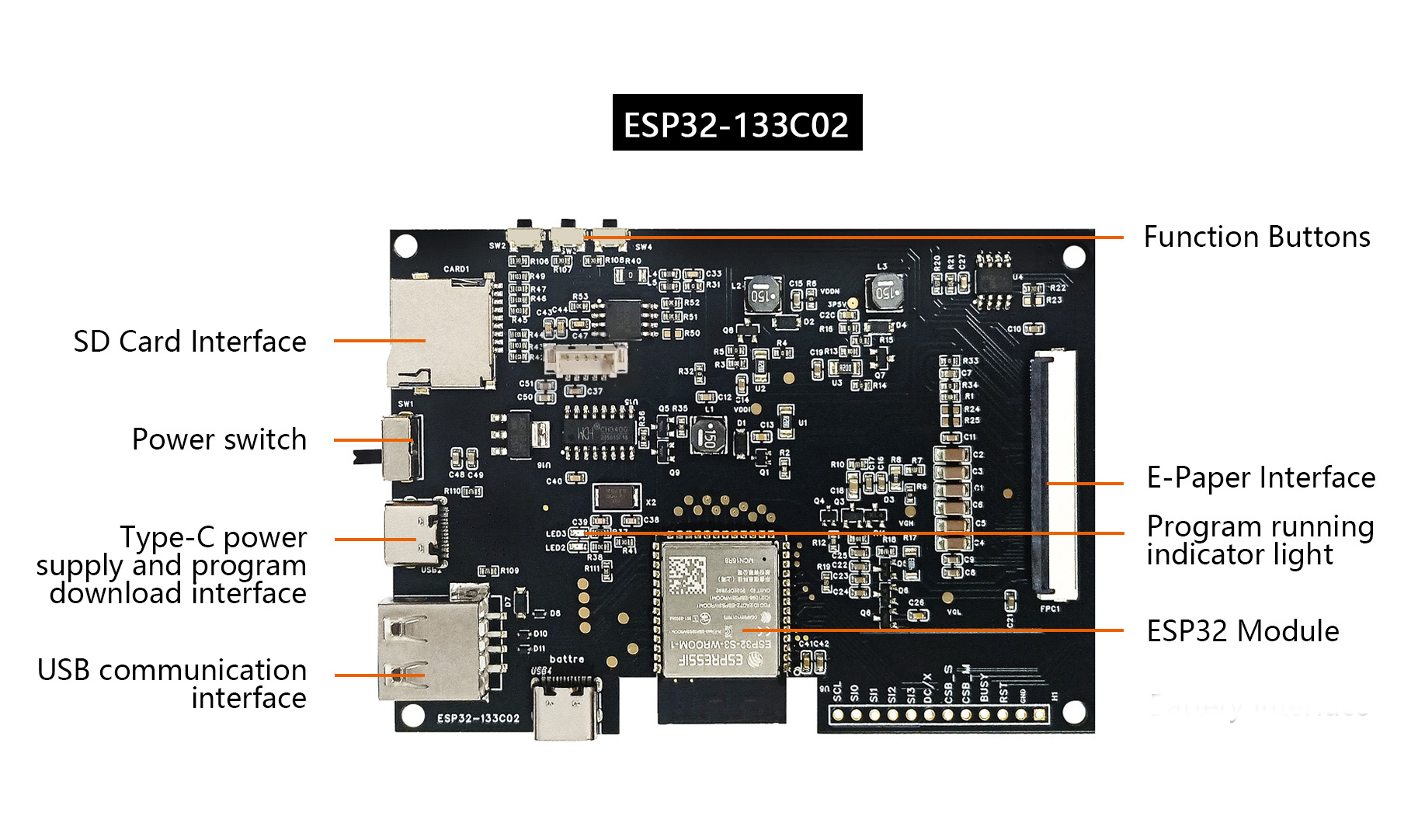

ESP32-133C02 QSPI Development Board

ESP32-133C02 QSPI Development Board

Engineered to drive the GDEP133C02 e-paper display. ESP32 core with dedicated Bluetooth & battery management, firmware updates via SD card, wireless image switching, and USB-C power & programming. Standard version supports SD Card + Wi-Fi; the IL upgrade adds Bluetooth & color mixing.

Explore ESP32-133C02 for more information →

Enhanced by Our Development Board.
See Every Detail.

Our dedicated ESP32-133C02 firmware applies advanced dithering and color-mixing algorithms — turning raw Spectra™ 6 output into richer, more lifelike images.

ESP32-133C02-IL Exclusive Color-mixing enhancement is available only on the ESP32-133C02-IL upgrade board via its dedicated Bluetooth firmware. Standard ESP32-133C02 boards support SD Card + Wi-Fi update modes.
Standard Processing Native Spectra™ 6 palette · 4,096 colors
Enhanced
Enhanced by ESP32-133C02-IL Color-mixing dithering · richer tones & smoother gradients

Smoother Gradients

Advanced dithering blends the six native pigments into perceptually smooth transitions — no harsh banding.

Richer Skin Tones

Color-mixing algorithms preserve subtle warm tones in portraits — ideal for photo frames and gallery displays.

True-to-Life Color

Perceptual color mapping pushes the 6-color gamut toward natural, eye-pleasing results without extra hardware.

Note: Color-mixing enhancement requires the ESP32-133C02-IL board with factory Bluetooth firmware. Standard ESP32-133C02 boards deliver native Spectra™ 6 output only.

Ready-to-Display Album Solution

The 13.3" Spectra™ 6 panel, pre-assembled into a finished photo-album frame — ship it, hang it, done.

Finished Product 13.3" Spectra™ 6 · Album Frame

Ship-Ready E-Ink Photo Album

A complete, factory-assembled album frame built around the GDEP133C02 panel and ESP32-133C02 board. No enclosure design, no wiring, no firmware integration — open the box and display.

Pre-assembled frame Wi-Fi + SD card update USB-C powered Wall / desk mount Custom bezel available
Request Sample View Product Page

3 Ways to Update Your Display

Same display, three ways to send your images — pick the one that fits your setup.

Method 1

SD Card

Offline · No Wi-Fi required

Best for standalone installations. Images are stored on a microSD card and play automatically on power-up.

1 Convert your images with the dithering tool on a PC.
2 Copy the converted files to a microSD card.
3 Insert the card and power on — the display updates.
Method 2

Wi-Fi · Browser

Phone / Tablet / PC · No app install

Scan to open the InkFrame Web App

Scan with Chrome, Edge or Safari

The quickest way to test. Open the web app in any browser — nothing to download.

1 Connect your phone or PC to the display's Wi-Fi.
2 Scan the QR code, or open the web app link below.
3 Pick an image and tap Update.
Method 3

Wi-Fi · PC Tool

Windows PC · Batch & repeat uploads

Use the official PC tool to push images over Wi-Fi — handy for batch processing or repeated updates.

1 Download and open the PC tool on your Windows computer.
2 Make sure the PC and the display are on the same Wi-Fi network.
3 Drop in your images and click Update.
Not sure which one to use? Choose the SD card for standalone / offline installations, the browser app for the fastest test, and the PC tool for batch or repeat updates. Bluetooth color-mixing requires the ESP32-133C02-IL board (firmware not publicly released).

Files & Download

Click any row to open the file in a new tab

Before You Flash — Firmware Compatibility ESP32-133C02-IL boards ship with Bluetooth + color-mixing firmware. This firmware is not publicly released. Flashing the Wi-Fi firmware will permanently remove Bluetooth mode — it cannot be restored. Standard ESP32-133C02 boards support SD Card + Wi-Fi only. Confirm your update method before flashing.

Typical Applications

Dynamic Electronic Shelf Labels

Dynamic Electronic Shelf Labels

Large-format color ESLs with bi-stable image retention — update pricing, promotions and product info without paper or wiring.

Energy-Efficient Signage

Energy-Efficient Signage

0.876 mW standby power makes it ideal for public information boards, wayfinding and low-power digital signage in any environment.

Gallery Display Screens

Gallery Display Screens

High-definition color images and detailed descriptions of exhibits — a paper-like viewing experience for museums and galleries.

E-Ink Photo Frames

E-Ink Photo Frames

Display full-color artwork and photography without glare or power draw. The perfect paper-like alternative for digital art frames.
