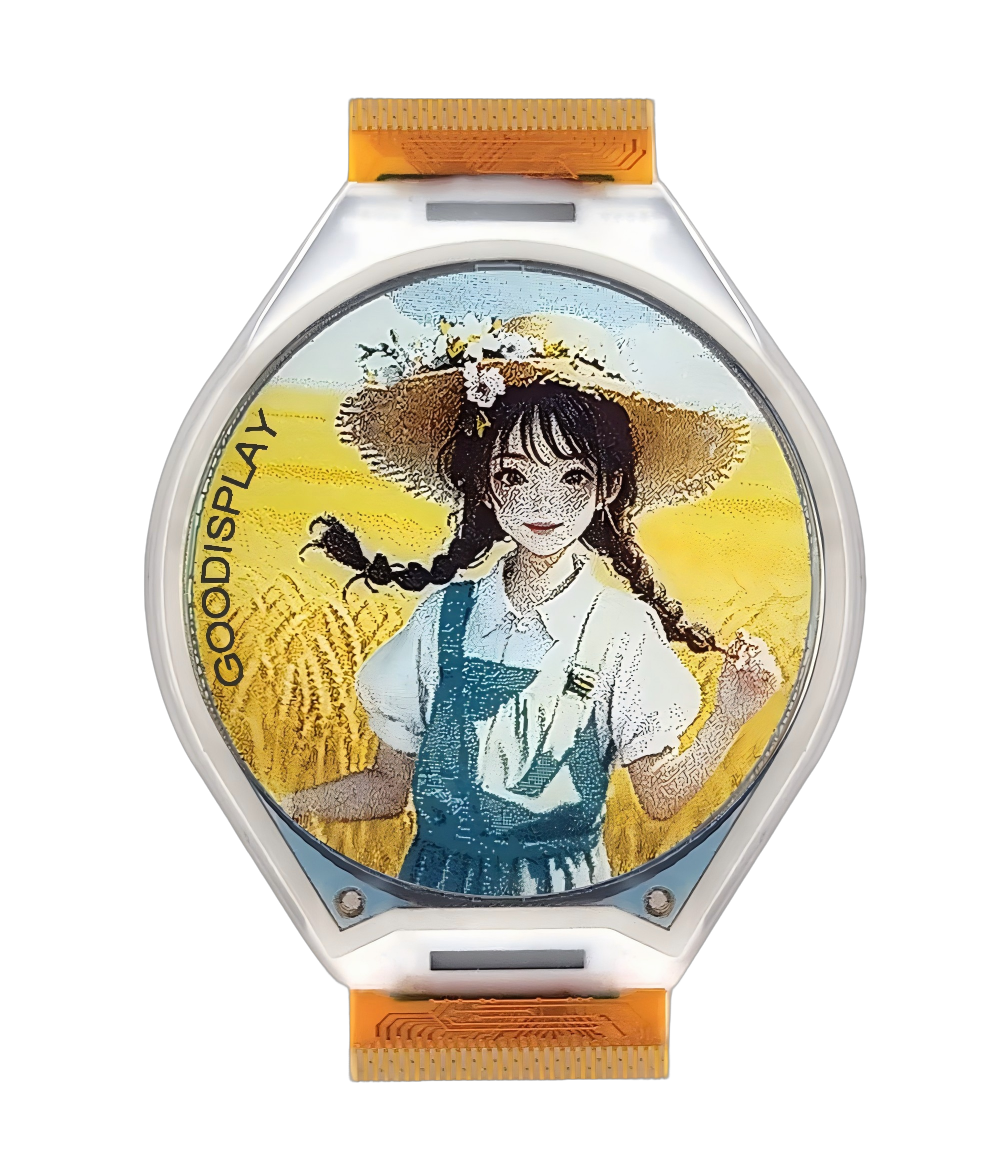

Transform your displays with the vibrant and versatile 1.69-inch E Ink Spectra 6 screen. Featuring six stunning colors—this display brings your ideas to life with unparalleled clarity and precision.

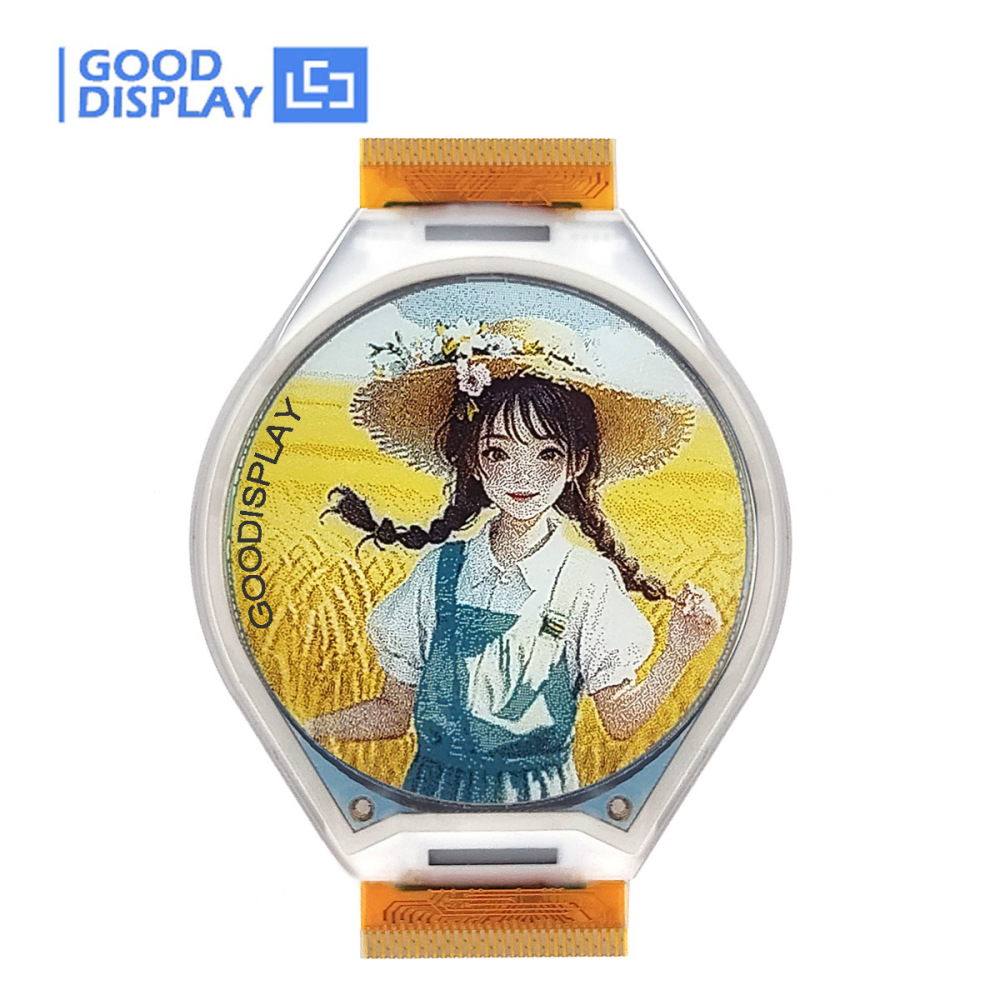

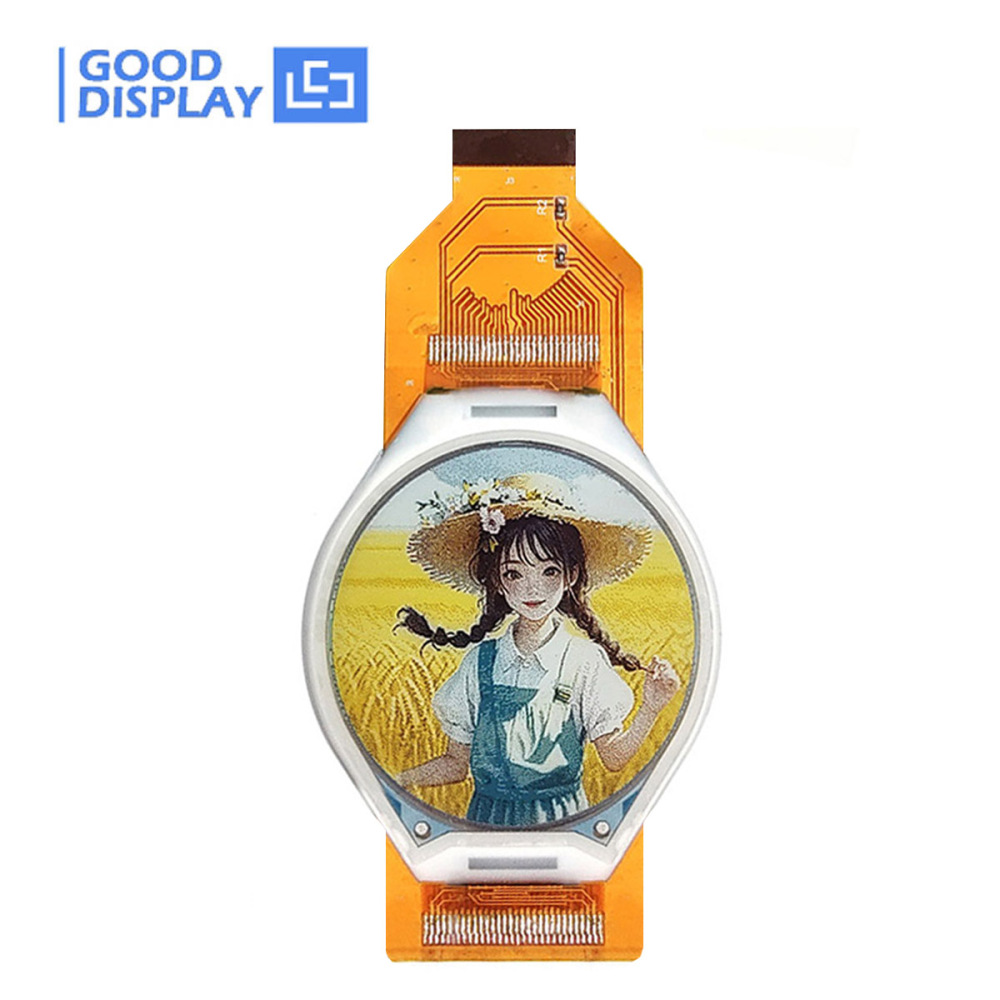

World's first 1.69" circular color E-Paper display with six vibrant colors for stunning visual experiences.
Zero power draw when static - only consumes energy during screen refresh, enabling months of battery life.
34% reflectance for excellent contrast with anti-glare, scratch-resistant coating.
64% wider color gamut than previous generation technology

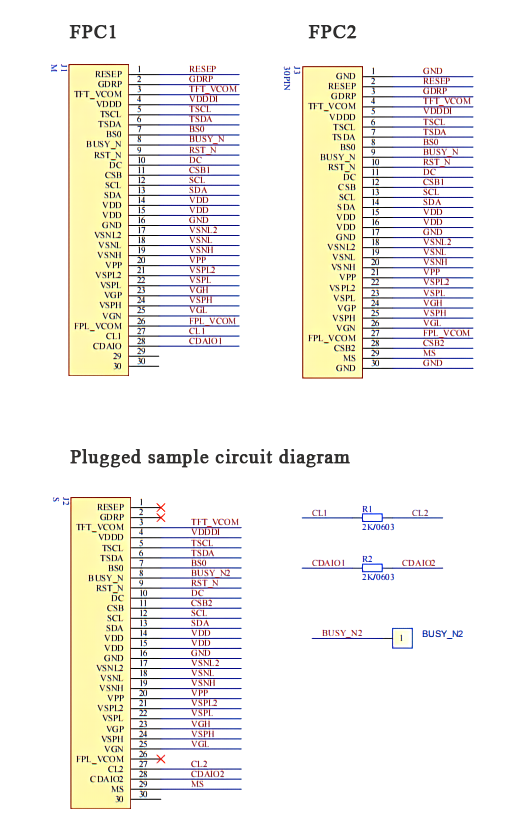

| Pin | Signal | Type | Description |
|---|---|---|---|
| 1 | RESEP | I | VGP boost control loop sensing |
| 8 | BUSY_N | O | Busy status indicator (active low) |
| 9 | RST_N | I | Global reset (active low) |
| 10 | DC | I | Data/command selection (4-wire SPI mode) |
| 11 | CSB | I | Chip select signal |
| 12 | SCL | I | SPI clock |
| 13 | SDA | I/O | SPI data line |
| 23 | VGP | I | Positive gate voltage |
| 25 | VGN | I | Negative gate voltage |
Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.
95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.
90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at www.good-display.com.
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at buyepaper@good-display.com.
