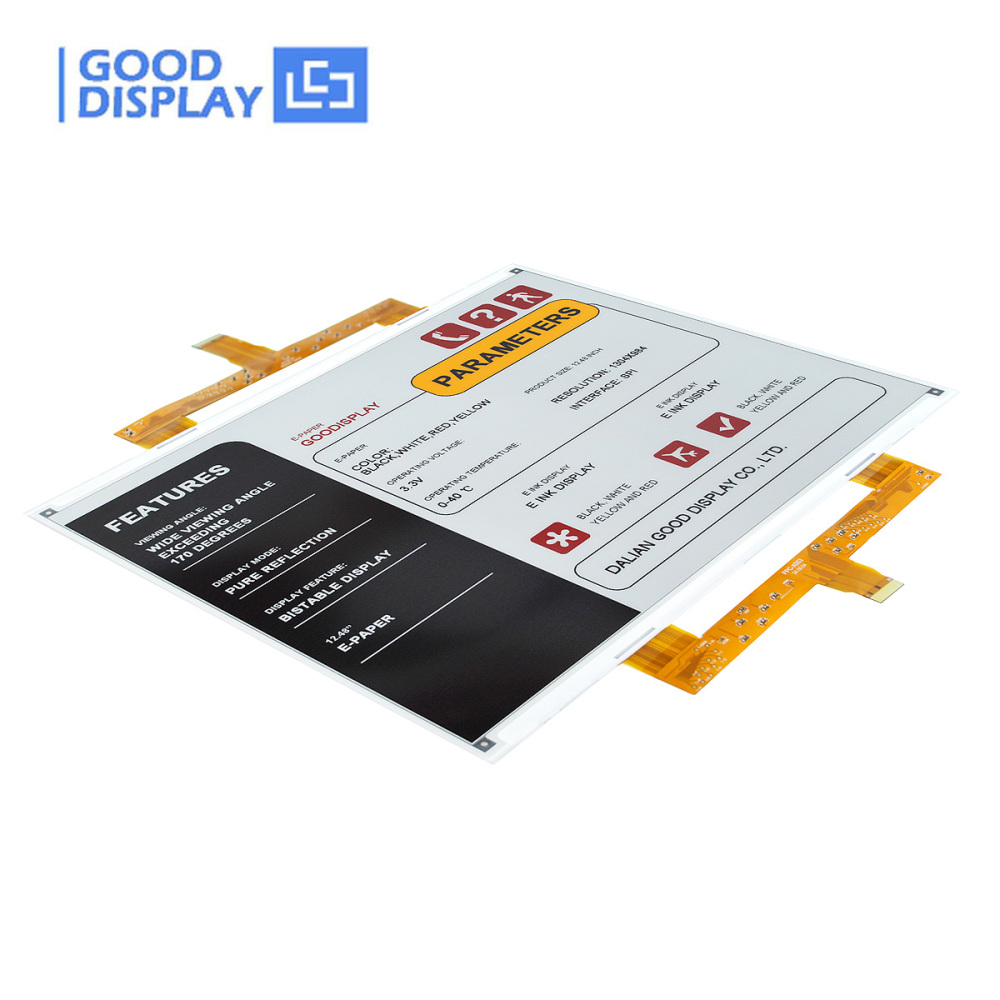

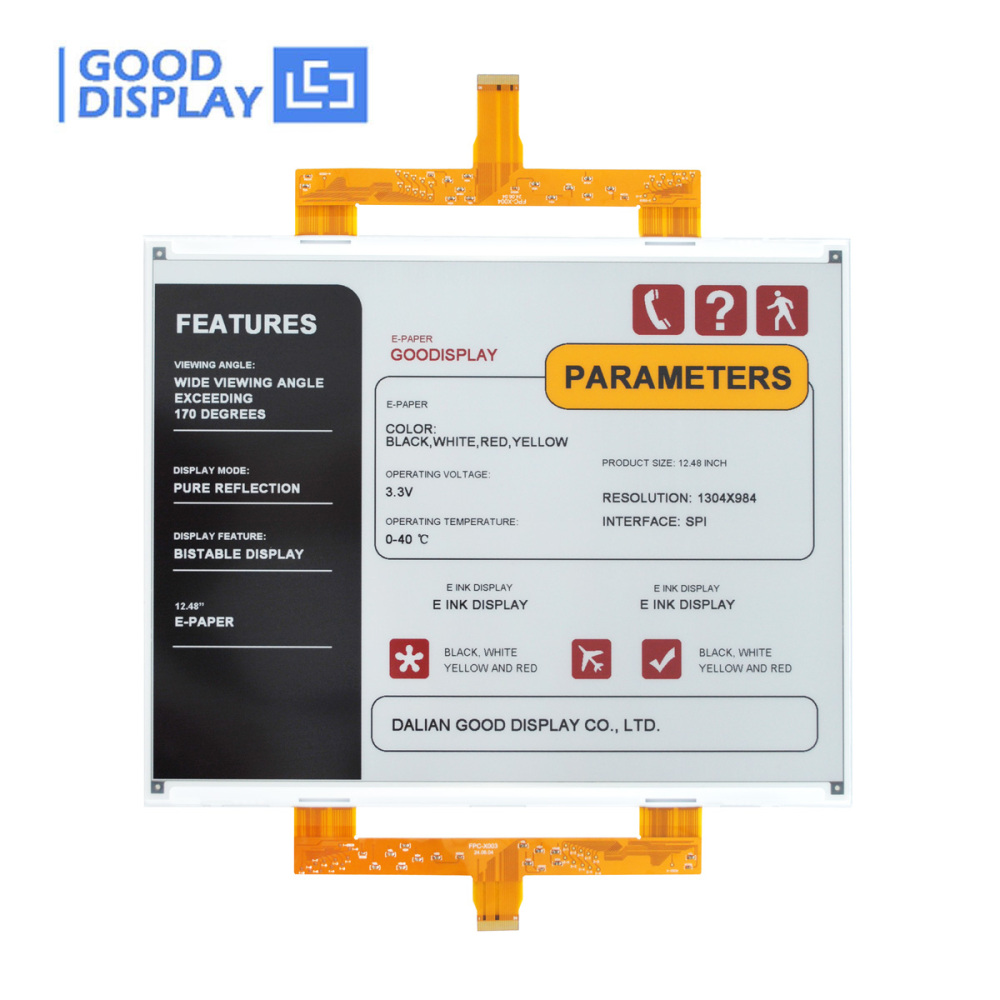

12.48" Ultra-Low Power Quad-Color E-Ink Display 1304×984 HD Eco-Friendly Digital Signage

GDEY1248F51
GooDisplay's 12.48inch Quad-Color E-Paper Display: Change Prices, Not Batteries – 0.024mW Standby Power, Perfect for Smart Retail & IoT.
Have a question?
Price:
USD
$169.50
  • product:

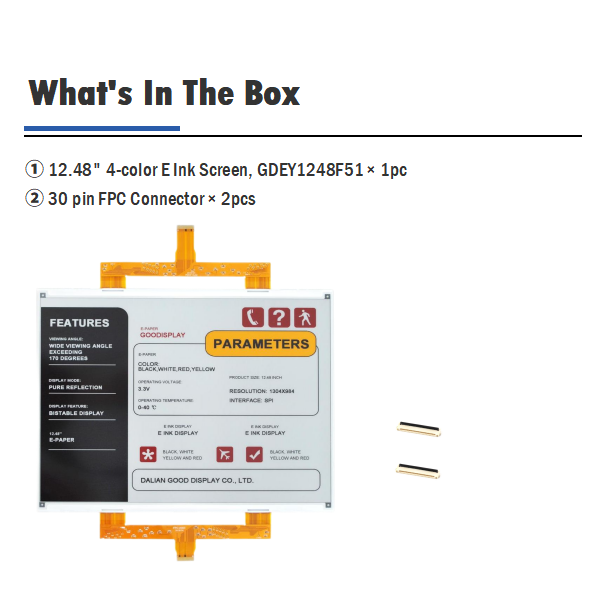

    EPD

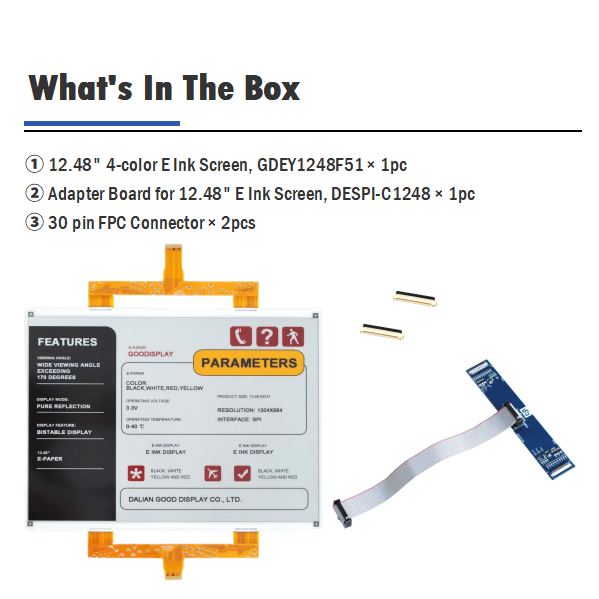

    EPD with adapter board

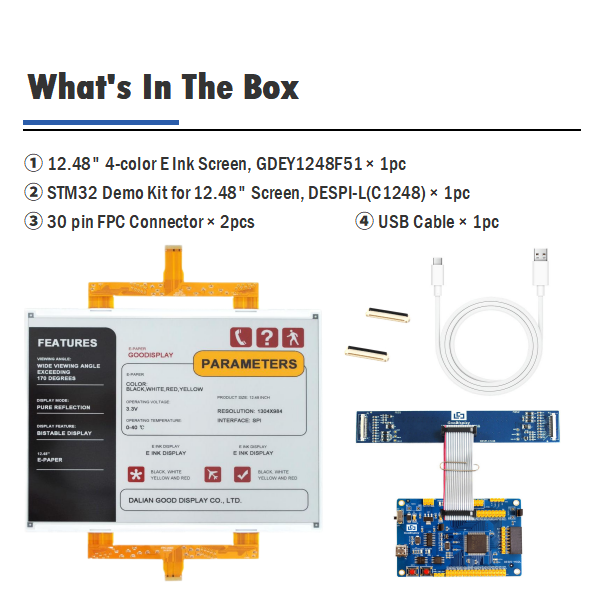

    EPD with STM32 Demo Kit
Quantity:
-
+
(58 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews

12.48" Color E-Ink Display

Revolutionize your visual display with our 12.48" Quad-Color E-Ink Screen! This large-format, ultra-low-power ePaper display is perfect for smart retail, electronic shelf labels, conference signage, and industrial control systems. With a crisp resolution and 130 DPI, it delivers clear content in both horizontal and vertical orientations.

  •
  • ✔️ 1304x984 High Resolution
  • ✔️ SPI Interface
  •
  • ✔️ Black, White, Red, Yellow
  • ✔️ Ultra-Low Power Consumption

Core Advantages


130 DPI

Crisp Visual Performance

  • 1304×984 HD Resolution
  • 252.98×190.9mm Active Area
  • 0.194mm Pixel Pitch
Black
White
Red
Yellow

Quad-Color Clarity

  • 2-Level Grayscale
  • 8:1 Contrast Ratio
  • Paper-Like Readability

▶  Ideal for price tags & alert systems

0.024mW
201.3mW

Energy Efficient

  • 0.024mW Standby
  • ≈3+ Years on Coin Cell
  • Zero Power When Static



Technical Specifications

Part Number GDEY1248F51
Color Black, White, Red, Yellow
IC IST7166 x 4
Size 12.48"
Type Dot Matrix
Operating Temp. 0℃~40℃
Resolution 1304x984
DPI 130
Storage Temp. -25℃~60℃
Outline Size(mm)  261.4 x 211 x 1.20
Connector 30 Pin x 2 | 0.5mm
Power Consumption Of The Refresh(mW) -201.3
Active Size(mm)  252.98 x 190.9
Interface SPI
Standby Power Consumption (mW) 0.024
Pixel Pitch(mm)  0.194 x 0.194
Full Refresh(s) 26




Drawing Details

Matching Driver Boards

DESPI-C1248

E-Paper adapter for 12.48inch E Ink displays

View Details

DESPI-L(C1248)

Industrial Cortex-M MCU development board

View Details

Files & Download

Typical Applications

Education E-Book Application

E-Book & Comic Readers

Perfect solution for next-generation e-readers with paper-like display quality and sunlight readability

Retail Digital Signage

Smart Digital Signage

Ideal for electronic shelf labels, price tags and promotional displays in retail environments.

Industrial

Industrial Control Systems

Reliable solution for factory automation displays and equipment status monitoring.

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

About Us

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at www.good-display.com.
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at buyepaper@good-display.com.

Certifications

ISO 14001 Environmental Management
RoHS Compliant | Energy Star Certified
