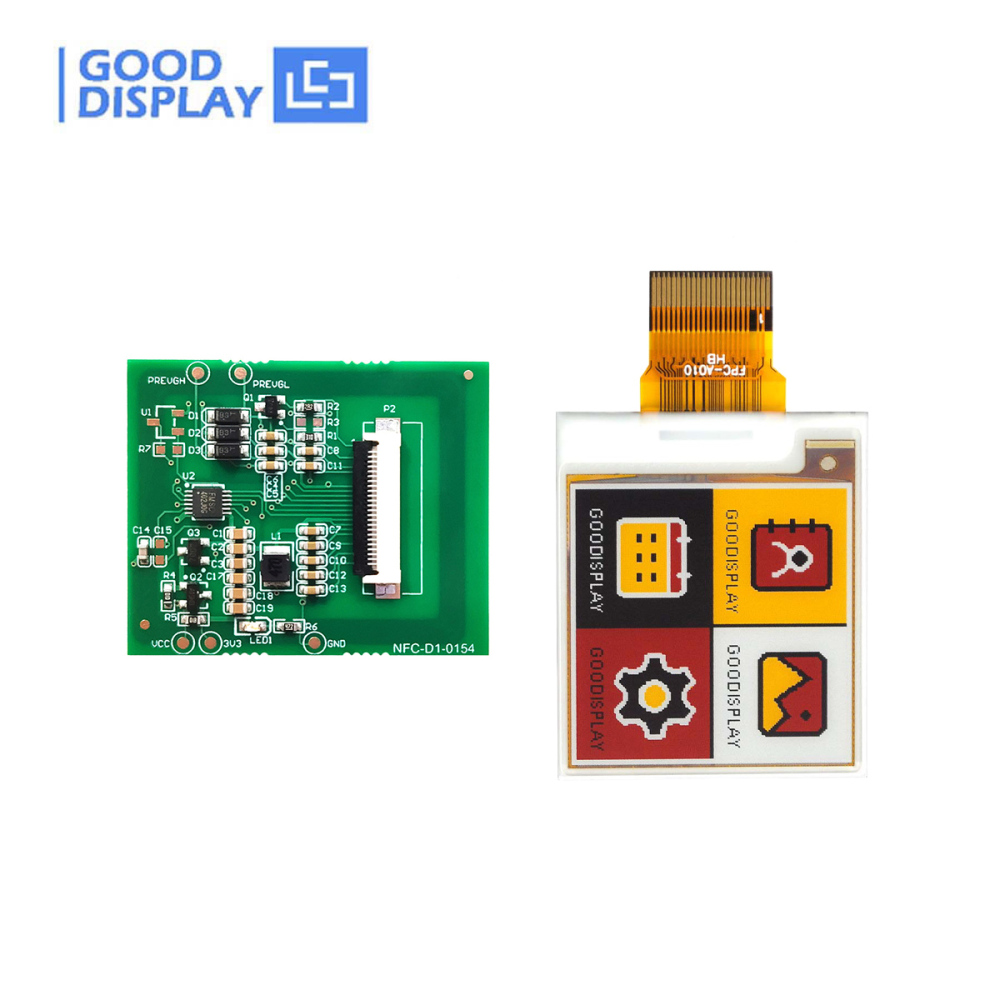

1.54 inch E-paper black, white, yellow and red Eink 152x152,GDEY0154F51

This is a 1.54 inch small e-ink display, 152x152 resolution, SPI interface, and the display is capable to display images with multi-color EPD.
  • product:
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
(200 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)

1.54 Inch Tri-Color E-Paper Display (Black, White, Yellow, Red) - 152x152 Resolution


This 1.54-inch e-ink display with 152x152 resolution features black, white, yellow, and red colors. It uses an SPI interface and retains images without power, making it perfect for low-power devices like solar or battery-powered applications. The GDEY0154F51 display offers a full refresh in 26 seconds, can be viewed horizontally or vertically, and has a wide viewing angle over 170 degrees. With no blue light emission, zero radiation, and anti-glare hard-coated surface, it's easy on the eyes. Operating at 3.3V and between 0-40℃, it’s an energy-efficient, long-term stable solution for your e-paper needs.



Special Features

    Our product boasts distinctive features that set it apart from the competition
     ● Vibrant Multicolor Display: Elevate your visual experience with stunning black, white, red, and yellow hues. Perfect for showcasing dynamic information with a pop of color.
● Features vibrant colors and the ability to achieve color mixing: This allows for enhanced visual appeal and richer display options, making it suitable for applications that require bright and diverse colors.
 ● Ultra-Low Power Consumption: Thanks to bistable technology, our display consumes no power when not refreshing. Ideal for long-lasting, energy-efficient applications.
 ● Superior Viewing Angle: Enjoy a crystal-clear view from any direction with an impressive 170-degree viewing angle. Your content remains sharp and readable, no matter where you look.
 ● Eye-Friendly Design: Say goodbye to eye strain with our blue light-free, zero radiation display. Perfect for smart tags, wearable devices, and more, ensuring comfort during prolonged use.
 ● Anti-Glare Surface: Experience unparalleled readability even under bright light. Our hard-coated anti-glare surface ensures your content is always visible, indoors or outdoors.
 ● Reliable Long-Term Supply: Count on consistent, stable supply for all your bulk purchasing needs. Ideal for industrial instruments, smart cards, and any project requiring dependable delivery.



Product Specifications

    Please refer to the product specifications for more details
SIZE 1.54 inch TYPE Dot Matrix
IC JD79661 COLOR Black, White, Yellow, Red
OUTLINE SIZE(mm) 37.32x31.8x1.0 MAX GRAYSCALE 2
ACTIVE SIZE(mm) 27.512x27.512 TIME OF REFRESH(S) 26
STORAGE TEMP. -25℃~70℃


Product Drawings

    Please refer to the product drawings for detailed dimensions


Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
Click image to buy
a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)
d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)


Related Information Download

Click on the subheadings below to download
  ● GDEY0154F51 Specification ● GDEY0154F51 Arduino Sample Code
  ● JD79661 Driver IC Datasheet ● GDEY0154F51 ESP8266 Sample Code
  ● GDEY0154F51 STM32 Sample Code ● The latest Catalog of ePaper display
  ● GDEY0154F51 ESP32 Sample Code ● Disabling-Pop-Up-Blockers
  ● Picture Production and Bitmap Convert for GDEY0154F51 ● E Ink Prism Specification
