Any questions, just feel free to contact me, my email is: info@good-display.com
☆ INTRODUCTION

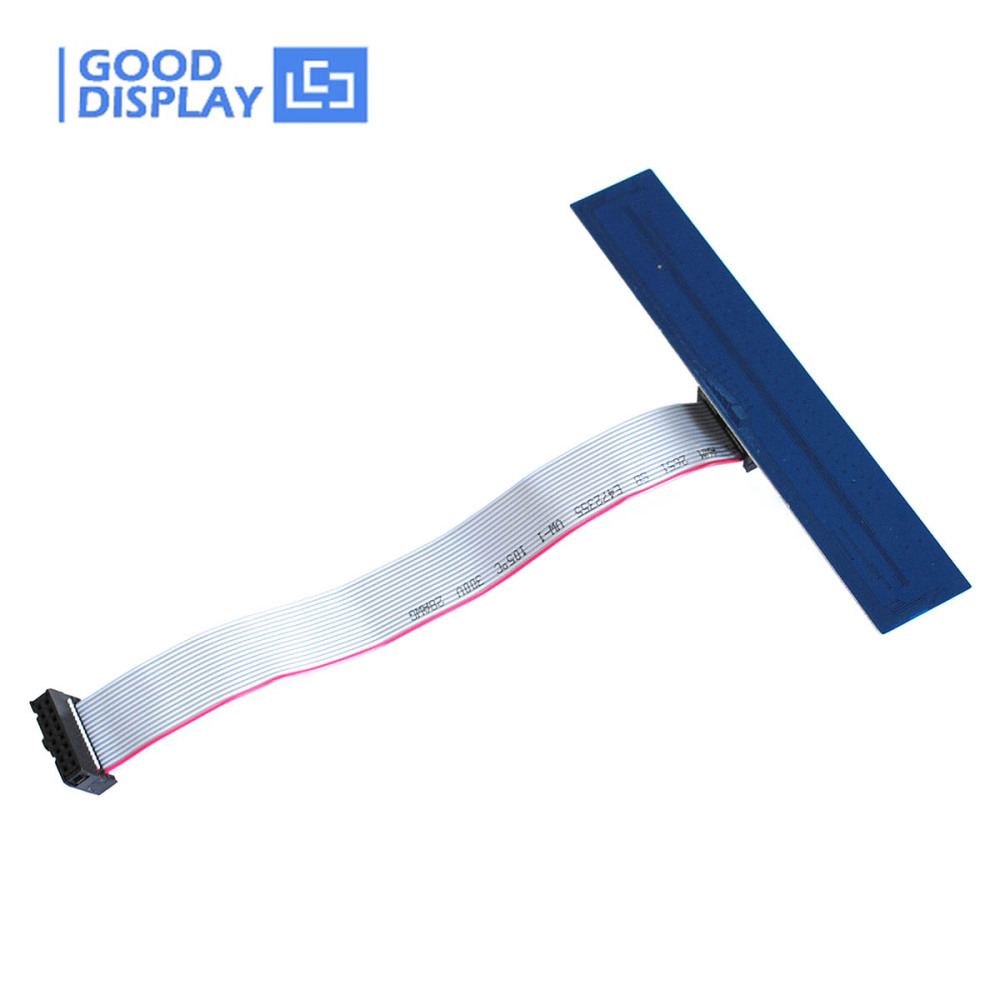

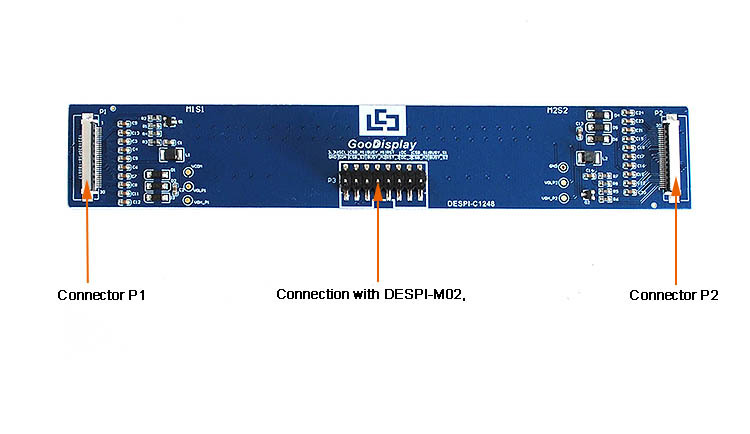

This connection board DESPI-C1248 is aim to help users to learn how to use the 12.48 inch E-paper Display easier, and it is used for connecting Good Display's 12.48 inch e-paper display with driving board.
Good Display's development kit for 12.48 inch e-paper display is DESPI-1248, which consists of the development board DESPI-M02 and the pinboard DESPI-C1248. It aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE

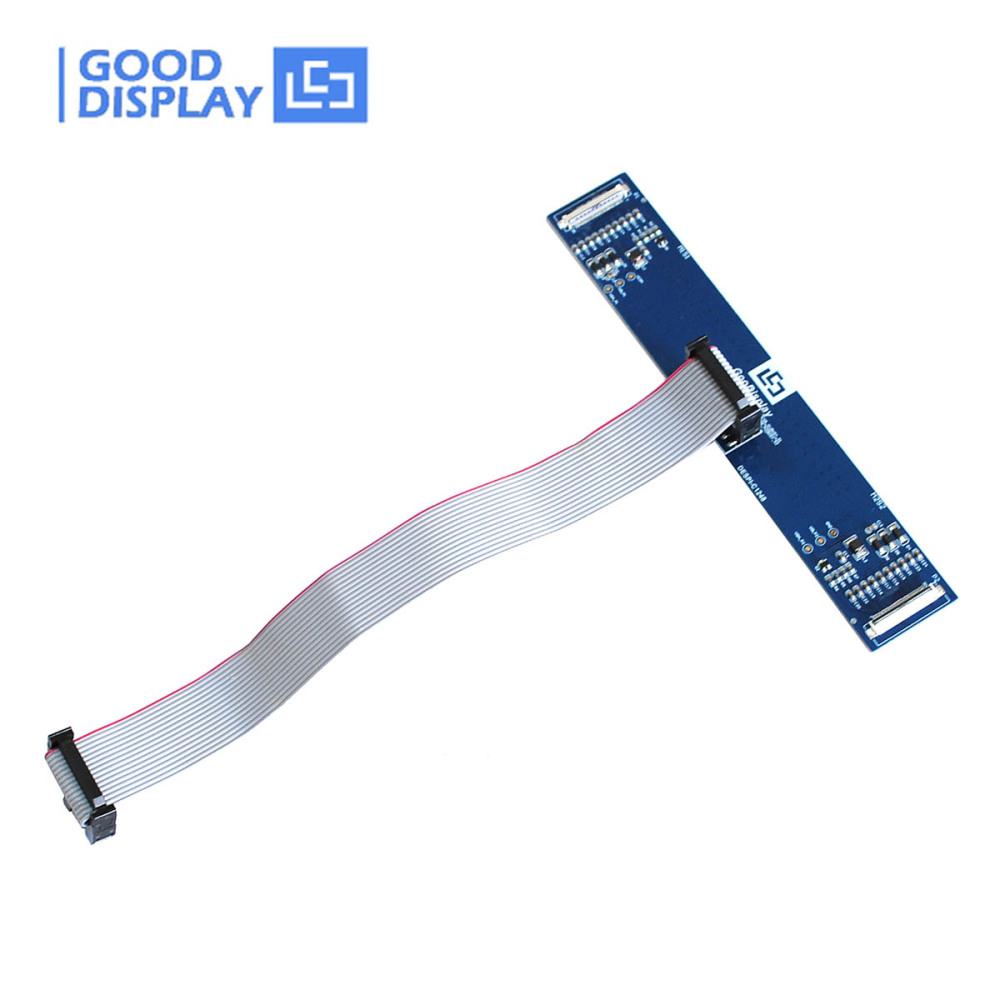

1) Connector board DESPI-C1248 * 1pc
2) Connecting cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
DESPI-C1248 |
| PLATFORM |
STM32 |
| FUNCTION |
Connection 12.48 inch E-paper Display with DESPI-M02 |
| OUTSIDE DIMENSION |
150.2mmx26mm |
| INTERFACE |
SPI |
| POWER INPUT |
DC3.3V |
| OPERATING TEMP. |
-20~70℃ |
☆ DRIVE BOARD
● DESPI-1248 (STM32 Platform/Universal)
☆ ABOUT US
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com
| PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
| GDEW0102T4 |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0102I3F |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW0154M10 |
1.54'' |
BW |
2 |
152x152 |
27.512x27.512 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEH0154D67 |
1.54'' |
BW |
4 |
200x200 |
27x27 |
2 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0154M09 |
1.54'' |
BW |
2 |
200x200 |
27.6x27.6 |
0.82 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0154T8D |
1.54'' |
BW |
4 |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH0154Z90 |
1.54'' |
BWR |
2 |
200x200 |
27x27 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEW0213M21 |
2.13'' |
BW |
2 |
212x104 |
48.548x23.712 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEW0213I5FD |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEM0213B74 |
2.13'' |
BW |
4 |
250x122 |
48.55x23.7 |
3 |
0℃~50℃ |
|
|
SPI |
| GDEM0213U23 |
2.13'' |
BWR |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
| GDEM0213D23 |
2.13'' |
BW |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
| GDEW0213V7LT |
2.13'' |
BW |
2 |
212x104 |
48.55x23.71 |
3 |
-25℃~10℃ |
√ |
|
SPI |
| GDEY0213Z98 |
2.13'' |
BWR |
2 |
250x122 |
48.55x23.7046 |
14 |
0℃~40℃ |
|
|
SPI |
| GDEW0213T5D |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0213T5D-FL01(With Frontlight) |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW026T0D |
2.6'' |
BW |
4 |
296x152 |
60.09x30.7 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3 |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3-T(With Touch Panel) |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEM029E97 |
2.9'' |
BW |
2 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
|
|
SPI |
| GDEH029Z13 |
2.9'' |
BWR |
2 |
296x128 |
66.9x29.06 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEM029T94 |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY029T94 |
2.9'' |
BW |
4 |
296x128 |
66.896x29.056 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW029M06 |
2.9'' |
BW |
2 |
296x128 |
66.896x29.056 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEW029I6FD |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW029T5D |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW029T5D-FL02(With Frontlight) |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH037Z01 |
3.71'' |
BWR |
2 |
416x240 |
81.54x47.04 |
16 |
0℃~40℃ |
|
|
SPI |
| GDEW0371W7 |
3.71'' |
BW |
2 |
416x240 |
81.536x47.04 |
4 |
0℃~50℃ |
|
|
SPI |
| PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
| GDEW042C37 |
4.2'' |
BWY |
2 |
400x300 |
84.8x63.6 |
28 |
0℃~40℃ |
|
|
SPI |
| GDEW042T2 |
4.2'' |
BW |
4 |
400x300 |
84.8x63.6 |
3 |
0℃~50℃ |
|
|
SPI |
| GDE043A2 |
4.3'' |
BW |
16 |
800x600 |
88x66 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDE043A2-T(With Touch Panel) |
4.3'' |
BW |
16 |
800x600 |
88x66 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDE043A3 |
4.3'' |
BW |
16 |
800x600 |
88x66 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDEW0583C64 |
5.83'' |
BWY |
2 |
600x448 |
118.80x88.26 |
25 |
0℃~40℃ |
|
|
SPI |
| GDEW0583T8 |
5.83'' |
BW |
2 |
648x480 |
119.232x88.32 |
4 |
0℃~50℃ |
|
|
SPI |
| GDEW0583Z83 |
5.83'' |
BWR |
2 |
648x480 |
119.232x88.32 |
12 |
0℃~40℃ |
|
|
SPI |
| GDE060F3 |
6.0'' |
BW |
16 |
1024x758 |
90.581x122.368 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDEY075T7 |
7.5'' |
BW |
4 |
800x480 |
163.2x97.72 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY075Z08 |
7.5'' |
BWR |
2 |
800x480 |
163.2x97.72 |
12 |
0℃~40℃ |
|
|
SPI |
| GDEH116T91 |
11.6'' |
BW |
2 |
960x640 |
244.512x163.008 |
5 |
0℃~50℃ |
|
|
SPI |
| GDEH116Z91 |
11.6'' |
BWR |
2 |
960x640 |
244.512x163.008 |
30 |
0℃~35℃ |
|
|
SPI |
