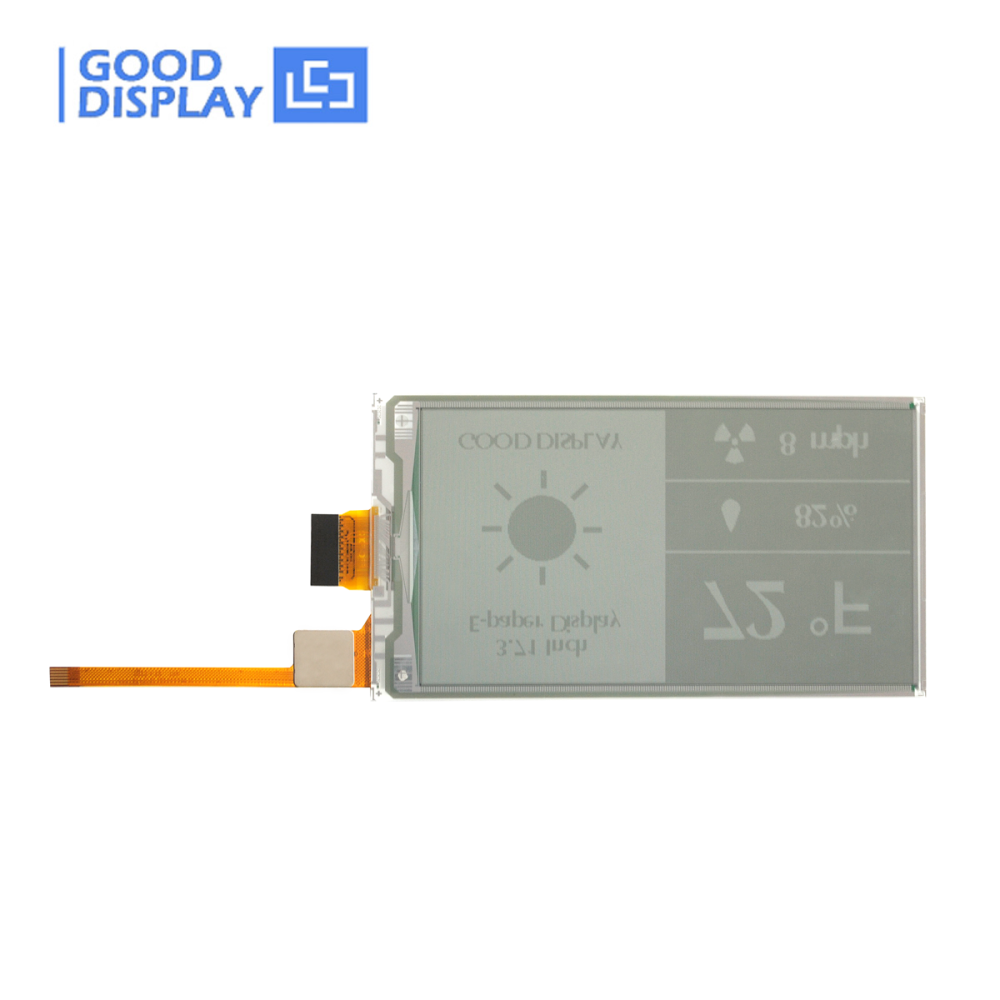

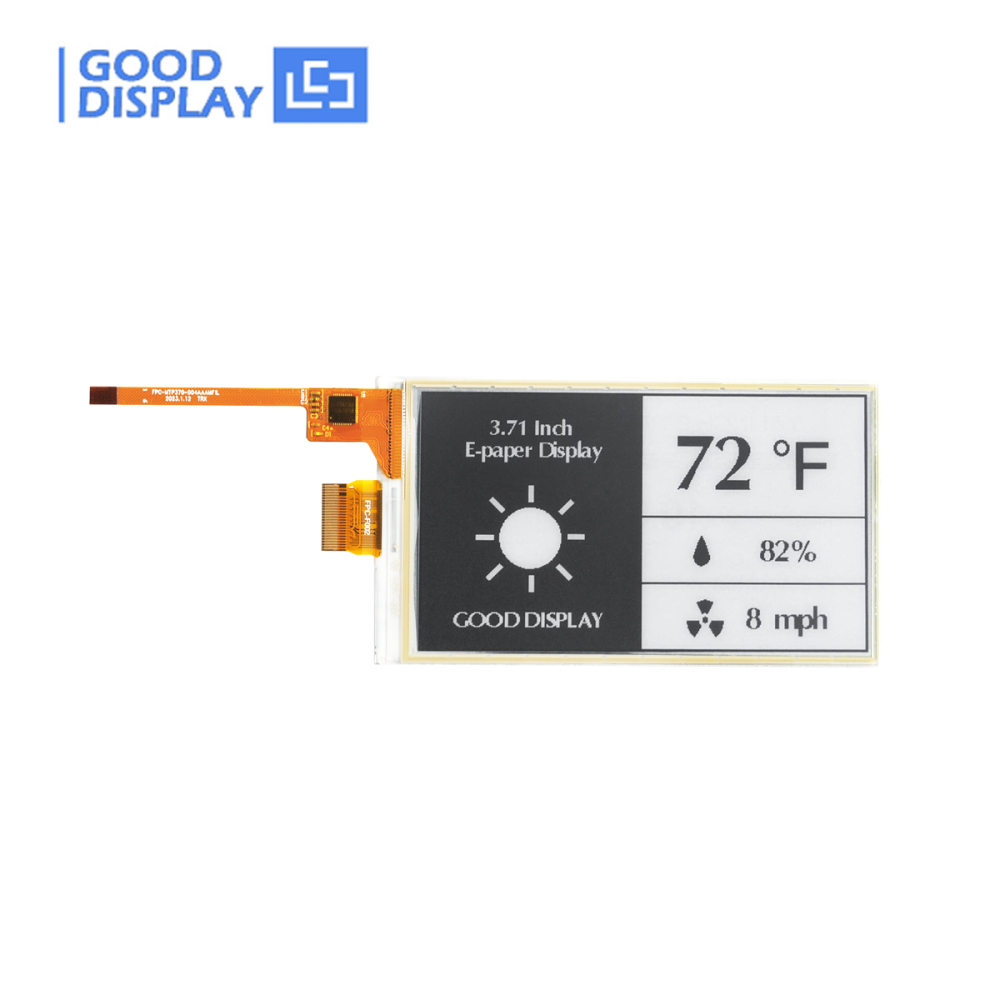

3.7-Inch E-Paper Display with Touchscreen 1s Fast Refresh 416x240 GDEY037T03-T02

Name: 3.7-Inch E-Paper Display with Touchscreen 1s Fast Refresh 416x240 GDEY037T03-T02
Brand: GOOD DISPLAY
SKU: GDEY037T03-T02
Price: 14.09 USD
Availability: InStock
Rating: 5 (1 reviews)

$14.09 ~~$16.57~~

15% OFF

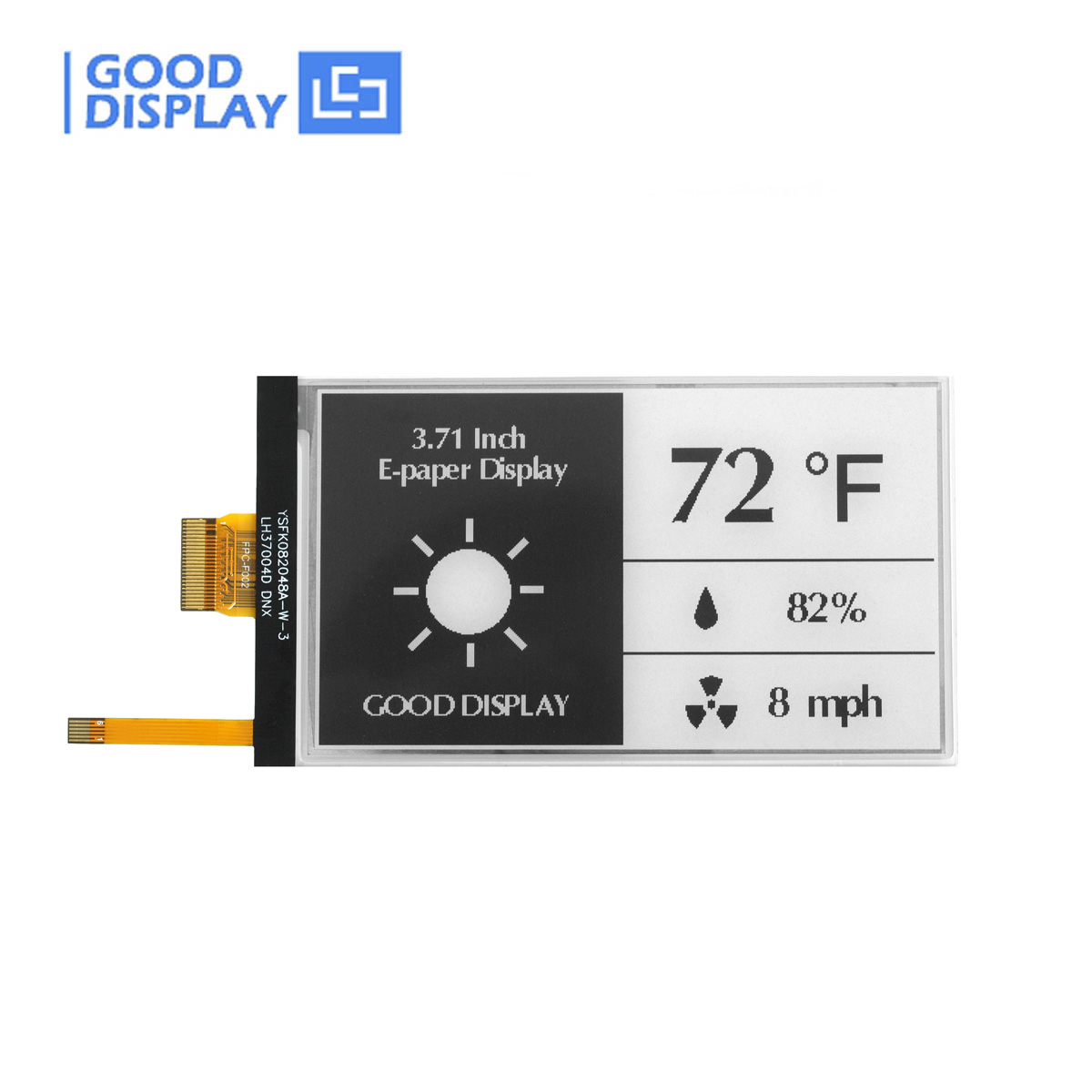

This is a 3.7 inch e-ink screen with 416x240 resolution, SPI interface, and the display is capable to display images with black and white content.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 2 UNITS
5% OFF WITH PURCHASE OVER 3 UNITS

Quantity:

0 in stock

Add to Favorites (0)

1/1

Description

✦ Premium Touch ePaper

GDEY037T03-T02

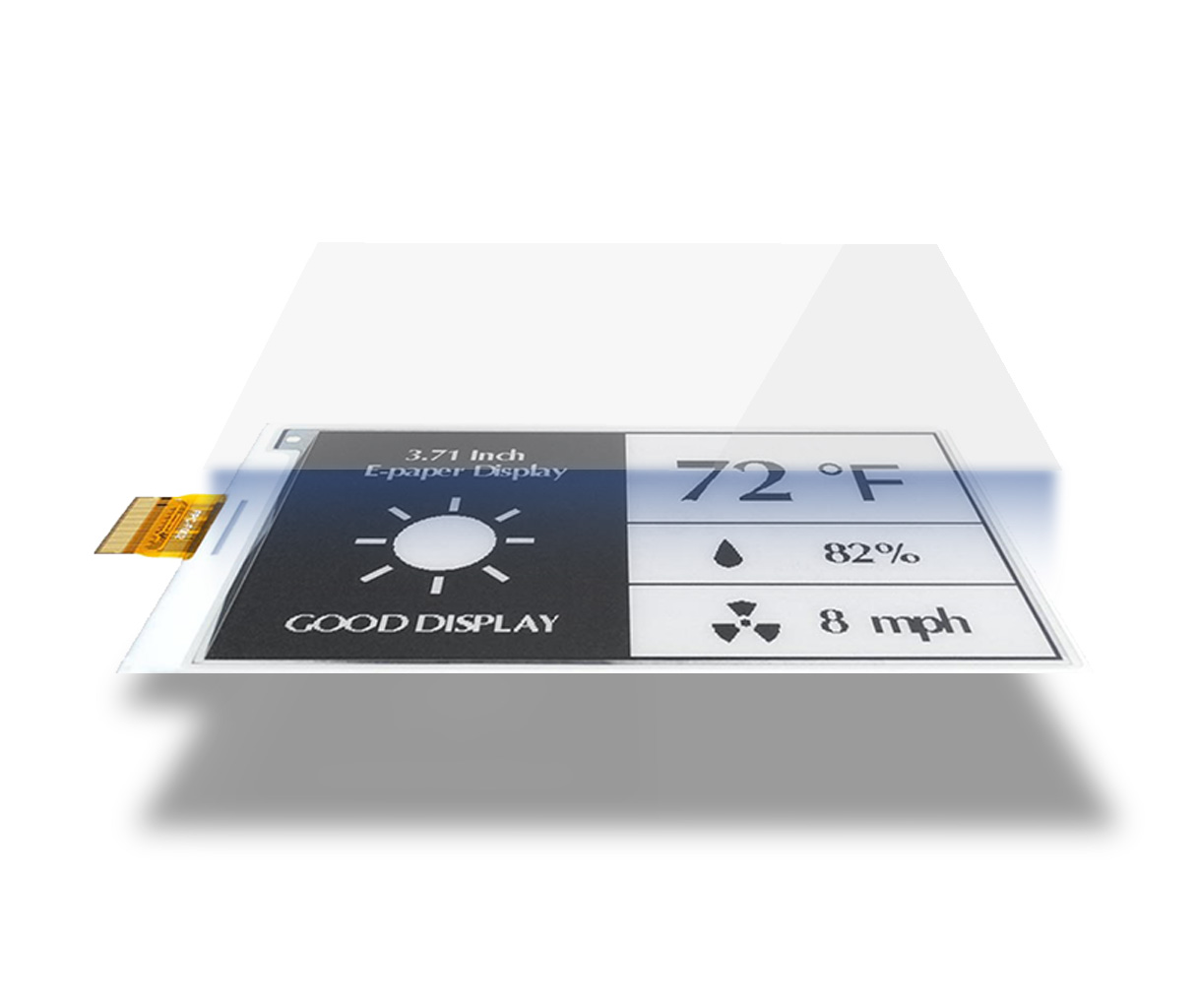

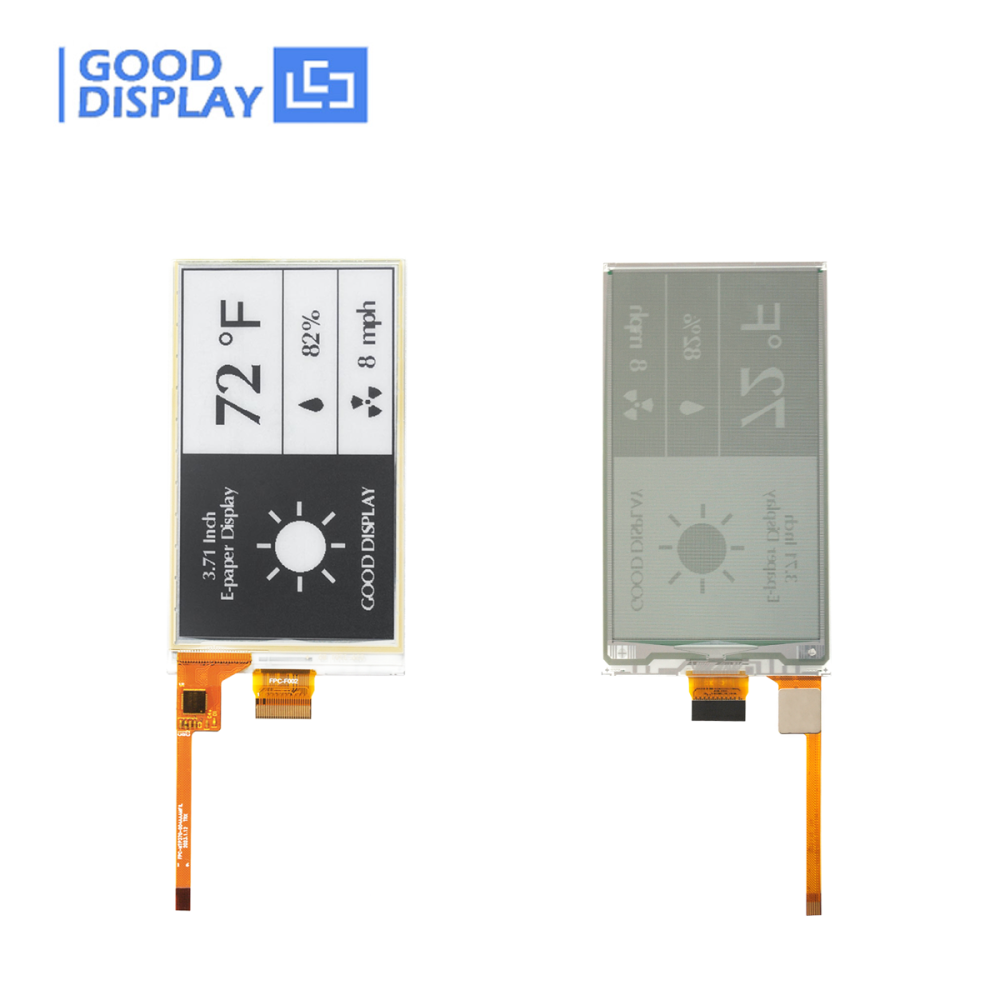

3.7″ Interactive E‑Ink® with Capacitive Touch

Built for low‑power interactive applications, this 3.7″ touch e‑paper module combines a high‑resolution 416×240 black‑and‑white electrophoretic display with an FT6336U capacitive touch panel. It supports dual‑point touch through an I²C interface, making it ideal for portable devices, medical equipment, smart home panels, and IoT applications.

416×240 Resolution

4 Gray Levels

0.003 mW Standby Power

0.3 s Partial Refresh

View Kits → Request Quote

GDEY037T03-T02 · 3.7″ capacitive touch ePaper

Performance at a Glance

📐

416×240

Resolution

🎨

4 Levels

Max Grayscale

⚡

Ultra‑Low

Power Consumption

🚀

1.5 s

Fast Refresh

🔄

0.3 s

Partial Update

📦

2 s

Full Update

✦ Custom Engineering

Custom Touch Modules — Built for Your Application

We provide tailored touch e‑paper solutions designed for reliable integration and long‑term product development.

Fully compatible with 3.7″ E Ink display applications
Strict quality control for consistent performance
Technical support from prototype development to mass production

Choose Your Development Kit

SKU Option	What's Included	Best For

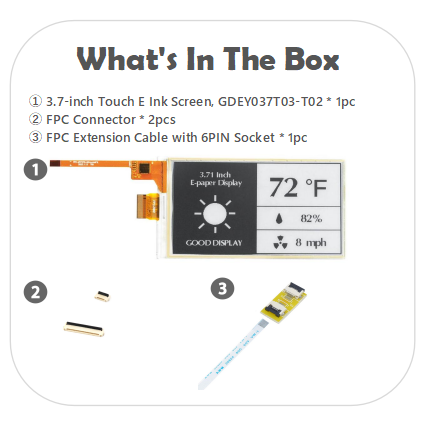

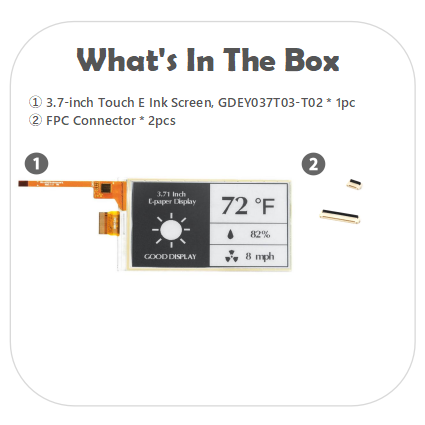

EPD Only	GDEY037T03-T02 Touch EPD	Customers with existing driver hardware

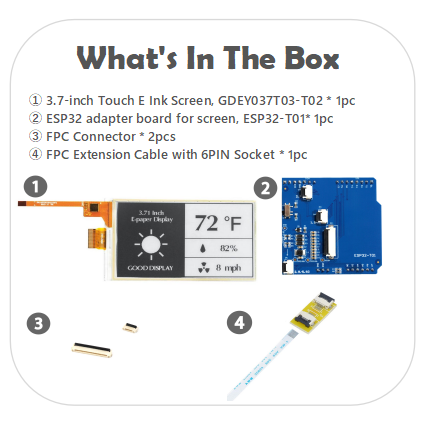

+ Adapter Board	EPD + ESP32‑FTS02 Adapter Board	Own MCU / Raspberry Pi / ESP32

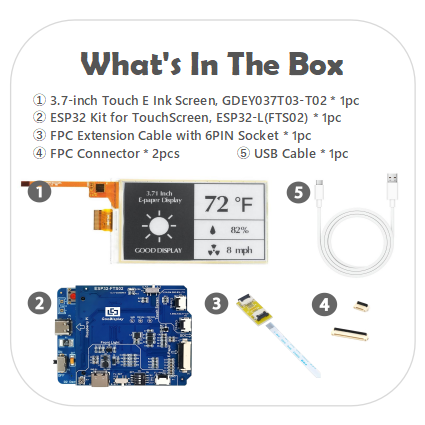

+ ESP32‑L Starter	EPD + ESP32‑L(FTS02) Demo Kit	Beginners & rapid prototyping
+ ESP32‑M1 All‑in‑One New	EPD + ESP32‑M1 Driver Board	★ Best Advanced devs, commercial & portable projects (battery‑ready)

Matching Driver Boards

Adapter ESP32‑FTS02

Integrates front light & touch. Works with your own MCU, Raspberry Pi, or ESP32.

Starter ESP32‑L Starter

ESP32‑WROOM‑32D onboard · WiFi + Bluetooth · Type‑C 5V — ideal for beginners.

Advanced ESP32‑M1 All‑in‑One

🔋 Li‑ion ready

Professional SPI driver · supports up to 13.3″ ePaper · built‑in touch, frontlight, microSD · Li‑ion battery ready — ideal for portable and battery‑powered devices.

Technical Specifications

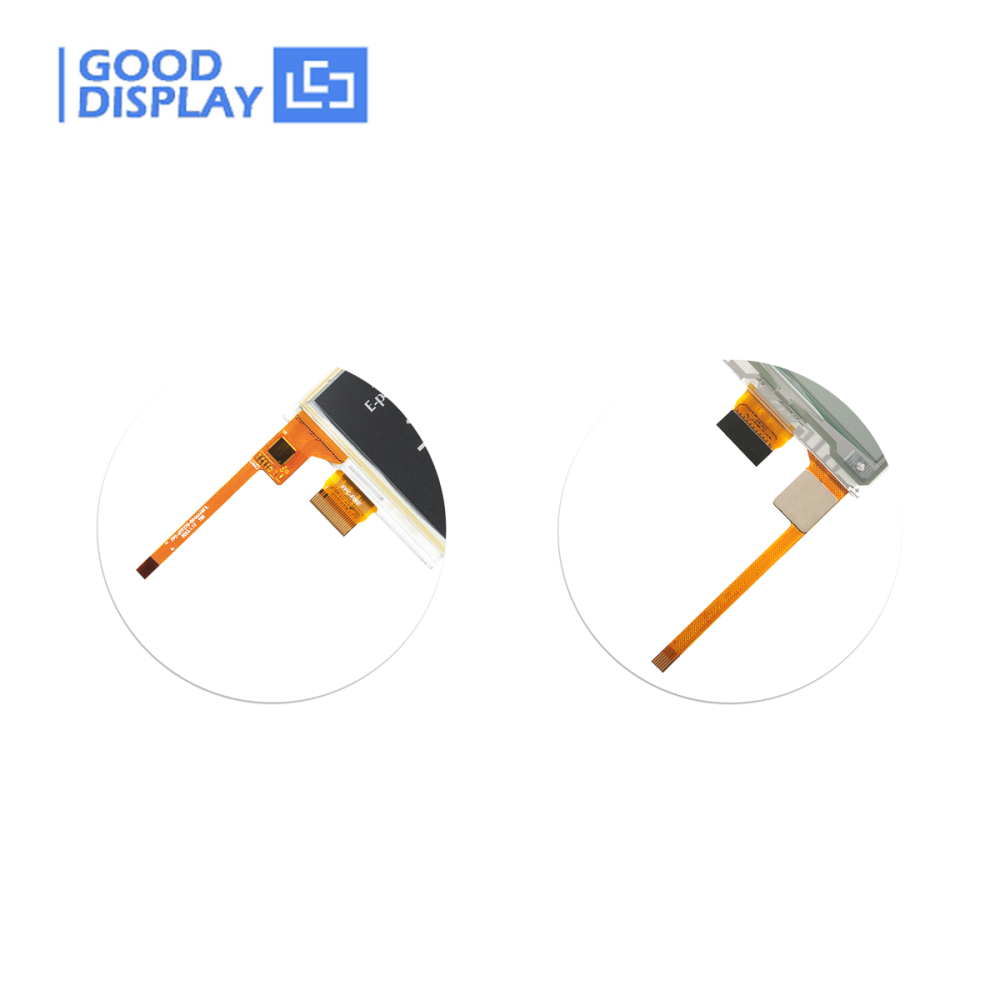

Part Number	GDEY037T03‑T02	EPD Connector	24‑Pin FPC
Type	Dot Matrix	Max Grayscale	4
Size	3.7″	Color	Black / White
Driver IC	UC8253	Full Refresh	2 s
Resolution	416 × 240	Fast Refresh	1.5 s

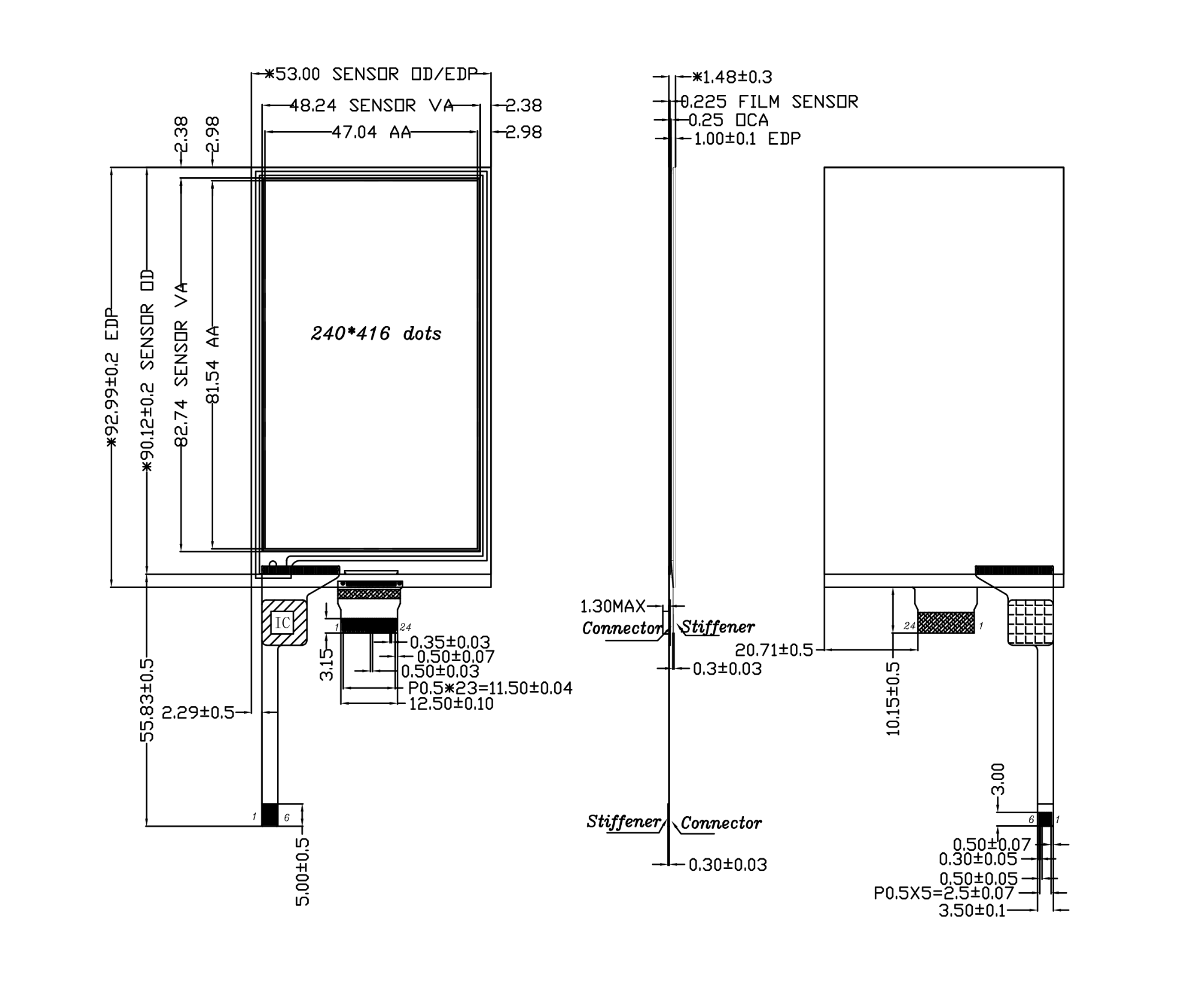

Outline (mm)	92.99 × 53.00 × 1.48	Partial Refresh	0.3 s
Active Area (mm)	81.54 × 47.04	Refresh Power	18 mW
Pixel Pitch (mm)	0.196 × 0.196	Standby Power	0.003 mW
Operating Temp	0℃ ~ 50℃	Touch Connector	6‑Pin FPC
Storage Temp	‑25℃ ~ 70℃	Touch Controller	FT6336U
Interface	SPI	Touch Voltage	2.8 V ~ 3.6 V
Touch Interface	I²C	Touch Points	Dual‑Point
