2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen, GDEY0213B74-FL01

This is 2.13 inch E-Paper Eink Display with backlit, SSD1680Z, 250x122 resolution, 24 pins FPC connection, SPI interface, 4 Grayscale,  can be used in dark environment.
Sold:5
Price:
USD
$7.80
Quantity:
-
+
(6 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews



☆ INTRODUCTION




This is a  2.13 inch e-paper eink Display with backlit, 250x122 resolution, SPI interface, supports 1.5s fast refresh, 3s full refresh, 0.4s partial refresh, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY0213B74-FL01 is perfect for low power devices powered by solar or batteries, especially in dark environment.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

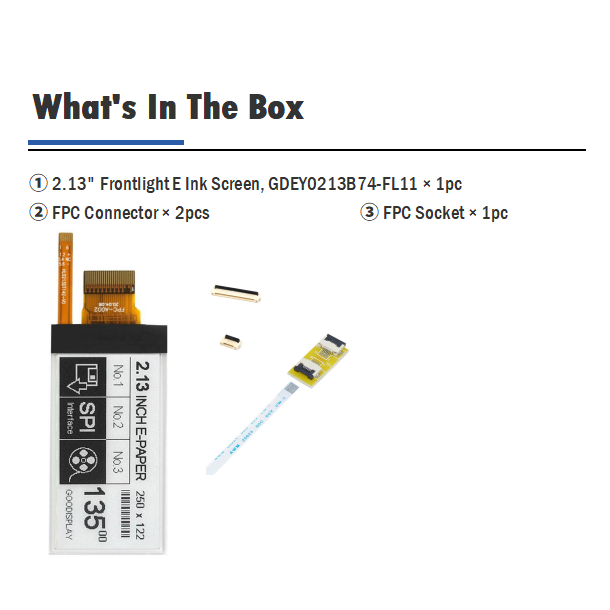

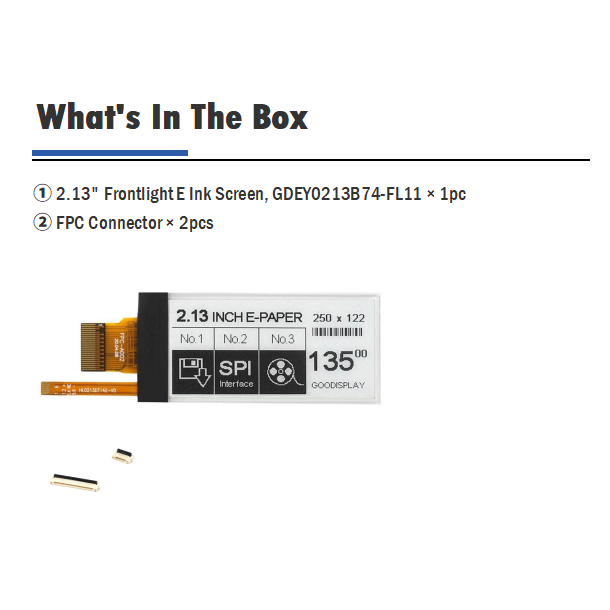

☆ THE ABOVE PRICE INCLUDE



1) 2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen, GDEY0213B74-FL01 * 1pc
2) FPC Connector for EPD * 1pc
3) FPC Connector for Backlit * 1pc




☆ MAIN PARAMETERS




PART NUMBER

GDEY0213B74-FL01

TYPE

Dot Matrix

CONNECTOR 24 Pin FPC

SIZE

2.13 inch

MAX GRAYSCALE 4

IC

SSD1680Z

COLOR Black,White

RESOLUTION

250x122

INTERFACE SPI

OUTLINE SIZE(mm)

59.2x29.2x1.4

FULL REFRESH(s) 3

ACTIVE SIZE(mm)

48.55x23.7046

FAST REFRESH(s) 1.5

PIXEL PITCH(mm)

0.1943x0.1942

PARTIAL REFRESH TIME(s) 0.42

OPERATING TEMP.

0℃~50℃

EPD POWER CONSUMPTION OF THE REFRESH(mW) 10.5

STORAGE TEMP.

-25℃~70℃

EPD STANDBY POWER CONSUMPTION (mW) 0.003

VOLTAGE OF BACKLIT

≤9V

QUANTITY OF LED

3pcs LEDs

CURRENT OF BACKLIT

≤15mA






☆ FEATURE




●  Support 4 Grayscale
●  With 3 LED Frontlight.
●  Support 1.5s Fast Refresh

●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.4s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32

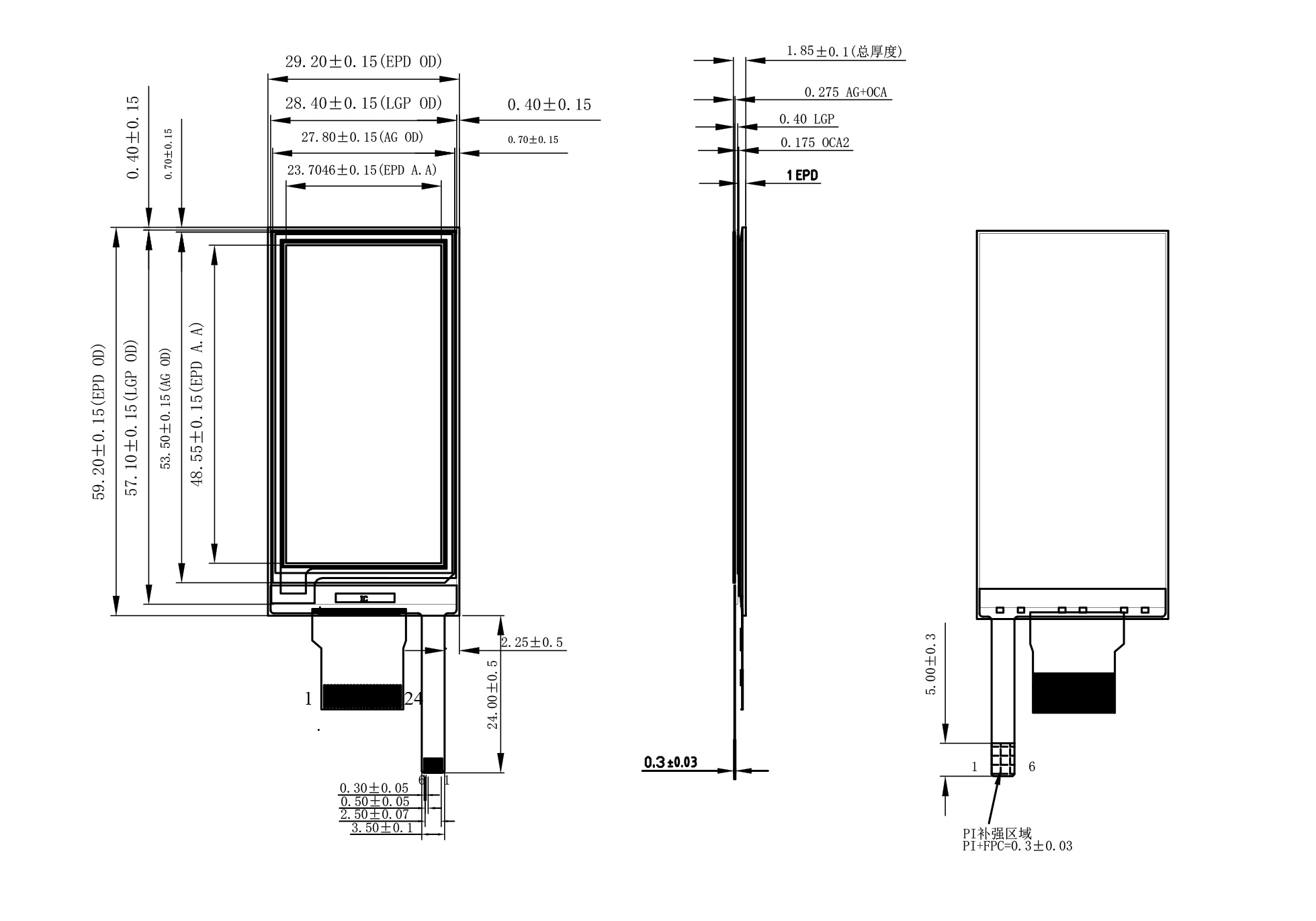

☆ DRAWING

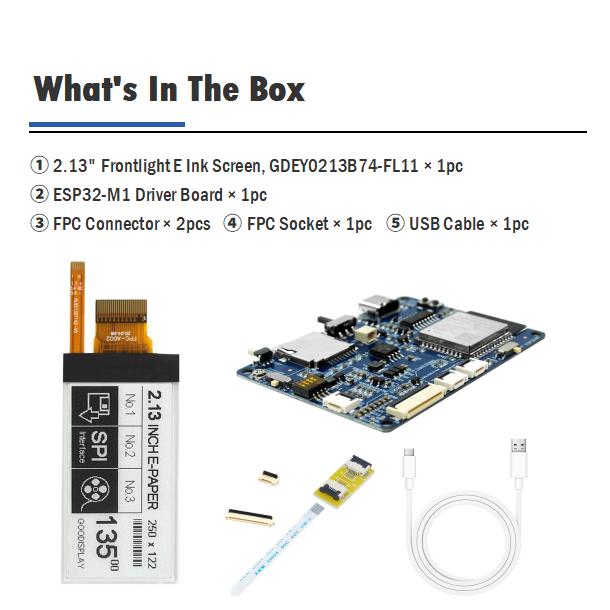

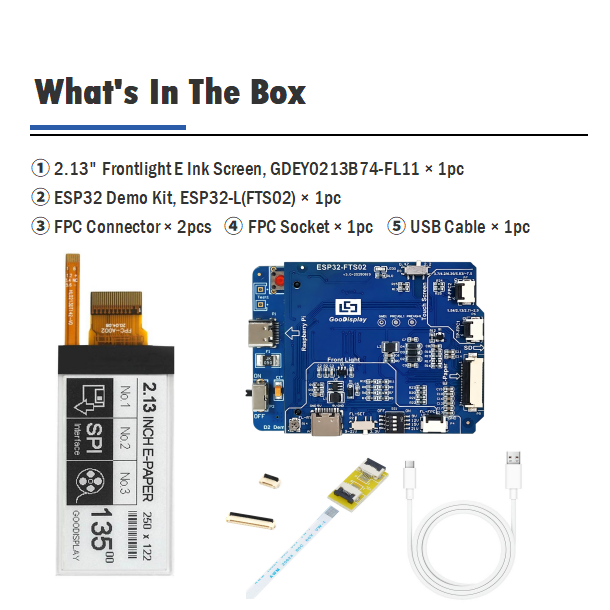

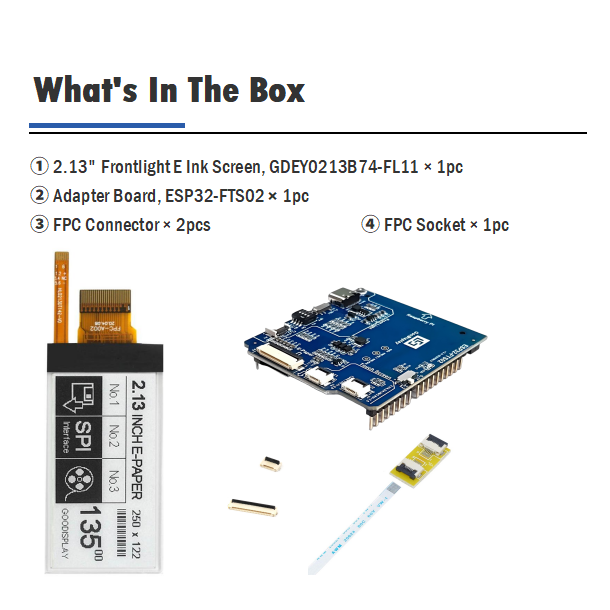

☆ MATCHED DEVELOPMENT KIT




● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)


● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-PICO (Rasberry Pi Epaper HAT)



☆ RELATED INFORMATION DOWNLOAD



● GDEY0213B74-FL01_Specification

● Front-light Drawing of 2.13 inch EPD




☆ WE ALSO SUGGEST...




Fast Refresh 1.5s 2.13 inch 250x122 Raspberry Pi EPD supports Electronic Epaper price tag, GDEY0213B74

E-ink Display 2.13 Epaper Partial Refresh SPI HDMI 250x122 EPD Screen, GDEQ0213B74

2.13 inch UC8151D e-paper display flexible ultra-thin partial refresh 4 Grayscale eink screen module GDEW0213I5FD

2.13 inch color eink 250x122 HD raspberry pi e-paper display module, GDEY0213Z98

2.13 inch Tri-color red eink display SPI interface epaper screen module GDEM0213U23

2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D



☆ ABOUT US


Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE(S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW0097T50 0.97'' BW 184x88 22.264x10.648 4 0℃~50℃
GDEW0097C50 0.97'' BWY 184x88 22.264x10.648 22 0℃~40℃
GDEW0102T4 1.02'' BW 128x80 21.76x14 3 0℃~50℃
GDEW0102I3F 1.02'' BW 128x80 21.76x14 3 0℃~50℃

GDEW0102I4FC

1.02''

BW

128x80

21.76x14

3

0℃~50℃

GDEW0154M10 1.54'' BW 152x152 27.512x27.512 3 -10℃~60℃
GDEY0154D67 1.54'' BW 200x200 27x27 2 0℃~50℃
GDEW0154T8D 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEY0154Z90 1.54'' BWR 200x200 27x27 16 0℃~40℃
GDEW0154I9FC 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEW0213I5FD 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEY0213B74 2.13'' BW 250x122 48.55x23.7046 3 0℃~50℃
GDEY0213Z98 2.13'' BWR 250x122 48.55x23.7046 14 0℃~40℃
GDEW0213T5D 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEW026T0D 2.6'' BW 296x152 60.09x30.7 3 0℃~50℃
GDEY0266T90 2.66'' BW 296x152 60.088x30.704 3 0℃~50℃
GDEY0266Z90 2.66'' BWR 296x152 60.088x30.704 12 0℃~40℃
GDEY027T91 2.7'' BW 264x176 57.29x38.19 3 0℃~50℃
GDEY029T94 2.9'' BW 296x128 66.896x29.056 3 0℃~50℃
GDEY029Z94 2.9'' BWR 296x128 66.896x29.056 12 0℃~40℃
GDEW029I6FD 2.9'' BW 296x128 66.9x29.06 3 0℃~50℃
GDEQ031T10 3.1'' BW 320x240 62.72x47.04 3 0℃~50℃
GDEY037Z03 3.71'' BWR 416x240 81.54x47.04 12 0℃~40℃
GDEY037T03 3.71'' BW 416x240 81.54x47.04 3 0℃~50℃

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE
GDEW042C37 4.2'' BWY 400x300 84.8x63.6 28 0℃~40℃
GDEW042T2 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEY042T91 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEQ042Z21 4.2'' BWR 400x300 84.8x63.6 19 0℃~40℃
GDEY0579T93 5.79'' BW 792x272 139.00×47.74 3 0℃~50℃
GDEY0579Z93 5.79'' BWR 792x272 139.00×47.74 20 0℃~40℃
GDEW0583C64 5.83'' BWY 600x448 118.80x88.26 25 0℃~40℃
GDEY0583T8 5.83'' BW 648x480 118.78x88.22 3 0℃~50℃
GDEW0583Z83 5.83'' BWR 648x480 119.232x88.32 12 0℃~40℃
GDEY075T7 7.5'' BW 800x480 163.2x97.72 3 0℃~50℃
GDEY075Z08 7.5'' BWR 800x480 163.2x97.72 12 0℃~40℃
GDEP097TC2

9.7''

BW

1200x825

202.8x139.425

1

0℃~50℃



GDEQ102T90 10.2'' BW 960x640 215.52x143.68 4 0℃~50℃
GDEQ102Z90 10.2'' BWR 960x640 215.52x143.68 4 0℃~50℃
GDEH116T91 11.6'' BW 960x640 244.512x163.008 5 0℃~50℃
GDEH116Z91 11.6'' BWR 960x640 244.512x163.008 30 0℃~35℃
GDEY1248Z51 12.48'' BWR 1304x984 252.98x190.90 25 0℃~40℃
GDEP133UT3 13.3'' BW 1600x1200 270.4x202.8 1 -15℃~65℃
