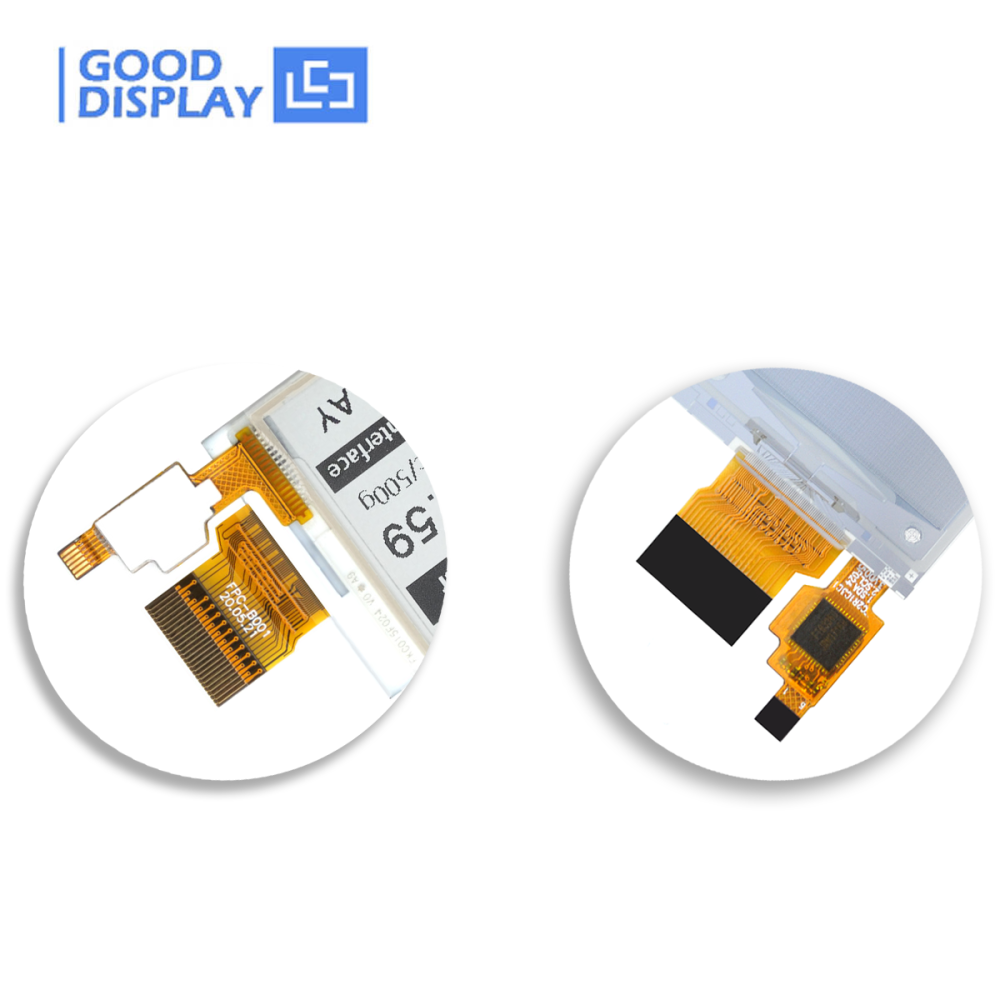

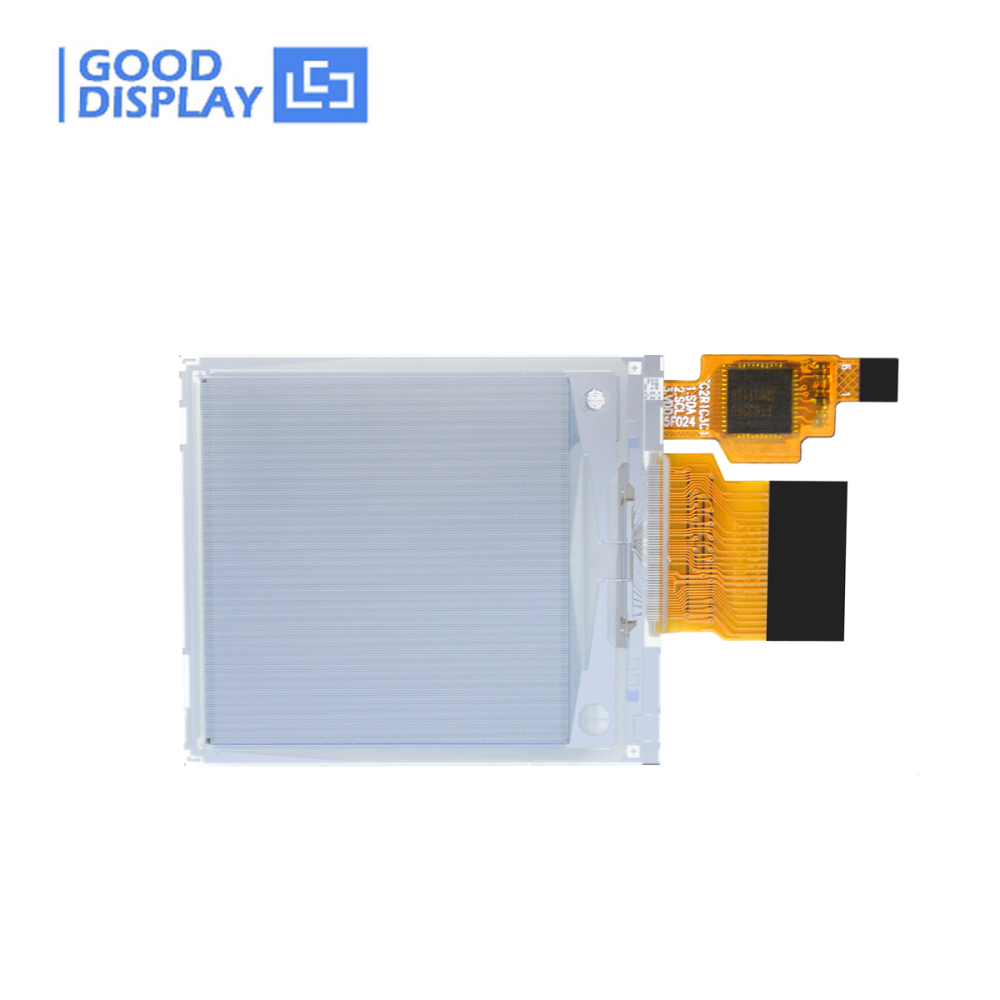

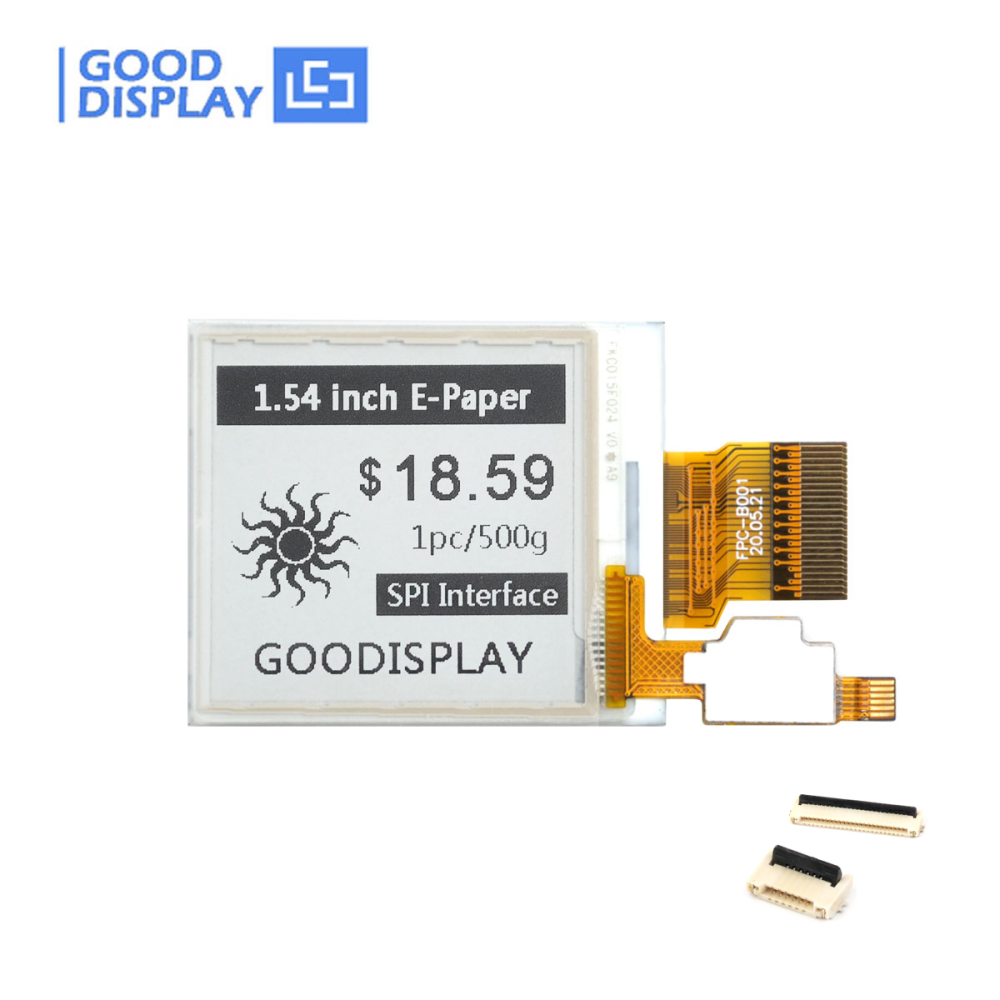

1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display

GDEY0154D67-T03
This is a electronic paper display with touch display, 1.54 inch, 200x200 resolution, SSD1681, SPI interface, and the epaper screen supports partial refresh and 4 grayscale. It can be customized to achieve 1.5s fast refresh.
Price:
USD
$10.93
Wholesale:
1+
$10.93
  • Product:

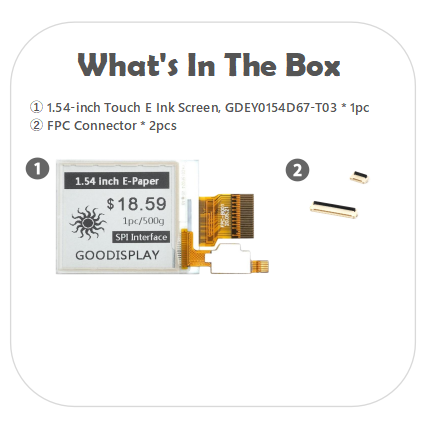

    EPD

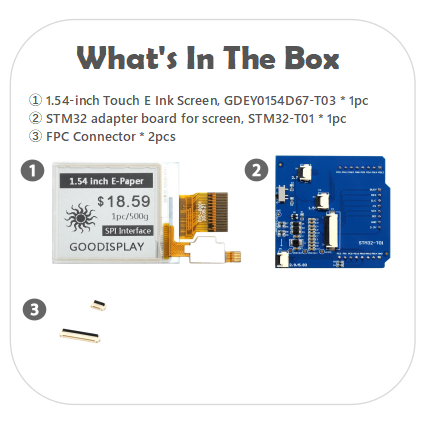

    EPD with STM32 adapter board
    EPD with STM32 Demo Kit

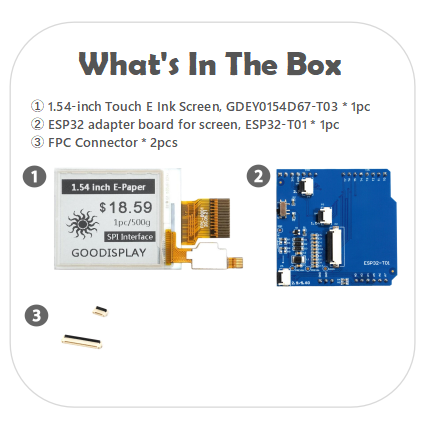

    EPD with ESP32 adapter board

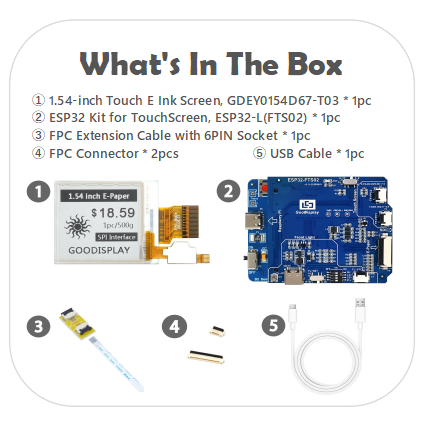

    EPD with ESP32 Demo Kit
    STM32 adapter board
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)

Tip: Considering that customers may encounter dust issues affecting display quality during the installation of touch screen, we offer only ePaper touch screens in various sizes instead of selling touch screens separately.






1.54'' Touch E-Ink 200x200 Resolution 0.26s Partial Update E-Paper Display

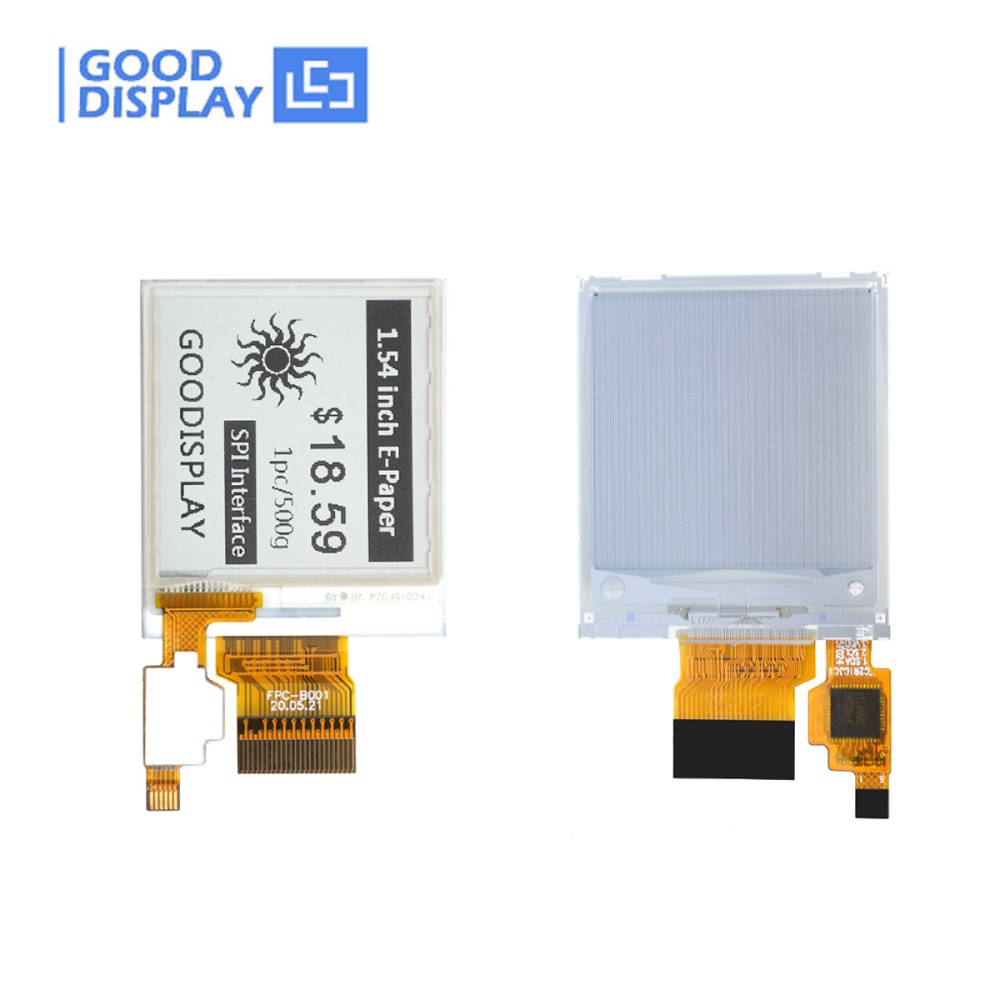

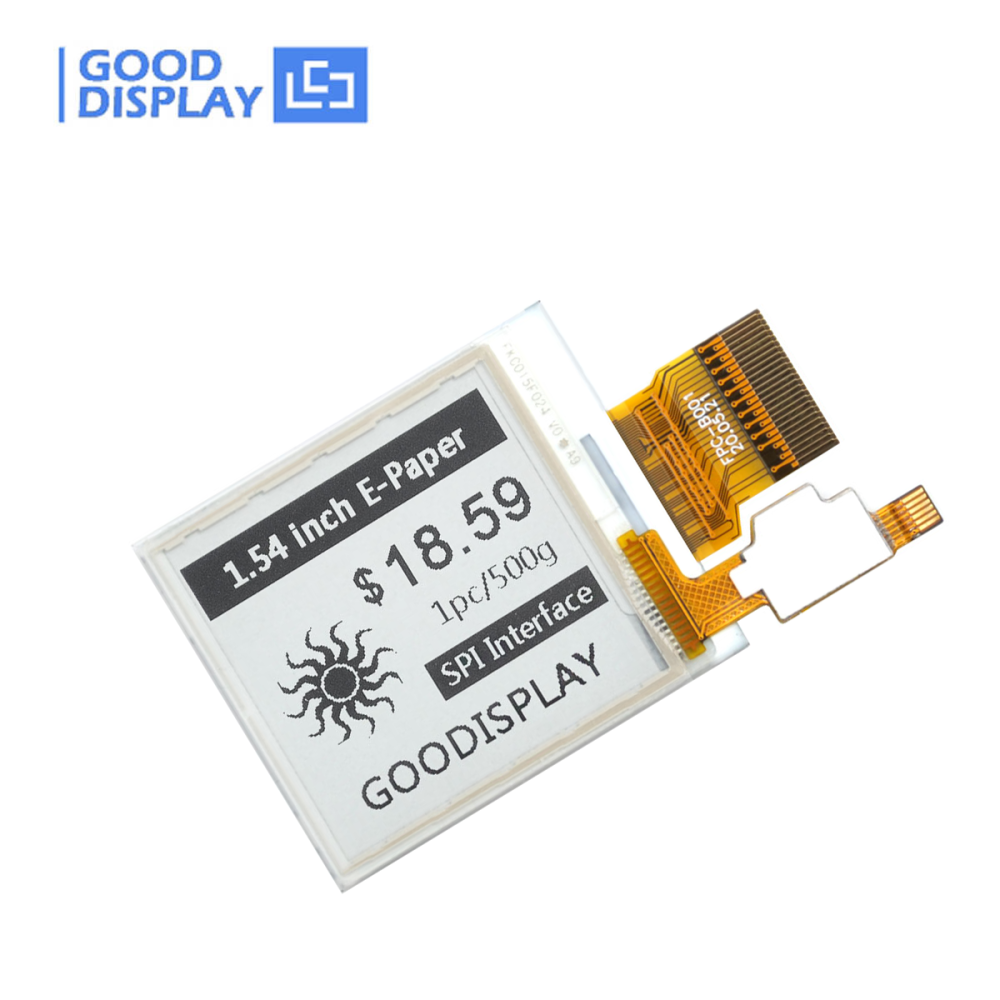

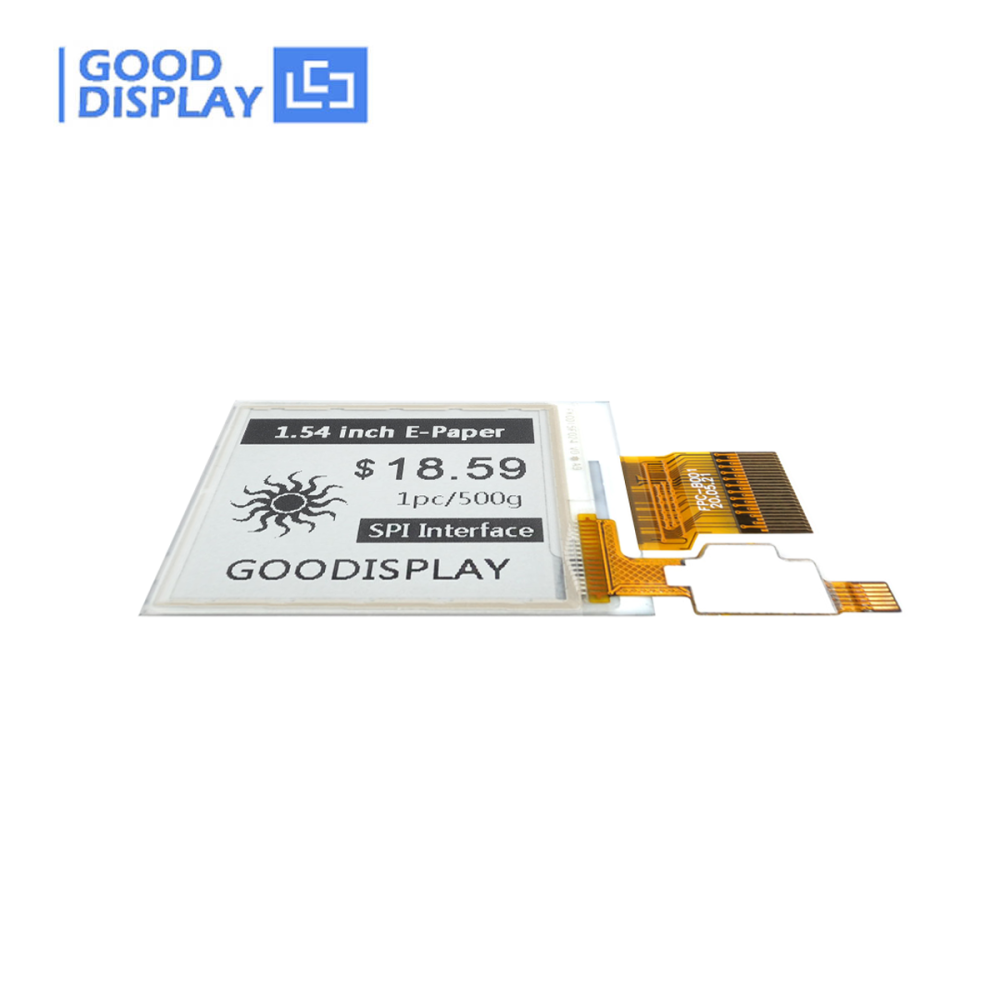

Introducing the GDEY0154D67-T03, a 1.54-inch E-Ink display with capacitive touch screen. Boasting a 200x200 resolution and SPI interface, this display is perfect for showcasing black and white content. With a full screen update time of just 2s and partial updates in a mere 0.26s, it delivers swift and efficient performance.
Ideal for a variety of low power applications, including smart home devices, wearables, and outdoor information boards, this e-paper display is incredibly energy-efficient. Once updated, the display content remains indefinitely without any power, making it perfect for solar or battery-powered devices. Even if disconnected, the content stays visible, offering unparalleled power-saving capabilities.

Whether you're developing next-generation smart labels, electronic shelf displays, or innovative IoT gadgets, the GDEY0154D67-T03 provides a reliable and versatile solution. Embrace the future of display technology with this high-performance E-Ink module.
















Special Features








Our product boasts distinctive features that set it apart from the competition








  ●  Step into effortless navigation with the GDEY0154D67-T03's advanced capacitive touch screen. Transforming interaction with intuitive control and seamless navigation, it's the perfect choice for interactive signage. Picture sleek electronic shelf labels that update at your fingertips, or smart home devices where adjustments are just a tap away. Elevate your user experience and embrace innovation with every touch.
  ●  Ultra-Low Power, Infinite Display: Update once, display forever! Your images stay vividly even when unplugged, perfect for solar and battery-powered devices.
  ●  High Definition Clarity: Every pixel crystal clear. With 200x200 resolution, it delivers stunning black-and-white imagery, meeting the highest display standards.
  ●  Standard SPI Interface, Effortless Compatibility: Versatile connectivity, endless possibilities. Compatible with a standard SPI interface, it effortlessly integrates with a range of microcontrollers and development boards.
  ●  Rugged Durability, Reliable Performance: Built tough, displays stronger. Designed to withstand outdoor and challenging environments, ensuring content remains visible even after power-off.
  ●  Environmentally Friendly, Energy Efficient: Green by design. With its low power consumption, it reduces battery dependency and extends device life, aligning with eco-friendly initiatives.
















Technical Details

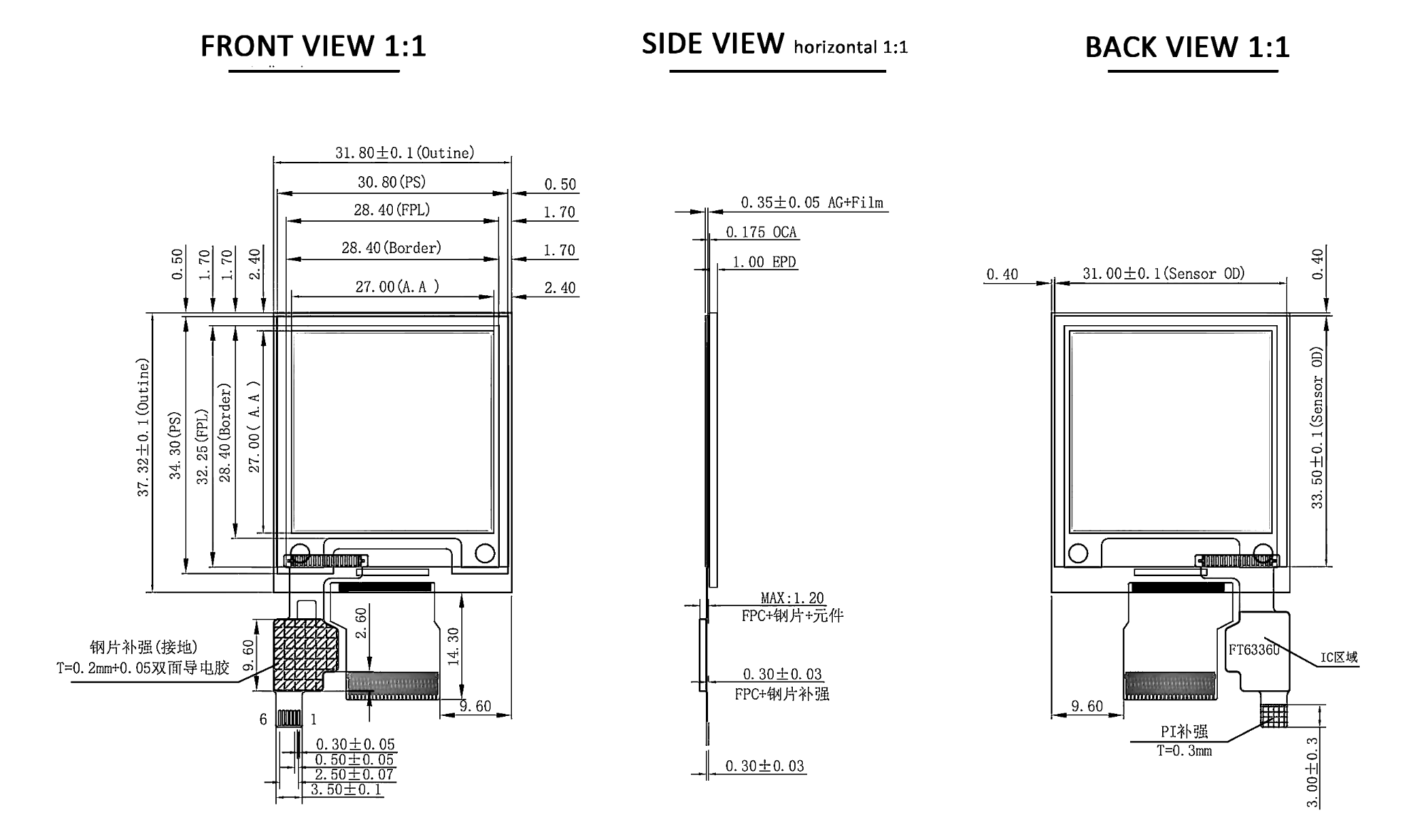

Please refer to the product drawings for detailed dimensions















Product Specifications









Please refer to the product specifications for more details









PART NUMBER GDEY0154D67-T03 CONNECTOR OF EPD 24 Pin FPC
SIZE 1.54 inch CONNECTOR OF TOUCH PANEL 6 Pin FPC
DISPLAY FORMAT 200x200 MAX GRAYSCALE 4
IC OF EPD SSD1681 CHANNEL NUMBER 14
IC OF TOUCH PANEL FT6336U FULL REFRESH(s) 2
OUTLINE DIMENSION(mm) 37.32x31.8x1.7 PARTIAL REFRESH TIME(s) 0.26
ACTIVE AREA(mm) 27x27 COLOR Black, White
OPERATING ENVIRONMENT 0℃~50℃ WORKING VOLTAGE(V) 2.8V~3.3V
STORAGE ENVIRONMENT -20℃~70℃









Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
a. STM32-T01 (STM32 adapter Board) b. DESPI-L(T01) (STM32 Demo Kit) c. ESP32-T01 (ESP32 adapter Board) d. ESP32-L(T01) (ESP32 Demo Kit)







Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.










Files and Download

Click on the subheadings below to download


  ● GDEY0154D67-T03 Specification ● 1.54 inch Touch Screen Sample Code
  ● IC Driver FT6336U Datasheet ● GDEY0154D67-T03 Drawing
  ● Touch Panel Drawing for 1.54 inch E-paper Display ● The latest Catalog of ePaper display
  ● GDEY0154D67-T03 STM32 Sample Code ● Why can't I download the files?
  ● GDEY0154D67-T03 ESP32 Sample Code
