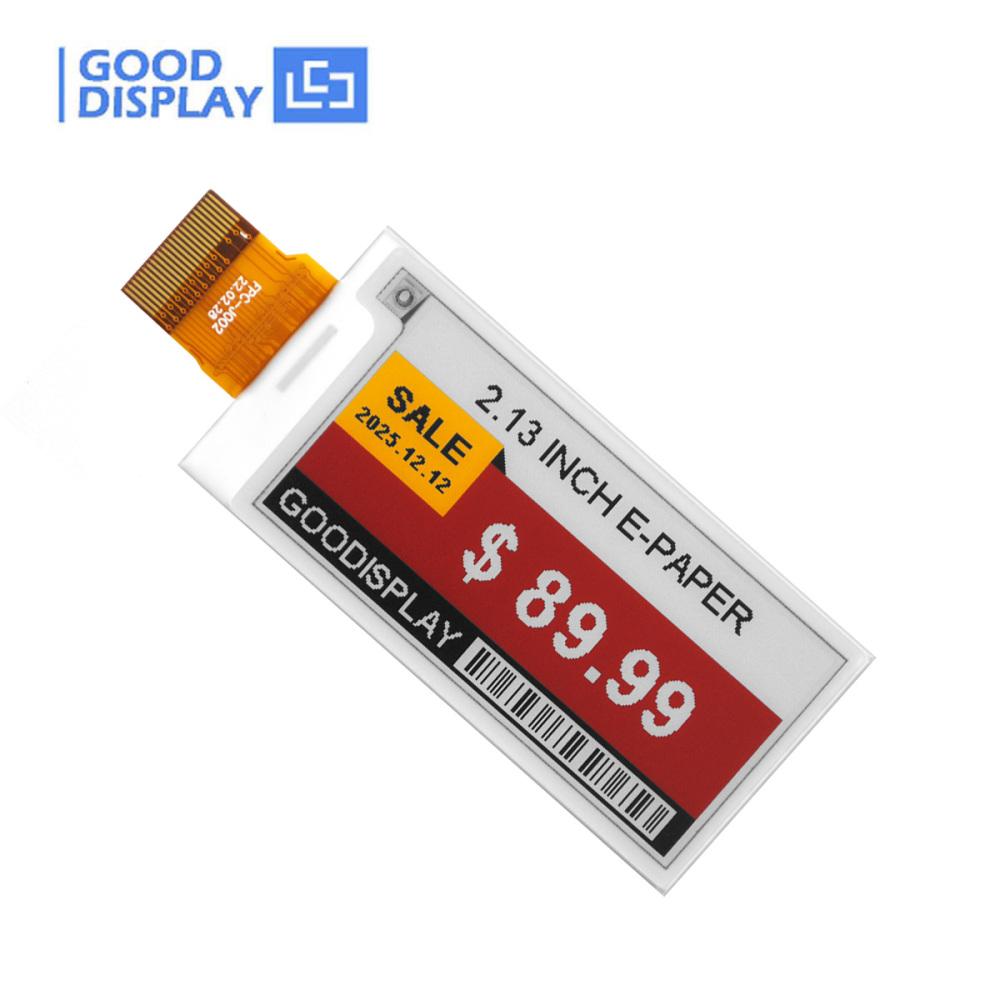

2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52

$4.56 $5.56
18% OFF
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 2 UNITS
  • 5% OFF WITH PURCHASE OVER 3 UNITS
    Please select the information you want X
  • product:

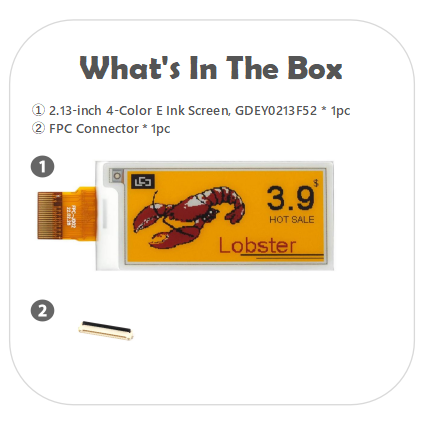

    EPD
    EPD

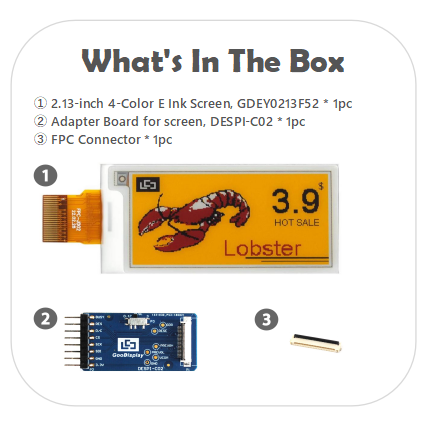

    with Adapter Board
    with Adapter Board

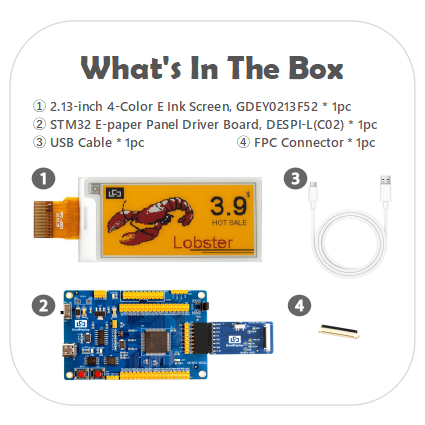

    with STM32 Kit
    with STM32 Kit

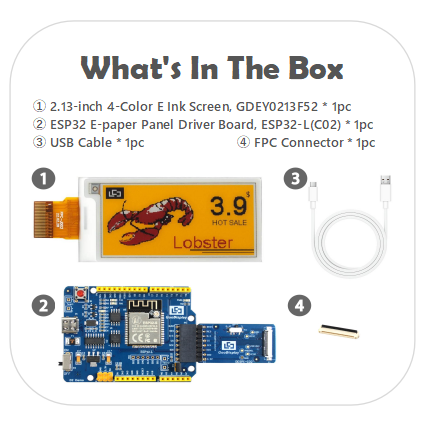

    with ESP32 Kit
    with ESP32 Kit
    with NFC Board
    with NFC Board
    Please select the information you wantX
Quantity:
0 in stock
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
1/1
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
  • 2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52
Frequently Bought Together
more
Frequently Bought Together
  • Description
2.13" 4-Color · 250×122 · 11s Fast Refresh

GDEY0213F52 2.13"
Black / White / Yellow / Red E-Paper Display

250×122 resolution · 130.6 PPI · JD79676A all-in-one driver · 16s full refresh / 11s fast refresh · 9.9mW typical · 0.03mW deep sleep · >170° viewing angle. The vivid four-color e-paper module for retail labels, logistics, smart home & healthcare applications.

View Specifications Download Datasheet

Core Advantages

Vivid 4-Color Display

Brilliant black, white, yellow and red hues deliver eye-catching information display. Perfect for retail tags, logistics labels, smart home status panels and medical indicators that need a pop of color.

4 Colors    250×122 Resolution    130.6 PPI

11s Fast Refresh

Fast refresh in just 11 seconds and 16 seconds full refresh. On-chip OTP waveform + JD79676A driver keeps content crisp and responsive for real-time updates.

11s Fast    16s Full    JD79676A IC

Battery-Free Potential

9.9mW typical operation and 0.03mW deep sleep. Bi-stable image holds without power — pair with NFC or a coin cell for maintenance-free smart tags.

9.9 mW typ.    0.03 mW deep sleep    170° View

Technical Specifications

Part Number GDEY0213F52
Size 2.13 inch
Type Dot Matrix, 4-Color EPD
IC JD79676A
Resolution 250 × 122
PPI 130.6
Color Black, White, Yellow, Red
Interface SPI

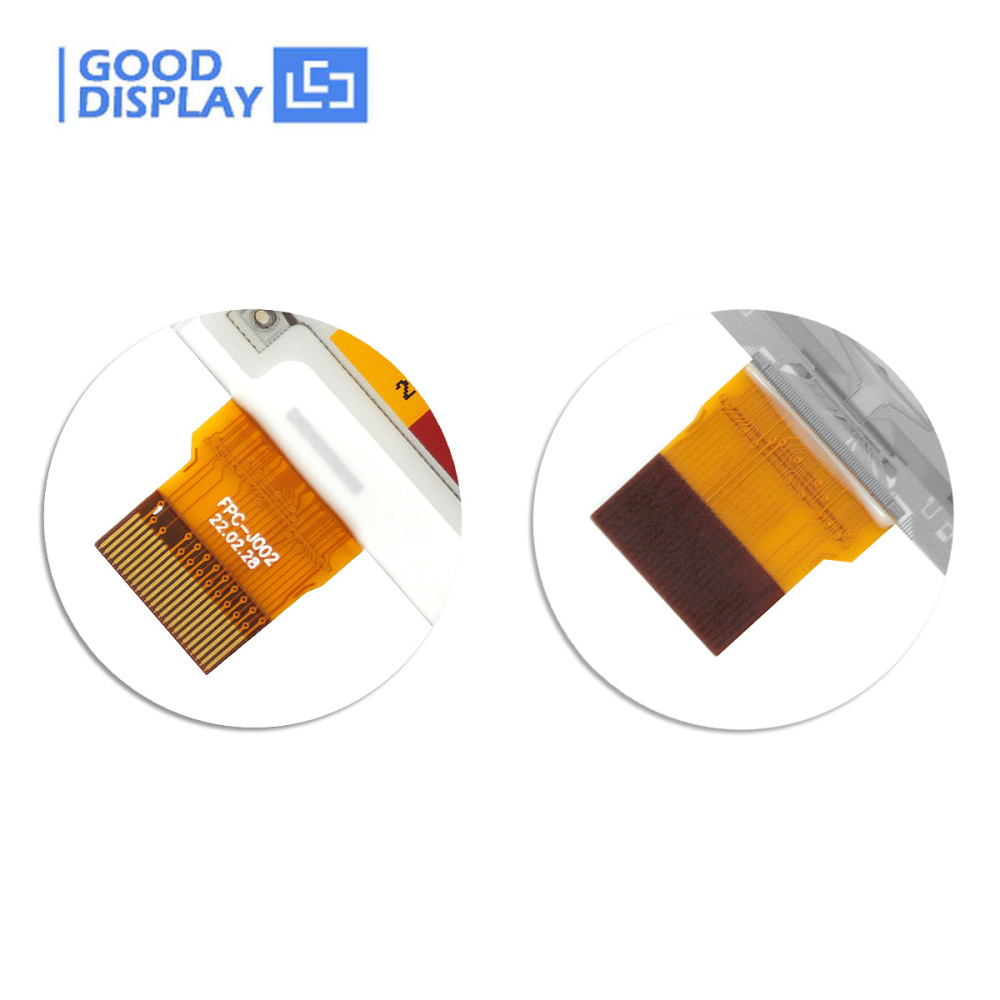

Connector 24 PIN FPC, pitch 0.5 mm
Outline Size 59.2 × 29.2 × 1.0 mm
Active Size 48.55 × 23.7046 mm
Pixel Pitch 0.1943 × 0.1942 mm
Operating Temp. 0℃ ~ 40℃
Storage Temp. -25℃ ~ +70℃
Full Refresh Time 16 s
Fast Refresh Time 11 s
Typical Power 9.9 mW (3.3V)
Deep Sleep Power 0.03 mW
Surface Hard-coated anti-glare
Viewing Angle >170°
Display Mode Pure reflective, bi-stable
Operating Voltage 3.3 V

Product Details

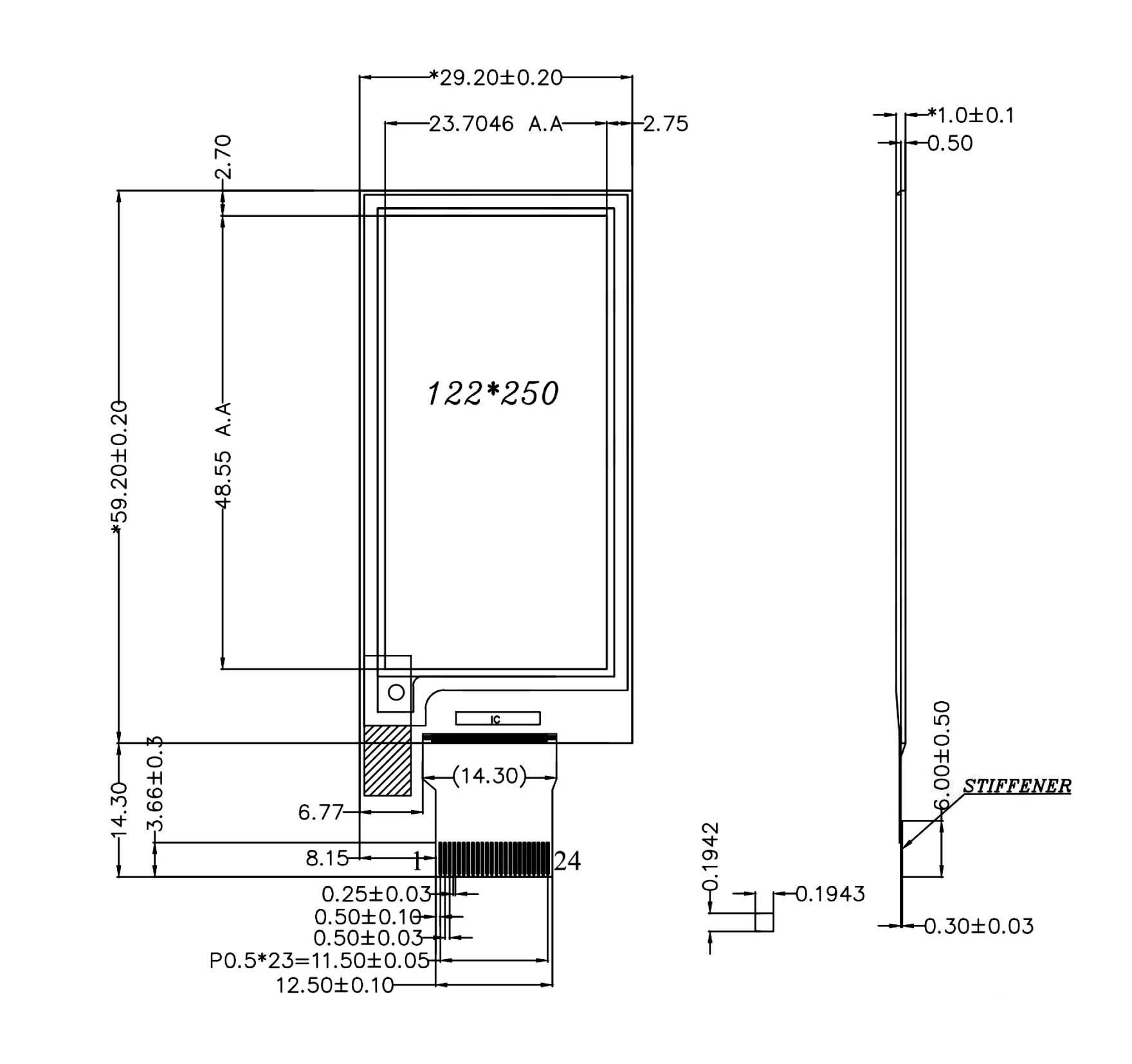

GDEY0213F52 technical drawing and pin assignment

Matching Driver Boards

DESPI-C02

DESPI-C02

E-ink display adapter board. Pure hardware interface, no MCU required.

View Details →
DESPI-L(C02) STM32

DESPI-L(C02)

STM32 platform demo kit for rapid prototyping & evaluation.

View Details →
DEArduino-L(C02)

DEArduino-L(C02)

Arduino platform demo kit for quick firmware development.

View Details →
ESP8266-L(C02)

ESP8266-L(C02)

ESP8266 Wi-Fi demo kit for connected IoT e-paper projects.

View Details →
ESP32-L(C02)

ESP32-L(C02)

ESP32 platform demo kit with Wi-Fi & Bluetooth support.

View Details →
NFC-D3-213

NFC-D3-213

NFC driver board — power & refresh the display without a battery.

View Details →

Typical Applications

Retail and shelf labels

Retail & Shelf Labels

Vibrant red and yellow highlights draw attention to pricing and promotions. Bi-stable image holds without power.

Logistics management

Logistics Management

Color-coded labels for sorting, routing and inventory. Long-term stable supply for bulk purchasing.

Smart home and IoT

Smart Home & IoT

Thermostat labels, smart switches and status panels. 0.03mW deep sleep for months of battery life.

Healthcare and medical monitoring

Healthcare & Medical

No blue light, zero radiation. Ideal for patient status boards, wearable monitors and medical labels.

We Also Recommend

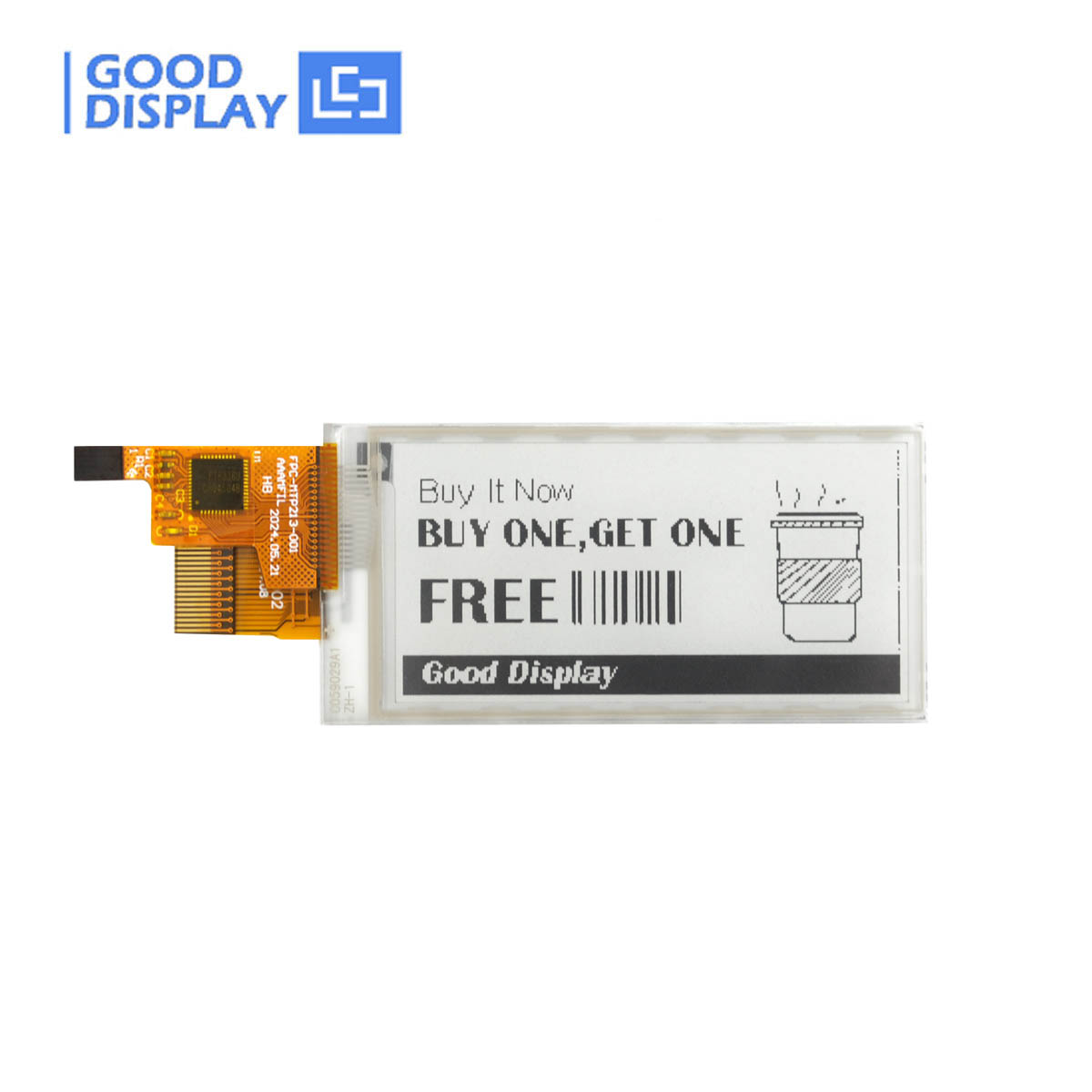

GDEY0213B74

2.13" 250×122 Fast Refresh EPD

View Details →
GDEY0213B74-FL01

2.13" Frontlight E-Paper Display

View Details →
GDEY0213B74-T21

2.13" Touchscreen E-Paper Display

View Details →

2.13" Frontlight+ Touch EPD

View Details→

Sustainable Technology

Paperless Future

Each GDEY0213F52 can replace thousands of paper labels annually. Join 15,000+ businesses reducing paper waste with bi-stable e-paper.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials for EU and North American compliance.

Energy Leadership

9.9mW operating and 0.03mW deep sleep. A single coin cell can power months of updates in wireless IoT and NFC deployments.

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

Rigorously selected fast-refresh FPL film delivers a solid hardware foundation for high-speed partial updates at 11s.

Smart Temp-Controlled Drive

Optimized waveform files across temperature ranges ensure excellent display quality even during rapid refresh cycles.

JD79676A Chip-Level Integration

Optimized waveforms built into the JD79676A driver — activate fast refresh mode with a simple code call. Plug and play.

Feature Conventional 4-Color EPD GDEY0213F52
Fast Refresh Time Not supported / very slow 11 s
Full Refresh Time ~20–30 s 16 s
Display Color B/W only or limited color Black, White, Yellow, Red
Deep Sleep Power ~0.05 mW 0.03 mW
Driver Integration External components required All-in-one JD79676A (DC-DC, SRAM, LUT, VCOM)
Viewing Angle ~120° >170°
