Fast Refresh 1.5s 2.13 inch 250x122 Raspberry Pi EPD supports Electronic Epaper price tag, GDEY0213B74

GDEY0213B74

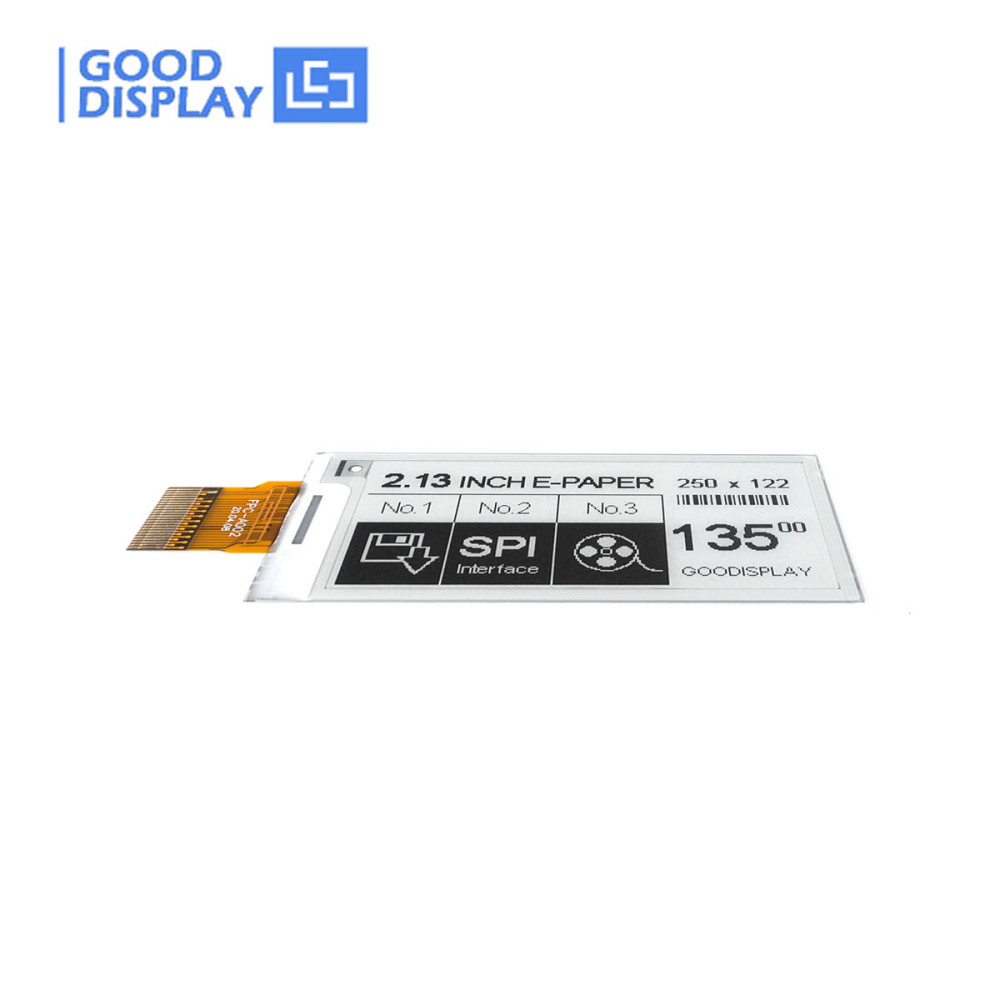

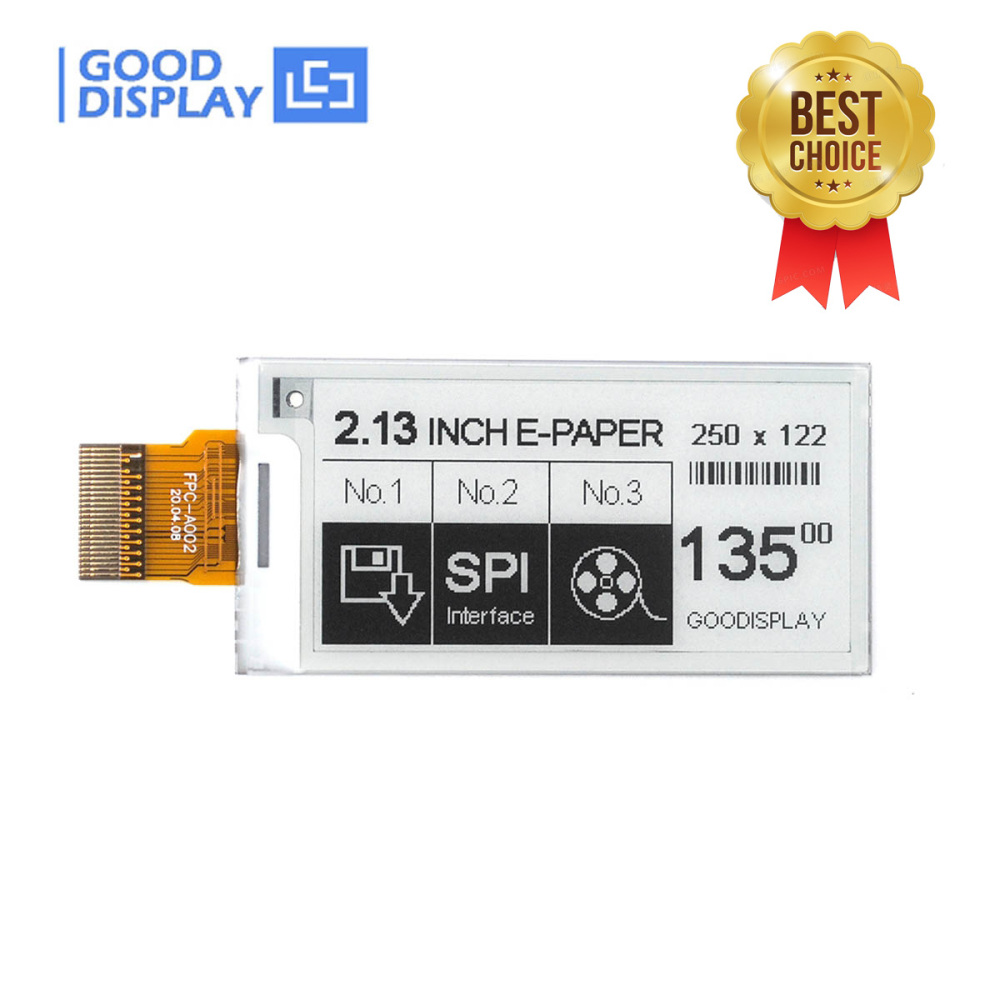

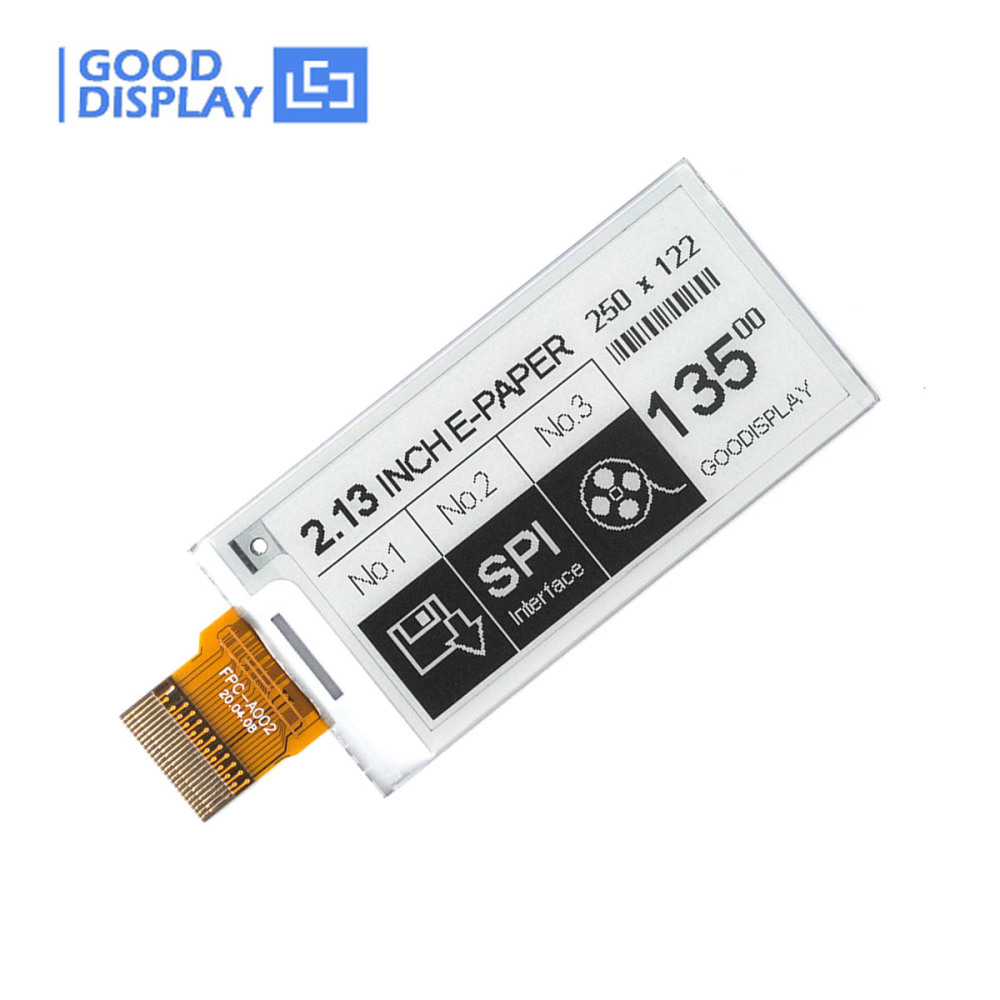

This is a e ink display, 2.13 inch with 250x122 resolution, SSD1680Z, SPI interface. This e-paper also supports 4 grayscale, partial refresh and 1.5s fast refresh.
Price:
USD
$6.36
  • Product:
    EPD
    EPD with adapter board DESPI-C02
    EPD with demo kit DESPI-L(C02)
    EPD with demo kit DEArduino-L(C02)
    EPD with demo kit ESP8266-L(C02)
    EPD with demo kit ESP32-L(C02)
Quantity:
-
+
(594 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews(13)



☆ INTRODUCTION




This is a 2.13 inch e-paper screen with 250x122 resolution, SPI interface, supports 1.5s fast refresh, 3s full refresh, 0.4s partial refresh, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY0213B74 is perfect for low power devices powered by solar or batteries.



We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.






☆ THE ABOVE PRICE INCLUDE

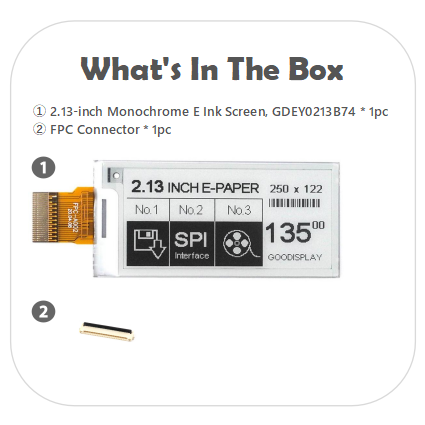

Package A +
  a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 1pc   b. FPC Connector * 1pc

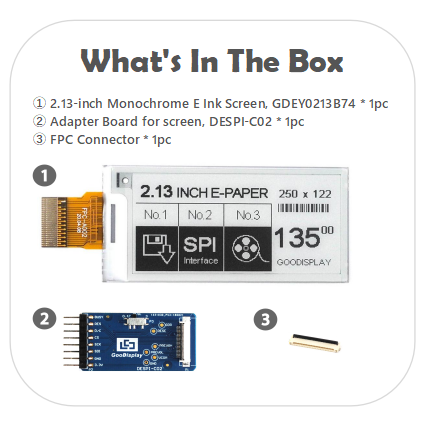

Package B + +

  a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02 * 1pc

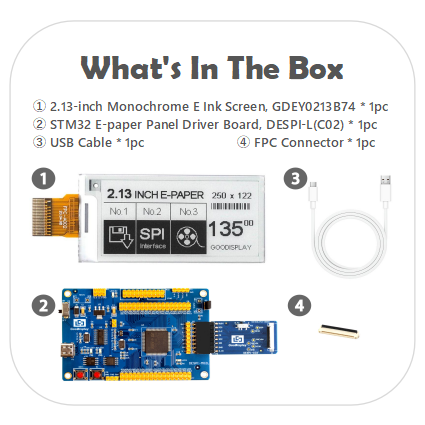

Package C + + +
a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc   d. USB Cable * 1pc

Package D + +
a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) * 1pc   d. USB Cable * 1pc

Package E + +
a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) * 1pc   d. USB Cable * 1pc

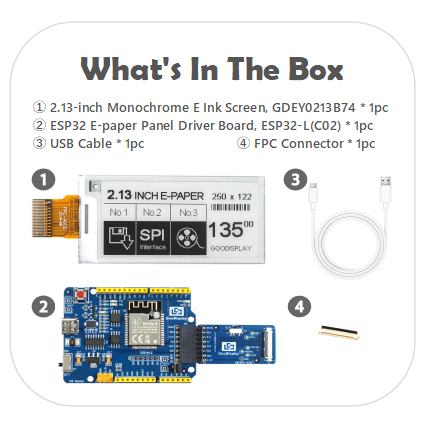

Package F + + +
a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc   d. USB Cable * 1pc


☆ MAIN PARAMETERS




PART NUMBER

GDEY0213B74

TYPE

Dot Matrix

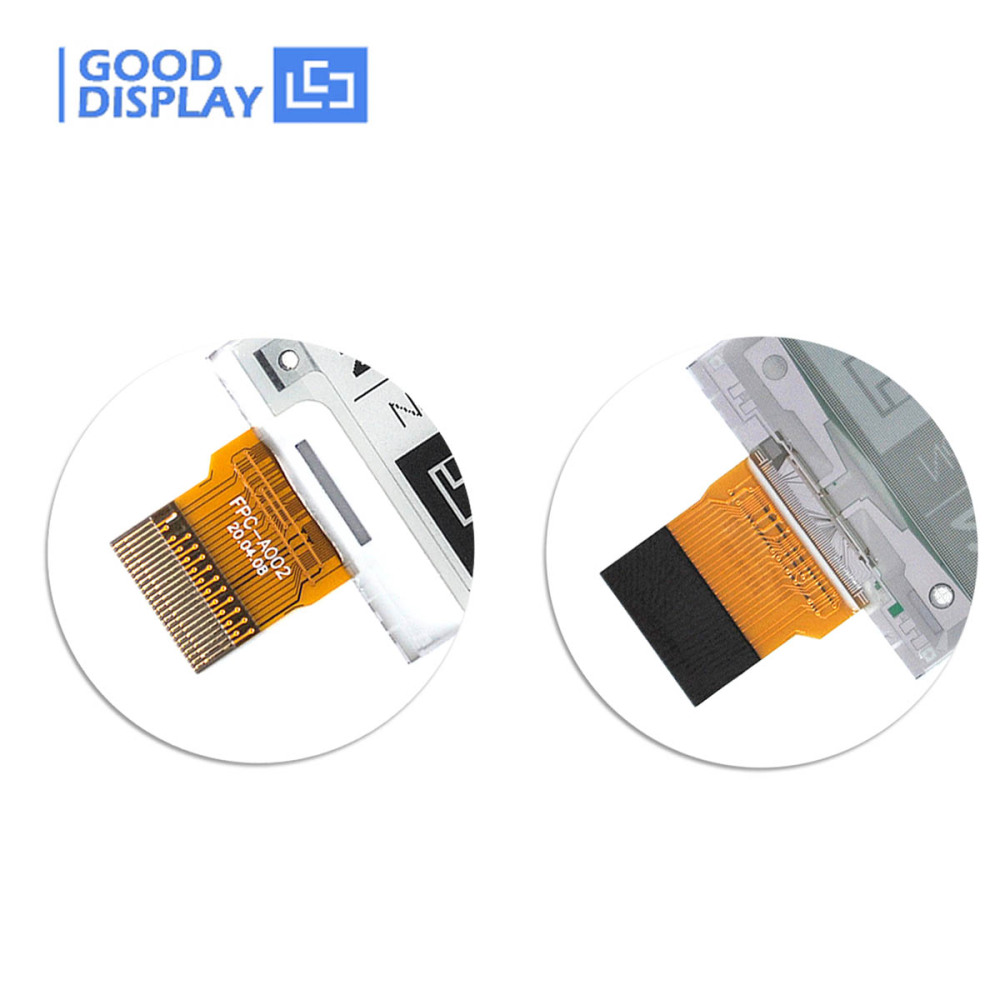

CONNECTOR 24 Pin FPC

SIZE

2.13 inch

MAX GRAYSCALE 4

IC

SSD1680Z

COLOR Black,White

RESOLUTION

250x122

INTERFACE SPI

OUTLINE SIZE(mm)

59.2x29.2x1.0

FULL REFRESH(s) 3

ACTIVE SIZE(mm)

48.55x23.7046

FAST REFRESH(s) 1.5

PIXEL PITCH(mm)

0.1943x0.1942

PARTIAL REFRESH TIME(s) 0.42

OPERATING TEMP.

0℃~50℃

POWER CONSUMPTION OF THE REFRESH(mW) 10.5

STORAGE TEMP.

-25℃~70℃

STANDBY POWER CONSUMPTION (mW) 0.003





☆ FEATURE




●  Support 4 Grayscale
●  Support 1.5s Fast Refresh

●  Black and white monochrome is easy to read

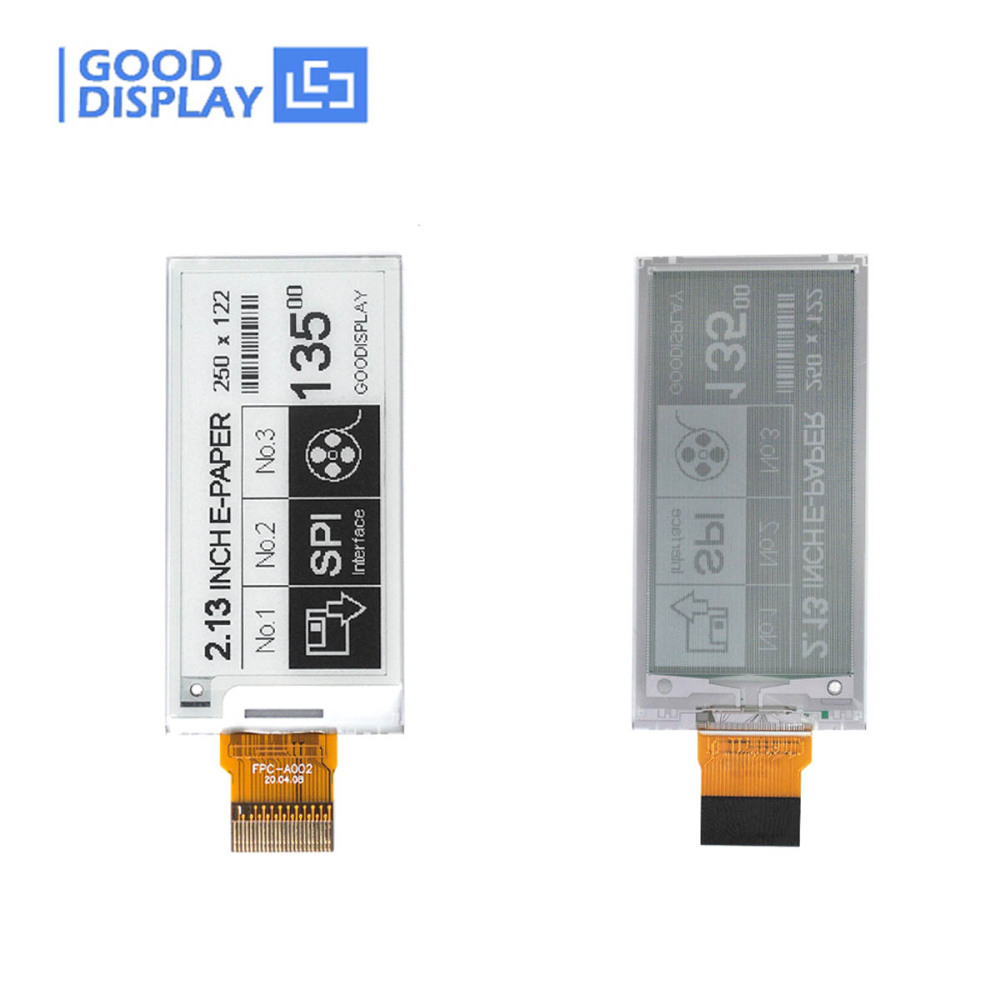

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.4s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / Arduino / ESP8266 / ESP32

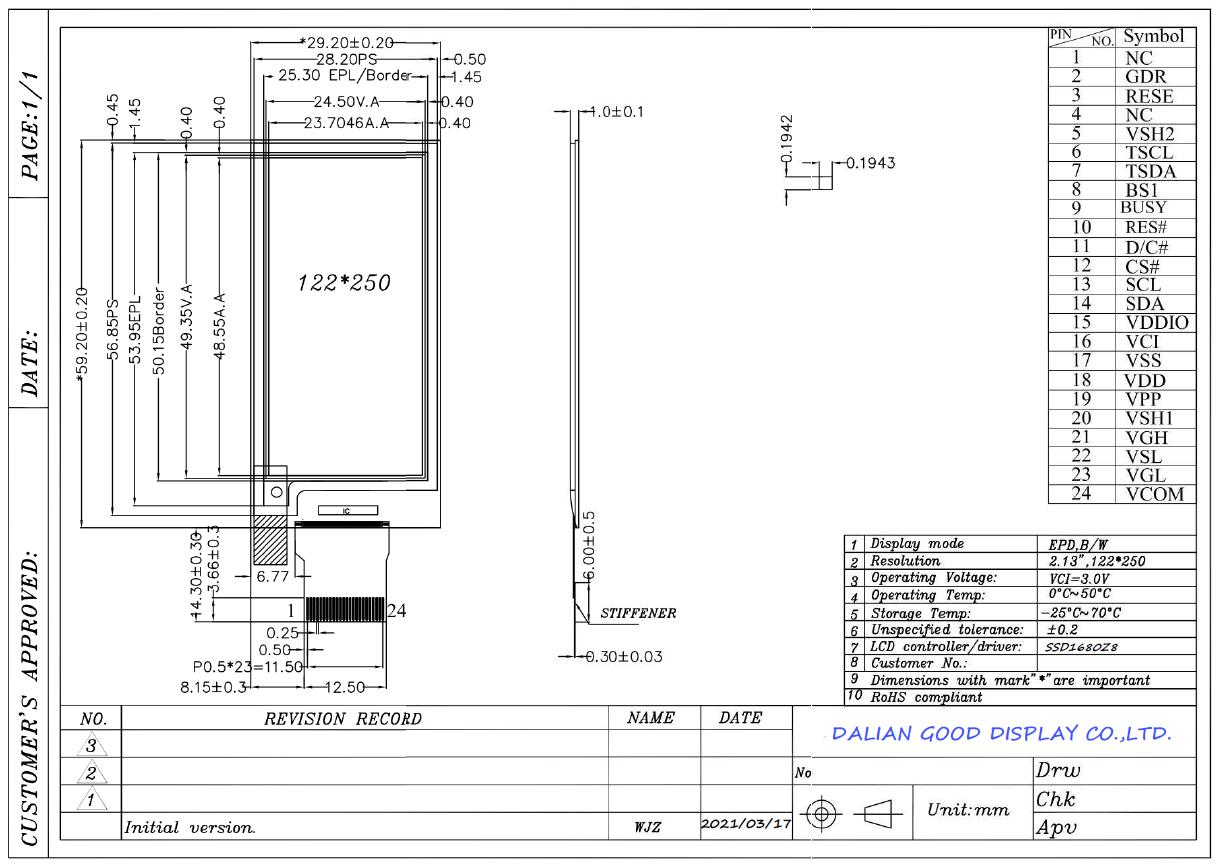

☆ DRAWING





☆ MATCHED DEVELOPMENT KIT




● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)



● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)



☆ RELATED INFORMATION DOWNLOAD



● GDEY0213B74 Specification

● IC Driver SSD1680 Datasheet

● GDEY0213B74 Picture Production and Bitmap Conversion

● GDEY0213B74 STM32 Sample Code

● GDEY0213B74 ESP32 Sample Code

● GDEY0213B74 ESP8266 Sample Code

● GDEY0213B74 Arduino Sample Code
