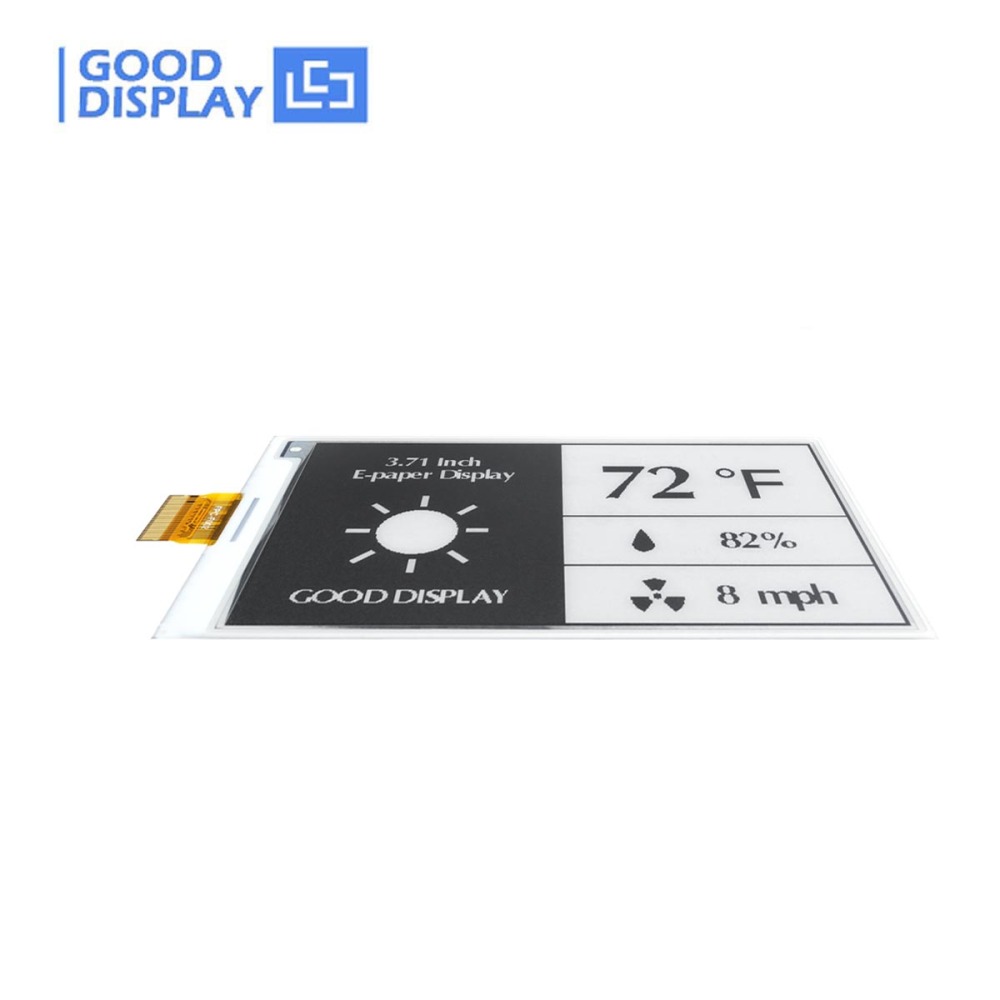

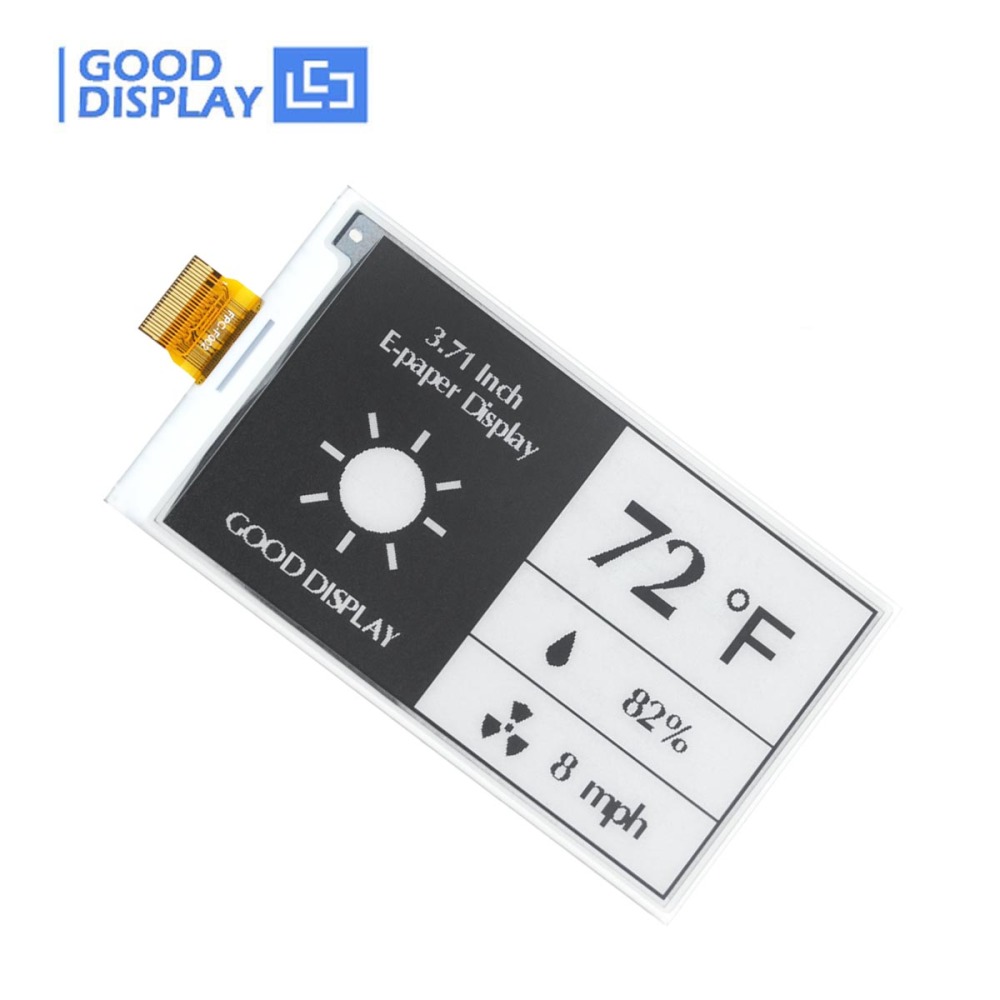

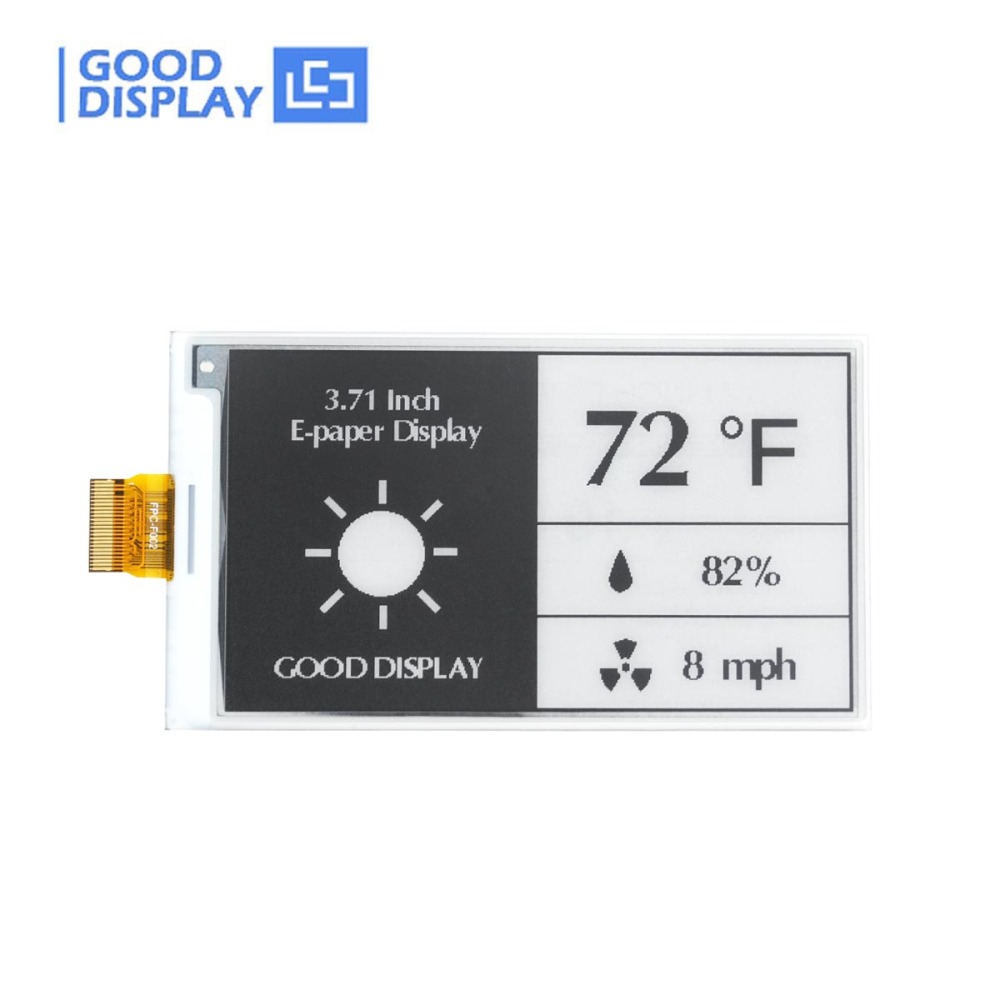

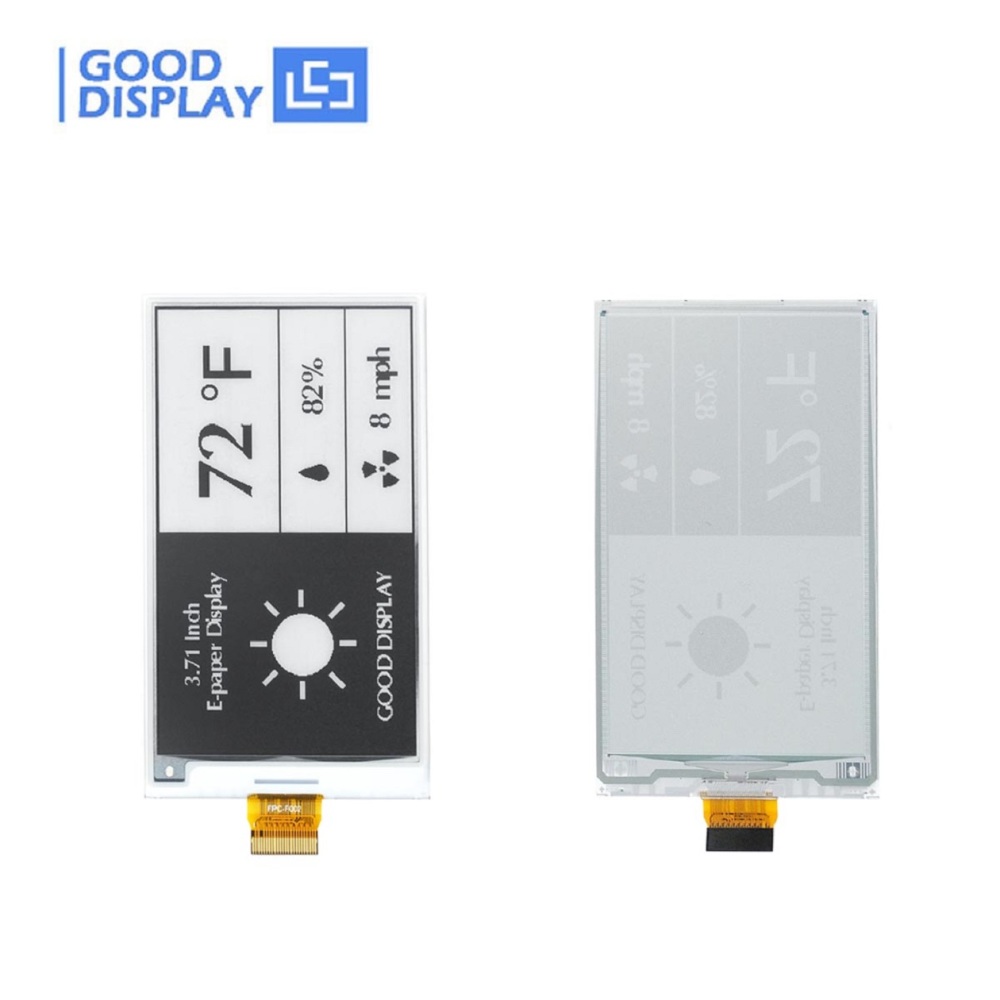

3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL, GDEY037T03

This is a 3.7 inch e-ink screen with 416x240 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 1s fast refresh.
Sold:6
Price:
USD
$15.70
Quantity:
-
+
(44 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Library
  • Selection Guide
  • Reviews



☆ INTRODUCTION



This is a 3.7 inch e-ink screen with 416x240 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full screen update, 1s screen fast update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY037T03 is perfect for low power devices powered by solar or batteries.

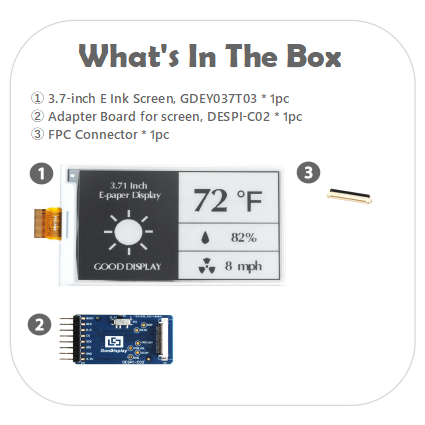

We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

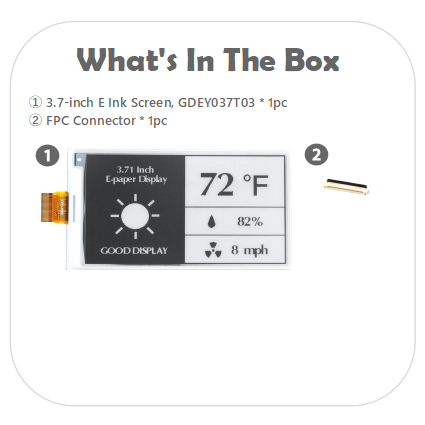

☆ THE ABOVE PRICE INCLUDE


1) 3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL * 1pc
2) FPC Connector * 1pc


☆ MAIN PARAMETERS



PART NUMBER

GDEY037T03



SIZE

3.7 inch

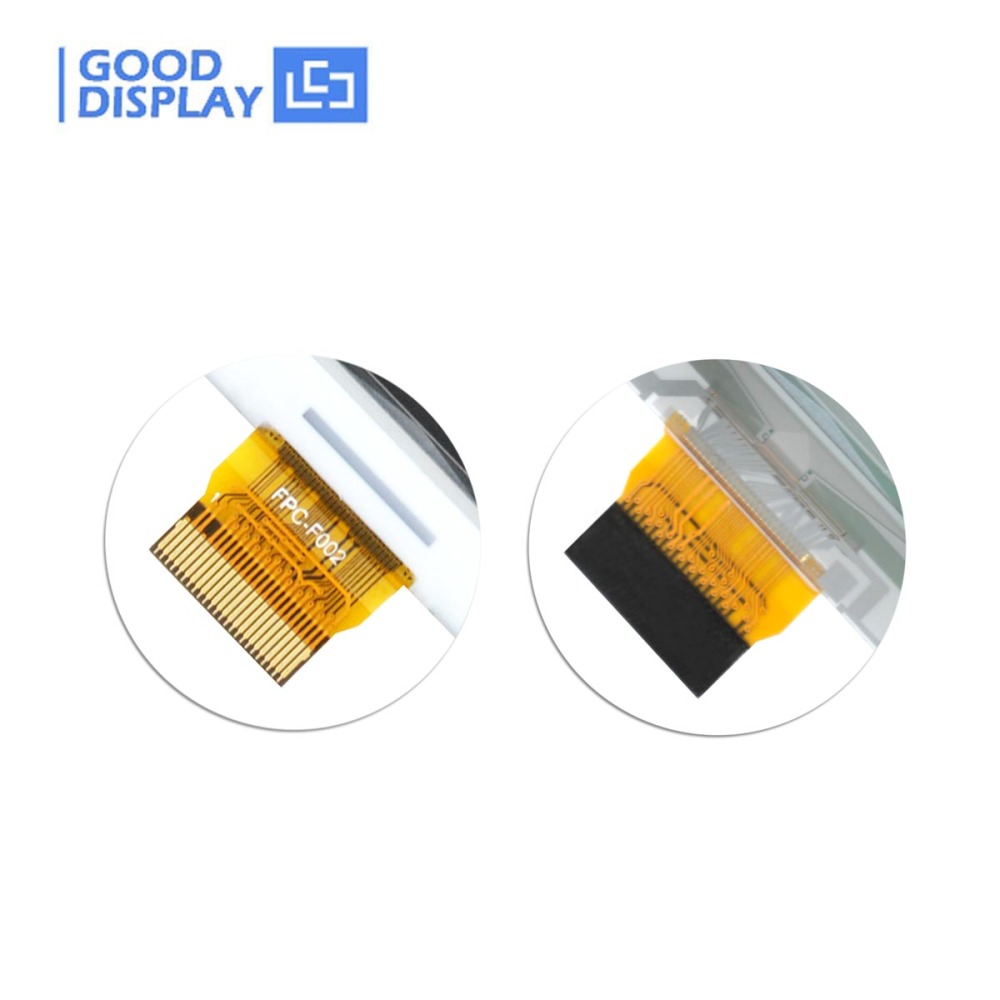

 CONNECTOR 24 Pin FPC

TYPE

Dot Matrix

 MAX GRAYSCALE 2

IC

UC8253

 COLOR Black,White

RESOLUTION

416x240

 INTERFACE SPI

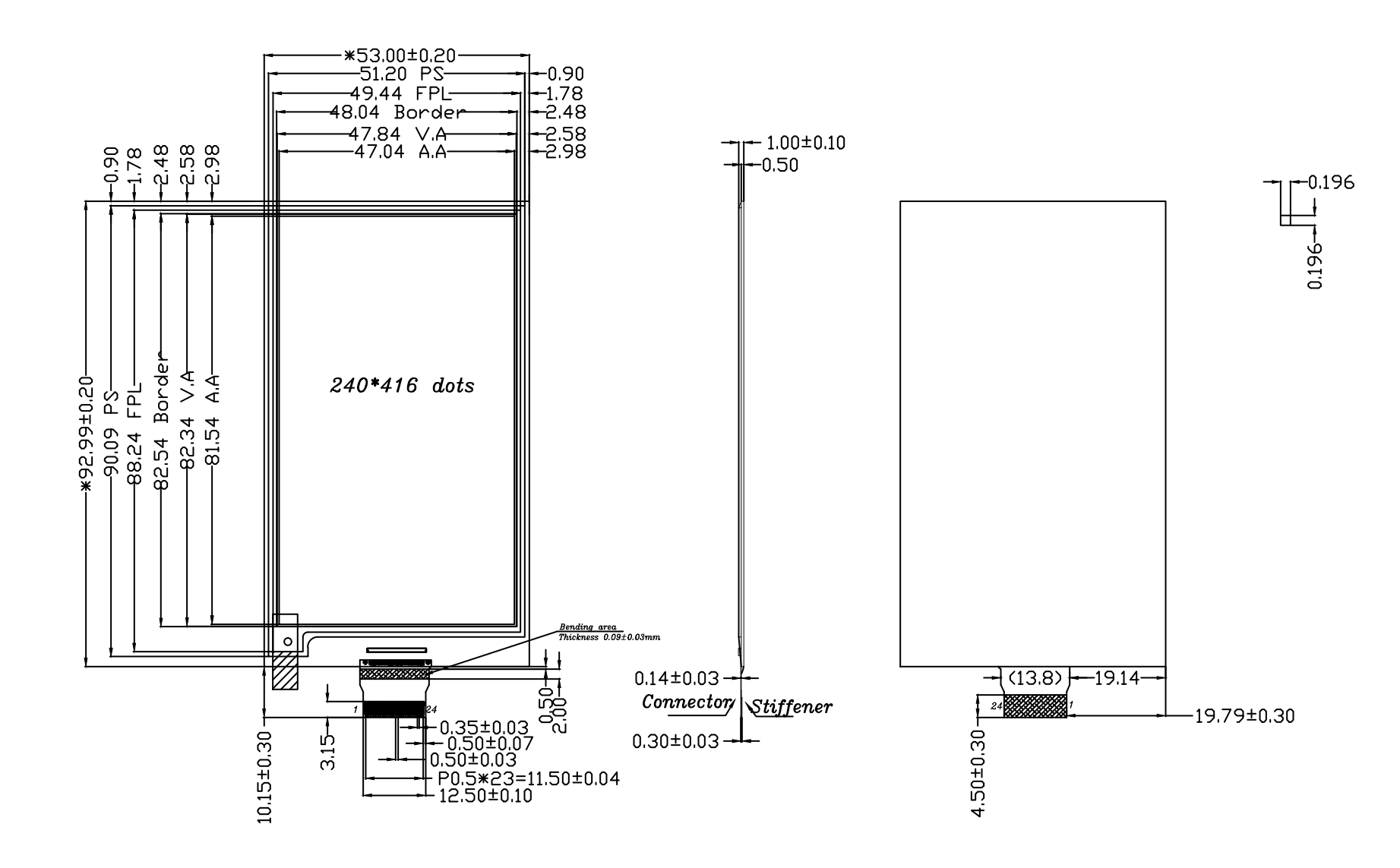

OUTLINE SIZE(mm)

92.99x53x1.0

 FULL REFRESH(s) 3

ACTIVE SIZE(mm)

81.54x47.04

 FAST REFRESH(s) 1

PIXEL PITCH(mm)

0.196x0.196

 POWER CONSUMPTION OF THE REFRESH(mW) 18

OPERATING TEMP.

0℃~50℃

 STANDBY POWER CONSUMPTION (mW) 0.003

STORAGE TEMP.

-25℃~70℃





☆ FEATURE



●  Support 1s Fast Refresh

●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

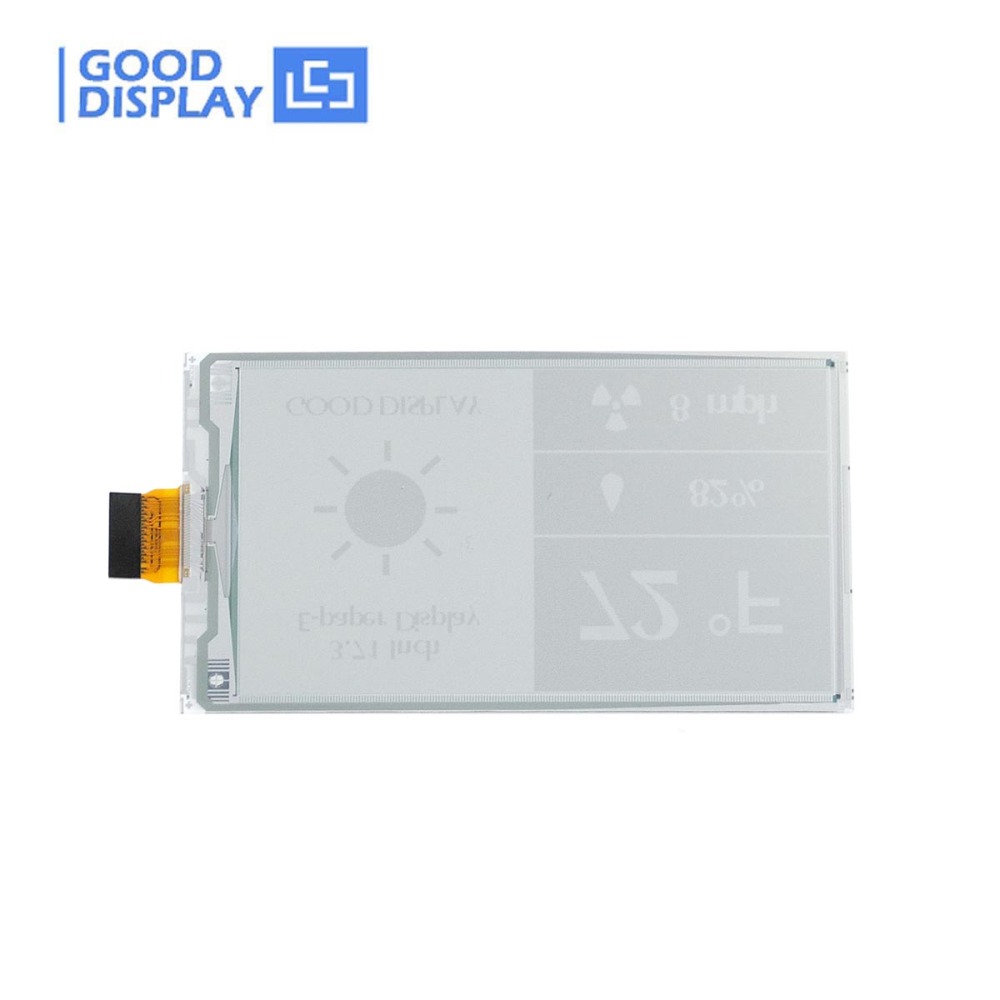

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32


☆ DETAILS

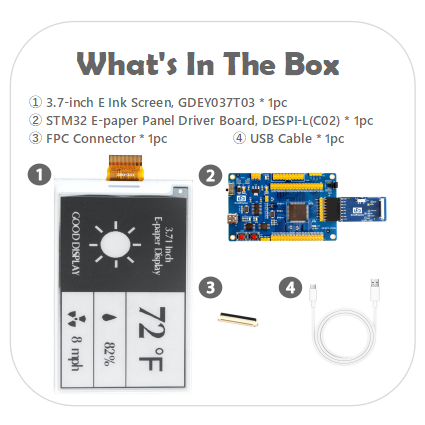

☆ MATCHED DEVELOPMENT KIT



● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)

● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-C03 (Rasberry Pi Epaper HAT)


☆ WE ALSO SUGGEST...



2.7 inch E-Paper 264x176 Resolution Eink Display Communicating via SPI Interface, GDEY027T91

2.9 inch e-paper screen 296x128 customizable 1.5s fast refresh Raspberry pi SPI display, GDEY029T94

2.9 inch electronic paper screen SSD1680A 296x128 color e-ink display, GDEY029Z94

Good Display 3.7'' Color E ink E paper Display UC8253 E-ink Display, GDEY037Z03







☆ SPECIFICATION DOWNLOAD



1. Product Specification & Sample Code
1)  GDEY037T03 Specification
2)  GDEY037T03 STM32 Sample Code
3)  GDEY037T03 Arduino Sample Code
4)  GDEY037T03 ESP8266 Sample Code
5)  GDEY037T03 ESP32 Sample Code


2. E-paper Display IC Datasheet
1)  IC Driver UC8253 Datasheet


3. Image to E-paper Display Software
1) Slave Computer Software-Image to EPD V3.6
2) Image to EPD Instruction Manual



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃ √   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

√

√

SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √ √ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃ √   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃ √   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃     SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI
