☆ INTRODUCTION

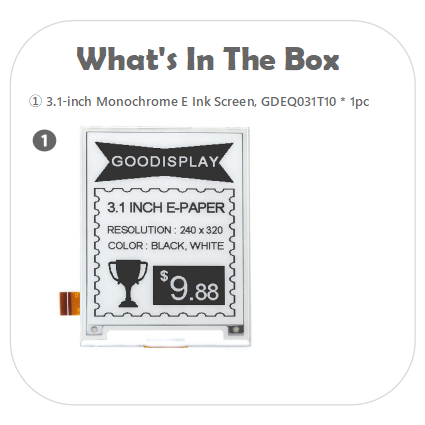

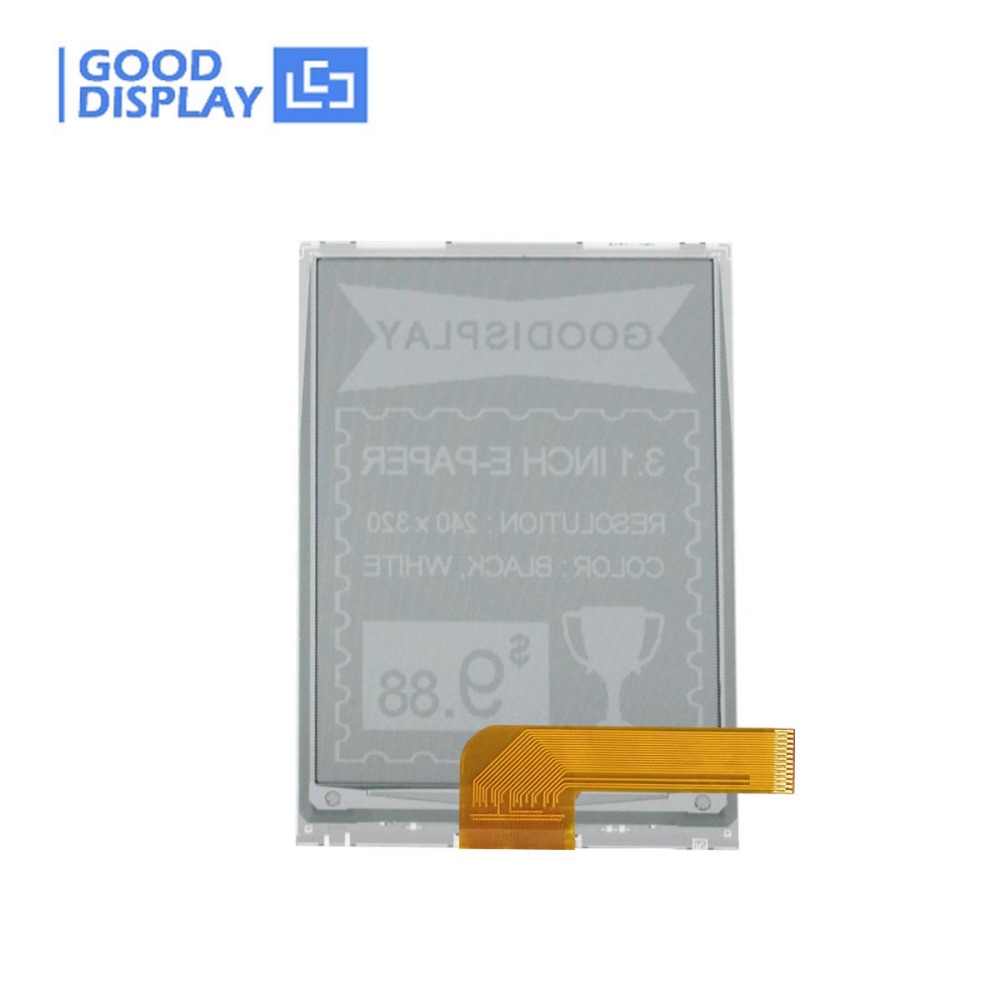

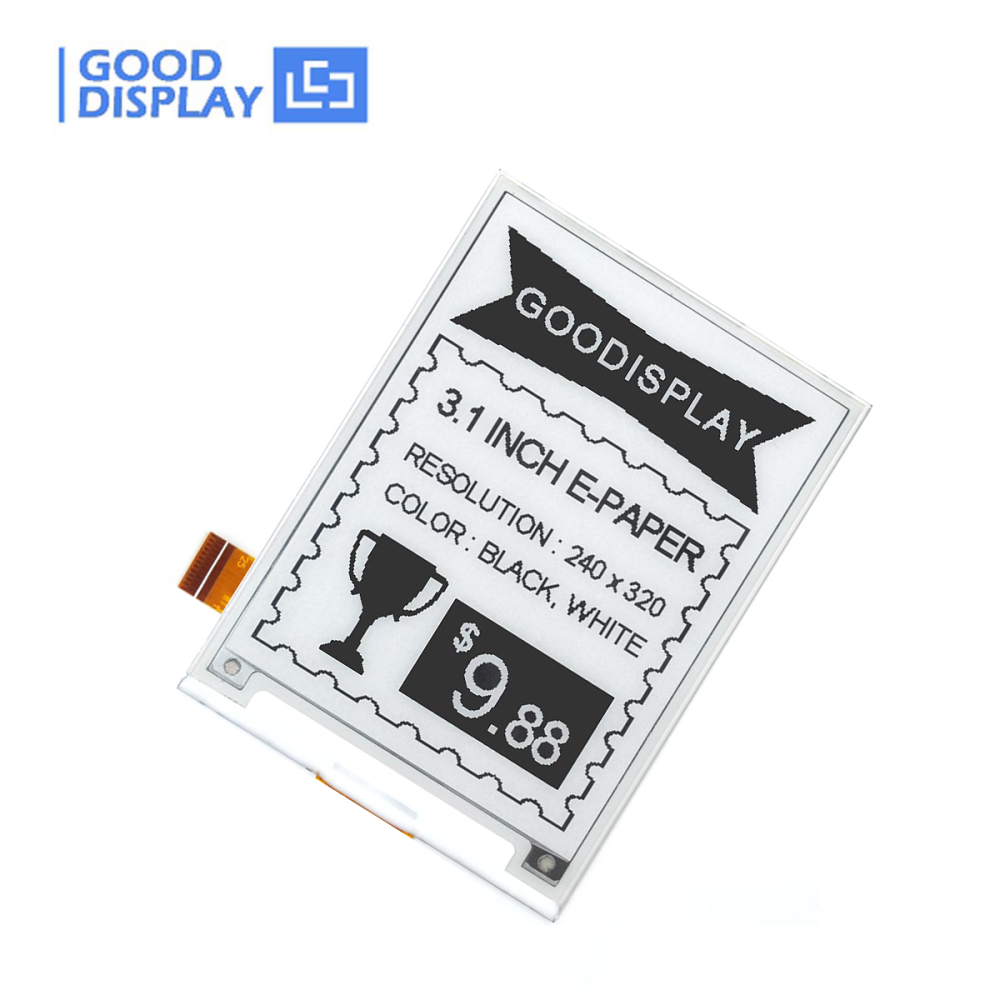

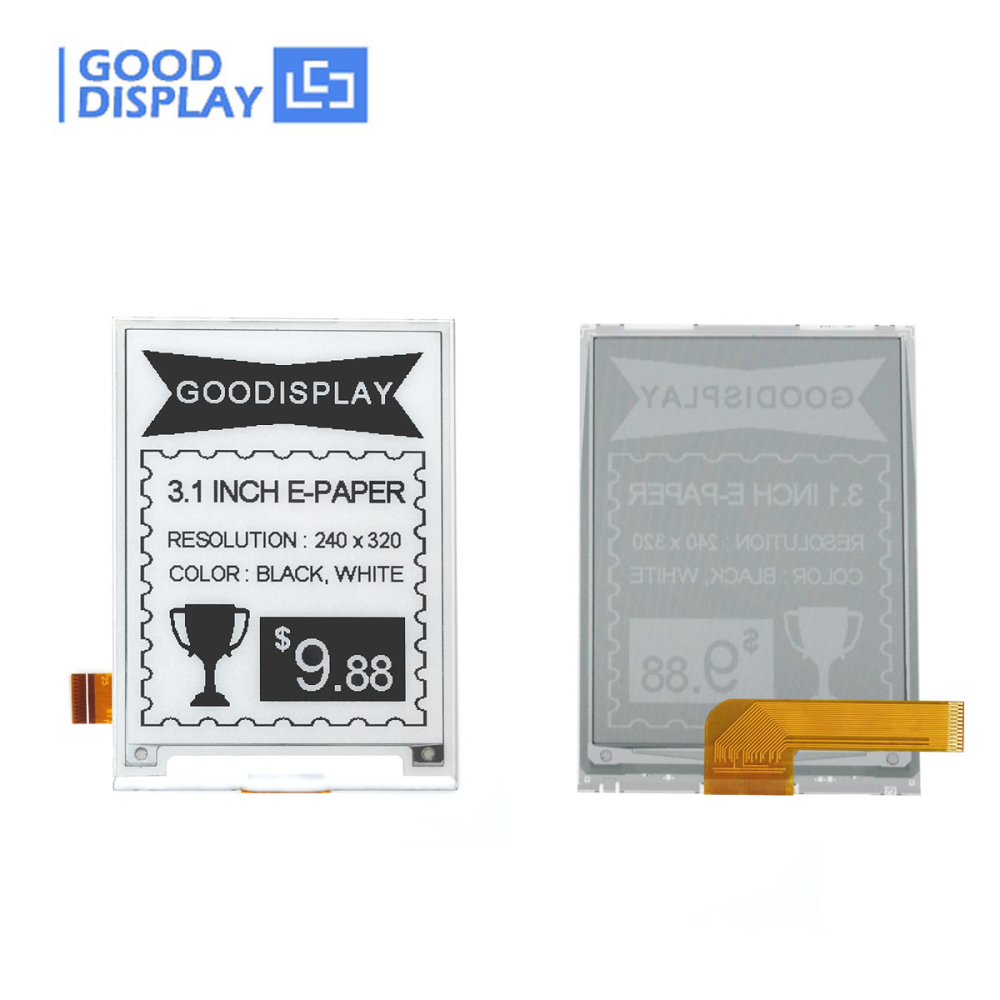

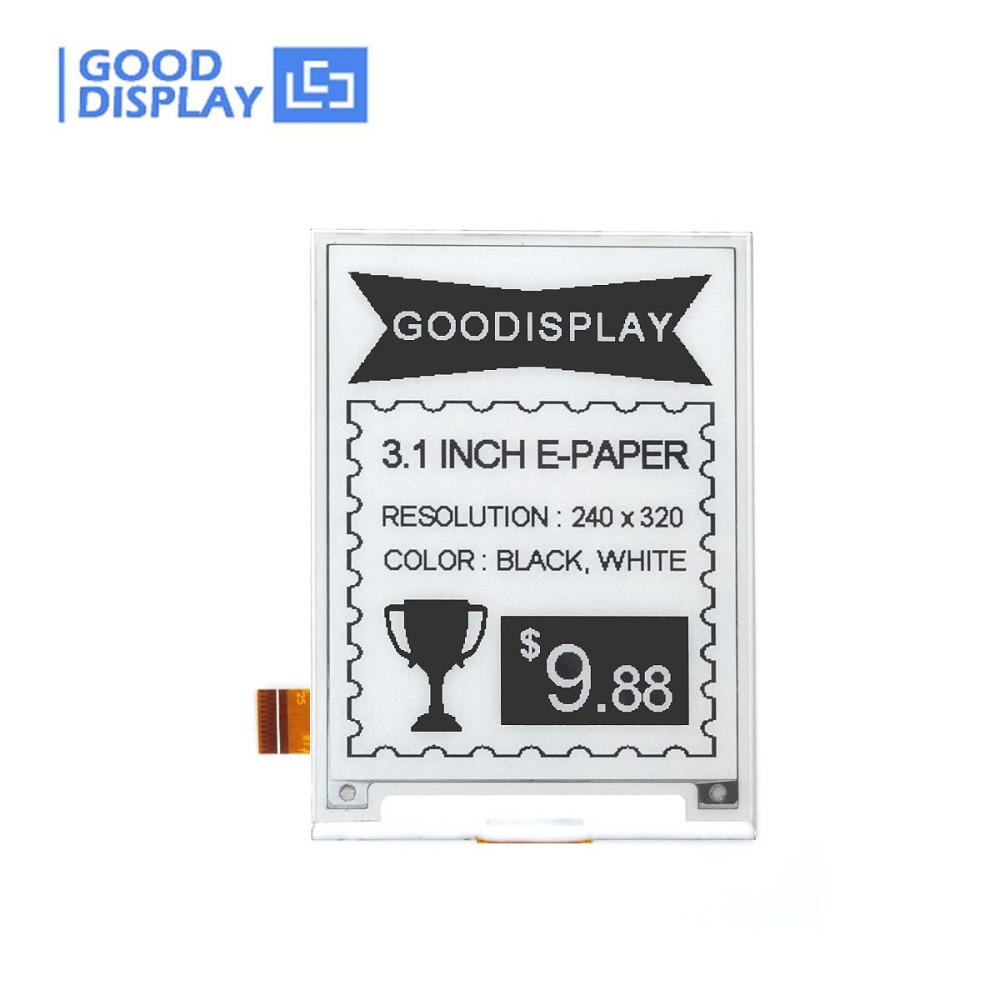

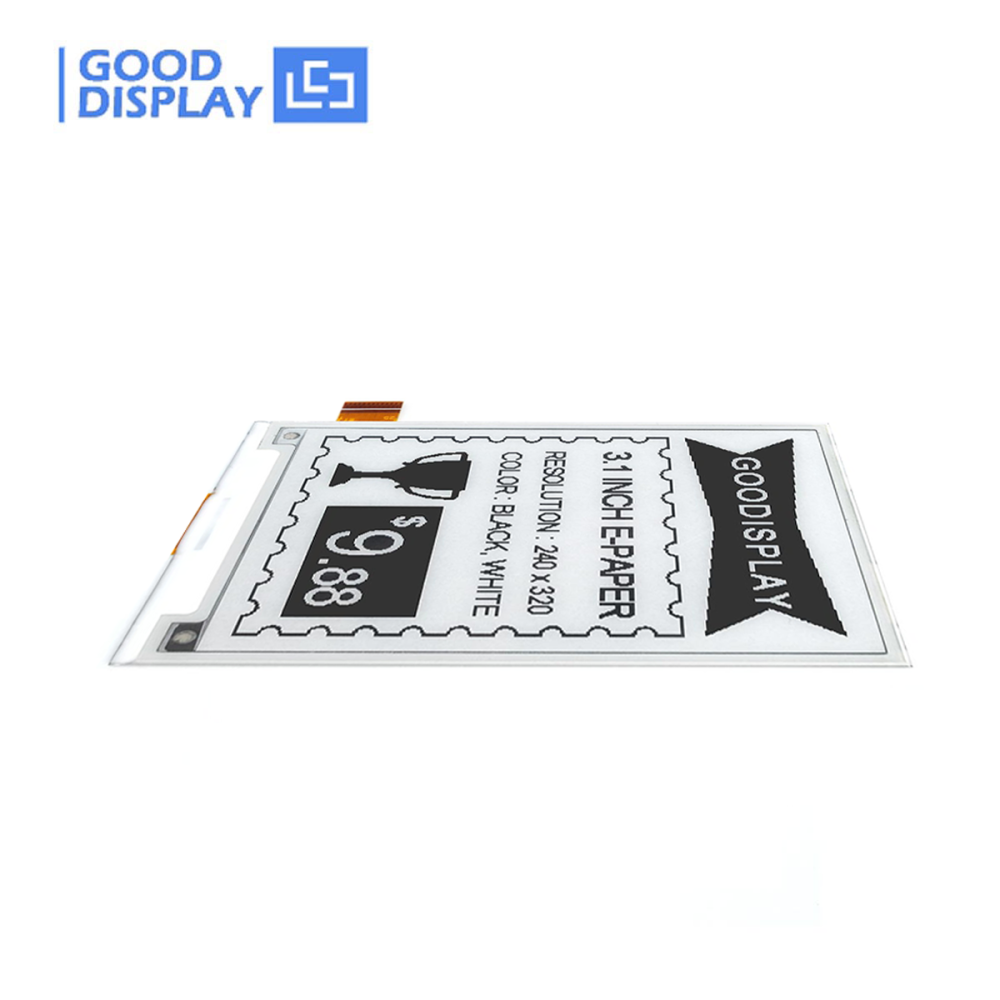

This is a 3.1 inch e-paper display with 320x240 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full screen update, 1s screen fast update, 0.5s partial screen update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper screen GDEQ031T10 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

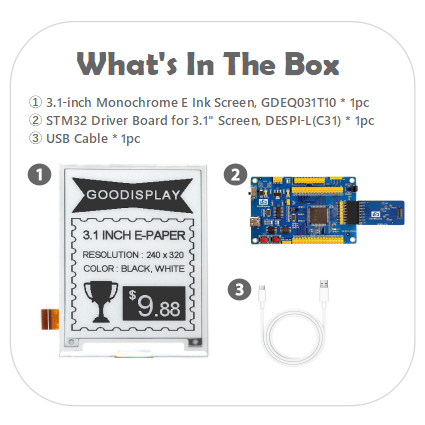

☆ THE ABOVE PRICE INCLUDE
☆ MAIN PARAMETERS
PART NUMBER
|
GDEQ031T10
|
SIZE
|
3.1 inch
|

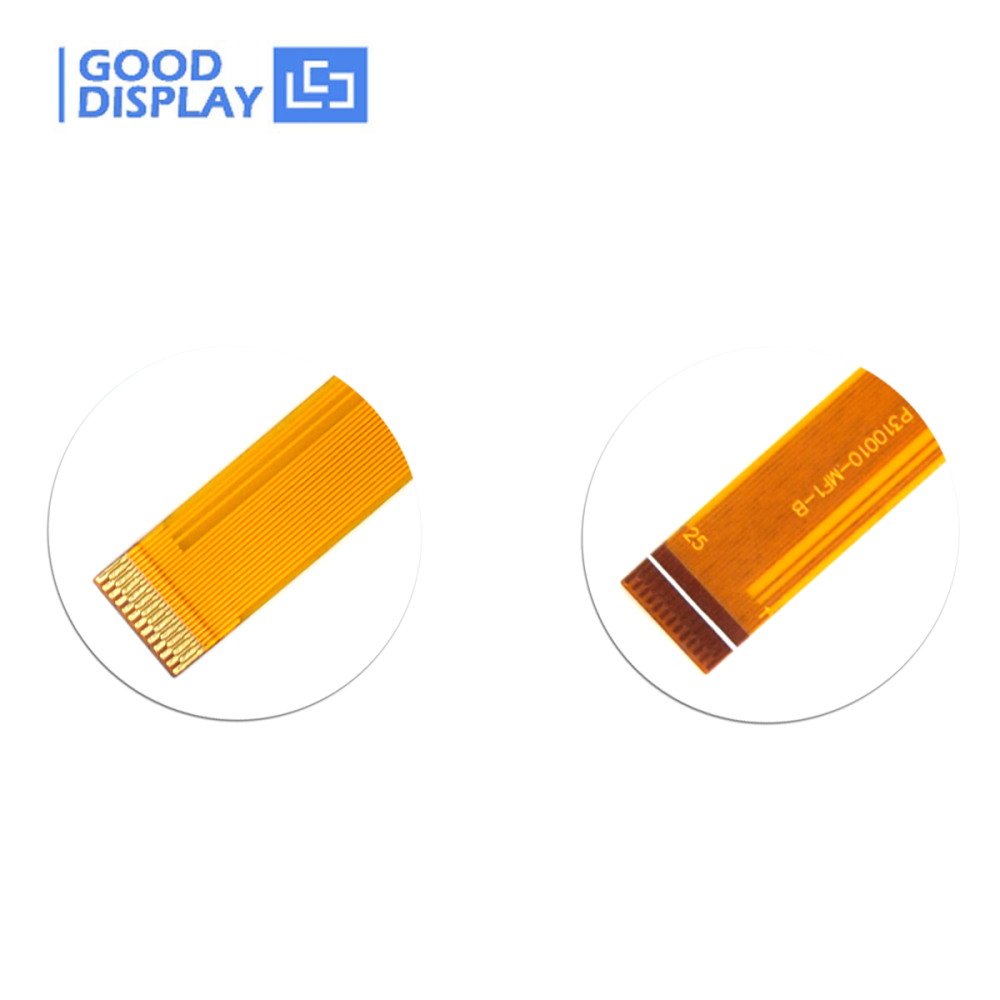

CONNECTOR |
25 Pin FPC |
TYPE
|
Dot Matrix
|
MAX GRAYSCALE |
4 |
IC
|
UC8253
|
COLOR |
Black,White |
RESOLUTION
|
320x240
|
INTERFACE |
SPI |
OUTLINE SIZE(mm)
|
73.8x53.24x0.926
|
POWER CONSUMPTION OF THE REFRESH(mW) |
11 |
ACTIVE SIZE(mm)
|
62.72x47.04
|
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
PIXEL PITCH(mm)
|
0.196x0.196
|
STORAGE TEMP. |
-25℃~60℃ |
OPERATING TEMP. |
0℃~50℃ |
FULL REFRESH(s) |
3 |
FAST REFRESH(s)
|
1
|
PARTIAL REFRESH(s) |
0.5 |
☆ FEATURE
● Support 1s fast refresh
● Support partial refresh
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)

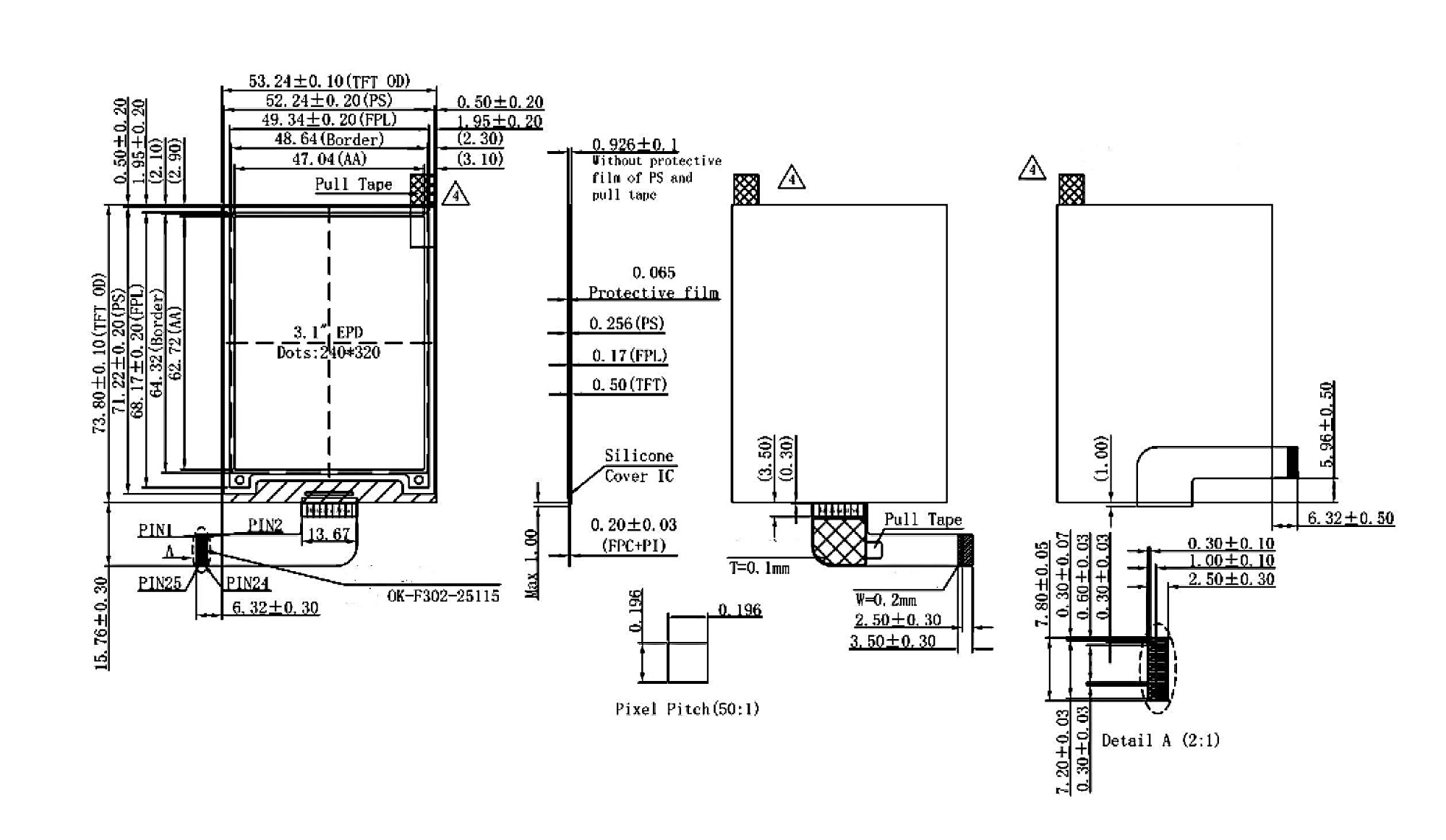

☆ DRAWING
☆ MATCHED DEVELOPMENT KIT

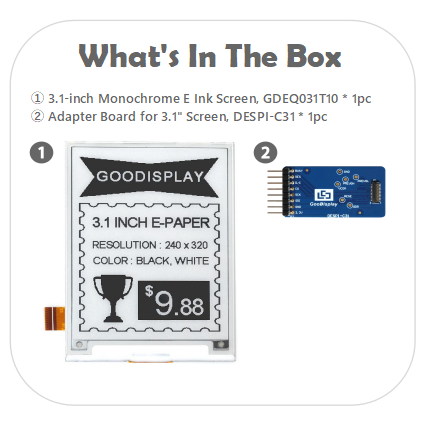

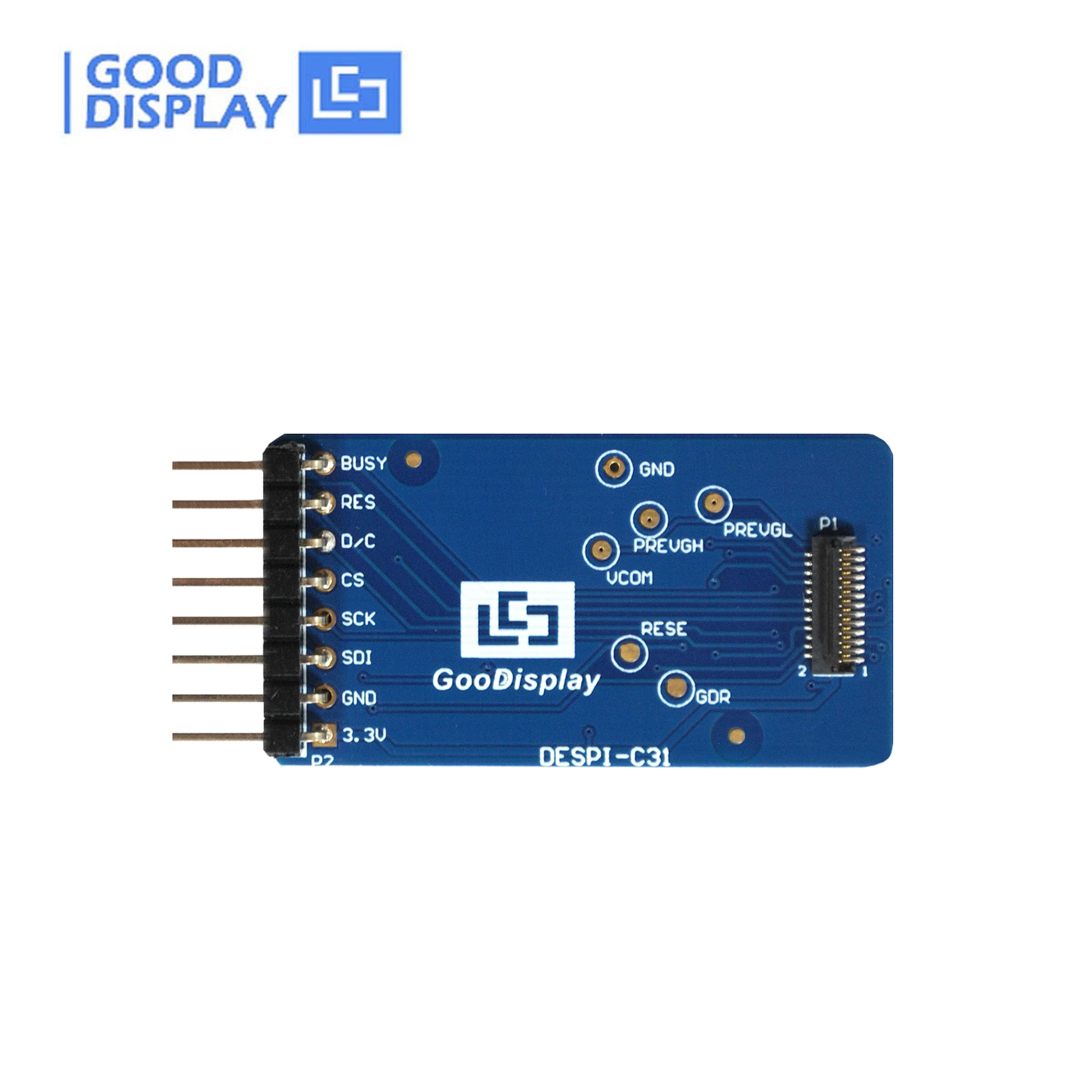

● DESPI-C31 (E-ink Display HAT)

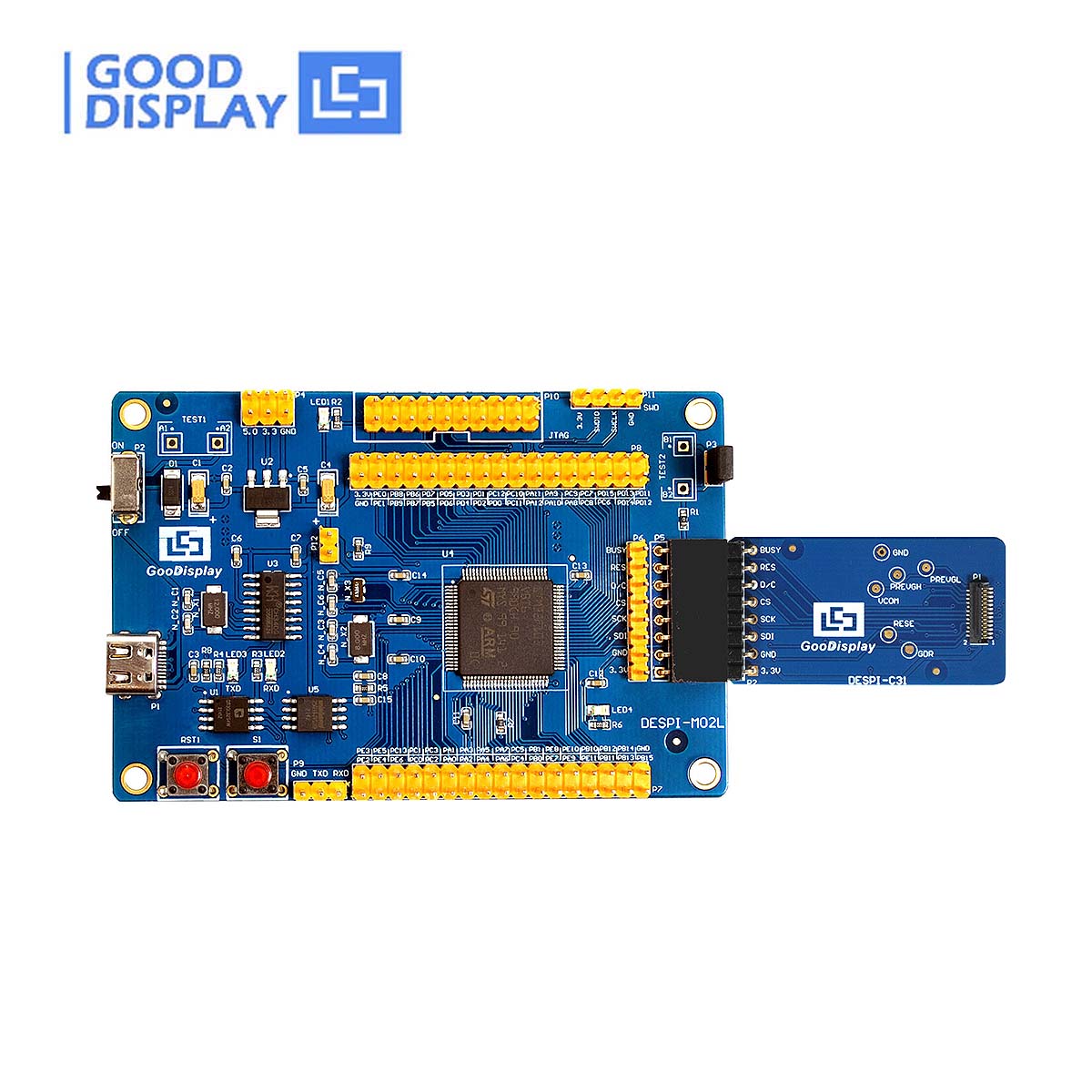

● DESPI-L(C31) (STM32 Platform/Universal)

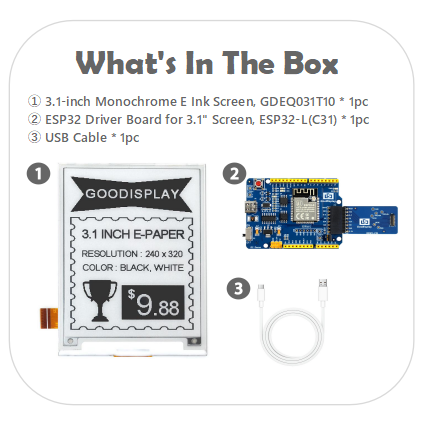

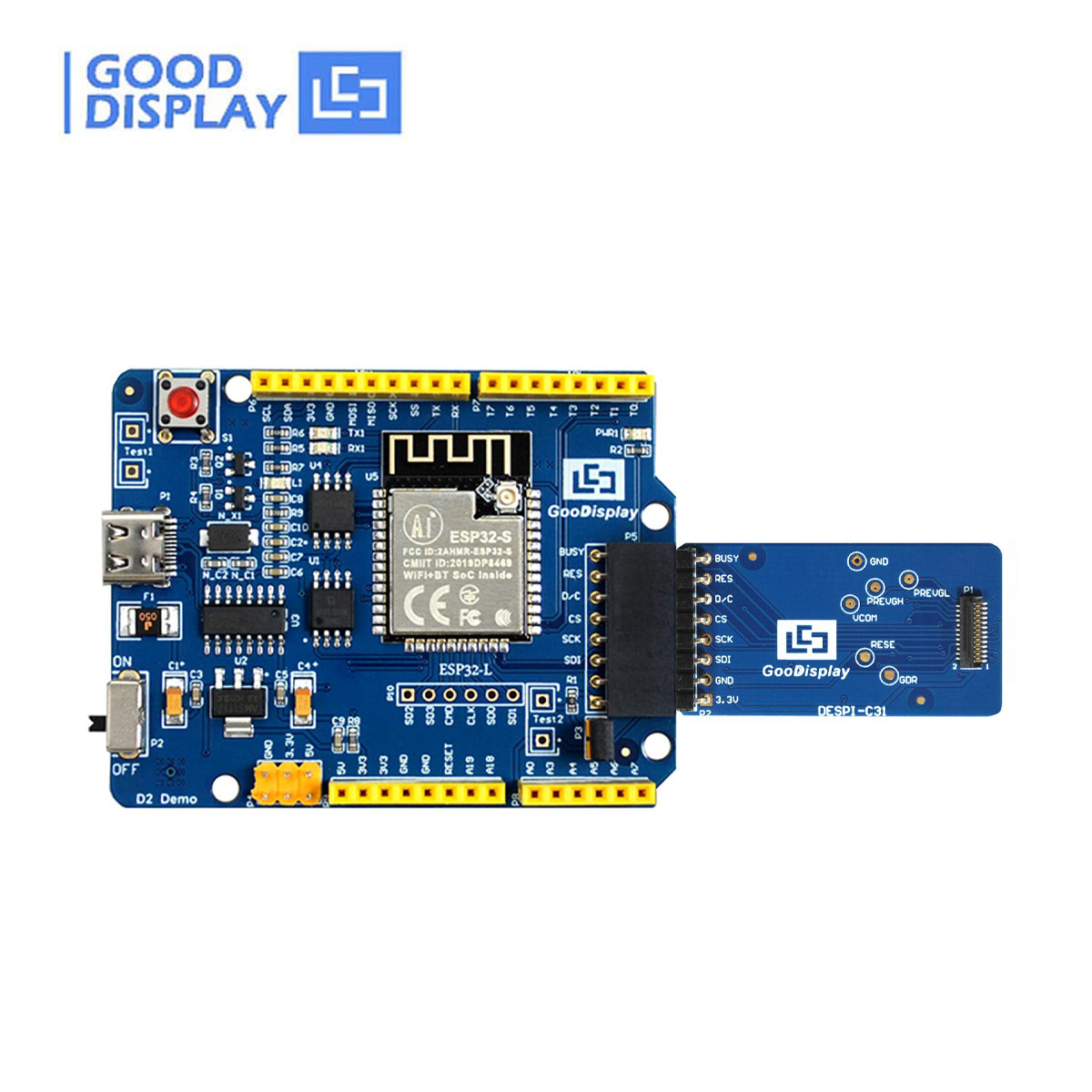

● ESP32-L(C31) (WiFi / Bluetooth)
☆ RELATED INFORMATION DOWNLOAD
