☆ INTRODUCTION

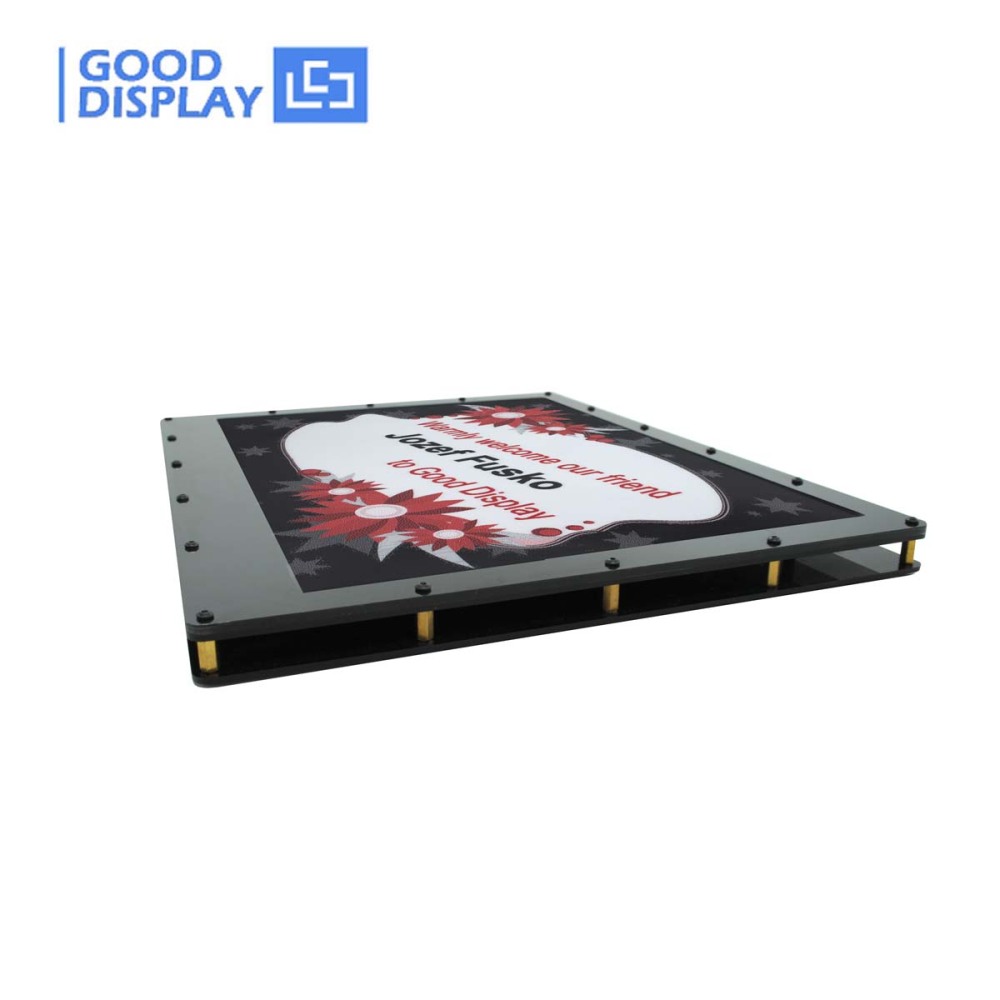

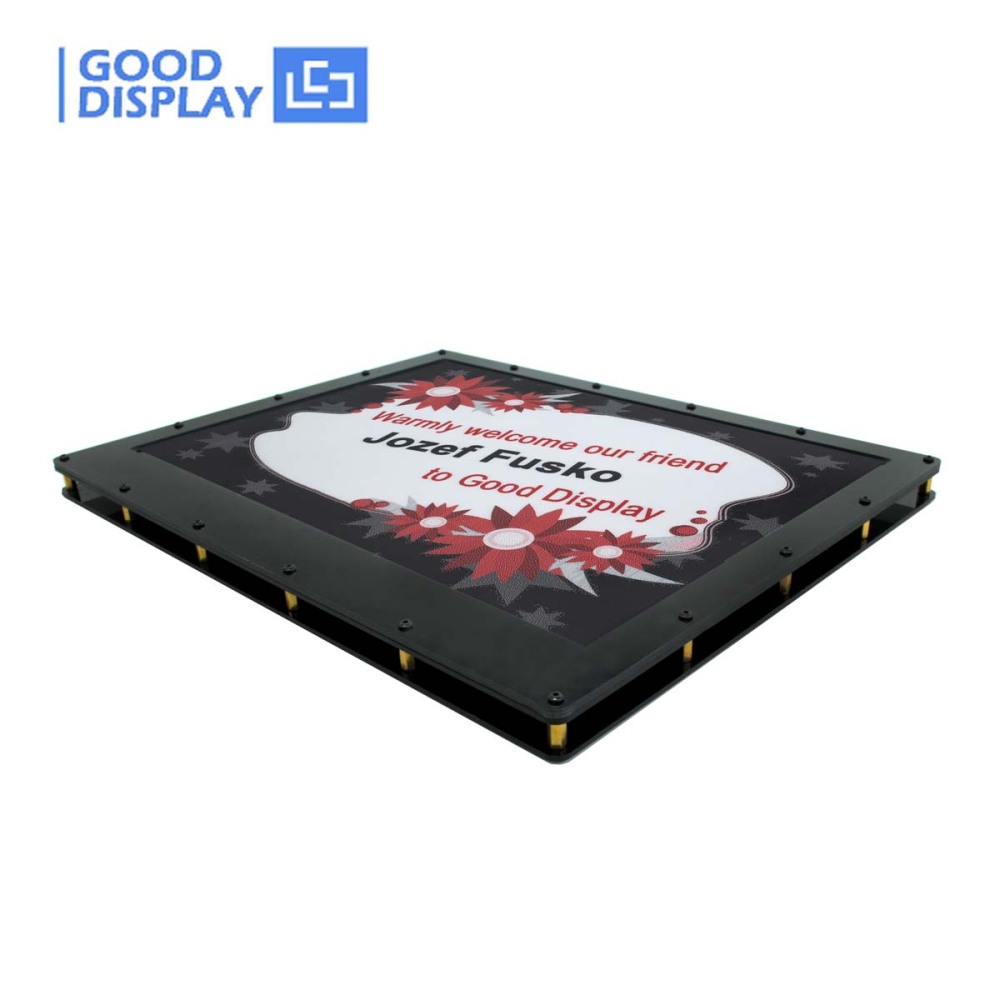

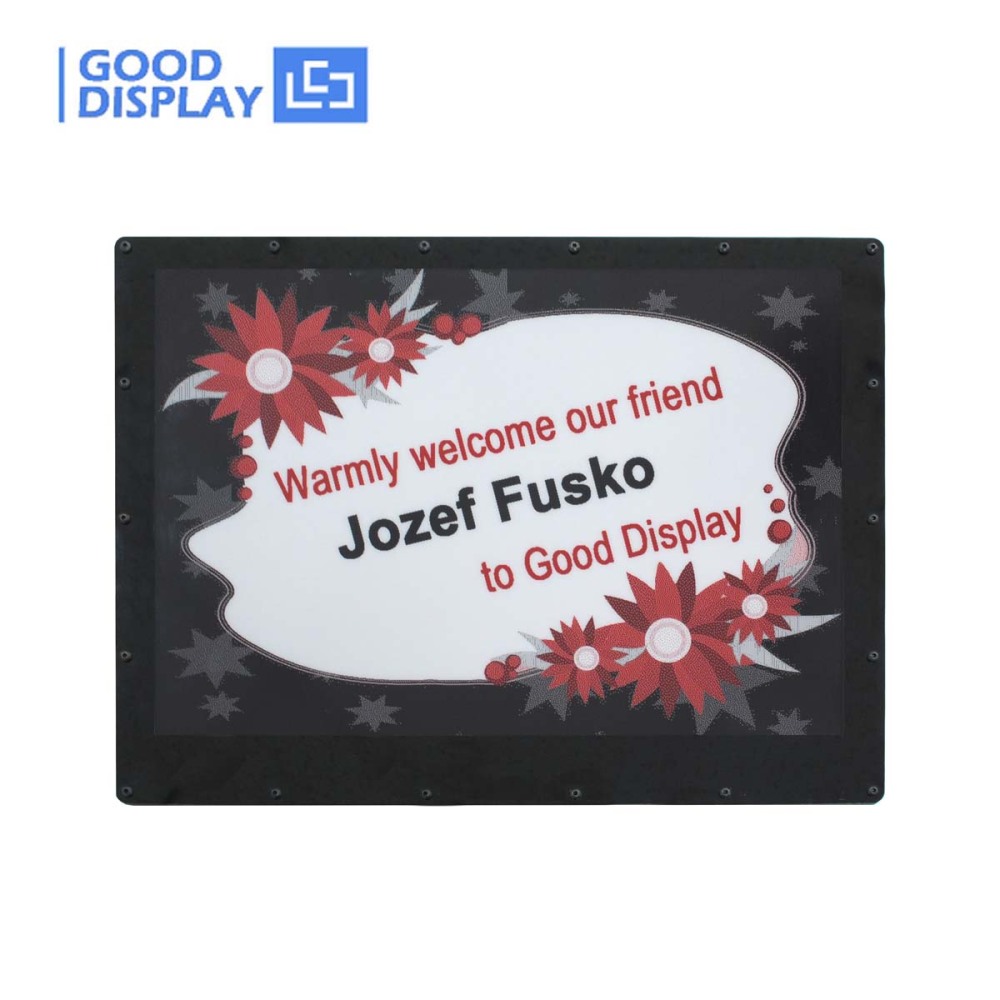

The GDP133RW1 ePaper display signboard utilizes popular WiFi communication, and it is equipped with host software. Users can directly update the current display screen on a PC through this software. This design simplifies the update process, eliminating the need for modeling operations; users only need to import the images they want to display into the software. Through WiFi communication and host software, users can achieve real-time updates of the content on the electronic paper display board, which is very useful for applications that require frequent changes to display content or real-time information updates.
This communication method makes user operation more convenient, eliminating the need for professional skills. Even ordinary users can easily update and control the display content. This display board fully utilizes the bistable characteristics of electronic paper, eliminating the need for built-in batteries, and the display screen can maintain stable performance for a long time.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) 13.3 inch color electronic signs, GDP133RW1 * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDP133RW1
|
|
Display parameters
|
Screen Size: 13.3 inch
Screen Type: Black, White, and Red E Ink Display Screen
Screen Resolution: 960x680
|
Software parameters
|
Image Refresh Time: 20 seconds
Refresh Method: WiFi Image Refresh
Language: Default English
|
|
Port parameters
|
USB Interface: Supports firmware updates via USB
|
Power consumption parameters
|
Working voltage: 5V
Refresh power: 0.35W
|
|
Motherboard parameters
|
WiFi Frequency Band: 2.4GHz
MCU: ESP32-WROOM-32D
RAM: 520KB
ROM: 448KB
|
Temperature and humidity parameters
|
Operating Temperature: 0°C to 40°C
Storage Temperature: -25°C to 70°C
Operating Humidity: 40% to 70%
|
|
Specifications
|
Weight: Approximately 550g
Dimensions: 310x240x16.5mm
|
☆Features of the E Ink Signage:
- Ultra-wide viewing angle
- Ultra-low power consumption
- Bistable display (retains the last image even after power loss)
- Display updates via WiFi
Basic Parameters of the E Ink Signage:
Screen Type: 13.3-inch Black, White, and Red E Ink Display Signage
Resolution: 960x680
Operating Voltage: 5V
Refresh Rate: 20s
WiFi Frequency Band: 2.4GHz
Mainboard MCU: ESP32-WROOM-32D
Operating Temperature: 0°C to 40°C
Operating Humidity: 40% to 70%
- Supports image file formats: JPEG (*.JPG), BMP (*.BMP)
☆ DRAWING
1. Micro USB Port
Insert the Micro USB cable.

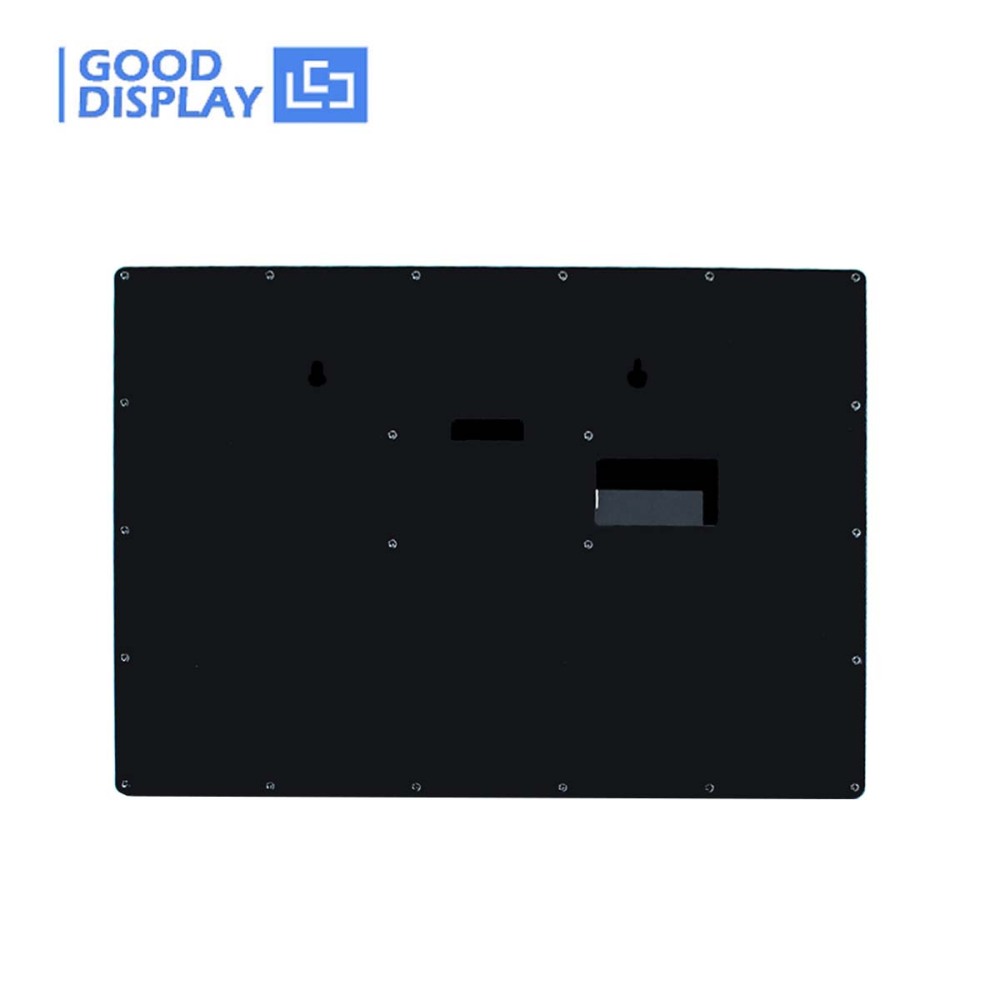

2. Wall Mount Hole
Used for mounting the device on the wall. The wall mount screw diameter should not exceed 4mm.
☆ RELATED INFORMATION DOWNLOAD
● GDP133RW1 Specification
