☆ INTRODUCTION

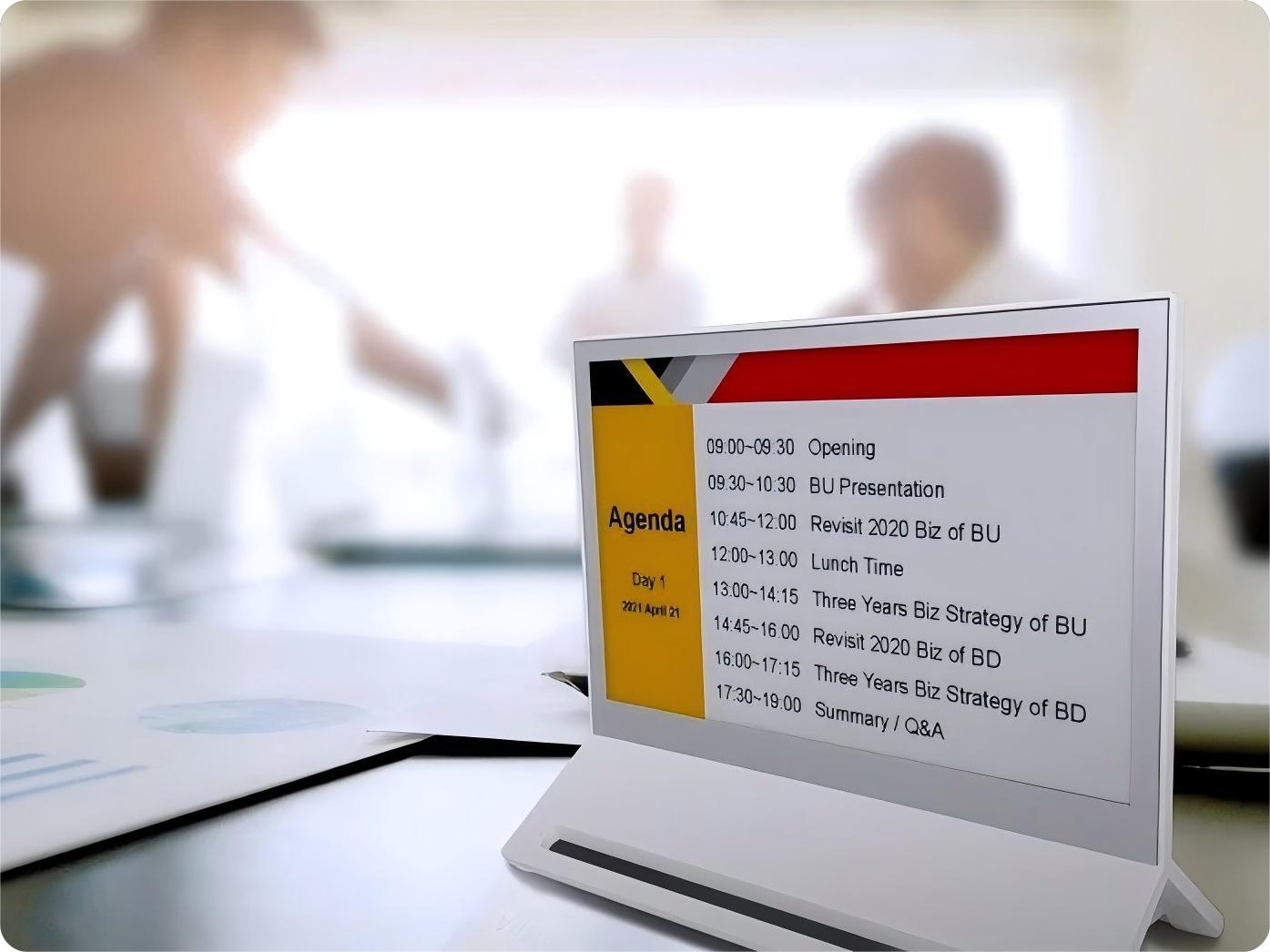

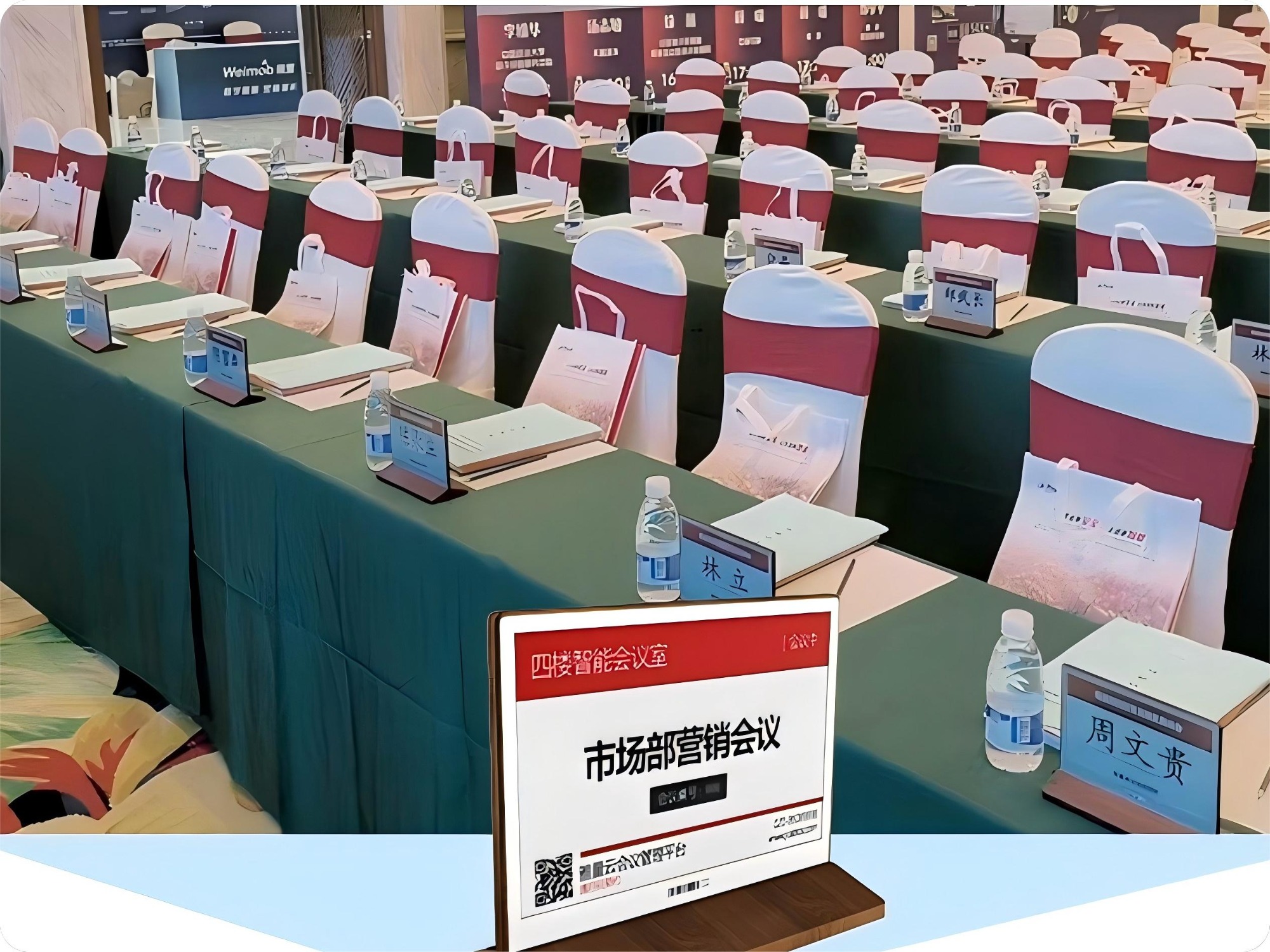

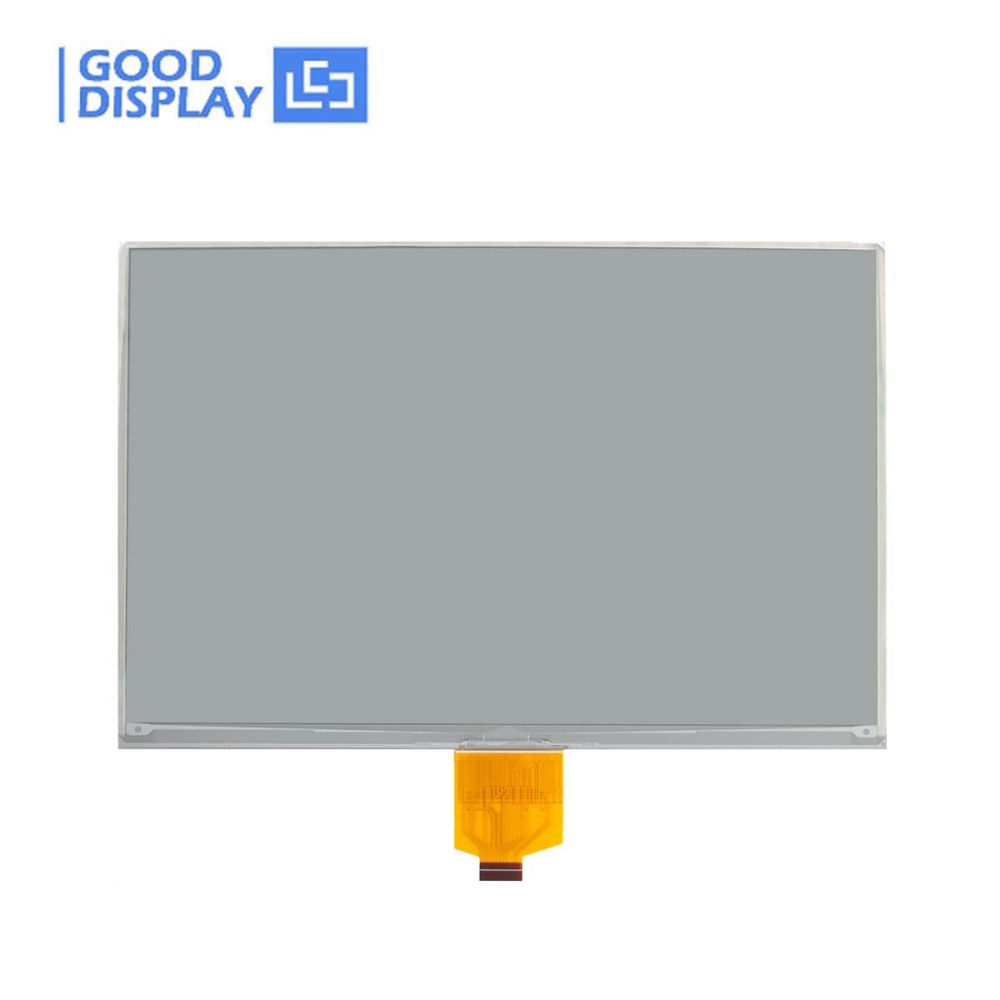

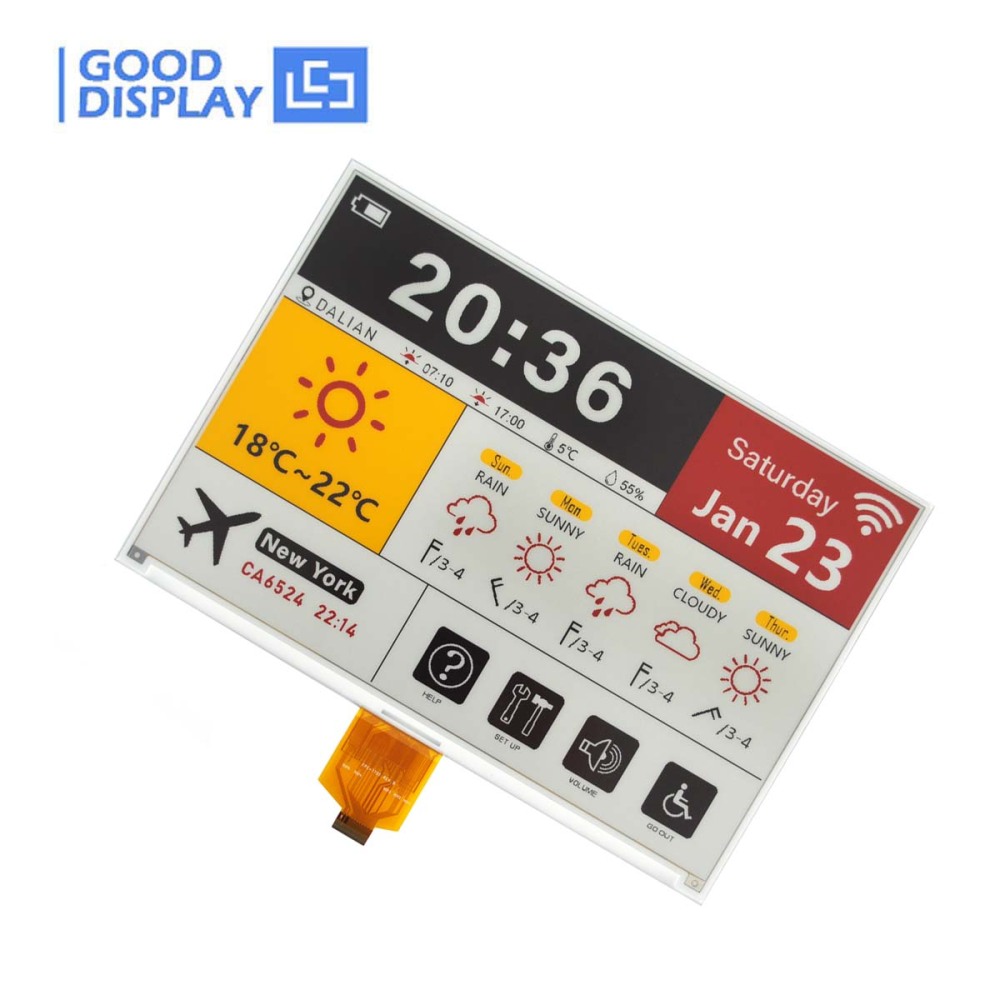

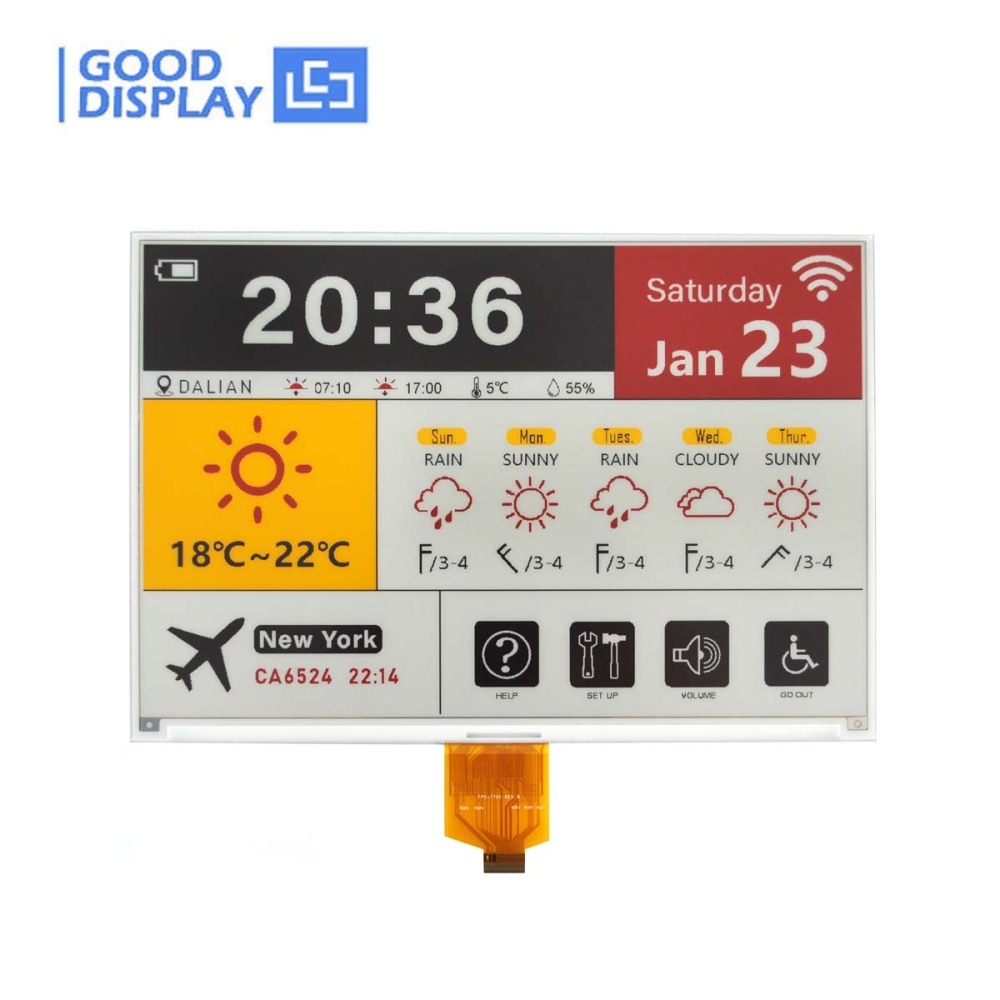

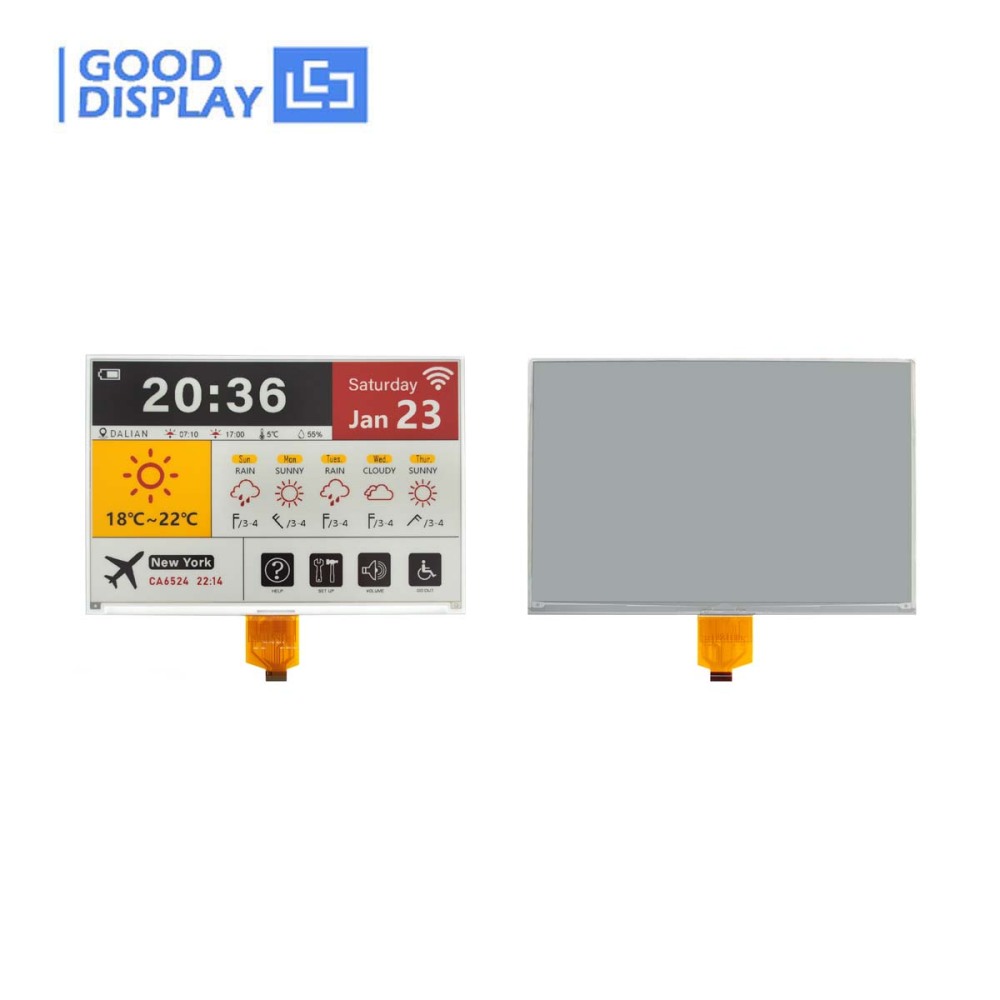

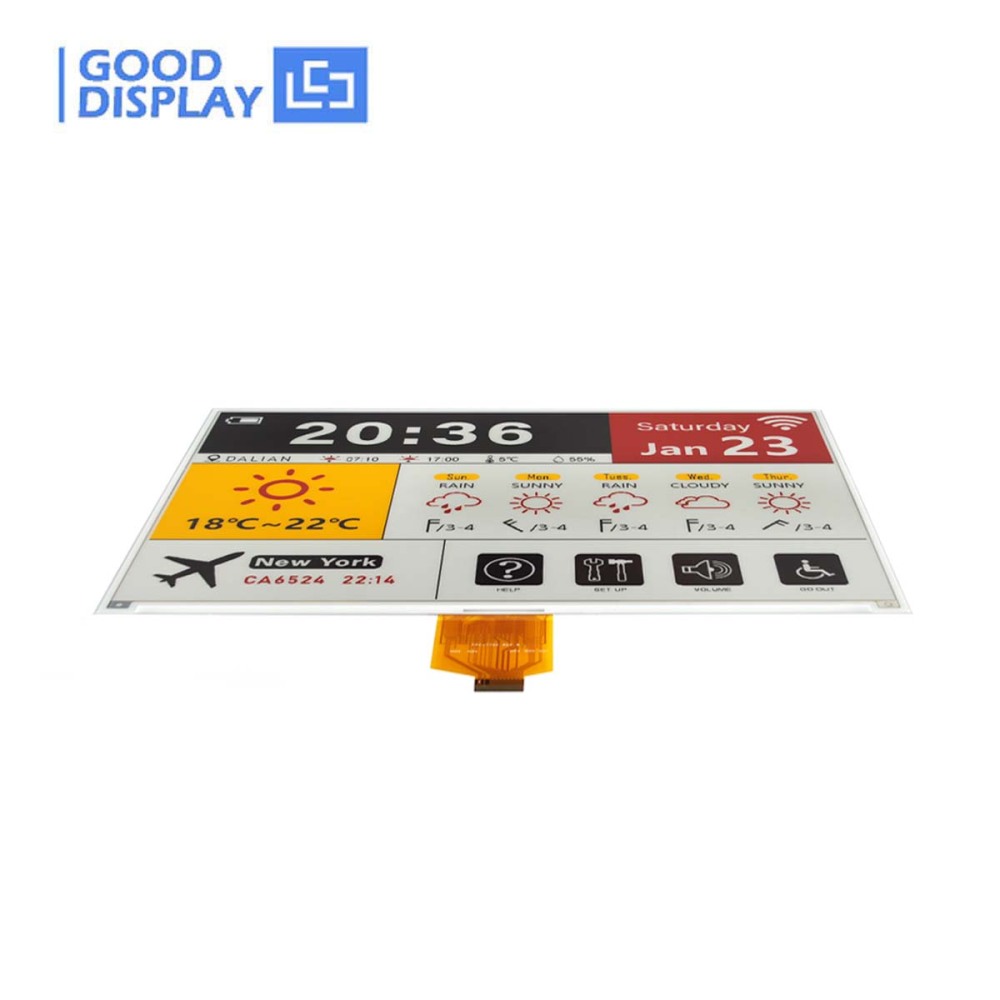

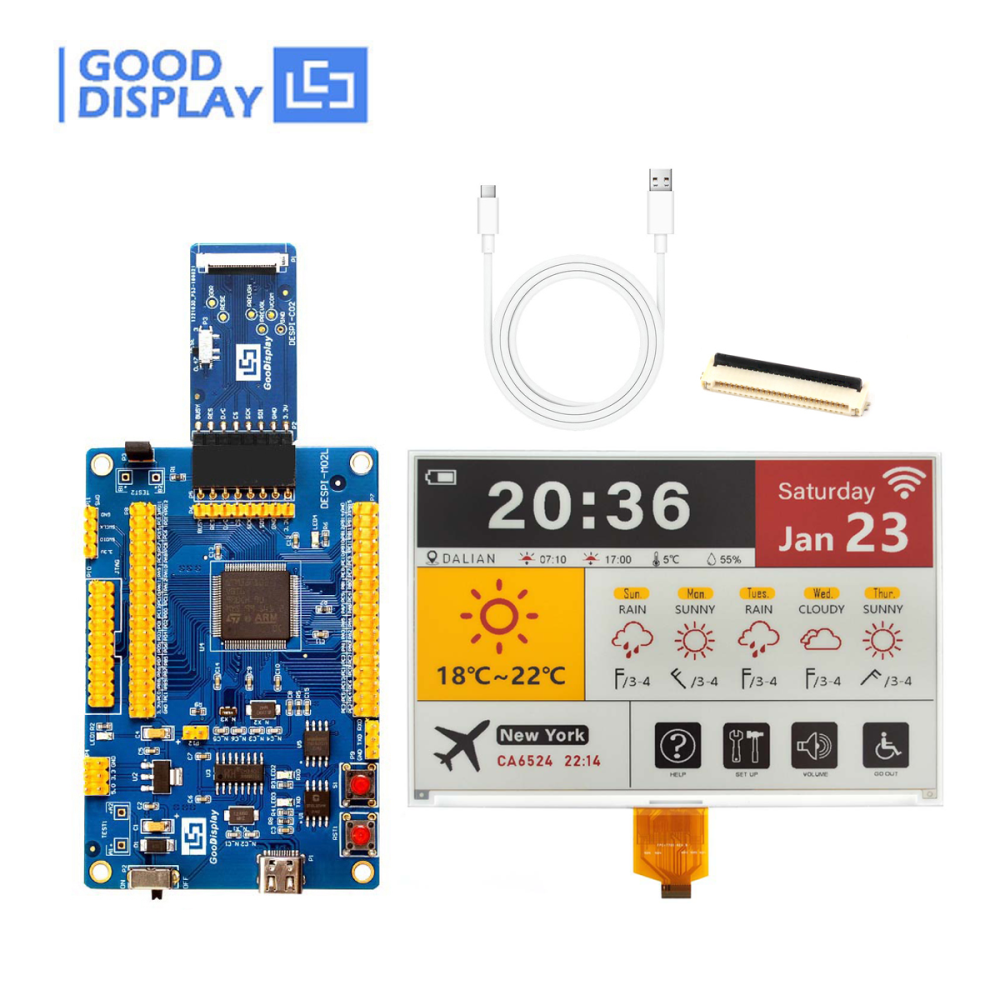

This 10.2-inch ePaper display stands out for its impressive 960x640 resolution and distinctive elongated strip-like design, using an SPI interface. Highly recommended, it offers exceptional features: images persist even without power - just upload, then power off. Once the E Ink module updates the image, it requires no ongoing power and can even be disconnected while retaining the displayed content permanently. Specifically ideal for low-power devices like electronic table cards, GDEM102F91 ePaper display excels in both performance and efficiency.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please

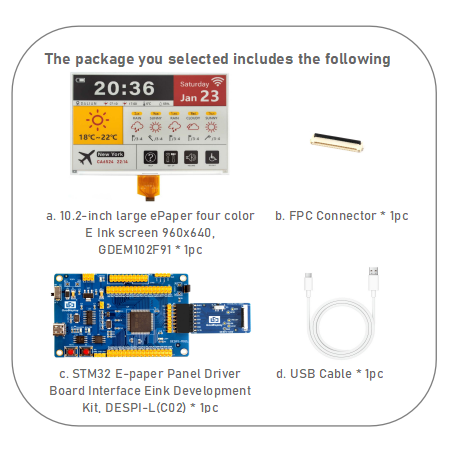

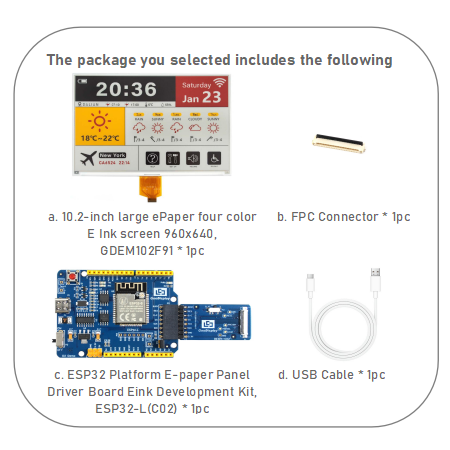

☆ THE ABOVE PRICE INCLUDE
☆ MAIN PARAMETERS
| PART NUMBER |
GDEM102Z91 |
| SIZE |
10.2 inch |
CONNECTOR |
24 Pin |
| TYPE |
Dot Matrix |
COLOR |
Black, White, Red and Yellow |
| RESOLUTION |
960x640 |
INTERFACE |
SPI |

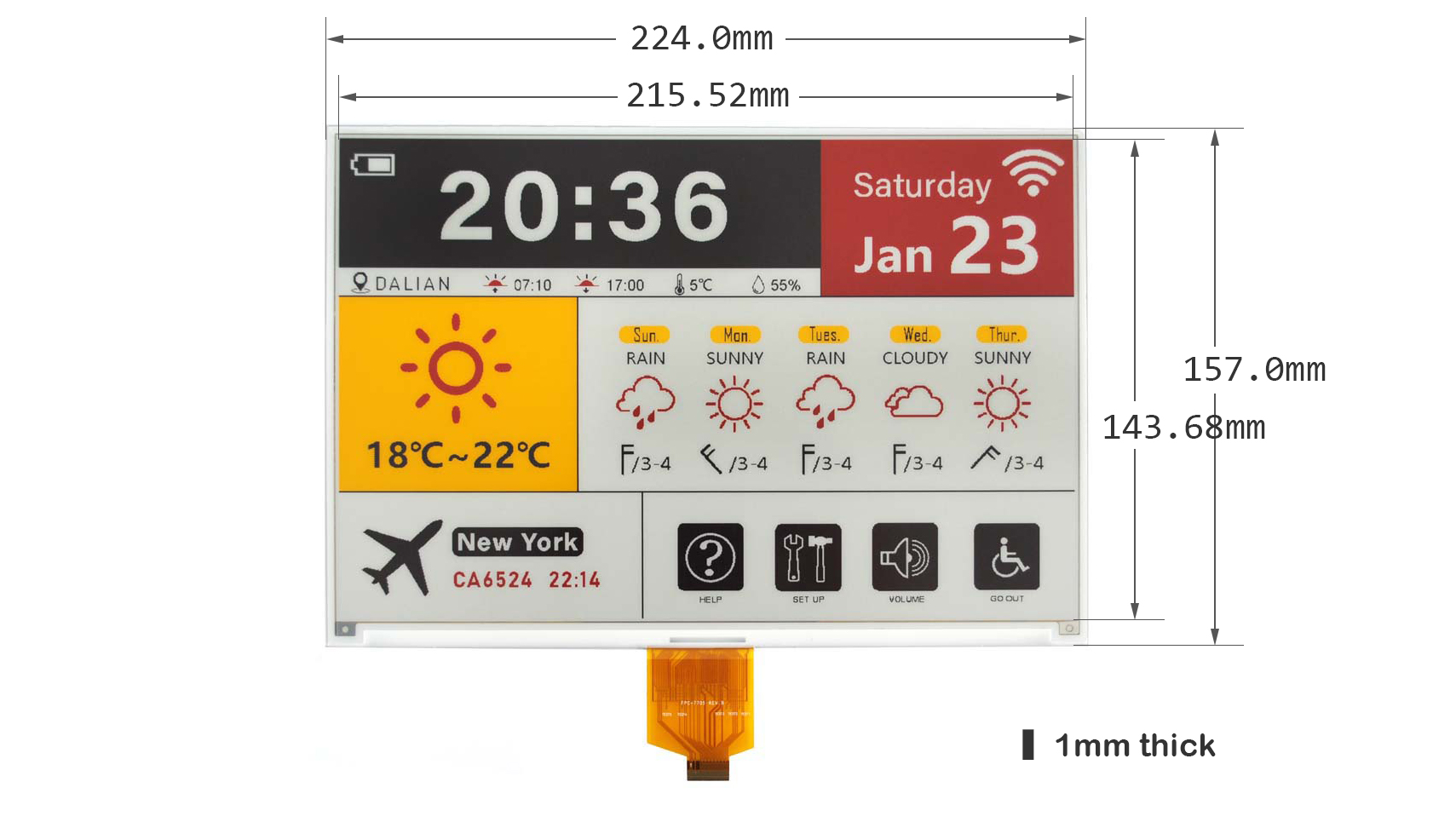

| OUTLINE SIZE(mm) |
224.0×157.0 ×1.0 |
MAX GRAYSCALE |
2 |
| ACTIVE SIZE(mm) |
215.52×143.68 |
FULL UPDATE TIME(s) |
20 |
| PIXEL PITCH(mm) |
0.2245x0.2245 |
TYPICAL POWER(mW) |
66 |
| OPERATING TEMP. |
0℃~40℃ |
DEEP SLEEP POWER(mW) |
0.003 |
| STORAGE TEMP. |
-25℃~70℃ |
|
|
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays

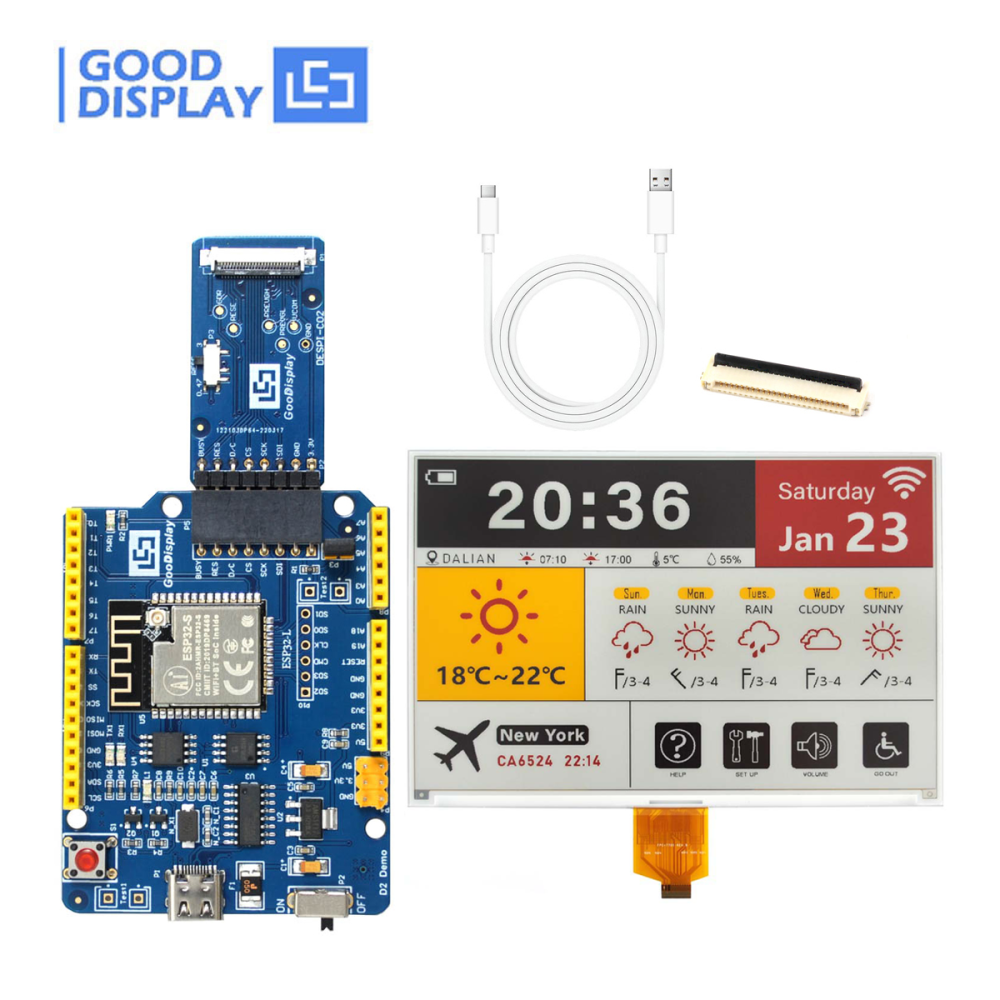

● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

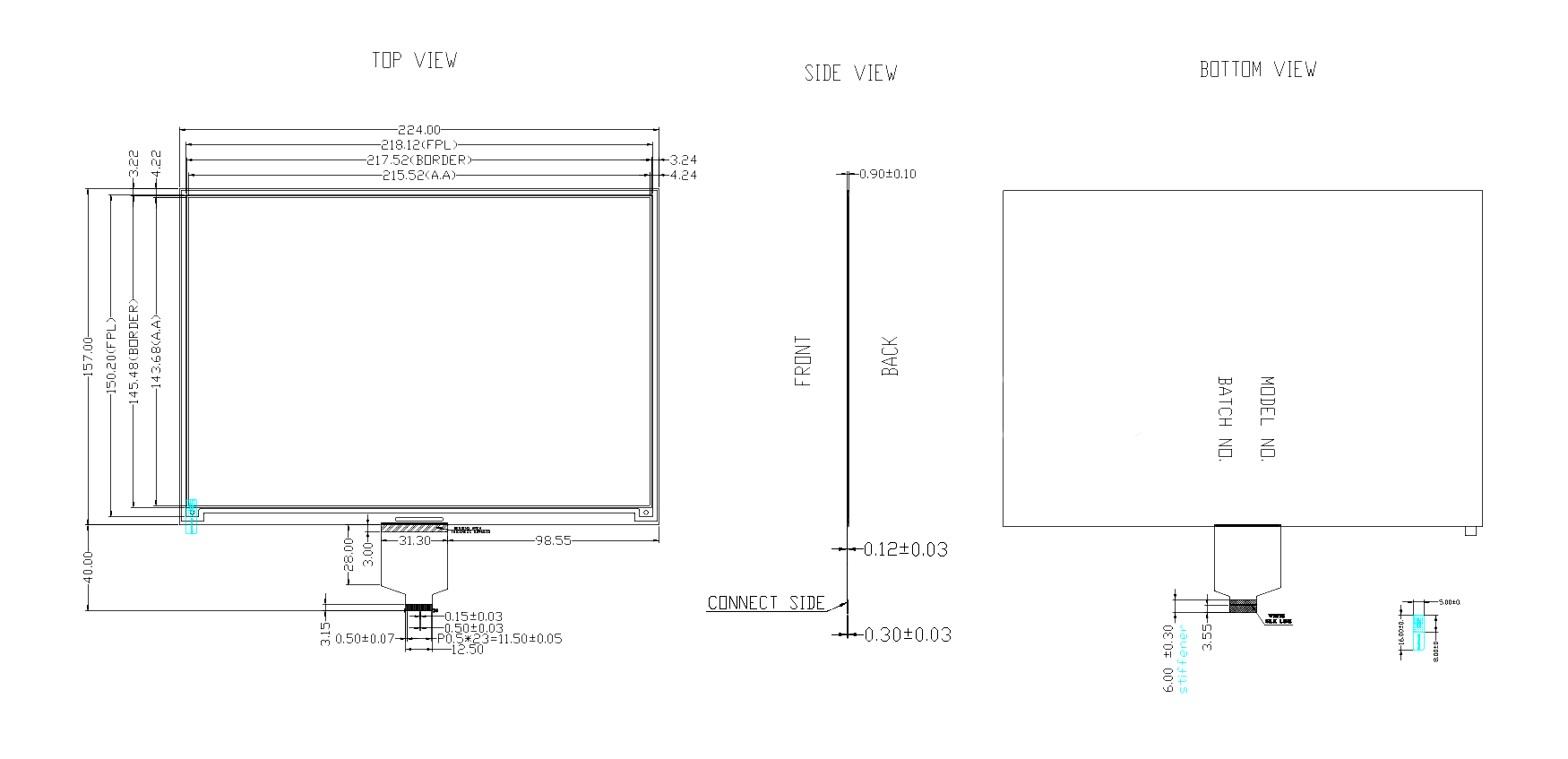

☆ DRAWING
☆ RELATED INFORMATION DOWNLOAD
● GDEM102F91_Specification
● IC Driver SSD2677
● GDEY102F91 Picture Production and Bitmap Conversion
● GDEM0102F91_STM32 Sample Code
● GDEM0102F91_ESP32 Sample Code
● GDEM0102F91_ESP8266 Sample Code
