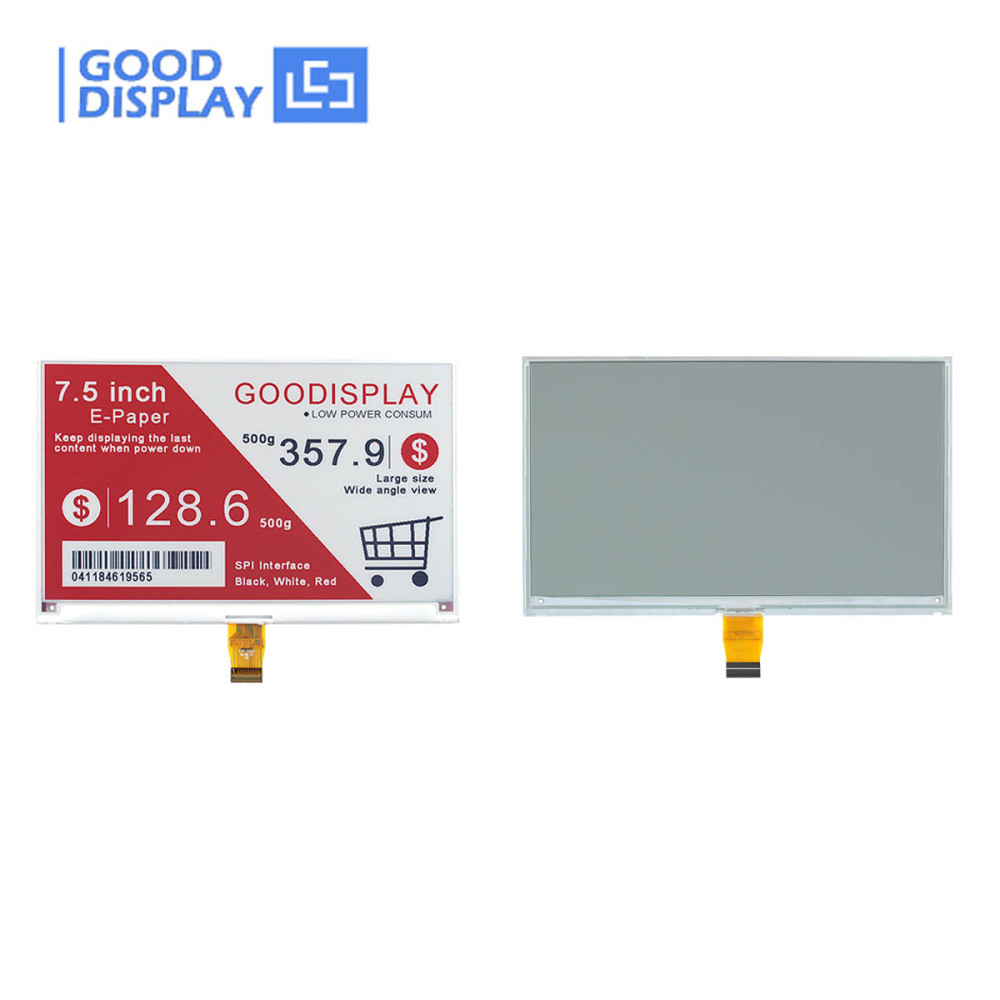

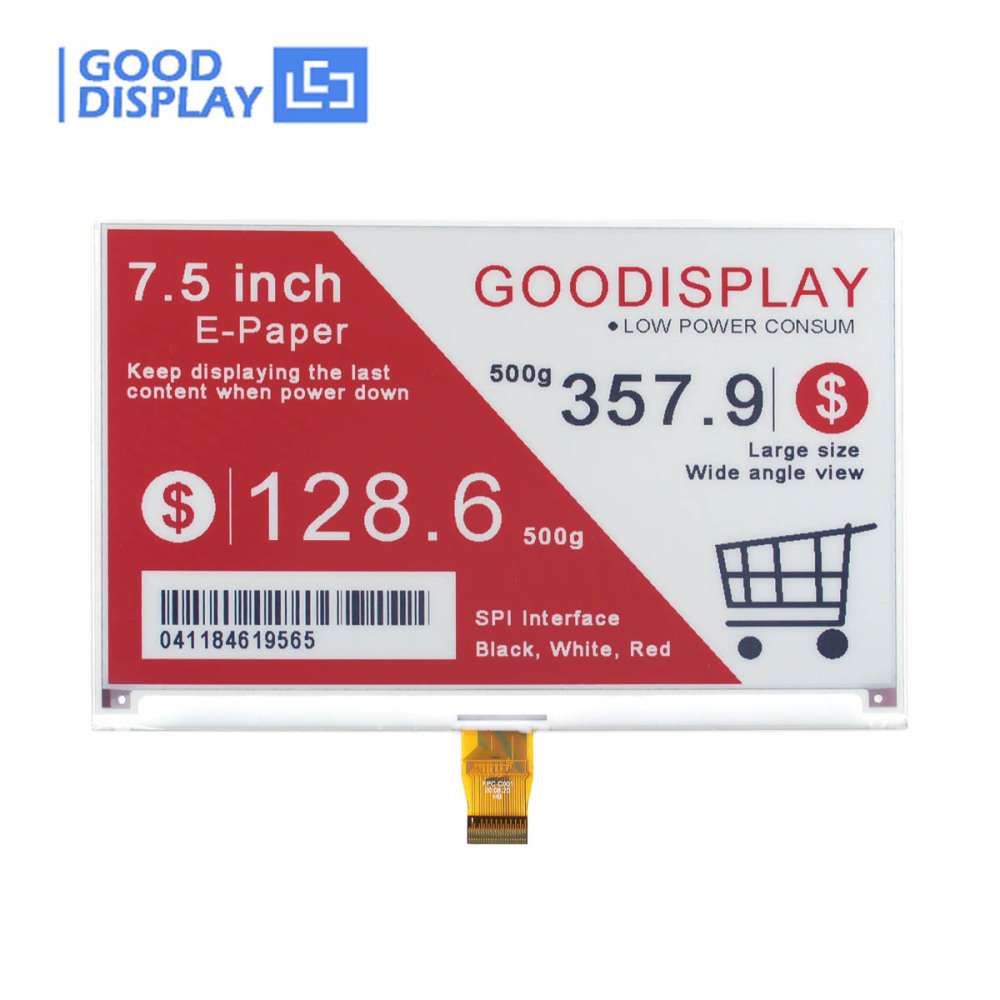

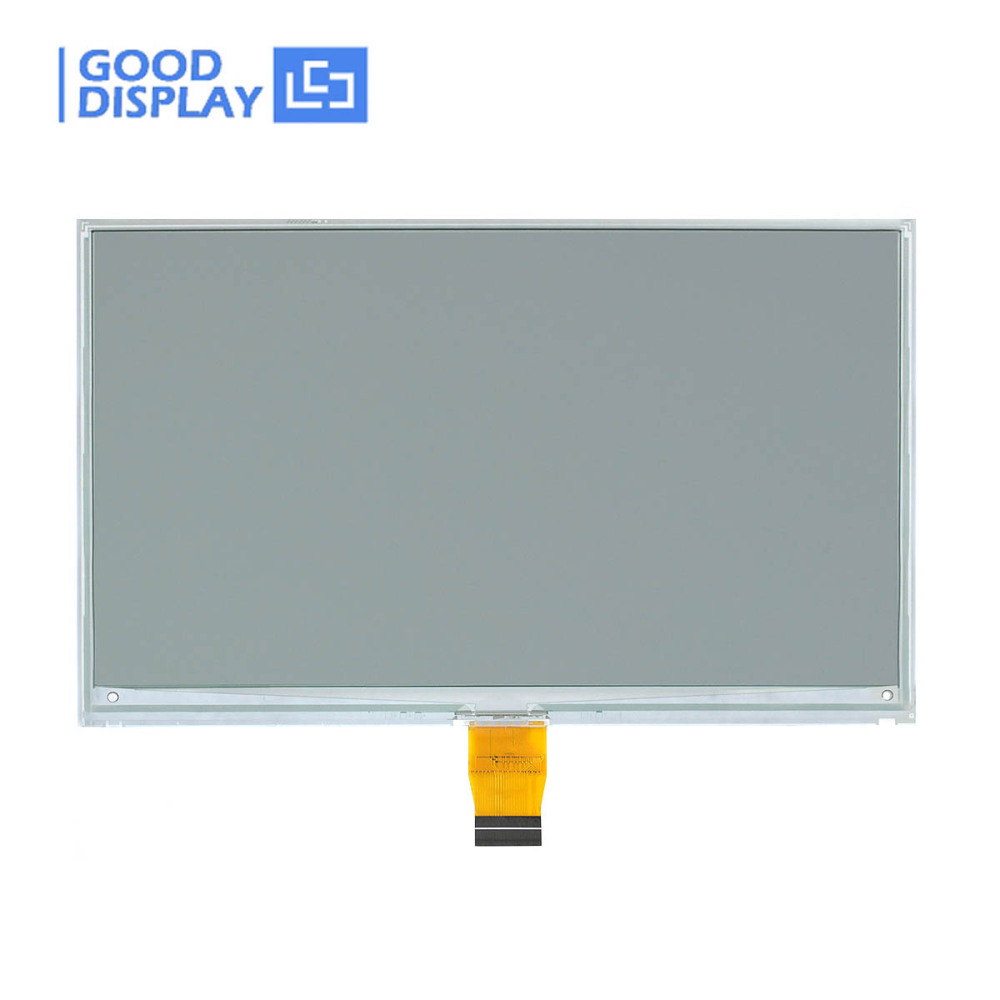

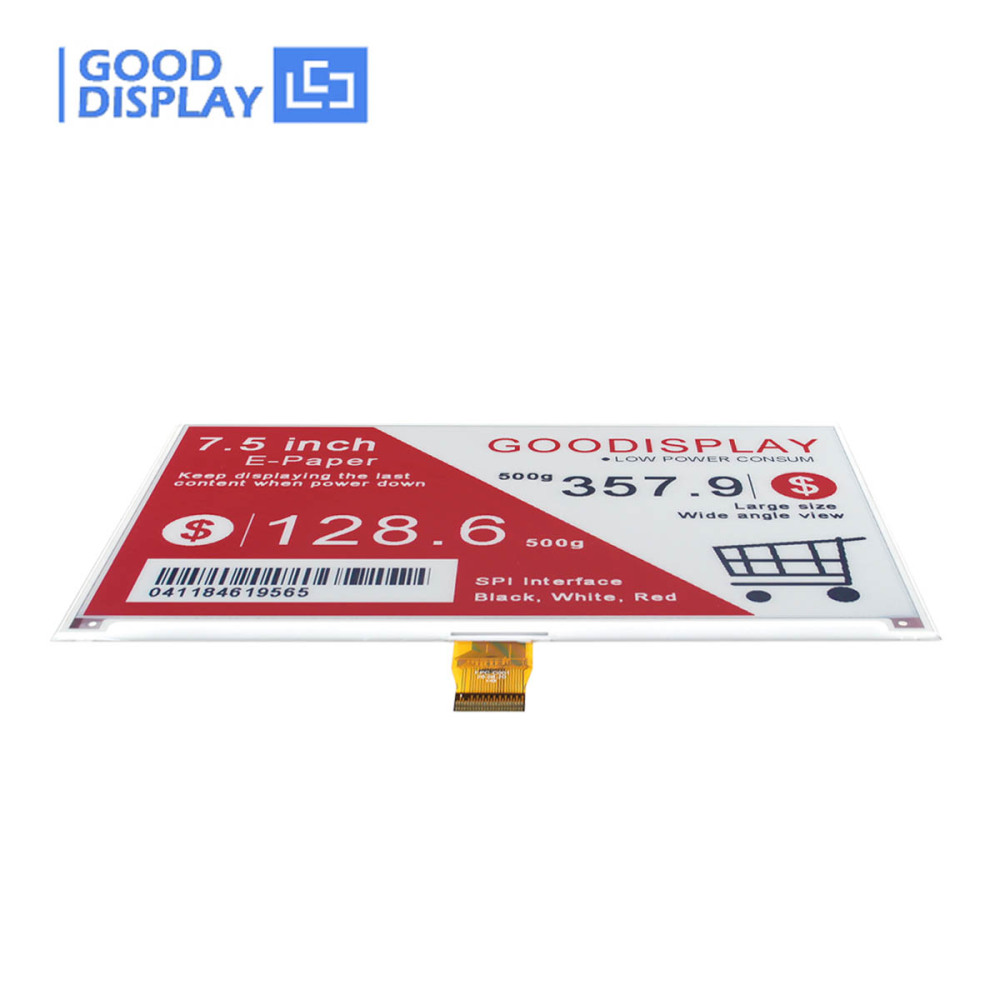

This is a 7.5 inch color electronic paper screen with 800x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

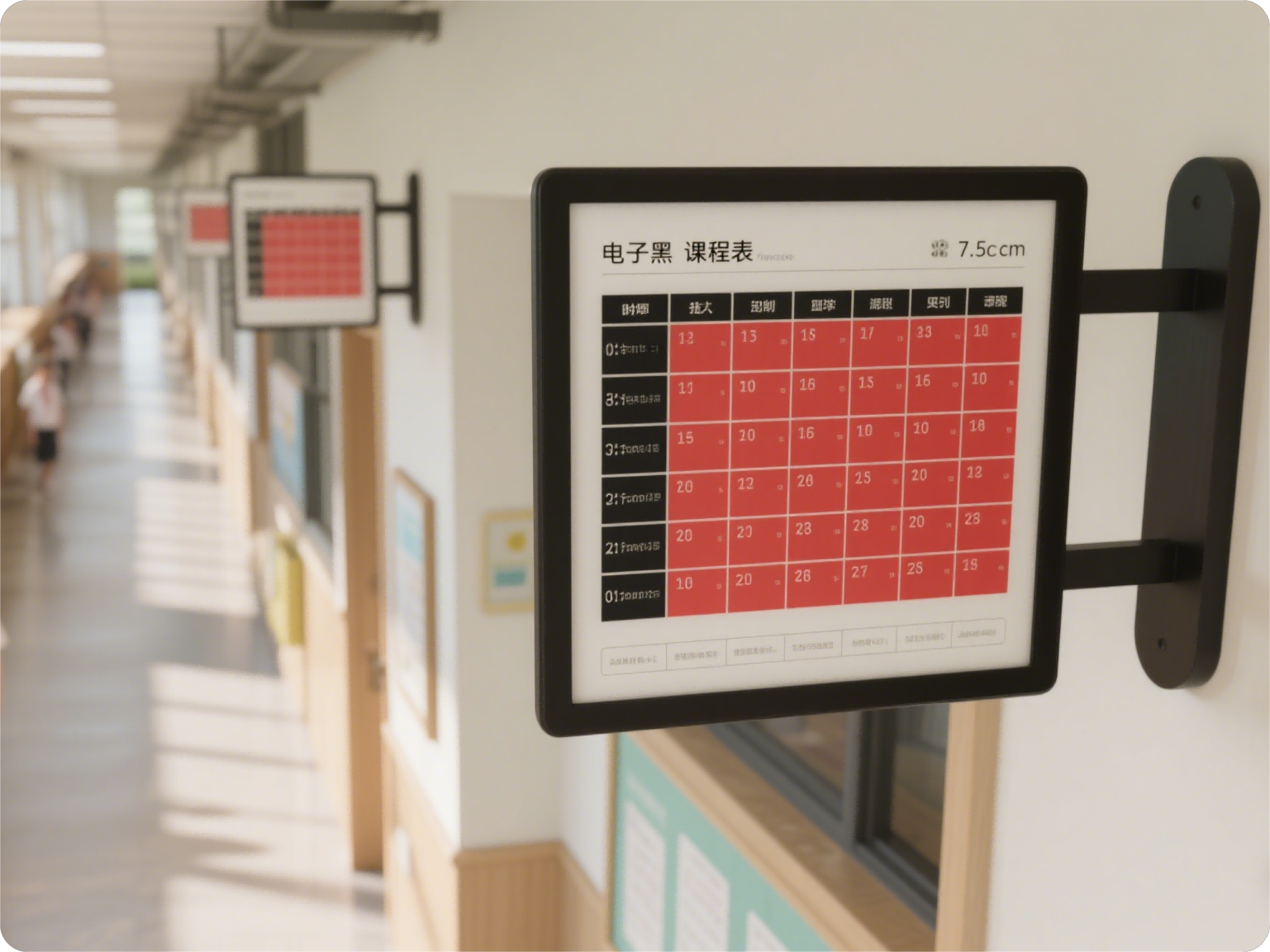

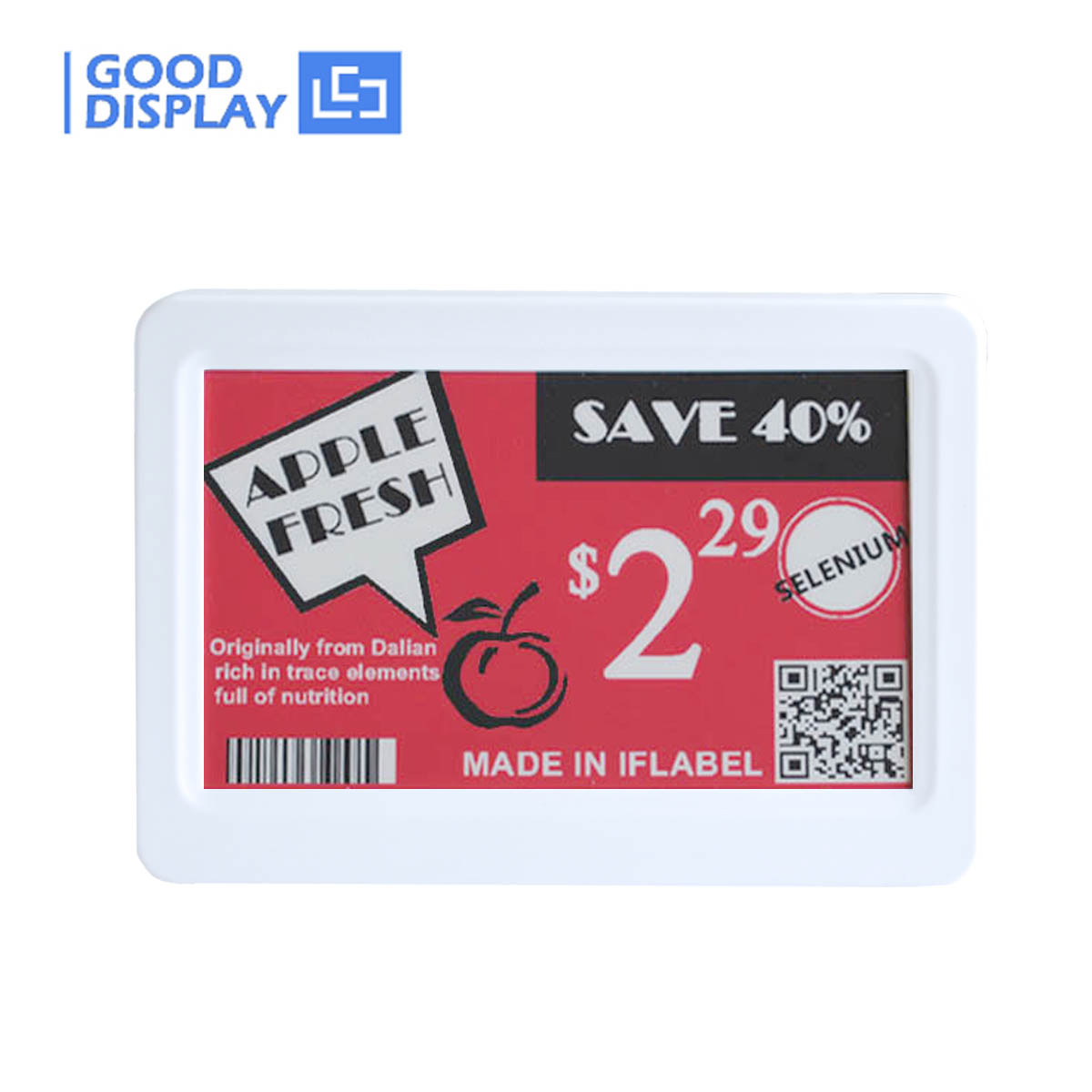

This 7.5 inch e-ink display GDEY075Z08 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
*TIPS: Partial update only be used on black and white color instead of red color.

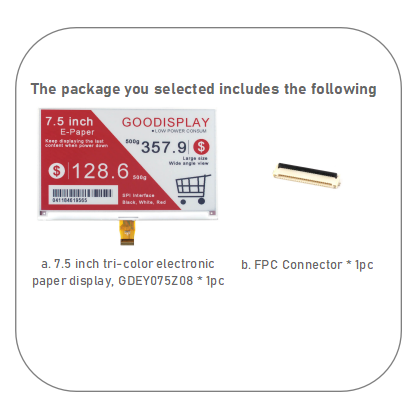

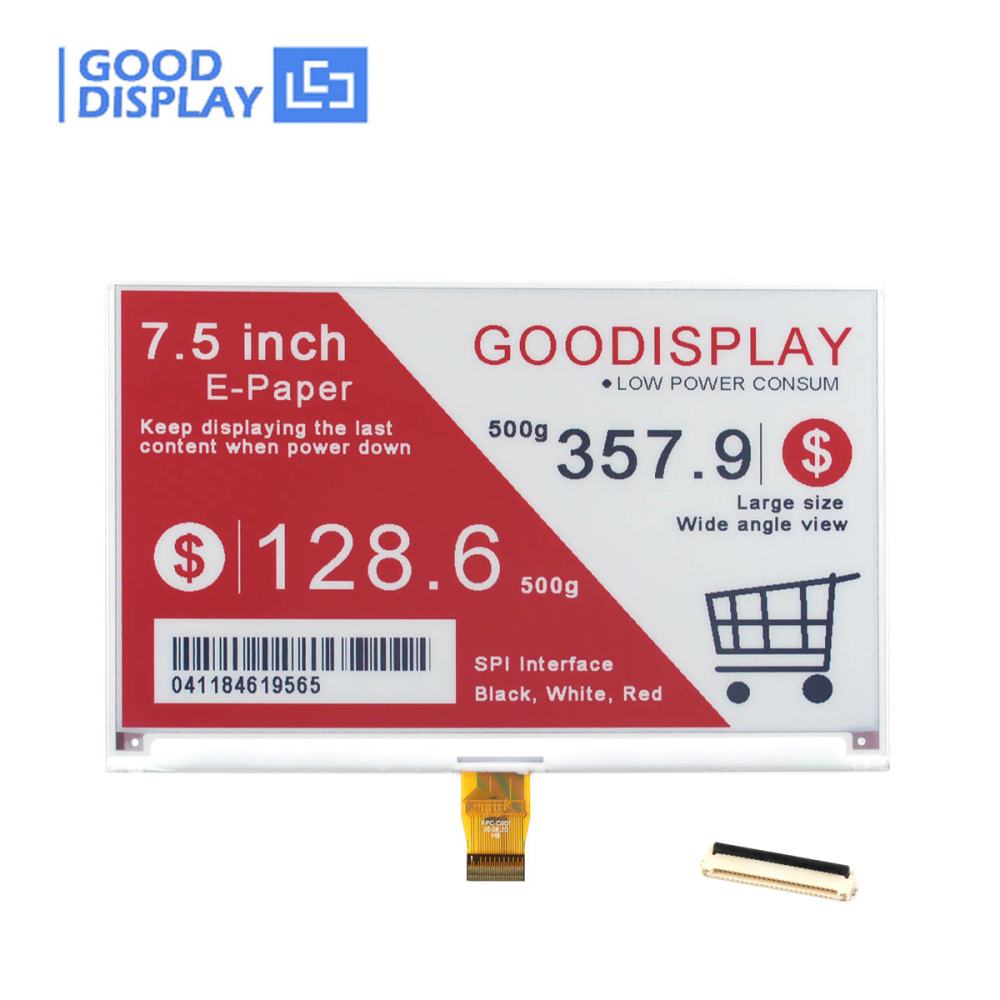

Package A | + | ||||||||
a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 * 1pc | b. FPC Connector * 1pc | ||||||||
|
|||||||||

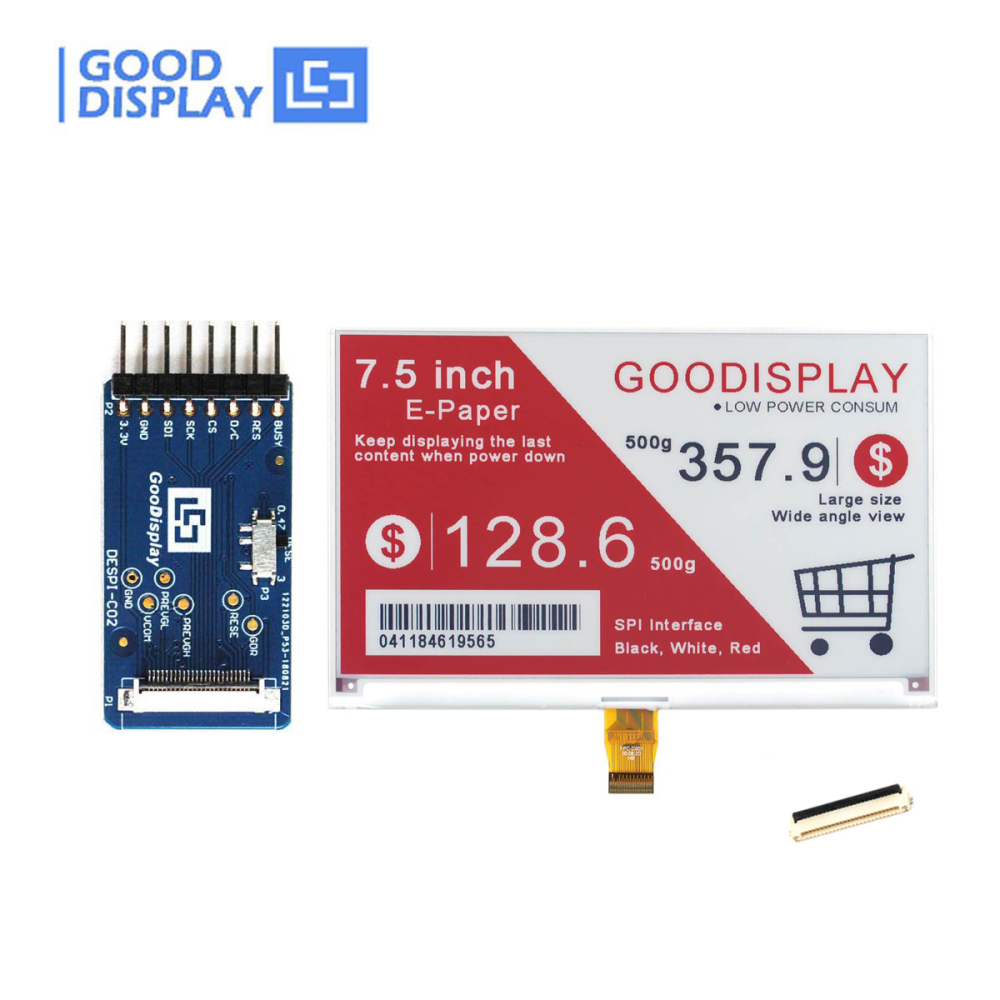

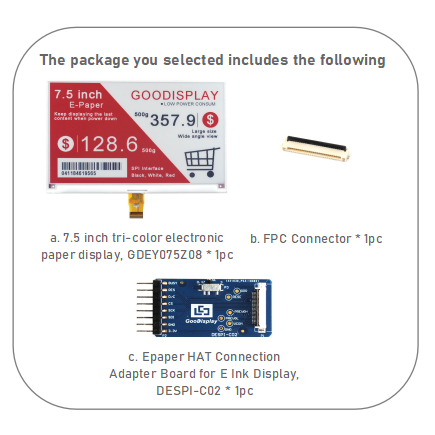

Package B | + | + | |||||||
a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 * 1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc | |||||||
|
|||||||||

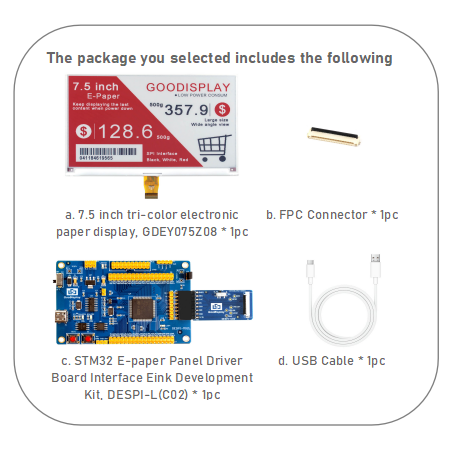

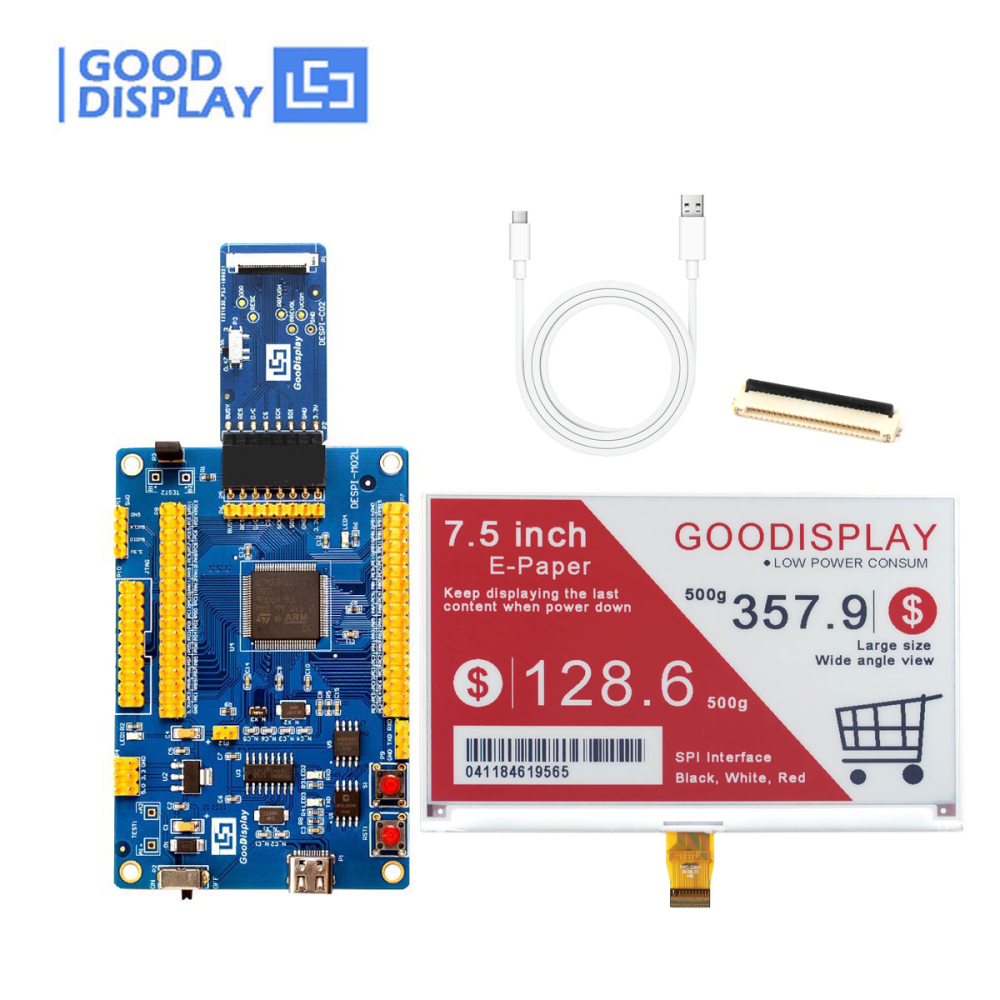

Package C | + | + | + | ||||||
a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 * 1pc | b. FPC Connector * 1pc | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc | d. USB Cable* 1pc | ||||||
|
Package D | + | + | + | ||||
a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 * 1pc | b. FPC Connector * 1pc | c. Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) * 1pc | d. USB Cable* 1pc | ||||
|
|||||||
Package E | + | + | + | ||||
a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 * 1pc | b. FPC Connector * 1pc | c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) * 1pc | d. USB Cable* 1pc | ||||
|
|||||||

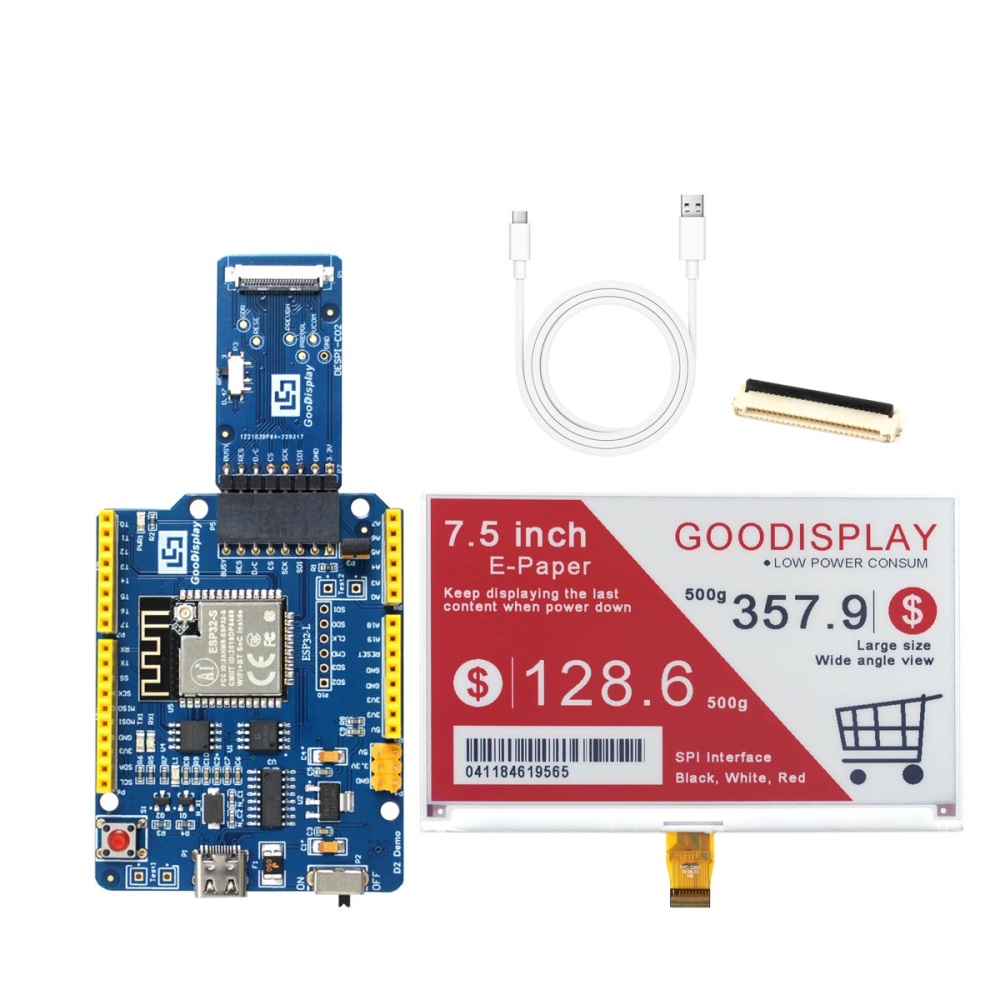

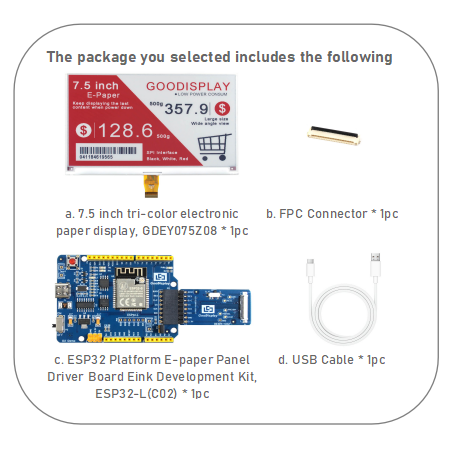

Package F | + | + | + | ||||
a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 * 1pc | b. FPC Connector * 1pc | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc | d. USB Cable* 1pc |
PART NUMBER | GDEY075Z08 | ||

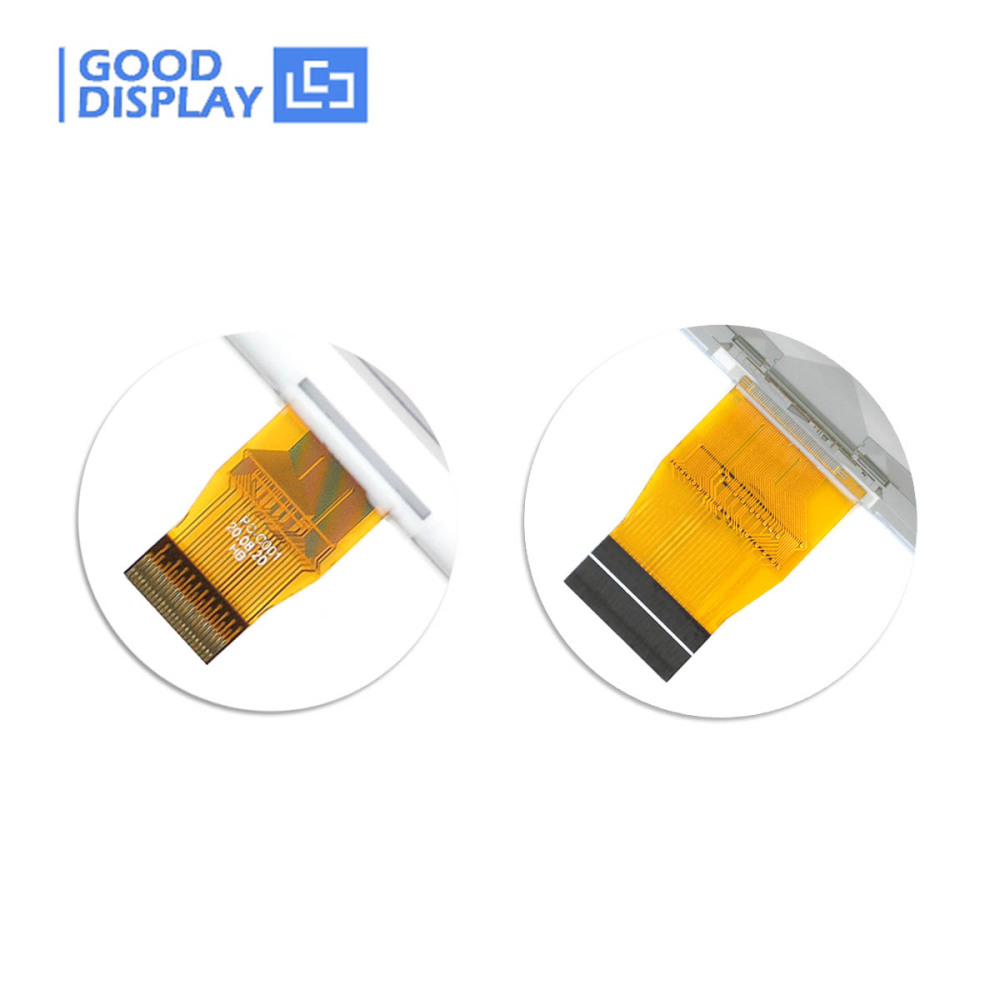

SIZE | 7.5 inch | CONNECTOR | 24 Pin FPC |
TYPE | Dot Matrix | MAX GRAYSCALE | 2 |
IC | UC8179 | COLOR | Black, White, Red |
RESOLUTION | 800x480 | INTERFACE | SPI |

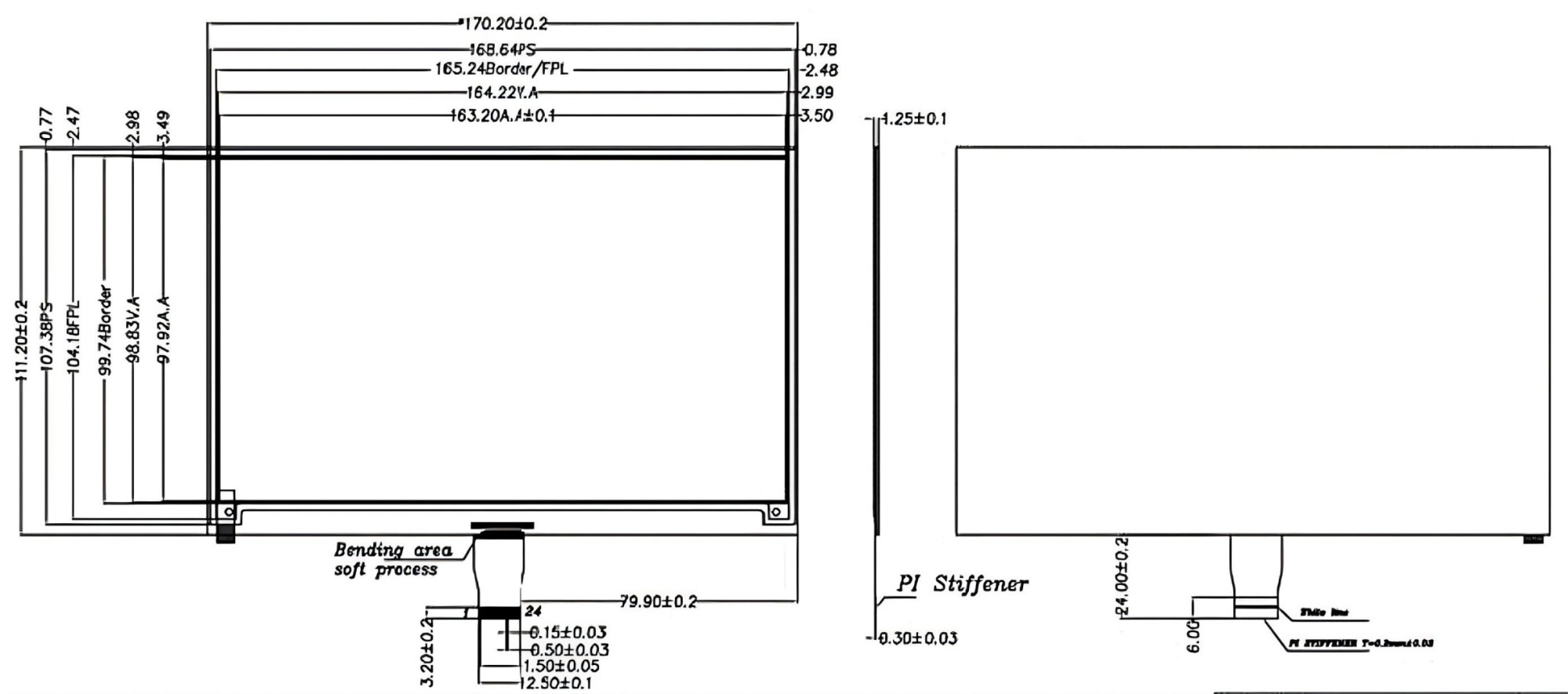

OUTLINE SIZE(mm) | 170.2x111.2x1.25 | FULL UPDATE(s) | 26 |
ACTIVE SIZE(mm) | 163.2x97.72 | FAST UPDATE(s) | 16 |
PIXEL PITCH(mm) | 0.204x0.204 | PARTIAL UPDATE(s) | 1.3 |
OPERATING TEMP. | 0℃~40℃ | TYPICAL POWER(mW) | 33.3 |
STORAGE TEMP. | -25℃~70℃ | DEEP SLEEP POWER(mW) | 0.0165 |
● Refresh Method: Full update for 26s、Partial update for 1.3s、Fast update for 16s
(Partial update only be used on black and white color instead of red color, please refer to master video.)
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-PICO (Rasberry Pi Epaper HAT)
☆ RELATED INFORMATION DOWNLOAD
● GDEY075Z08 Specification
● IC Driver UC8179
● GDEY075Z08 Picture Production and Bitmap Conversion
● GDEY075Z08 Arduino Sample Code
● GDEY075Z08 STM32 Sample Code
● GDEY075Z08_ESP32 Sample code
● GDEY075Z08 ESP8266 Sample Code
● GDEY075Z08 Raspberry Pi Sample Code
