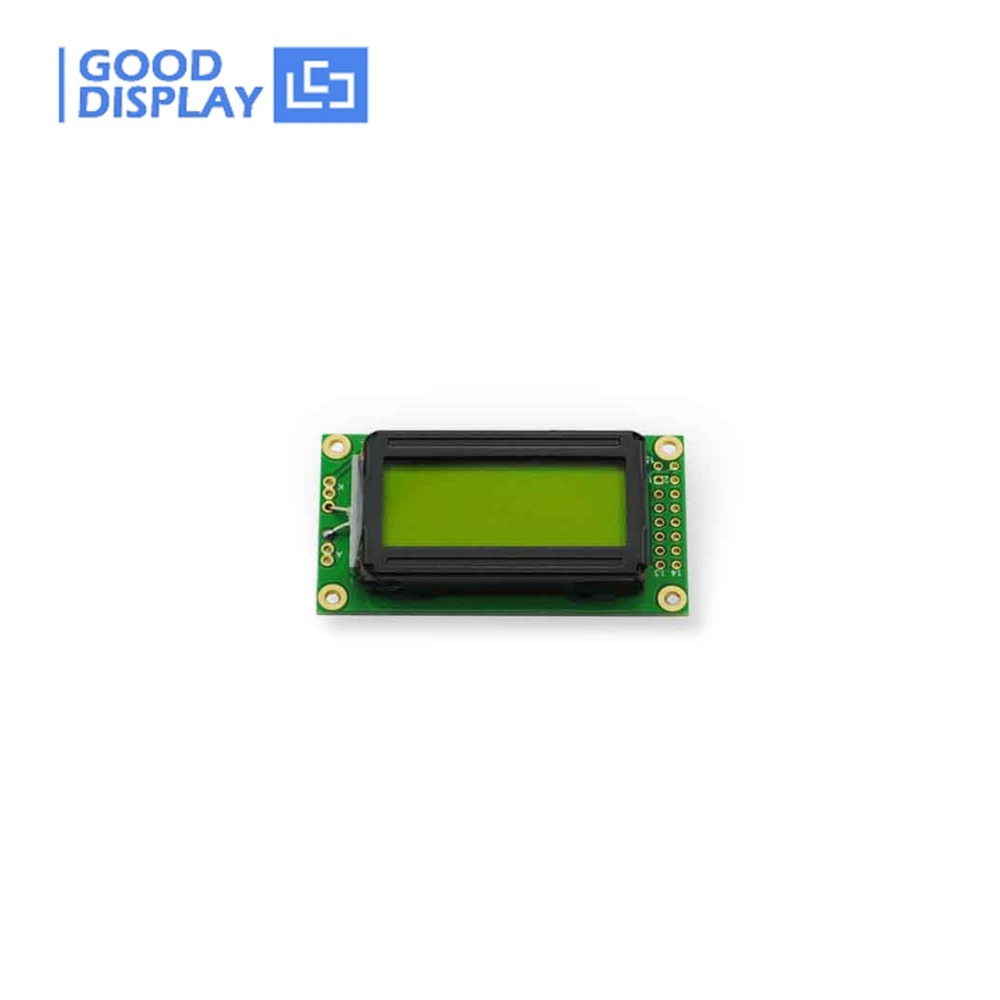

Inventory Promotion! 8x2 Character LCD Display Module YM0802SYG-3 Display type STN-LCD

YM0802SYG-3
YM802SYG-3 is 8 characters wide,2 rows character LCD module, single led backlight with yellow green color,STN-LCD positive,wide operating temperature range,RoHS compliant,built in character set supports English/Japanese text.
Price:
USD
$2.40
Quantity:
-
+
(100 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com


☆ INTRODUCTION




Inventory Promotion! 8x2 Character LCD Display YM0802SYG-3

YM802SYG-3 is 8 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.

It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.





☆ MAIN PARAMETERS




Part Number

YM0802SYG-3

Display type

STN-LCD Yellow Green

Display format

8x2 Character

Backlight Color

Yello Green

Backlight Current(Typ)

15mA

Interface

6800 4-bit Parallel , 6800 8-bit Parallel

Controller

SPLC780

Viewing Angle

6 o'clock

Dimensional Outline

58.0(W)x32.0(H)x13.2(T)mm

Viewing Area

39.00x16.00mm

Active Area

27.81x11.50mm

Character Size

3.55x5.94mm

Dot (Pixel) Size

0.56x0.66mm

Dot (Pixel) Pitch

0.60x0.70mm

Operating Temp.

Normal:-20℃~+70℃

Storage Temp.

Normal:-30℃~+80℃

Power Supply(Typ)

5V

Supply Current for LCM(Max)

1500uA

Connection

Pin Header






☆ INCLUDING
