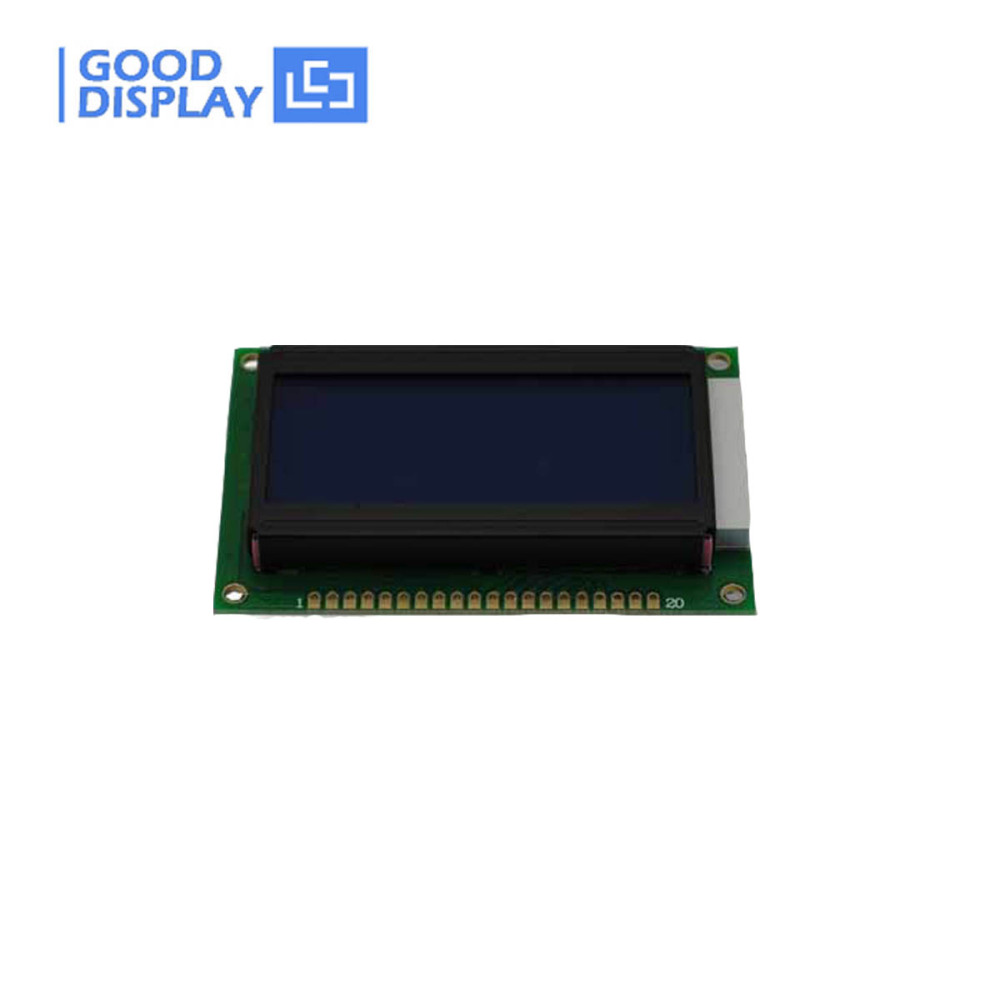

16x4 SPI Character LCD display, black and white, YM1604C

YM1604C
16x4 SPI Character LCD display, black and white, YM1604C
Price:
USD
$7.28
Quantity:
-
+
(20 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews



☆ MAIN PARAMETERS




Manufacturer GOOD DISPLAY
Part Number YM1604C
Outline Dimension 77.0x51.0x13.0 mm
View Angle 6 o’clock
LCD Type Blue STN/ Tran missive/Positive
View Area(W×H) 61.7x25.2 mm
Dot Size(W×H) 0.55x0.55 mm

 Operating Temp.

-20~70℃

 Storage Temp.

-30~80℃

Dot Pitch(W×H) 0.60x0.60 mm
Char Size(W×H) 2.95x4.75 mm
Controller KS0074
Operating voltage 5V
Package COB
Backlight LED (white)
Interface SPI, Serial interface






☆ INCLUDING



1) 16x4 SPI Character LCD display, black and white, YM1604C * 1 pc

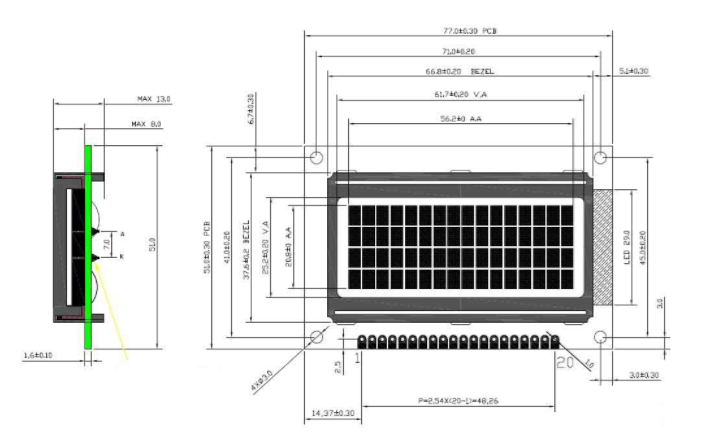

☆ DRAWING










☆ OTHER PRODUCTS




Part Number

Digit

Outline Dimension

Active(View) Area

Drive method

GDC02693

2

7.5x10x1.1mm

5.5x4.0mm

1/4D,1/2B

GDC0209

4

23x10x2.8mm

20x6mm

1/4D,1/3B

GDC0178

11

--

--

1/4D,1/3B

GDC8811D

--

36.00x36.00x2.00mm

33.00x31.00mm

Static

GDC21310

2

30x21x2.8mm

27x16mm

1/4D,1/3B

GDC03828

5

81.0×37.5×2.8mm

78.0×27.5mm

Static

GDC6375

--

98x34.3x2.8mm

92.64x24.94mm

1/4D,1/3B

GDC130

4

51.0x34.0x2.8mm

48.0x25.0mm

1/4 D, 1/3 B

GDC1156 6 253x65.5x2.8mm 250x60mm 1/4 D, 1/3 B
GDM0689 6 58.0x28.0x6.70mm 39.0x17.0mm 1/4Duty

GDM0328

8

55.8x37x2.8mm

45x27mm

1/4D,1/3B

GDC0689

6

42x25x2.8mm

39.0x17.0mm

1/4 D, 1/3 B

GDC9188 12 156x99x2.8mm 148x87mm Static

EDM1190-03

4

72.8x35.5x10.7mm

54.2x24mm

Static

EDC103

8

64x22.0x2.8mm

60.5x13.5mm

1/4D,1/3B

EDC190

4

50.8x30.48x2.8mm

45.72x17.78mm

Static

EDS819

2-1/2

30.0x26.17mm

26.0x17.17mm

Static

EDS816

4

93.98x45.72x2.8mm

86.36x30.48 mm

Static

EDS815

4

69.85x38.1x2.8mm

62.23x22.86mm

Static

EDS805 4 50.8x30.48x2.8mm 45.72x16.51mm Static

EDS809

6

69.85x30.48x2.8mm

64.77x16.51mm

Static

EDS810

6

93.85x38.1x2.8mm

86.36x24.13mm

Static

YM0801B

--

55.0x17.0x8.5mm

39.5x8.0mm

--

YM0802B

--

58.0x32.0x13.0mm

38.0x16.0mm

--

YM0802SYG-3

--

58x32x13.2mm

39x16mm

--

YM12864C

--

78x70x13mm

62x44mm

--

YM1601A

--

80.0x36.0x13.0mm

64.5x14.0mm

--

YM1604C

--

77.0x51.0x13.0 mm

61.7x25.2 mm

--

YM1602C

--

80.0x36.0x12.5mm

64.5x15.8mm

--

YM1602L

--

122.0x44.0x14.0mm

99.0x24.0 mm

--

YM128128G-3

--

46.5x56.7x4.0mm

39.64x46.04mm

--

YM320240B-3

--

139.0x120.0x13.2mm

103.0x79.0mm

--

YM19264A

--

130.0x65.0x13.0mm

104.0x39.0mm

--

YM12864FS-655

--

70.0x50.0x5.8mm

67.0x37.0mm

--

YM0802A-1

--

40.0x35.8x12.0mm

25.74x9.48mm

--

YM12864-G35

--

80.2x51.2x5.6mm

66.52x33.24mm

--

YM12864J

--

93.0x70.0x14.0mm

70.7x38.8mm

--

YM12864J-7

--

93x70x13.5mm

72x40mm

--

YM240128A-11 -- 144.0x105.5x15.0mm 107.95x57.55mm --
