Thank you for your interest in our e-paper display modules!
GDEF0253F16 (Soldered FPC Version) is available with limited stock at special discount price. If you need mass continuous supply, we recommend our pluggable alternative model below:
GDEF0253F17 - 2.53-inch Pluggable ZIF FPC Version
The pluggable FPC model supports stable bulk orders and long-term supply for mass production projects.
Feel free to contact our support team if you need custom quotation or bulk pricing solutions.
Product Matching Instruction

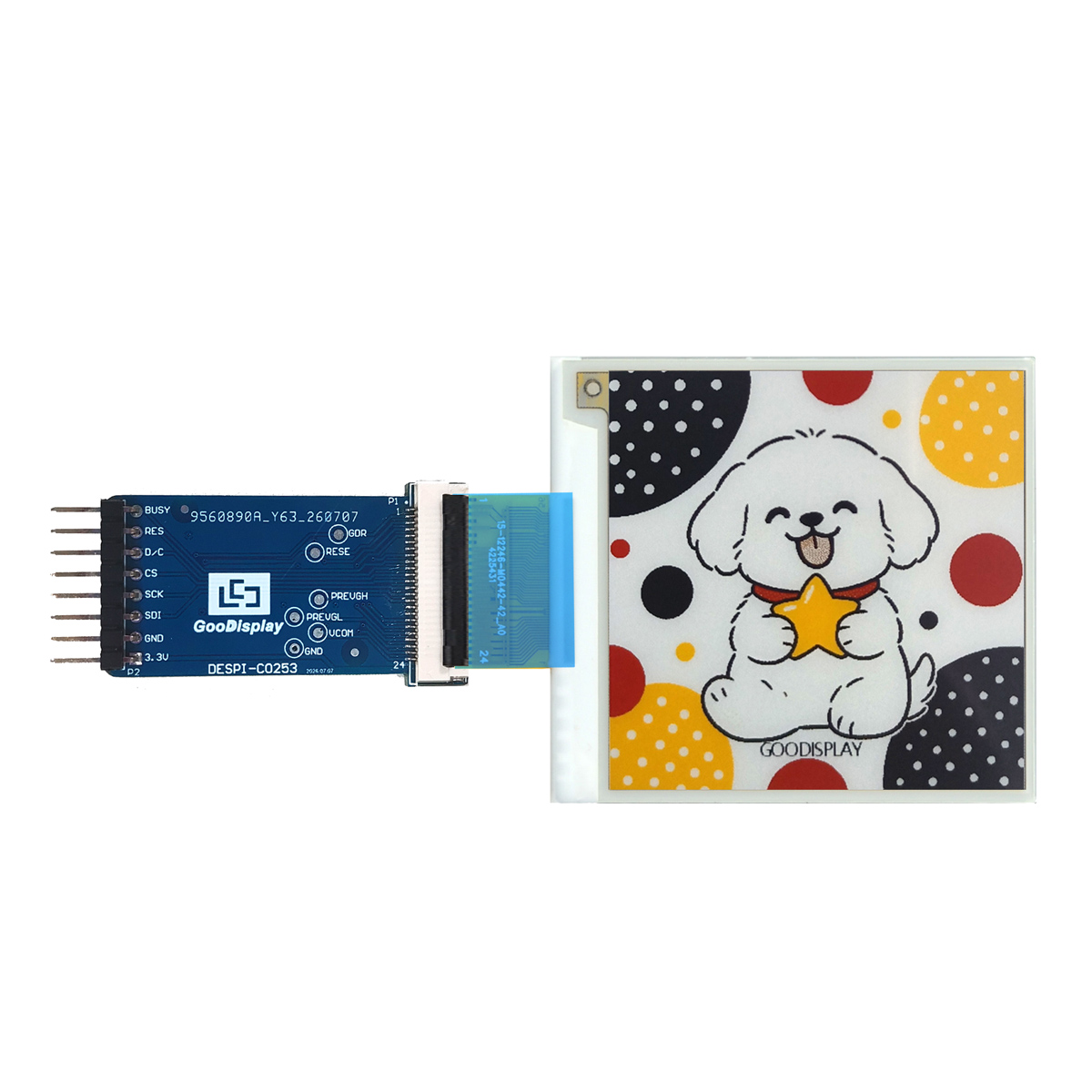

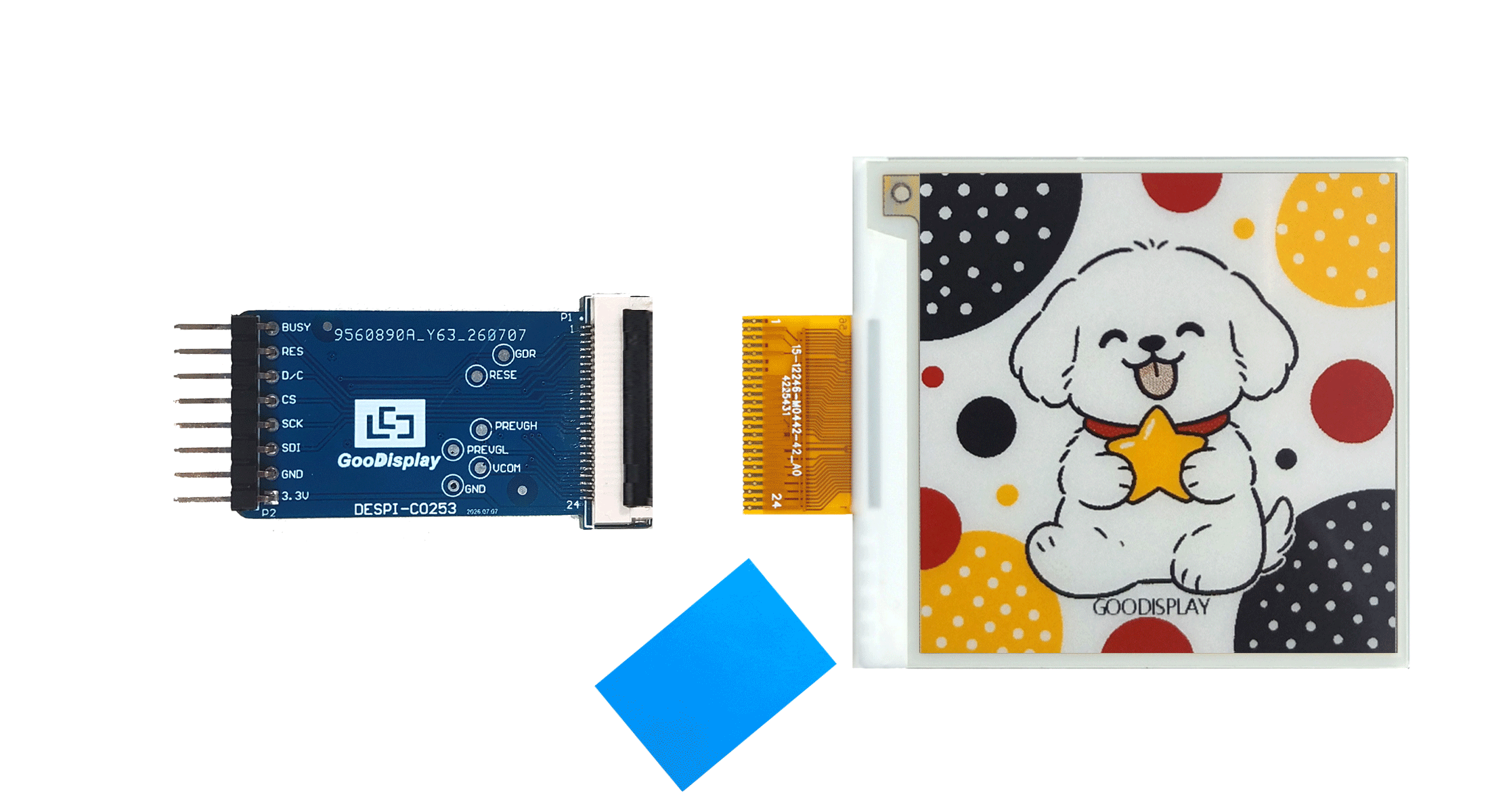

This GDEF0253F16 e-ink display needs to be used together with matching adapter board and blue sealing gasket for perfect assembly.

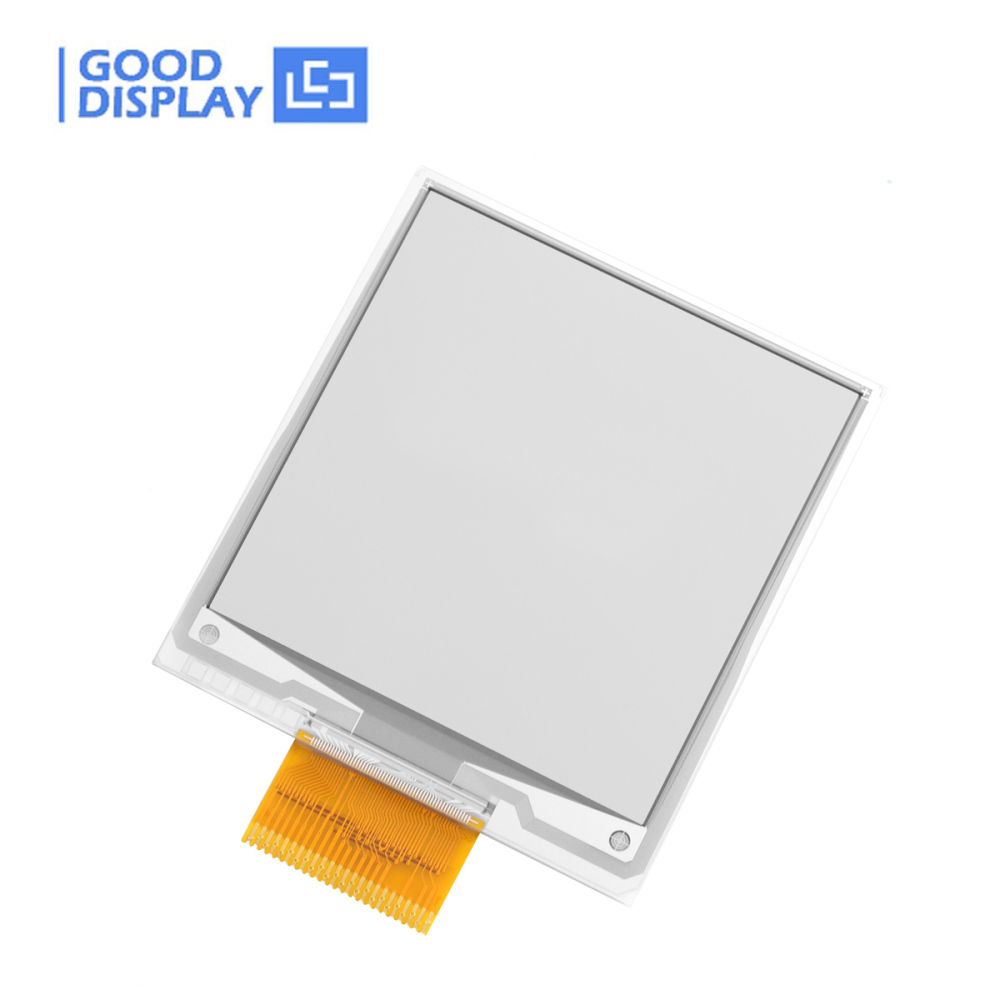

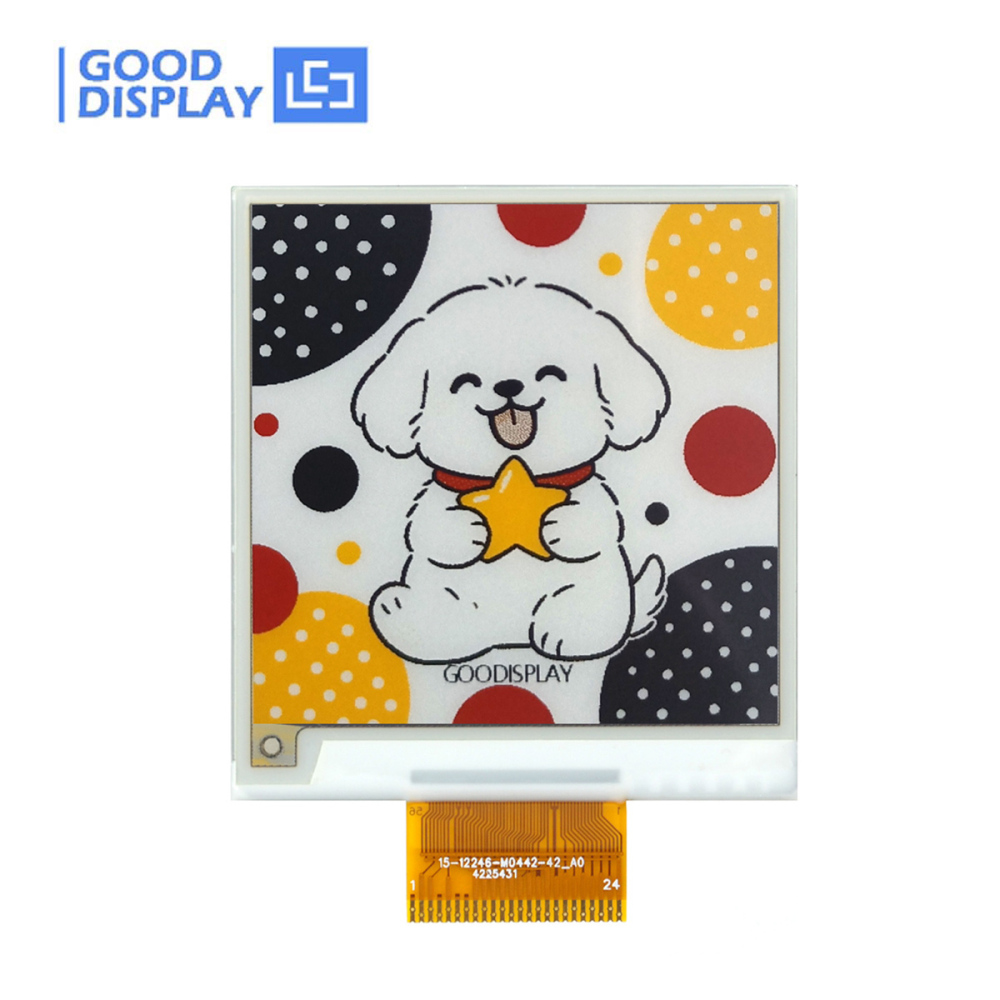

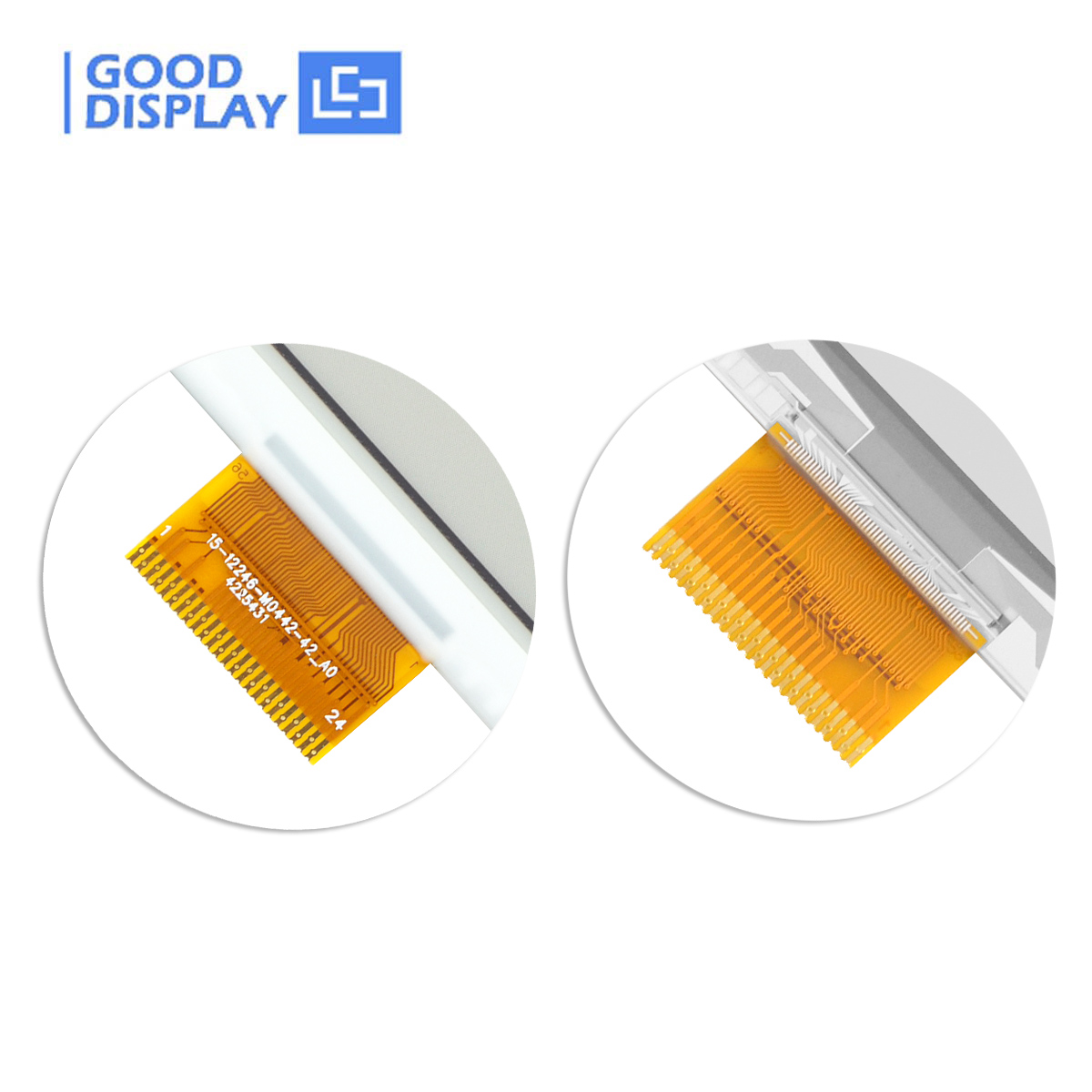

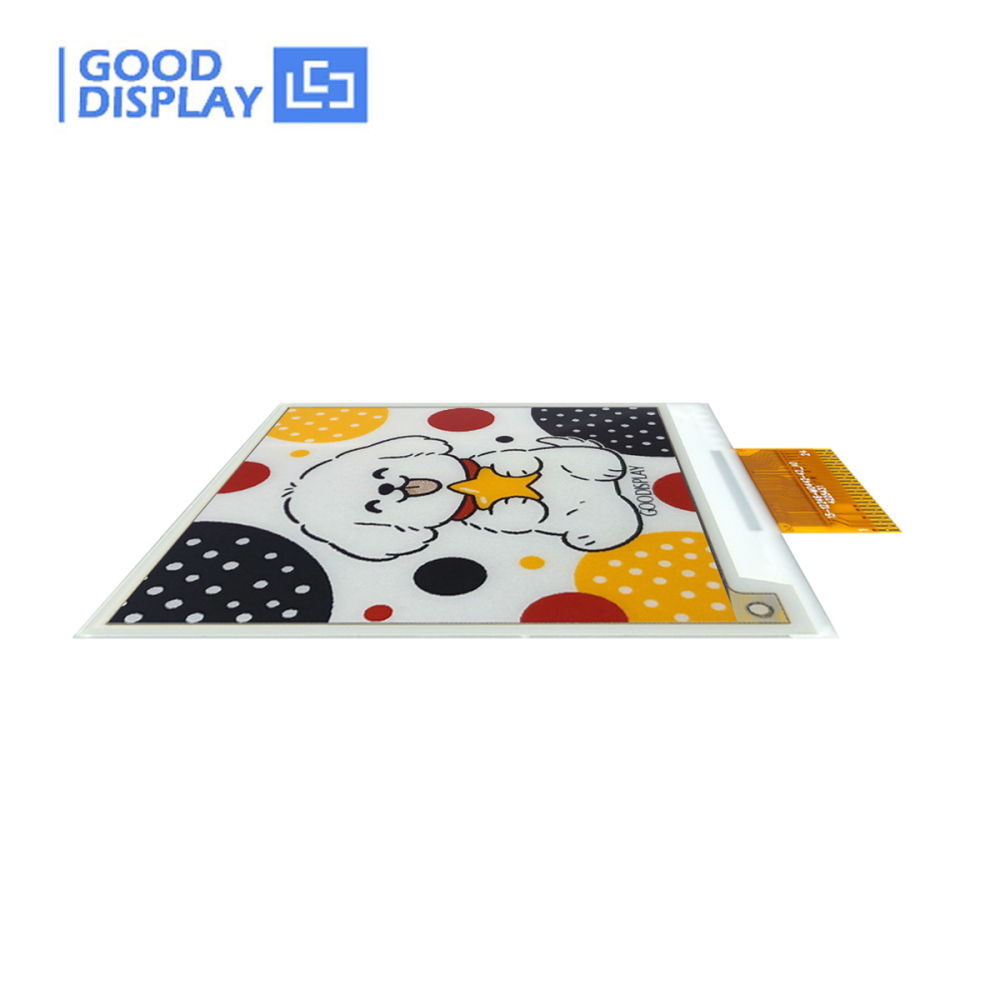

Product Photos
Full Technical Specifications
| Parameter Item |
Specification |
| PART NUMBER |
GDEF0253F16 |
| SIZE |
2.53 inch |
| Driver IC |
JD79665 |
| Display TYPE |
Dot Matrix |
| RESOLUTION |
425×425 Pixel |
| PPI |
237 |
| OUTLINE SIZE (mm) |
50.88×55.38×0.93 |
| ACTIVE AREA (mm) |
45.48×45.48 |
| PIXEL PITCH (mm) |
0.107×0.107 |
| OPERATING TEMP |
20℃ ~ 40℃ |
| STORAGE TEMP |
0℃ ~ 40℃ |
| CONNECTOR |
24 Pin Soldered FPC, 0.8mm Pitch |
| INTERFACE |
3-wire / 4-wire SPI |
| DISPLAY COLOR |
Black, White, Red, Yellow (4-Color BWRY) |
| TYPICAL UPDATE POWER (mW) |
16.5 |
| DEEP SLEEP POWER (mW) |
0.003 |
| FULL SCREEN UPDATE TIME |
16 Seconds |
| WEIGHT (g) |
TBD |

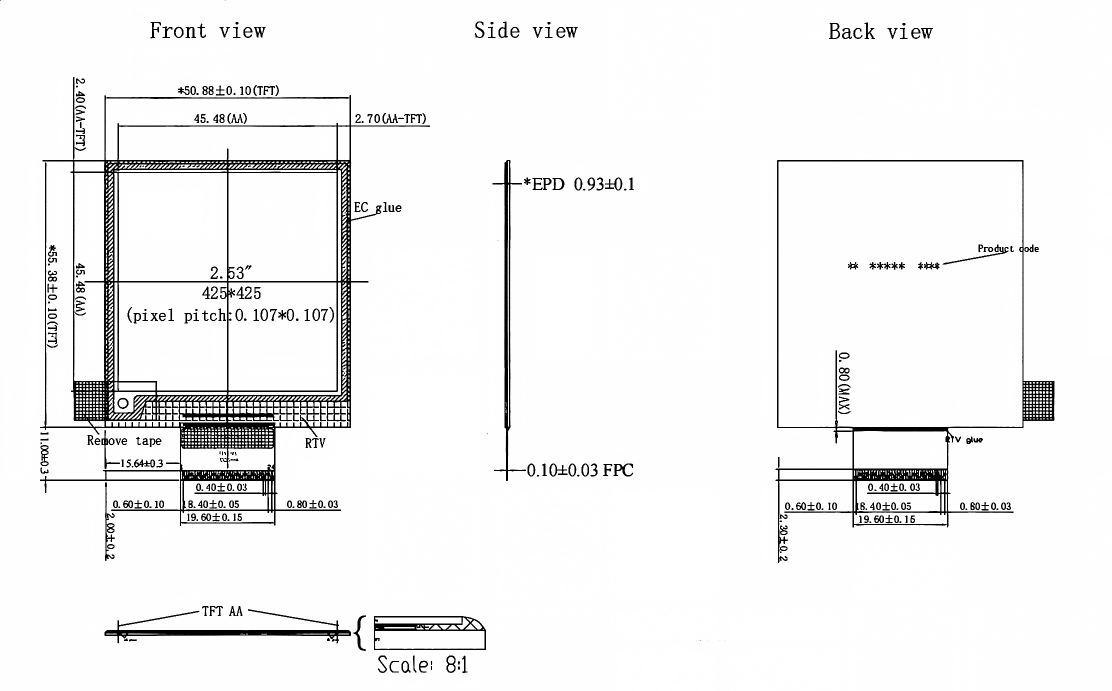

Mechanical Drawing
