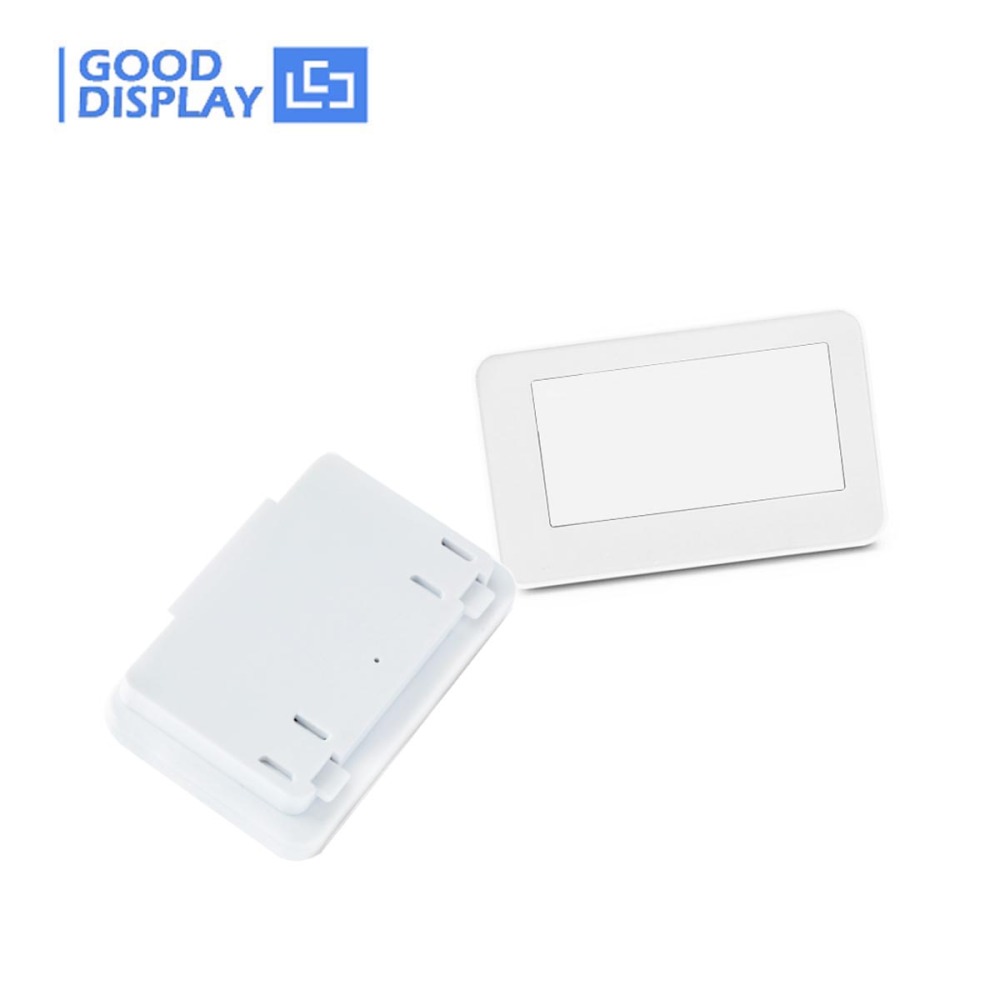

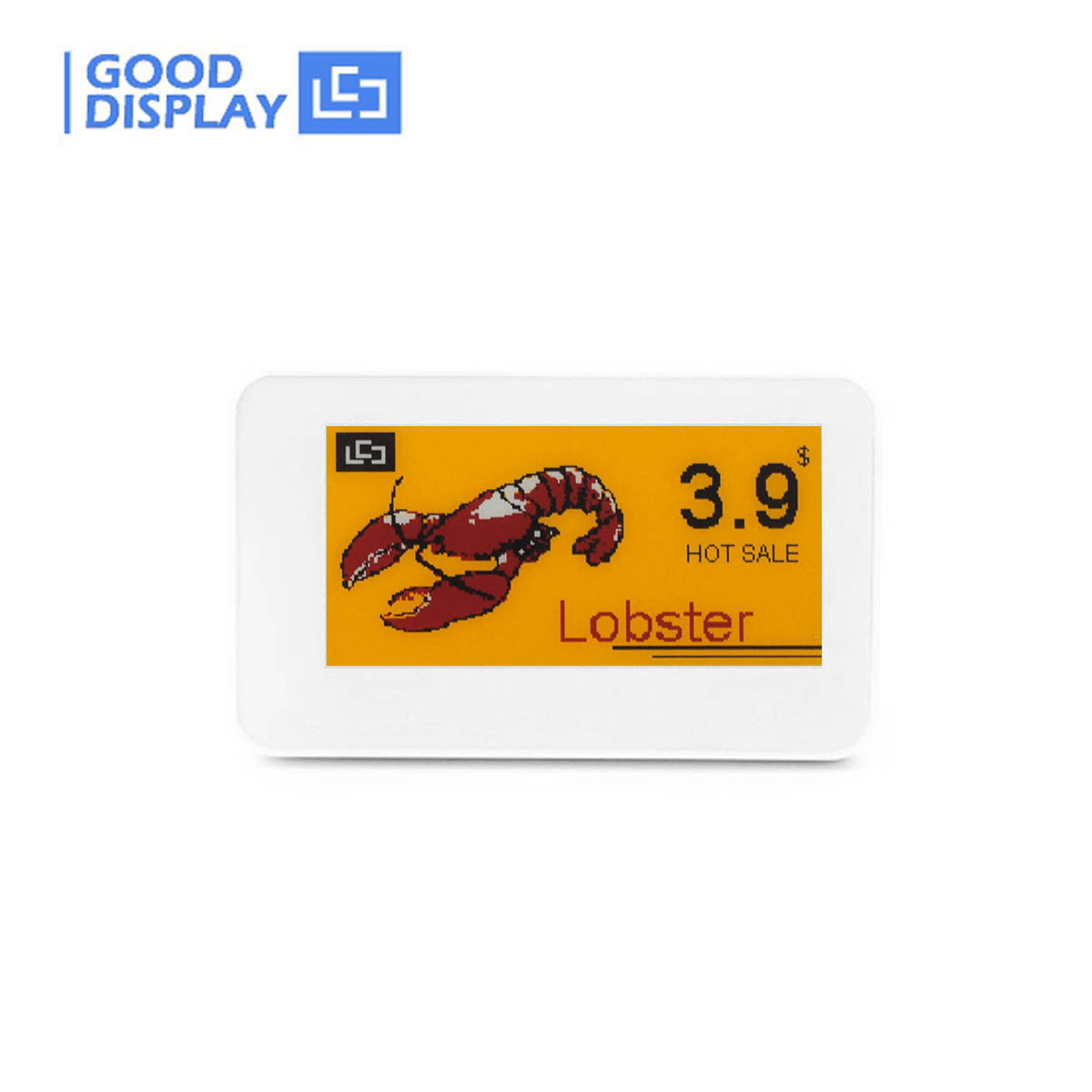

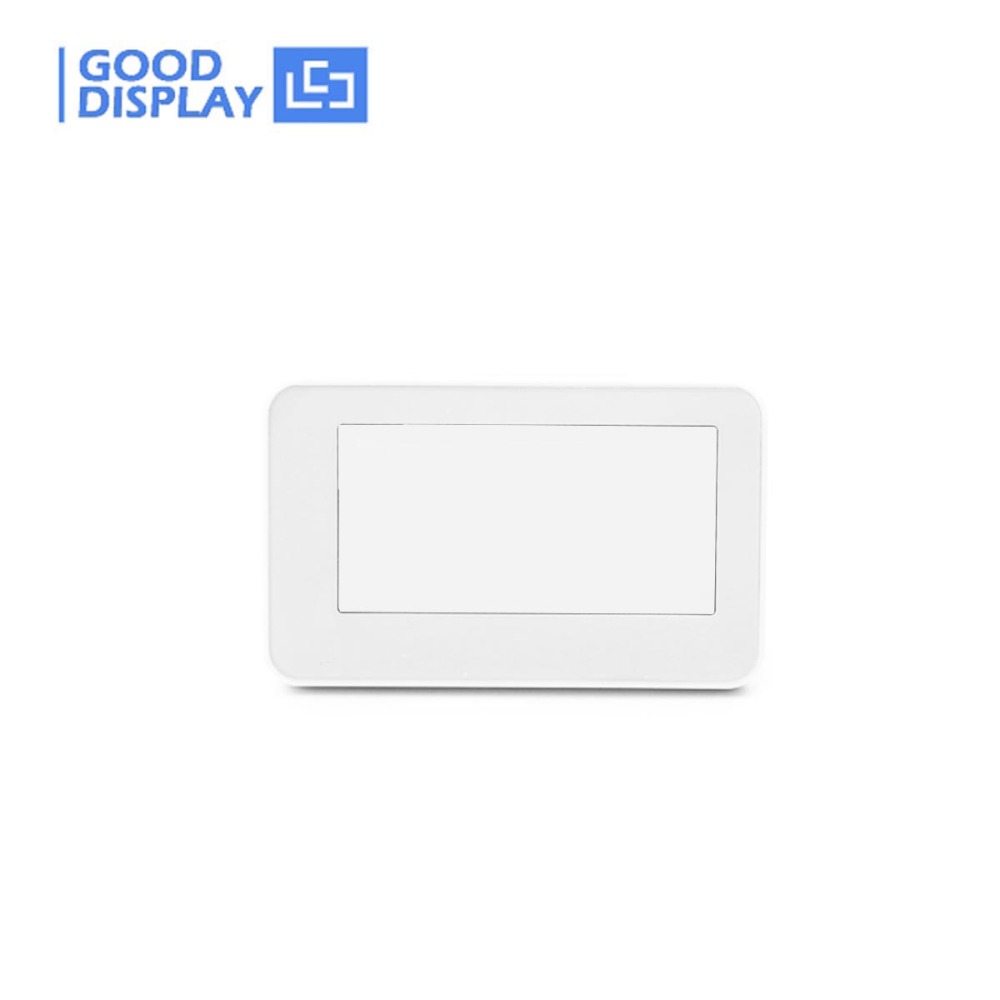

This is a 2.13 inch enclosure shell matching 2.13 inch esl tag, suitable for all 2.13 inch black/white, black/white/red and black/white/yellow e-paper display. The shell is made of ABS, and it is equipped with a transparent panel.
2.13 inch esl tag has a wide range of applications: such as supermarkets, warehouses, convenience stores, hospital wards, etc.

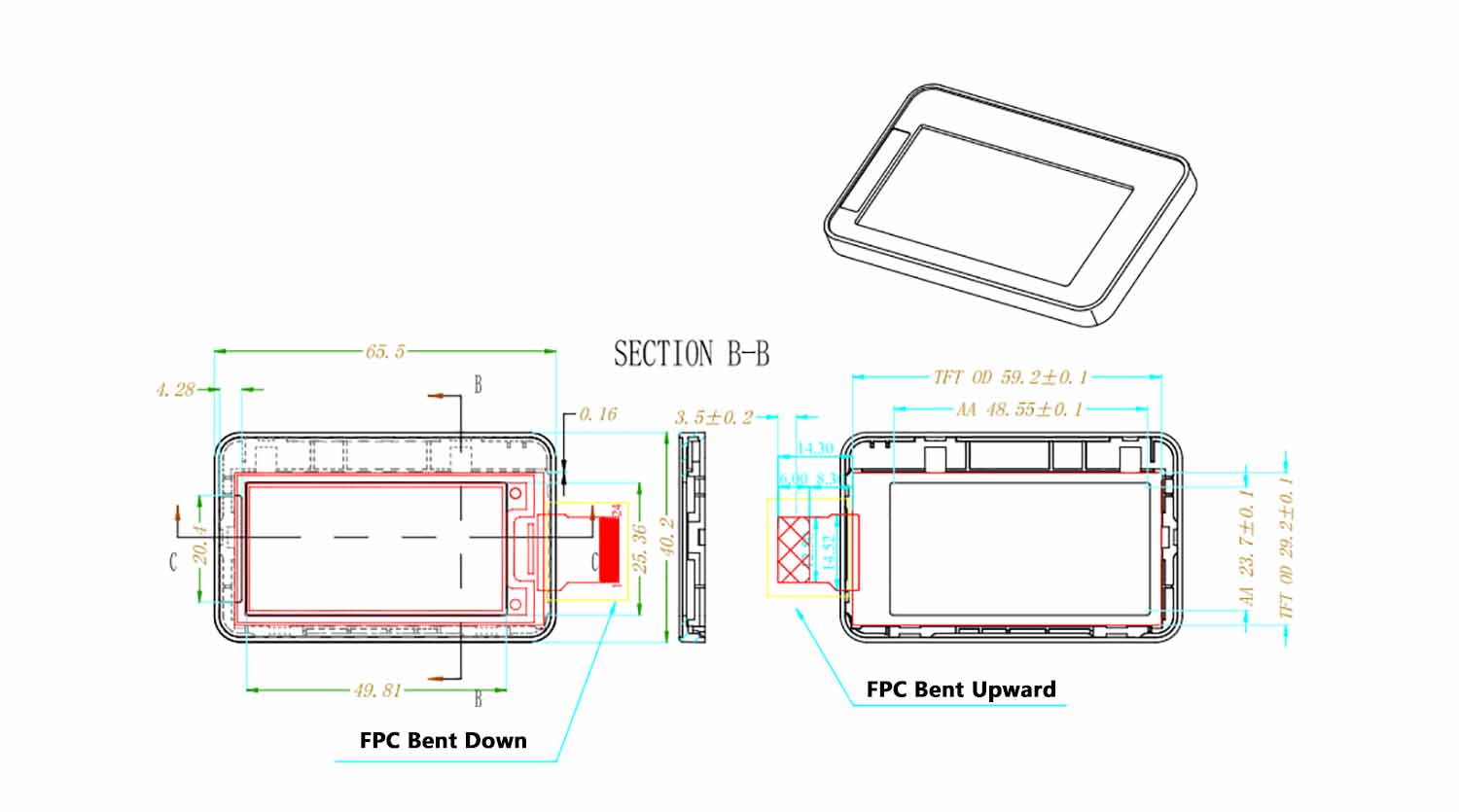

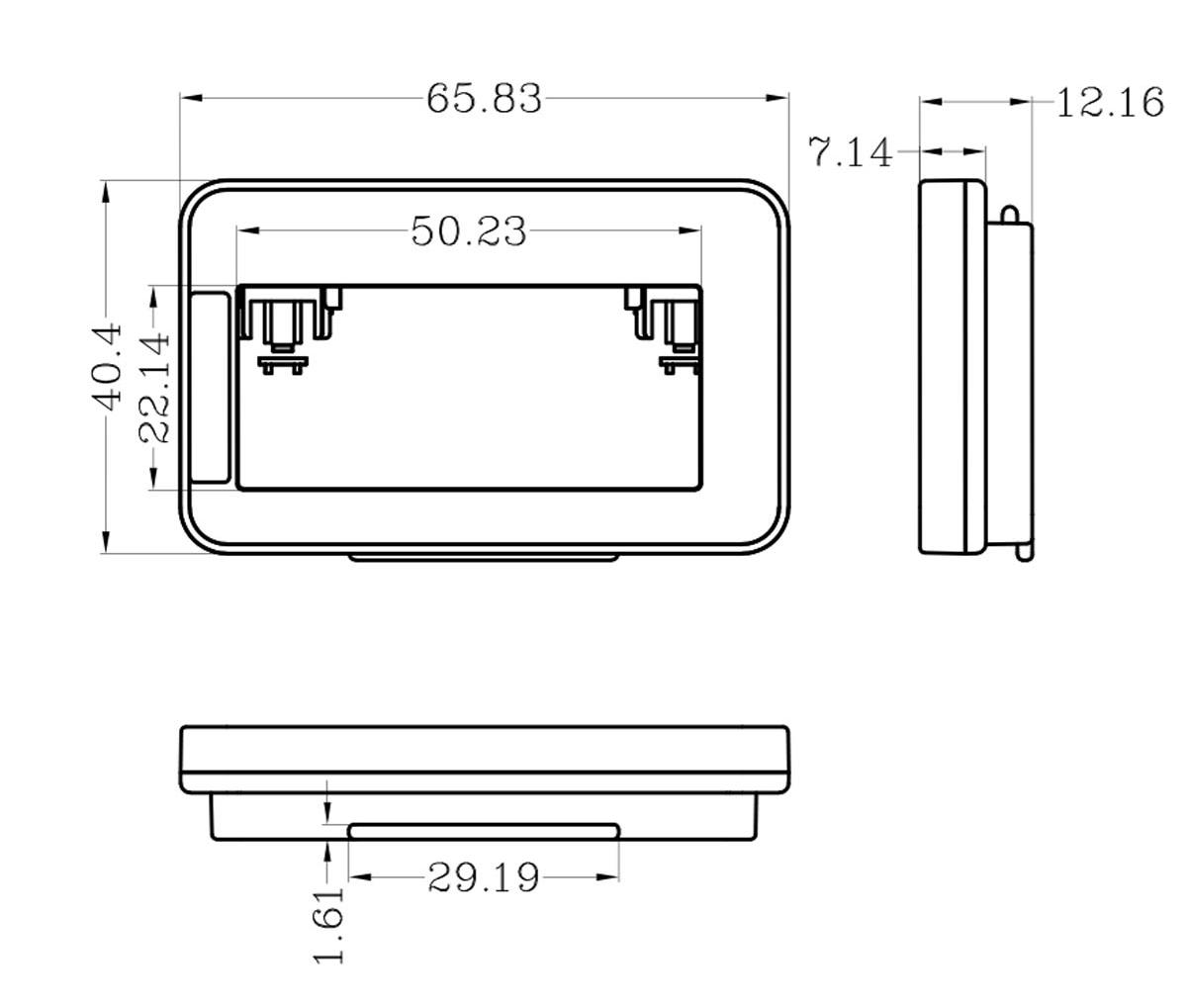

Shell drawing

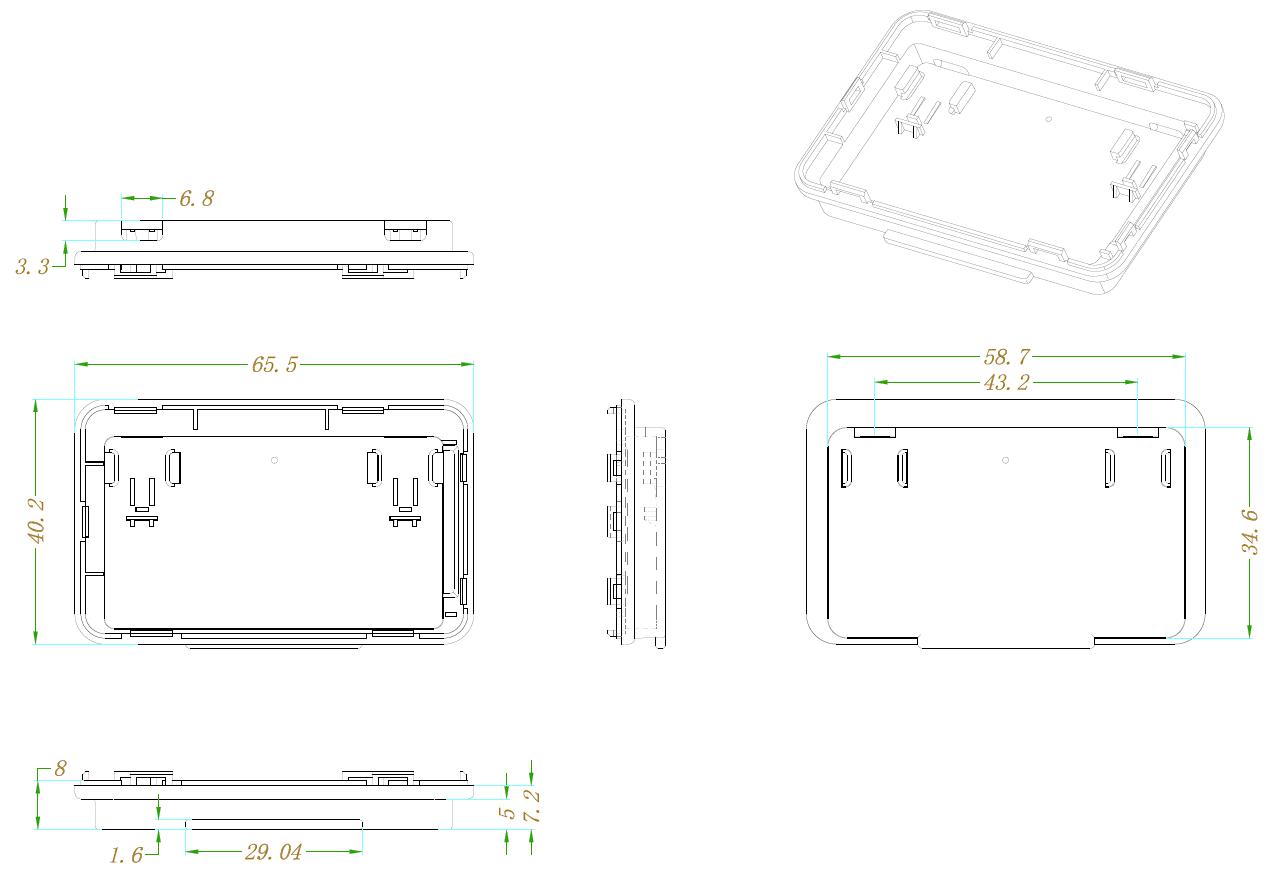

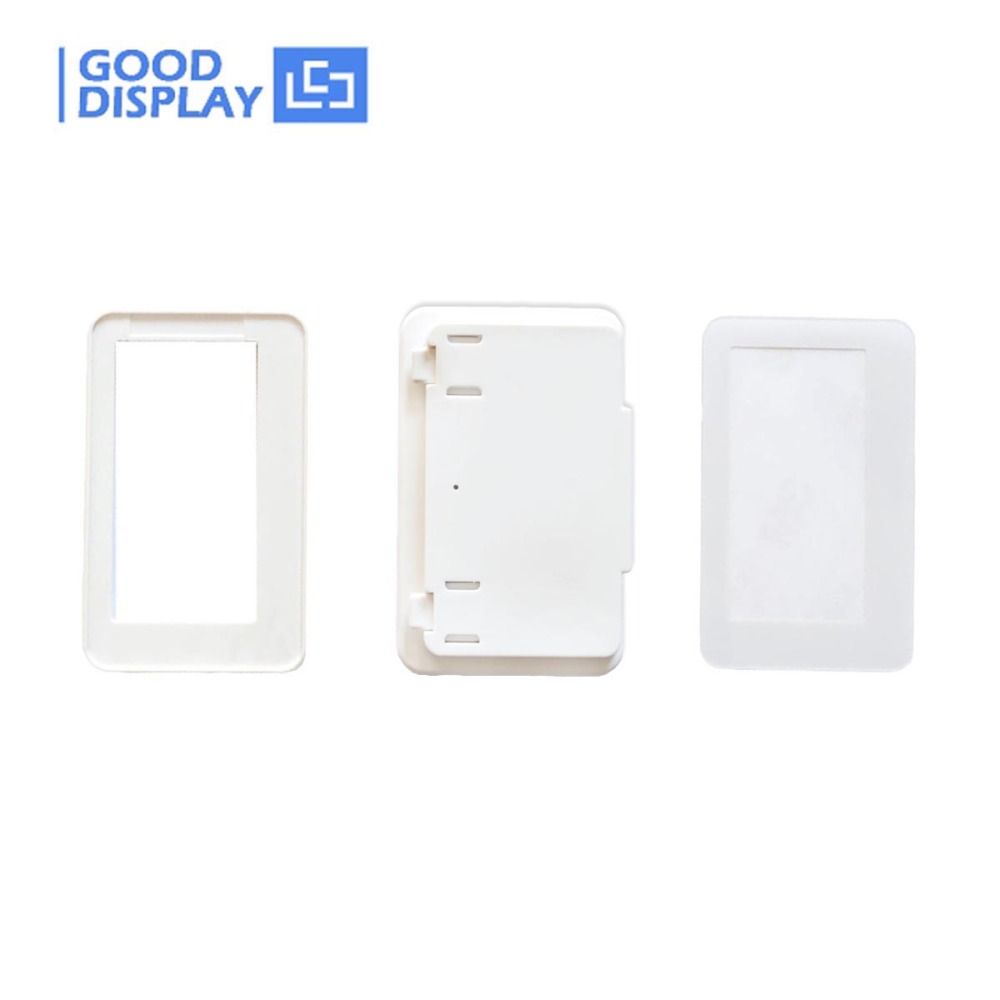

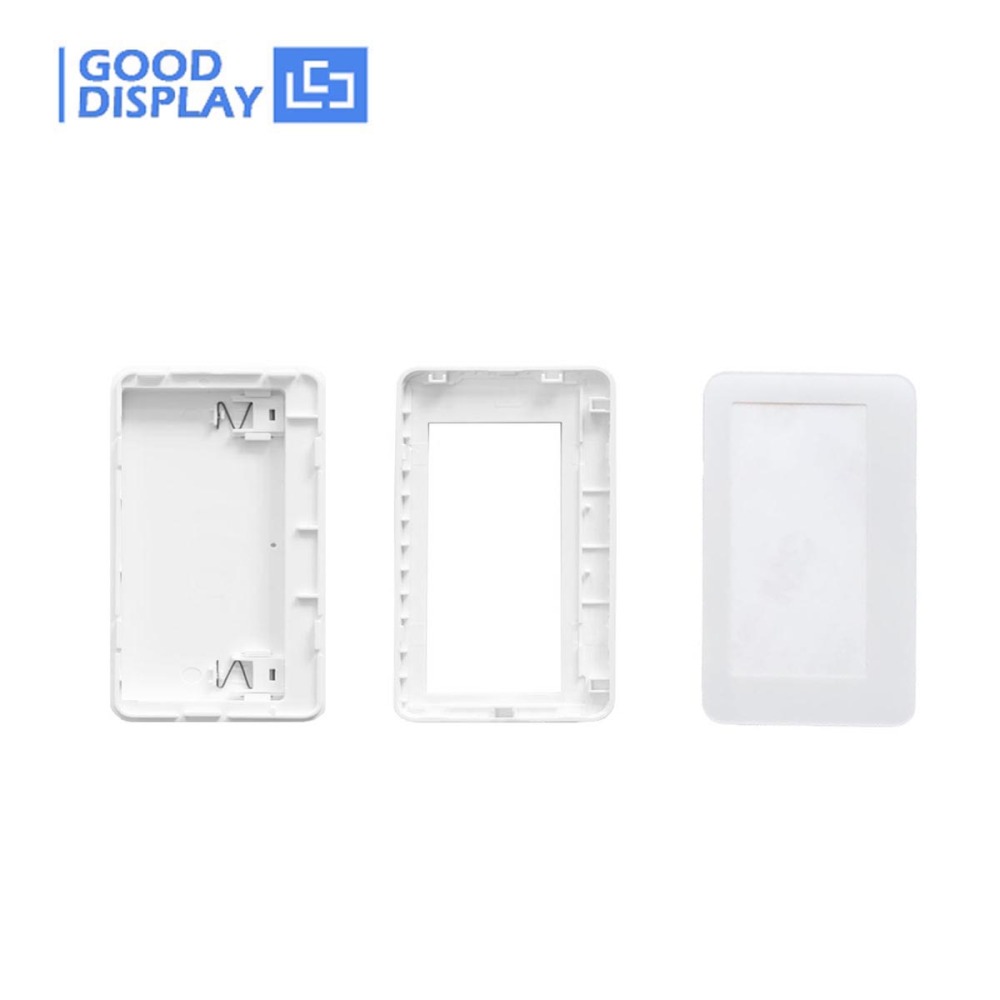

Split schematic
| Part Number | Color | Resolution |
Feature |
Full refresh time |
| GDEY0213B74 | B/W | 250x122 | Partial refresh, 4 Grayscale | 3s |
| GDEW0213M21 | B/W | 212x104 | DES,wide working temperature, Partial refresh | 3s |
| GDEW0213T5D | B/W | 212x104 | Fast refesh, Partial refresh, 4 Grayscale | 0.82s(fast refresh) |
| GDEW0213I5FD | B/W | 212x104 | Flexible, Partial refresh, 4 Grayscale | 3s |
| GDEW0213V7LT | B/W | 212x104 | Low temperature | 3s |
| GDEM0213D23 | B/W | 250x122 | SPI interface | -- |
| GDEH0213Z98 | B/W/R | 250x122 | Three colors | 13s |
| GDEH0213Z19 | B/W/R | 212x104 | Three colors | 15s |
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
