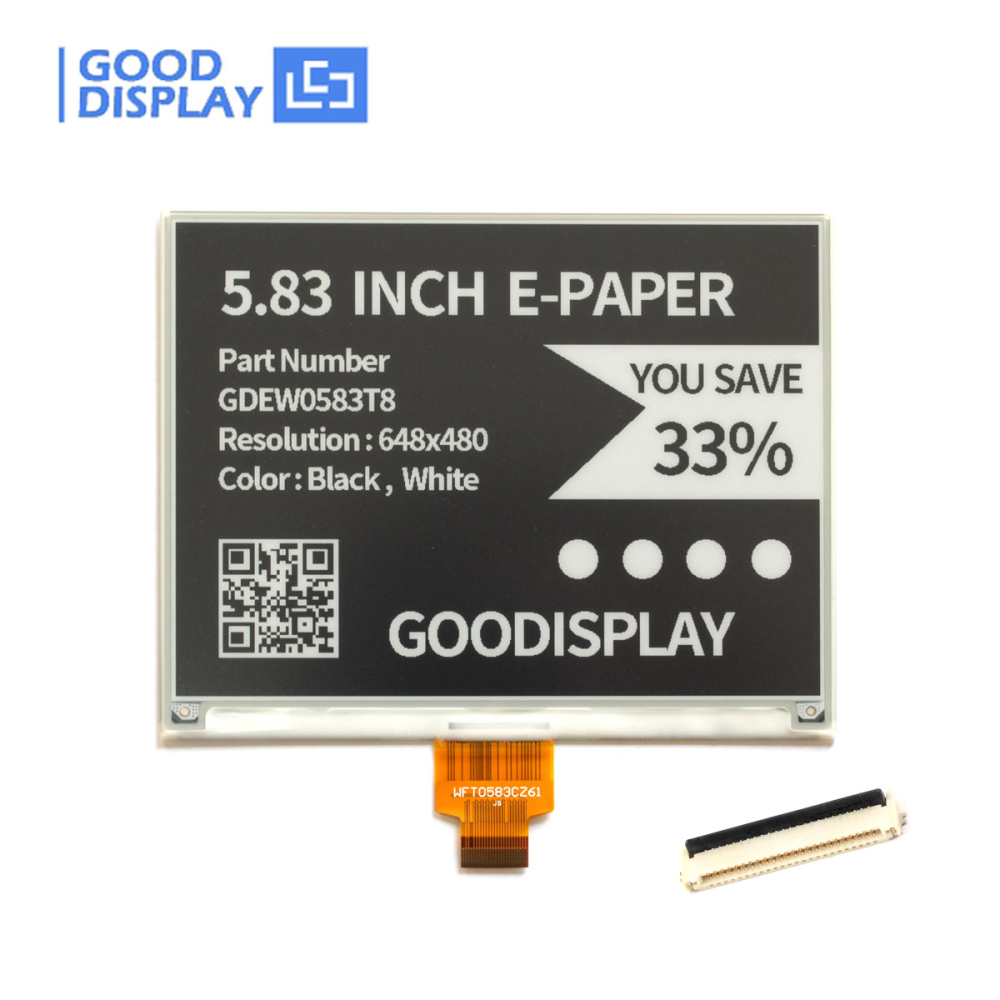

5.83 inch Large e-paper display resolution 800x480 SPI, GDEW0583T8

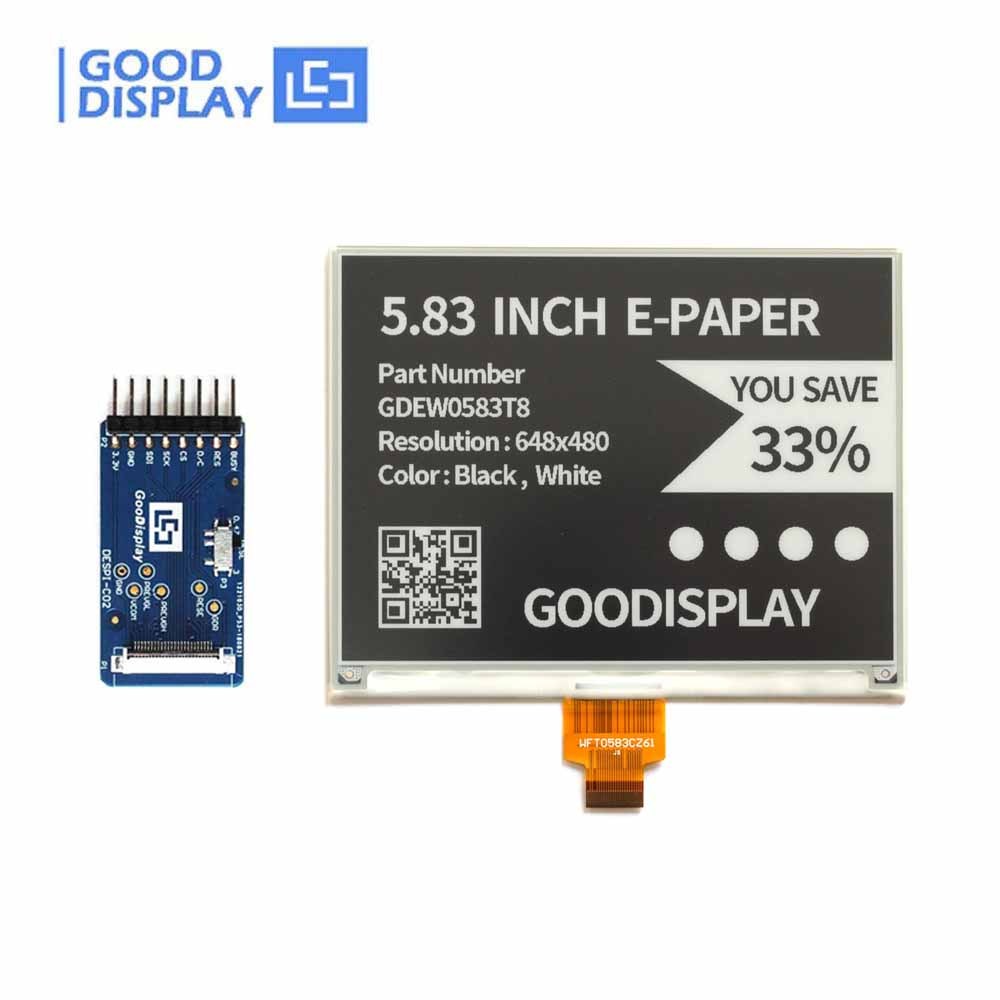

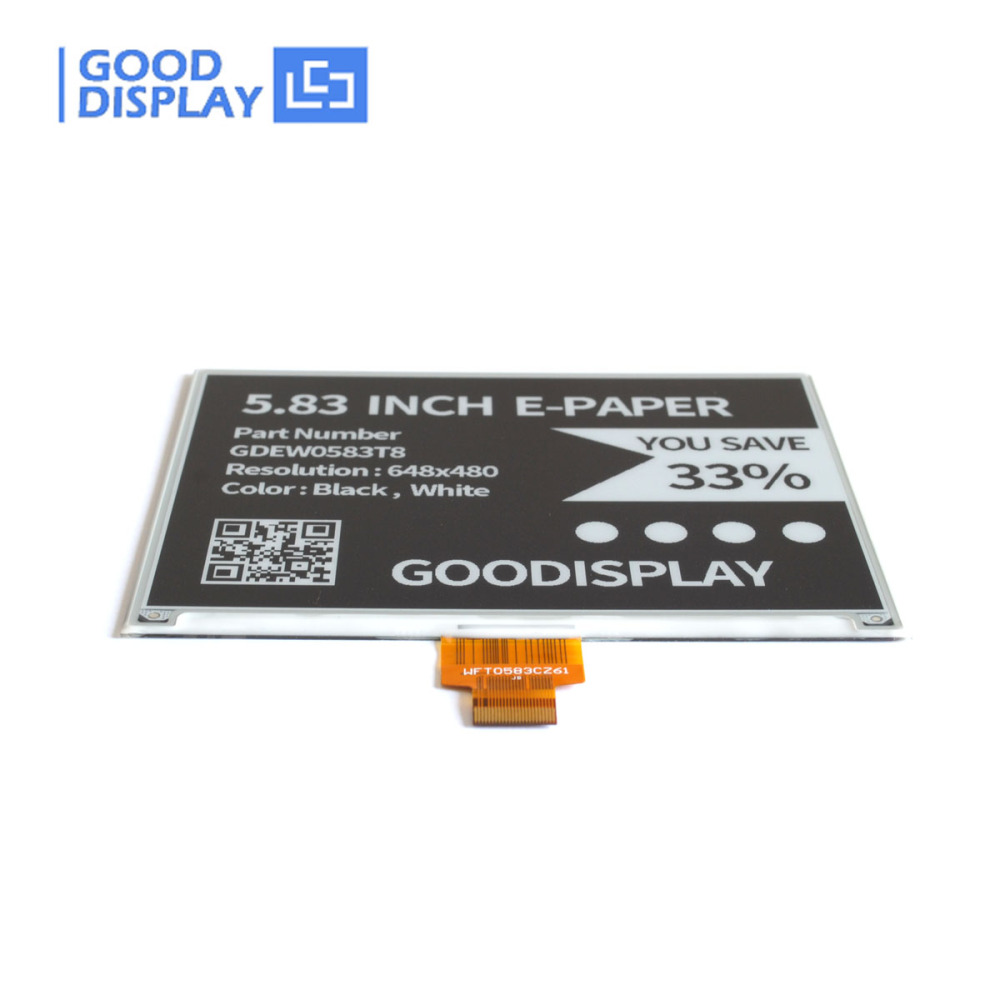

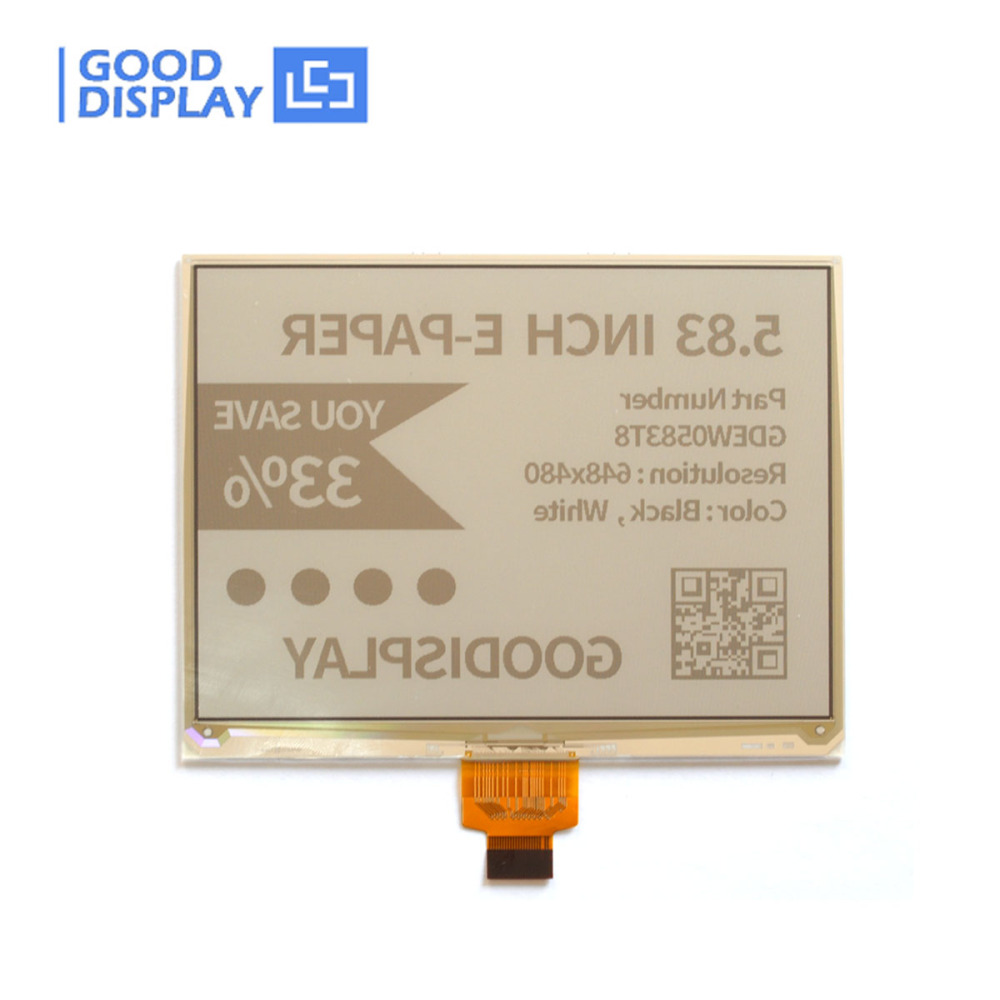

This is a 5.83 inch e-ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black and white content.
Price:
USD
$37.00
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews



☆ INTRODUCTION




This is a 5.83 inch e-ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

This 5.83 inch e-ink display GDEW583T8 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

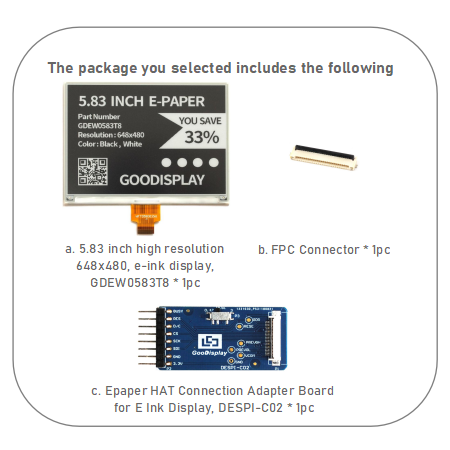

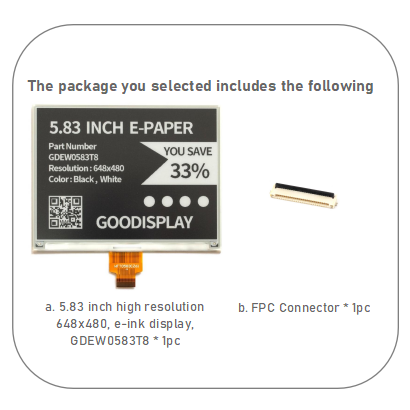

☆ THE ABOVE PRICE INCLUDE



1) 5.83 inch Large e-paper display resolution 648x480 SPI, GDEW0583T8 * 1pc
2) FPC Connector * 1pc




☆ MAIN PARAMETERS




PART NUMBER GDEW0583T8

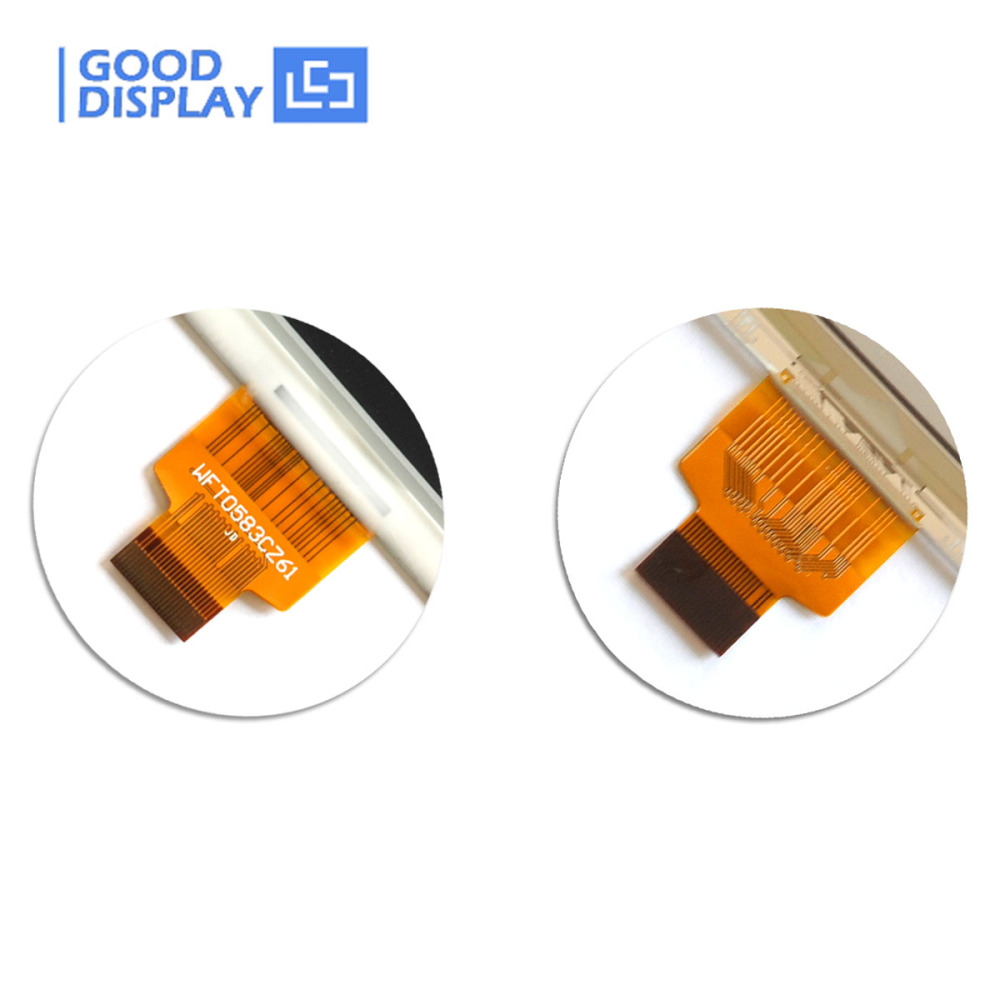

SIZE 5.83 inch CONNECTOR 24 Pin FPC
TYPE Dot Matrix MAX GRAYSCALE 2
IC UC8179 COLOR Black,White
RESOLUTION 648x480 INTERFACE SPI

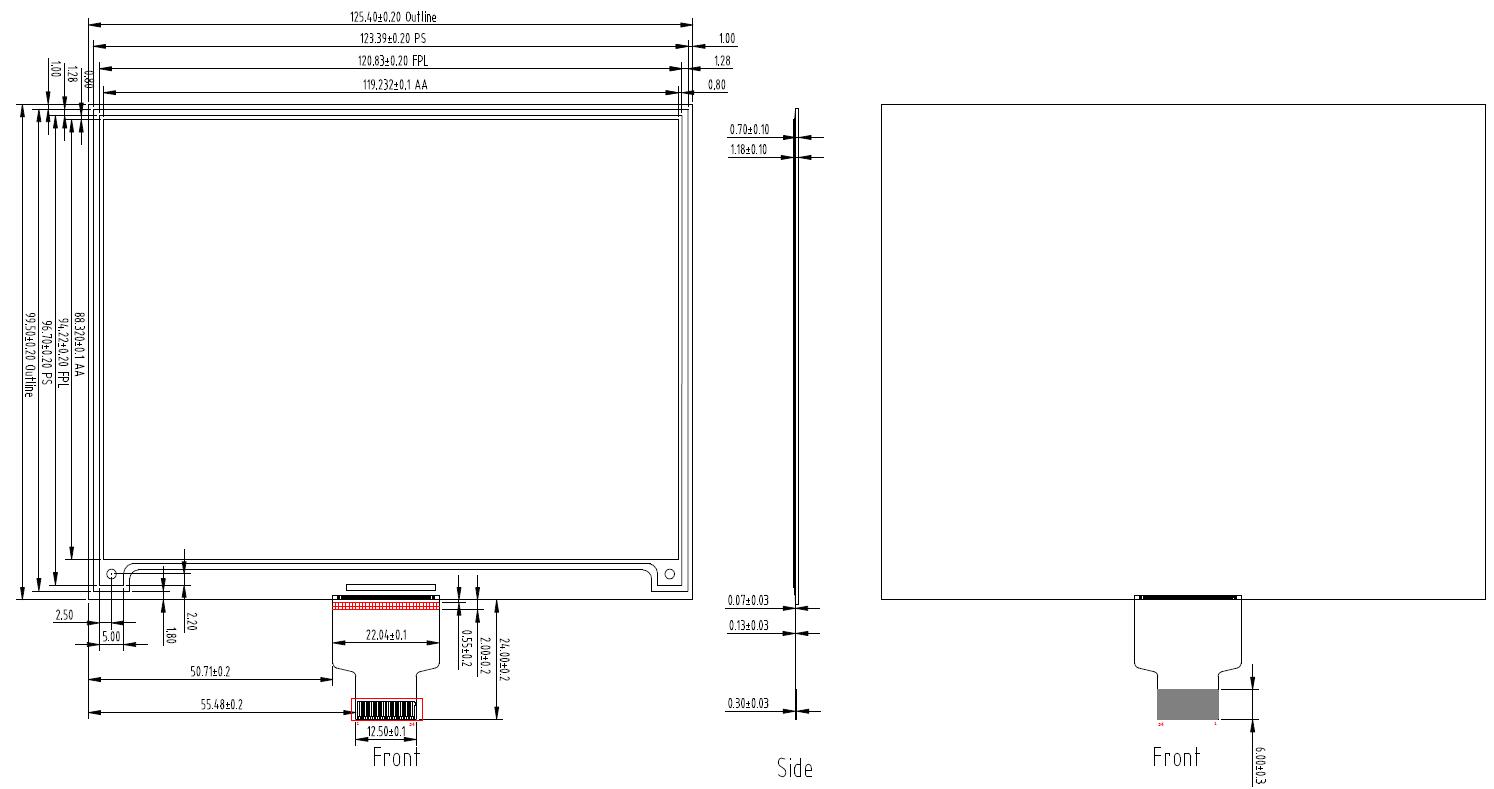

OUTLINE SIZE(mm) 125.4x99.5x1.18 FULL REFRESH(s) 4
ACTIVE SIZE(mm) 119.232x88.32 POWER CONSUMPTION OF THE REFRESH(mW) 26.4
PIXEL PITCH(mm) 0.184x0.184 STANDBY POWER CONSUMPTION (mW) 0.0165
OPERATING TEMP. 0℃~50℃ STORAGE TEMP. -25℃~70℃

☆ FEATURE




●  Black and white monochrome is easy to read.
●  Versatile. Use in portrait or landscape format.
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor.
●  Color Optional. We also have other color for you to choose.

●  Development platform available STM32 ESP32



☆ DETAILS






 5.83 INCH E-INK DISPLAY




Part Number

Color

Resolution

Feature

Full refresh time
GDEW0583C64 B/W/Y 600x448 Three colors,SPI interface 25s
GDEW0583Z83 B/W/R 648x480 Three colors,High resolution 12s
GDEY0583T81 B/W 648x480 High resolution 3.5s

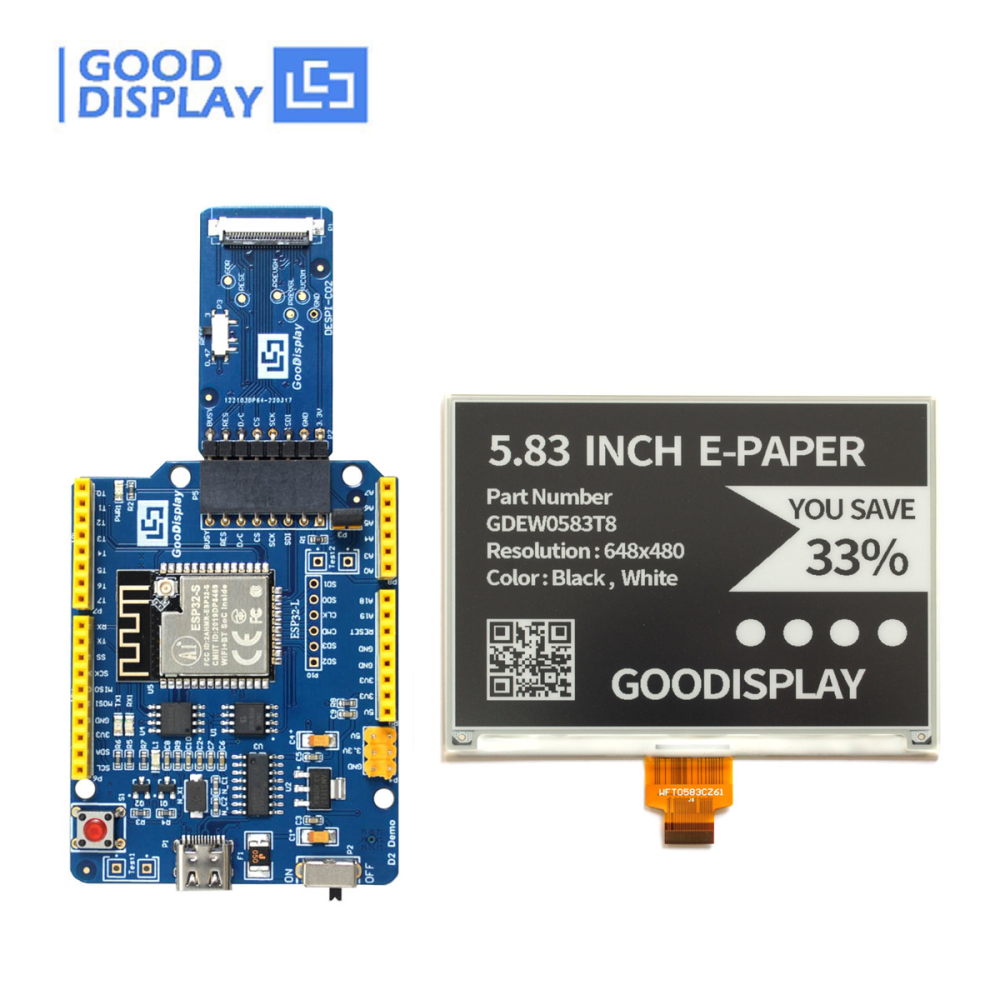

☆ MATCHED DEVELOPMENT KIT




● DESPI-C02 (E-ink Display HAT)

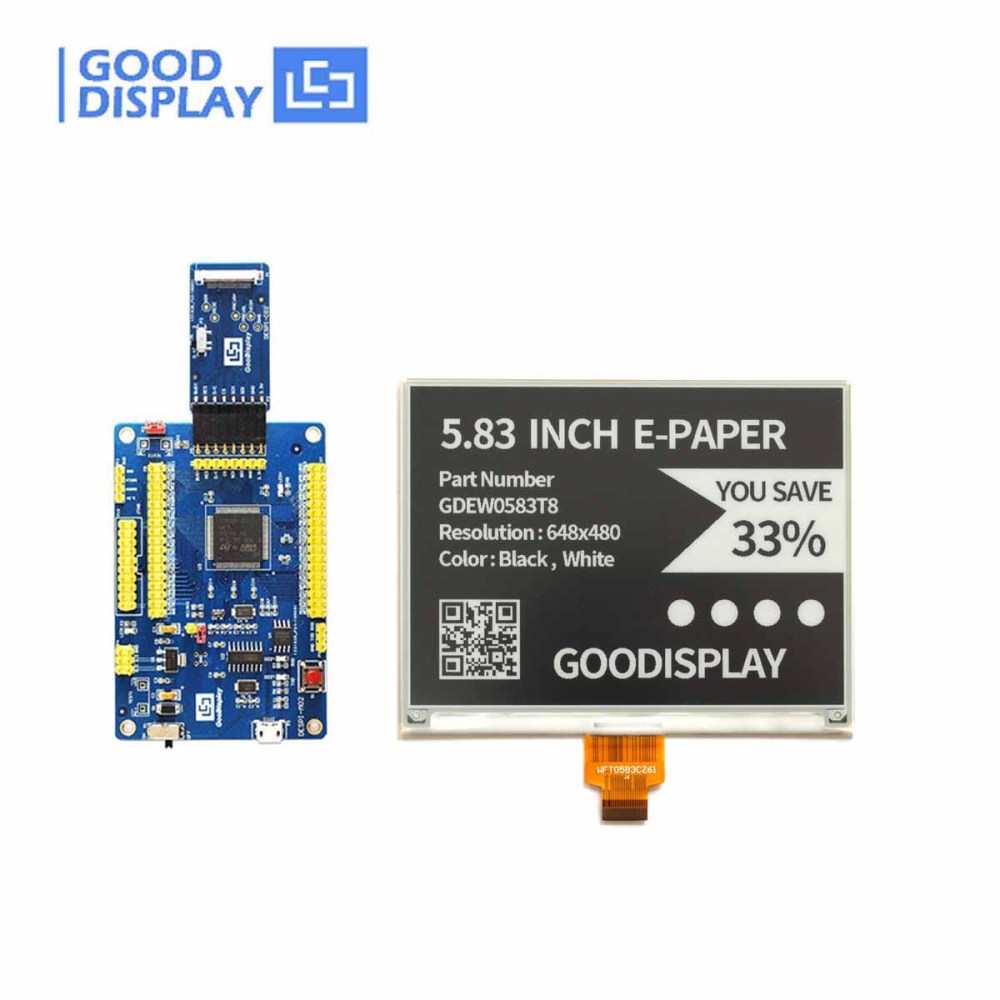

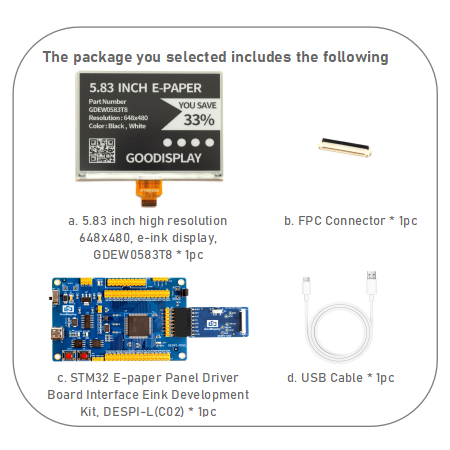

● DESPI-L(C02) (STM32 Platform/Universal)

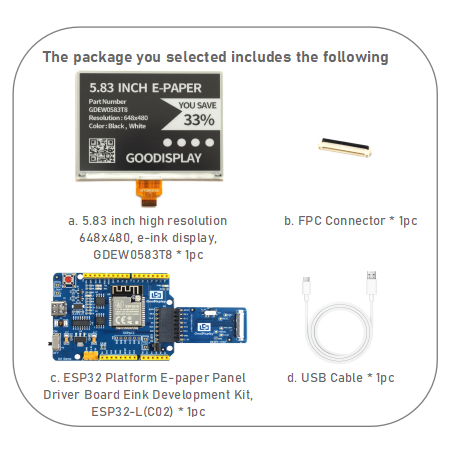

● ESP32-L(C02) (WiFi / Bluetooth)



☆ RELATED INFORMATION DOWNLOAD



● GDEW0583T8 Specification

● IC Driver UC8179

● GDEW0583T8 STM32 Sample Code

● GDEW0583T8 ESP32 Sample Code



☆ WE ALSO SUGGEST...




5.83 inch Epaper Fast Update Screen 648x480 Resolution Paper-Like Eink Display, GDEQ0583T31

5.83 inch high resolution color red e-paper display Tri-color e-ink screen module buy GDEW0583Z83

4.2 inch tri-color e-paper display SPI 400x300 EPD, GDEQ042Z21

4.2 inch e-paper display Morochrome SPI e-ink for digital price tags, GDEY042T91




☆ ABOUT US



Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

SPI

GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃     SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI
