2.13 Inch Small E Ink Module Epaper HAT 250x122 Electronic Paper Display, GDEY0213B74+DESPI-C02

This is a connection board with 2.13 inch e-paper screen with 250x122 resolution, SPI interface, and the display is capable to display images with black and white content.
Sold:2
Price:
USD
$13.35
  • Product:
    With adapter board DESPI-C02
    EPD
    E-Paper HAT
Quantity:
-
+
(895 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews



☆ INTRODUCTION




This is a connection board with 2.13 inch e-paper screen with 250x122 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 1.5s fast refresh and 0.42s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.This e-paper display GDEY0213B74 is perfect for low power devices powered by solar or batteries.


This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)



We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array




☆ THE ABOVE PRICE INCLUDE

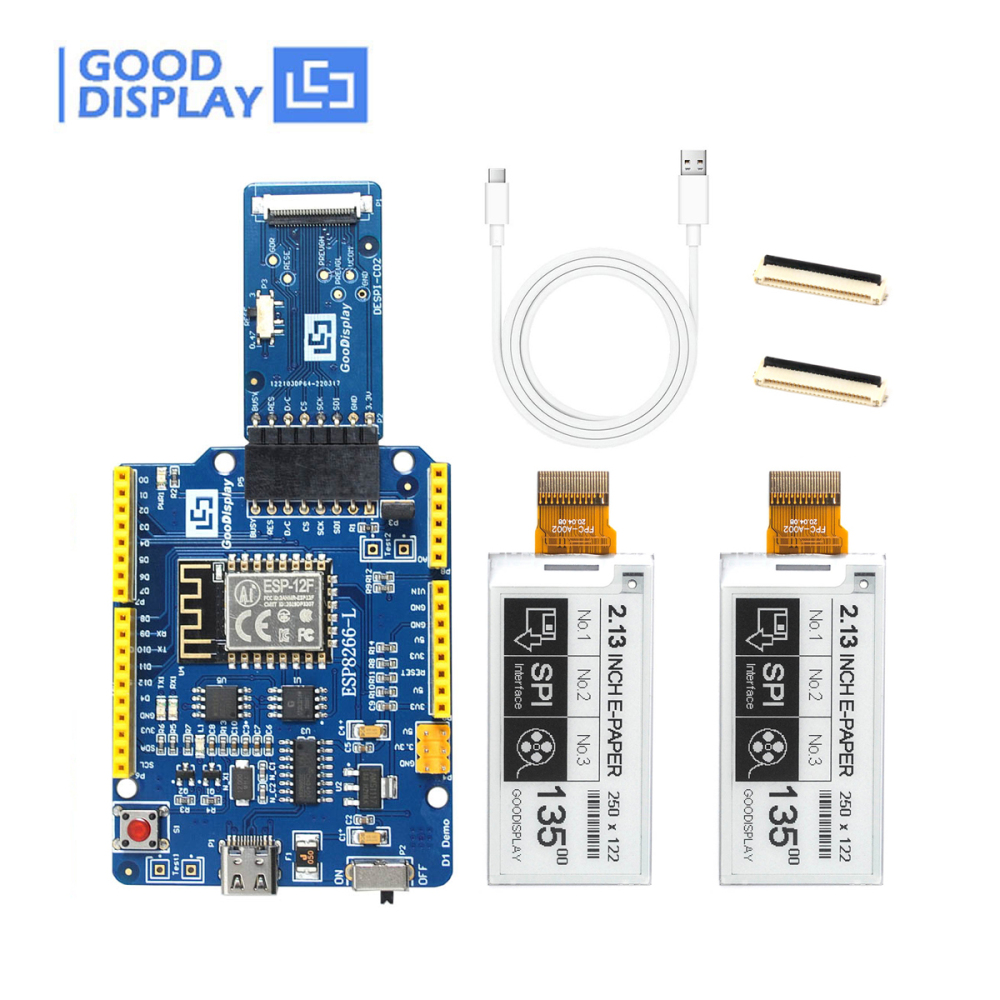

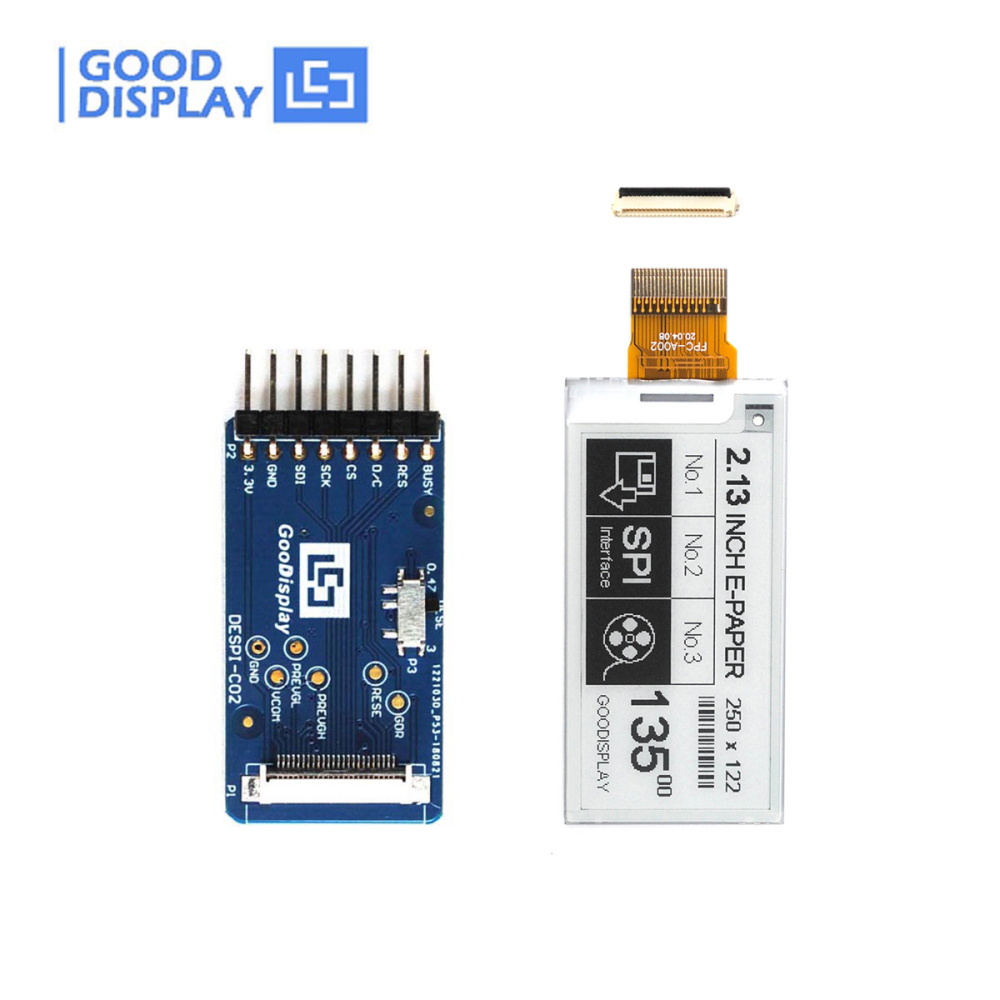

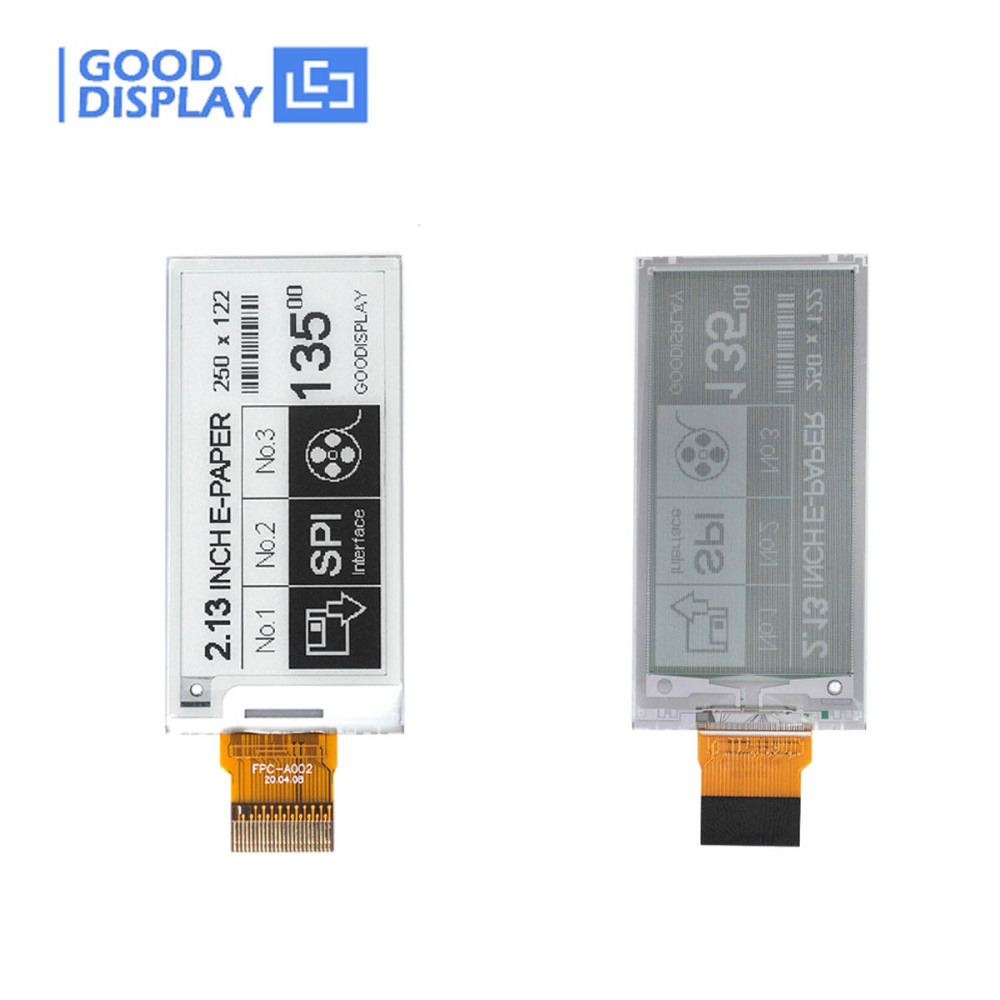

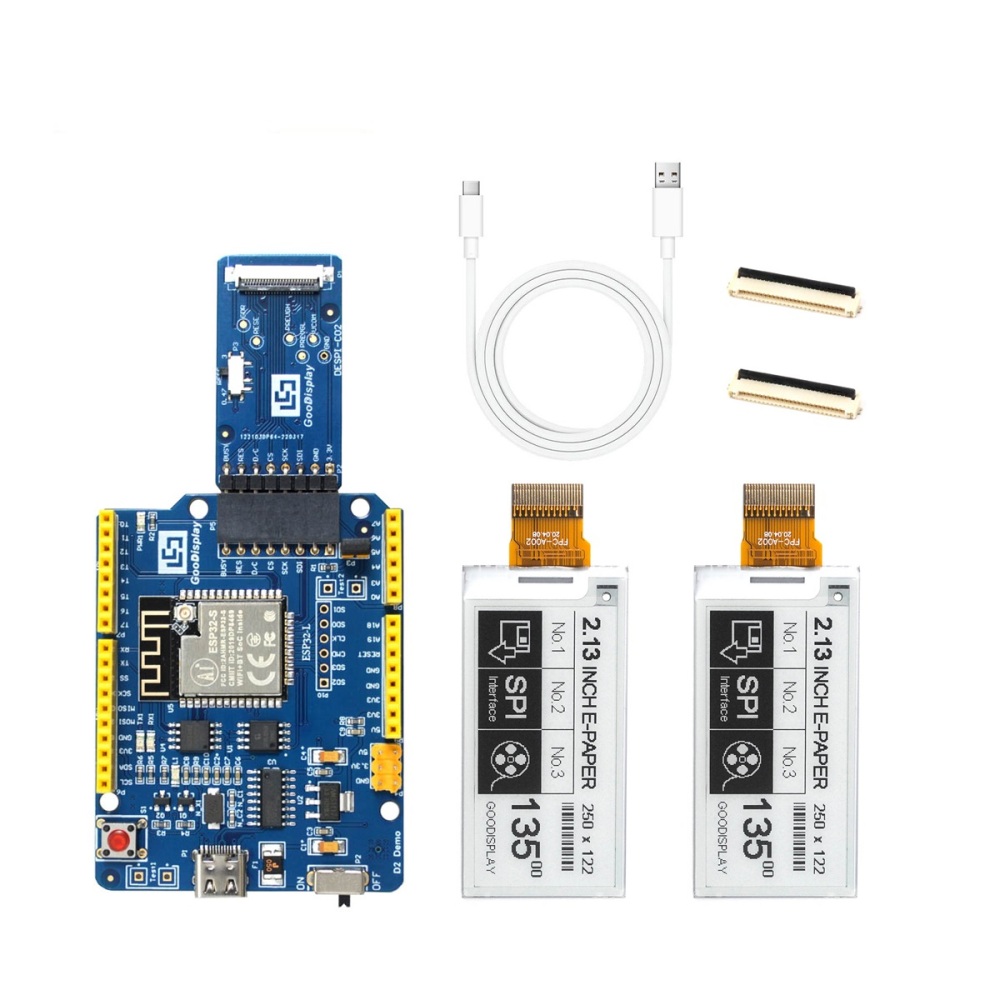

1) 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 1pc
2) FPC Connector * 1pc

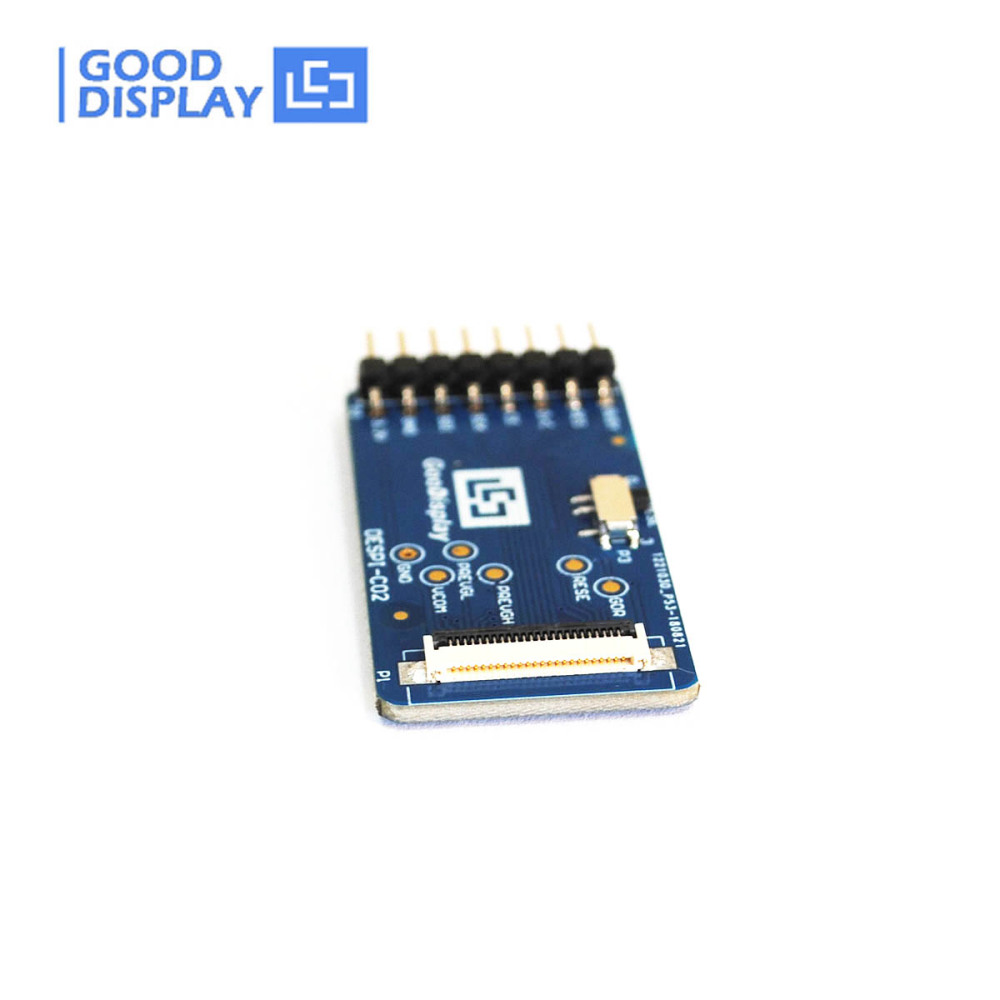

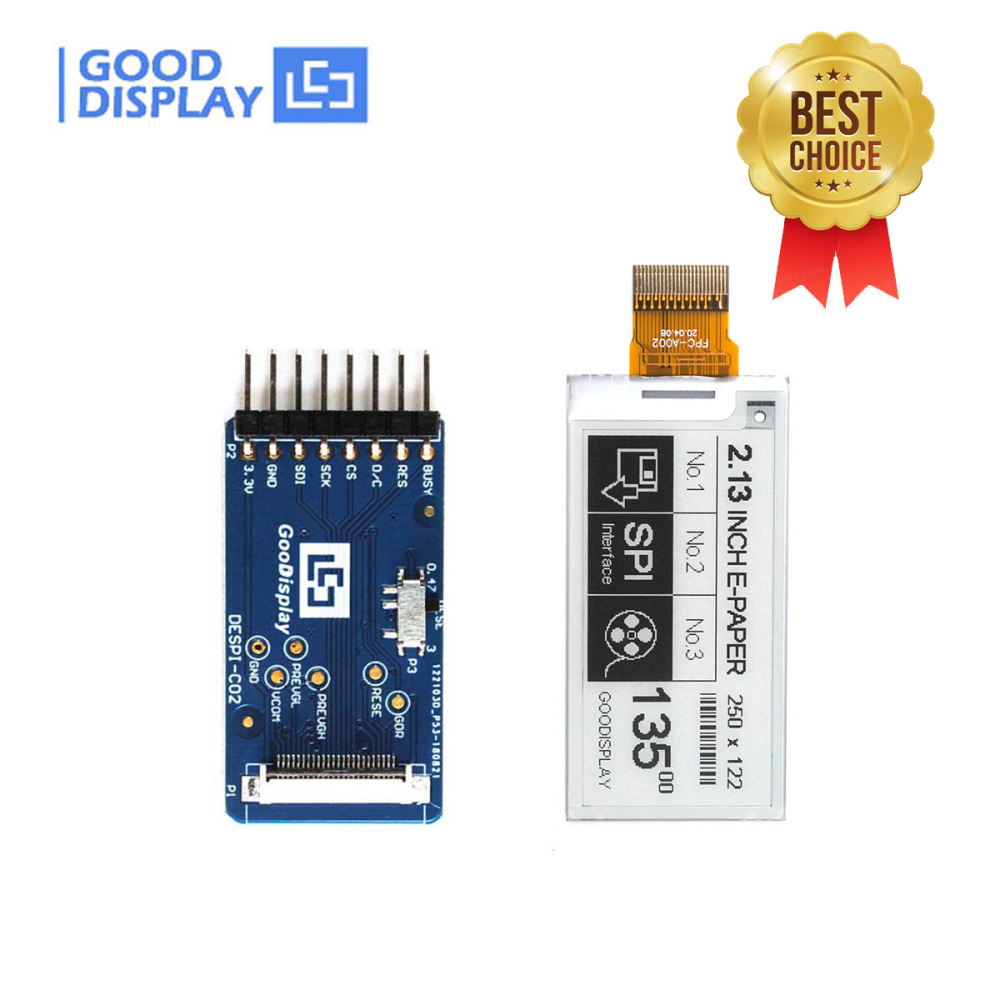

3) Connector board DESPI-C02 * 1pc

+ +




☆ MAIN PARAMETERS




PART NUMBER

GDEY0213B74

TYPE

Dot Matrix

CONNECTOR 24 Pin FPC

SIZE

2.13 inch

MAX GRAYSCALE 4

IC

SSD1680Z

COLOR Black,White

RESOLUTION

250x122

INTERFACE SPI

OUTLINE SIZE(mm)

59.2x29.2x1.0

FULL REFRESH(s) 3

ACTIVE SIZE(mm)

48.55x23.7046

FAST REFRESH(s) 1.5

PIXEL PITCH(mm)

0.1943x0.1942

PARTIAL REFRESH TIME(s) 0.42

OPERATING TEMP.

0℃~50℃

POWER CONSUMPTION OF THE REFRESH(mW) 10.5

STORAGE TEMP.

-25℃~70℃

STANDBY POWER CONSUMPTION (mW) 0.003

PART NUMBER DESPI-C02
PLATFORM STM32 OUTSIDE DIMENSION 41 x 22mm
POWER INPUT DC3.3V OPERATING TEMP. -20~70℃
FEATURE Fully and Partial Refresh





☆ FEATURE




●  Support 4 Grayscale
●  Support 1.5s Fast Refresh

●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.4s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / Arduino / ESP8266 / ESP32



☆ DETAILS









 2.13 INCH E-PAPER DISPLAY




Part Number

Color

IC Resolution

Features

Refresh Time
GDEW0213T5D BW UC8151D 212x104 Partial Refresh, 4 Grayscale 3s
GDEW0213I5FD BW UC8151C 212x104 Flexible, Partial Refresh 3s
GDEY0213B74 BW SSD1680 250x122 Partial Refresh 3s
GDEY0213Z98 BWR SSD1680 250x122 Colorful(Red) 14s





☆ MATCHED DEVELOPMENT KIT

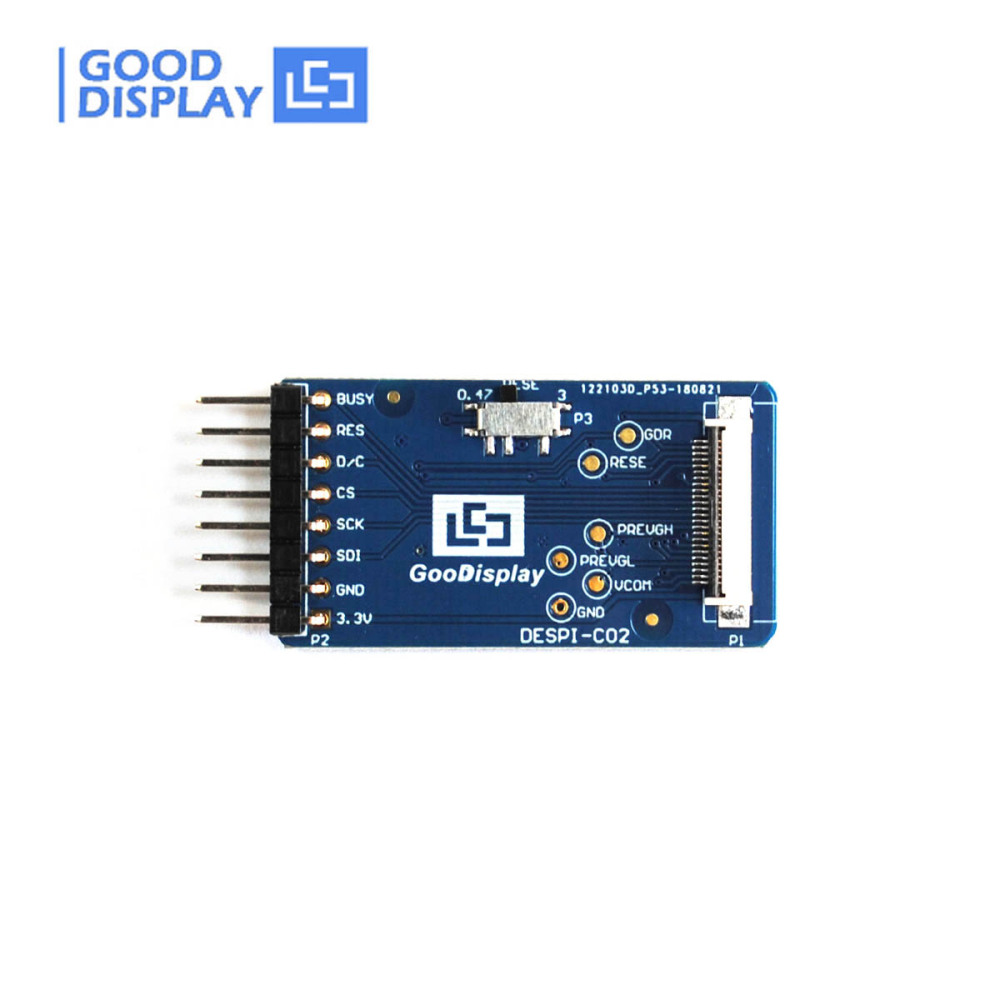

● DESPI-C02 (E-ink Display HAT)

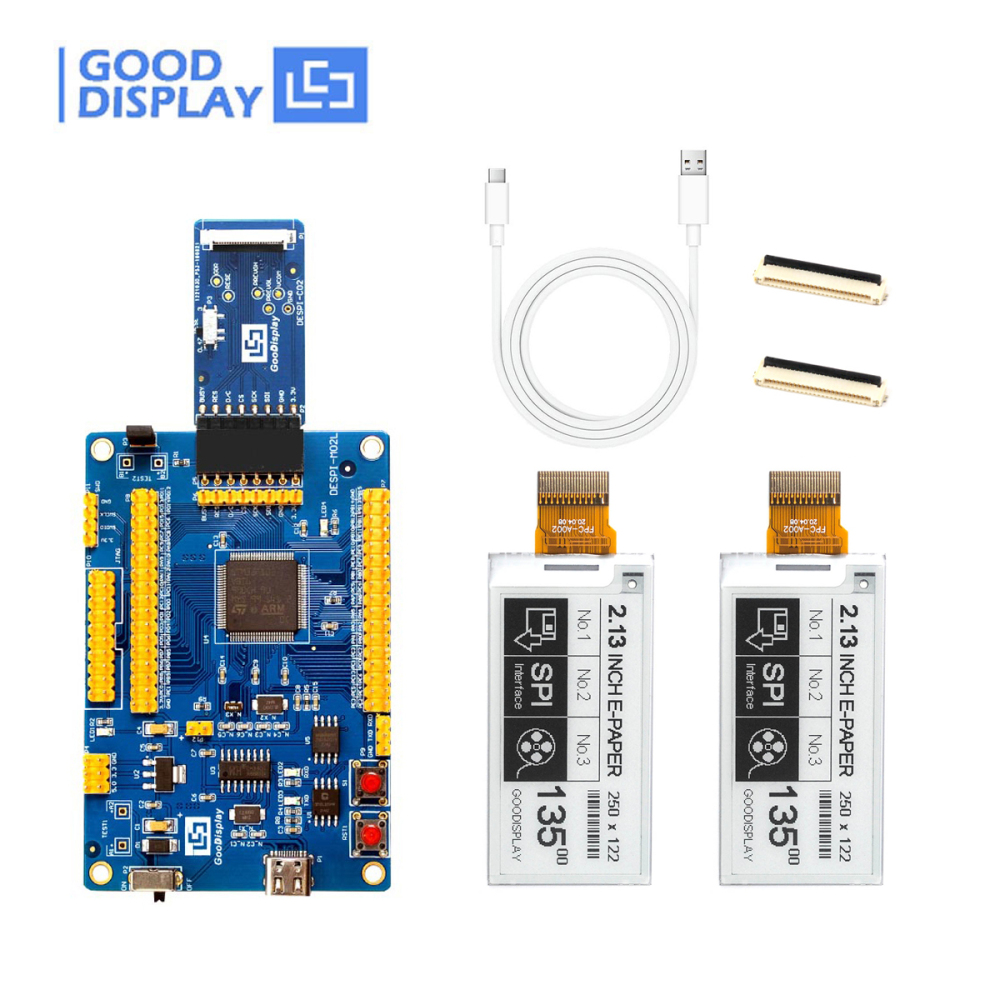

● DESPI-L(C02) (STM32 Platform/Universal)

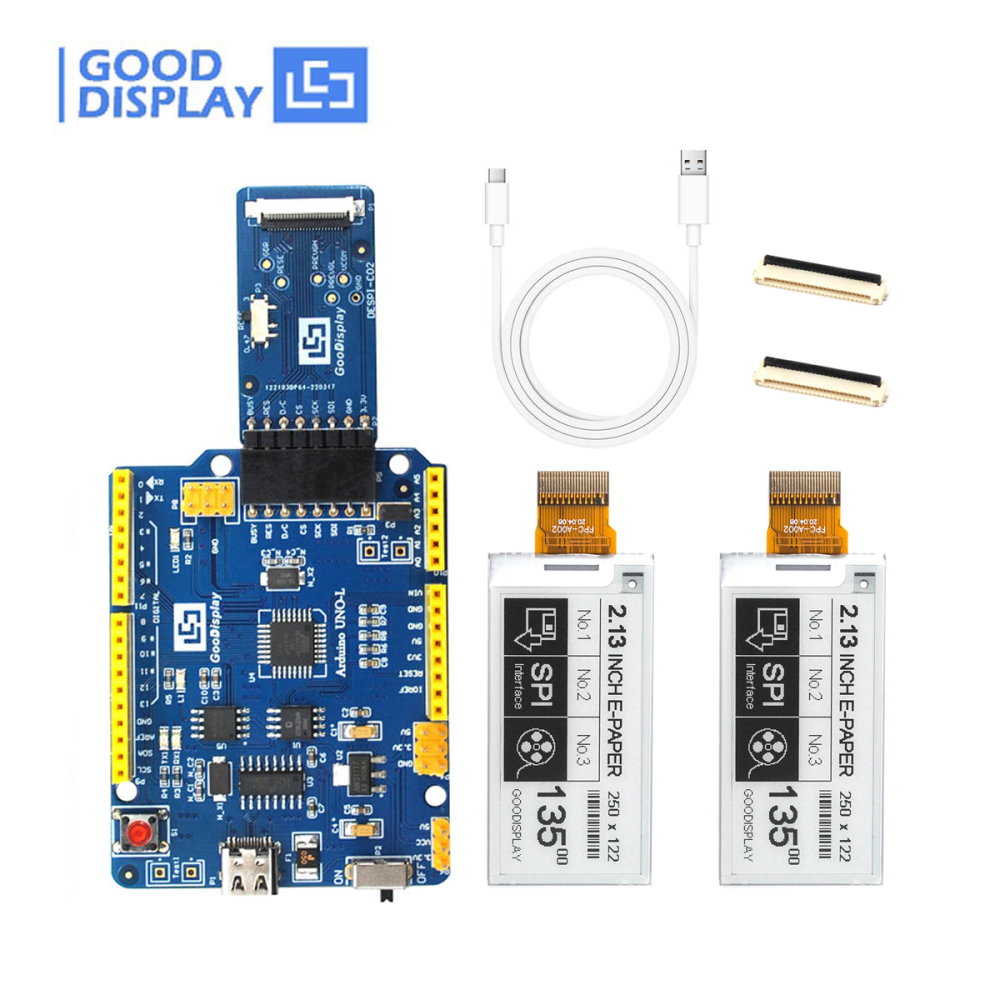

● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)



☆ RELATED INFORMATION DOWNLOAD



● GDEY0213B74 Specification

● IC Driver SSD1680 Datasheet

● GDEY0213B74 Picture Production and Bitmap Conversion

● GDEY0213B74 STM32 Sample Code

● GDEY0213B74 ESP32 Sample Code

● GDEY0213B74 ESP8266 Sample Code

● GDEY0213B74 Arduino Sample Code


● DESPI-C02 Specification

● DESPI-C02-SCH




☆ WE ALSO SUGGEST...




E-ink Display 2.13 Epaper Partial Refresh SPI HDMI 250x122 EPD Screen, GDEQ0213B74

2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen, GDEY0213B74-FL01

2.13 inch UC8151D e-paper display flexible ultra-thin partial refresh 4 Grayscale eink screen module GDEW0213I5FD

2.13 inch color eink 250x122 HD raspberry pi e-paper display module, GDEY0213Z98

2.13 inch Tri-color red eink display SPI interface epaper screen module GDEM0213U23

2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D
