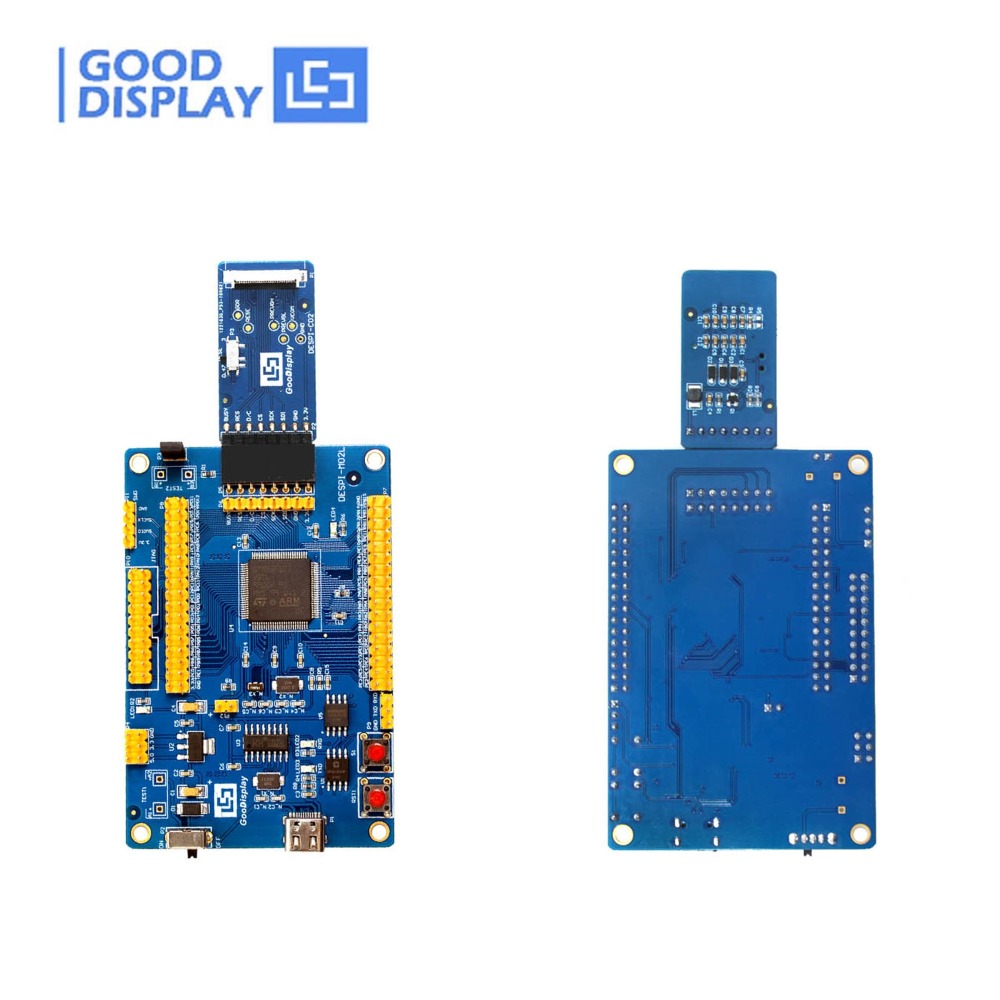

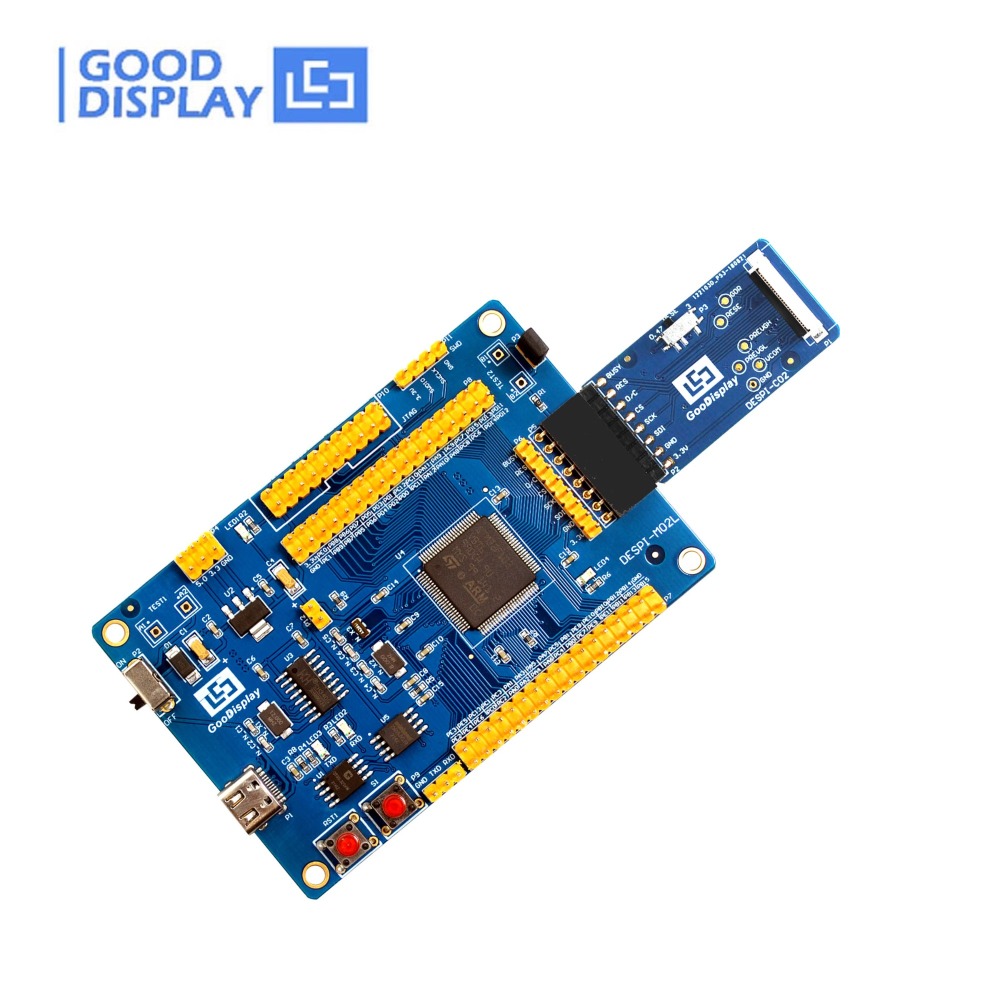

2.13 Inch E-paper Module STM32 Type-C Interface Epaper Panel Driver Board, 2pcs GDEY0213B74 with STM32 Demo Kit DESPI-L(C02)

This is a set of epaper STM32 driver board DESPI-L(C02) with 2.13 inch e-paper screen with 250x122 resolution, SPI interface, and the display is capable to display images with black and white content.
Price:
USD
$6.36
  • product:
    EPD with STM32 Demo Kit
    EPD with Arduino Demo Kit
    EPD with ESP8266 Demo Kit
    EPD with ESP32 Demo Kit
    EPD with adapter board
    EPD
Quantity:
-
+
(800 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)



☆ INTRODUCTION

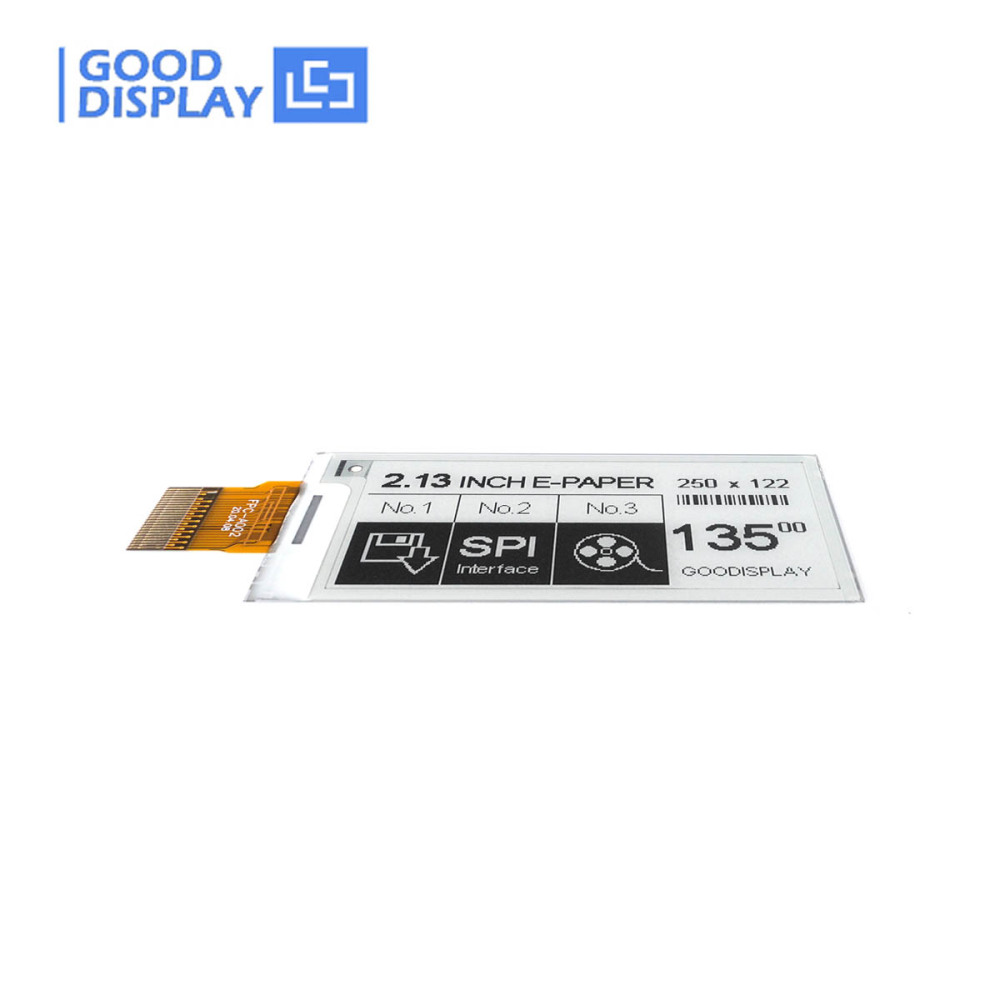

This is a set of epaper STM32 driver board DESPI-L(C02) with 2.13 inch e-paper screen, 250x122 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY0213B74 is perfect for low power devices powered by solar or batteries.


This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.


We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.




☆ THE ABOVE PRICE INCLUDE

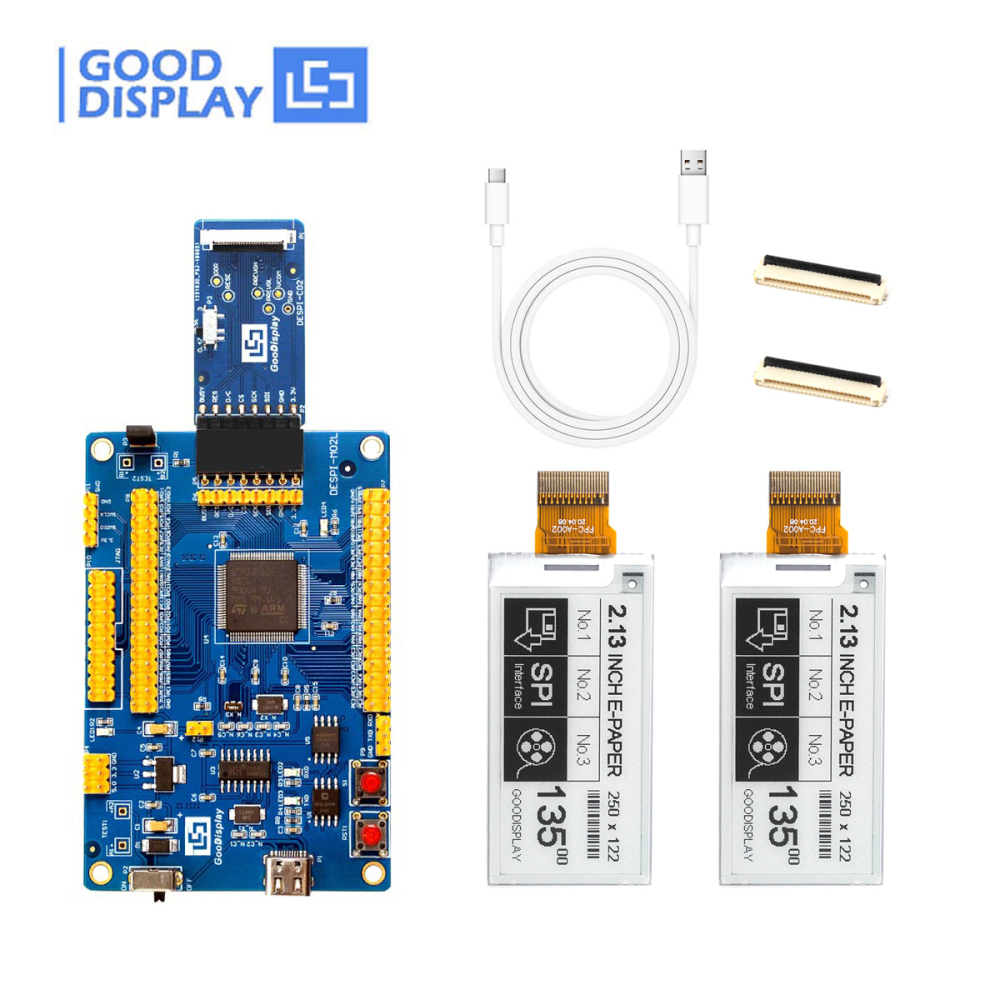

Package A + + +

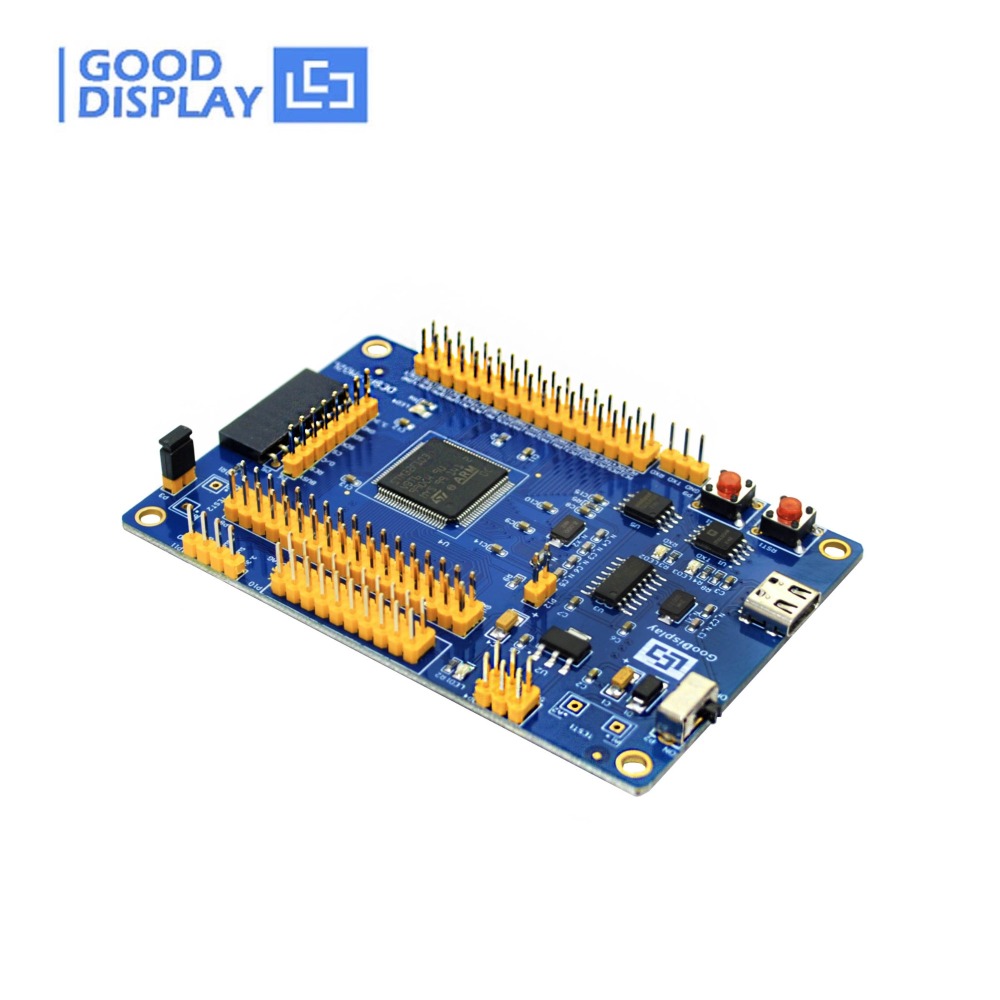

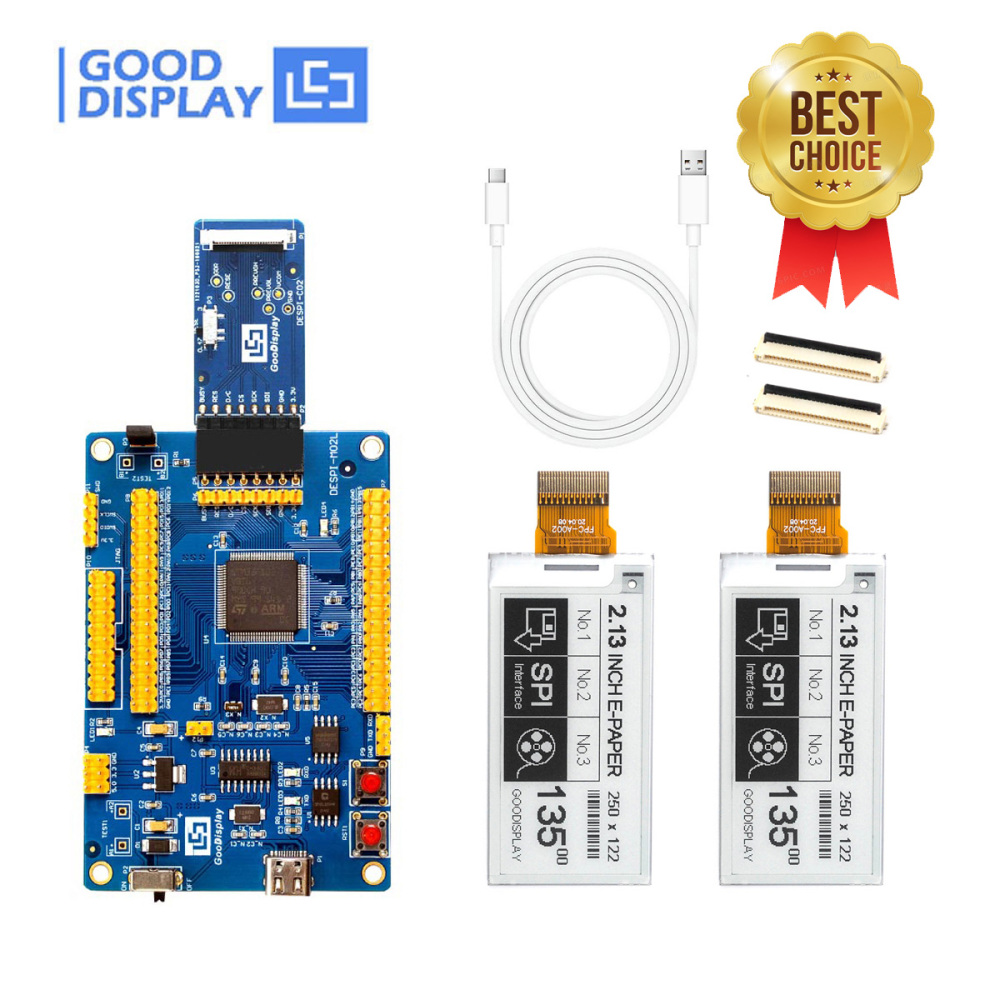

a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc   d. USB Cable * 1pc

Package B + +

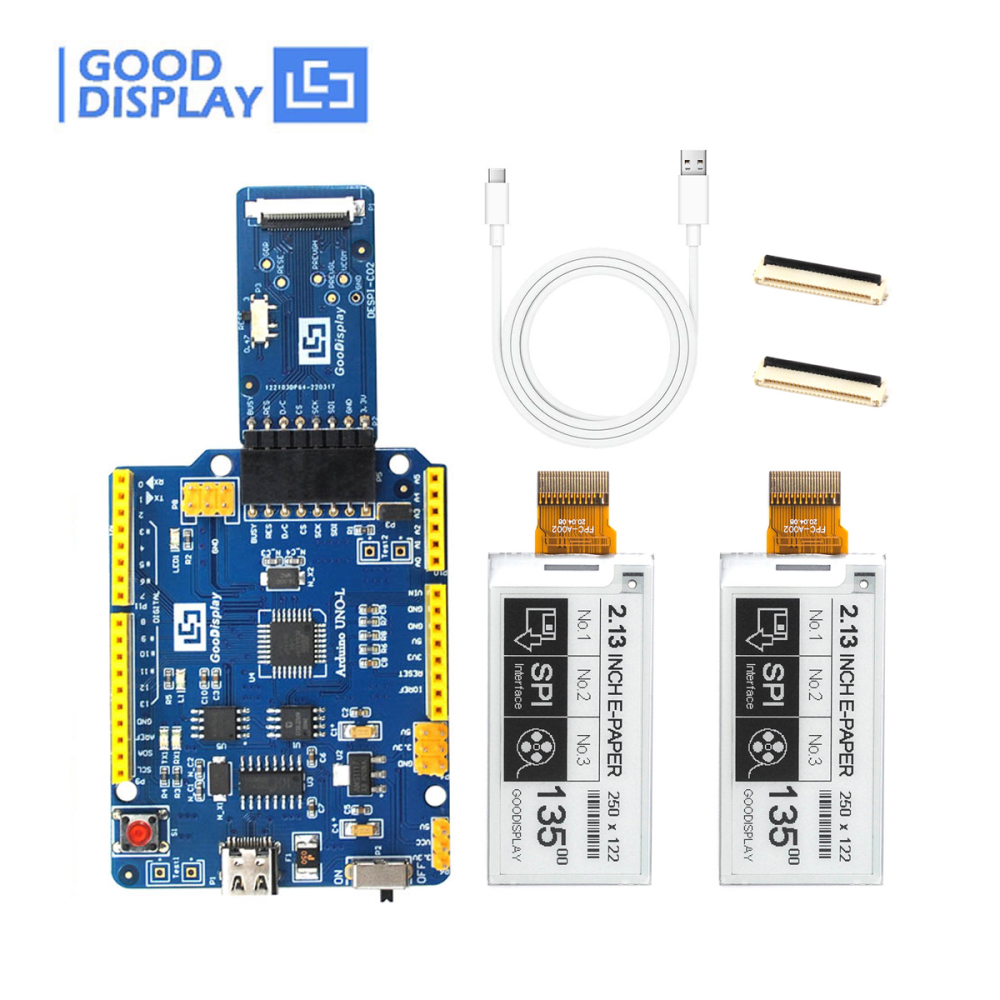

a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) * 1pc   d. USB Cable * 1pc

Package C + +

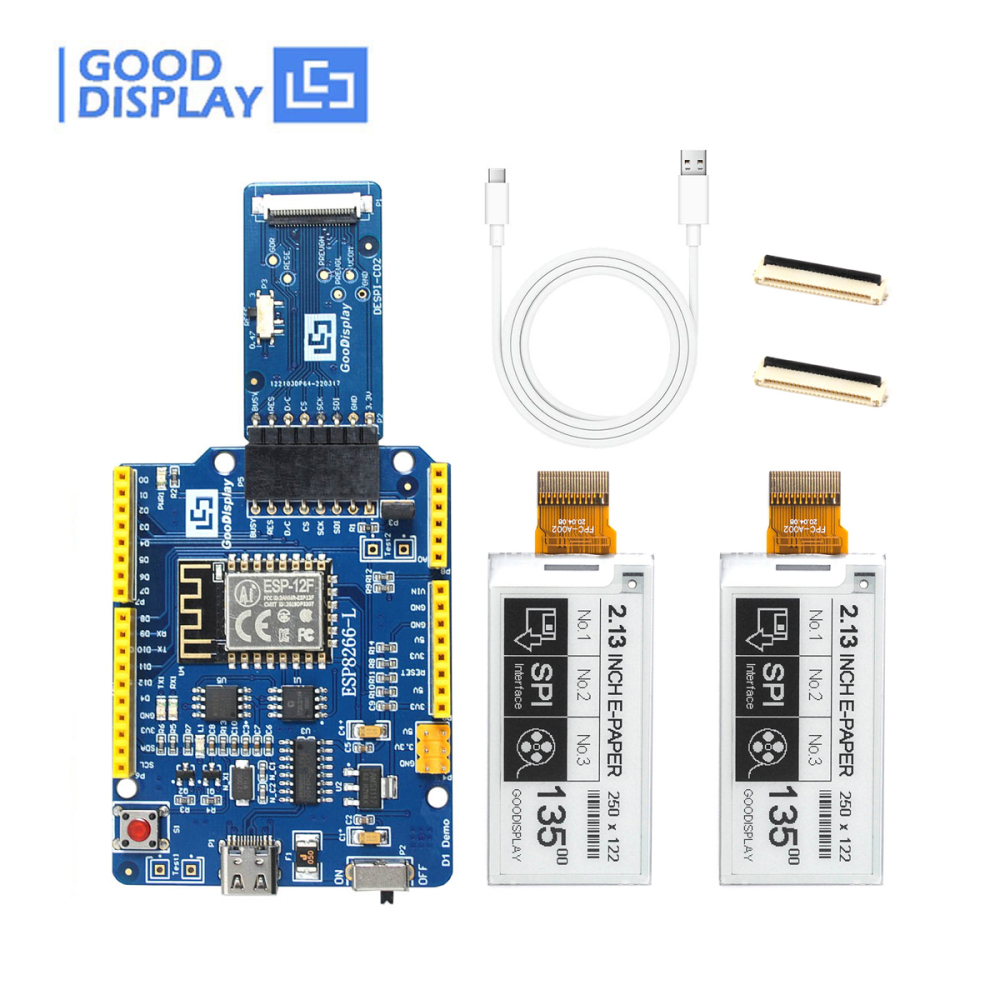

a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) * 1pc   d. USB Cable * 1pc

Package D + + +

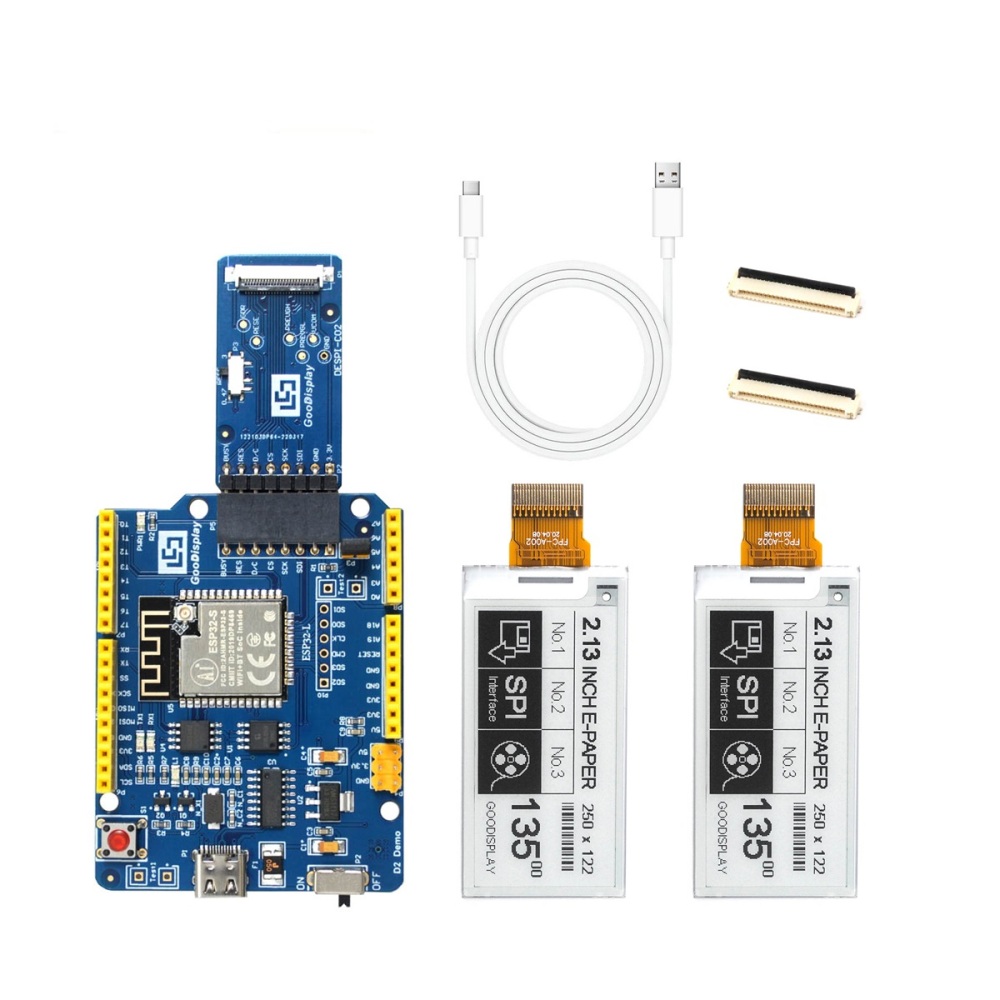

a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc   d. USB Cable * 1pc

Package E + +
a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 2pcs   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02 * 1pc

Package F +

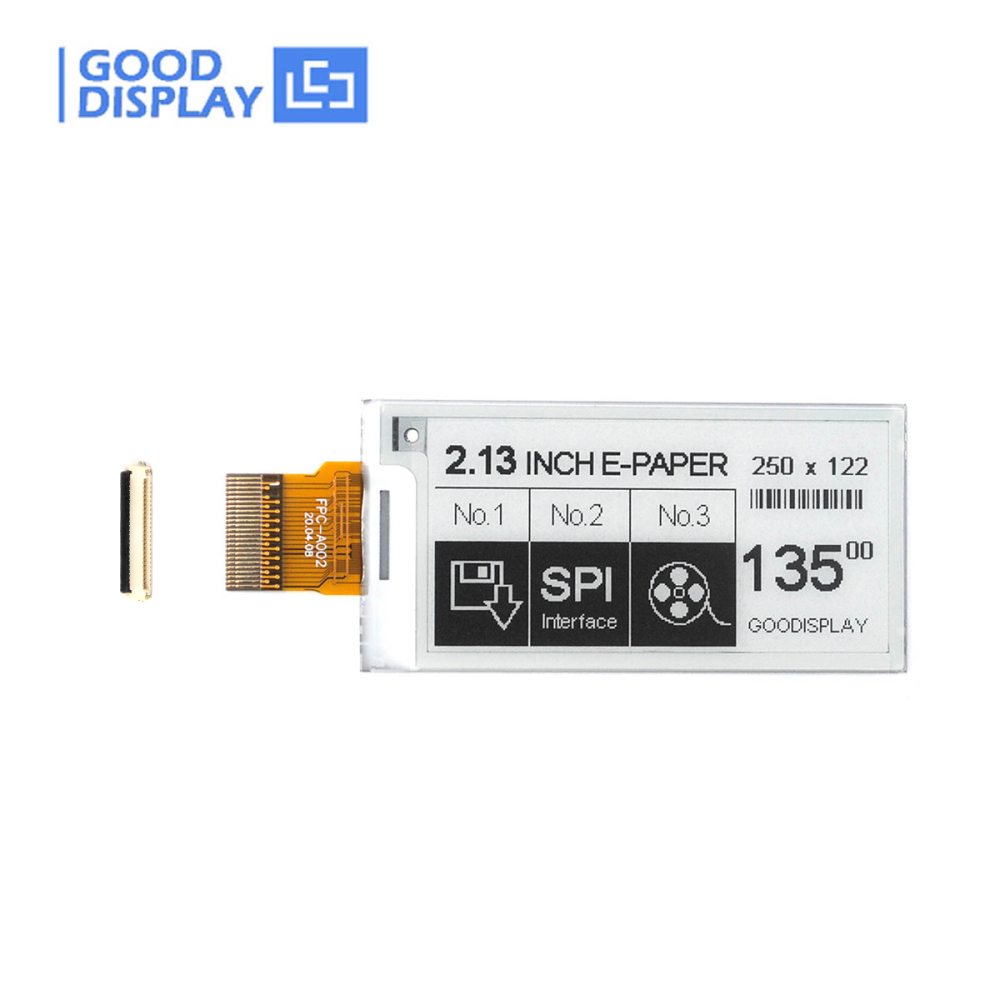

a. 2.13 inch 250x122 Raspberry Pi EPD Electronic Epaper price tag, GDEY0213B74 * 1pc   b. FPC Connector * 1pc

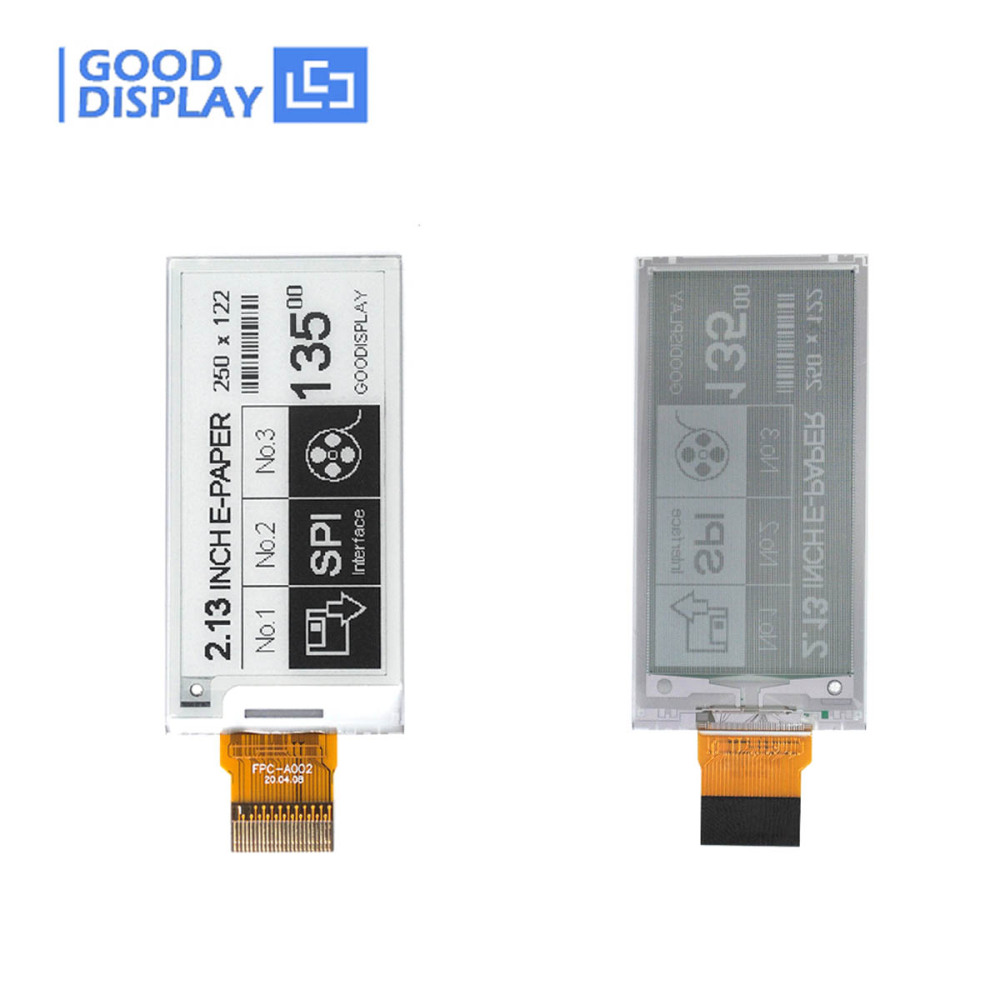

☆ MAIN PARAMETERS




PART NUMBER

GDEY0213B74

TYPE

Dot Matrix

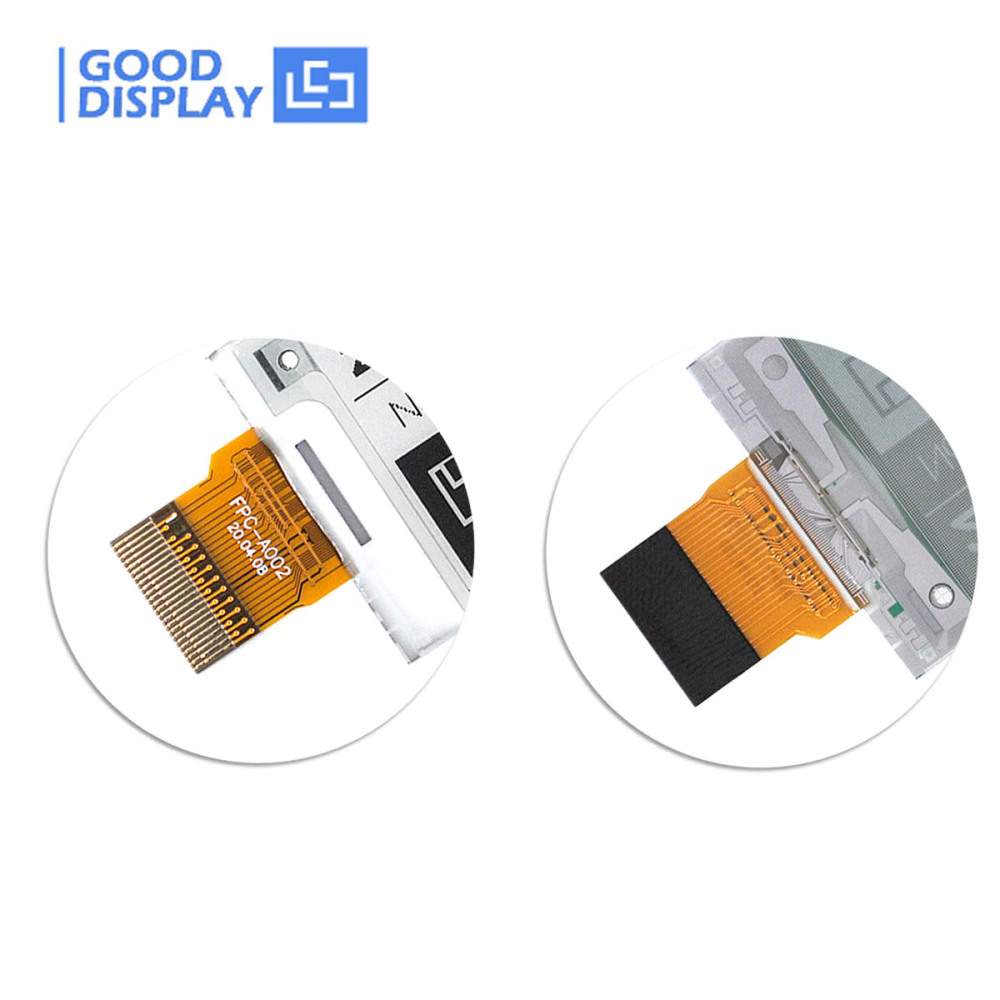

CONNECTOR 24 Pin FPC

SIZE

2.13 inch

MAX GRAYSCALE 4

IC

SSD1680Z

COLOR Black,White

RESOLUTION

250x122

INTERFACE SPI

OUTLINE SIZE(mm)

59.2x29.2x1.0

FULL REFRESH(s) 3

ACTIVE SIZE(mm)

48.55x23.7046

FAST REFRESH(s) 1.5

PIXEL PITCH(mm)

0.1943x0.1942

PARTIAL REFRESH TIME(s) 0.42

OPERATING TEMP.

0℃~50℃

POWER CONSUMPTION OF THE REFRESH(mW) 10.5

STORAGE TEMP.

-25℃~70℃

STANDBY POWER CONSUMPTION (mW) 0.003

PART NUMBER DESPI-L(C02)
PLATFORM STM32 FUNCTION Drive E-paper Display
POWER INTERFACE Type-C OUTSIDE DIMENSION 90x60mm (DESPI-M02L)
41x22mm (DESPI-C02)
GRAY SCALE LEVEL Max 16 Grayscale OPERATING TEMP. -20~70℃
FEATURE Support fully refresh, fast refresh and partial refresh
SAMPLE CODE Available (please contact sales)
MAIN FUNCTION Learn to drive e-paper display;
Test and evaluate e-paper display;
Support secondary development
RESERVED FUNCTION Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection





☆ FEATURE




●  Support 4 Grayscale
●  Support 1.5s Fast Refresh

●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.4s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32



☆ DRAWING







☆ 2.13 INCH E-PAPER DISPLAY




Part Number

Color

IC Resolution

Features

Refresh Time
GDEW0213T5D BW UC8151D 212x104 Partial Refresh, 4 Grayscale 3s
GDEW0213I5FD BW UC8151C 212x104 Flexible, Partial Refresh 3s
GDEY0213B74 BW SSD1680 250x122 Partial Refresh 3s
GDEY0213Z98 BWR SSD1680 250x122 Colorful(Red) 14s




☆ RELATED INFORMATION DOWNLOAD



● GDEY0213B74 Specification

● IC Driver SSD1680 Datasheet

● GDEY0213B74 Picture Production and Bitmap Conversion

● GDEY0213B74 STM32 Sample Code

● GDEY0213B74 ESP32 Sample Code

● GDEY0213B74 ESP8266 Sample Code

● GDEY0213B74 Arduino Sample Code

● DESPI-L(C02) Specification

● DESPI-C02 Specification

● DESPI-M02L-SCH

● DESPI-C02-SCH
