☆ INTRODUCTION

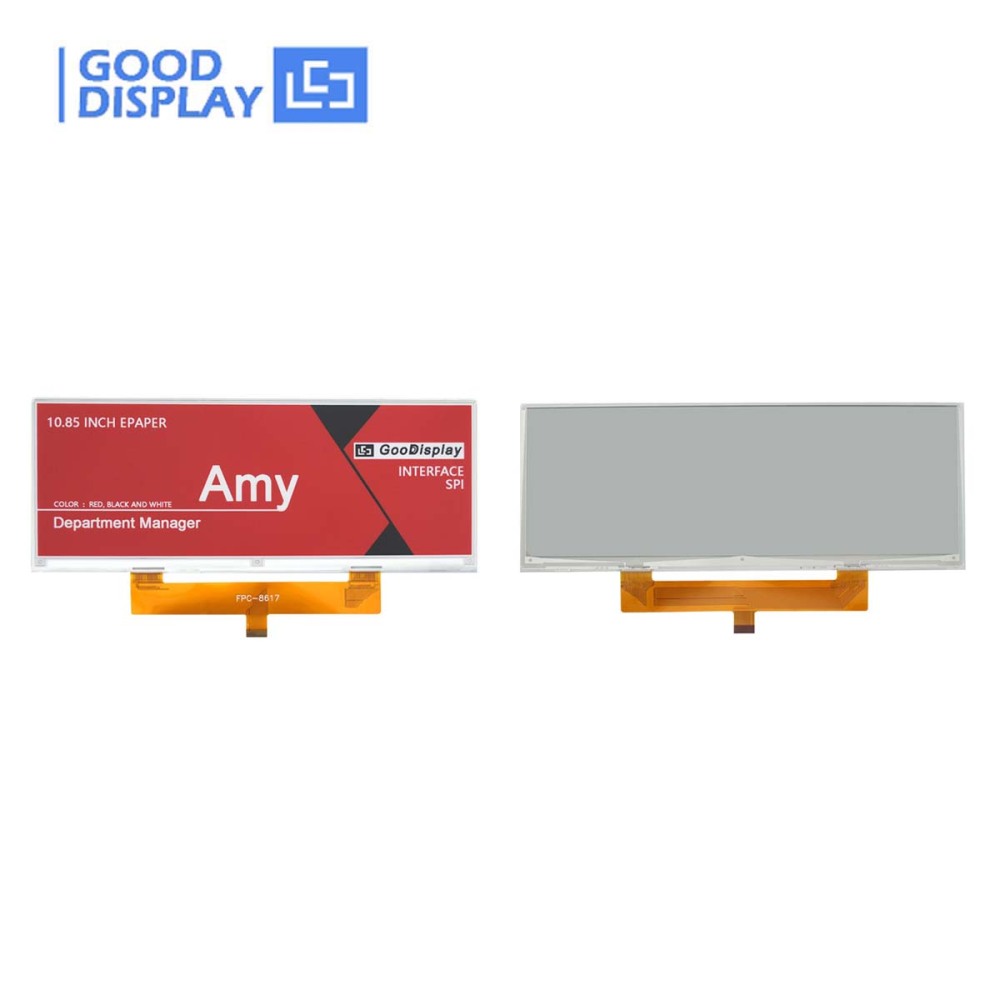

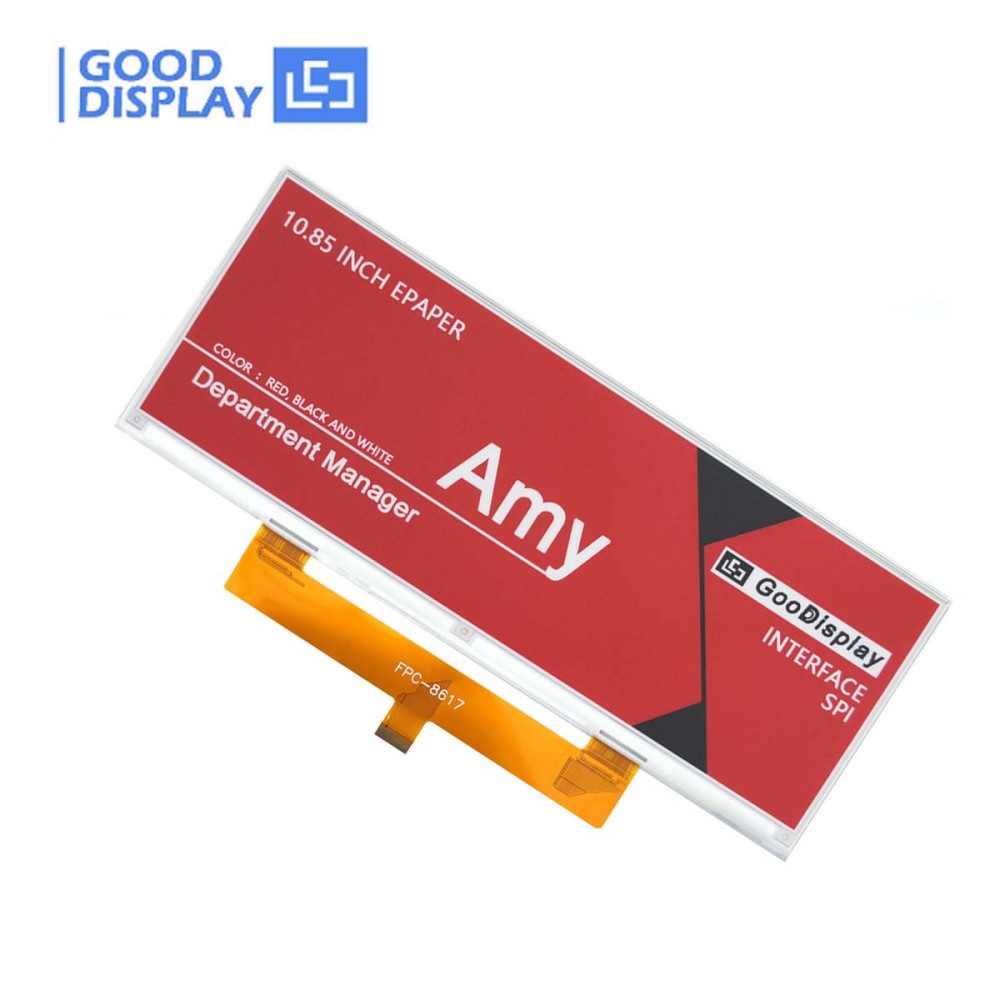

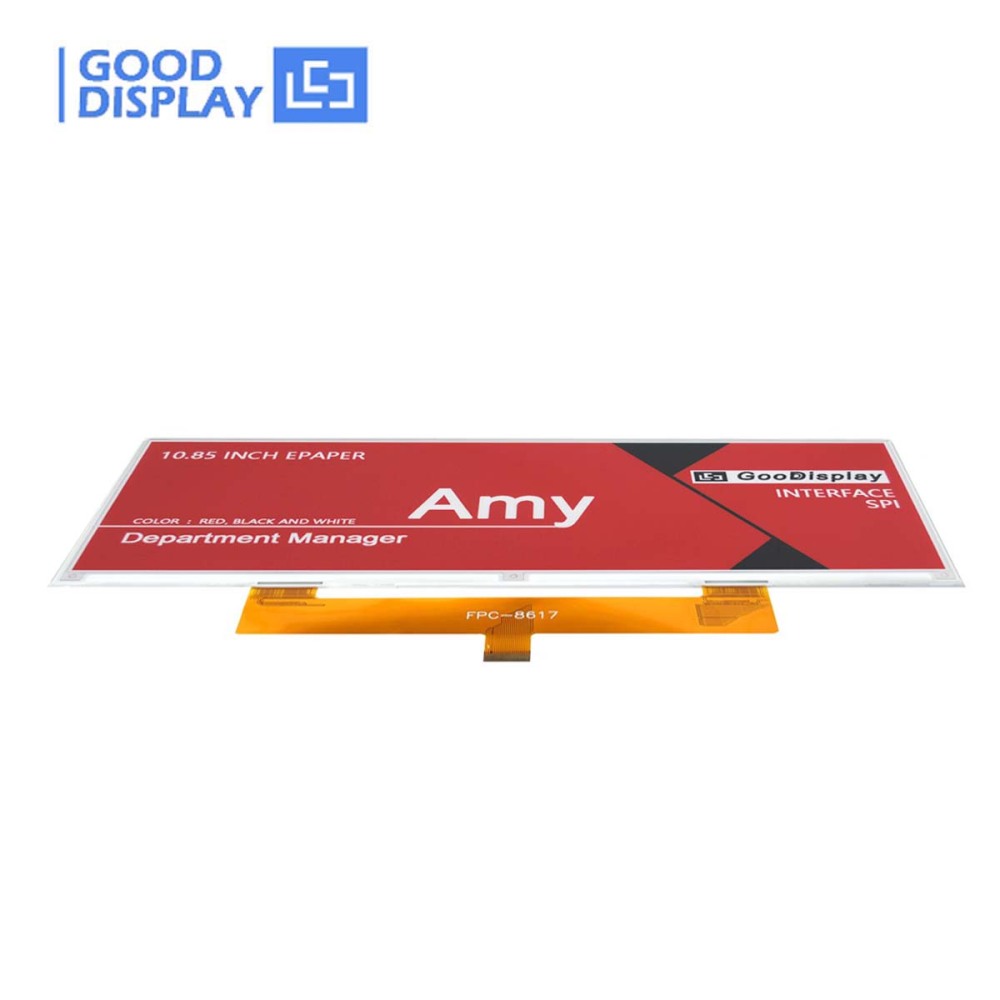

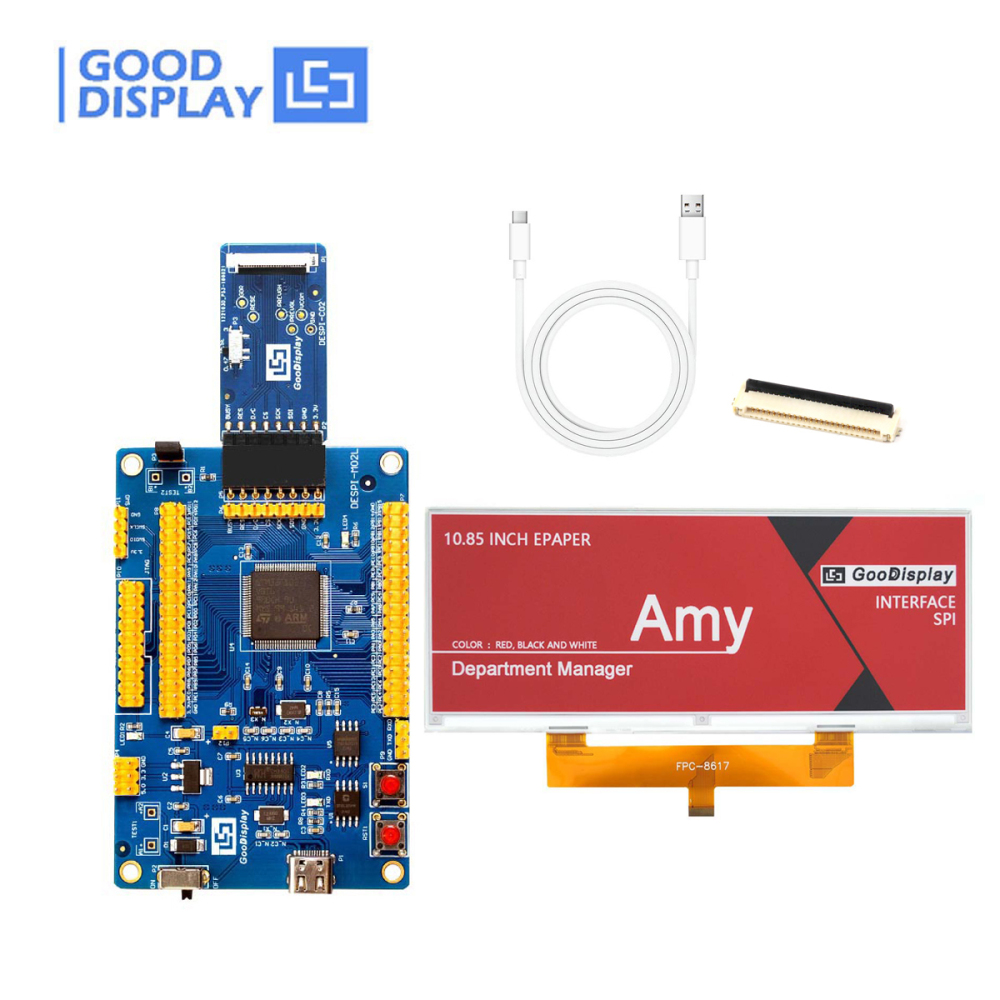

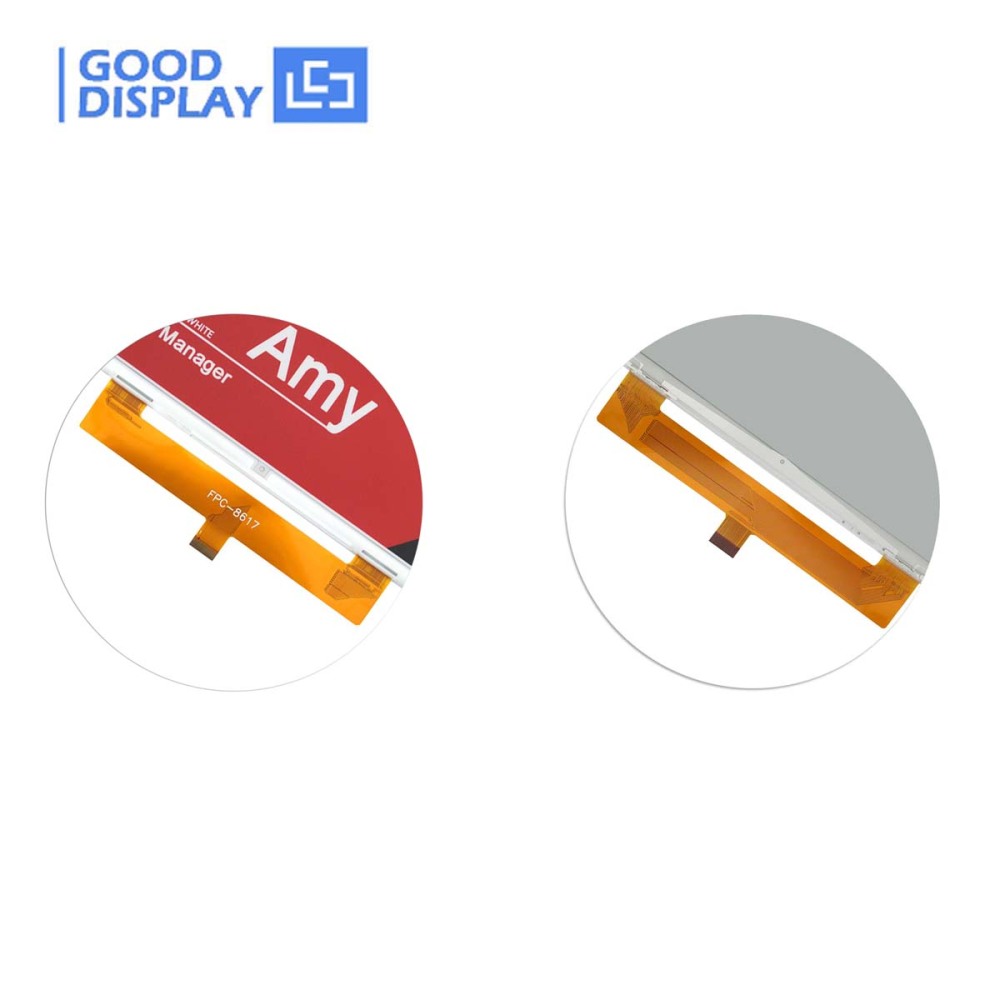

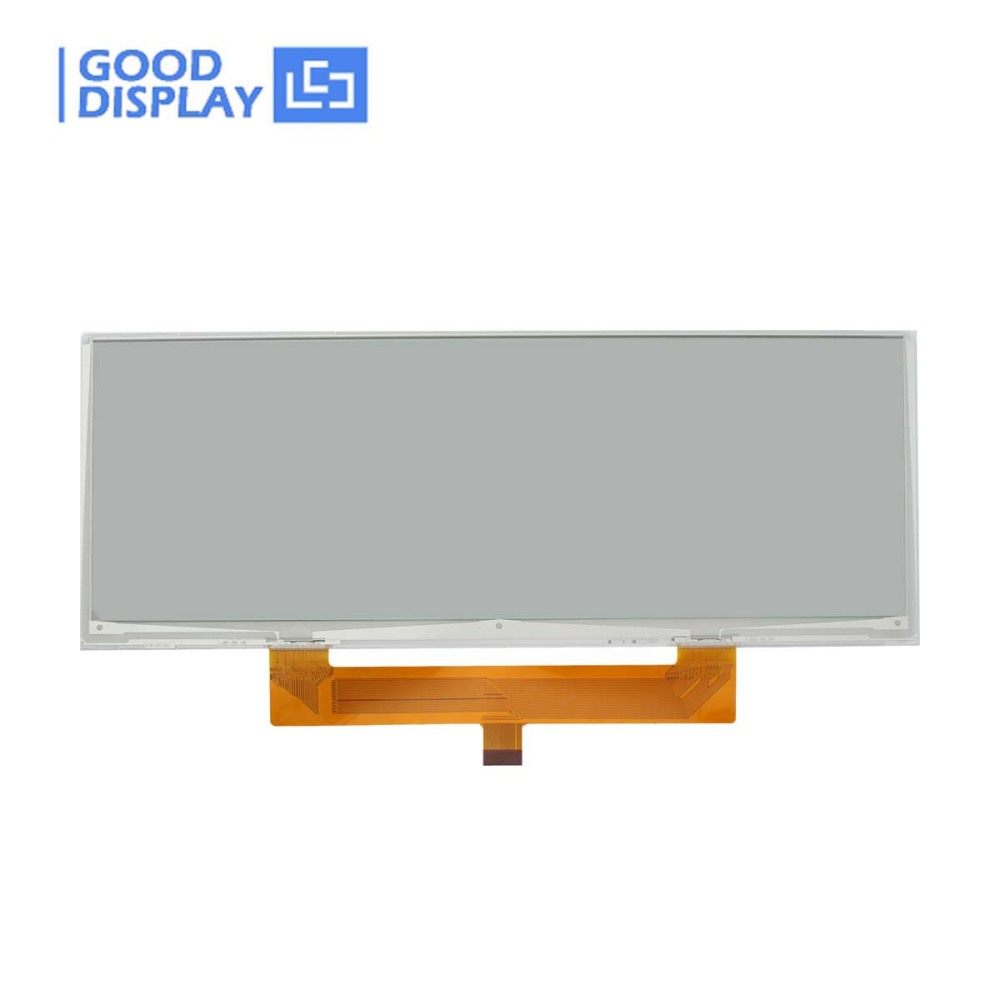

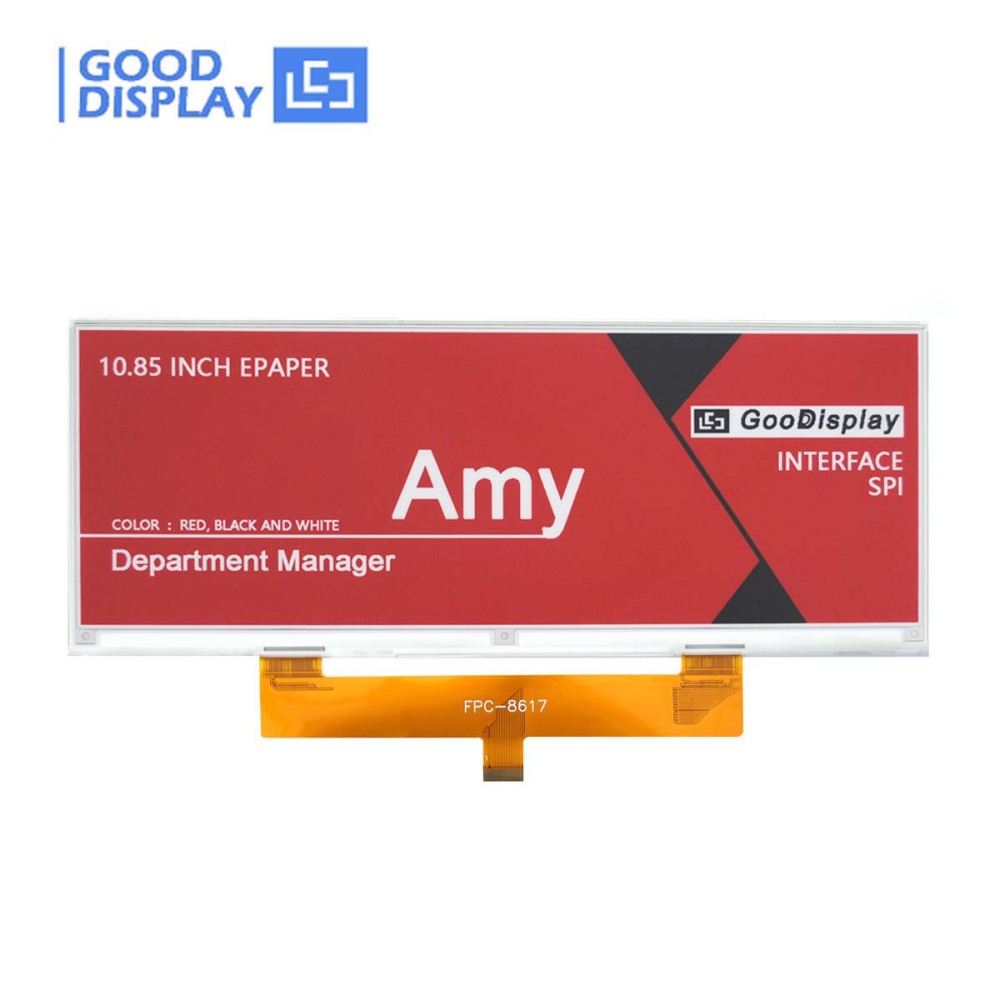

This 10.85-inch ePaper display stands out for its impressive 1360x480 high resolution and distinctive elongated strip-like design, using an SPI interface. Highly recommended, it offers exceptional features: images persist even without power - just upload, then power off. Once the E Ink module updates the image, it requires no ongoing power and can even be disconnected while retaining the displayed content permanently. Specifically ideal for low-power devices like electronic table cards, GDEM1085Z51 ePaper display excels in both performance and efficiency.

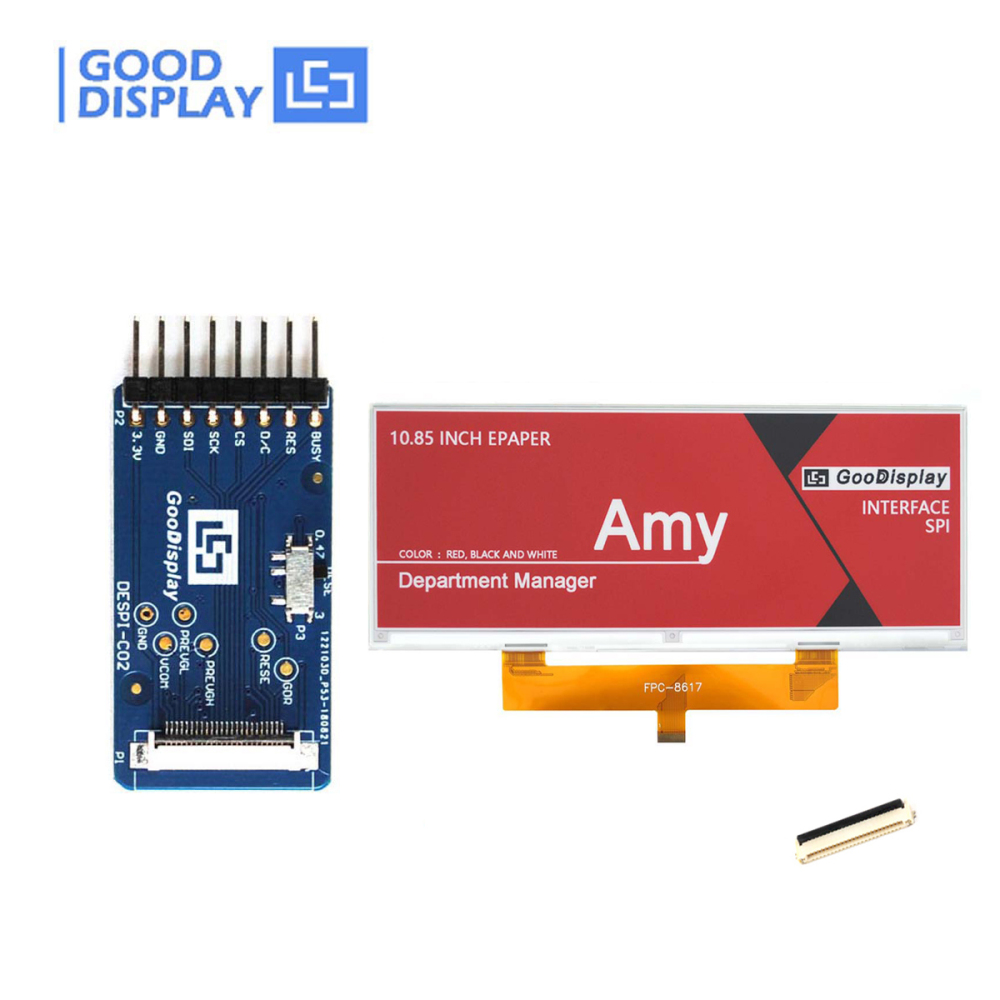

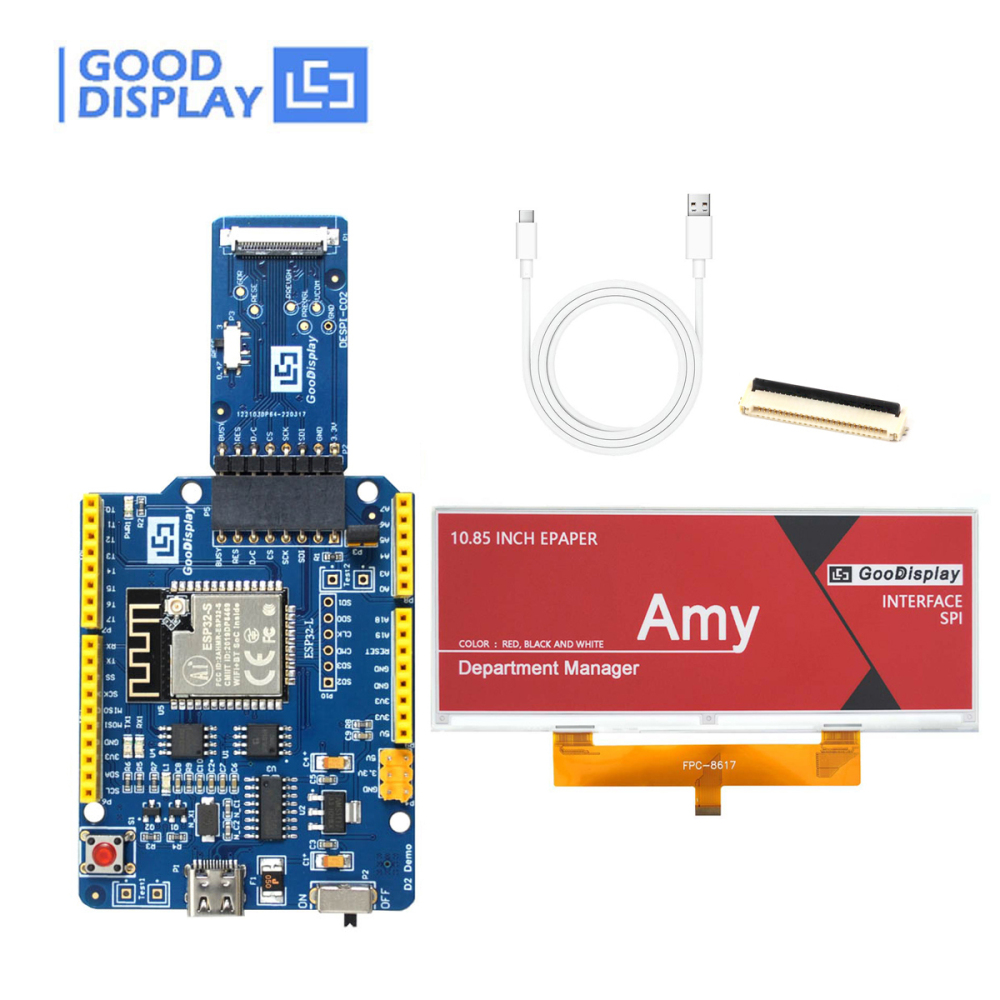

We provide the E-Ink Adapter Board for you to connect the E-paper Display.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please

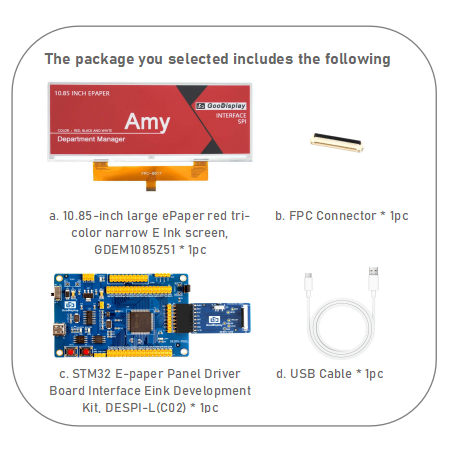

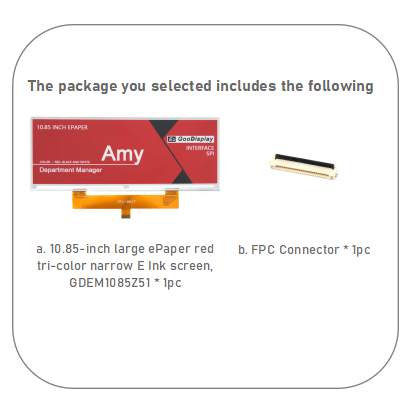

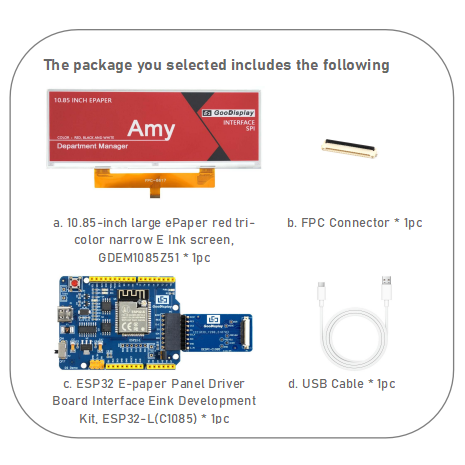

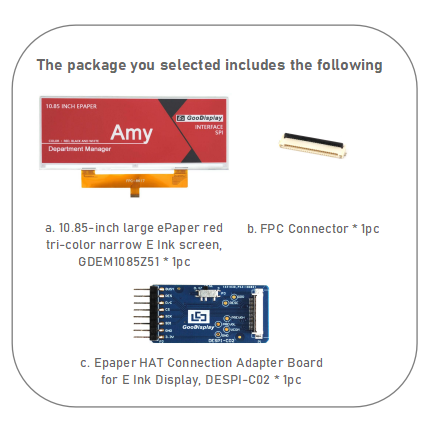

☆ THE ABOVE PRICE INCLUDE
1) 10.85 "E Ink display screen, GDEM1085Z51 * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEM1085Z51
|
|
TYPE
|
Dot Matrix
|
CONNECTOR |
24 Pin FPC |
|
SIZE
|
10.85 inch
|
FULL UPDATE TIME(s) |
20
|
|
RESOLUTION
|
1360x480
|
COLOR |
Black, white and red |
|
OUTLINE SIZE(mm)
|
270.56×105.92 ×1.20
|
INTERFACE |
SPI |
| OPERATING TEMP. |
0℃~40℃ |
STORAGE TEMP. |
-25℃~40℃ |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

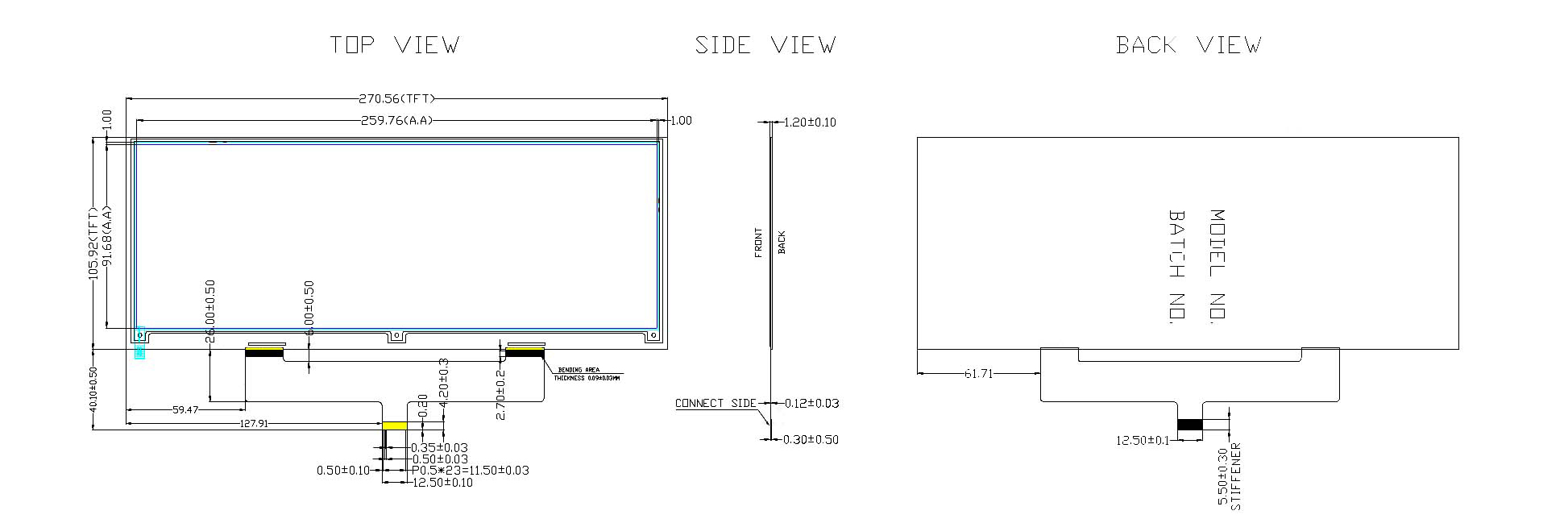

☆ DRAWING
☆ RELATED INFORMATION DOWNLOAD
● GDEM1085Z51_Specification
● GDEM1085Z51-STM32 Sample Code
● GDEM1085Z51-ESP32 Sample Code
● GDEM1085Z51-ESP8266 Sample Code
