☆ INTRODUCTION

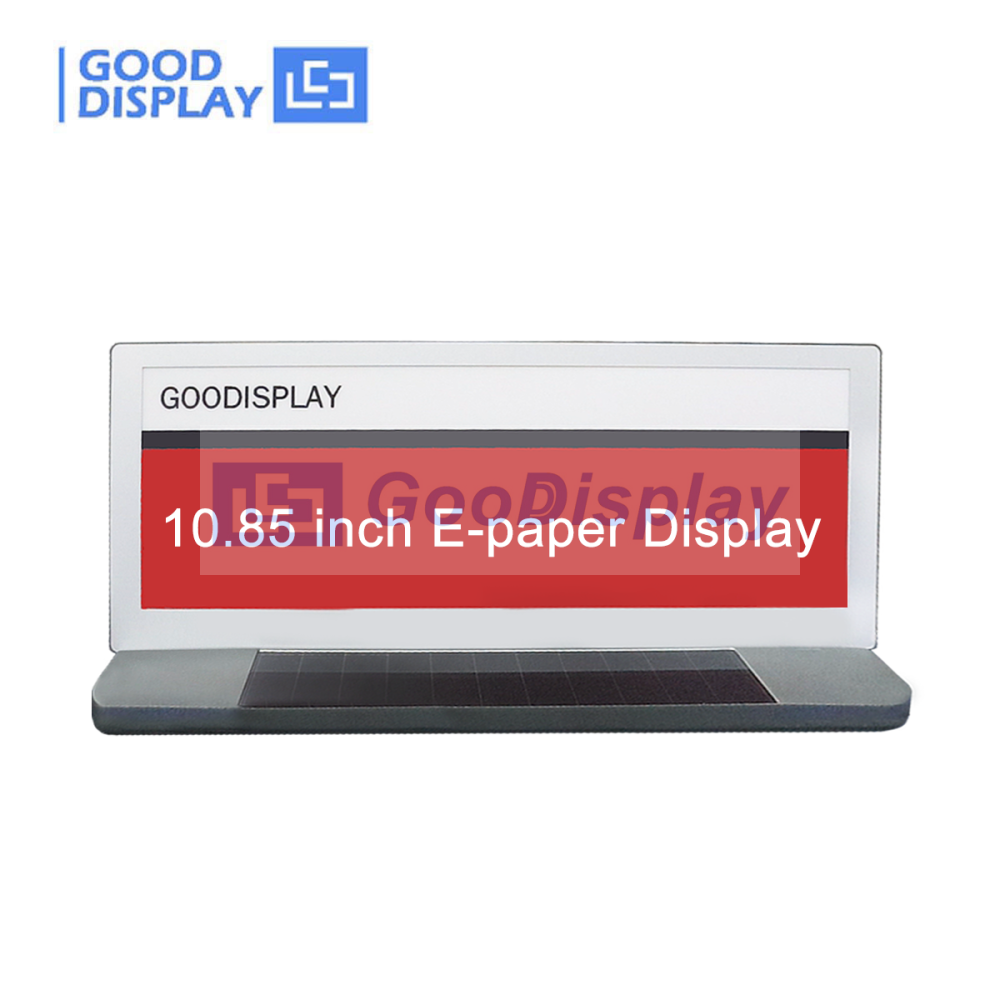

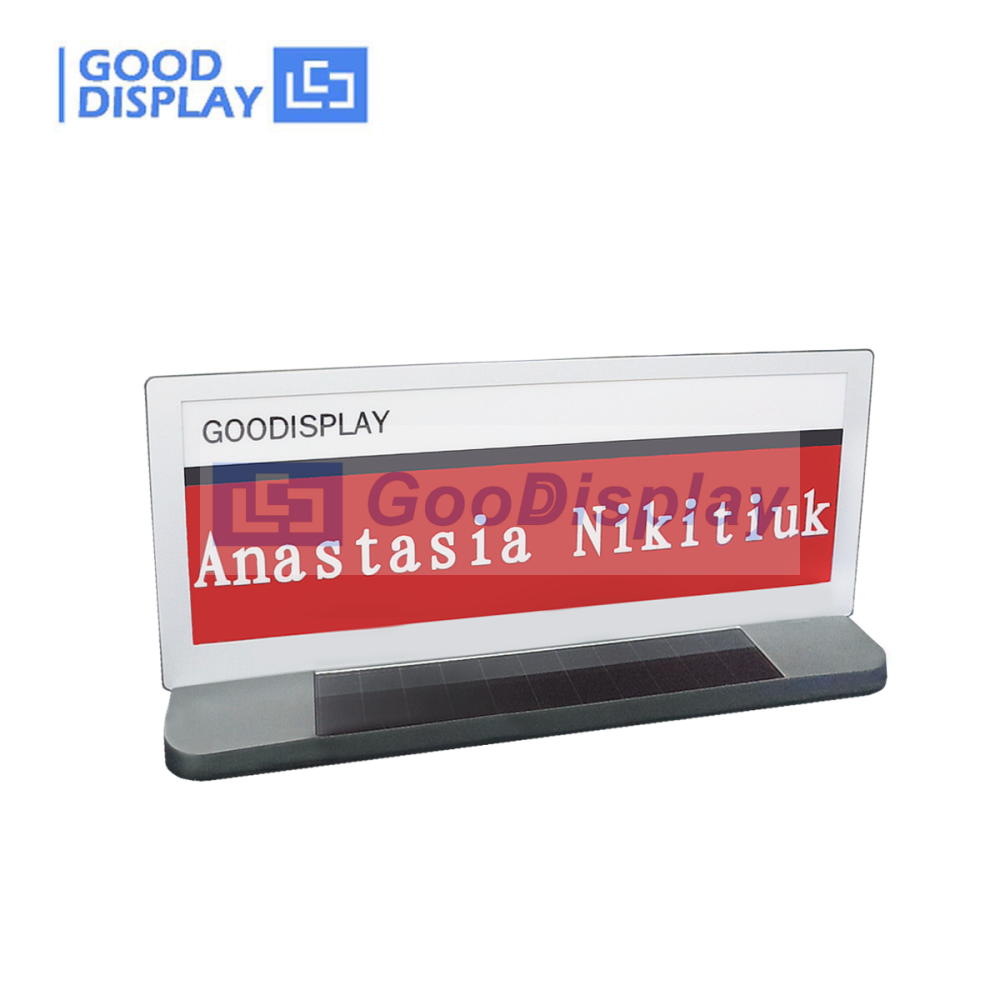

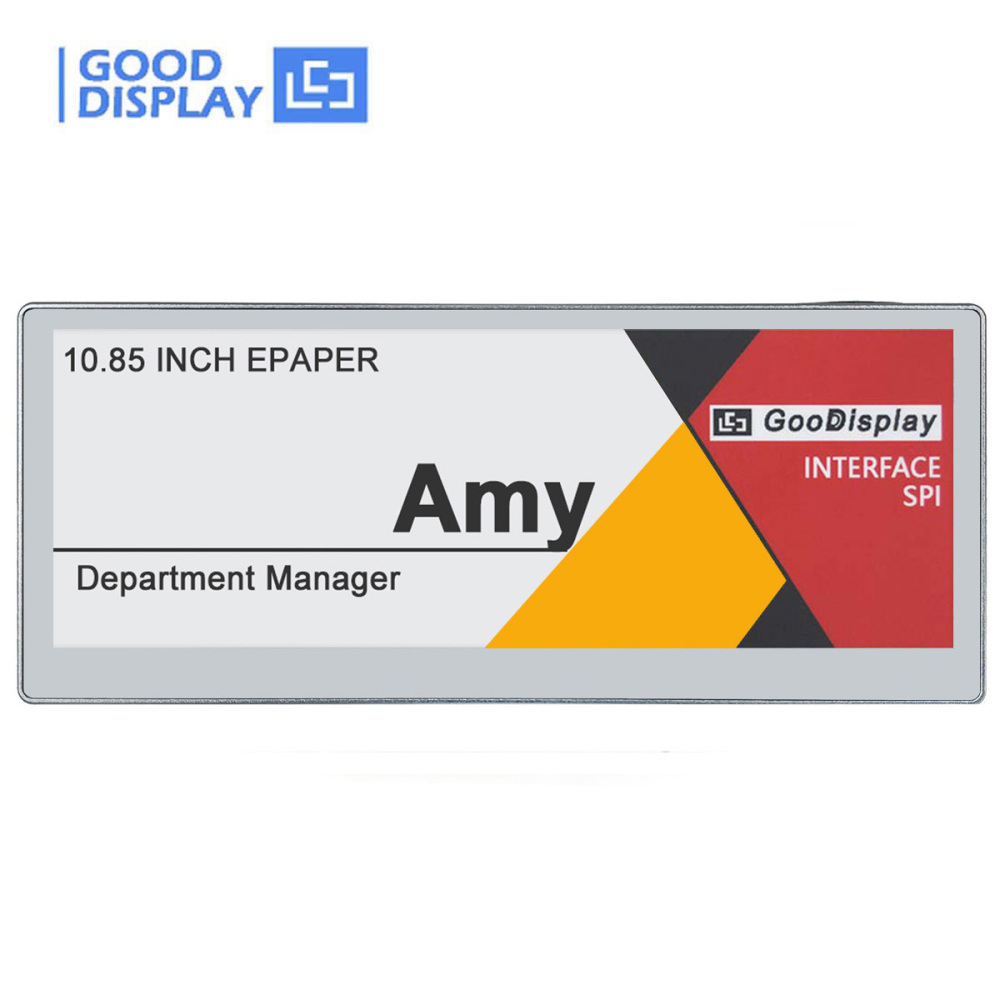

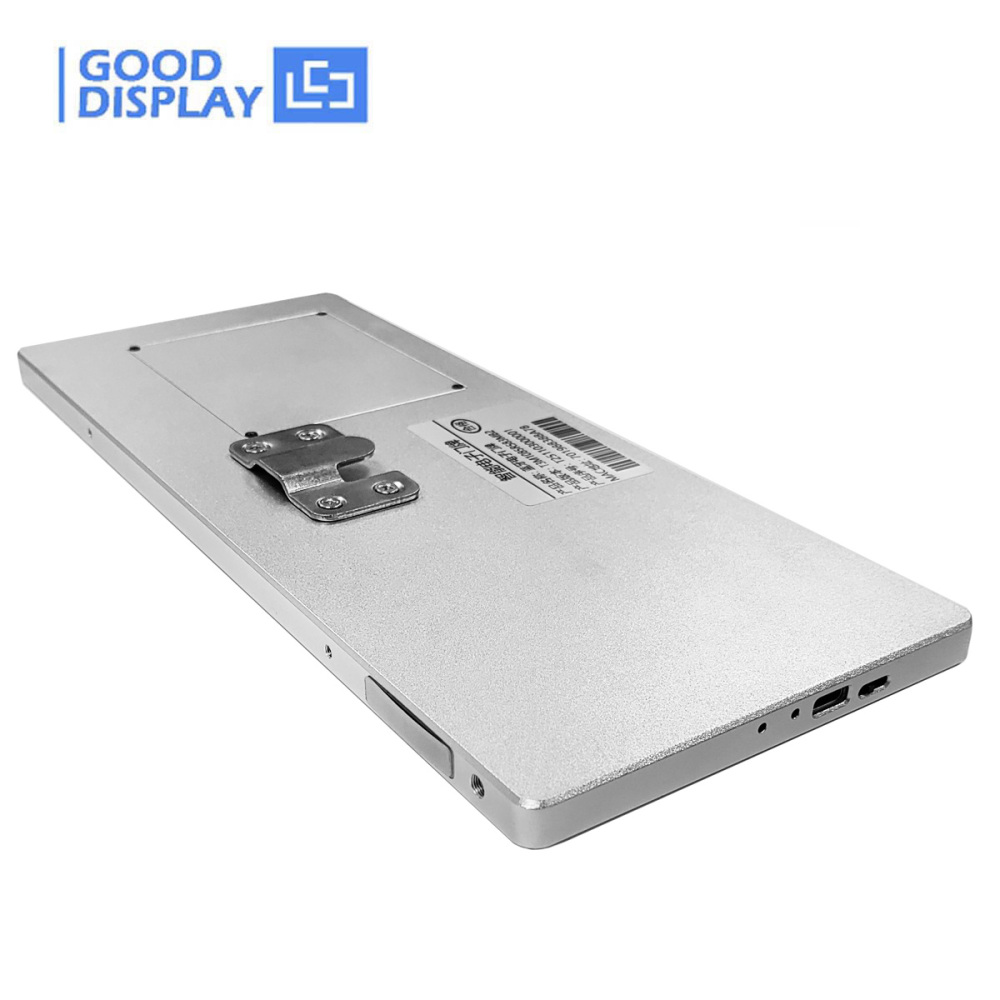

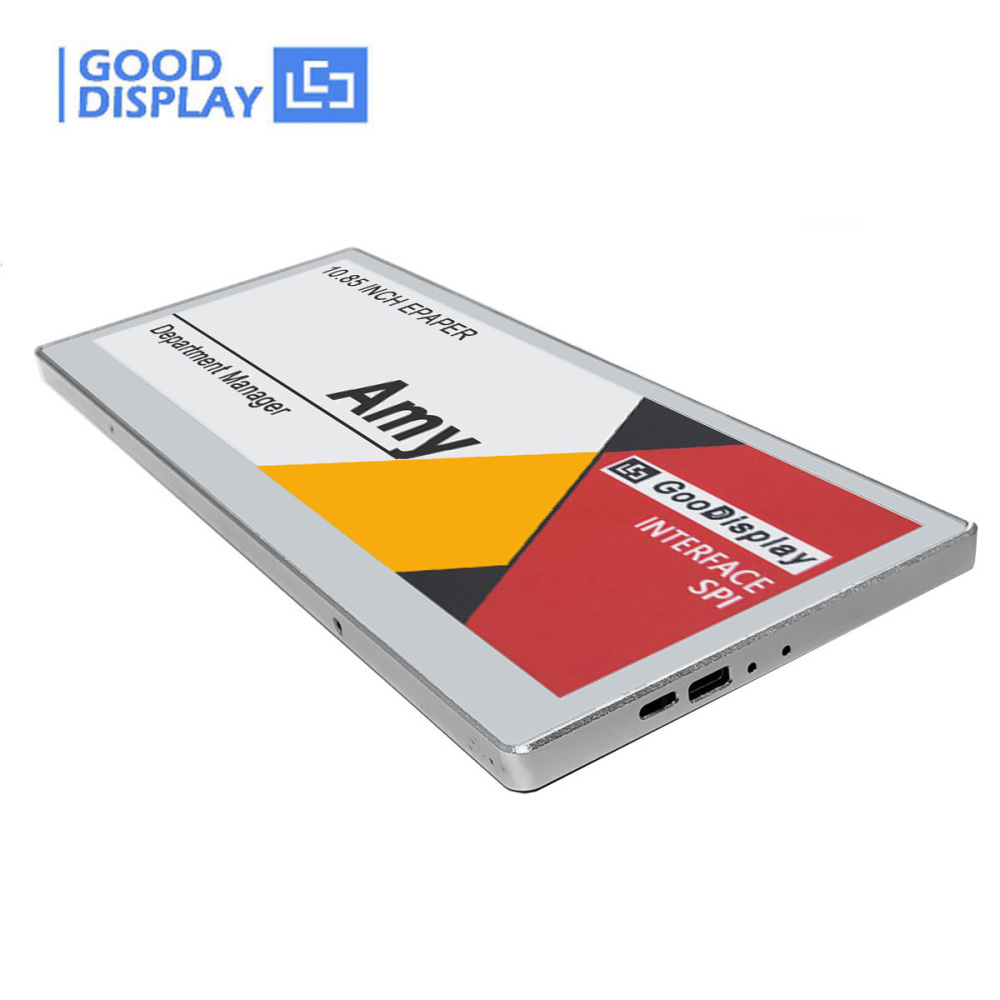

DMIF1085RBP1 is based on a 10.85-inch 3-color E-paper display and supports photovoltaic power generation. It is a smart electronic notice board specially designed to empower smart conference rooms and other rich application scenarios.
Low-carbon and energy-saving, photovoltaic power acquisition
Support NFC/Bluetooth image projection
Smart conference solutions
Powerful APP supports various use
For a variety of scenarios, cable-less
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please
☆ THE ABOVE PRICE INCLUDE
1) 10.85 Inch Electronic Shelf Label, Color E-ink Display Screen, For retail, Conference and Industrial Tag EPD Screen, DMIF1085RBP1 * 1pc
☆ MAIN PARAMETERS
Model Name |
DMIF1085RBP1 |
Screen Size |
10.85 inch E-paper display(dual) |
Power Supply |
Photovoltaic panel charging, lithium polymer battery energy storage |
Active Area |
259.76×91.68 mm |
Operating Voltage |
3.85V |
Resolution |
1360(H)×480(V) |
Operating Current |
Average standby current<0.1mA; Peak current 600mA |
DPI |
133 |
Photovoltaic energy harvesting |
170*35 photovoltaic panel*2 |
Color |
Blach White Red |
Lighting condition |
Under 300L x light for 10 hours per day |
Greyscale |
2Grey Level |
Emergency power supply |
USB type-c port |
Viewing Angle |
The glass cover adopts anti glare technology, with a nearly 180 degree viewing angle |
Communication Mechanism |
BlueTooth 5.0 BLE;NFC ISO/IEC14443-A |
Outline Dimension |
284*87*130mm |
Wireless Spectrum |
BlueTooth 2.402~2.480GHz;NFC 13.56Mhz |
Product Weight |
780 + 5g |
Maximum Communication Distance |
BlueTooth 20m;NFC 10mm |
Operating Temperature |
0℃ ~ 40℃ |
|
|
☆ FEATURE
● Bistable
● High contrast
● Wide viewing angle
● No light pollution
● USB wired transmission
● The picture is not lost when the power is off
● Energy saving and environmental protection
☆ Would like to learn more information! Click the link below
● Photovoltaic Intelligent Electronic Notice Board with 10.85-inch 3-color E-paper display, smart office>>
☆ ABOUT US
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
GDEW0102T4 |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEW0102I3F |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
GDEW0154M10 |
1.54'' |
BW |
2 |
152x152 |
27.512x27.512 |
3 |
-20℃~60℃ |
|
|
SPI |
GDEH0154D67 |
1.54'' |
BW |
4 |
200x200 |
27x27 |
2 |
0℃~50℃ |
√ |
|
SPI |
GDEW0154M09 |
1.54'' |
BW |
2 |
200x200 |
27.6x27.6 |
0.82 |
0℃~50℃ |
√ |
|
SPI |
GDEW0154T8D |
1.54'' |
BW |
4 |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEH0154Z90 |
1.54'' |
BWR |
2 |
200x200 |
27x27 |
15 |
0℃~40℃ |
|
|
SPI |
GDEW0213M21 |
2.13'' |
BW |
2 |
212x104 |
48.548x23.712 |
3 |
-20℃~60℃ |
|
|
SPI |
GDEW0213I5FD |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
GDEM0213B74 |
2.13'' |
BW |
4 |
250x122 |
48.55x23.7 |
3 |
0℃~50℃ |
|
|
SPI |
GDEM0213U23 |
2.13'' |
BWR |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
GDEM0213D23 |
2.13'' |
BW |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
GDEW0213V7LT |
2.13'' |
BW |
2 |
212x104 |
48.55x23.71 |
3 |
-25℃~10℃ |
√ |
|
SPI |
GDEY0213Z98 |
2.13'' |
BWR |
2 |
250x122 |
48.55x23.7046 |
14 |
0℃~40℃ |
|
|
SPI |
GDEW0213T5D |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEW0213T5D-FL01(With Frontlight) |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEW026T0D |
2.6'' |
BW |
4 |
296x152 |
60.09x30.7 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEW027W3 |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEW027W3-T(With Touch Panel) |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEM029E97 |
2.9'' |
BW |
2 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
|
|
SPI |
GDEH029Z13 |
2.9'' |
BWR |
2 |
296x128 |
66.9x29.06 |
15 |
0℃~40℃ |
|
|
SPI |
GDEM029T94 |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEY029T94 |
2.9'' |
BW |
4 |
296x128 |
66.896x29.056 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEW029M06 |
2.9'' |
BW |
2 |
296x128 |
66.896x29.056 |
3 |
-20℃~60℃ |
|
|
SPI |
GDEW029I6FD |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
GDEW029T5D |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEW029T5D-FL02(With Frontlight) |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEH037Z01 |
3.71'' |
BWR |
2 |
416x240 |
81.54x47.04 |
16 |
0℃~40℃ |
|
|
SPI |
GDEW0371W7 |
3.71'' |
BW |
2 |
416x240 |
81.536x47.04 |
4 |
0℃~50℃ |
|
|
SPI |
PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
GDEW042C37 |
4.2'' |
BWY |
2 |
400x300 |
84.8x63.6 |
28 |
0℃~40℃ |
|
|
SPI |
GDEW042T2 |
4.2'' |
BW |
4 |
400x300 |
84.8x63.6 |
3 |
0℃~50℃ |
|
|
SPI |
GDEY042T91 |
4.2'' |
BW |
2 |
400x300 |
84.8x63.6 |
3 |
0℃~50℃ |
|
|
SPI |
GDEQ042Z21 |
4.2'' |
BWR |
2 |
400x300 |
84.8x63.6 |
19 |
0℃~40℃ |
|
|
SPI |
GDEY0579T93 |
5.79'' |
BW |
2 |
792x272 |
139.00×47.74 |
3 |
0℃~50℃ |
|
|
SPI |
GDEY0579Z93 |
5.79'' |
BWR |
2 |
792x272 |
139.00×47.74 |
20 |
0℃~40℃ |
|
|
SPI |
GDEW0583C64 |
5.83'' |
BWY |
2 |
600x448 |
118.80x88.26 |
25 |
0℃~40℃ |
|
|
SPI |
GDEY0583T8 |
5.83'' |
BW |
2 |
648x480 |
118.78x88.22 |
3 |
0℃~50℃ |
|
|
SPI |
GDEW0583Z83 |
5.83'' |
BWR |
2 |
648x480 |
119.232x88.32 |
12 |
0℃~40℃ |
|
|
SPI |
GDEY075T7 |
7.5'' |
BW |
4 |
800x480 |
163.2x97.72 |
3 |
0℃~50℃ |
√ |
|
SPI |
GDEY075Z08 |
7.5'' |
BWR |
2 |
800x480 |
163.2x97.72 |
12 |
0℃~40℃ |
|
|
SPI |
GDEP097TC2 |
9.7''
|
BW
|
16
|
1200x825
|
202.8x139.425
|
1
|
0℃~50℃
|
√
|
|
Parallel
|
GDEQ102T90 |
10.2'' |
BW |
2 |
960x640 |
215.52x143.68 |
4 |
0℃~50℃ |
|
|
SPI |
GDEQ102Z90 |
10.2'' |
BWR |
2 |
960x640 |
215.52x143.68 |
4 |
0℃~50℃ |
|
|
SPI |
GDEH116T91 |
11.6'' |
BW |
2 |
960x640 |
244.512x163.008 |
5 |
0℃~50℃ |
|
|
SPI |
GDEH116Z91 |
11.6'' |
BWR |
2 |
960x640 |
244.512x163.008 |
30 |
0℃~35℃ |
|
|
SPI |
GDEY1248Z51 |
12.48'' |
BWR |
2 |
1304x984 |
252.98x190.90 |
25 |
0℃~40℃ |
|
|
SPI |
GDEP133UT3 |
13.3'' |
BW |
16 |
1600x1200 |
270.4x202.8 |
1 |
-15℃~65℃ |
|
|
Parallel |
