RTL8720CN-EVB, Realtek Multi-function RTL8720CN development board

RTL8720CN-EVB
RTL8720CN WiFi+BLE4.2 Multi-function Realtek development board RTL8720CN-EVB
Price:
USD
$34.99
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com





☆ INTRODUCTION





Ameba Z2 RTL8720CN is a highly integrated single-chip with low power consumption mechanism for IoT (Internet of Things). It combines an arm® new architecture Armv8M KM4 MCU, Wi-Fi, Bluetooth and provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

RTL8720CN SoC also integrates internal 4MB RAM memory to minimize IoT end-product size and reduce your development cost.

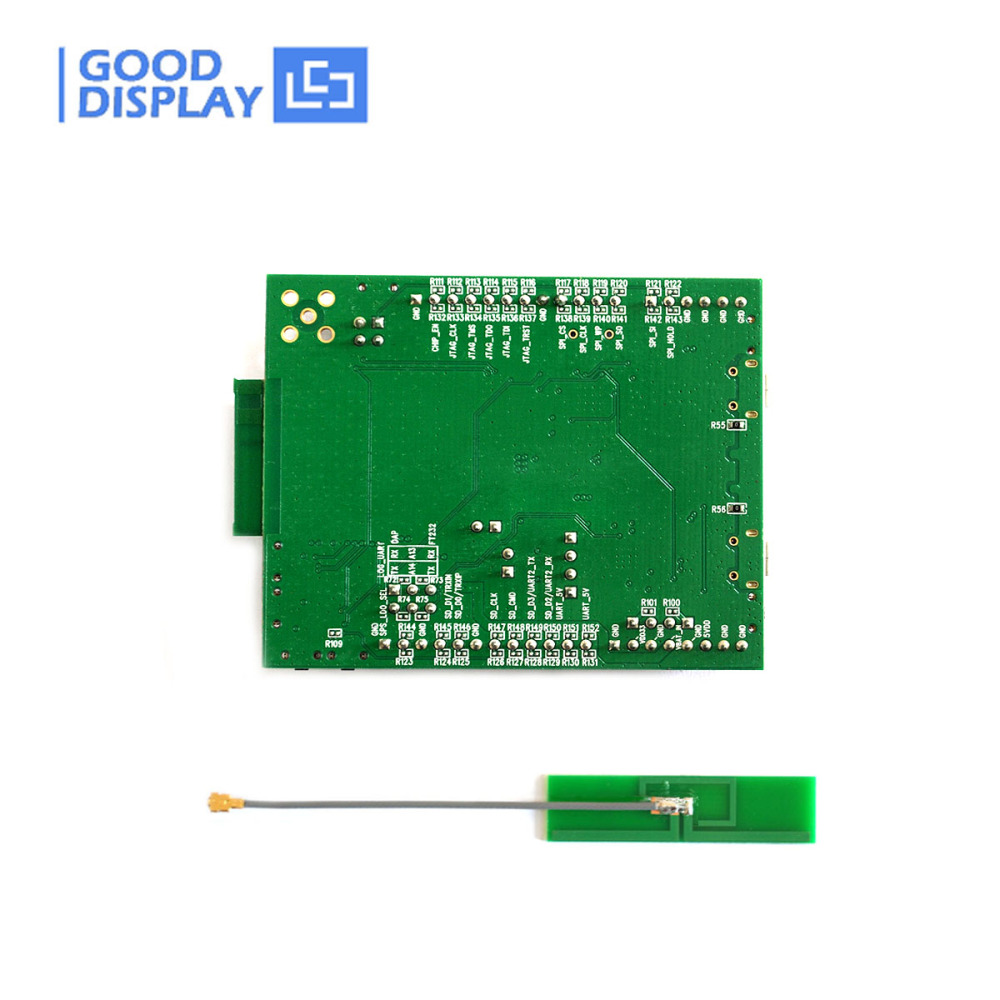

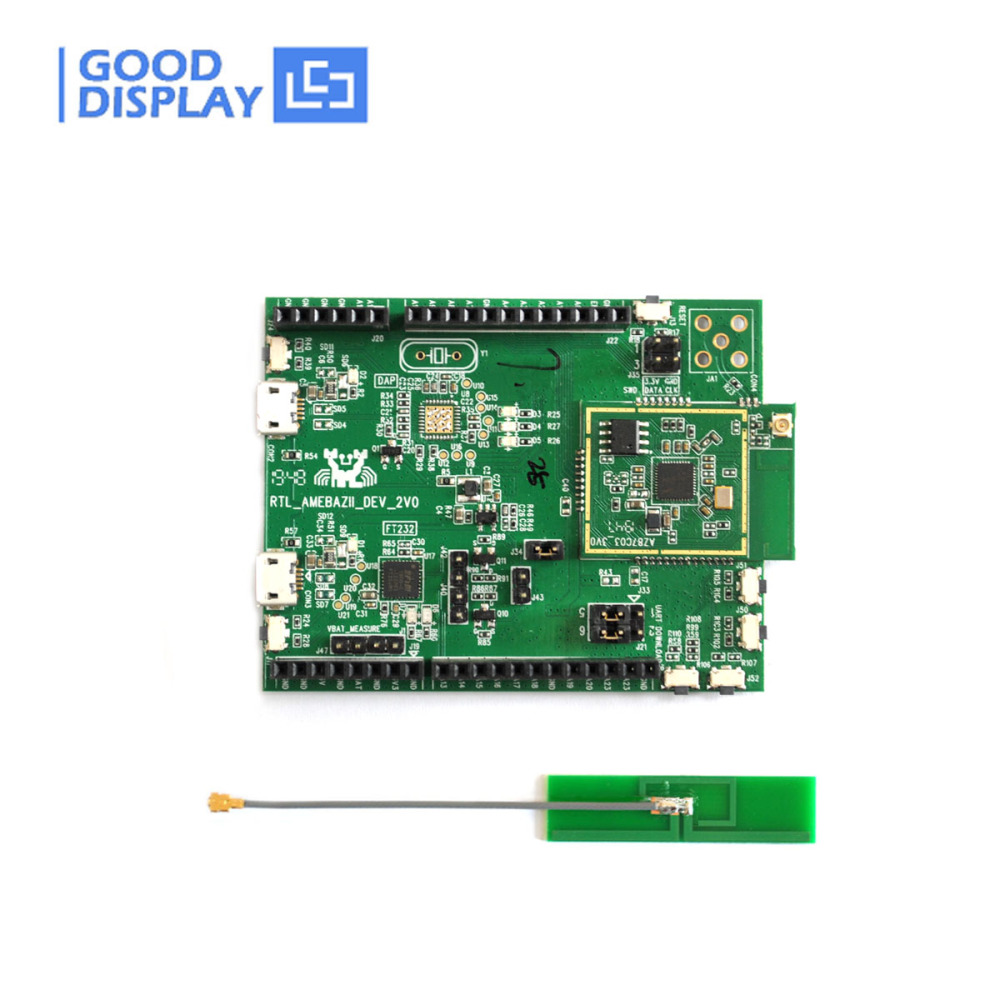

RTL8720CN-EVB Wireless Dev Board is a convenient development kit for makers. It separate into 2 boards, the small one- AFM201T. WiFi+Bluetooth Module on the top is main mother board with all functions included, and the other on the bottom is similar to Arduino UNO form factor size which provides the development interface CMSIS-DAP mode and J-LINK debugger mode.



Relevant manual about this product on Library our official website (www.iflabel.com), contact us please.





☆ TECHNICAL DETAILS




Dimensions 76mm x56mm x12mm
Weight  22g
Battery Exclude









 THE ABOVE PRICE INCLUDE



RTL8720CN, Realtek Multi-function RTL8720CN development board * 1pc





  FEATURES



●  MCU
ARMv8M KM4, 100MHz

●  Memory
4.2MB internal RAM on SoC and 2MB external flash on Dev. Board

●  Wi-Fi
802.11 b/g/n 1×1 Wi-Fi (20/40MHz)
Wi-Fi simple config

●  Bluetooth
BLE 4.2
SIG Mesh (optional)

●  Security
Cryptographic operation
Secure boot (optional)
Wi-Fi WEP, WPA, WPA2, WPS







 APPLICATION



● Intelligent electrical outlet
● Industrial control
● Intelligent home appliances
● Internet of things applications
● Thermal printer
● LED control card









 RELATED PRODUCTS LISTS




Realtek
Chip

Series

EVB

Module

Package

Protocol

CPU

Fre.

SRAM

Flash

BLE

LCD

UART

SPI

I2S

SDIO Key
Scan

ADC/
DAC

RTL8710BX

Ameba Z

AFW121T-EVB

AFW121T

21Pin
18x22mm

WiFi

ARM M4

62.5M

256KB

Ext

-

N

1

1

N

N

Y/N

RTL8720CN

Ameba Zii

RTL8720CN-EVB
AFM201T-EVB

AFM201T

23Pin
15x24mm

WiFi+BLE4.2

ARM M4

100M

256KB

Ext

4.2

N

2

1

N

N 4x2/3x3

N/N

RTL8720CM

Ameba Zii

RTL8720CM-EVB

AFM203T

23Pin
15x24mm

WiFi+BLE4.2

ARM M4

100M

256KB

Ext

4.2

N

2

1

N

N 4x2/3x3

N/N

RTL8720CS

Ameba CS

RTL8720CS-EVB

AFM312T

23Pin
19x29mm

WiFi+BLE5 Mesh

 M0+M4

200M

512KB

Ext

5.0

N

2

2

Y

N 7x3/5x5

Y/Y

RTL8721CSM

Ameba CS

RTL8721CSM-EVB

AFM321T

66Pin
27x37mm

WiFi+BLE5 Mesh

 M0+M4

200M

512K
+4M

Ext

5.0

N

3

2

Y

N 4x8/6x6

Y/Y

RTL8722CSM

Ameba CS

RTL8722CSM-EVB

AFM331T

66Pin
27x37mm

WiFi+BLE5 Mesh

 M0+M4

200M

512K
+4M

Ext

5.0

RGB

4

2

Y

D/H 4x8/6x6

Y/Y

RTL8720DN

Ameba D

RTL8720DN-EVB

AFM412T

23Pin
19x29mm

2.4G+5G+BLE5

 M0+M4

200M

512K

Ext

5.0

N

2

1

Y

N 4x8/6x6

Y/Y

RTL8721DM

Ameba D

RTL8721DM-EVB

AFM421T

66Pin
27x37mm

2.4G+5G+BLE5

 M0+M4

200M

512K
+4M

Ext

5.0

N

3

2

Y

N 4x8/6x6

Y/Y

RTL8722DM

Ameba D

RTL8722DM-EVB

AFM431T

66Pin
27x37mm

2.4G+5G+BLE5

 M0+M4

200M

512K
+4M

Ext

5.0

RGB

4

2

Y

D/H 4x8/6x6

Y/Y
