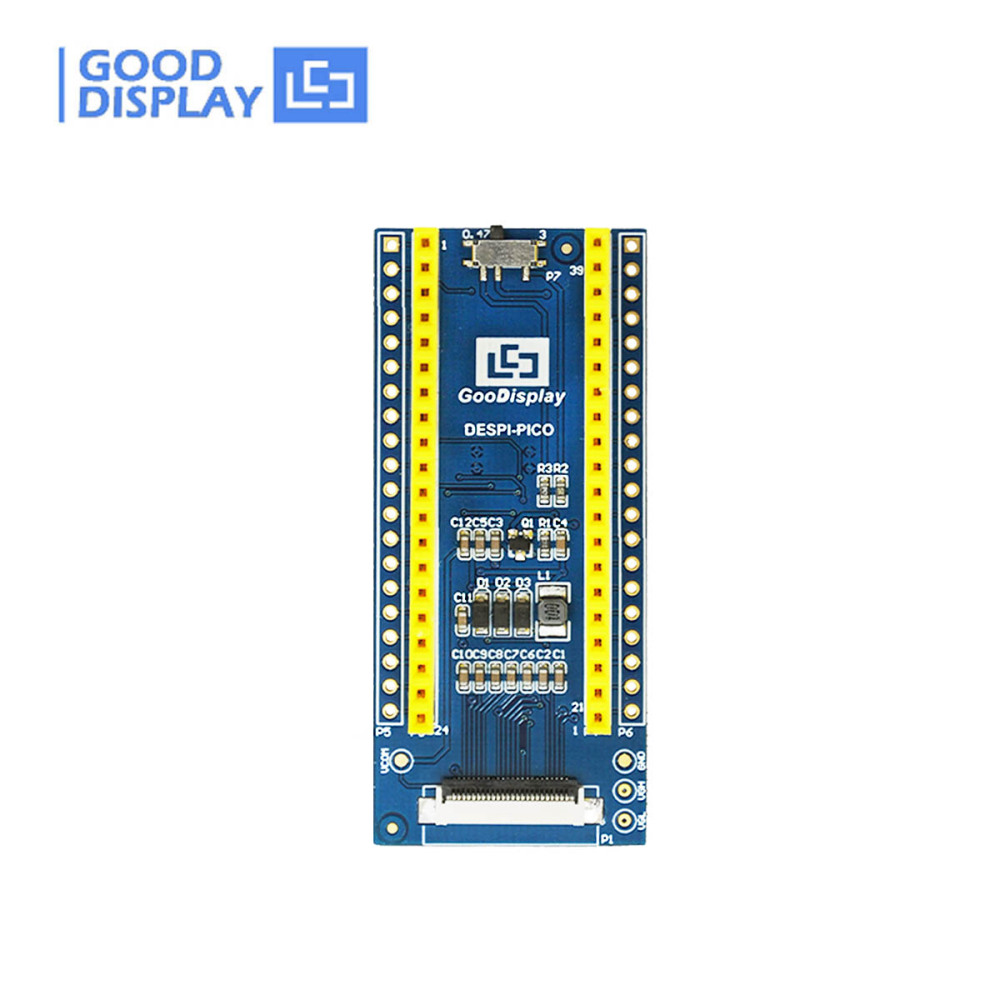

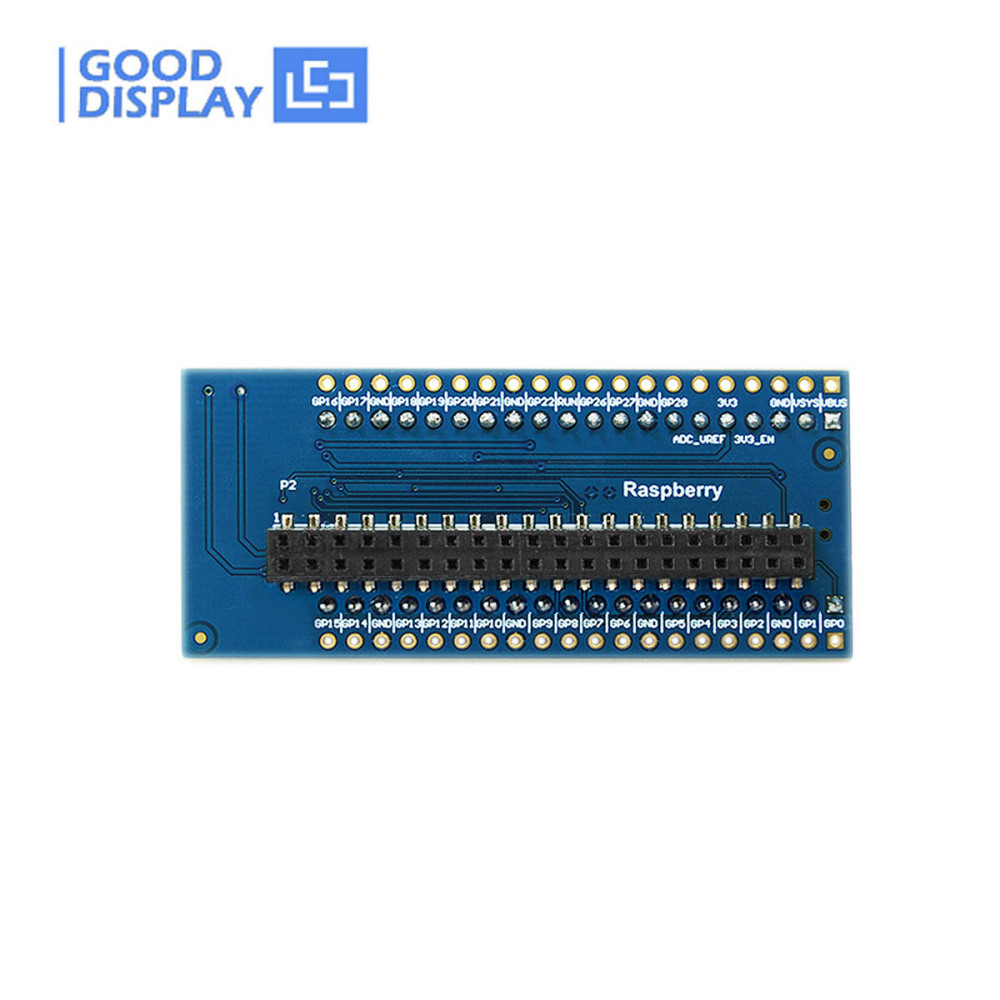

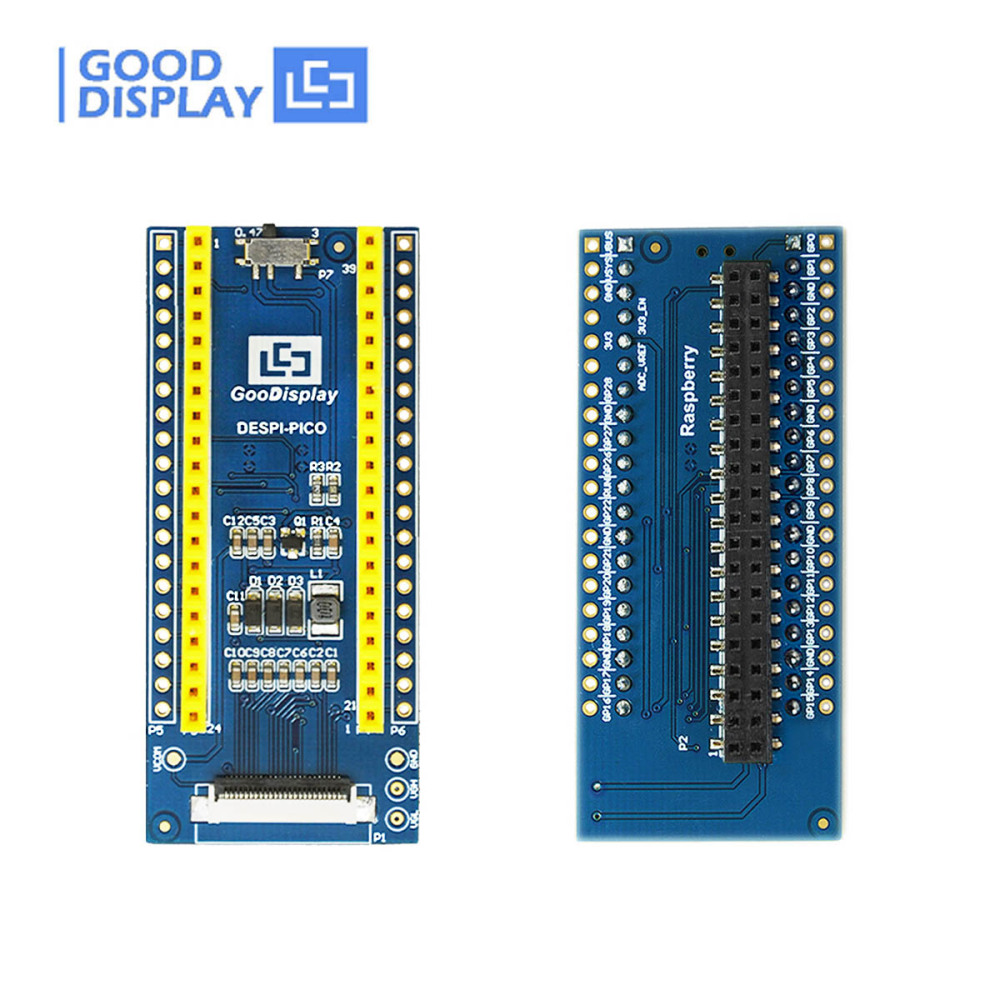

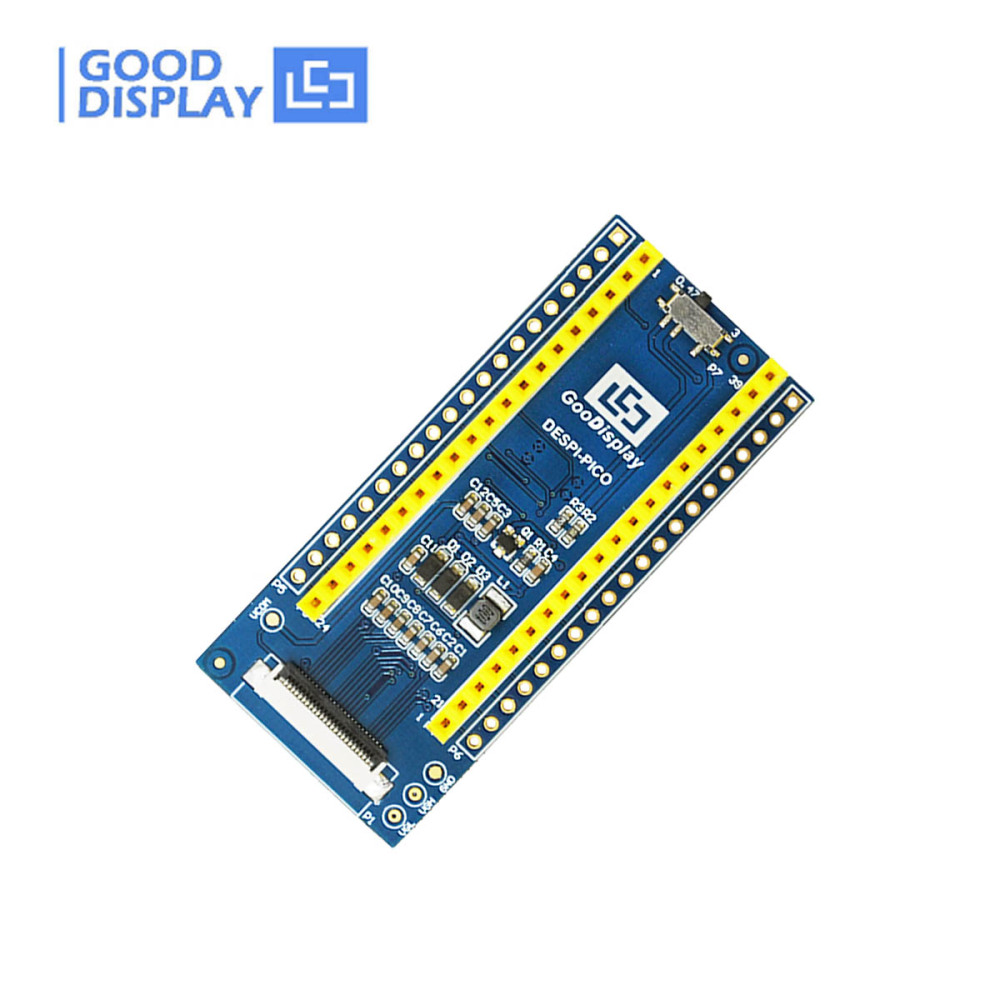

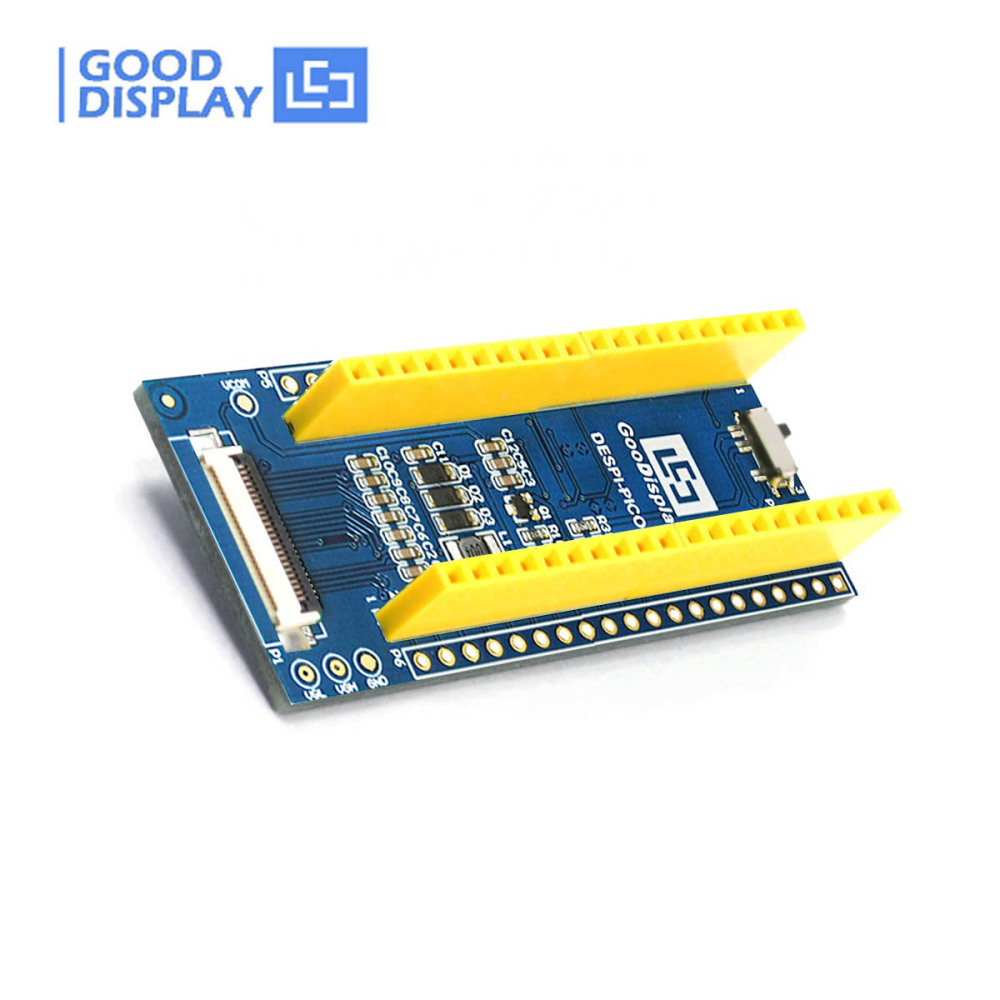

Raspberry Pi E-paper HAT for Connecting SPI E-ink Display, DESPI-PICO

DESPI-PICO is designed for SPI e-paper display. It can boost the driving voltage of Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 1.54'', 2.13'', 2.6'', 2.7'', 2.9'' , 4.2'', 5.83'' and 7.5''.
2 Review(s) Sold:6
Price:
USD
$7.99
Quantity:
-
+
(64 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews(2)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




DESPI-PICO is designed for SPI e-paper display. It can boost the driving voltage of Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 1.54'', 2.13'', 2.6'', 2.7'', 2.9'' , 4.2'', 5.83'' and 7.5''.


Relevant manual about this product on our official website (www.good-display.com), contact us please.











 THE ABOVE PRICE INCLUDE



1) Raspberry Pi E-paper HAT for Connecting SPI E-ink Display, DESPI-PICO * 1pc








 MAIN PARAMETERS




PART NUMBER

DESPI-PICO

PLATFORM

Raspberry Pi Pico

DIMENSION(mm) 64 x 29

POWER SUPPLY

3.3V

SAMPLE CODE

Available (please contact sales)

OPERATING TEMP.

-20°C ~+70°C

MAIN FUNCTION

Provide driving voltage for e-paper;
Provide interface for e-paper and Raspberry Pi Pico;
Help users operate e-paper quickly.

ADDITIONAL FUNCTION Test of e-paper working condition.







 MATCHED EPD


The switch P2 on DESPI-PICO is used to select the RESE resistor,different e-papers need to match different RESE resistors, a wrong RESE resistor will cause the e-paper cannot be refreshed.
When RESE is set to 0.47Ω :
1.54 inch :GDEW0154T8, GDEW0154T8D, GDEW0154I9F, GDEW0154I9FD, GDEW0154M09, GDEW0154M10
2.13 inch :GDEW0213T5, GDEW0213T5D, GDEW0213I5F, GDEW0213I5FD, GDEW0213Z19, GDEW0154M21
2.6 inch :GDEW026T0, GDEW026T0D, GDEW0266Z90,GDEW0266T90
2.7 inch :GDEW027W3
2.9 inch :GDEW029T5, GDEW029T5D, GDEW029I6F, GDEW029I6FD, GDEW029Z13, GDEW029M06
3.71 inch :GDEW0371W7, GDEH0371Z01
4.2 inch :GDEW042T2, GDEW042Z21, GDEW042M01
5.83 inch :GDEW0583T8, GDEW0583M09
7.5 inch :GDEW075T7, GDEW075Z08, GDEW075M10, GDEY075T7, GDEY075Z08

When RESE is set to 3Ω :
1.54 inch :GDEH0154D67, GDEY0154D67, GDEM0154E97LT, GDEH0154Z90
2.13 inch :GDEH0213B73, GDEH0213B74, GDEY0213B74, GDEH0213D30LT, GDEH0213Z98
2.9 inch :GDEM029T94, GDEY029T94, GDEH029D57LT, GDEH029Z92
4.2 inch :GDEH042Z96, GDEY042T91, GDEY042Z98

Note:  If the product model you are using is not in this list, please contact us.








 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




 SPECIFICATION DOWNLOAD


1)  DESPI-PICO Specification



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
