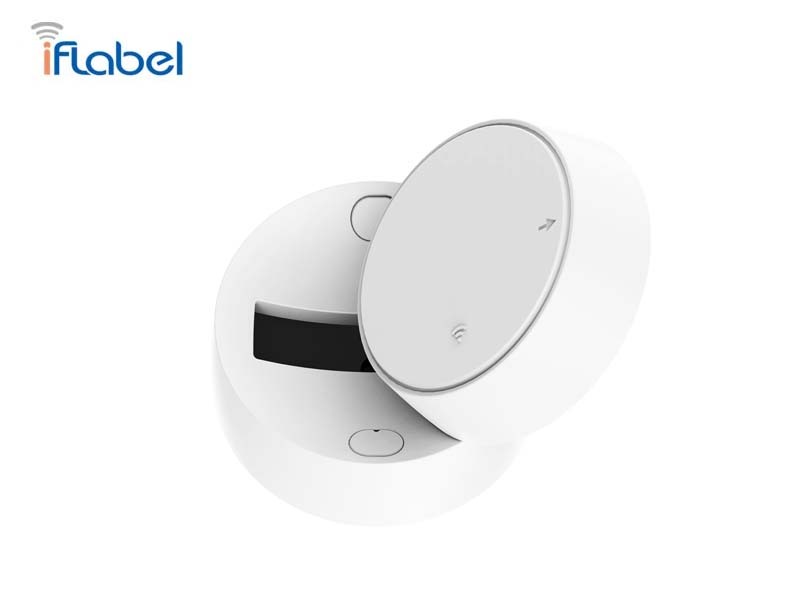

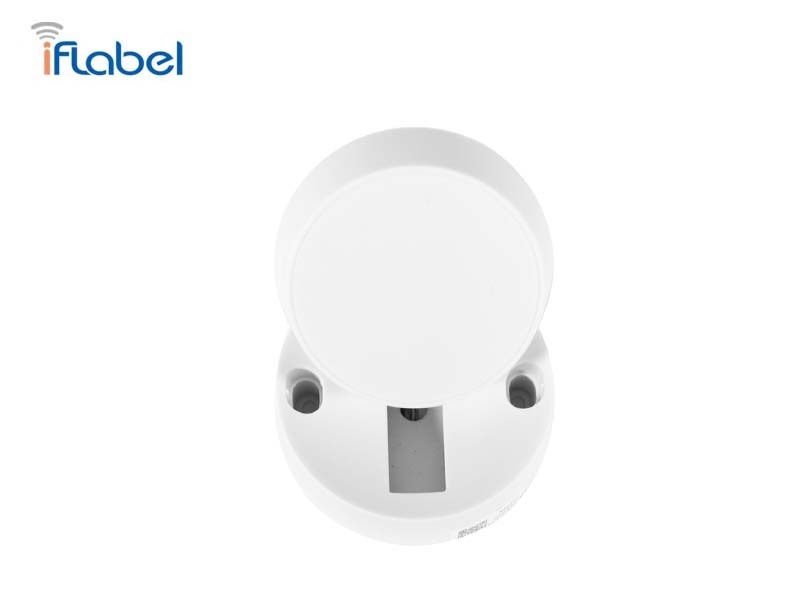

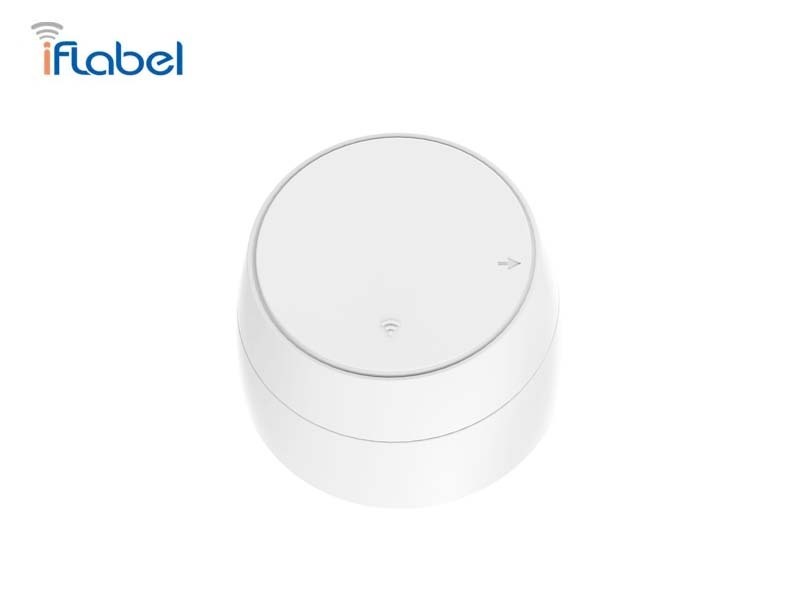

The sleep monitoring radar ST-BD60A1-WT is based on the millimeter-wave radar system to realize the perception of human biological existence and human motion, and can continuously record the existence of the human body. It will judge the sleep state, breathing and heart rate of the target in real time according to the changes in body movement range and breathing and heart rate during sleep, and output a sleep score after a period sleep. It is also integrated into the health application according to its relevant sleep parameters. This product is installed on the top of the room. Sleep breathing function detection is not affected by factors such as temperature, humidity, noise airflow, dust and light.
Relevant manual about this product on Library or you could go to our official website (www.iflabel.com), contact us please.
| PRODUCT NAME | 60G Sleep Monitoring Radar | ||
| PART NUMBER | ST-BD60A1-WT | OUTLINE DIMENSION | 29.5x73x86mm |
| OPERATING FREQUENCY | 60GHz~61.5GHz | WIRELESS PROTOCOL | Wi-Fi |
| DETECTING RANGE | 2~4m | OPERATING TEMPERATURE | -10℃~+50℃ |
| DETECTING ANGLE | Horizontal 40° & Vertical 40° | OPERATING HUMIDITY | 20%~85%(non-condensing) |
| POWER INPUT | 5V/1A | INSTALLATION METHOD | Tilt installation |
● Sleep quality assessment
Record sleep status and time, evaluate sleep quality
● Respiratory rate statistics
Respiration detection, record respiratory rate
● Heart rate frequency statistics
Heart rate detection, record heart rate frequency
* In order to ensure the accuracy of radar detection, please combine with the corresponding bracket for tilt installation!

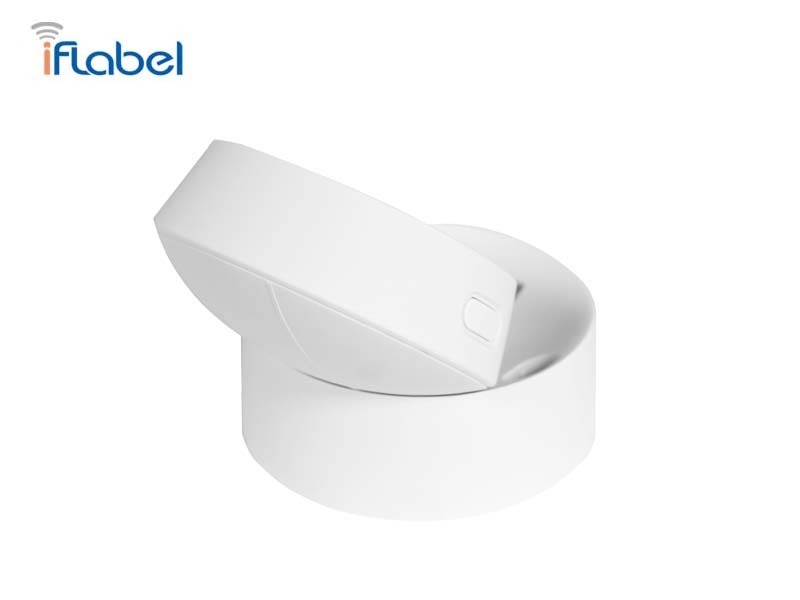

The radar is installed obliquely with an inclination angle of 45°. It is installed above the head of the bed. The radar installation height is recommended to be 1m higher than the bed surface to ensure that the main beam of the radar covers the detection area. There should be no obvious obstructions or coverings in front of the radar. Affected by the radar installation height and radar beam range, in this installation mode, the maximum distance for human presence detection L3 ≈ 2.5 meters; the maximum distance for sleep detection L2 ≈ 2.5 meters; the maximum distance for human respiratory frequency detection L1 ≈ 1.5 meters.
