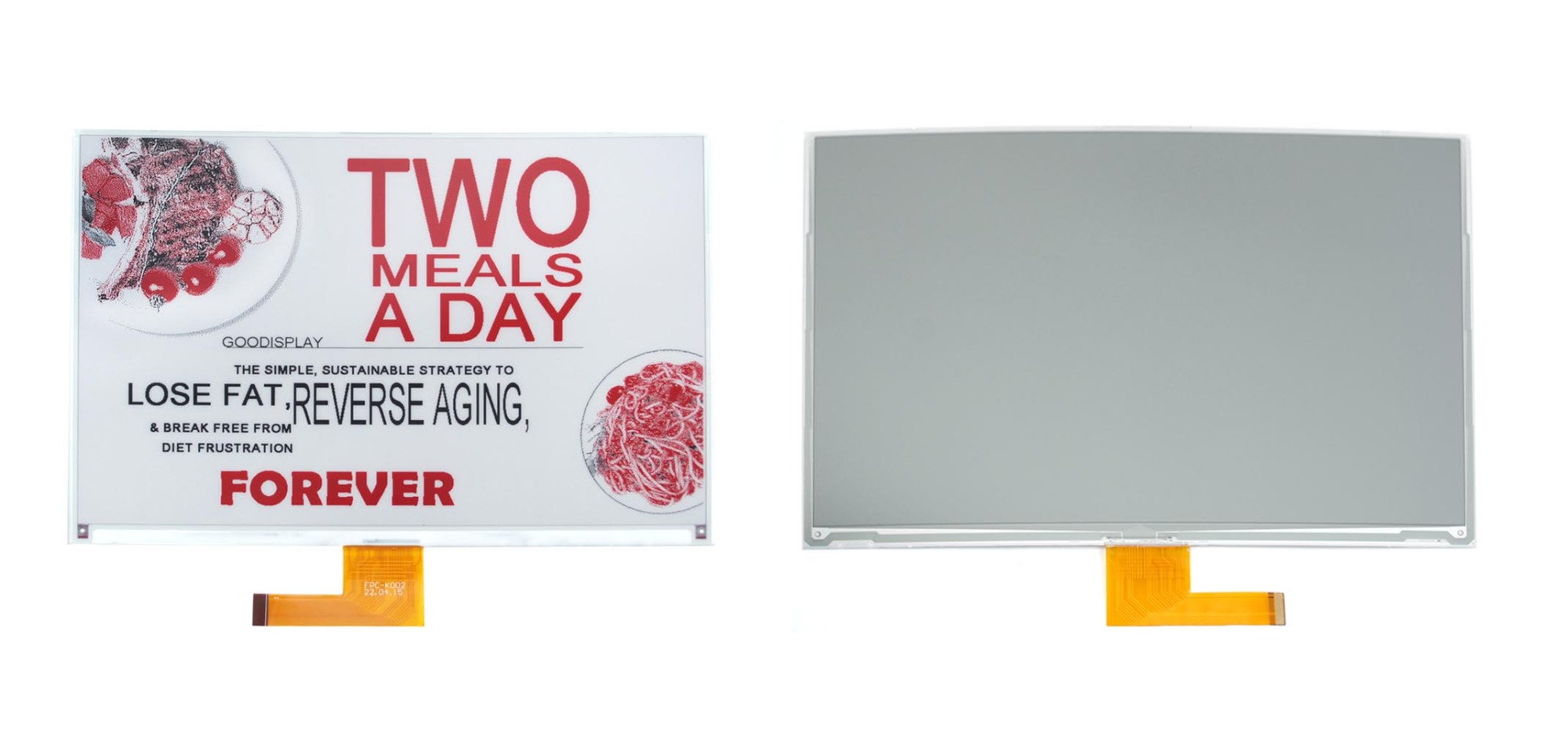

Good Display Large Color Epd 11.6 inch E Ink E Paper Eink Display Tri-Color E-Ink Display, GDEY116Z91

This is a 11.6 inch color e-paper display with 960x640 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power.
Price:
USD
$118.00
Quantity:
-
+
(2 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews



☆ INTRODUCTION




This is a 11.6 inch color e-paper display with 960x640 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.


This 11.6 inch e-ink display GDEY116Z91 is perfect for low power devices powered by solar or batteries. or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.



Relevant manual about this product on our official website (www.good-display.com), contact us please.

* This e-ink display module DOES NOT support partial updates.



☆ THE ABOVE PRICE INCLUDE



1) Large size 11.6 inch color red e-ink screen module 960x640 resolution, GDEY116Z91 * 1pc
2) FPC Connector * 1pc



☆ MAIN PARAMETERS



PART NUMBER

GDEY116Z91

SIZE

11.6 inch

STORAGE TEMP. -25℃~70℃

TYPE

Dot Matrix

CONNECTOR 24 Pin

IC

SSD1677

COLOR Black, White, Red

RESOLUTION

960x640

INTERFACE SPI

OUTLINE SIZE(mm)

254.31x176.35x1.0

FULL REFRESH(s) 28

ACTIVE SIZE(mm)

244.51x163.01

POWER CONSUMPTION(mW) 82.5

PIXEL PITCH(mm)

0.2547x0.2547

STANDBY POWER CONSUMPTION(mW) 0.0115

OPERATING TEMP.

0℃~40℃

PACKAGE VOLUME 6kg



☆ DETAILS







 FEATURE




● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

● Development platform available STM32 ESP8266 / ESP32


MATCHED DEVELOPMENT KIT




DESPI-M02L


ESP32-L


ESP8266-L




☆ RELATED INFORMATION DOWNLOAD



 GDEY116Z91 Specification

 Driver IC SSD1677 Datasheet

 Picture Production and Bitmap Convert for GDEY116Z91

 GDEY116Z91 STM32 Sample Code

 GDEY116Z91 ESP8266 Sample Code

 GDEY116Z91 ESP32 Sample Code



☆ ABOUT US



Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

SPI

GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI
