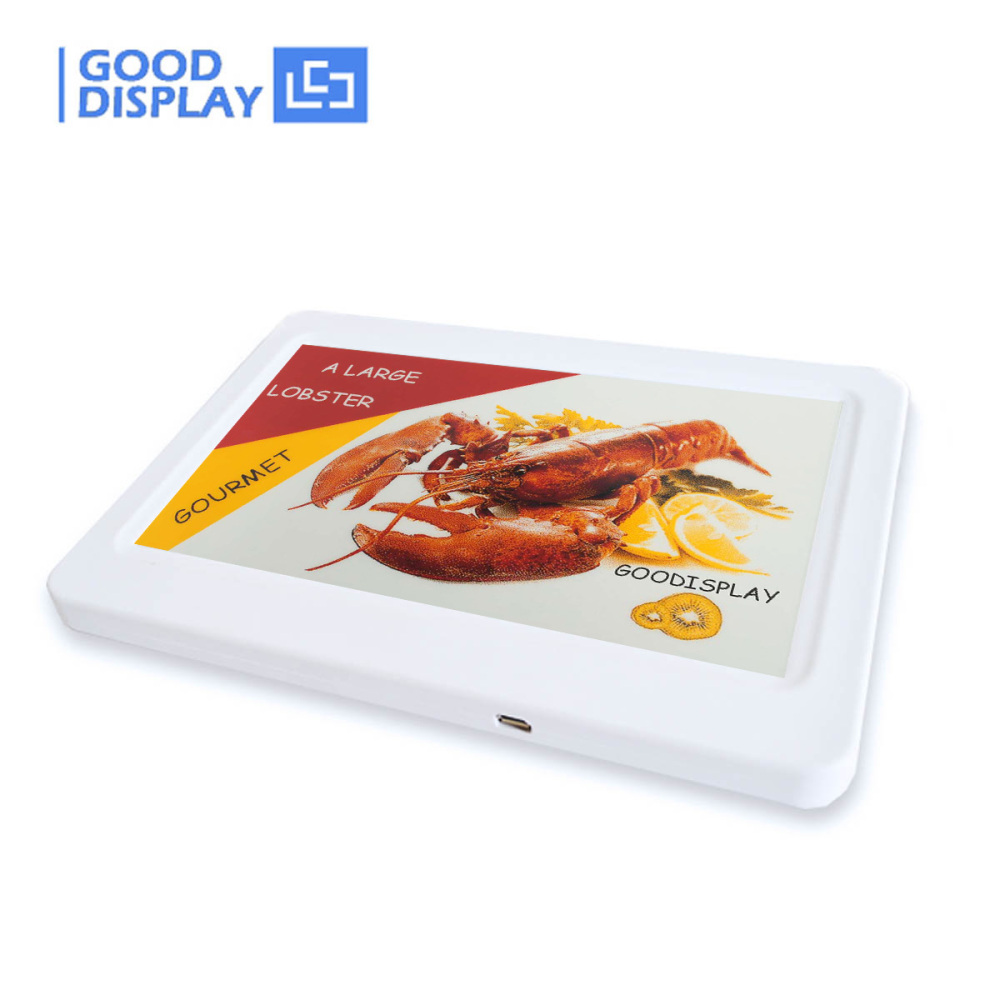

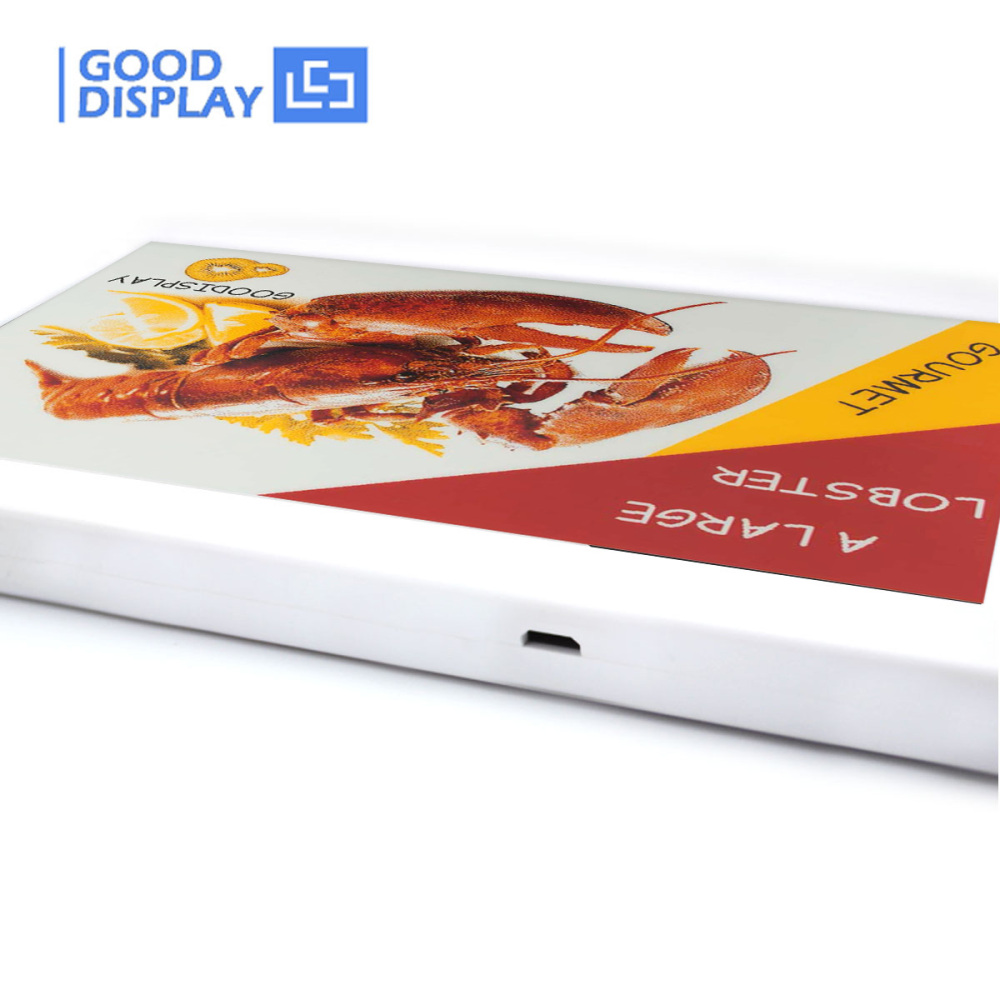

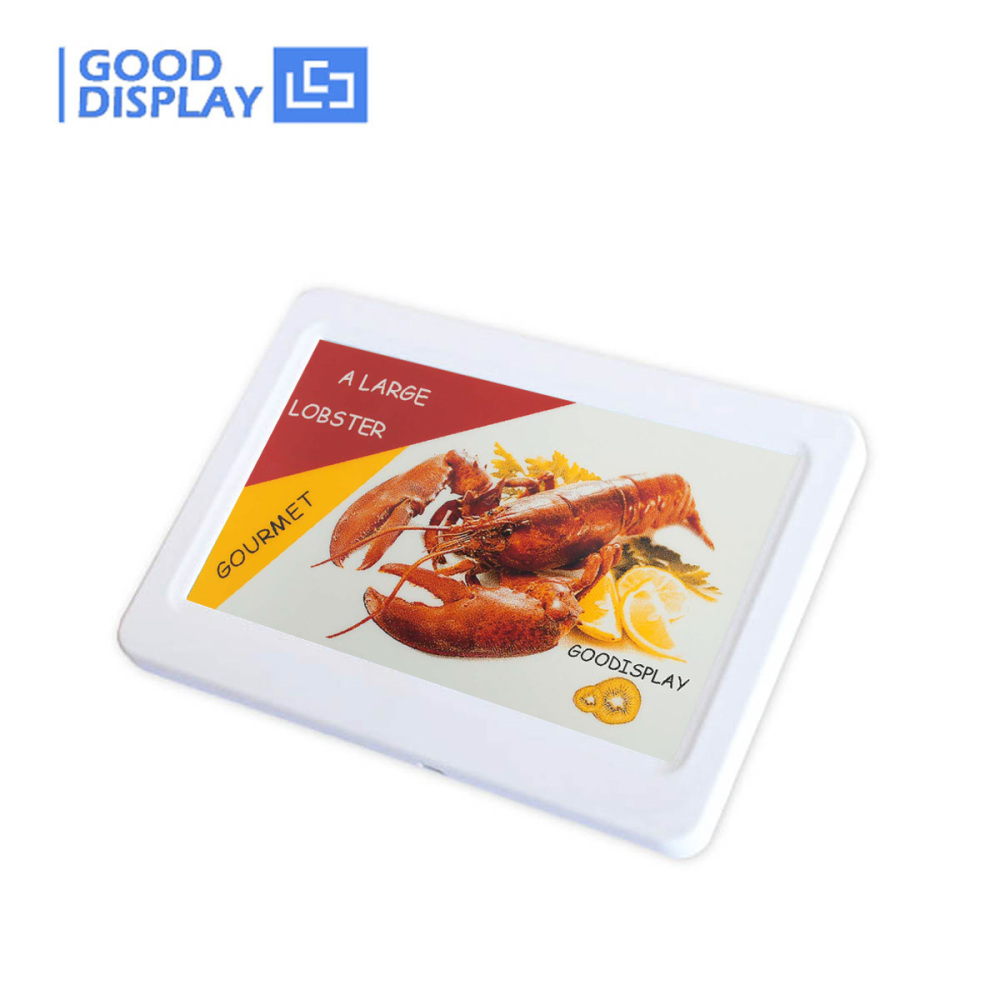

7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
  • 7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
  • 7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
  • 7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
  • 7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
  • 7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
  • 7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
  • 7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail
PDF Format

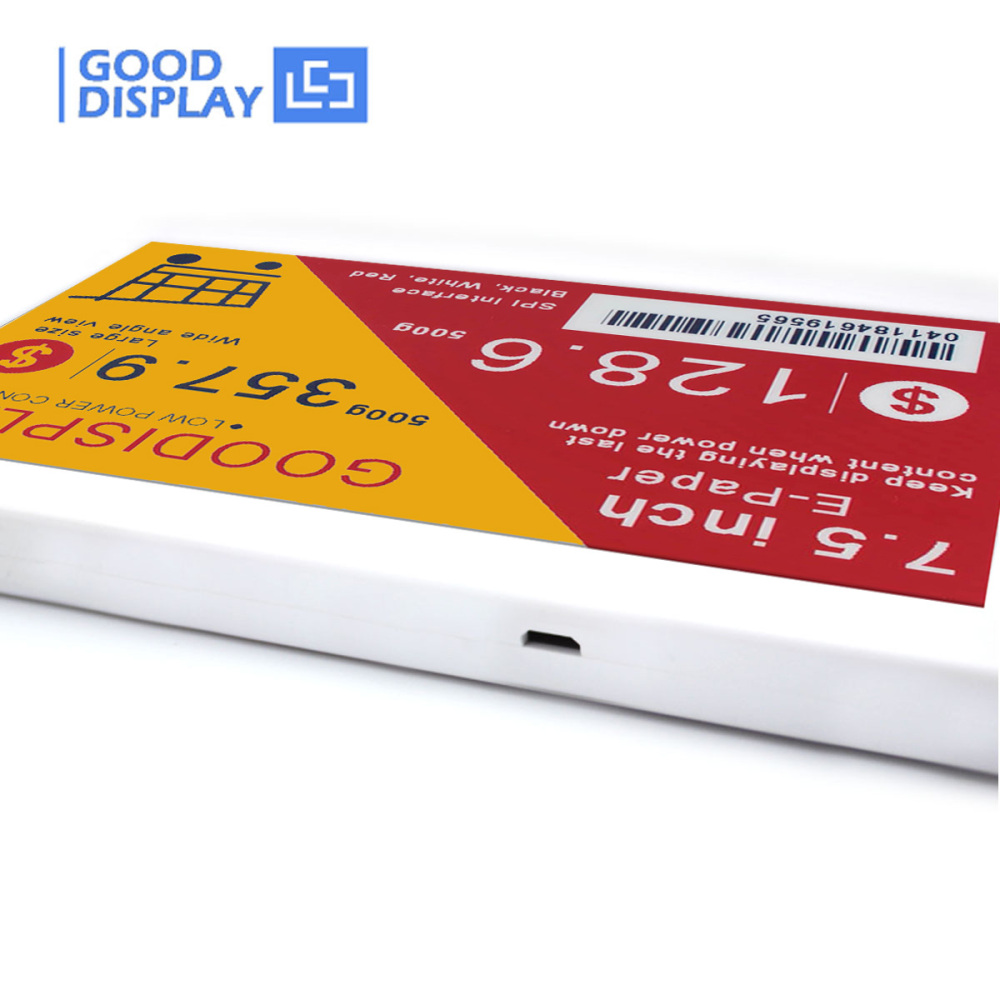

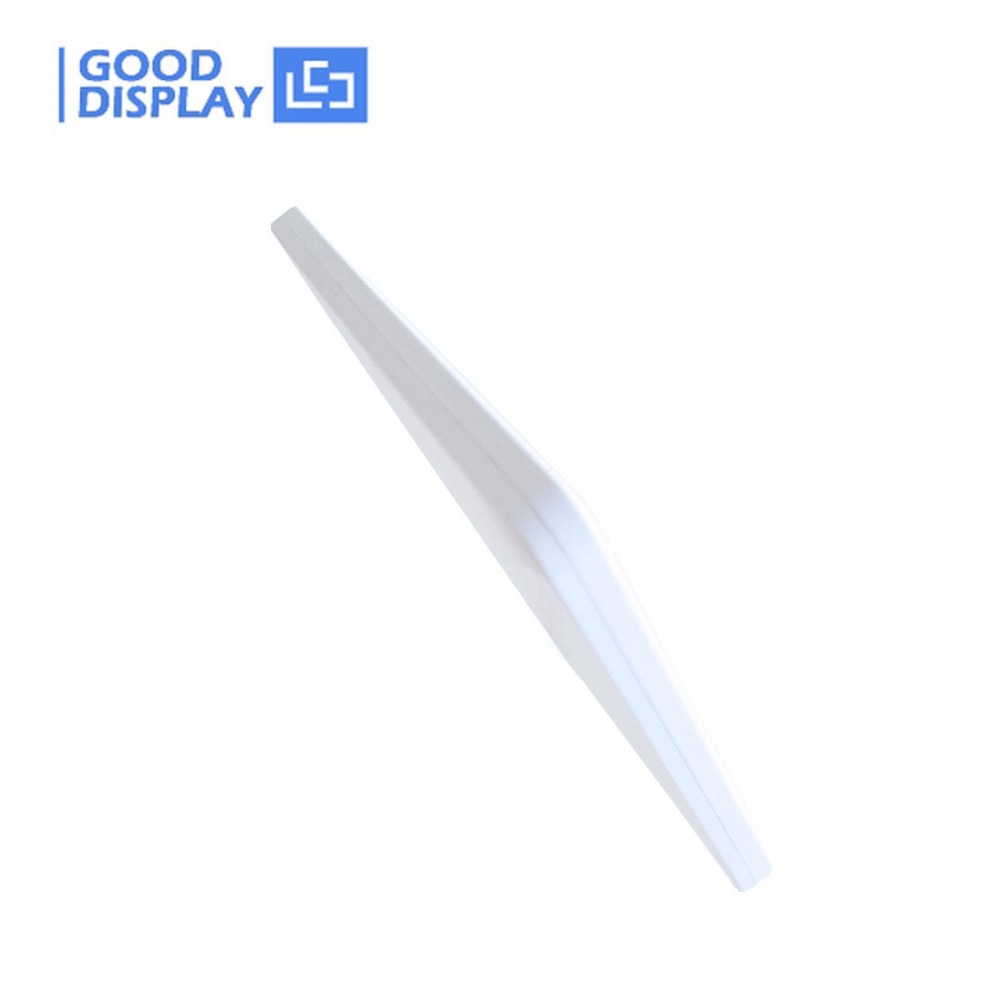

7.5 inch 4 Color E-ink Display WiFi&USB Electronic Digital Price Tags for Retail

GDP075FW1/GDP075FU1
This 7.5-inch, 4-color E Ink tag is stylish, energy-efficient, and enhances smart retail and digital signage, offering long-lasting performance and reduced energy consumption.
2 Review(s) Sold:30
Have a question?
Price:
USD
$50.80
SKU:
GDP075FW1
  • product:
    Wireless Freedom (WiFi)
    Wired Reliability (USB)
Quantity:
-
+
(19 available)
Shipping Cost:
-- to United States via
Please select the country you want to ship from
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(2)

7.5" 4-Color E-Ink Digital Signage

A 7.5-inch e-paper signage solution revolutionizes sustainable digital management in retail, healthcare, and logistics sectors with ultra-low power consumption (USB-powered) and dual-mode connectivity (USB/Wi-Fi). Its integrated hardware-software ecosystem enables maintenance-free, battery-free real-time updates (Note: Wi-Fi functionality requires USB cable power supply). Compliant with ESG standards and data security regulations, it empowers businesses to reduce operational costs, enhance brand agility, and achieve environmental goals simultaneously.

Core Advantages

Flexible Connectivity

Wi-Fi version enables real-time updates USB version for secure environments
Multi-angle rotation support

4-Color Display

7.5" 800x480 resolution Black/White/Red/Yellow
Sunlight-readable

Eco-Friendly Design

Zero static power consumption ＜500mW during updates
Battery-free operation




Technical Specifications

Screen size 7.5 inch
Screen type Black, White, Red, Yellow
Resolution 800x480
Update time 20s
Language Default English
Weight ≈204g
Dimension 196x138x12mm
Operation temp 0℃~40℃
Storage temp -25℃~70℃
Operation humidity 40%~70%

WiFi Version

GDP075FW1
Update power <500mW
Update method WiFi Update
Wi-Fi functionality requires USB cable power supply

USB Version

GDP075FU1
Update power <200mW
Update method USB Update

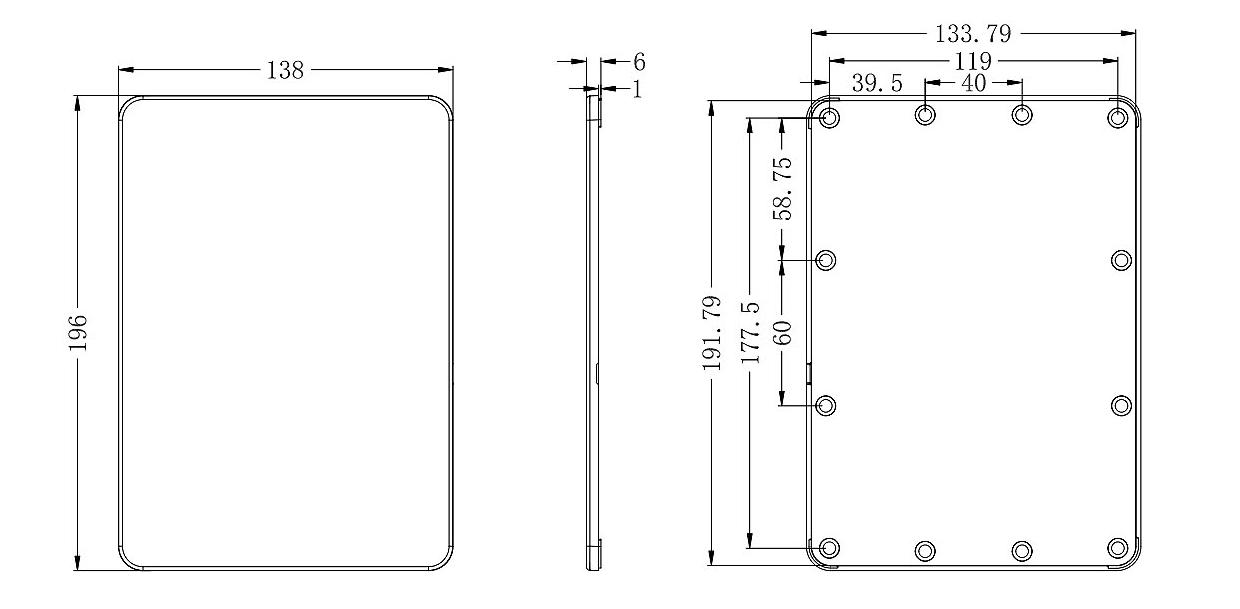

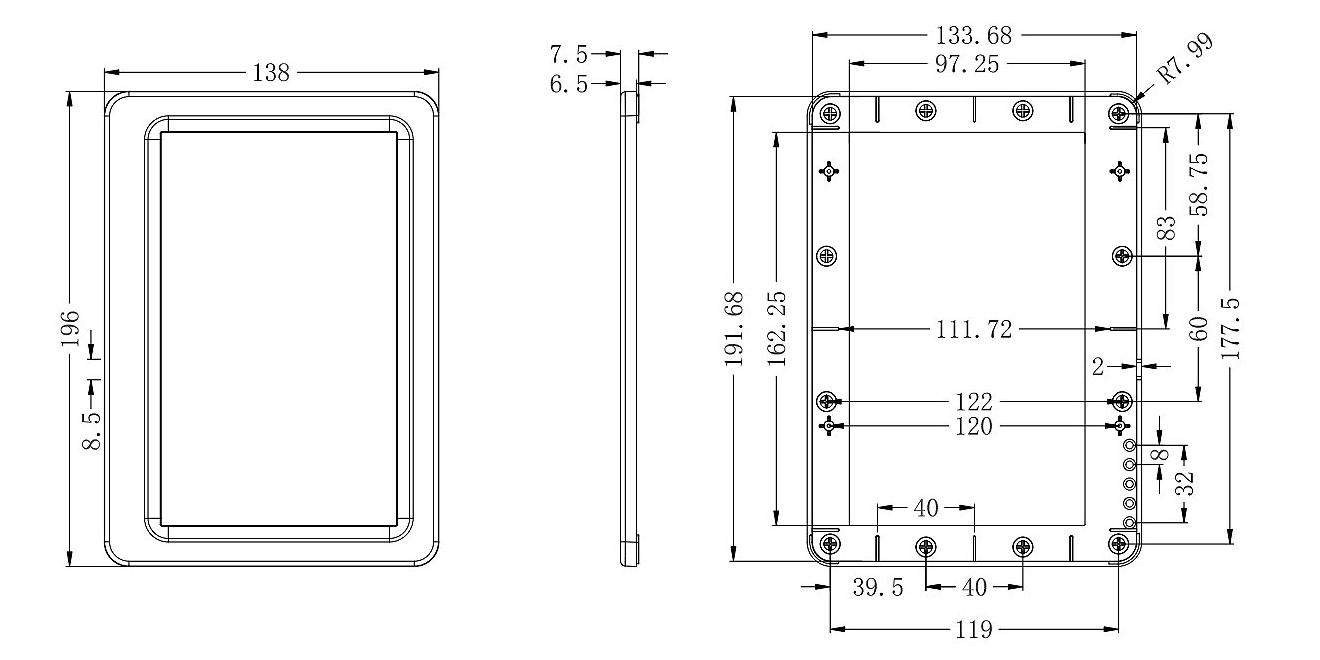

Drawing Details

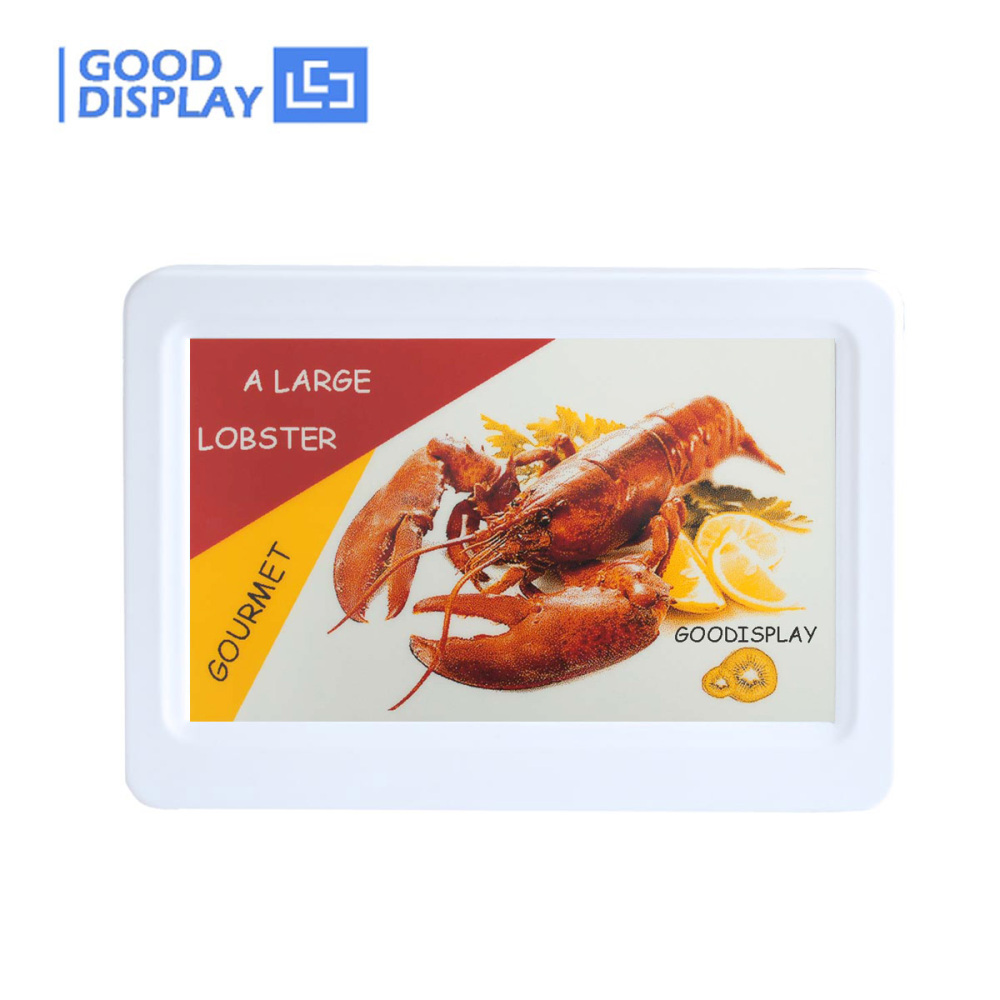

Front Side




Back Side




Modular Components

Housing Shell

EW075F12

7.5" Industrial-grade ABS Enclosure

+
E-Paper Display

GDEM075F52

4-Color E-Ink Panel with 130 DPI

+

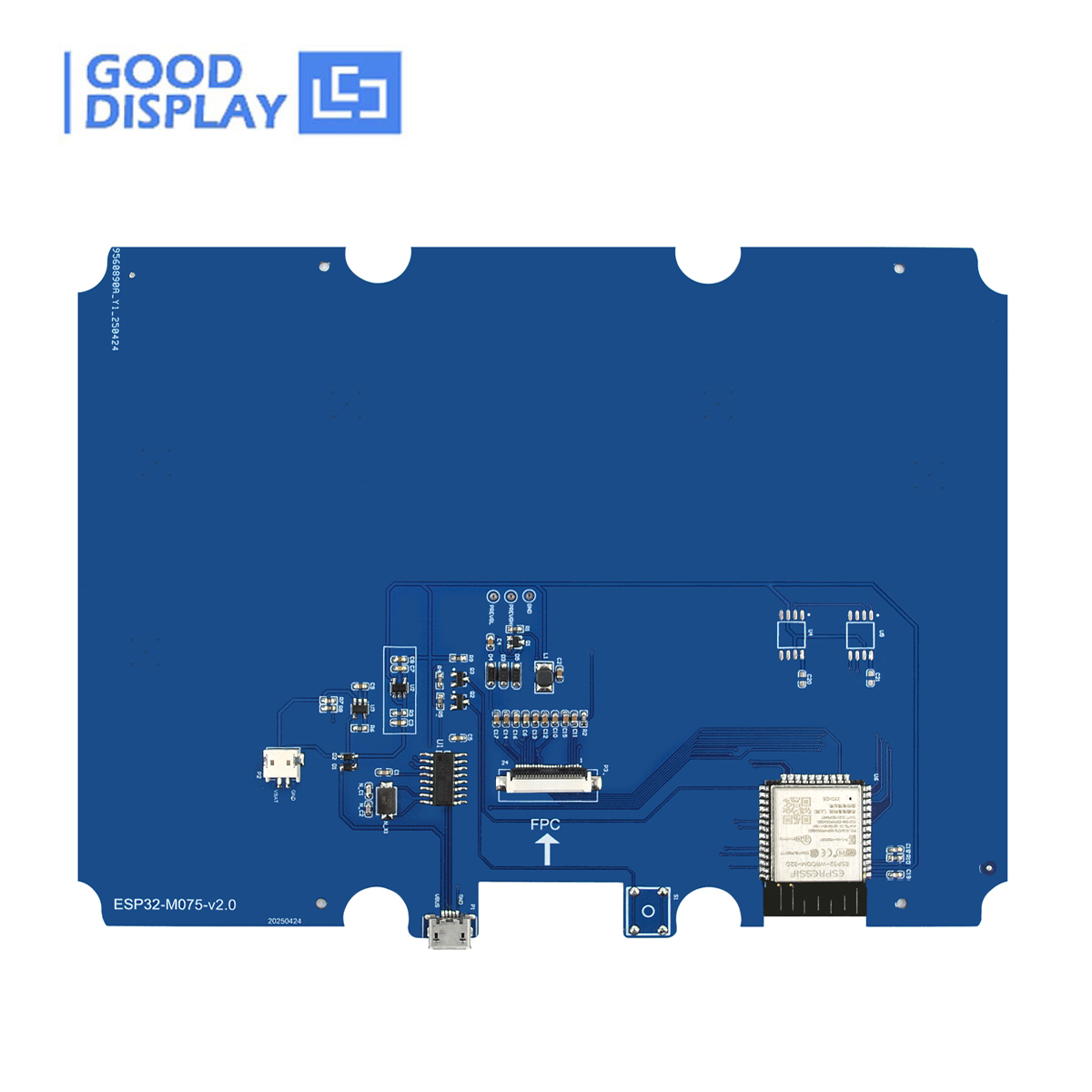

WiFi Driver Board

ESP32-M075

WiFi Enabled Control Module

+

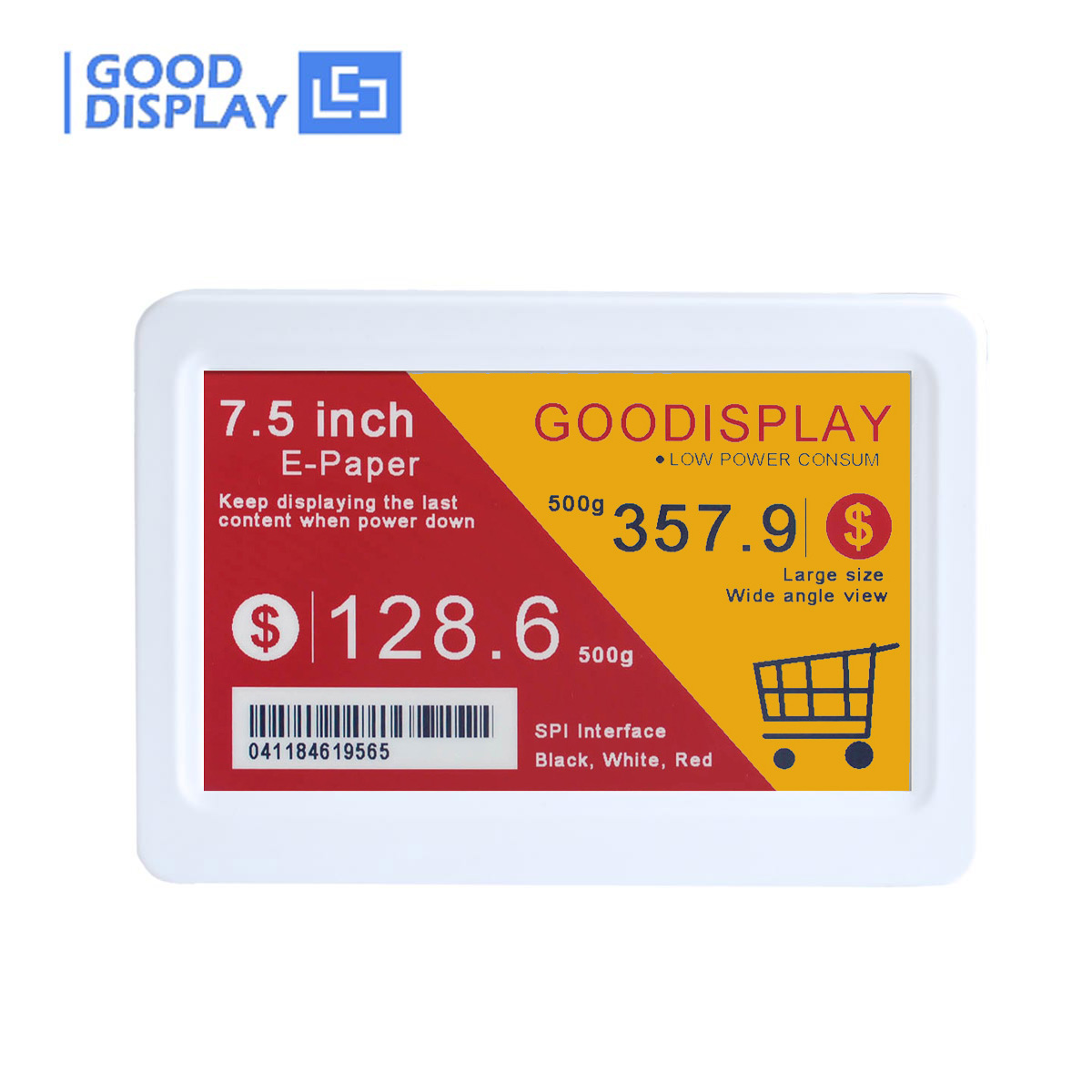

Final Product

GDP075FW1

WiFi Smart ESL
Solution

Housing Shell

EW075F12

7.5" Industrial-grade ABS Enclosure

+
E-Paper Display

GDEM075F52

4-Color E-Ink Panel with 130 DPI

+

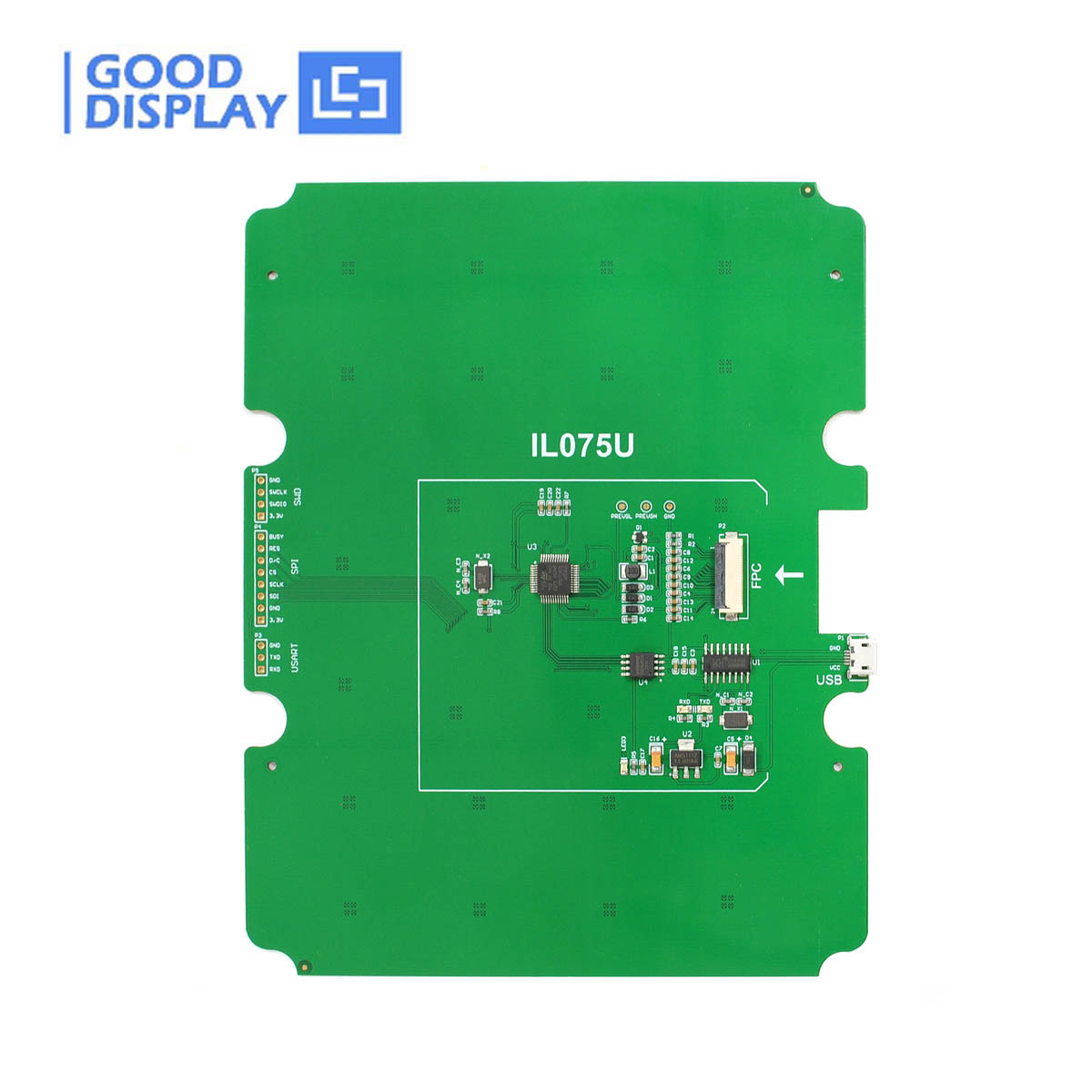

USB Driver Board

IL075U

USB Programmable Controller

+
Final Product

GDP075FU1

USB Programmable ESL Solution

Files & Download




Typical Applications

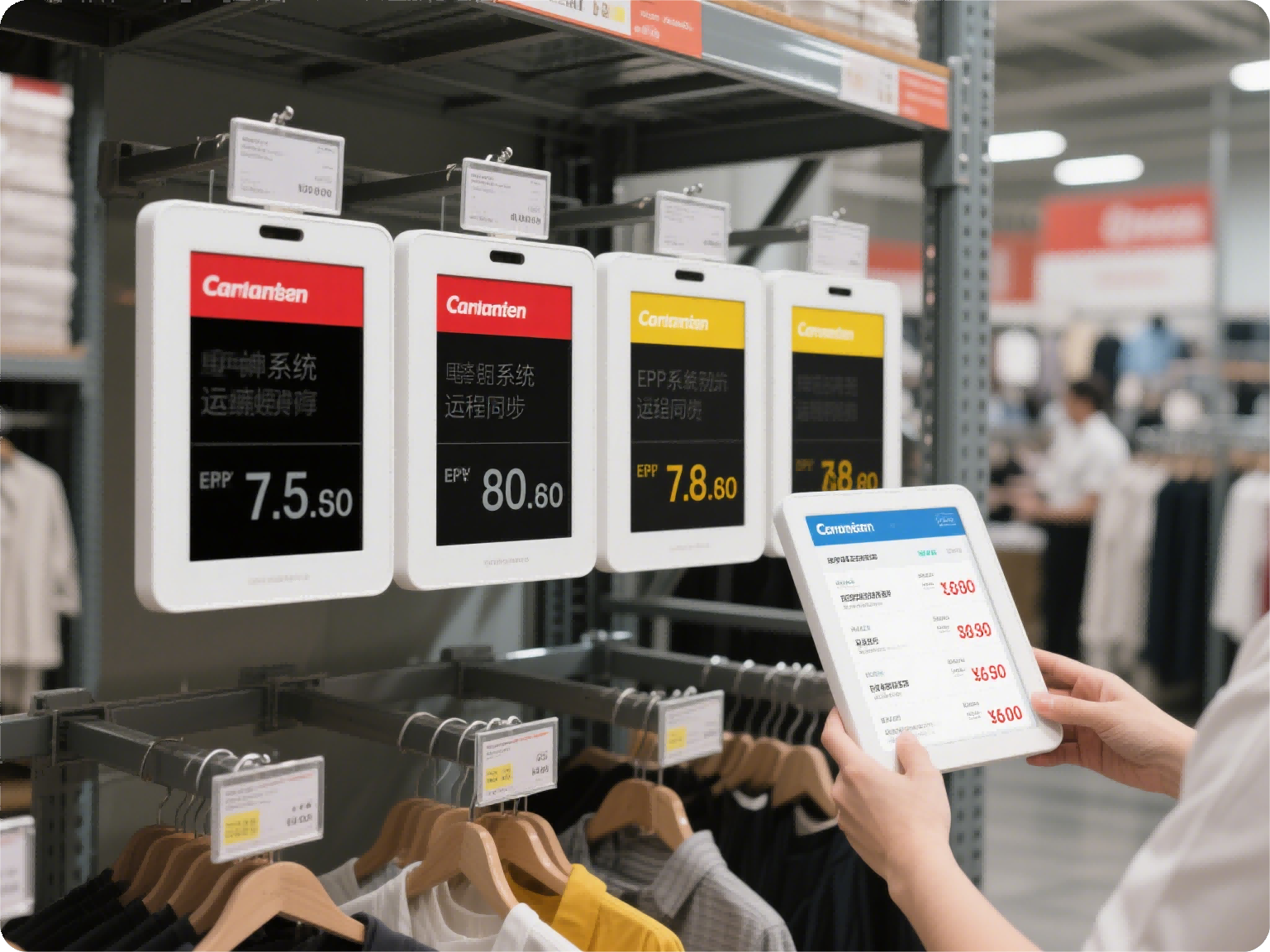

Supermarket

Product Price Tags and Labels

Multi-color Differentiation: Black text with red/yellow highlights (e.g., "Promotion," "New Product," "Discounted Price") attracts customer attention and increases conversion rates.

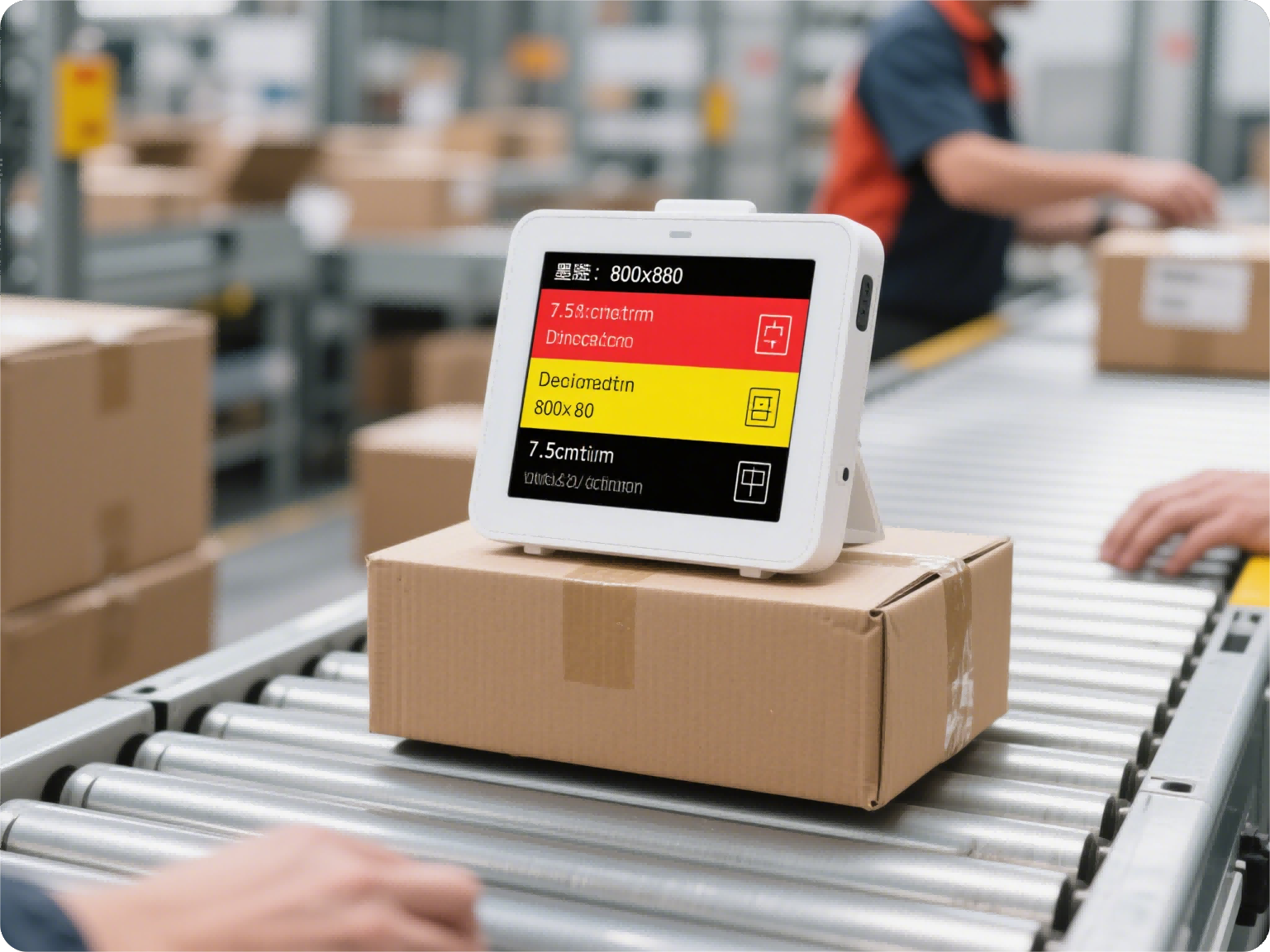

Logistics

Smart Digital Signage

Wear Resistance: Protective films can be applied to the e-ink surface, suitable for friction, dust, and other warehouse environments.

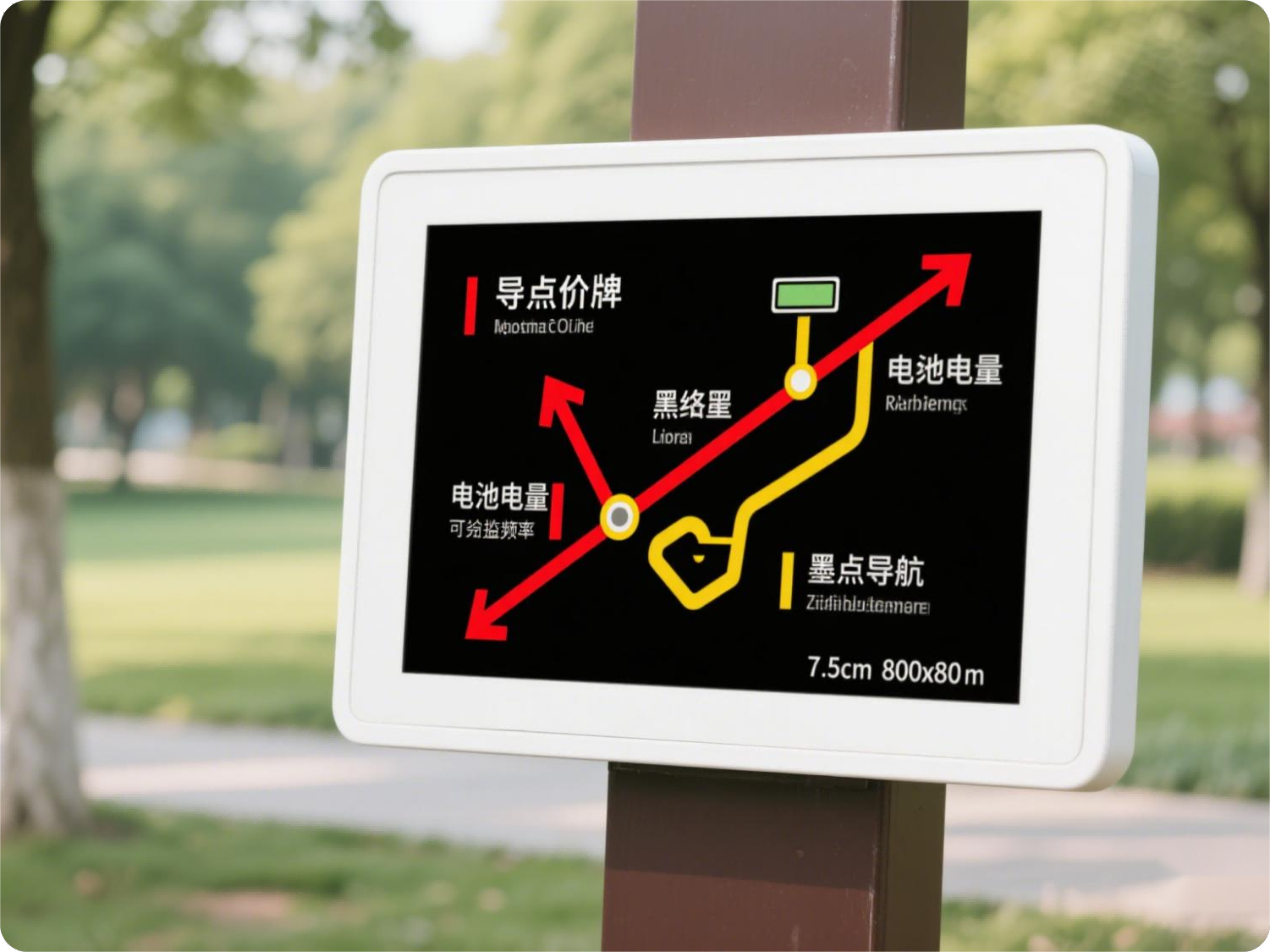

Outdoor

Public Services and Medical Scenarios

Long-Lasting Display: Battery life lasts months to years, minimizing maintenance frequency.






We Also Recommend

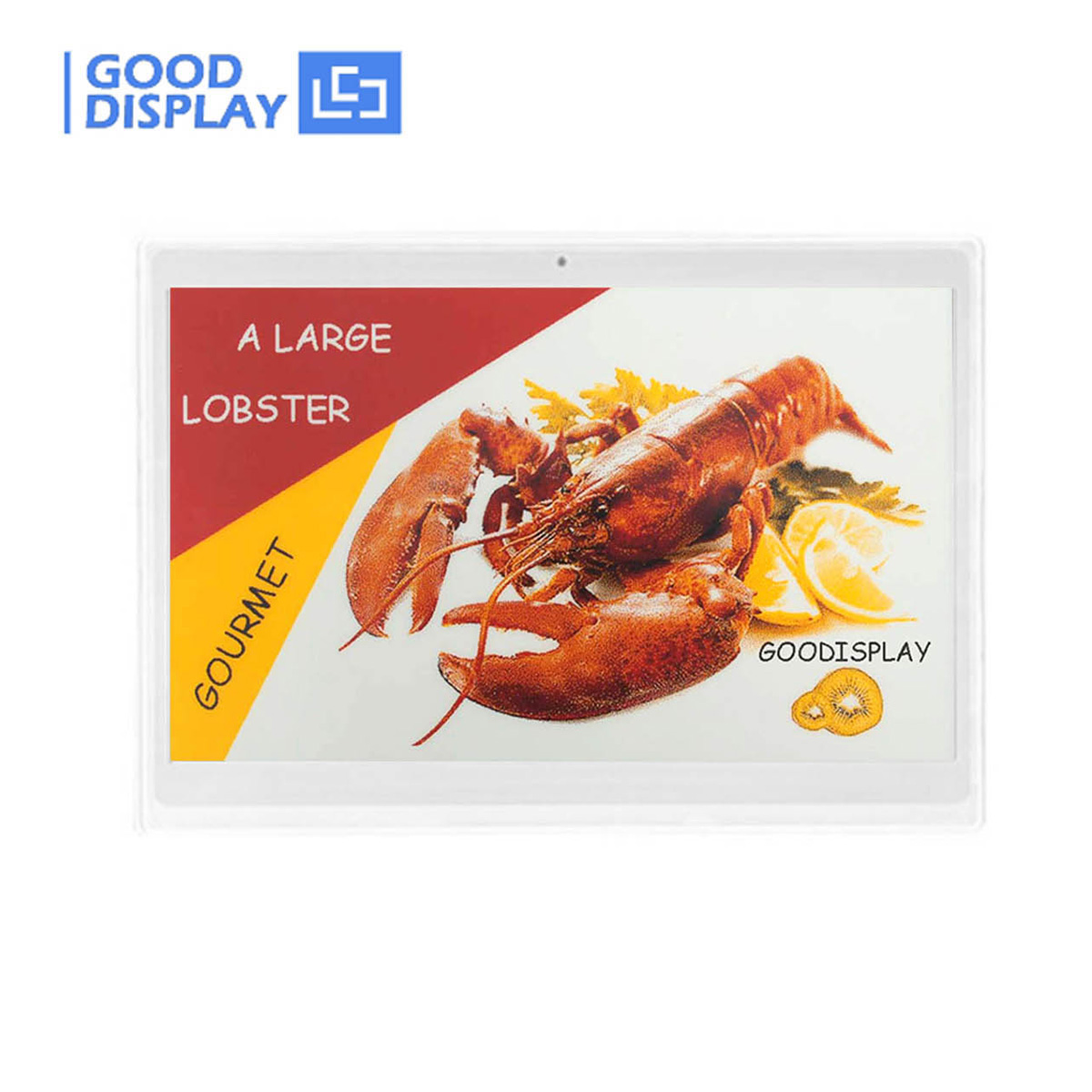

BLE Price Tag

7.5" BLE E Ink Tag

Customizable Bluetooth Label

View Details

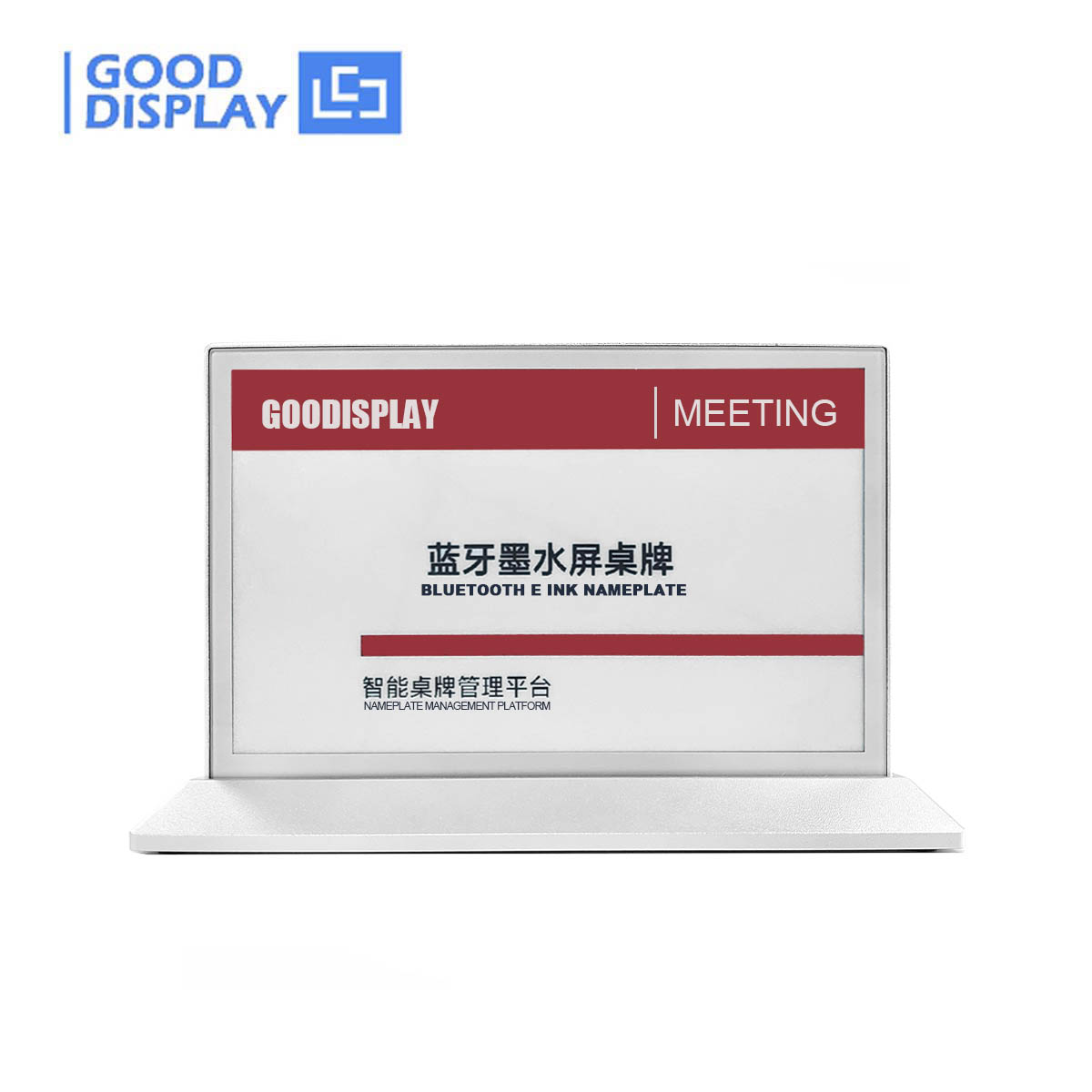

E Ink Desk Sign

7.5" E Ink Desk Sign

Bluetooth Color Solution

View Details

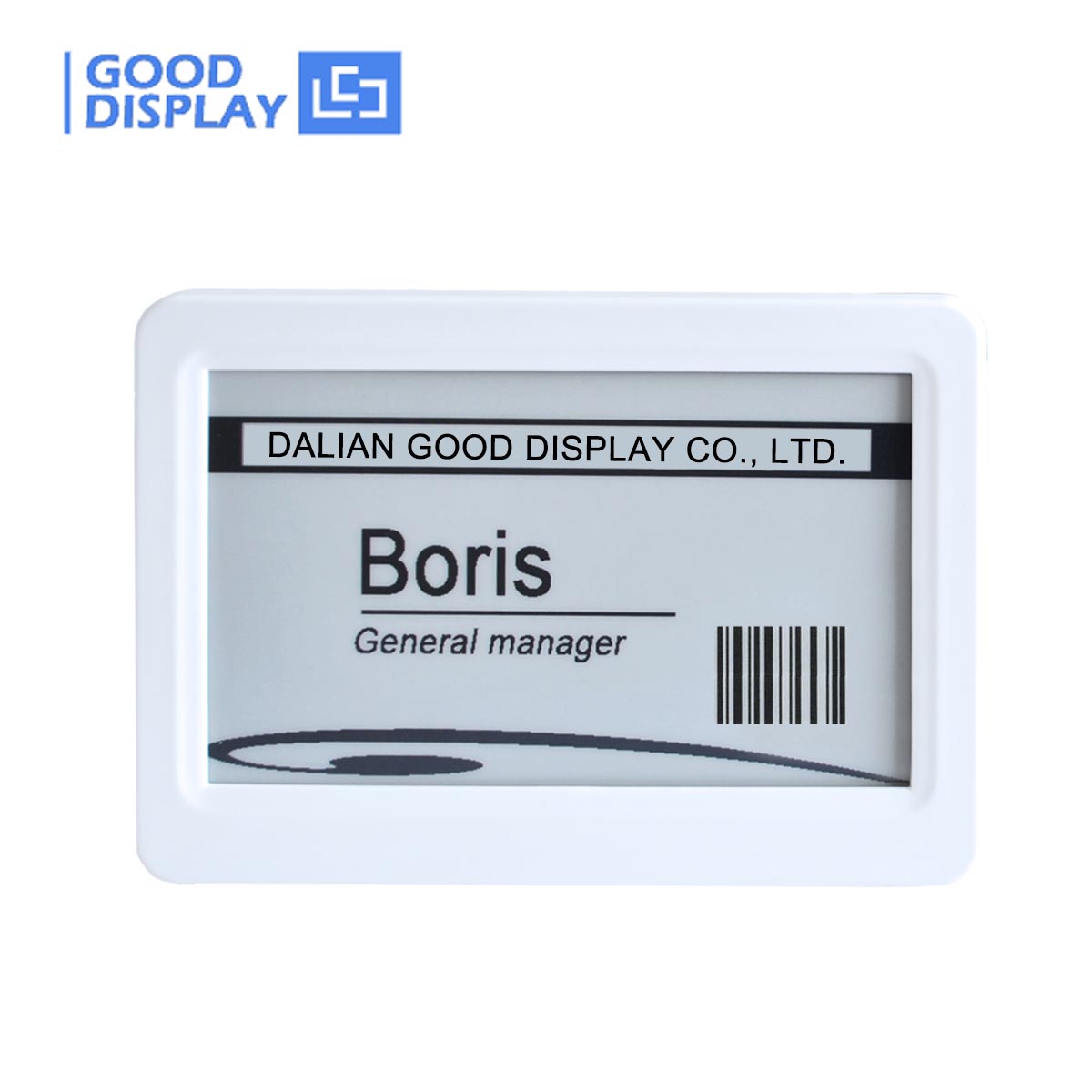

Monochrome ESL

Monochrome E Ink Lable

Cost-Effective Label Solution

View Details

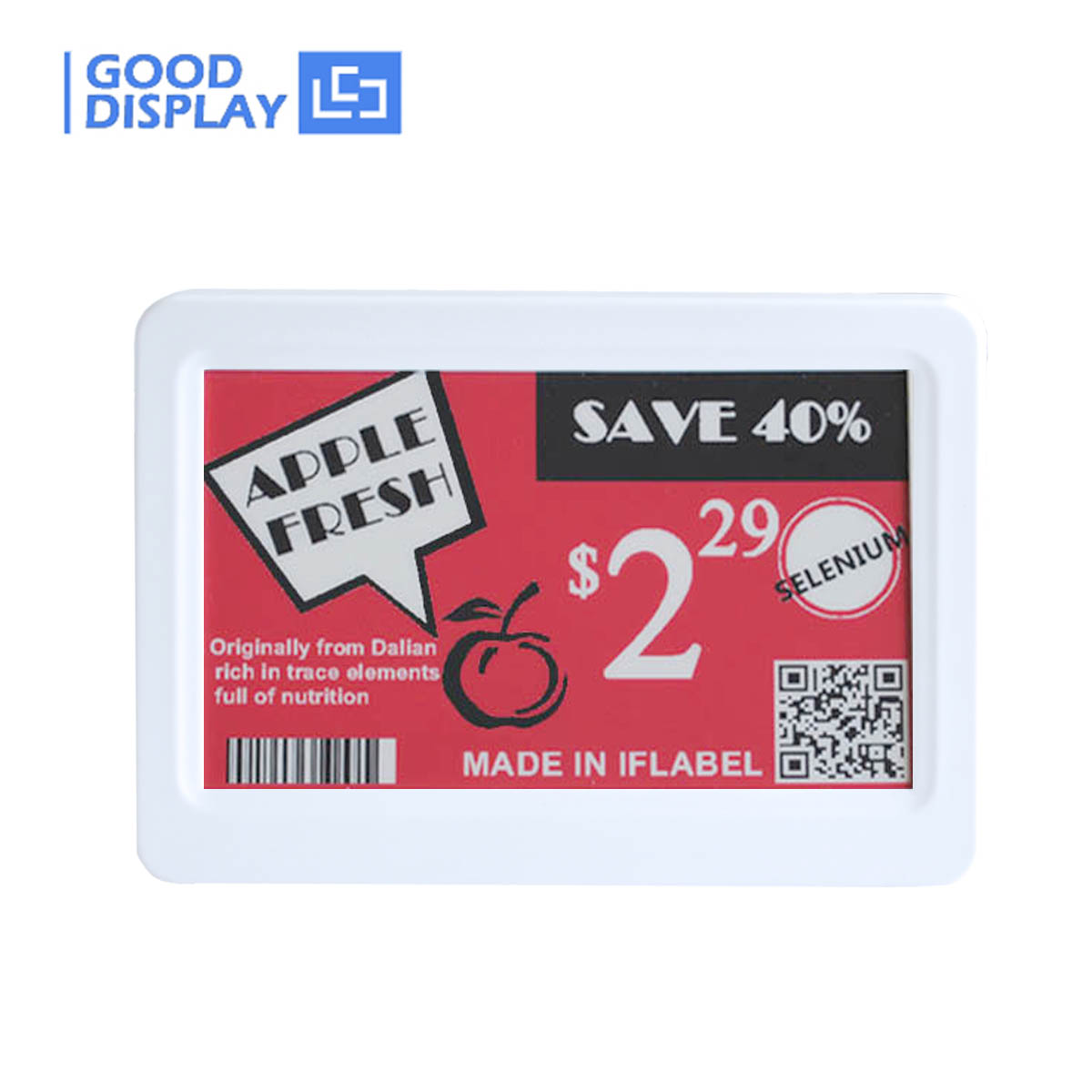

3-Color ESL
