13.3 inch SPI E Ink screen black white red three color resolution 960x680 e-paper display screen, GDEM133Z91

Sold:2
Have a question?
Price:
USD
$150.00
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
Quantity:
-
+
(400 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews



☆ INTRODUCTION

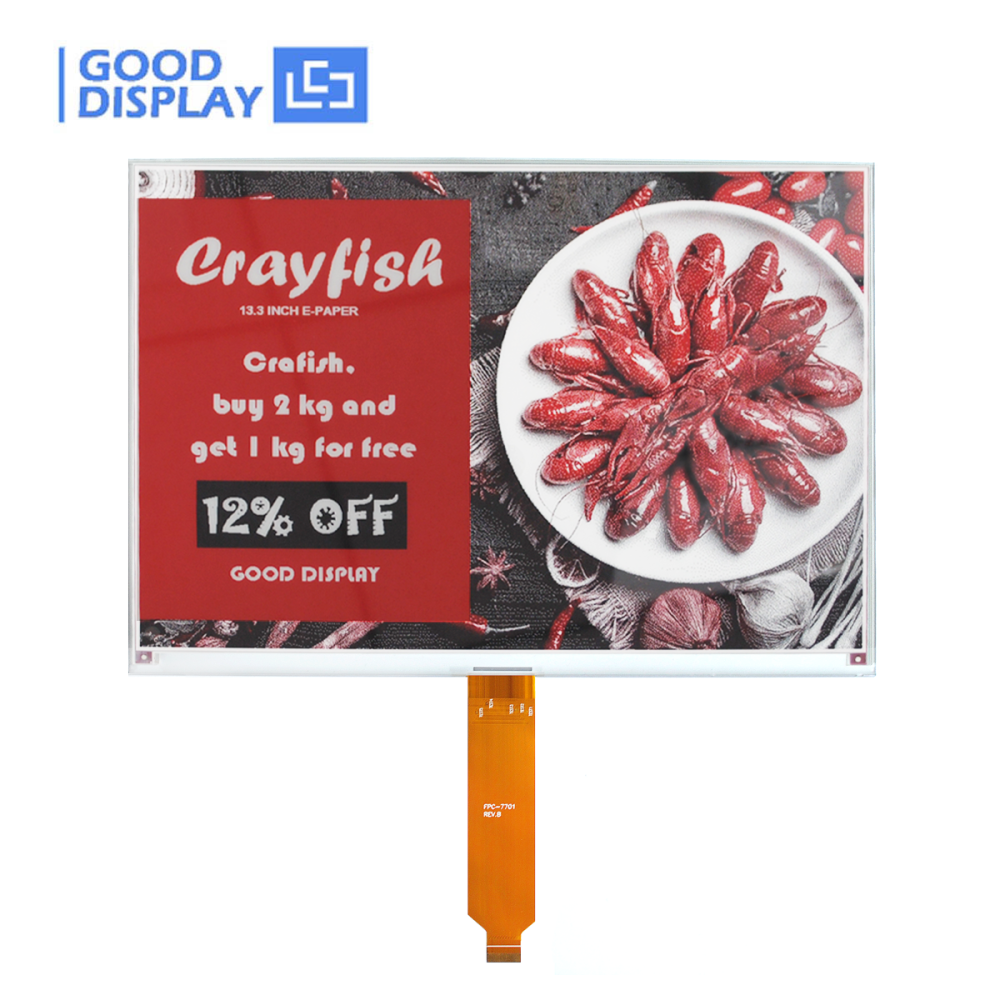

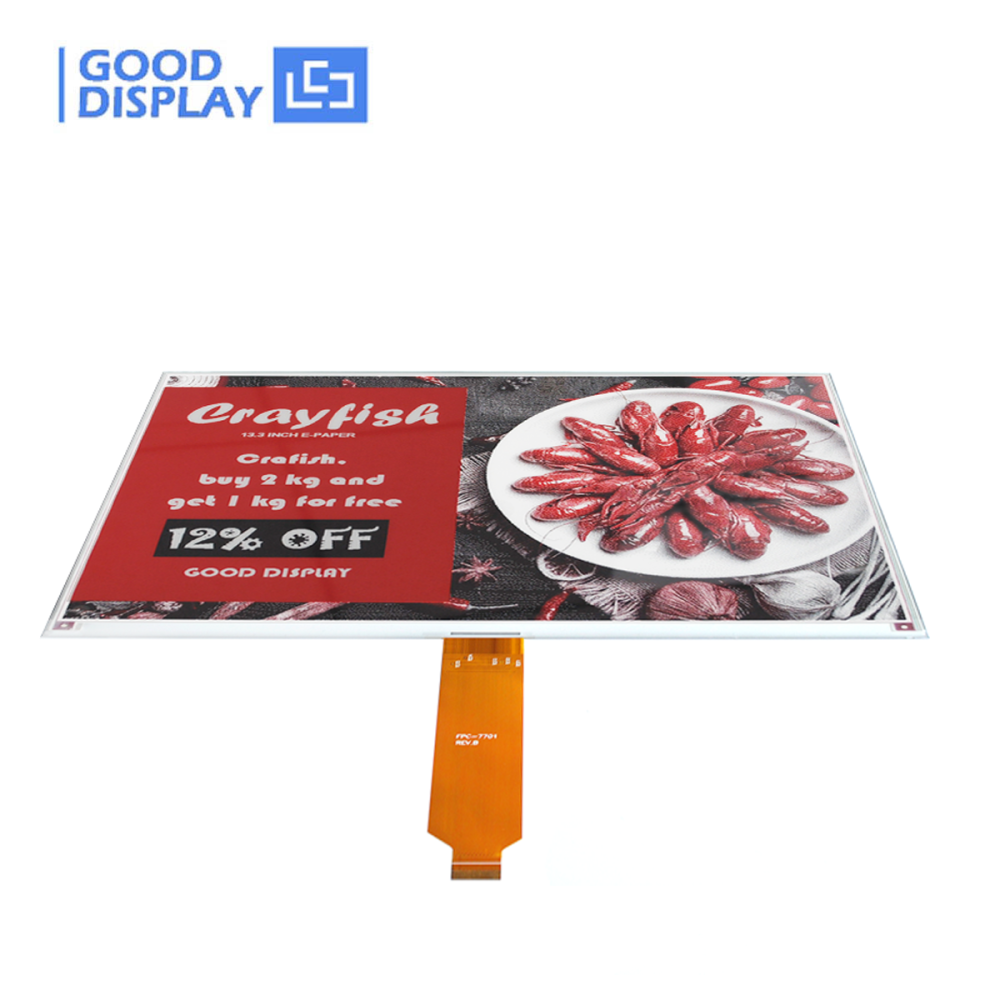

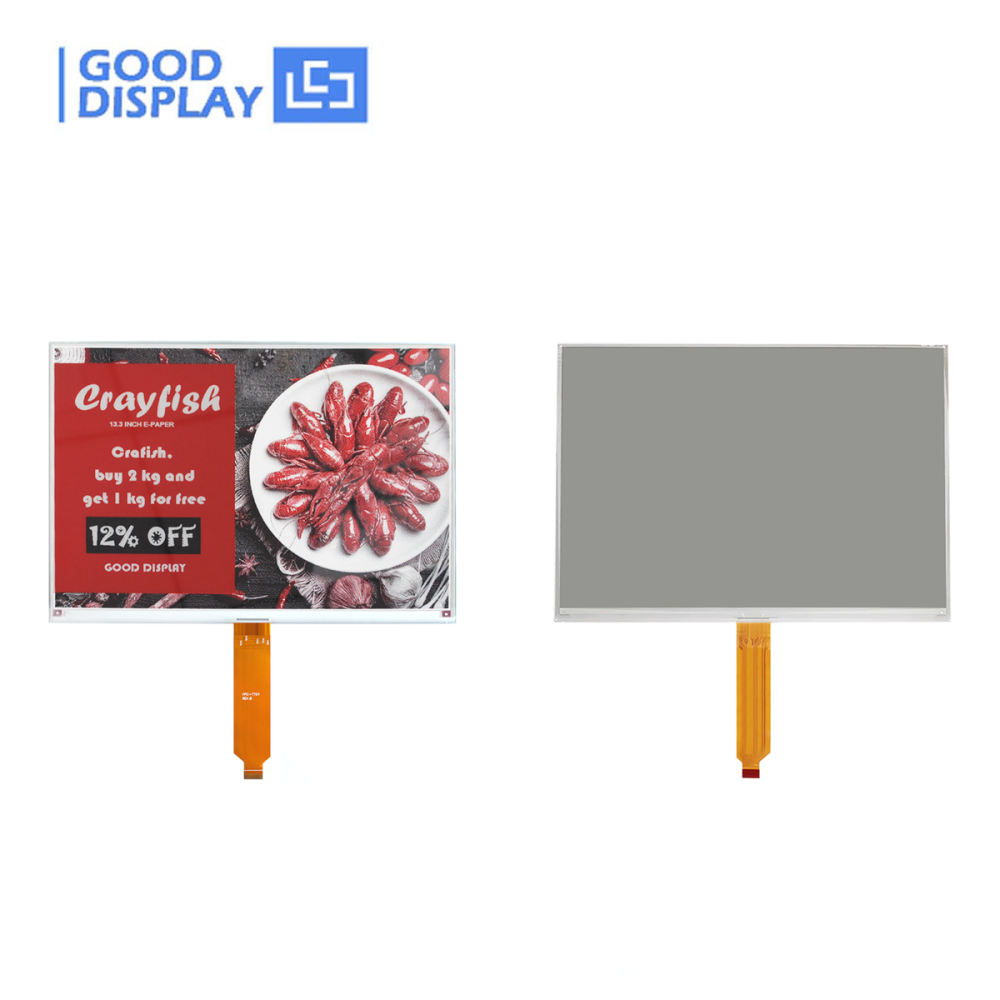

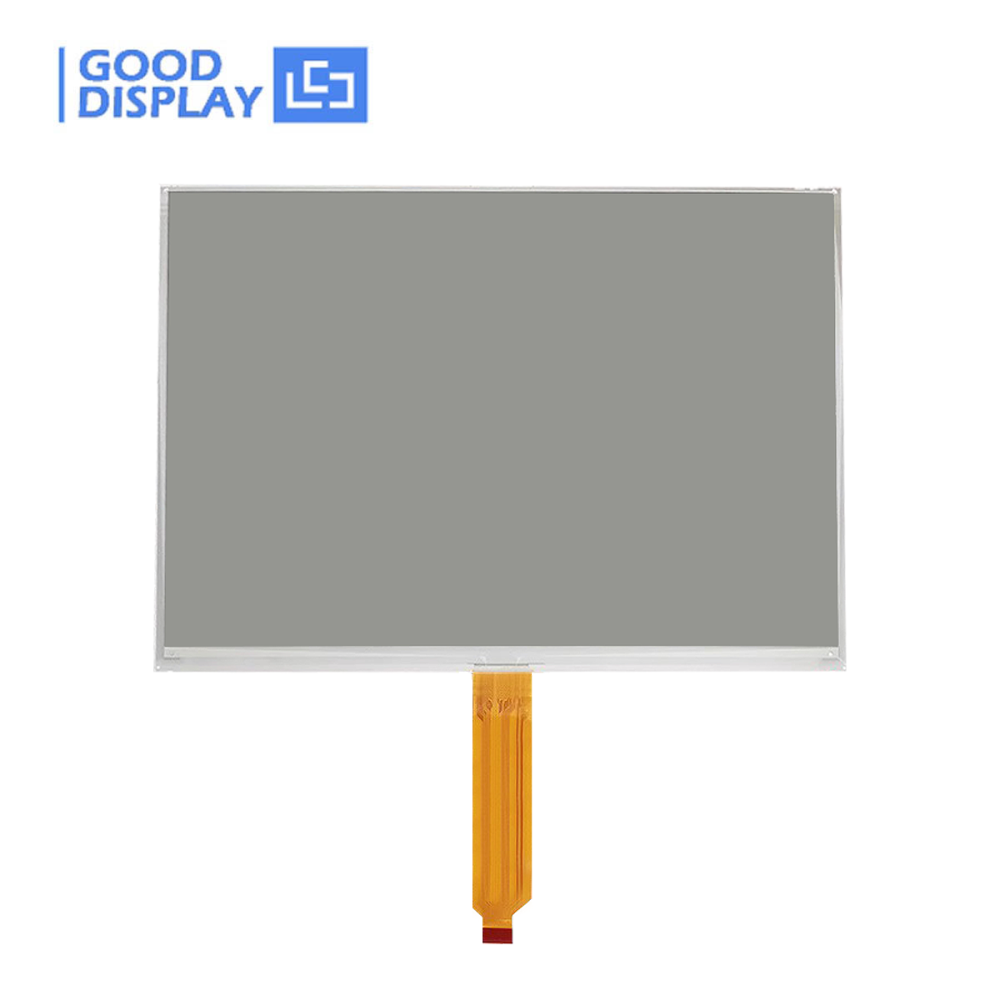

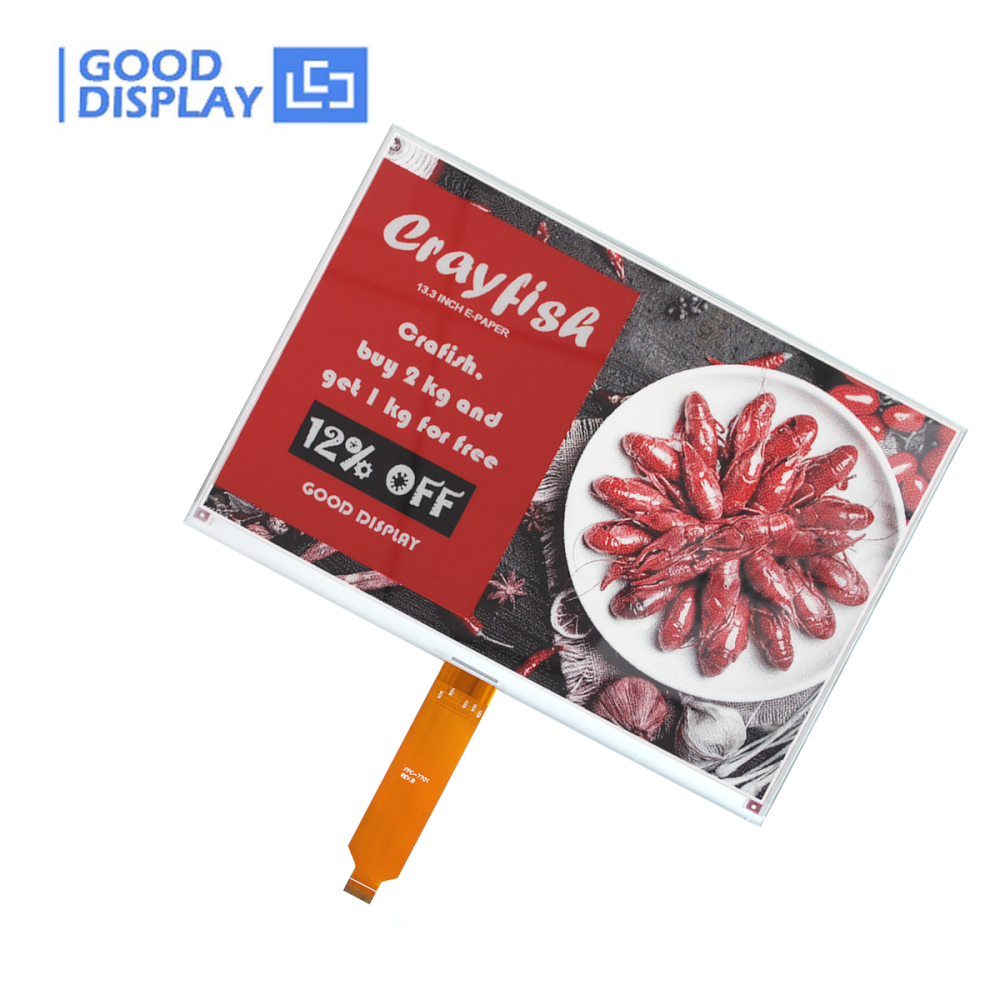

This is a 13.3 inch e-ink display large electronic paper screen, with 960x680 resolution, SPI interface, and the display is capable to display images with black white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 13.3 inch e-paper display GDEM133Z91 is an ideal choice for applications such as industrial instrument, ebook reader, electronic menu and so on.


We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

*Tip: Parallel port, wide temperature, high resolution, supports fast refresh and partial refresh, large size display screen.



☆ THE ABOVE PRICE INCLUDE

Package A +
  a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc   b. FPC Connector * 1pc

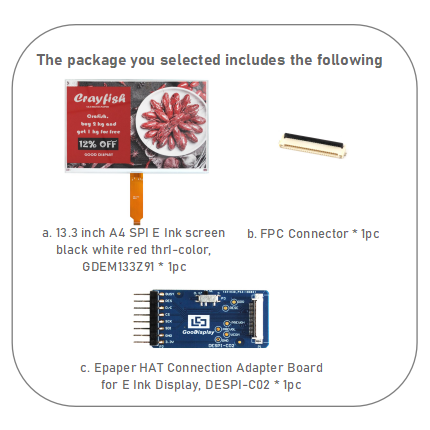

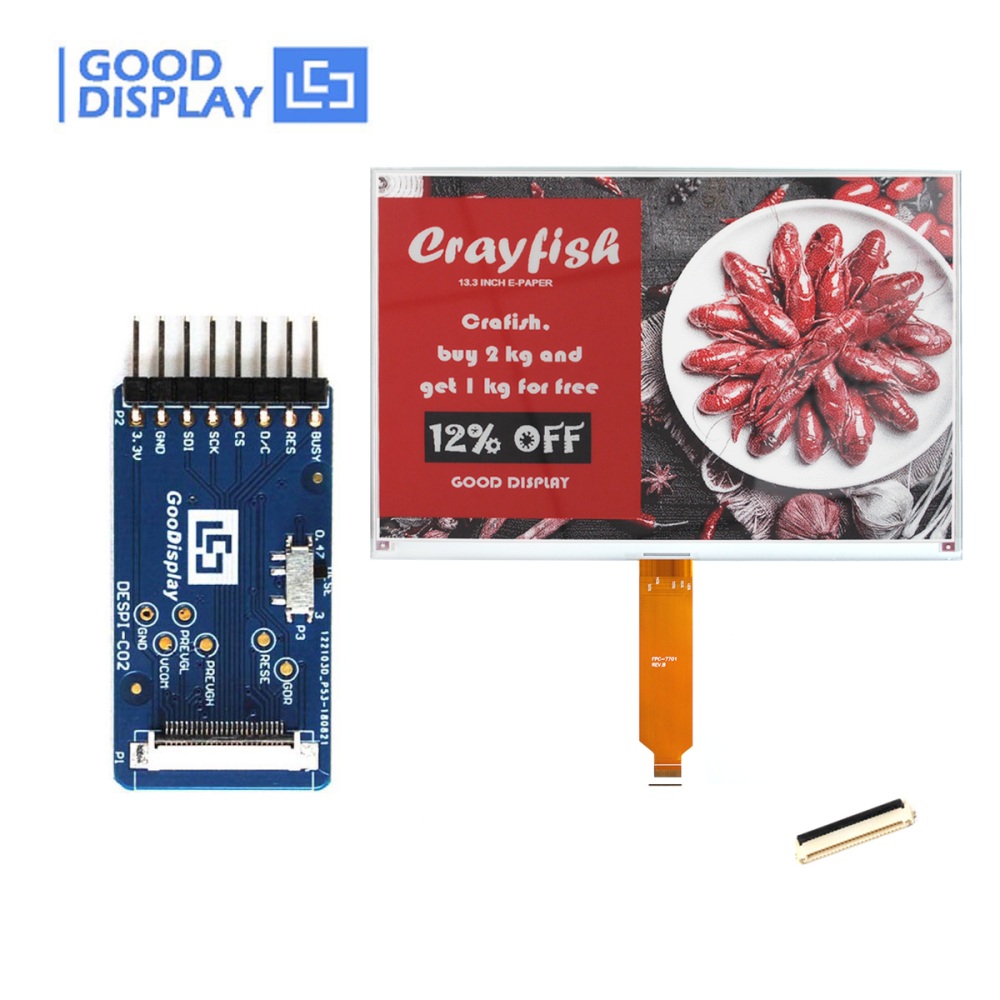

Package B + +

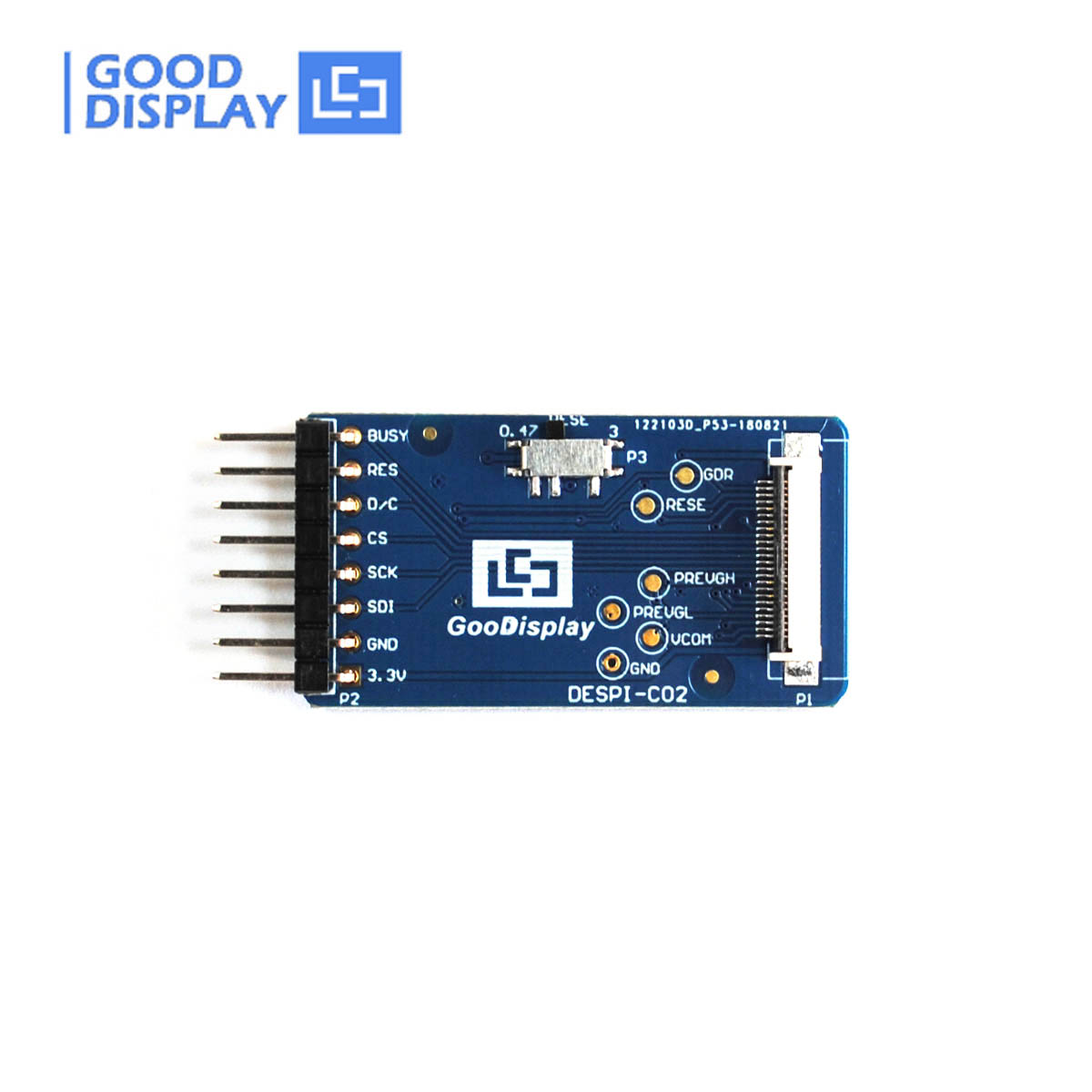

  a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

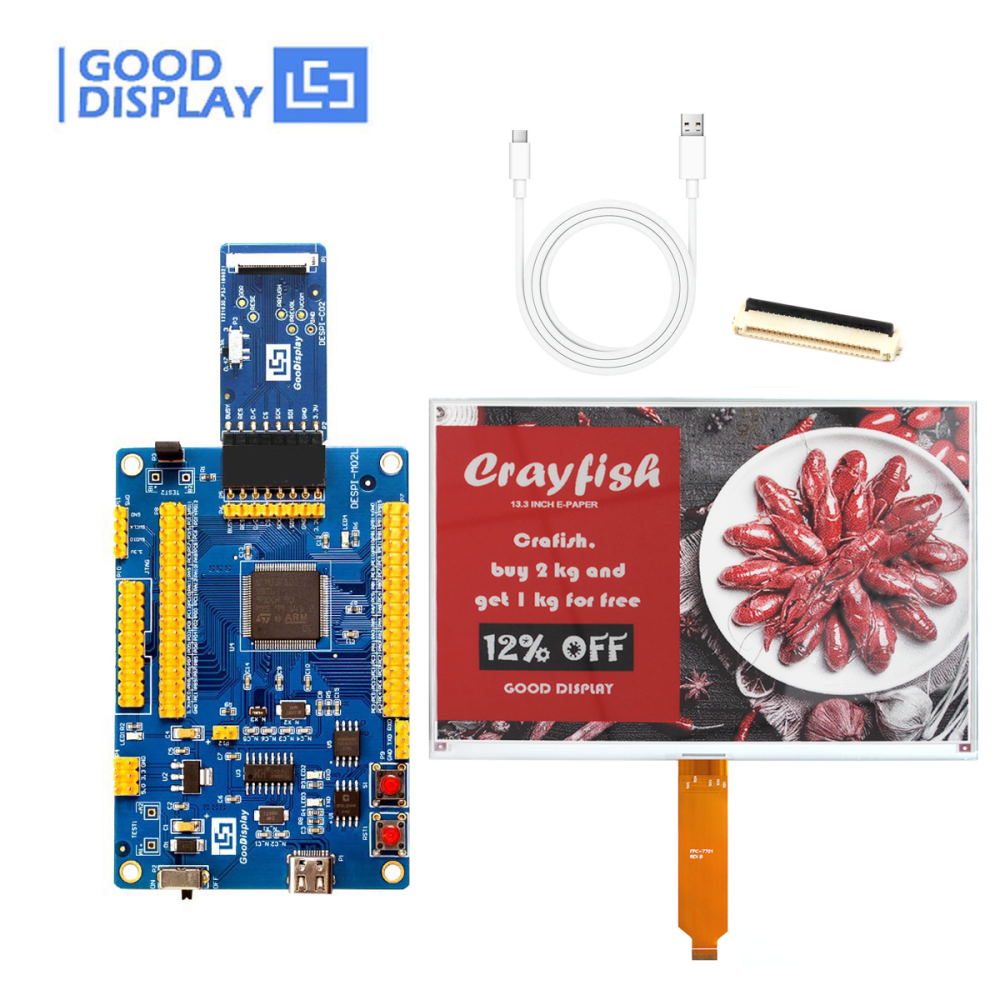

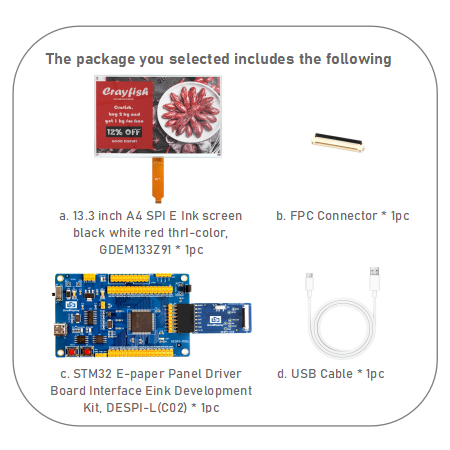

Package C + + +
a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc   b. FPC Connector * 1pc   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc   d. USB Cable * 1pc

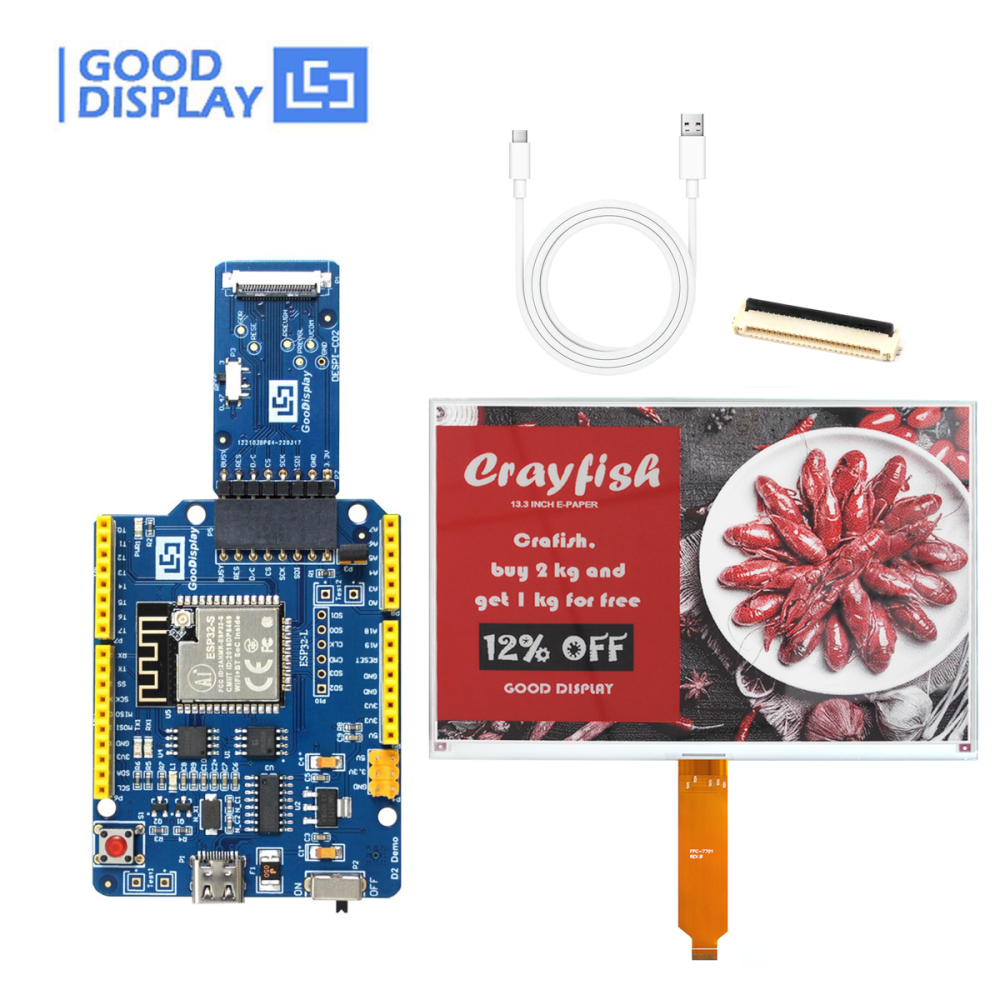

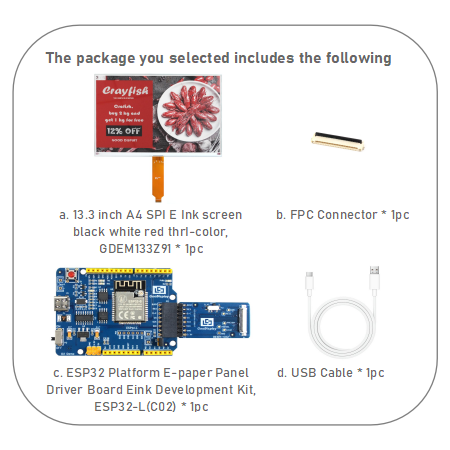

Package D + + +
a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc   b. FPC Connector * 1pc   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc   d. USB Cable * 1pc





☆ MAIN PARAMETERS



PART NUMBER

GDEM133Z91

SIZE

13.3 inch

 INTERFACE SPI

TYPE

Dot Matrix

 MAX GRAYSCALE 16

RESOLUTION

960X680

 COLOR Black,White,Red

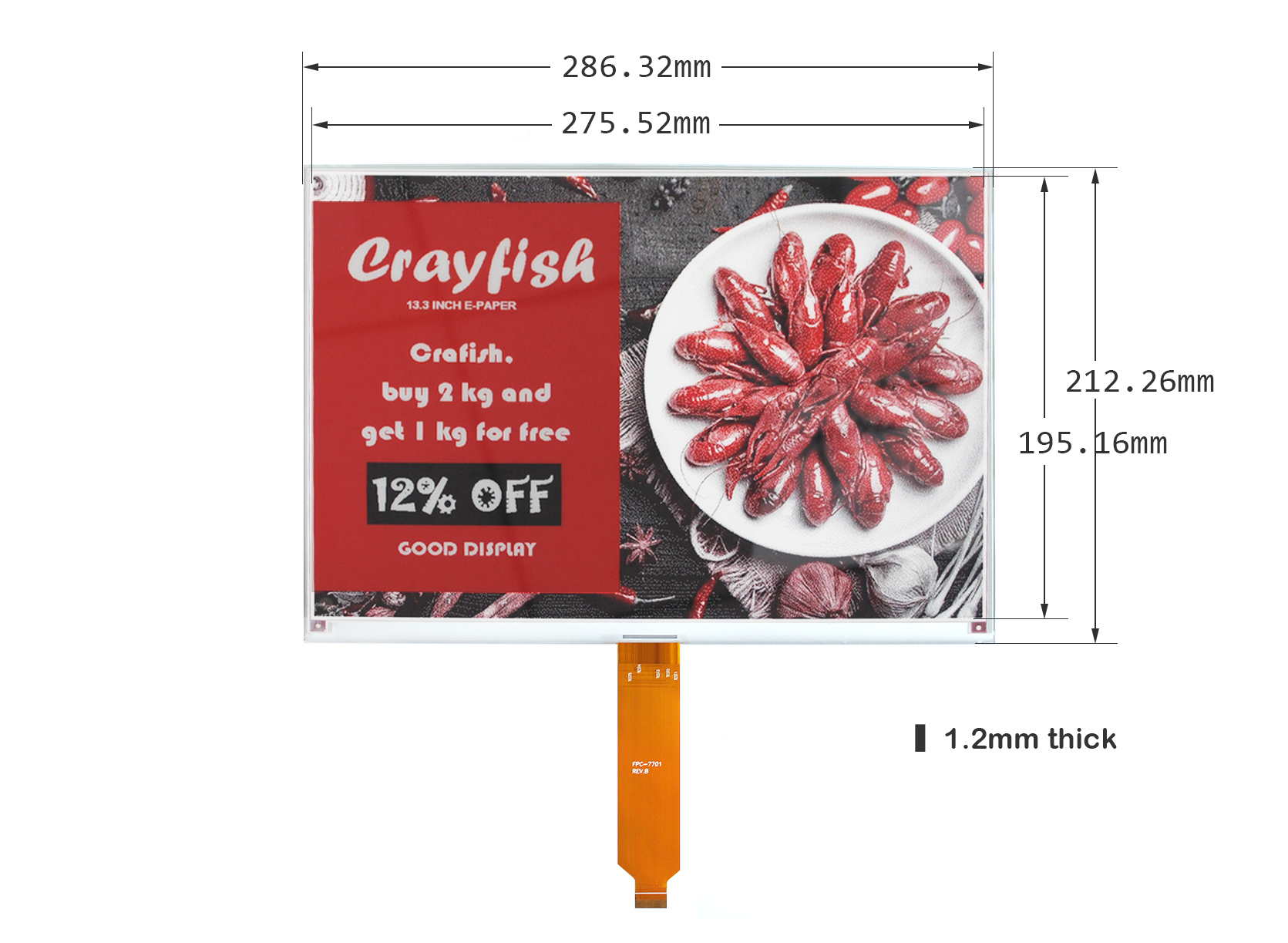

OUTLINE SIZE(mm)

286.32×212.26 ×1.20

 FULL SCREEN UPDATE(s) 4

ACTIVE SIZE(mm)

275.52×195.16

 PARTIAL SCREEN UPDATE(s) 1

PIXEL PITCH(mm)

0.287×0.287

 POWER CONSUMPTION OF THE REFRESH(mW) 66

OPERATING TEMP.

0℃~50℃

 STANDBY POWER CONSUMPTION (mW) 0.003
STORAGE TEMP. -25℃~60℃





☆ FEATURE



●  Support Partial Refresh.
●  Versatile. Use in portrait or landscape format
●  Bistable. (Will continue to display with no power source)
●  Wide temperature operating range from -25℃~60℃ with 1-bit WF
● Low power consumption, basically power is only required for refreshing

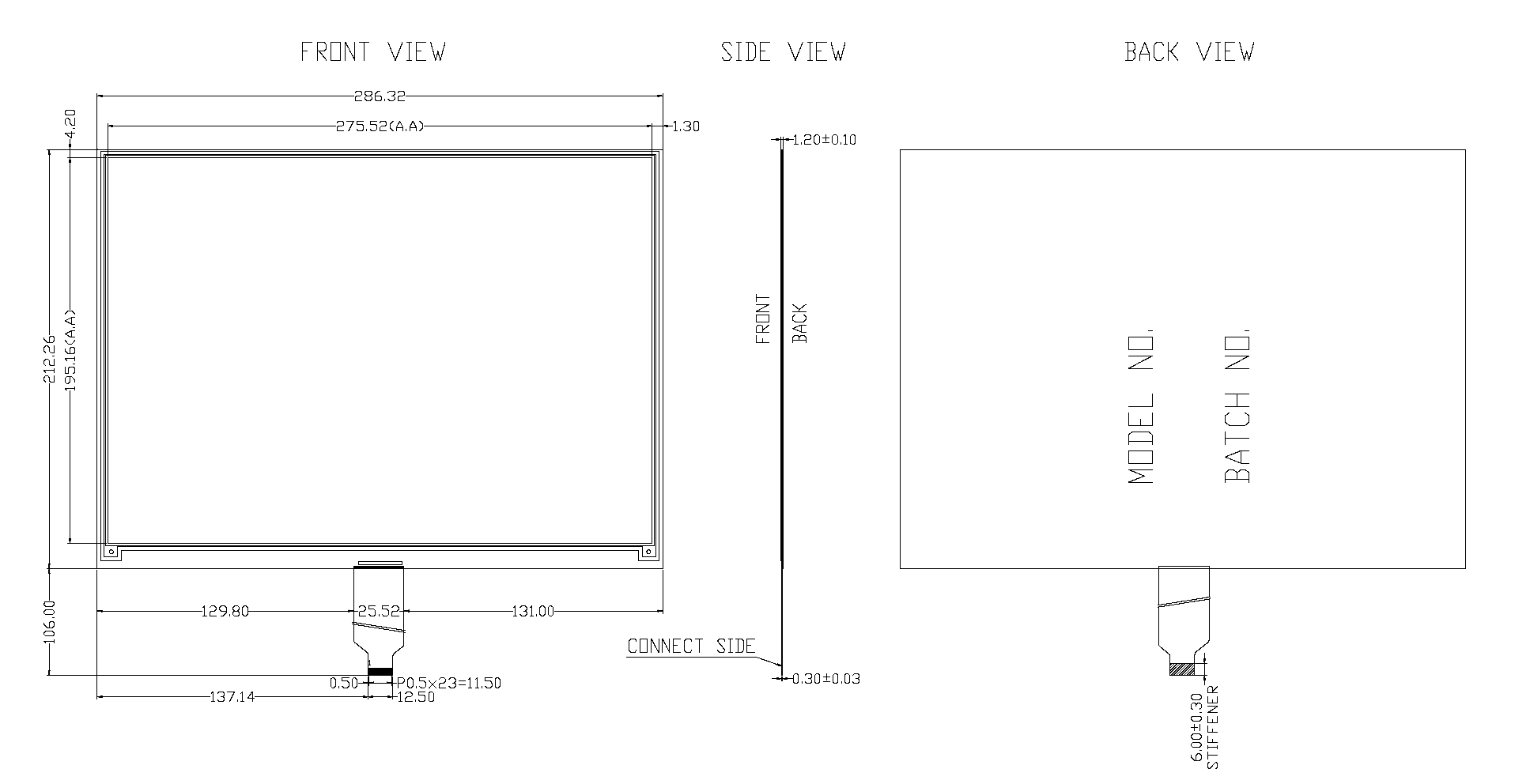

☆ DRAWING





☆ RELATED INFORMATION DOWNLOAD



● GDEM133Z91_Specification

● Picture Production and Bitmap Convert for GDEM133Z91

● GDEM133Z91 STM32 Sample Code

● GDEM133Z91 ESP32 Sample Code

● GDEM133Z91 ESP8266 Sample Code




☆ WE ALSO SUGGEST...



10.85-inch large ePaper red tri-color narrow E Ink screen 1360x480, GDEM1085Z51

10.2-inch large ePaper four color E Ink screen 960x640, GDEM102F91

 Photovoltaic Intelligent Electronic Notice Board with 10.85-inch 3-color E-paper display, paperless solution, DMIF1085RBP1

12.48 inch Large E-ink Display UC8179 Big Epaper Color Screen, GDEY1248Z51
Monochrome 13.3 inch Big E-ink Display HD 1600x1200 Resolution E-paper Screen, GDEP133UT3 13.3 inch E-ink Display Large E-Paper HD Electronic Paper Screen, GDEM133T91 13.3 inch color electronic signs ACeP high score 1600 x 1200 color ePaper signage, DMPQ133AC1 largest 31.2 inch e-ink big screen menu advertising display large e-ink display, GDEP312TT3




☆ ABOUT US


Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].


PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEY042T91 4.2'' BW 2 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEQ042Z21 4.2'' BWR 2 400x300 84.8x63.6 19 0℃~40℃     SPI
GDEY0579T93 5.79'' BW 2 792x272 139.00×47.74 3 0℃~50℃     SPI
GDEY0579Z93 5.79'' BWR 2 792x272 139.00×47.74 20 0℃~40℃     SPI
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEY0583T8 5.83'' BW 2 648x480 118.78x88.22 3 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃ √   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEP097TC2

9.7''

BW

16

1200x825

202.8x139.425

1

0℃~50℃

√



Parallel
GDEQ102T90 10.2'' BW 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEQ102Z90 10.2'' BWR 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
GDEY1248Z51 12.48'' BWR 2 1304x984 252.98x190.90 25 0℃~40℃     SPI
GDEP133UT3 13.3'' BW 16 1600x1200 270.4x202.8 1 -15℃~65℃     Parallel
