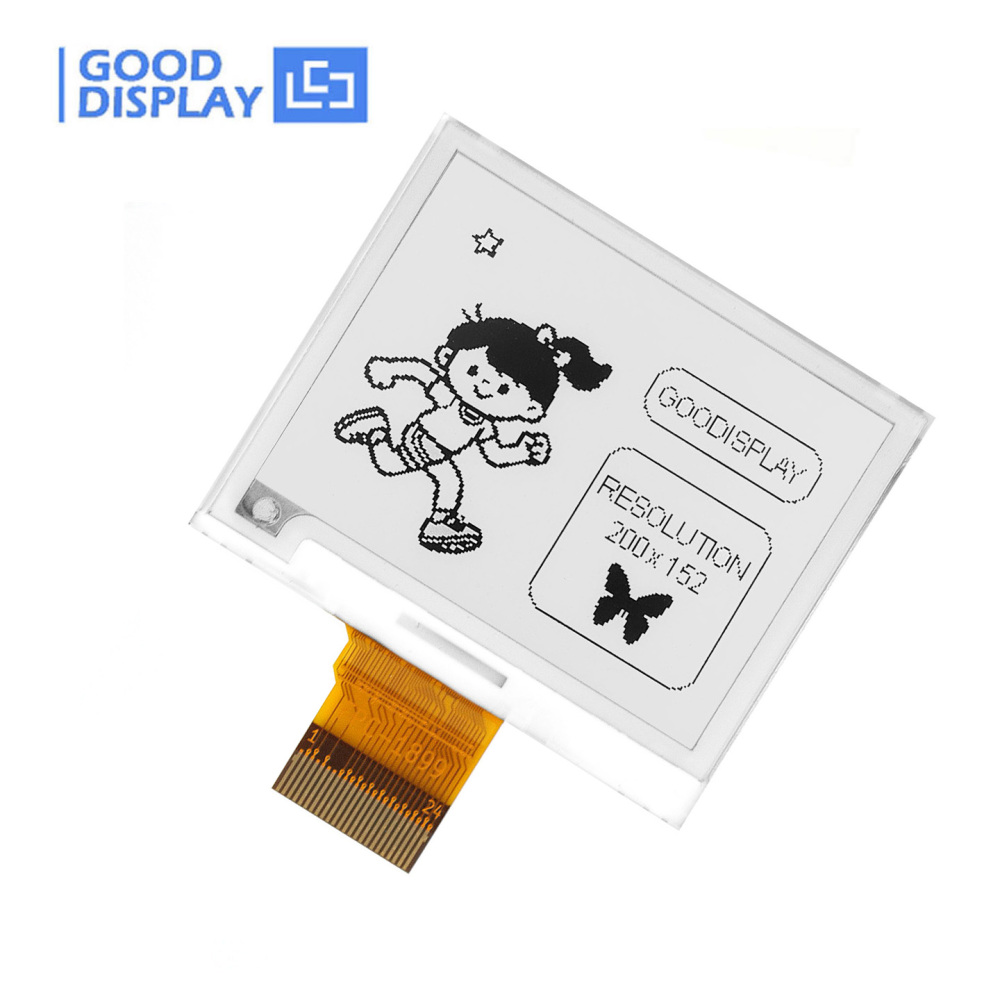

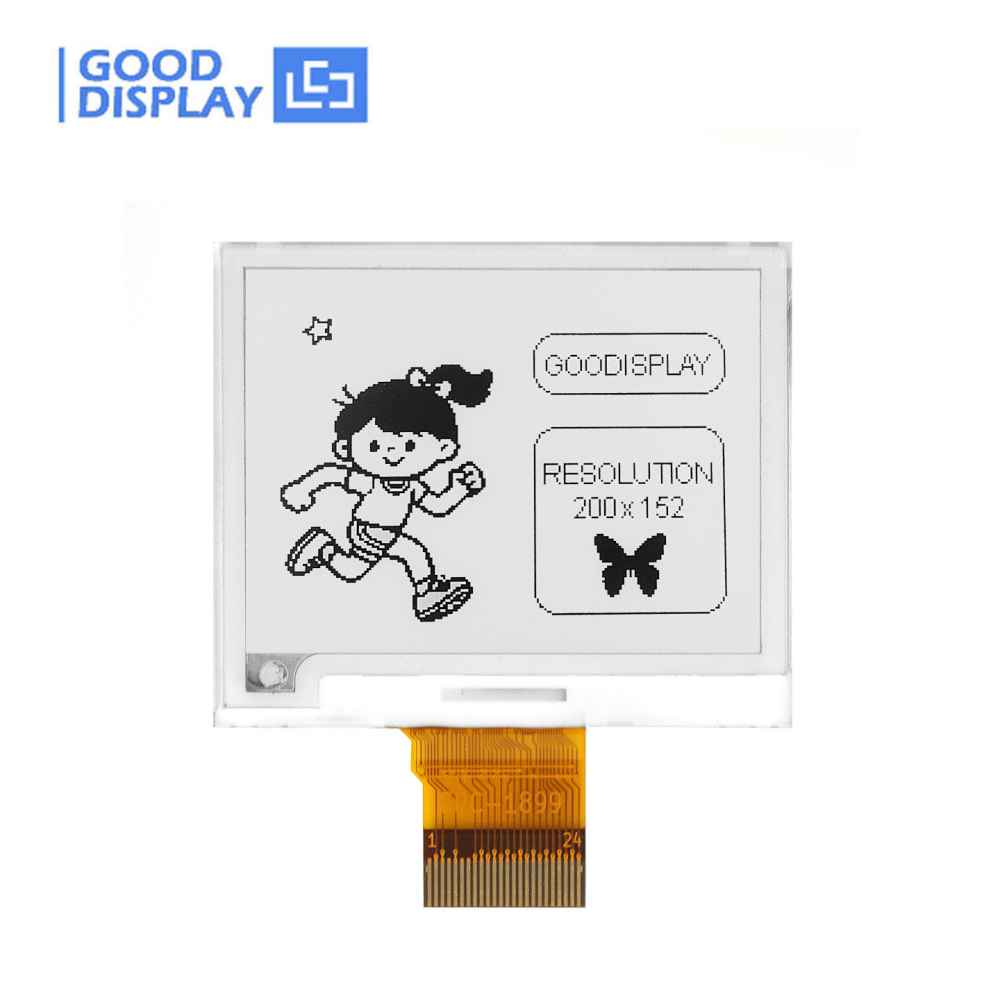

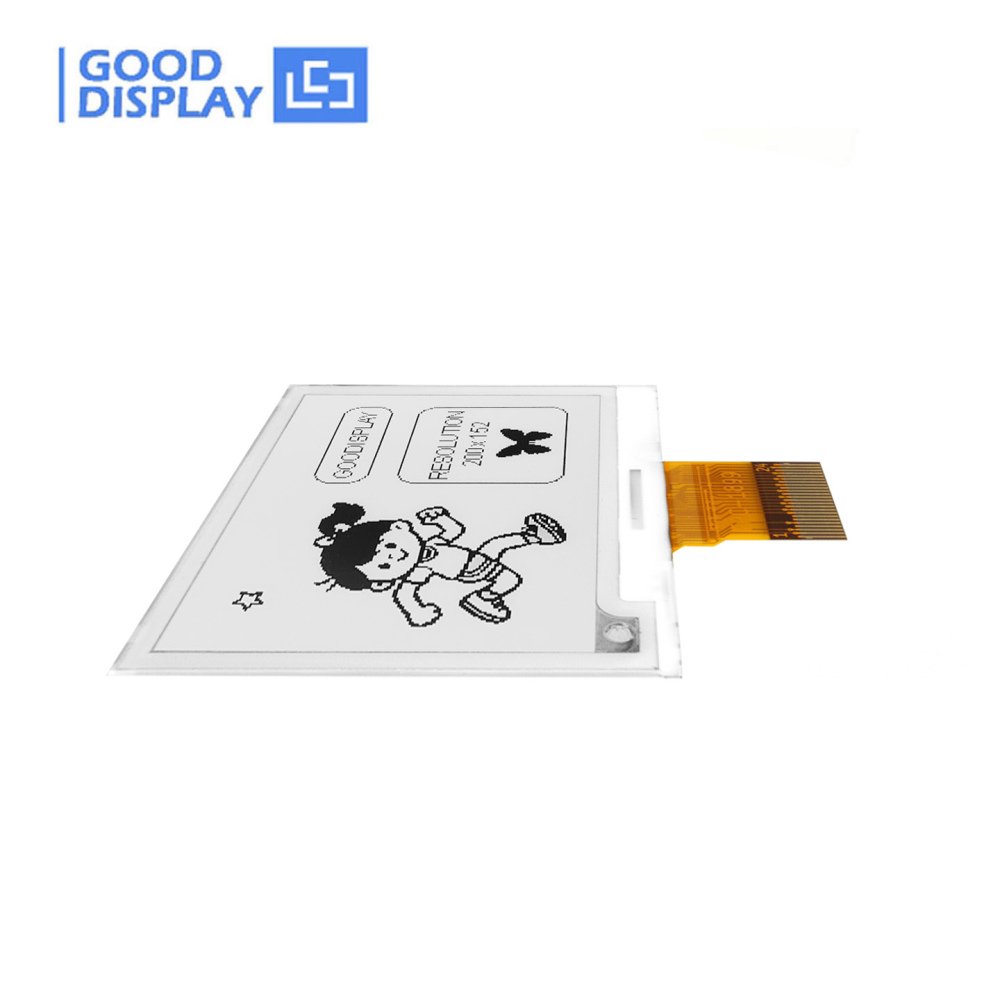

200×152 reflective film with a crisp 0.191mm pixel pitch delivers sharp text and detailed graphics — perfect for electronic shelf labels, portable instruments and compact industrial displays.
200×152 Resolution 133 PPI 0.191mm Pitch
Multi-Mode Refresh Control
Supports 2s full refresh and 0.3s partial refresh with on-chip OTP waveform — balancing speed and image quality for battery-powered designs. 4-level grayscale adds flexibility.
0.3s Partial 2s Full 4 Grayscale
Microwatt-Class Power
4.5mW typical operating power, 0.0006mW deep sleep and 0.23µA sleep current — months of battery life on a single coin cell. Bi-stable image stays readable with power removed.
4.5 mW typ. 0.0006 mW deep sleep 0.23 µA sleep
Technical Specifications
Part Number
GDEM0189T61
Size
1.89 inch
Type
Dot Matrix, Monochrome EPD
IC
SSD1681
Resolution
200×152
PPI
133
Color
Black, White
Interface
SPI (4-wire / 3-wire)

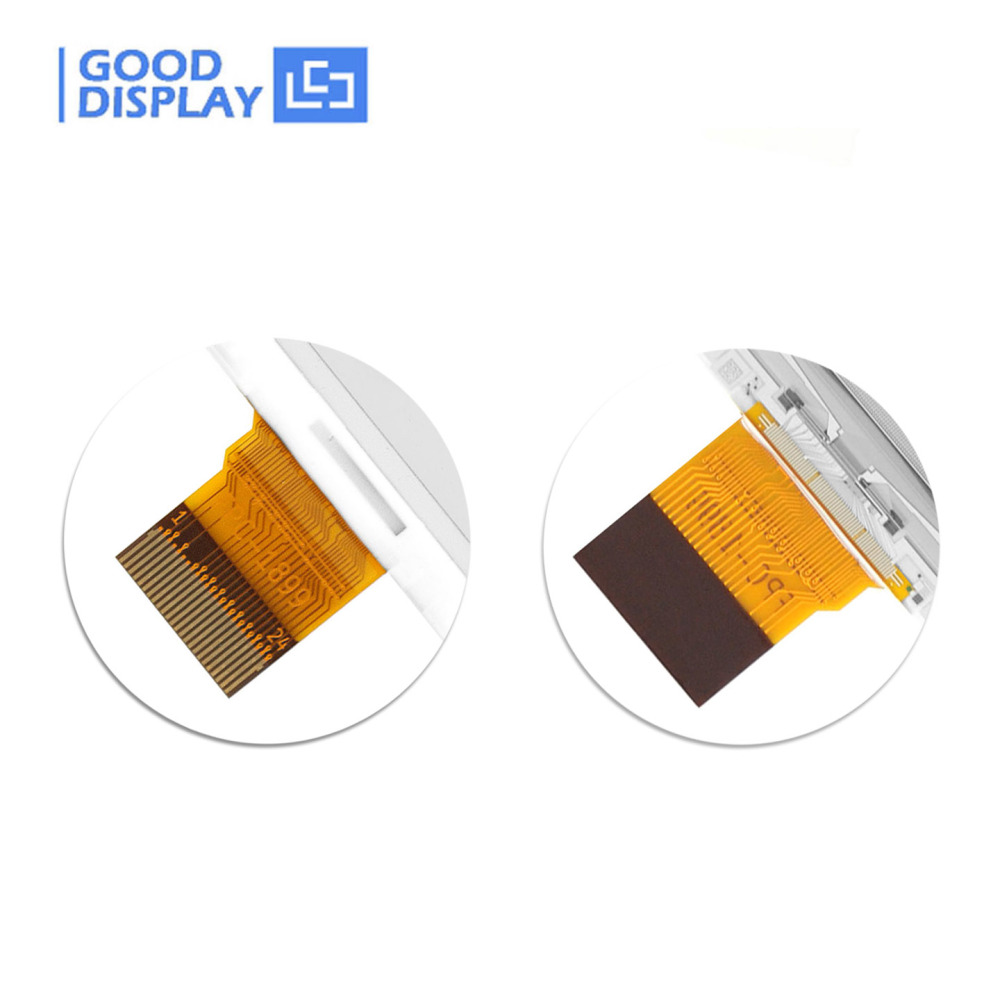

Connector
24-pin FPC, pitch 0.5 mm

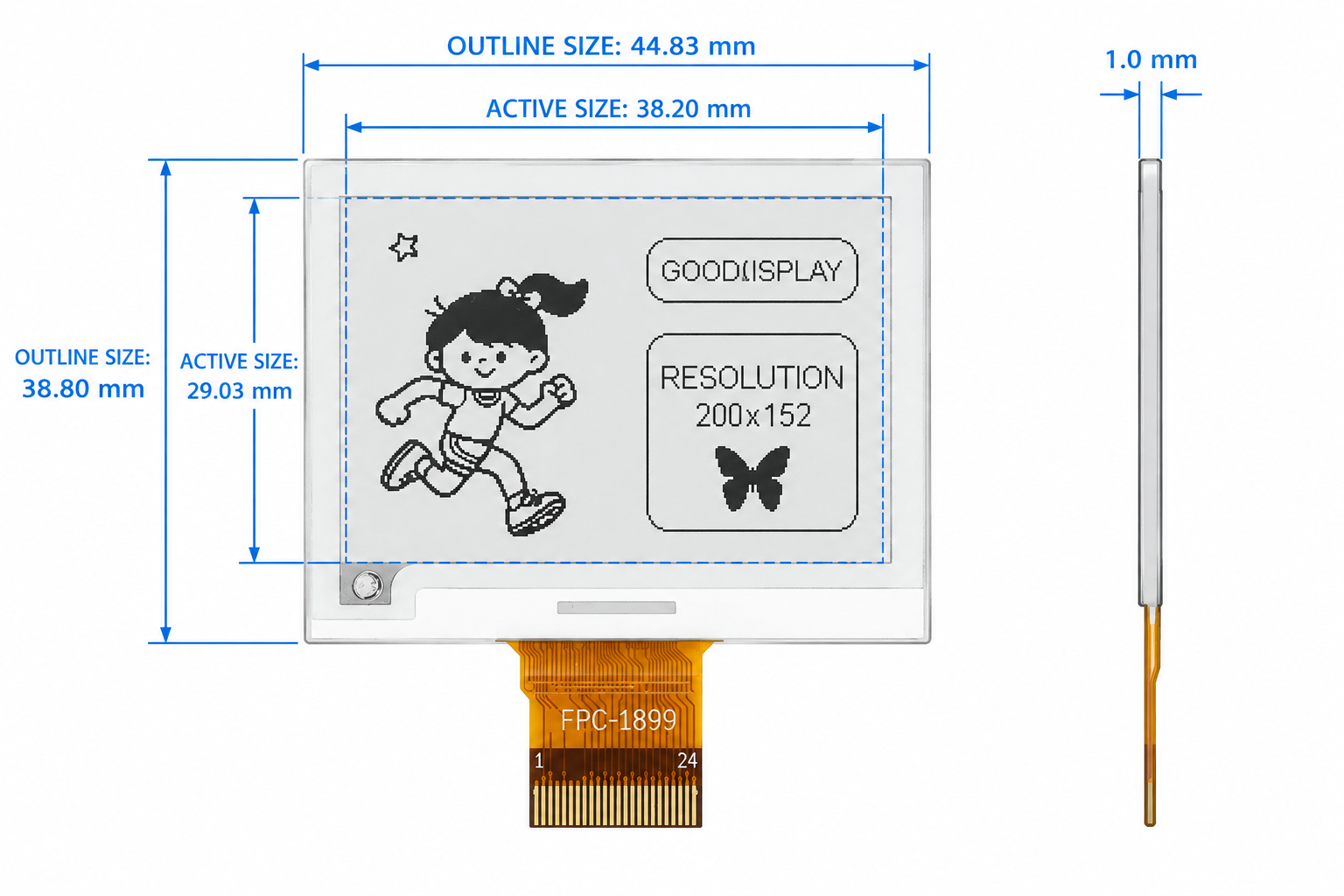

Outline Size
44.83 × 38.80 × 1.00 mm
Active Size
38.20 × 29.03 mm
Pixel Pitch
0.191 × 0.191 mm
Operating Temp.
0℃ ~ 50℃
Storage Temp.
-25℃ ~ +70℃
Full Refresh Time
2 s
Partial Refresh Time
0.3 s
Typical Power
4.5 mW (VCI=3.0V)
Deep Sleep Power
0.0006 mW
Sleep Current
0.23 µA
Max Grayscale
4 levels
Weight
3.16 ± 0.5 g
Packaging
500 units/carton

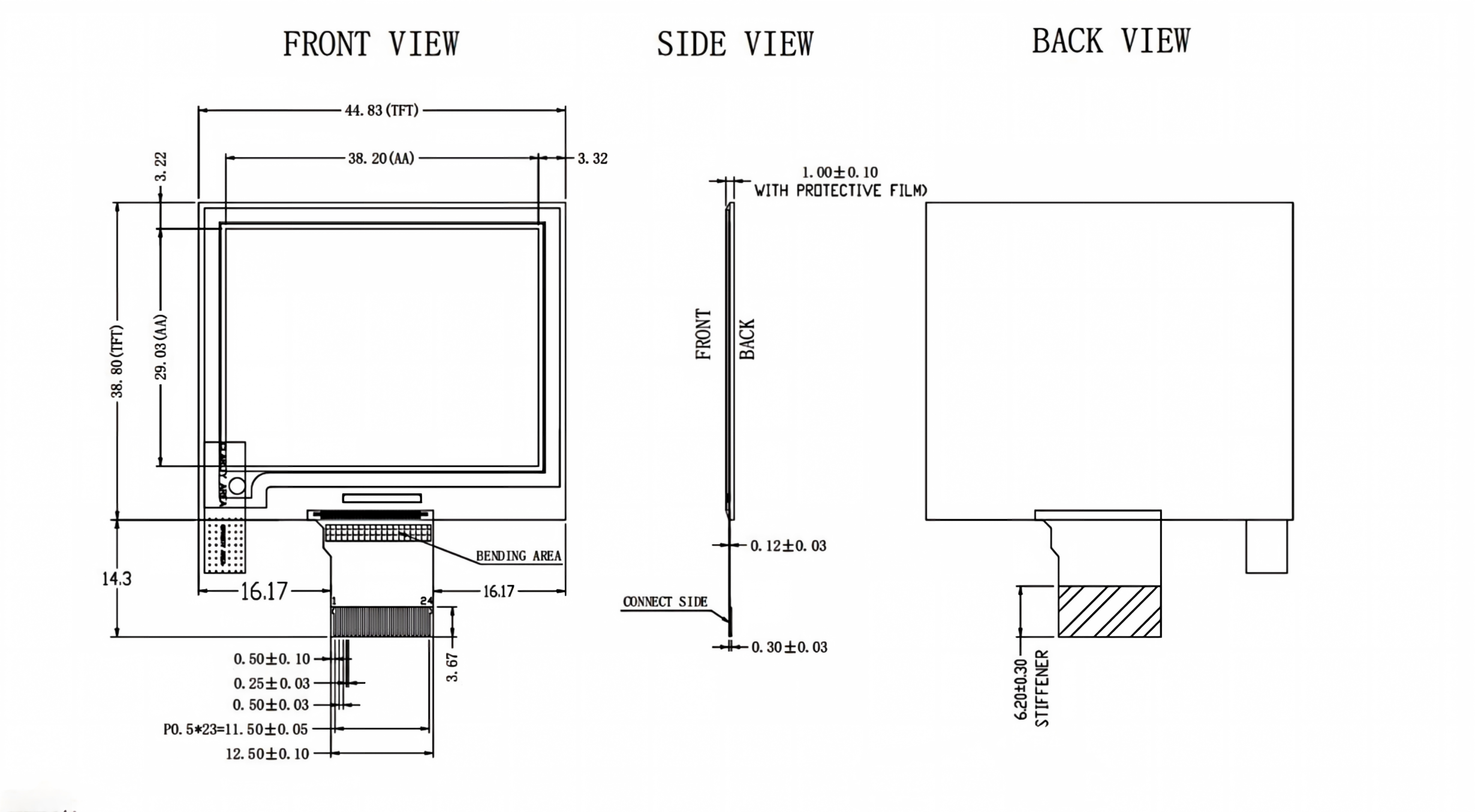

Drawing Details

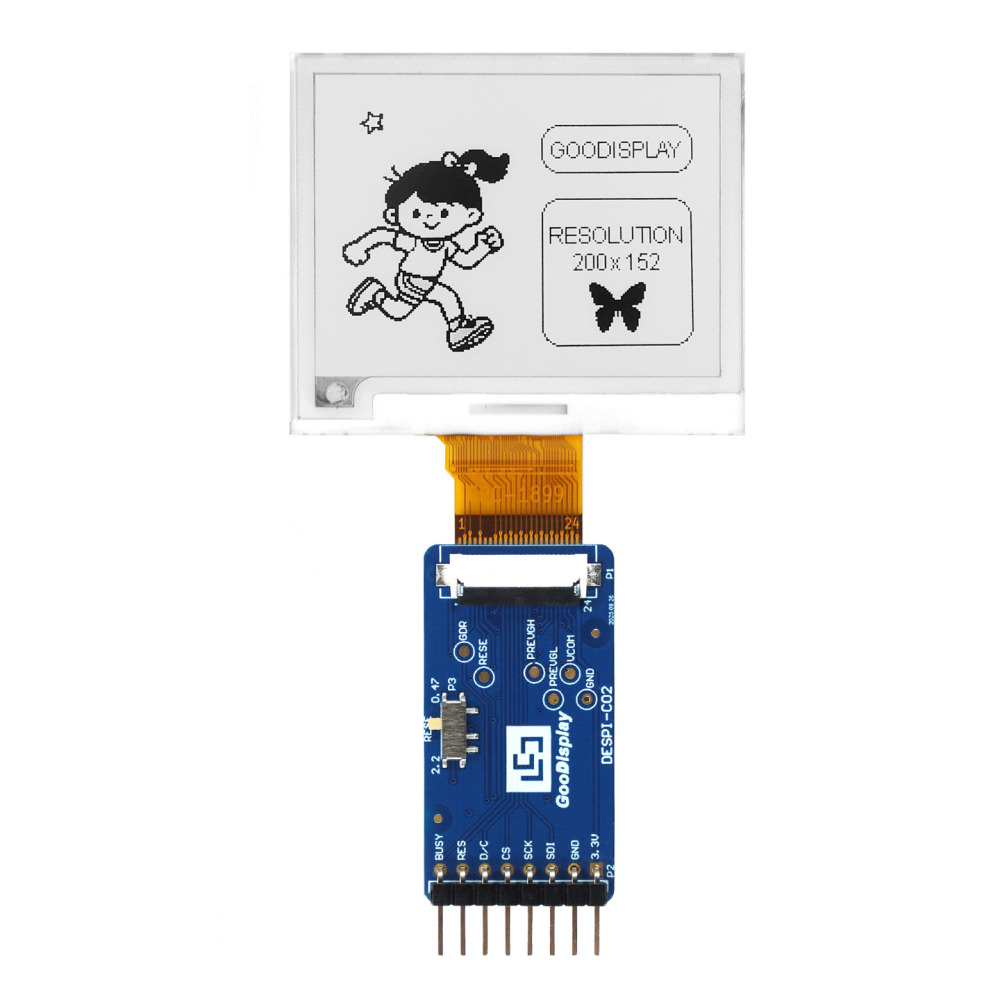

Matching Driver Boards
DESPI-C02
Pure hardware interface adapter, no MCU. SPI to 24-pin EPD conversion.

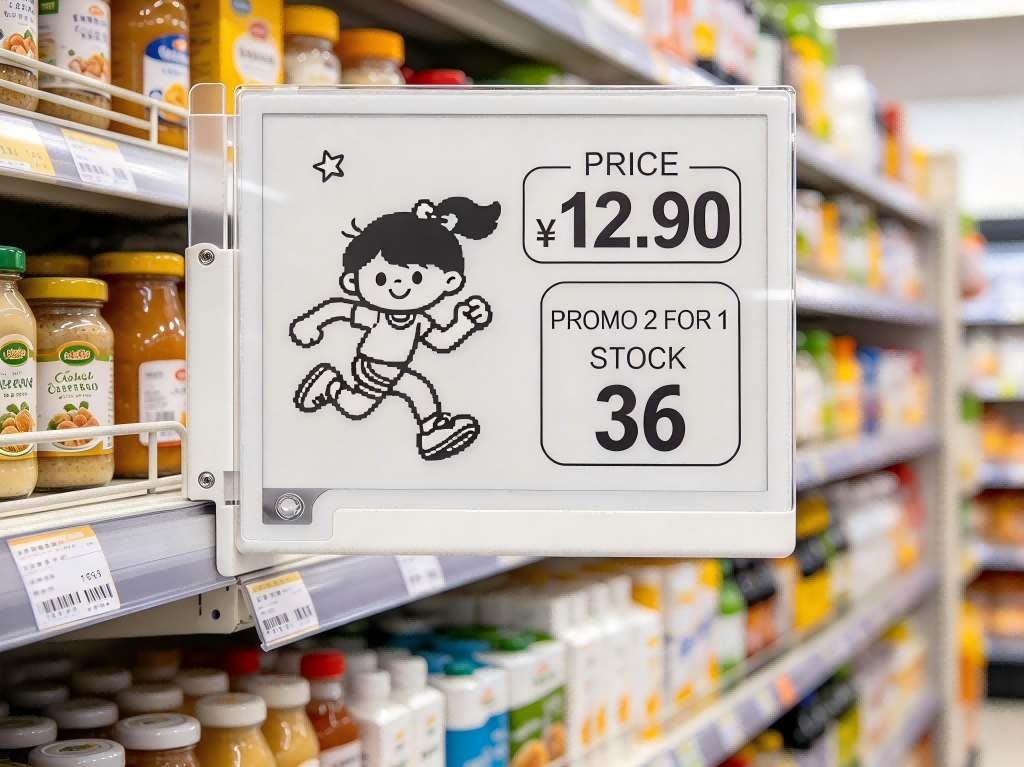

High-contrast 133 PPI black & white price, promotion and inventory labels. 0.3s partial refresh keeps retail shelves accurate and up to date.

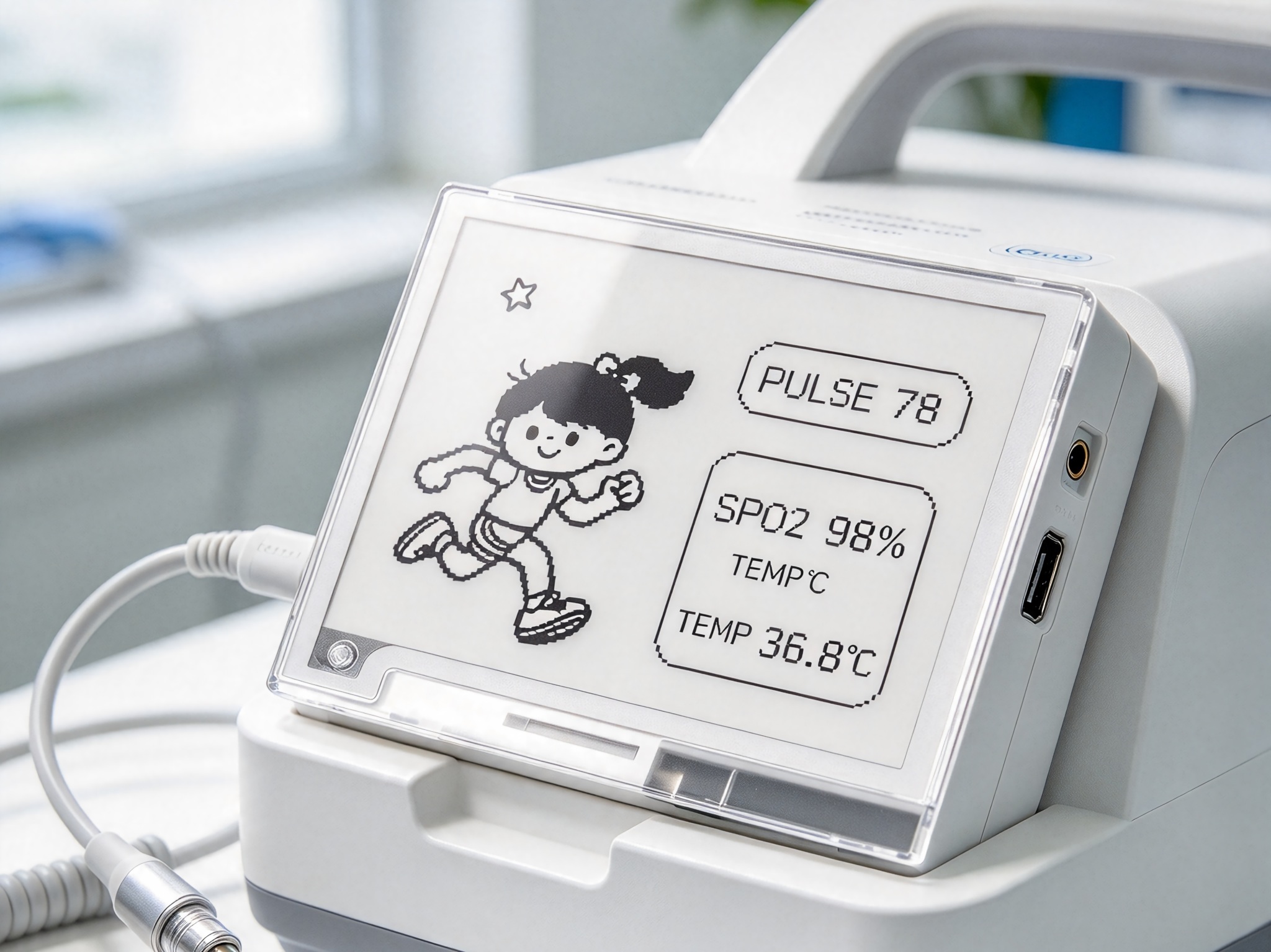

Medical Devices
Reflective, glare-free display with bi-stable image retention — ideal for portable patient monitors, diagnostic tools and low-power medical instruments.

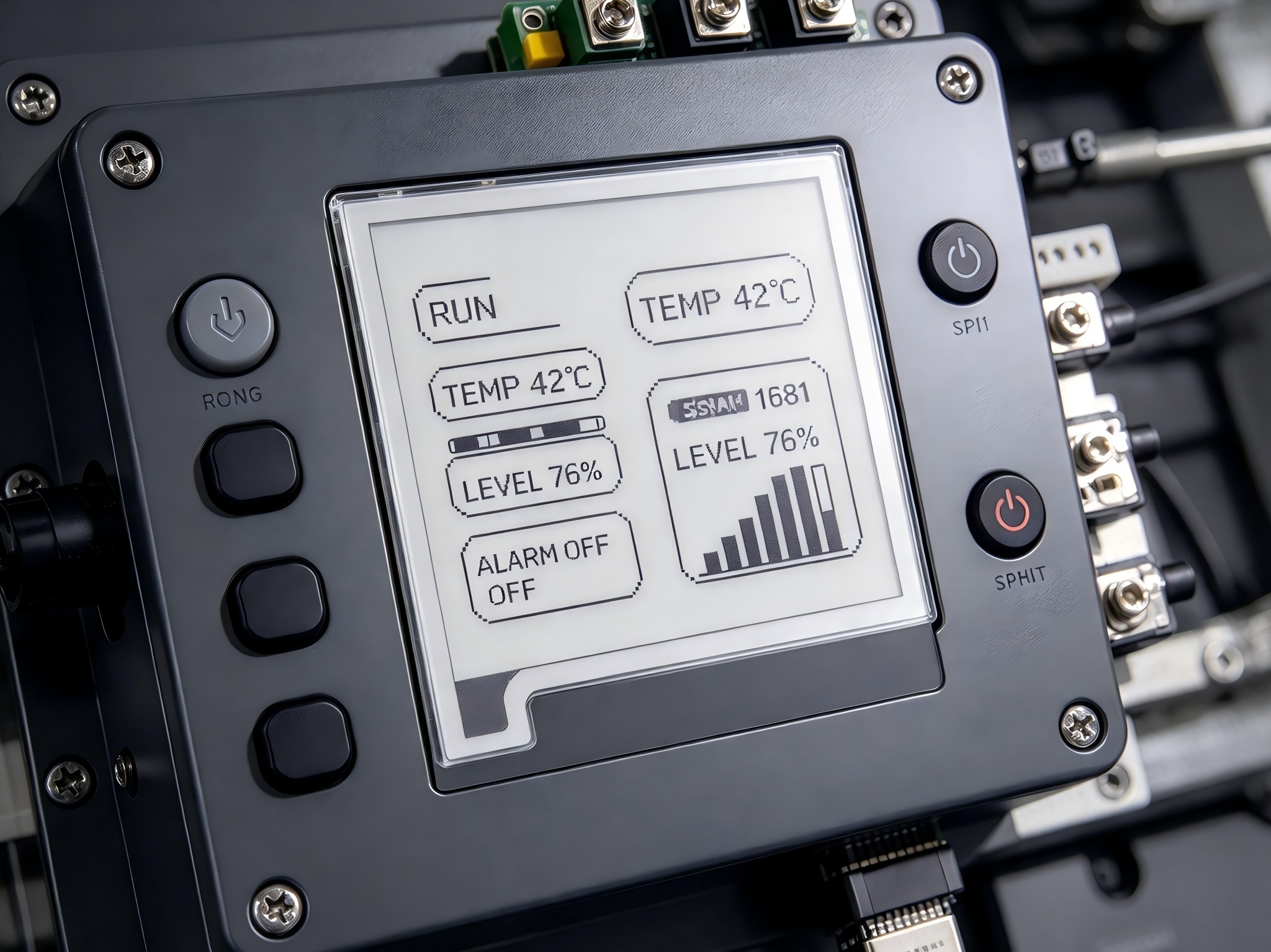

Industrial Applications
SPI-ready, all-in-one SSD1681 driver and on-chip temperature sensor make integration into industrial control panels and HMIs straightforward.

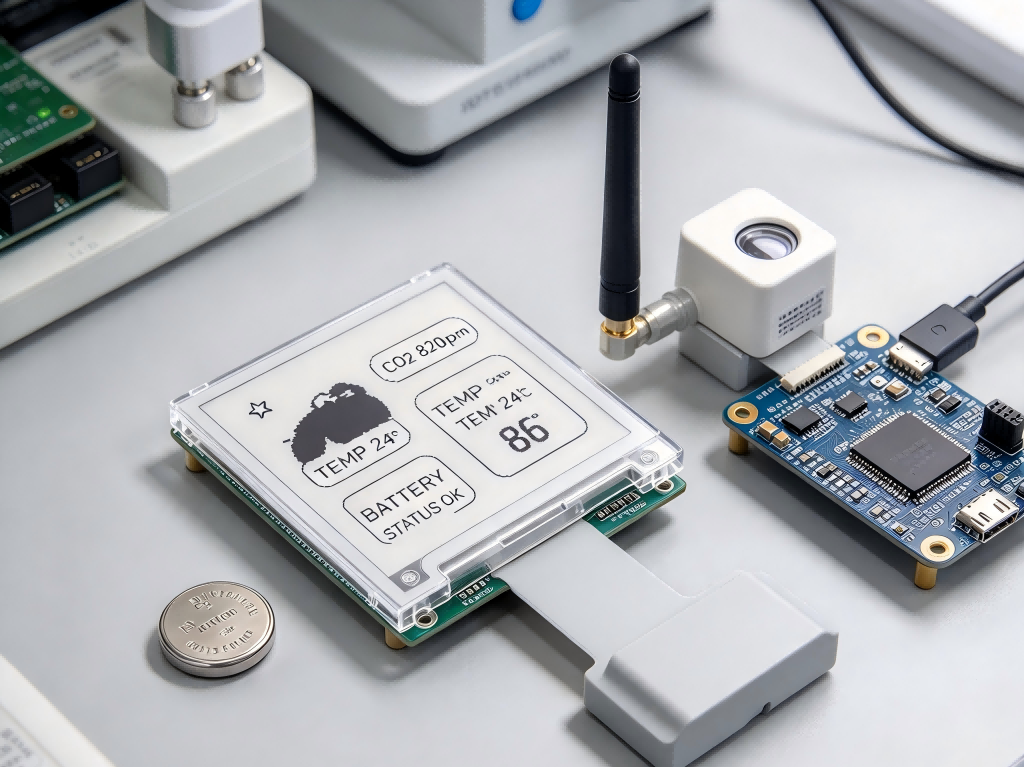

IoT Device Status Displays
Ultra-low 4.5mW operation and 0.0006mW deep sleep extend coin-cell battery life for wireless sensors, smart home devices and remote monitoring.
Each GDEM0189T61 display can replace thousands of paper labels annually. Join 15,000+ businesses reducing paper waste with bi-stable e-paper.
Sustainable Packaging
95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials for EU and North American compliance.
Energy Leadership
4.5mW operating and 0.0006mW deep sleep slash energy use. A single coin cell can power months of updates in wireless ESL deployments.
Why GooDisplay E-Paper Refreshes Faster
High-Resolution Film
Optimized fast-refresh FPL film and rigorous material selection enable 133 PPI with no optical trade-offs, delivering sharp 0.3s partial refresh.
Multi-Mode Refresh
On-chip OTP waveform plus smart temperature-compensated driving ensures stable 2s full / 0.3s partial refresh across the commercial temperature range.
SSD1681 Chip-Level Integration
All-in-one driver IC integrates gate/source drivers, DC-DC, SRAM, LUT, VCOM and temperature sensor — plug and play with simple SPI commands.
Feature
Conventional Monochrome EPD
GDEM0189T61
Partial Refresh Time
Not supported / limited
0.3 s
Full Refresh Time
~3–5 s
2 s
Active Power (VCI=3.0V)
~6 mW
4.5 mW
Deep Sleep Power
~0.001 mW
0.0006 mW
Temperature Compensation
External sensor required
On-chip + external I2C
Driver Integration
External components required
All-in-one SSD1681 (DC-DC, SRAM, LUT, VCOM)
