E-paper display development demo kit, drive board Arduino, Support Wi-Fi, for 1.02 inch e-ink, ESP8266(C102_30P)

ESP8266(C102_30P)
ESP8266 (C102_30P) development kit supports program development using Arduino development platform. It is designed for SPI e-paper display. It supports driving 1.02 inch e-paper.
Price:
USD
$13.58
Quantity:
-
+
(19 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




ESP8266 (C102_30P) development kit supports program development using Arduino development platform.This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving e-paper GDEW0102I3F and GDEW0102T4.

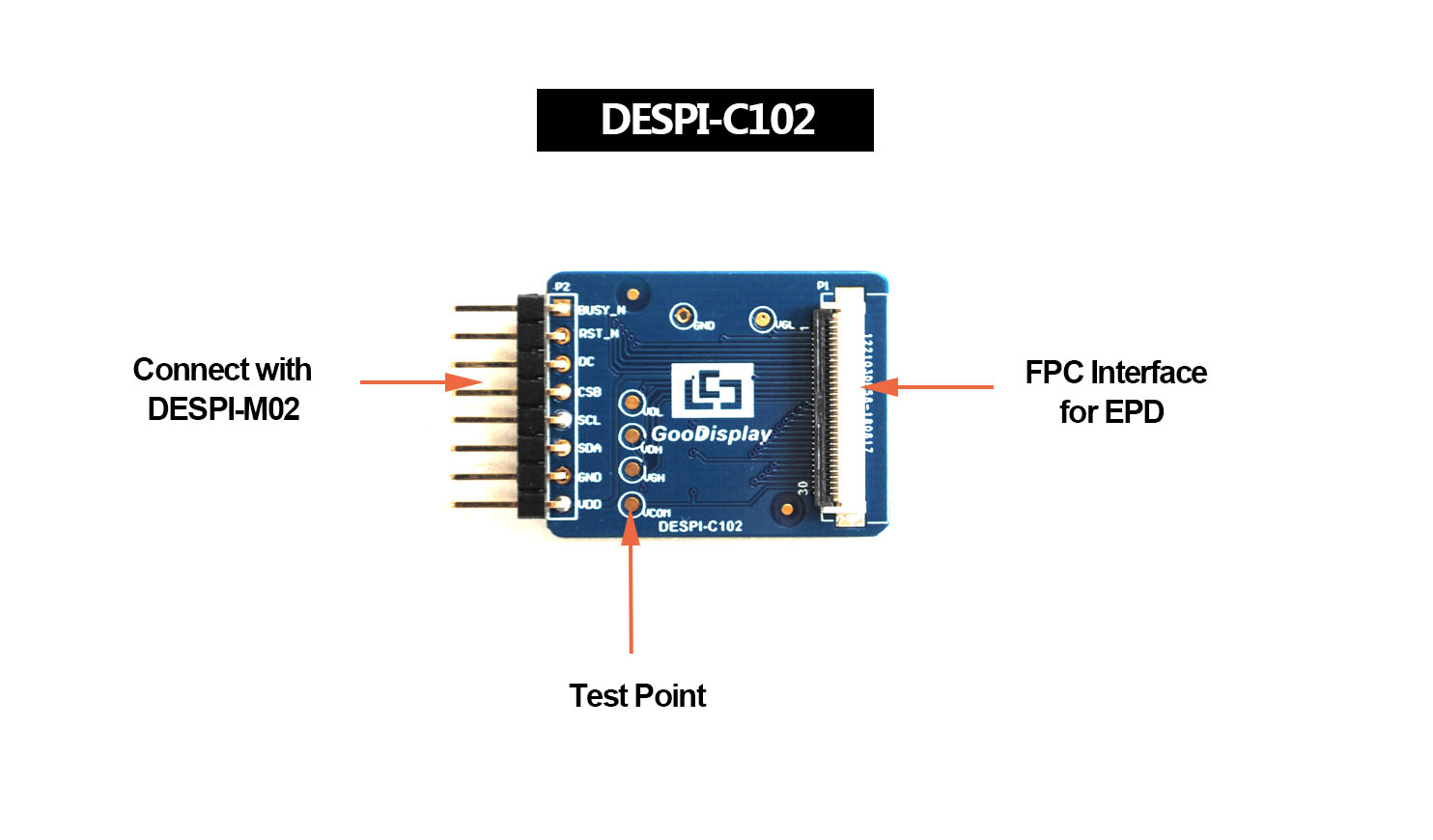

ESP8266 (C102_30P) development kit consists of motherboard ESP8266 for EPD and connector board DESPI-C102_30P.

ESP8266 development kit is only for driving the e-paper, WIFI and other functions need to be developed by users according to the project.


Relevant manual about this product on our official website (www.good-display.com), contact us please.






 THE ABOVE PRICE INCLUDE



1) Driving board ESP8266 for EPD * 1pc
2) Connector board DESPI-C102_30Pin * 1pc
3) USB port cable * 1pc






 FEATURE




● USB serial port and LED indicator light.

● Learn how to drive 1.02 inch E-Paper Display based on Arduino.

● Test and evaluate the 1.02 inch E-Paper Display.

● Secondary development based on ESP8266(C102_30P).

● Support customers to develop WIFI and other functions.




 MAIN PARAMETERS




PART NUMBER

ESP8266(C102_30P)

MCU

Arduino

FUNCTION

Drive 1.02 inch E-paper Display

OUTSIDE DIMENSION

70mmx54mm (ESP8266 for EPD)
33.8mm x 22.2mm (DESPI-C102_30P)

POWER INTERFACE

USB Interface

MAIN FUNCTION

1) Learn to drive 1.02'' e-paper display, touch panel and
front light panel
2) Test and evaluate 1.02'' e-paper display
3) For secondary development.

SAMPLE CODE

Available (please contact sales)

OPREATING TEMP.

-20~70℃

ADDITIONAL FUNCTION USB to serial port, indicator light, reset key, current
measurement





☆ DRIVE BOARD




DESPI-102 (STM32 Platform/Universal)

DEArduino(C102_30P) (Arduino Platform)

ESP8266(C102_30P) (WiFi)






 MATCHED E-INK DISPLAY




Part Number

Color

Resolution

Features

Refresh Time

GDEW0102I3F

B/W

128x80

Partial refresh, Flexible

3s
GDEW0102T4 B/W 128x80 Partial refresh 0.3s/frame 3s






☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
