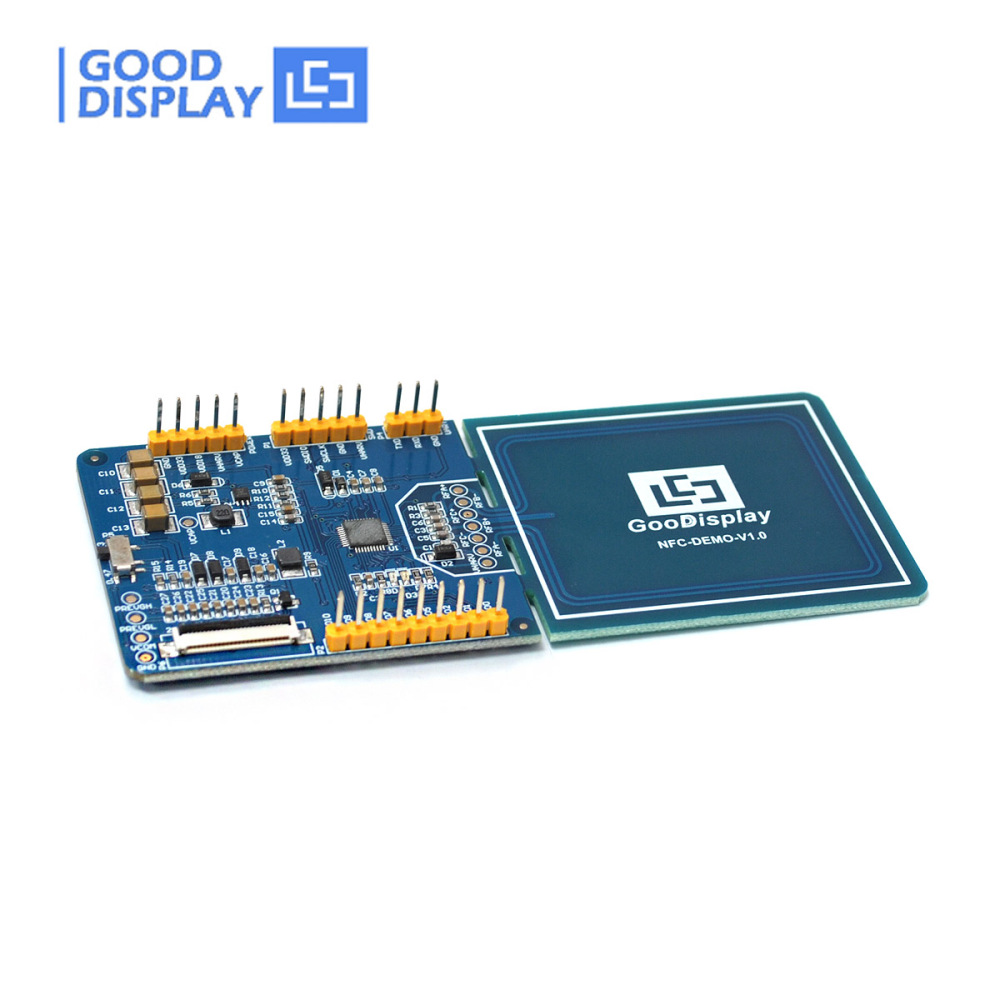

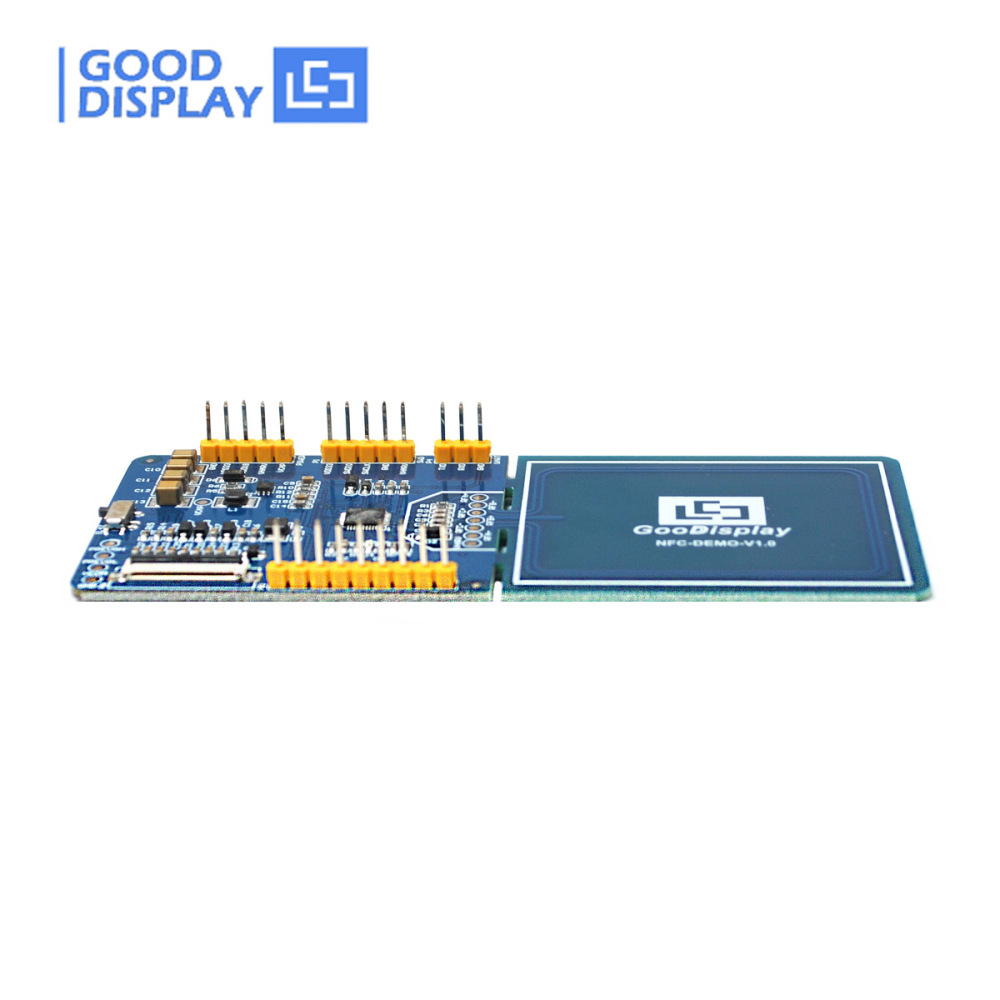

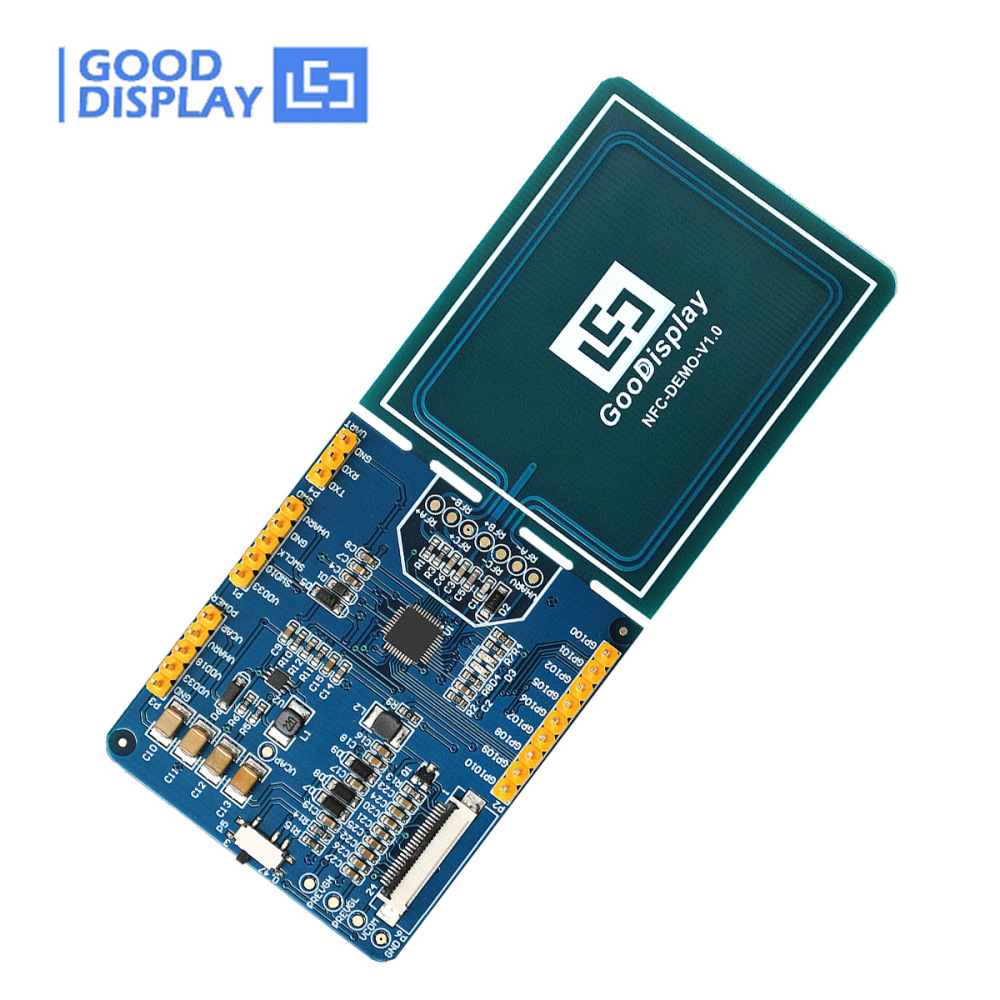

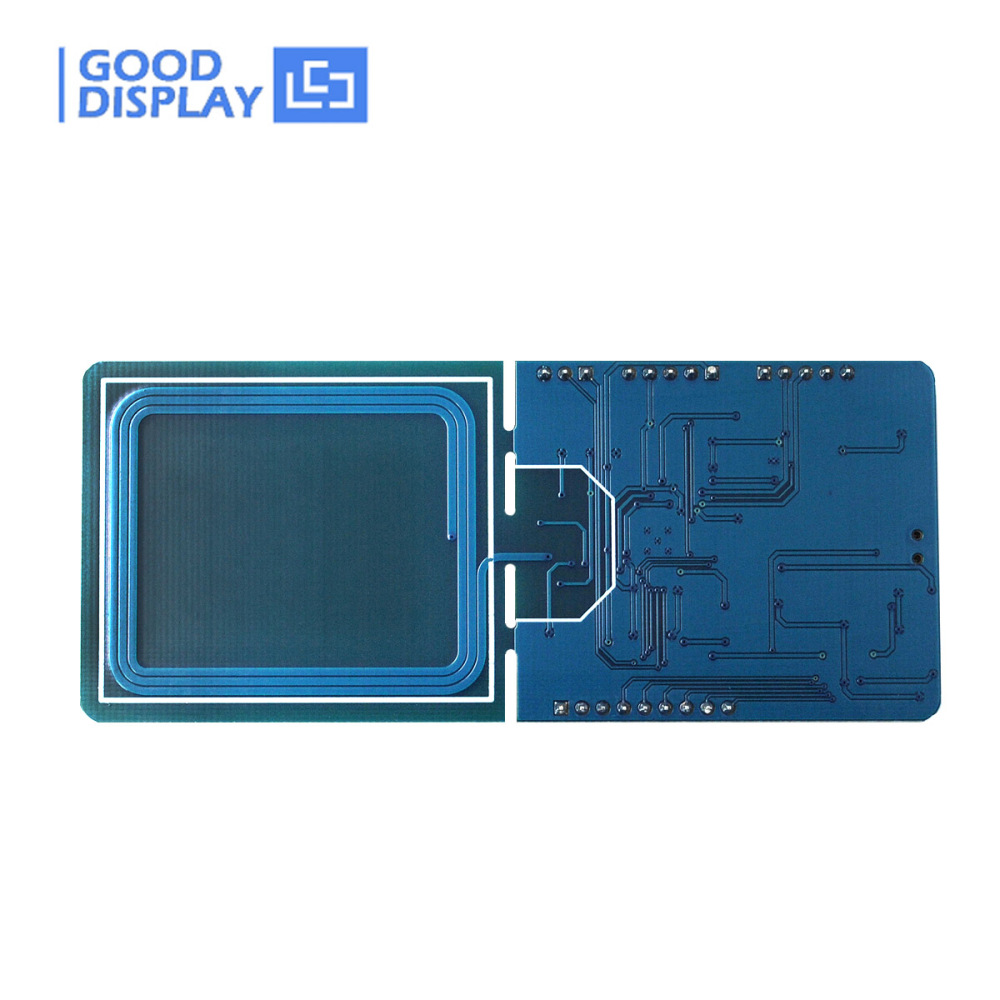

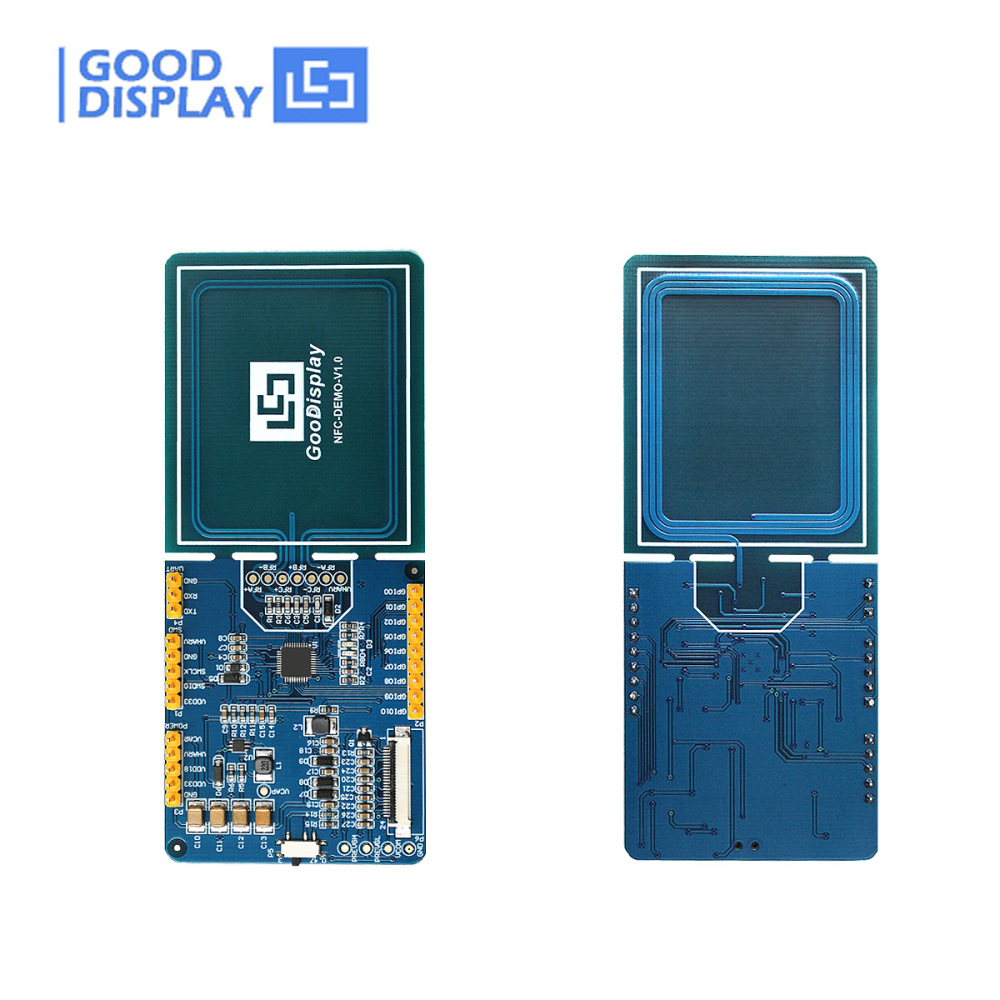

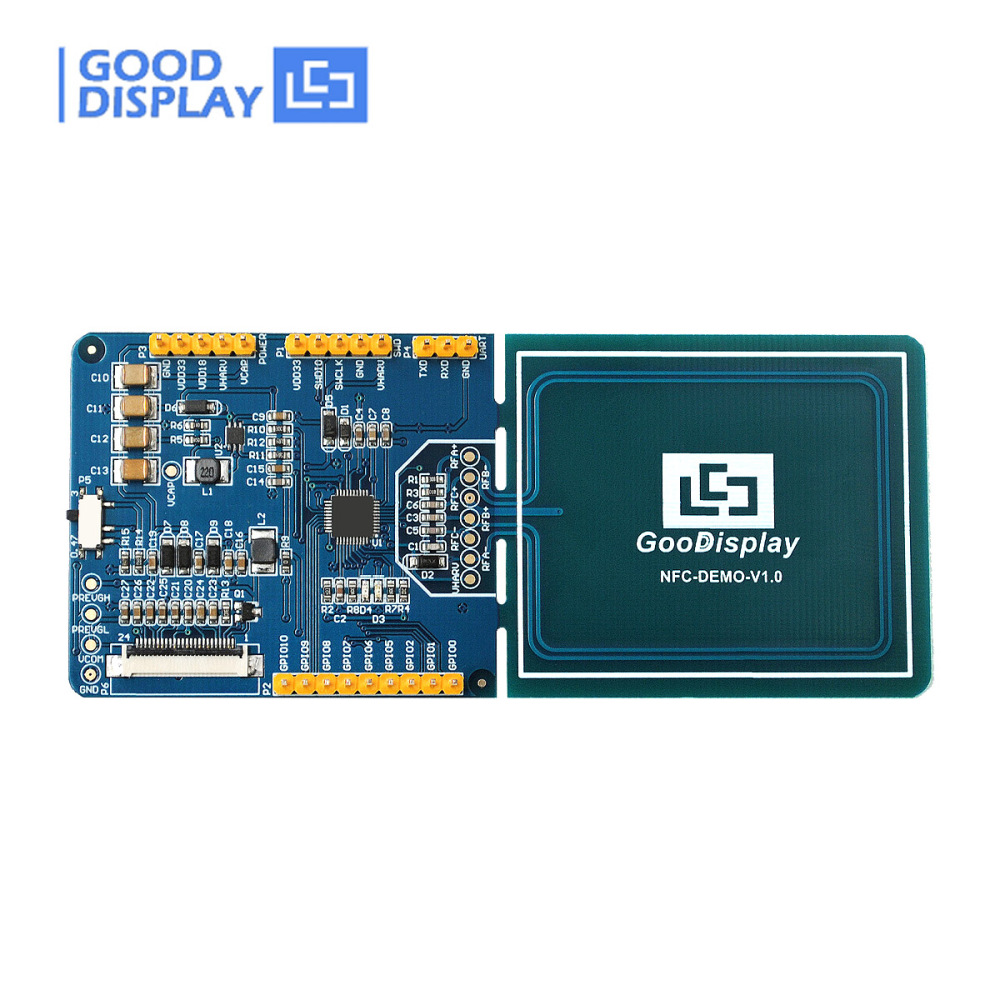

E-paper display SPI Module DENFC-M01 NFC Eink Display Board

DENFC-MO1 development kit includes main control part and NFC antenna.
Price:
USD
$16.46
Quantity:
-
+
(199 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION


DENFC-M01 is a passive NFC demo development board integrated with ISO14443A tag interface. This demo supports efficient NFC energy harvesting. When combined with mobile phones with NFC function, DENFC-M01 can collect up to 300MW power. Such a high acquisition of power can not only support DENFC-M01 running at full speed in passive mode but also can supply power for external devices such as image sensor and e-paper display.


The MCU of DENFC-M01 motherboard is an ARM Cortex-M0 core with the highest operating frequency of 12Mhz. It connects other components on chip through AHB Bus, including high-speed serial data interface, general peripheral, GPIO, RAM, FLASH, EEPROM, etc. Flash is used to store system software and user data while EEPROM is used to store user data and system settings. The typical current consumption of DENFC-M01 is less than 1mA. The high-power energy harvesting of DENFC-M01 is suitable for mobile devices, smart home devices and IoT devices.


This development kit can help developers complete projects that need NFC communication to drive e-paper displays faster and more smoothly.It supports driving Good-Display's black-white e-paper display and three-color (black,white and red/Yellow) e-paper display:1.54'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'' and 4.2''.

Relevant manual about this product on our official website (www.good-display.com), contact us please.





 OTHER E-INK DISPLAY DRIVE BOARD




●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32







 THE ABOVE PRICE INCLUDE



1) E-paper display SPI Module DENFC-M01 NFC Eink Display Board * 1pc
2) Manual * 1pc.(Please advise email ID along with order,so that we can send them.)






 MAIN PARAMETERS



PART NUMBER DENFC-M01
PLATFORM Keil
OUTSIDE DIMENSION 105x45mm(DENFC-M01)
POWER INTERFACE Direct current power supply or NFC power for mobile phones
SAMPLE CODE Available (please contact sales)
OPERATING TEMP. -20~70℃
MAIN FUNCTION Learn to drive e-paper display;
Test and evaluate e-paper display;
For secondary development.
ADDITIONAL FUNCTION NFC communication indication,data transmission indication.






 SPECIFICATION DOWNLOAD




https://www.good-display.com/product/390.html






 OTHER REFERENCES



International Shipping & Delivery FAQs>>
Payment Methods>>
Shipping & Returns>>





☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDE043A2 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A2-T(With Touch Panel) 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A3 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEW0583T8 5.83'' BW 2 648x480 119.232x88.32 4 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDE060F3 6.0'' BW 16 1024x758 90.581x122.368 1 0℃~50℃   Parallel
GDEM075Z08 7.5'' BWR 2 800x480 163.2x97.92 17 0℃~40℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
