Name: 8 inch Large size big parallel e-paper display e-ink screen module GDEW080T5
Brand: GOOD DISPLAY
SKU: GDEW080T5
Price: 97.78 USD
Availability: InStock

Any questions, please feel free to contact me, my email is: clara@good-display.com

This is an E ink E paper display panel, 8.0 inch, 1024*768 resolution, 34 pins FPC connection, optional FPC connector, communicating via Parallel interface, with integrated circuits including source and gate drivers,supports black, white.

In view of so many advantages: ultra low power consumption, wide viewing angle, readable under sunlight, GDEW080T5 is a very good choice for E-book reader, doorplate, industrial display and other applicable places.

· Parallel interface
· 1024x768 resolution
· The I2C signal master interface to read built-in temperature sensor.

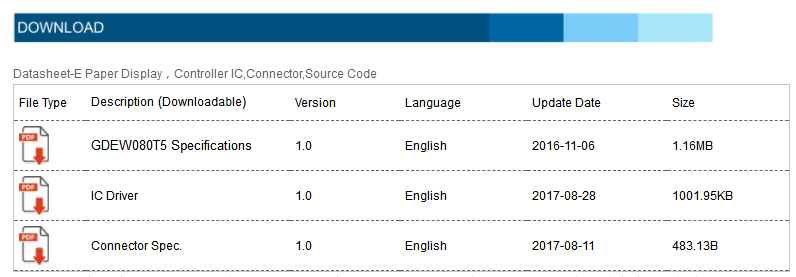

· Come with helpful development resources and manual (STM32 platform )
· Development platform available DESTM32-T

1. 8.0 inch 1024*768 Parallel E-paper Display GDEW080T5 *1pc

2. Matched FPC Connector*1pc

3.Helpful resources and manual(sent via email or download link) *1pc
If you want to buy this display with demo kit together, click here:
https://buy-lcd.com/products/8-inch-large-size-bigarallel-eaper-display-e-ink-screen-module-gdew080t5-with-demo-kit-drive-board

Part Number	GDEW080T5
Type	Dot Matrix
Resolution	1024*768
Outline Size(mm)	134.11178.561.18
Active Size(mm)	122.11*162.82
Pixel Pitch(mm)	0.159*0.159
Operating Temp.	0~50C
Storage Temp.	-25~70C
Connector	34 Pin
Color	Black,White
Interface	Parallel
Power consumption of the refresh(mW)	600
Standby power consumption Pc(mW)	0.4
Time of refresh(s)	1
Time of partial refresh(s)	1

https://www.good-display.com/product/251.html
