7.5 Inch Epaper Display ESP32 Platform 800x480 Eink Screen Module, GDEY075Z08+ESP32-L(C02)

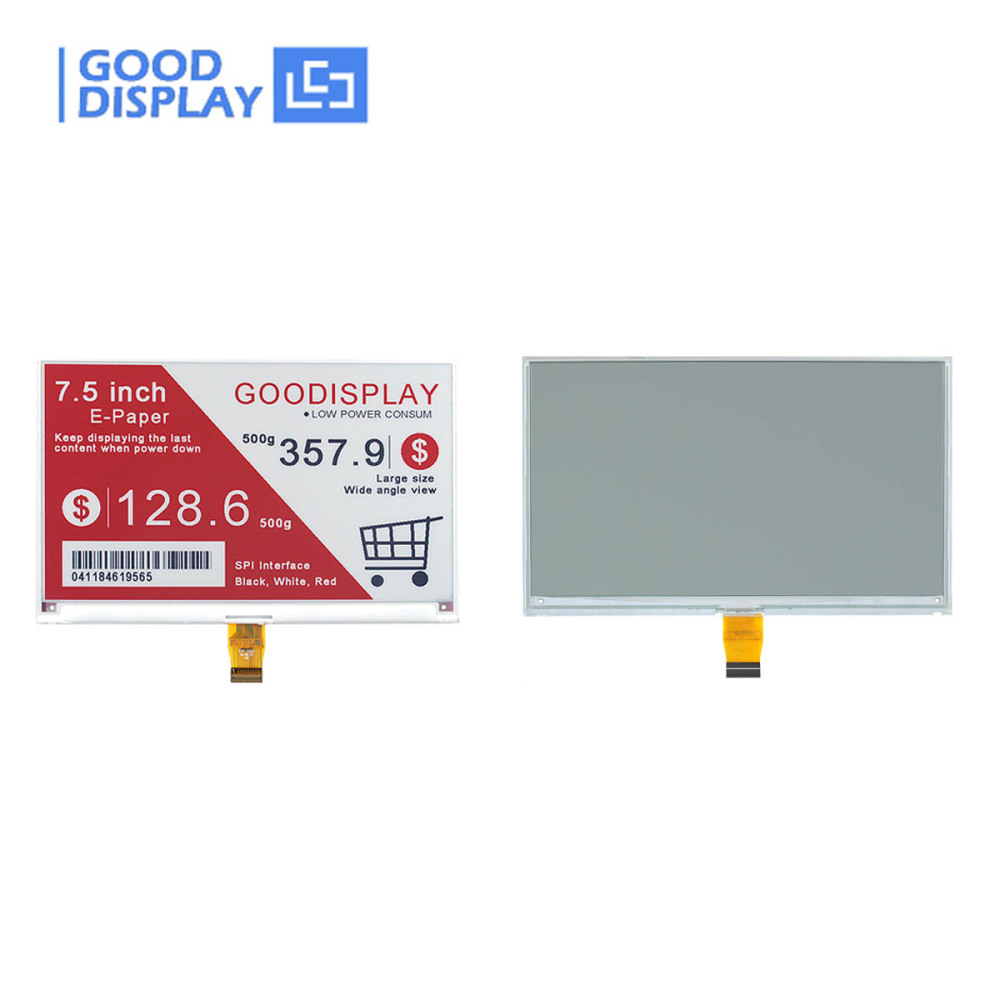

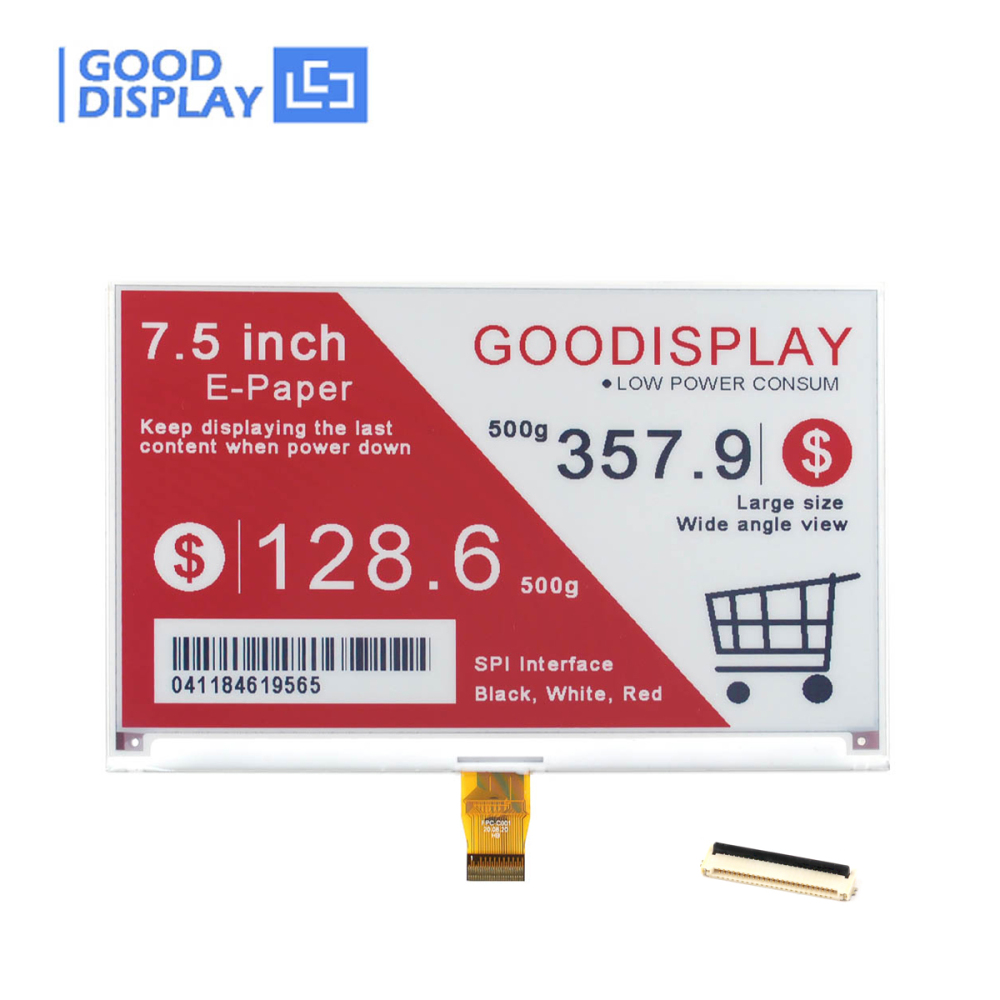

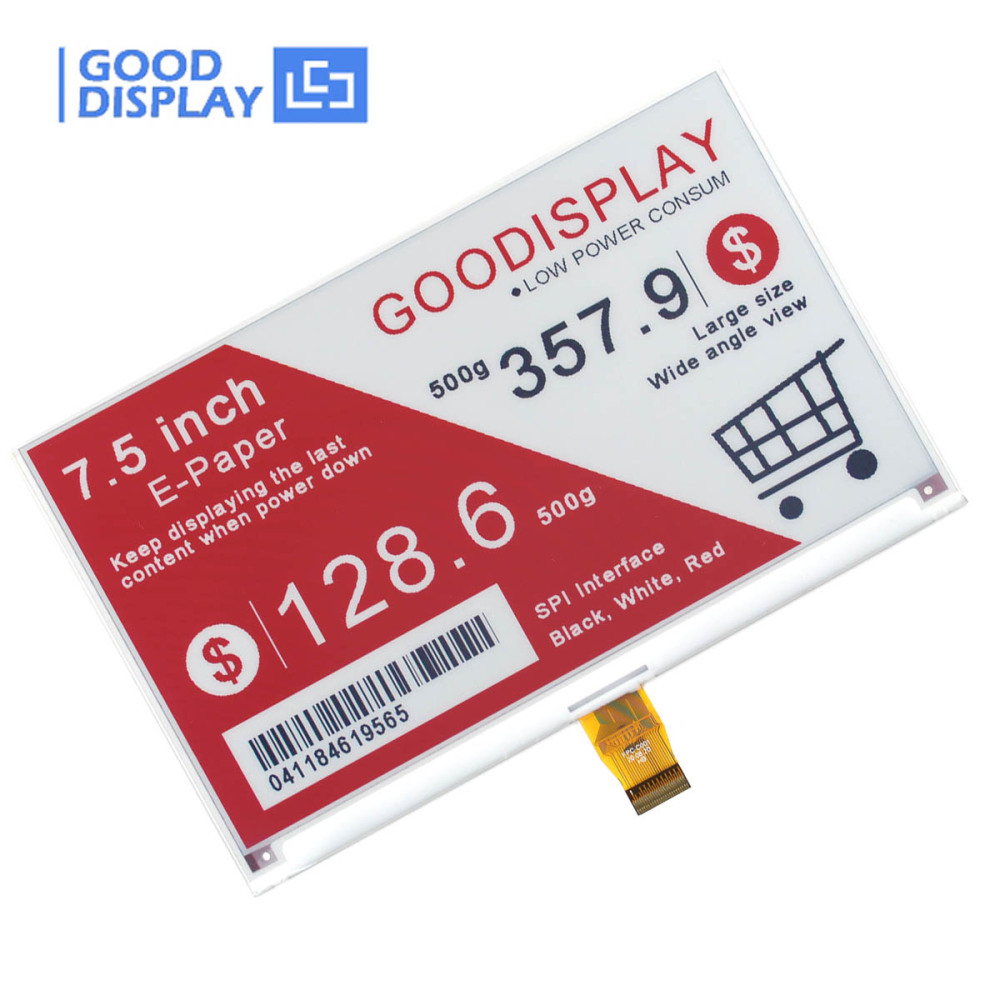

This is a 7.5 inch colorful e-ink display with higher resolution 800x480, 24 pins FPC connection, SPI interface, three colors, black, white and red.
Price:
USD
$64.58
  • 规格:
    EPD with demo kit
    EPD with adapter board
    EPD
Quantity:
-
+
(600 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews



☆ INTRODUCTION




This is a 7.5 inch color electronic paper screen with 800x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

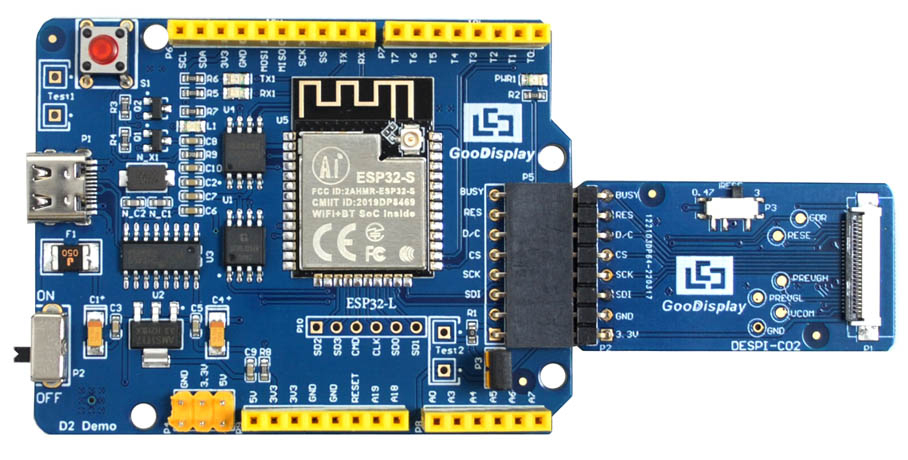

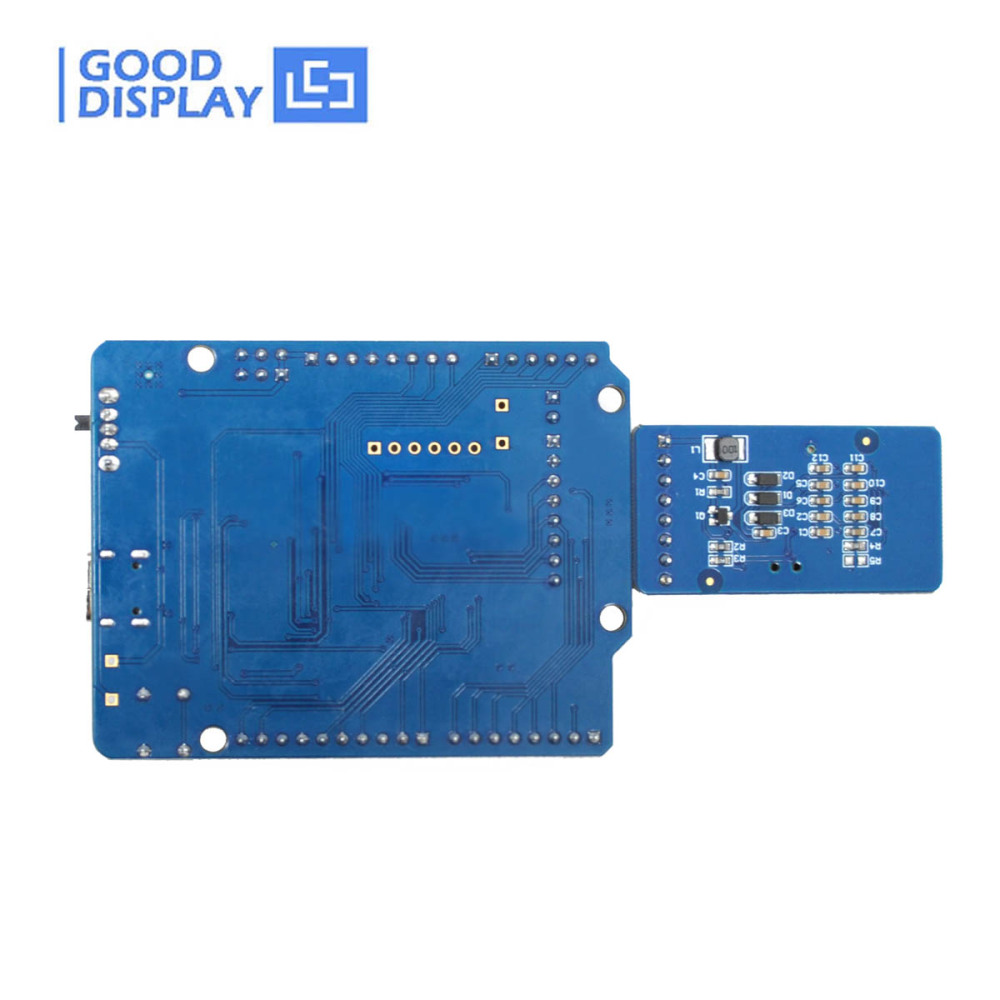

ESP32-L(C02) development kit is only for users to develop and drive electronic paper display. The application of WiFi, Bluetooth and other functions requires users to develop on their own according to the project.



We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* This e-ink display module DOES NOT support partial updates

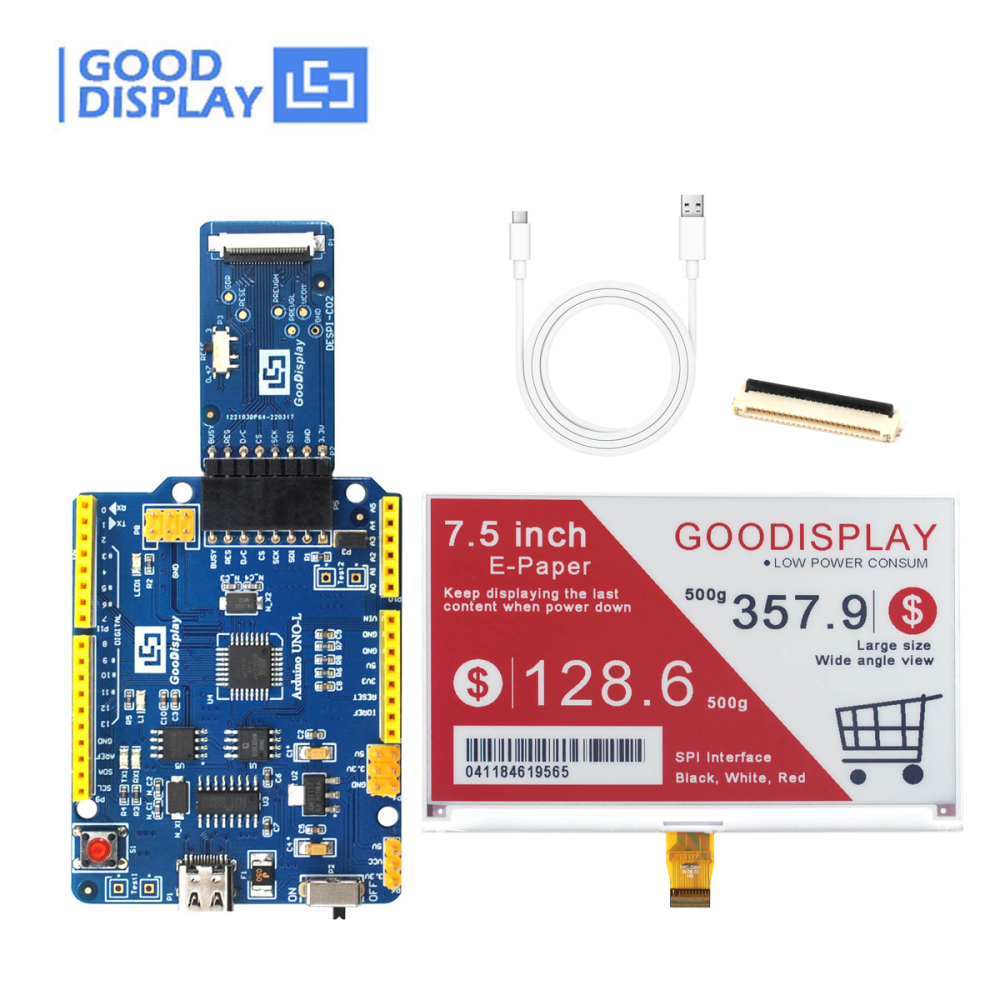

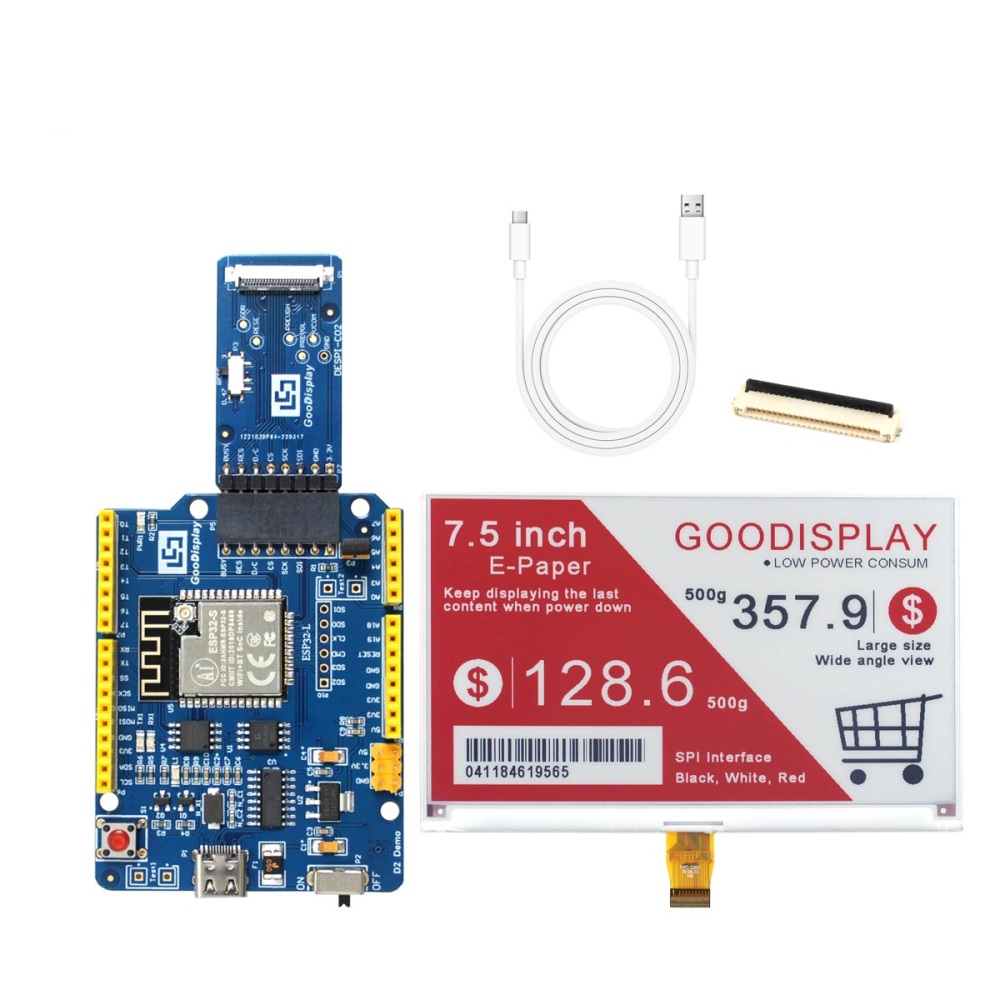

 THE ABOVE PRICE INCLUDE



1) E-ink module 800x480 7.5 inch red tri-color electronic paper display * 1pc
2) FPC Connector * 1pc

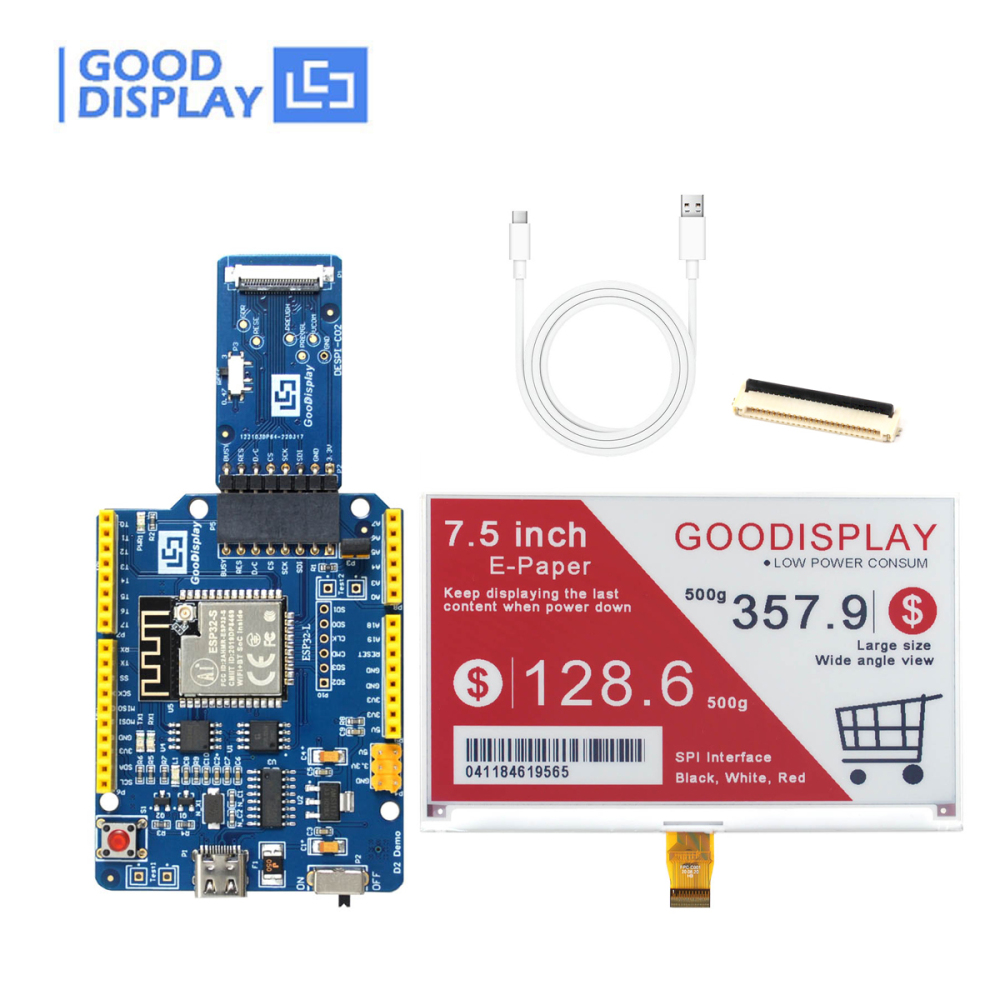

3) Driving board ESP32-L * 1pc

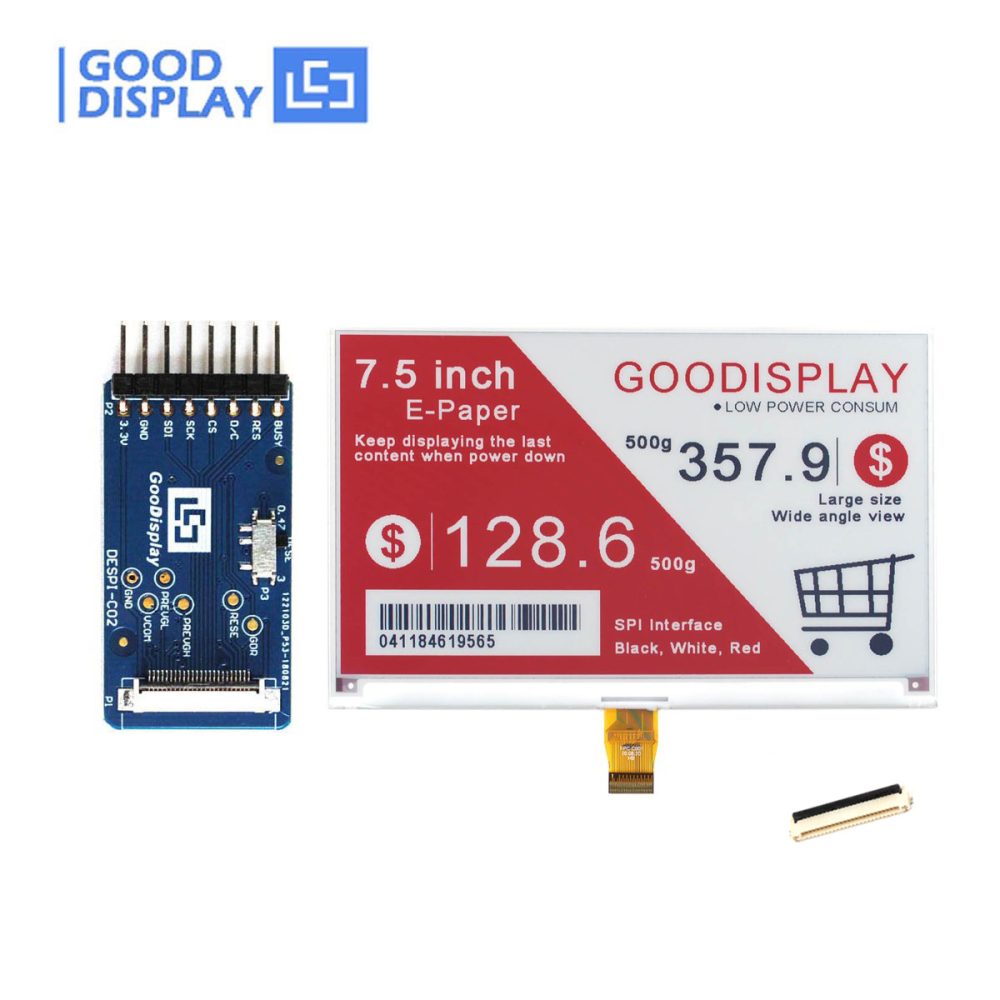

4) Connector board DESPI-C02 * 1pc

5) USB port cable * 1pc





 MAIN PARAMETERS




PART NUMBER

GDEY075Z08



SIZE

7.5 inch

STORAGE TEMP. -25℃~70℃

TYPE

Dot Matrix

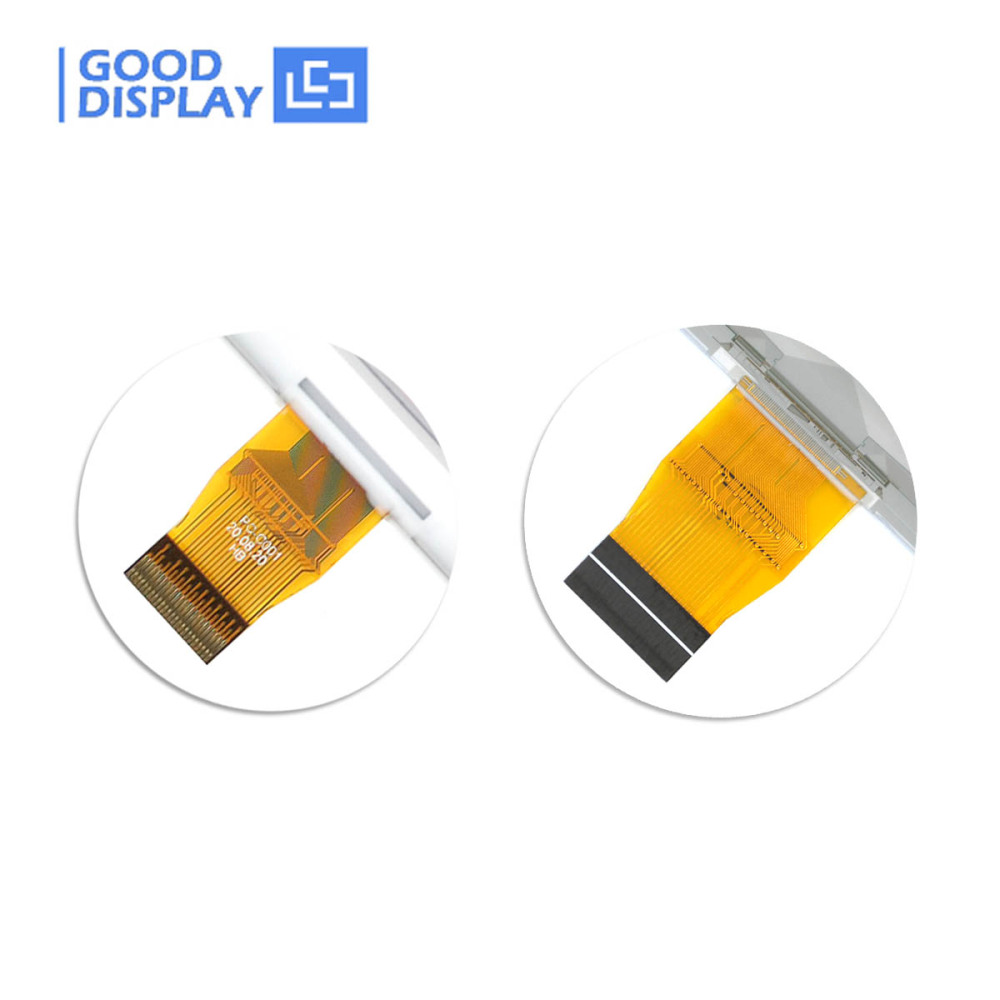

CONNECTOR 24 Pin FPC

IC

UC8179

MAX GRAYSCALE 2

RESOLUTION

800x480

COLOR Black, White, Red

OUTLINE SIZE(mm)

170.2x111.2x1.25

INTERFACE SPI

ACTIVE SIZE(mm)

163.2x97.72

FULL REFRESH(s) 12

PIXEL PITCH(mm)

0.204x0.204

POWER CONSUMPTION OF THE REFRESH(mW) 33.3

OPERATING TEMP.

0℃~40℃

STANDBY POWER CONSUMPTION(mW) 0.0165





PART NUMBER ESP32-L(C02)
PLATFORM Arduino
OUTSIDE DIMENSION

70mm x 54mm (ESP32-L)

41mm x 22mm (DESPI-C02)
POWER INTERFACE Type-C
SAMPLE CODE Available (please contact sales)
OPERATING TEMP. -20~70℃
MAIN FUNCTION

Learn to drive E-paper display;

Test and evaluate e-paper display;

Support secondary development
RESERVED FUNCTION Type-C,LED indicator, Reset button, Font chip, Flash chip, Current detection







 FEATURE



● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

● Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32






 DETAILS











☆ 7.5 INCH E-PAPER DISPLAY




Part Number

Color

IC Resolution

Features

Refresh Time

GDEY075T7

BW

UC8179

800x480

4 Grayscale

3s

GDEY075Z08

BWR

UC8179

800x480

Red

12s
