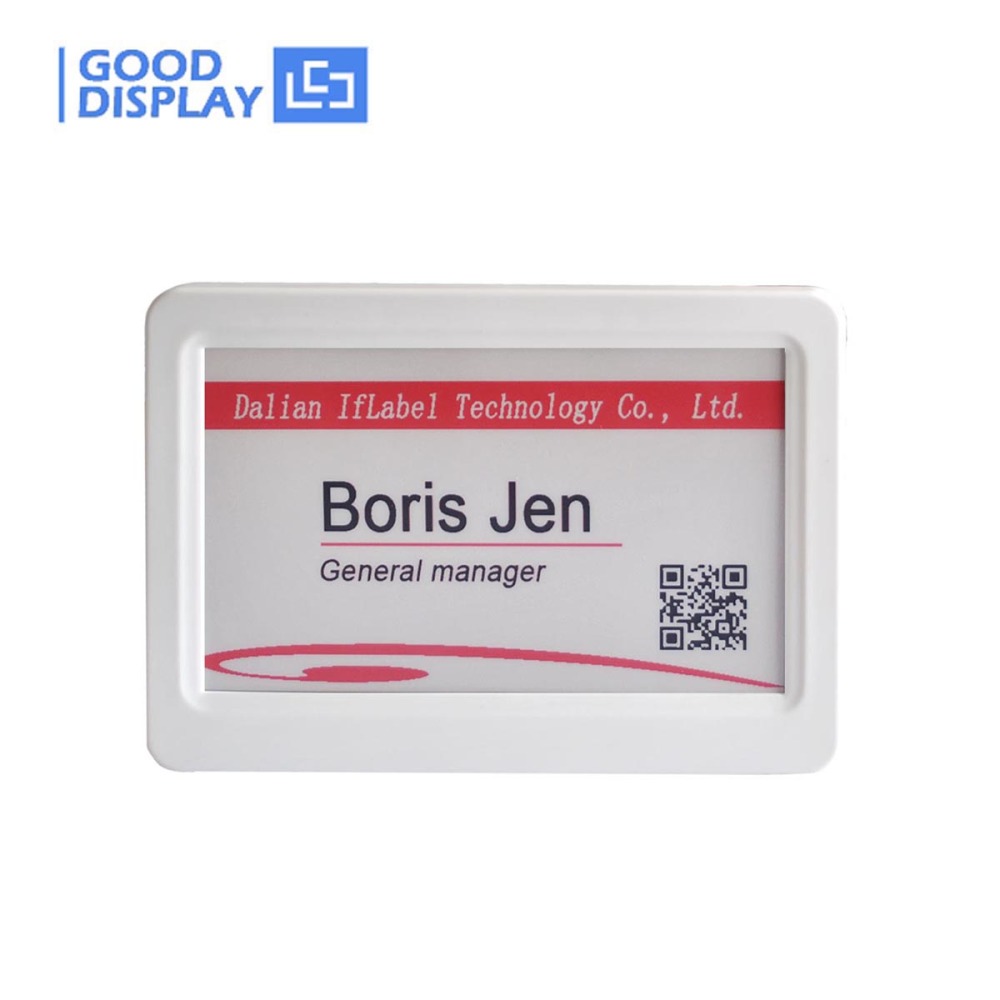

7.5 inch electronic shelf label, For retail, conference and industrial tag single screen

GDIF075ES (single screen)
IL075E series ESL tags electronic shelf label has many advantages:Environmental protection,Energy saving,Convenient operation,Wide practical range,Controlled by PC or mobile, good choice for you.
Price:
USD
$125.00
Quantity:
-
+
(5 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

IL075E series ESL tags are a large high definition displays giving the freedom to choose the layout that suits. Whether it is an extra large text, promotion, QR code or barcode, there is room to fit it all directly on-screen, with no paper required. It can be used for different application, such as the retails, conference systems and industrial tags etc.

·  Environmental protection
·  Energy saving
·  Convenient operation
·  Wide practical range
·  Controlled by PC or mobile
·  No base station required, support Android Phone




1)7.5 inch ESL tag*1pc
2) Manual*1pc.(Please advise email ID along with order,so that we can send them.)


Model

 GDIF075ES (single screen)

Outline Size

195.0x137.0x11.7mm
7.68 x 5.39 x 0.46”
Visible area 161.0 x 96.0mm
6.34 x 3.78”

Resolution

800×480

DPI

125

Display Type

Color option (Black-white, black-white-red, black-
white-yellow)

Viewing angle

Near 180°

Appearance

Standard unit available with white or black
frame

Weight

187g

Operating Temp.

0℃ ~ 50℃

Storage Temp.

-20℃ ~ 70℃

Power
consumption
Operating current for refreshing is 30mA,
standby current below 0.1mA
Mapping mode 1 Through the NFC in the center of the display
Mapping mode 2 Through Bluetooth on your phone
Operating system

Only supports Android system phone, does not support Apple phone


1, Scan the QR code(Getting it from the manual below, please), follow the prompts to download, install and register the APP(only supports Android system and does not support the IOS)

2, Simple interface and Simple operating

3, Support Bluetooth and NFC transmission

4, Support Batch mapping

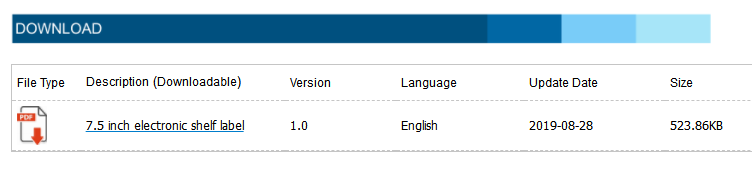

Want to know more about the APP operation guide, or want to use the cloud operating system, please refer to the manual below.
Matching electronic price tag shell


http://www.good-display.com/product/265.html
