5.79 inch E-paper Display Development Kit ESP32 Epaper Board

ESP32-L(C579)
ESP32-L evaluation kit is used to help users develop Good Display's 5.79 inch e-paper display projects with provided source code to create more differentiated solutions.
Have a question?
Price:
USD
$14.58
Quantity:
-
+
(50 available)
Shipping Cost:
$11.37 to United States via E-Package *If you have any shipping fee questions, contact us after ordering to adjust.
Estimated Delivery Time:
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews


Supporting 5.79 inch e-paper display

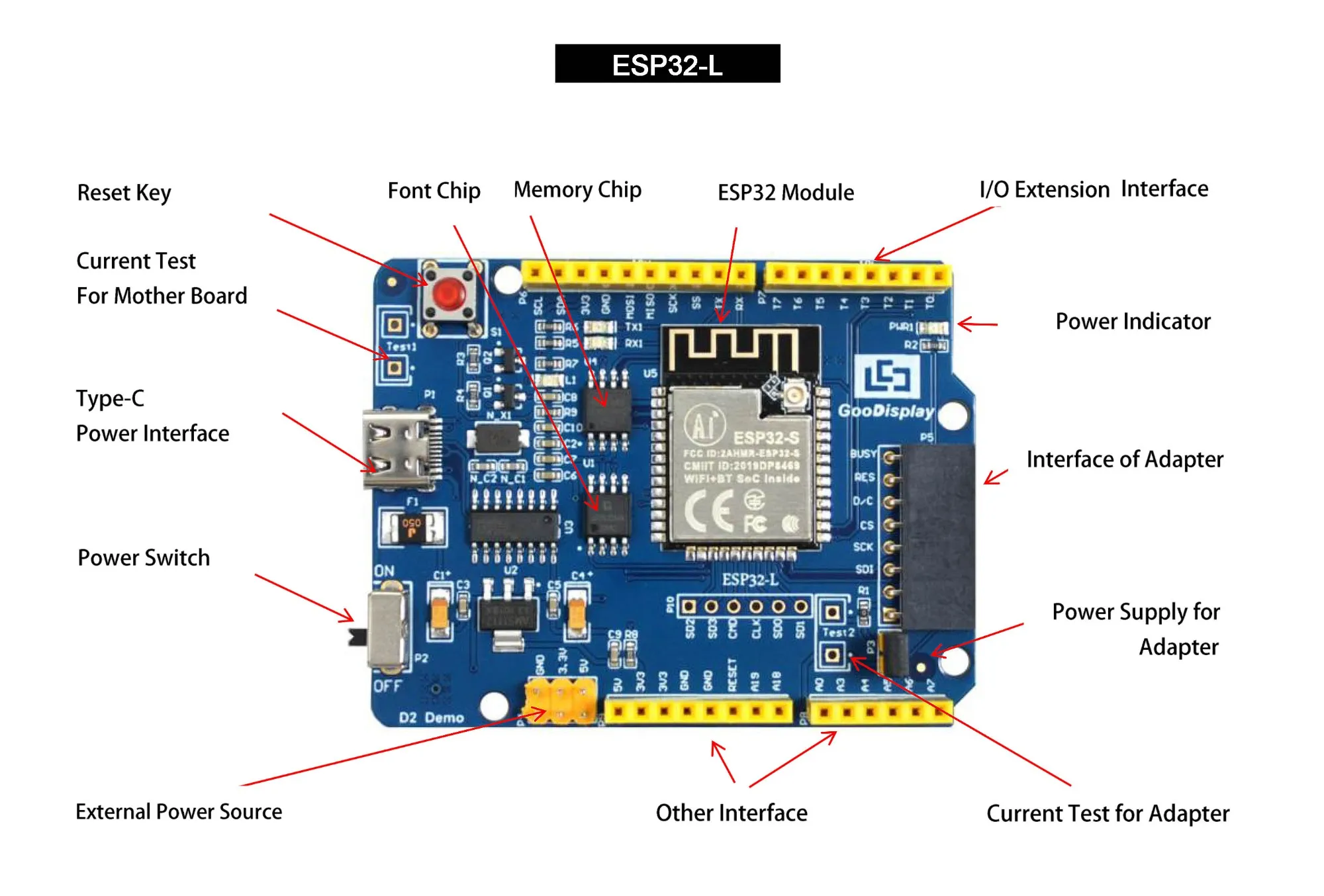

ESP32-L evaluation kit is used to help users develop Good Display's e-paper display projects with provided source code to create more differentiated solutions. It is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc.

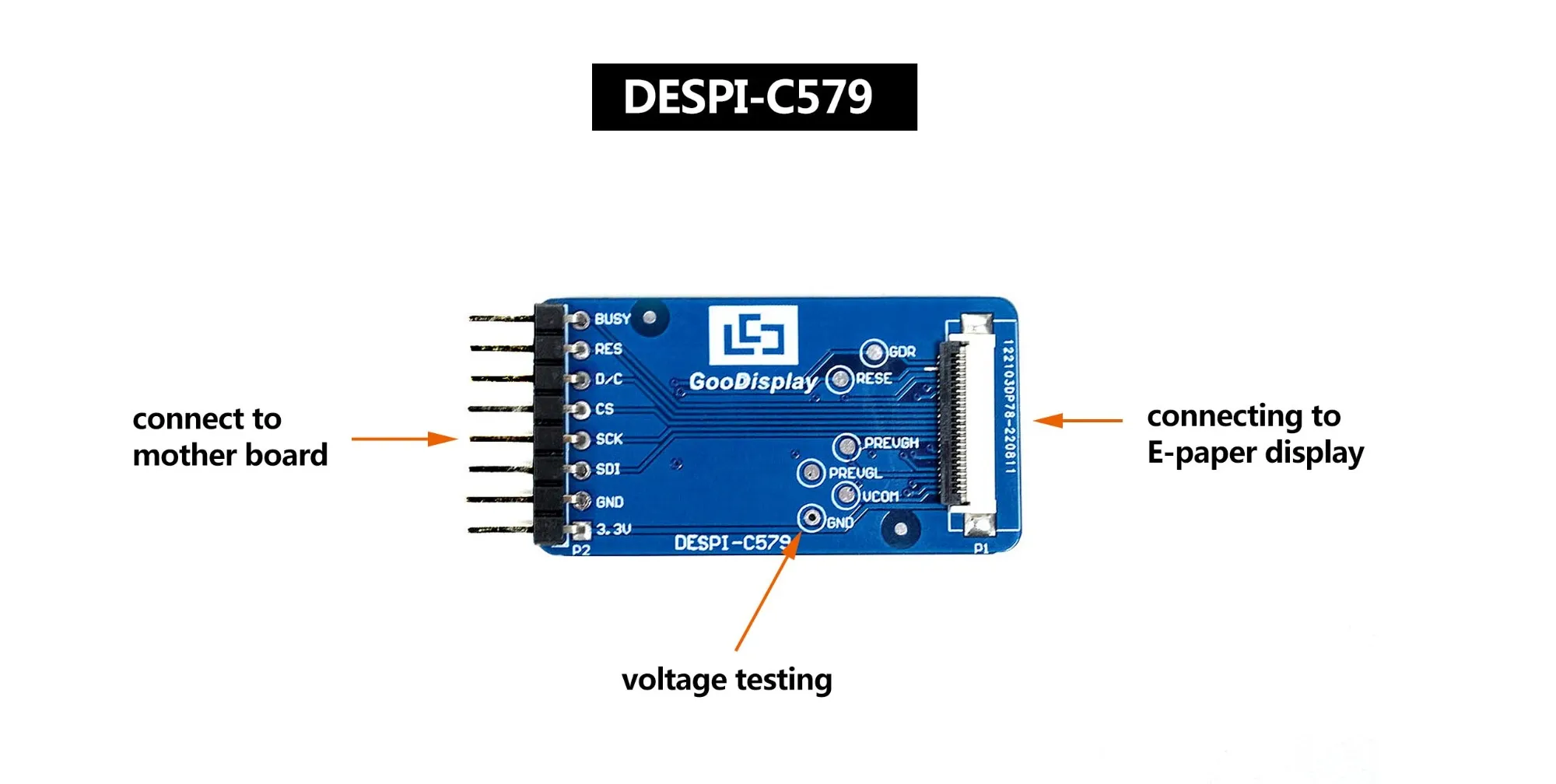

ESP32-L (C579) development kit consists of motherboard ESP32-L for EPD and connector board DESPI-C579.
ESP32-L (C579) development kit is only for users to develop and drive 5.79 inch electronic paper display screens. The application of WiFi, Bluetooth and other functions requires users to develop on their own according to the project.








Special Features


    Our product boasts distinctive features that set it apart from the competition
    ESP32-L is an E-Paper display driver board based on ESP32, and ESP32 is a serial port WiFi+BT module. Compared with ESP8266, it adds Bluetooth function, and its processor speed is faster and power consumption is lower. Its internal integrated MCU can realize serial communication between single-chip computers; this module is easy to learn, small in size, and convenient for embedded development. ESP32 is specially designed for mobile devices, wearable electronic products and IoT applications, and achieves ultra-low power consumption through a number of proprietary technologies.

The power saving mode of ESP32 is suitable for various low-power application scenarios. We can understand the ESP32 module as a single-chip microcomputer with WiFi and BT functions. When we use our own single-chip microcomputer to control, we only need to let the two single-chip microcomputers communicate with each other, the instructions are the same, and the corresponding operations are performed.








Technical Details


    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details


PARAMETER

ESP32-L(C579)
IC ESP32-WROOM-32D
PLATFORM Arduino

FUNCTION

Drive E-paper Display

SUITABLE SIZE

 5.79''
OUTSIDE DIMENSION 70x54mm (ESP32-L)
41x22mm (DESPI-C579)

INTERFACE

Type-C

POWER INPUT

DC5V

FEATURE

Support fully refresh, fast refresh and partial refresh

GRAYSCALE LEVEL

Max 16 Grayscale

OPERATING TEMP.

-20℃~70℃

RESERVED FUNCTION

Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection

MAIN FUNCTION

Learn to drive E-paper display;

Test and evaluate e-paper display;

Support secondary development








Compatible 5.79 inch E-INK

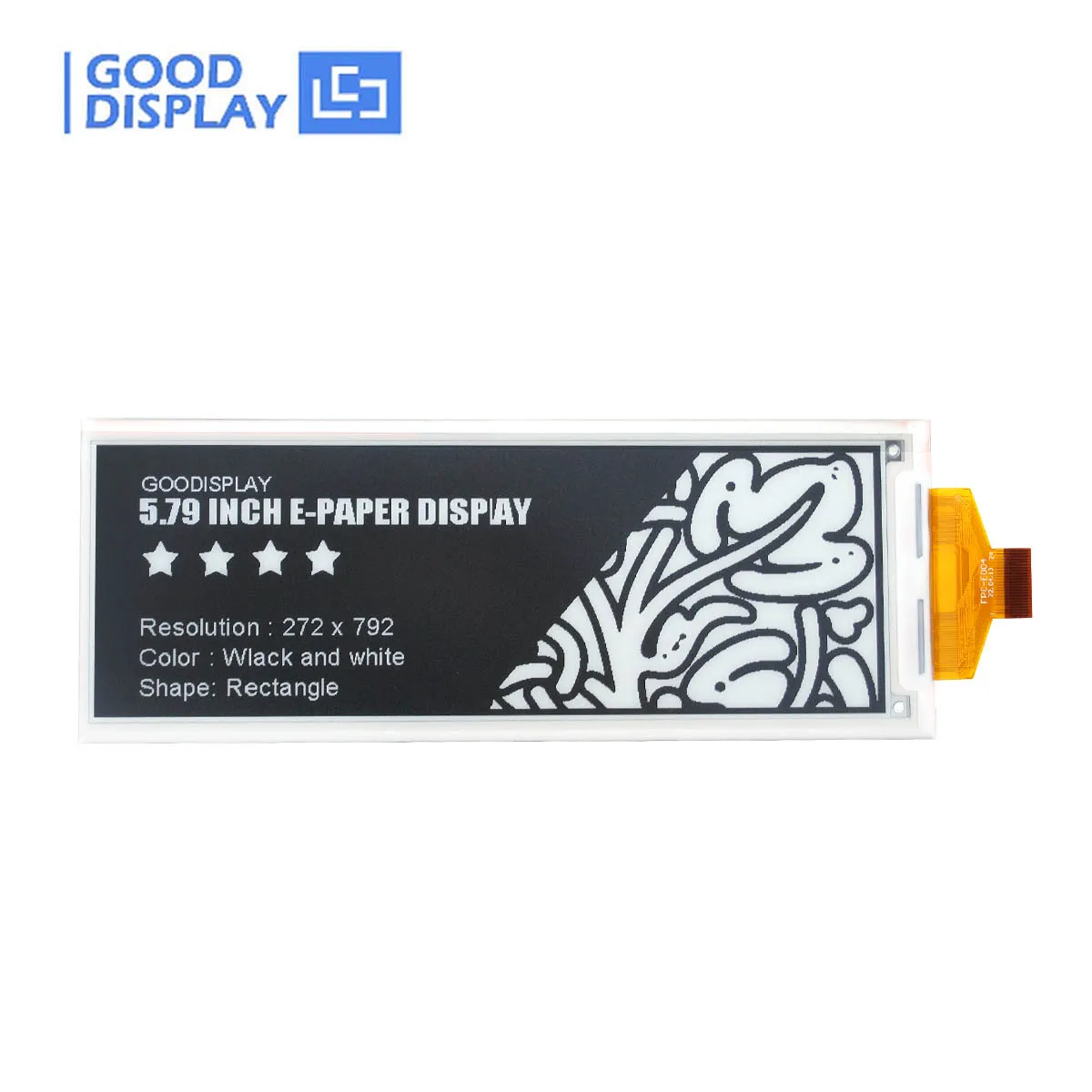

5.79 inch e-paper display Morochrome SPI e-ink screen module, GDEY0579T93

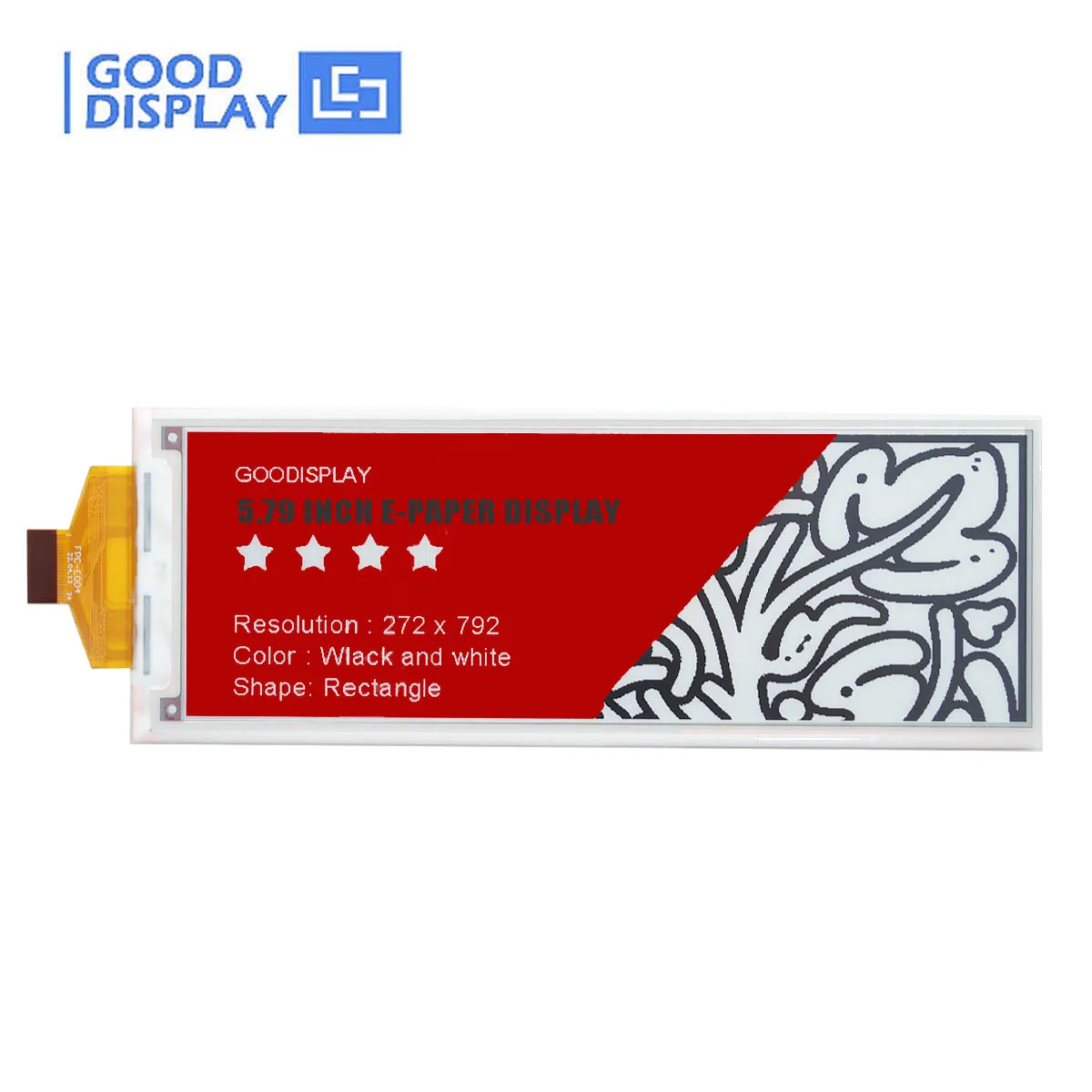

5.79 inch narrow ePaper display color red SPI e-ink screen module, GDEY0579Z93

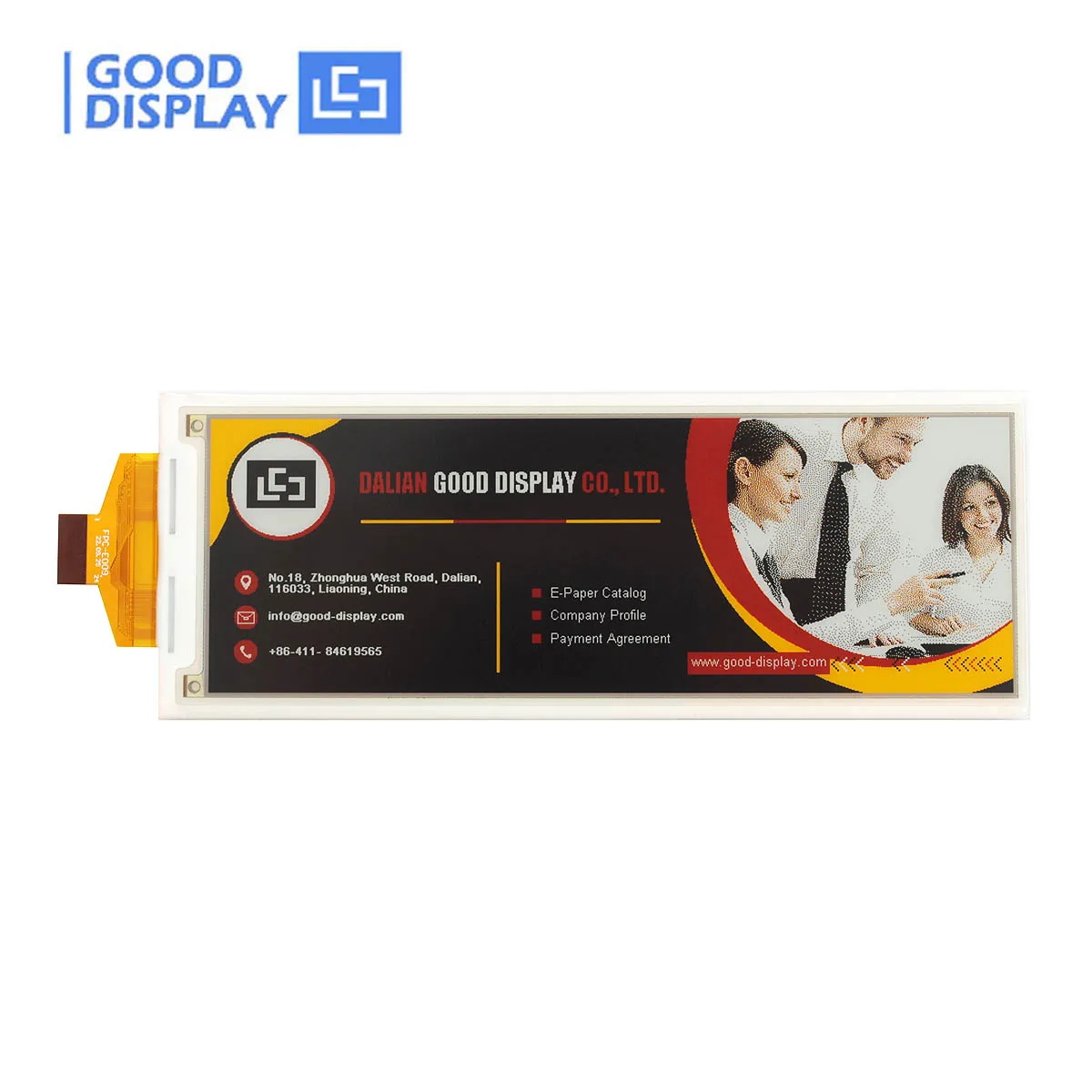

5.79-Inch Four-Color Long Strip E-Paper Display High-resolution 792x272, GDEY0579F51










Related Information Download

Click on the subheadings below to download

  ● ESP32-L(C579) Specification ● DESPI-C579 Specification
  ● ESP32-L-SCH ● DESPI-C579-SCH
