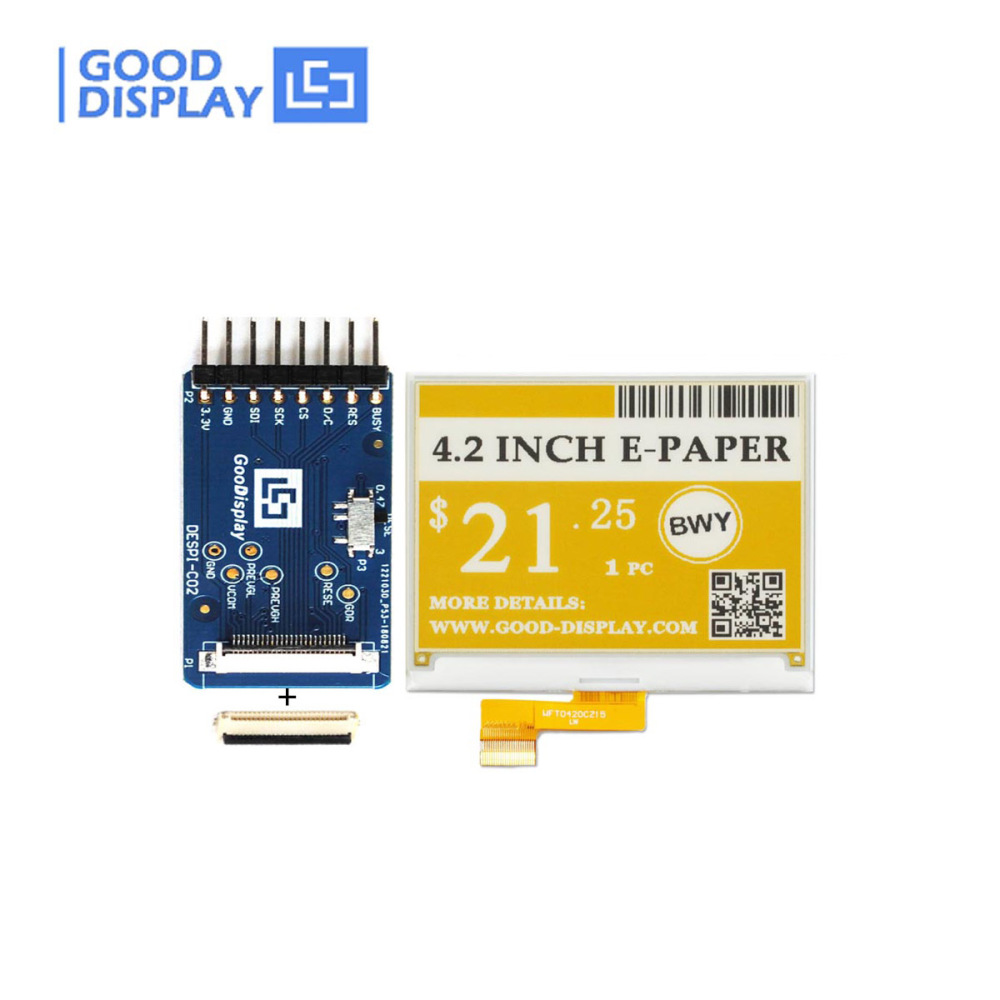

4.2 inch Three colors yellow epaper display e-ink with HAT connector demo board

GDEW042C37+DESPI-C02
E ink E paper display panel, 4.2 inch, 400x300 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, supports yellow, black, and white three-color. HAT connect board.
Price:
USD
$21.95
$26.33
(17% OFF)
Quantity:
-
+
(49 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews(1)

Any questions, please feel free to contact me, my email is: clara@good-display.com

This is an E ink E paper display panel GDEW042C37, 4.2 inch, 400*300 resolution and a connection board DESPI-C02 which aims to help users to learn how to use the e-paper display easier. This e-paper display support black, white and yellow. It's IC Driver is UC8176.

This connection board DESPI-C02 is aim to help  users to learn how to use the E-paper Display easier, and it is used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) : 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.
· Three colors, black, white and yellow
· 296x128 resolution
· The I2C signal master interface to read built-in temperature sensor.

· Comes with helpful development resources and manual (STM32 platform )
· Development platform available
STM32 / Arduino Raspberry Pi / ESP8266 / ESP32
If you only want to buy this e-paper display, click here:
https://buy-lcd.com/products/good-display-42-inch-black-write-and-yellow-epd-display

Part Number

GDEW042C37

Type

Dot Matrix

IC UC8176

Resolution

400*300(DPI:120)

Outline Size(mm)

91*77*1.18

Actve Size(mm)

84.8*63.6

Pixel Pitch(mm)

0.212*0.212

Operating Temp.

0~40C

Storage Temp.

-25~60C

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black,White, Yellow

Interface

SPI

Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 28


Part Number

Color

Resolution

Features

    Refresh Time

GDEW042T2

B/W

400x300

Partial refresh, 4 Grayscale

 3S
GDEW042M01 B/W 400x300 DES,wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments  3S

GDEW042C37

B/W/Y

400x300

Three colors

28S
GDEH042Z96 B/W/R 400x300 Three colors 16S
GDEH042Z21 B/W/R 400x300 Three colors 15S



UTB8OqyuEyDEXKJk43Oqq6Az3XXaU      27.78USD
Visit Following link to order the Demo that matched with ts e-paper:
https://zh-tw.buyepaper.com/e-paper-display-development-kit-with-spi-interface-and-micro-usb-interface-p0031-p0031.html

https://www.e-paper-display.com/products_detail/productId=379.html
