☆ INTRODUCTION
This is a set of EPAPER HAT with 2.9 inch tri-color e-ink display with 296x128 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEH029Z13 is perfect for low power devices powered by solar or batteries.
This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
☆ THE ABOVE PRICE INCLUDE

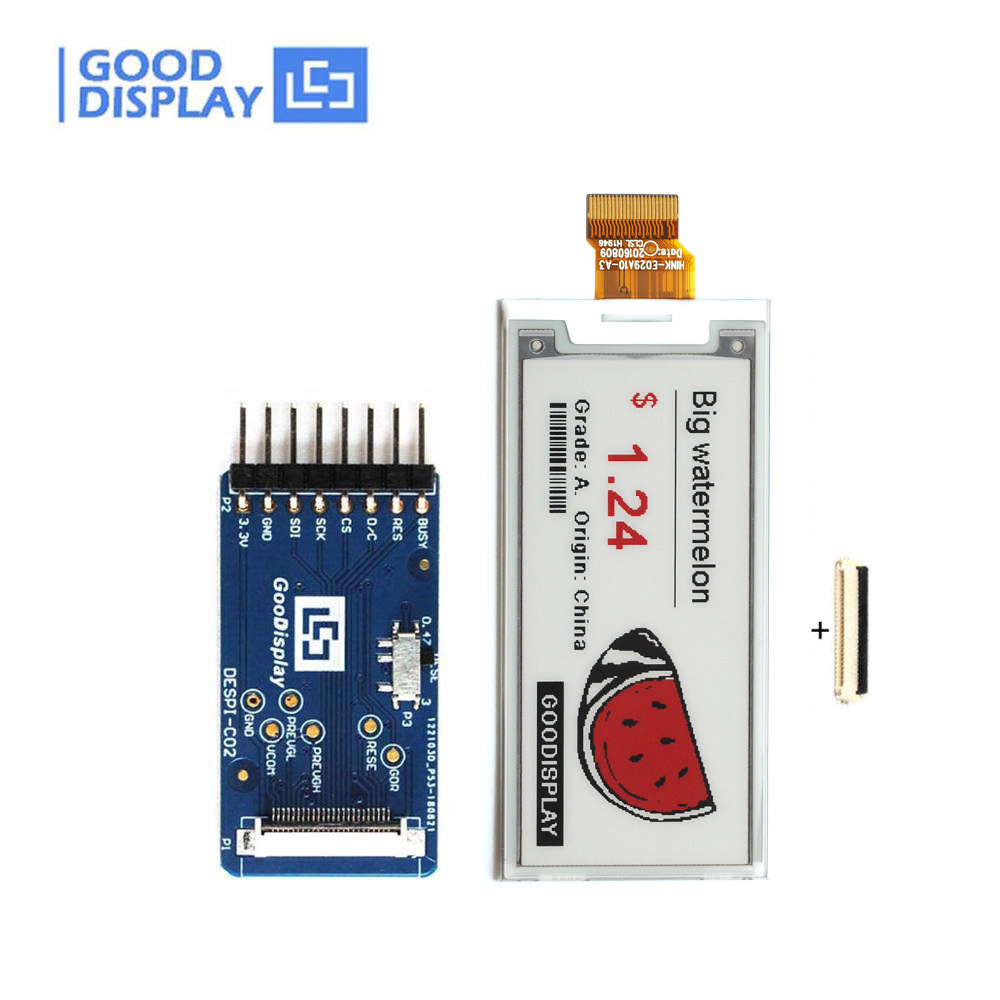

1) Connector board DESPI-C02 * 1pc
2) 2.9 inch 296x128 color e-paper display * 1pc
3) Matched FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEH029Z13
|
|
SIZE
|
2.9 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
UC8151D
|
|
RESOLUTION
|
296x128
|
|
OUTLINE SIZE(mm)
|
79x36.7x1.15
|
|
ACTIVE SIZE(mm)
|
66.9x29.06
|
|
PIXEL PITCH(mm)
|
0.227x0.226
|
|
OPERATING TEMP.
|
0℃~40℃
|
|
STORAGE TEMP.
|
-25℃~60℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
2
|
|
COLOR
|
Black, White, Red
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
15
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
|
PART NUMBER
|
DESPI-C02
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Connection E-paper Display with Drive Board
|
|
OUTSIDE DIMENSION
|
41x22mm
|
|
INTERFACE
|
SPI
|
|
POWER INPUT
|
DC3.3V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
☆ 2.9 INCH E-PAPER DISPLAY
|
Part Number
|
Color
|
IC |
Features
|
Refresh Time |
| GDEY029T94 |
B/W |
SSD1680 |
Partial refresh, 4 Grayscale |
3s |
|
GDEW029T5D
|
B/W
|
UC8151D |
Fast refresh, Partial refresh, 4 Grayscale |
0.82s(fast refresh)
|
| GDEY029Z94 |
B/W/R |
SSD1680A |
Red |
12s |
| GDEH029Z13 |
B/W/R |
UC8151D |
Red |
15s |
| GDEW029Z13 |
B/W/R |
UC8151D |
Red |
12s |
☆ ABOUT US
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com
1. Connector board DESPI-C02 * 1pc
2. 2.9 inch 296x128 color e-paper display * 1pc
3. Matched FPC Connector * 1pc
4. Example code and Manual*1pc.(Please advise email ID along with order,so that we can send them.)
|
Part Number
|
GDEH029Z13
|
|
Type
|
Dot Matrix
|
|
IC Driver
|
UC8151D
|
|
Resolution
|
296x128
|
|
Outline Size(mm)
|
36.7x79.0x1.15
|
|
Actve Size(mm)
|
66.90x29.06
|
|
Pixel Pitch(mm)
|
0.227x0.226
|
|
Operating Temp.
|
0℃~40℃
|
|
Storage Temp.
|
-25℃~60℃
|
|
Connector
|
24 Pin
|
|
Max Grayscale
|
2
|
|
Power Supply
|
3.3V
|
|
Interface
|
SPI
|
|
Fast refresh(s)
|
15
|
|
Power consumption of the refresh(mW)
|
33
|
|
Standby power consumption Pc(mW)
|
0.0165
|
|
Part Number
|
DESPI-C02
|
|
Platform
|
STM32
|
|
Function
|
Connection E-paper Display with DESPI-M02
|
|
Outside Dimension
|
41x22mm
|
|
Interface
|
SPI
|
|
Power Input
|
DC3.3V
|
|
Feature
|
Fully and Partial refresh
|
|
Operating Temp
|
-20~70℃
|
|
Part Number
|
Color
|
Features
|
Refresh Time |
| GDEM029T94 |
B/W |
Partial refresh, 4 Grayscale |
3S |
| GDEW029M06 |
B/W |
DES,Wide working temperature range, Partial refresh |
3S |
| GDEM029E97 |
B/W
|
SPI interface
|
--
|
|
GDEW029T5D
|
B/W
|
Fast refresh, Partial refresh, 4 Grayscale |
0.82S(fast refresh)
|
|
GDEH029D57LT
|
B/W
|
Ultra-low temperature
|
3S
|
| GDEW029I6FD |
B/W
|
Flexible, Partial refresh, 4 Grayscale
|
3S
|
| GDEH029Z92 |
B/W/R |
Three colors |
13S |
| GDEH029Z13 |
B/W/R |
Three colors |
15S |
