1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20

GDOR0140CP20 is a round OLED display, and has a 400x400 resolution,diagonal is 1.39 inch. Display color 16.7M(RGB x 8bits), MIPI 1-lane interface, pixel arrangement is Real RGB arrangement. In view of so many advantages, is a very good choice for applicat
Price:
USD
$24.00
    Please select the information you wantX
Quantity:
-
+
(10 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

GDOR0140CP20 is a round OLED display, and has a 400x400 resolution,diagonal is 1.39 inch. Display color 16.7M(RGB x 8bits), MIPI 1-lane interface, pixel arrangement is Real RGB arrangement.

Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. In view of so many advantages, GDOR0140CP20 is a very good choice for applications like Smart Watch.

· Display color: 16.7M(RGB x 8bits)
· Self-luminous, no backlight is required.
· High contrast,extremely wide viewing angle 85/85/85/85
· Wide operating temperature: -20℃~60℃
· Come with helpful manual

1. 1.39 inch circular OLED display GDOR0140CP20 * 1pc
2.Helpful manual(sent via email or download link) *1pc

Part Number

GDOR0140CP20

Diagonal Size

1.39 inch

Pixel arrangement

Real RGB arrangement

Display Color

16.7M

Number of Pixels

400xRGBx400

Interface

MIPI 1-lane

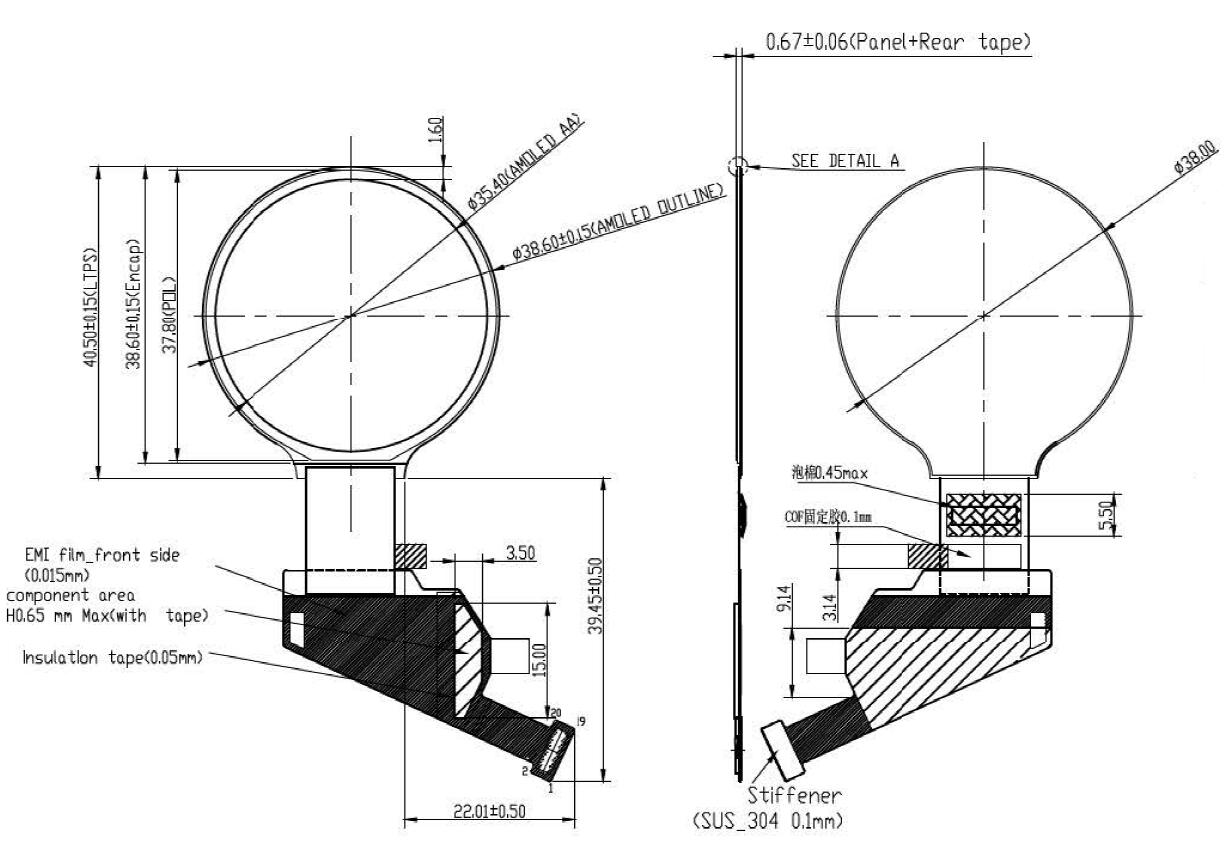

Outlin Dimension (mm)

38.6 x 40.5 x 0.67

Active Area (mm)

φ35.4

Pixel Pitch (μm)

29.5 x 88.5

Brightness(Typ)

300 cd/m2

View Angle

85/85/85/85

Operating Temperature

-20℃~60℃

Storage Temperature

-30℃~70℃

Weight

2g



https://www.good-display.com/product/383.html

Part Number Size Type Resolution IC Driver
GDO0066B 0.66 inch Display 64x48 SSD1306
GDOA0069W 0.69 inch Display 96x16 SSD1306
GDOR0075W 0.75 inch Display 128x128 SSD1327
GDO0086W 0.86 inch Display 96x32 SSD1316
GDO0091B 0.91 inch Display 128x32 SSD1306
GDO0096YB 0.96 inch Display 128x64 SSD1306
GDMN0096WP30 0.96 inch Module 128x64 SSD1315
GDMN0129WP30 1.29 inch Module 128x64 SSD1315
GDOR0140CP20  1.39 inch Display 400x400 --
GDO0150C 1.5 inch Display 128x128 SSD1351
GDOE0240G 2.4 inch Display 128x64 SSD1305
