☆ INTRODUCTION

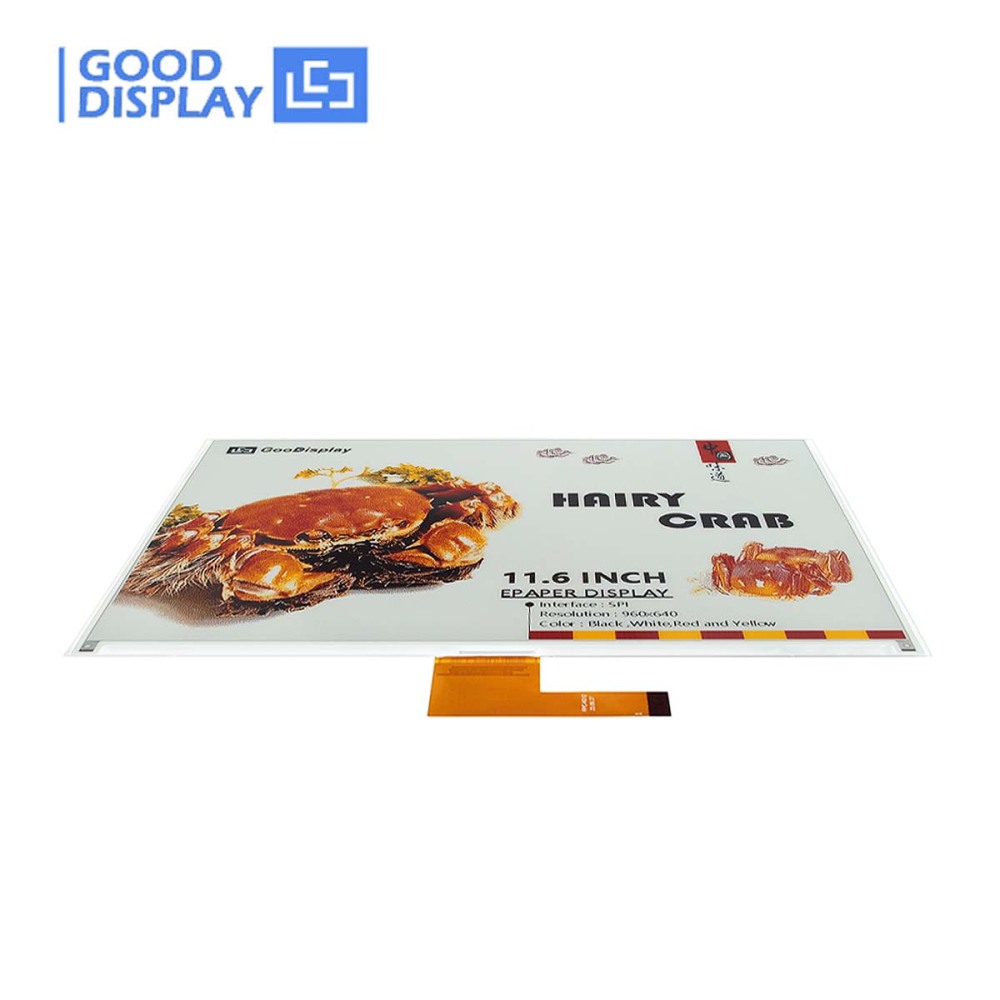

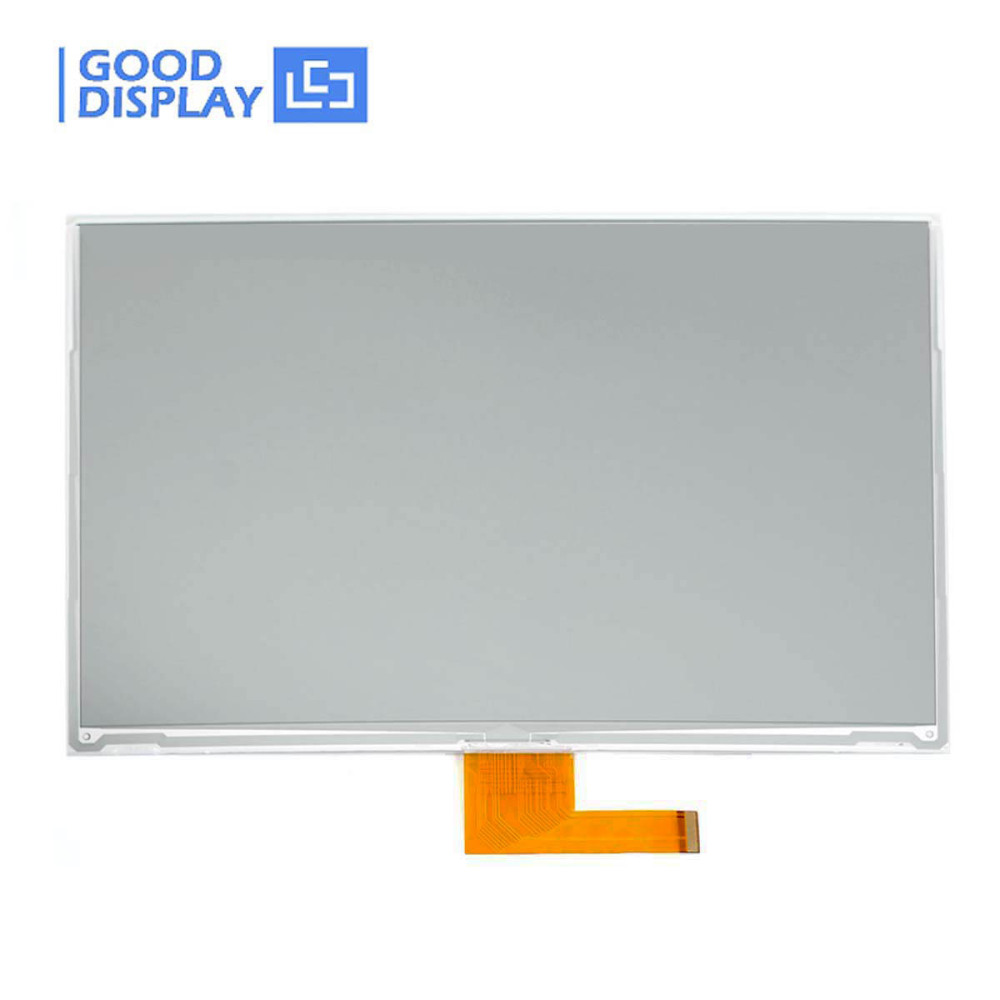

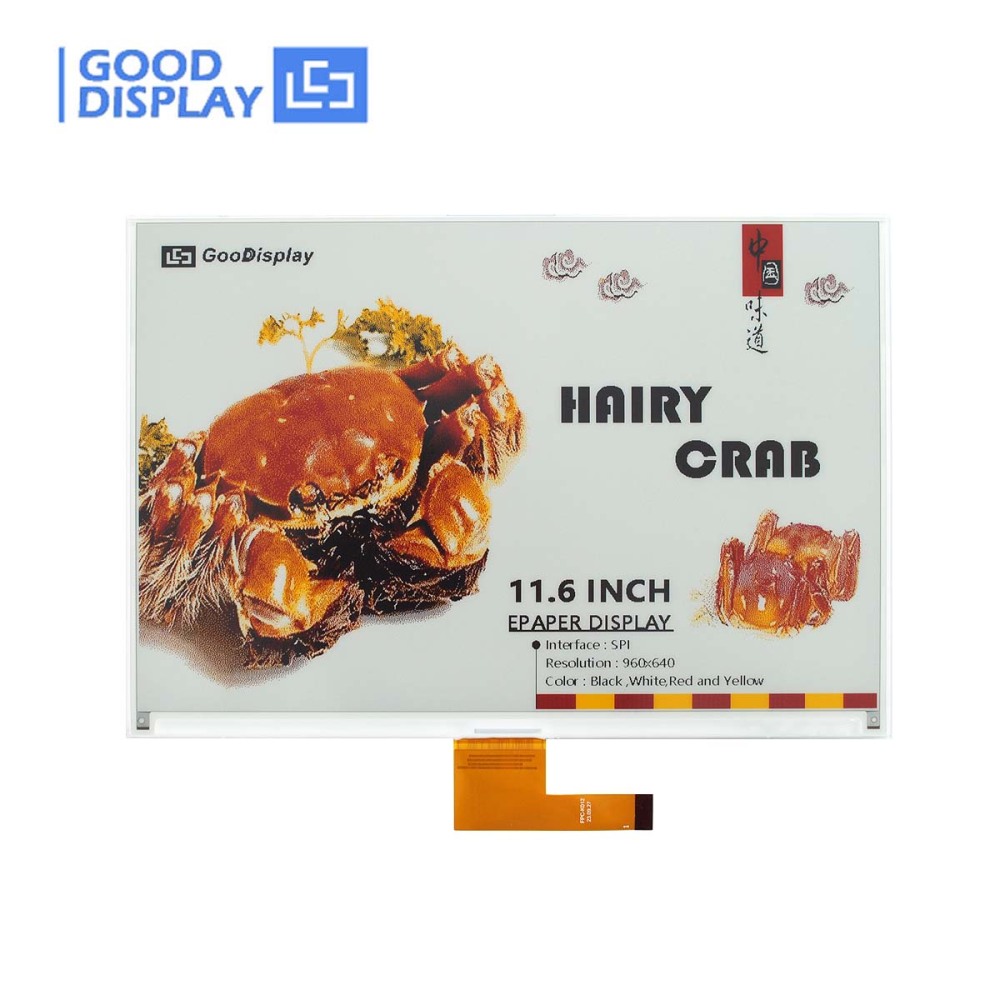

This 11.6-inch e-paper display stands out with its impressive 960x640 resolution and utilizes the SPI interface. Highly recommended, it offers outstanding functionality: even without power, images can be retained - just upload and then power off. Once the e-ink module updates the image, continuous power supply is unnecessary and even disconnection won't affect the permanent display content. The GDEY116F51 e-paper display is particularly suitable for low-power devices like electronic shelf labels, excelling in both performance and efficiency.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please
Package A | + | ||||||||
a. 11.6 "E Ink display screen * 1pc | b. FPC Connector * 1pc | ||||||||
|
|||||||||

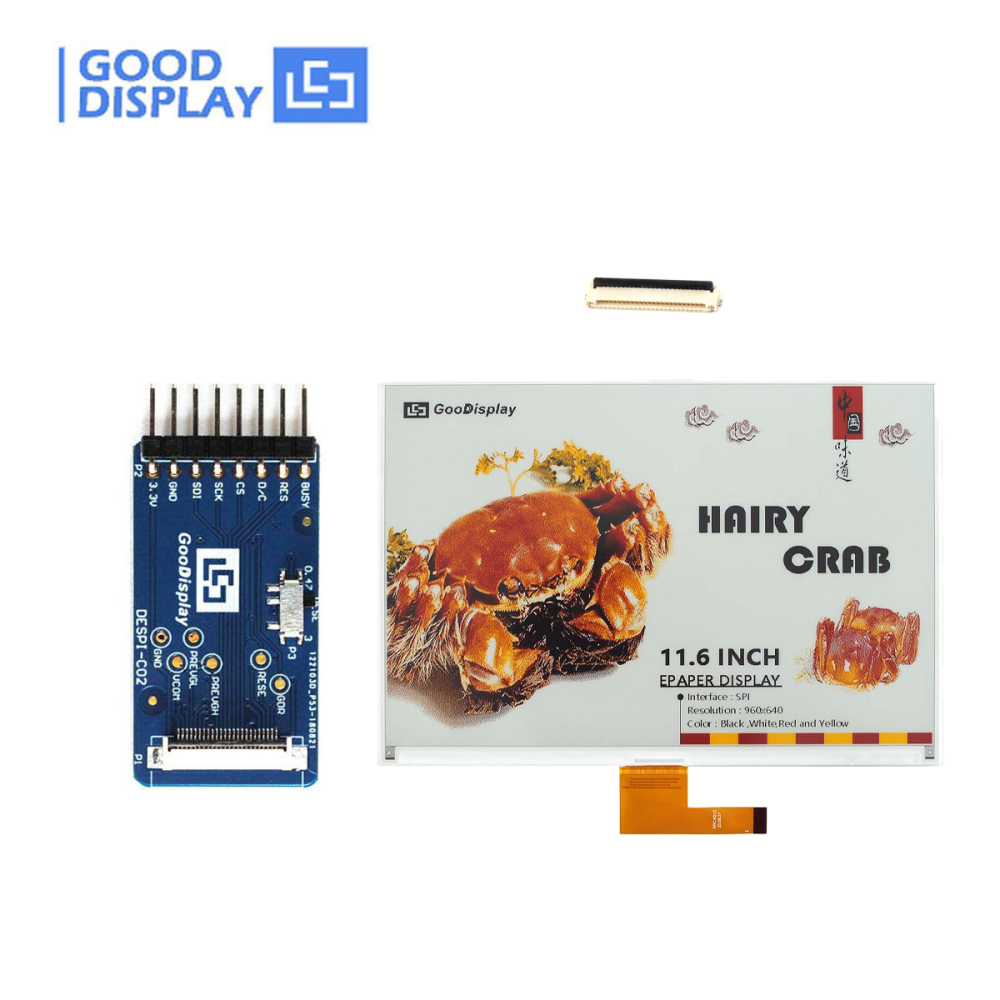

Package B | + | + | |||||||
a. 11.6 "E Ink display screen, GDEY116F51 * 1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc | |||||||
|
|||||||||

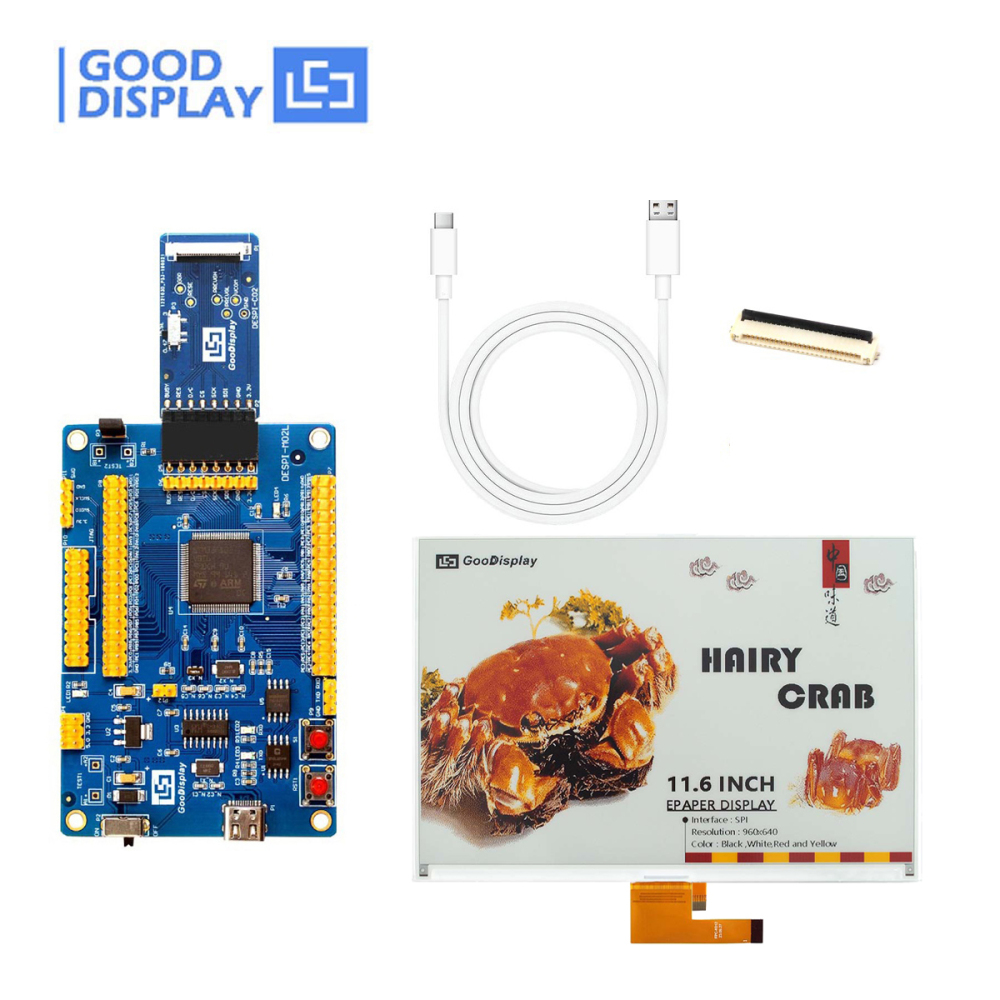

Package C | + | + | + | ||||||
a. 11.6 "E Ink display screen, GDEY116F51 * 1pc | b. FPC Connector * 1pc | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc | d. USB Cable* 1pc | ||||||
|

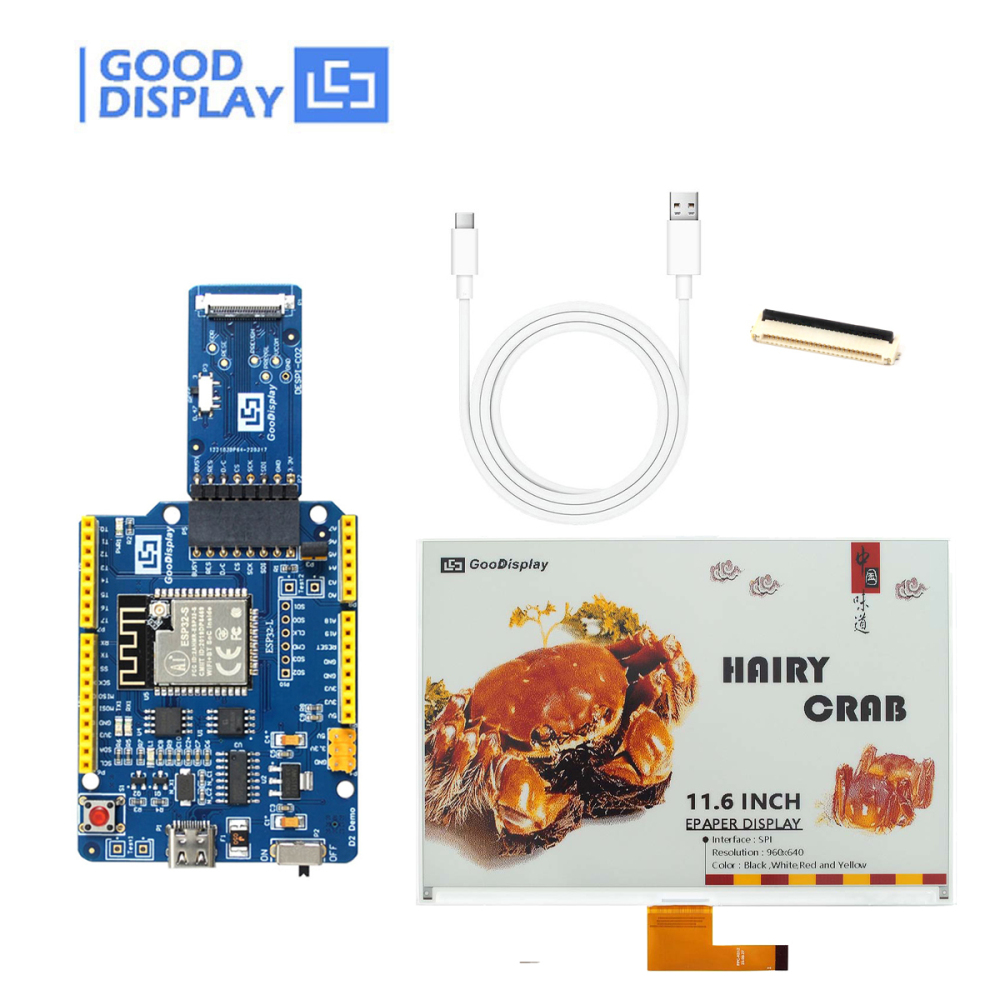

Package D | + | + | + | ||||
a. 11.6 "E Ink display screen, GDEY116F51 * 1pc | b. FPC Connector * 1pc | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc | d. USB Cable* 1pc |
PART NUMBER |
GDEY116F51 |
||
SIZE |
11.6 inch |

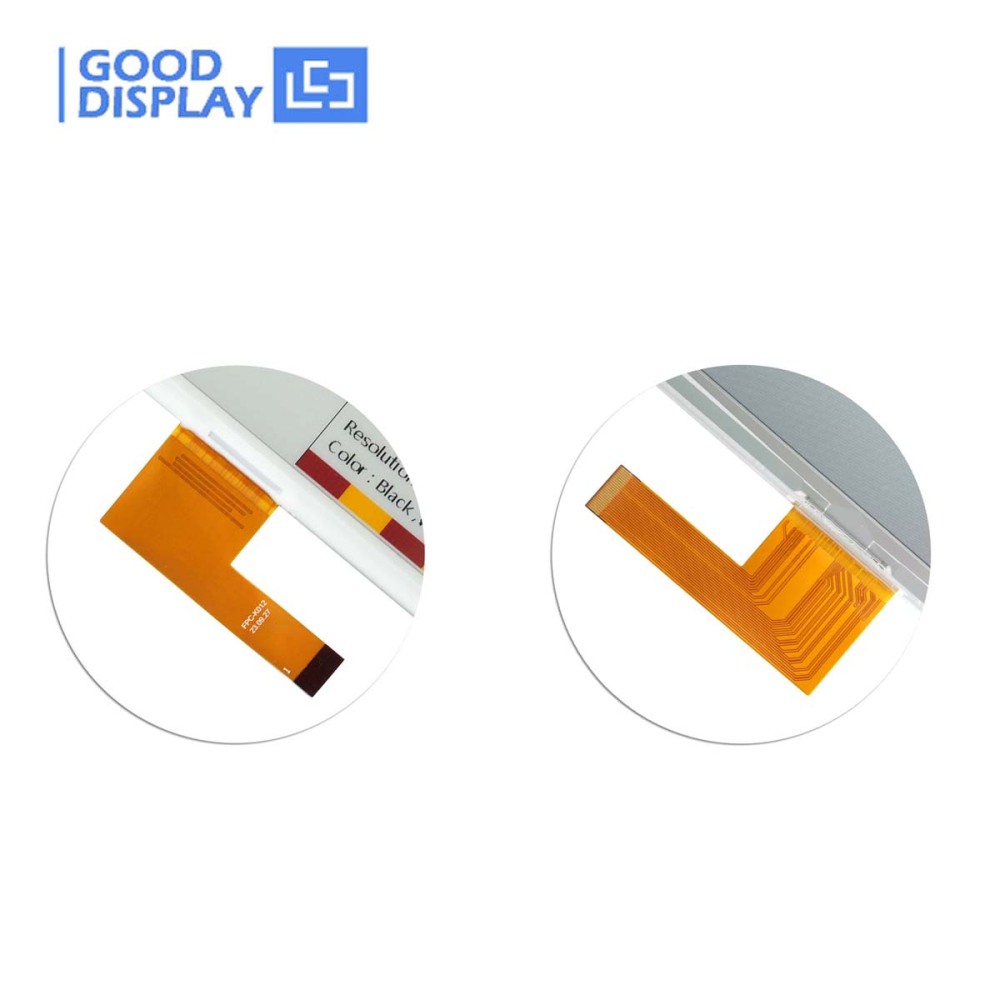

CONNECTOR |
24 Pin 0.5mm |
IC |
SSD2677 |
COLOR |
Black, White, Red and Yellow |
RESOLUTION |
960x640 |
INTERFACE |
SPI |
OUTLINE SIZE(mm) |
254.31×167.35 ×1.0 |
MAX GRAYSCALE |
2 |
ACTIVE SIZE(mm) |
244.51×163.01 |
FULL UPDATE TIME(s) |
20 |
PIXEL PITCH(mm) |
0.2547x0.2547 |
TYPICAL POWER(mW) |
90 |
OPERATING TEMP. |
0℃~40℃ |
DEEP SLEEP POWER(mW) |
0.003 |
STORAGE TEMP. |
-25℃~70℃ |
TYPE |
Dot Matrix |
● Display orientation: Landscape or portrait
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
