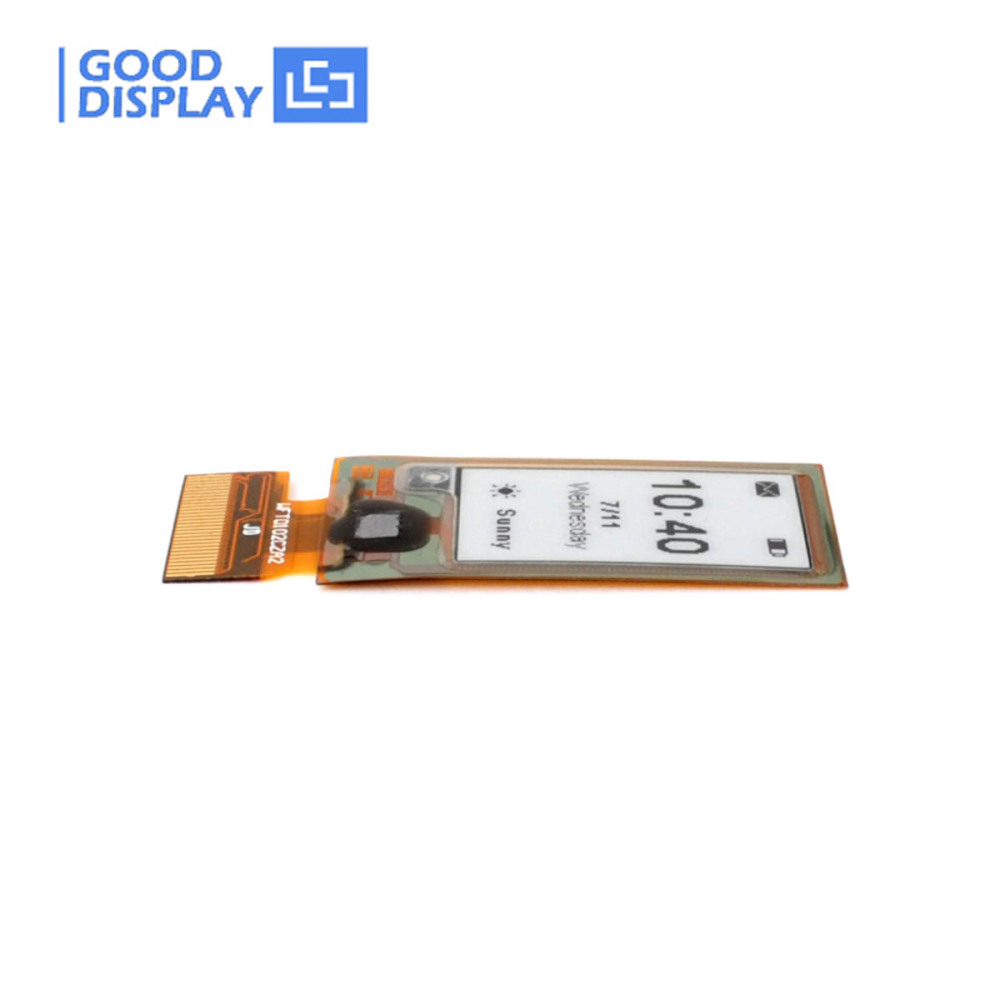

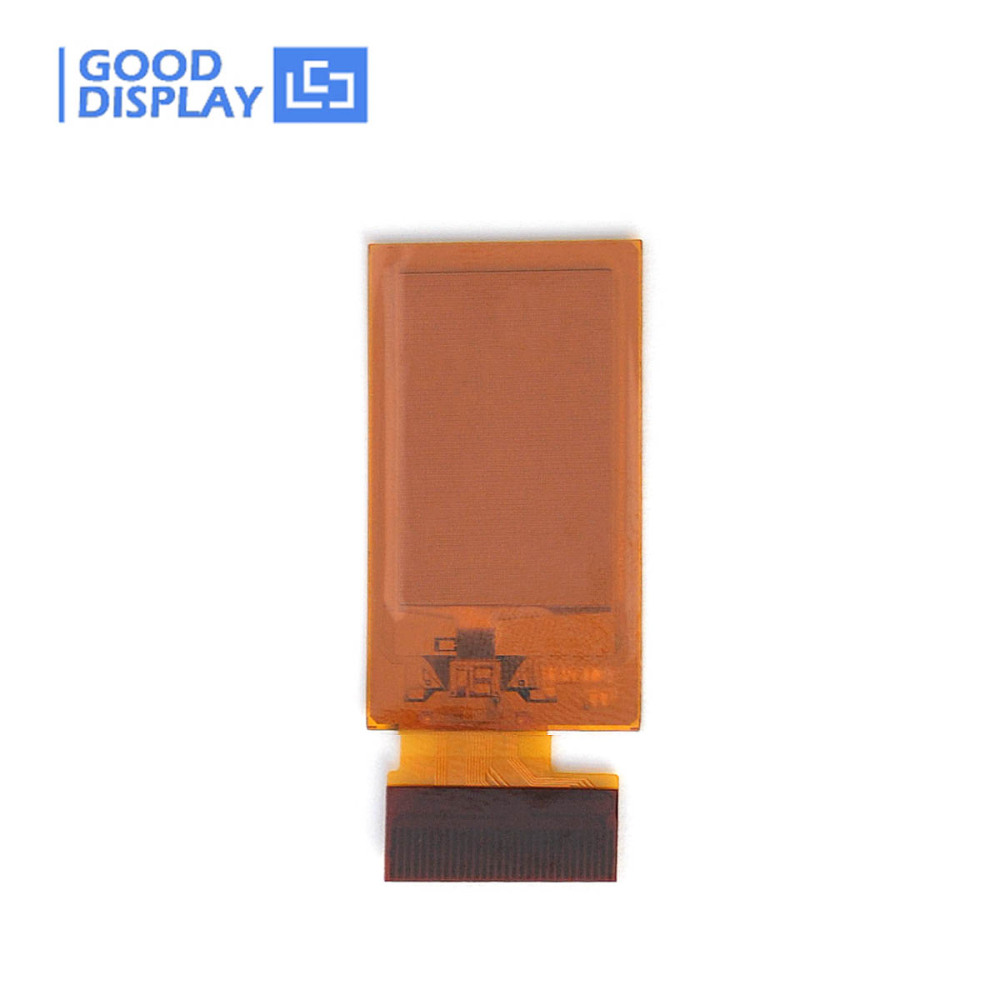

1.02 inch Mini flexible e-ink display small epaper screen module buy GDEW0102I3F

GDEW0102I3F
This is the 1.02 inch mini flexible E ink small Epaper display panel with 128*80 resolution, 30 pins FPC connection, SPI interface and it supports black and white. Ultra-thin, not fragile.
Price:
USD
$6.41
  • 规格:
    EPD
    EPD with adapter board
    EPD with demo kit
Quantity:
-
+
(569 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews(7)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION

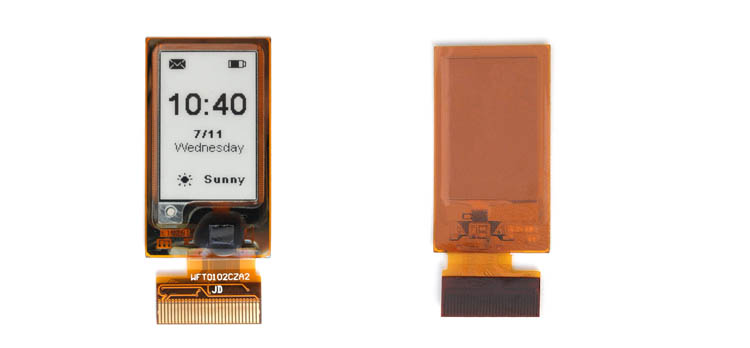

This is a mini e-ink display, 1.02 inch, this flexible epaper screen use the flexible substrate as base plate, with 128x80 resolution, SPI interface, the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-ink display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEW0102I3F is perfect for low power devices powered by solar or batteries.


We provide the E-Ink Adapter Board for you to connect the E-paper Display.


Relevant manual about this product on Library, or go to our our official website (www.good-display.com), contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

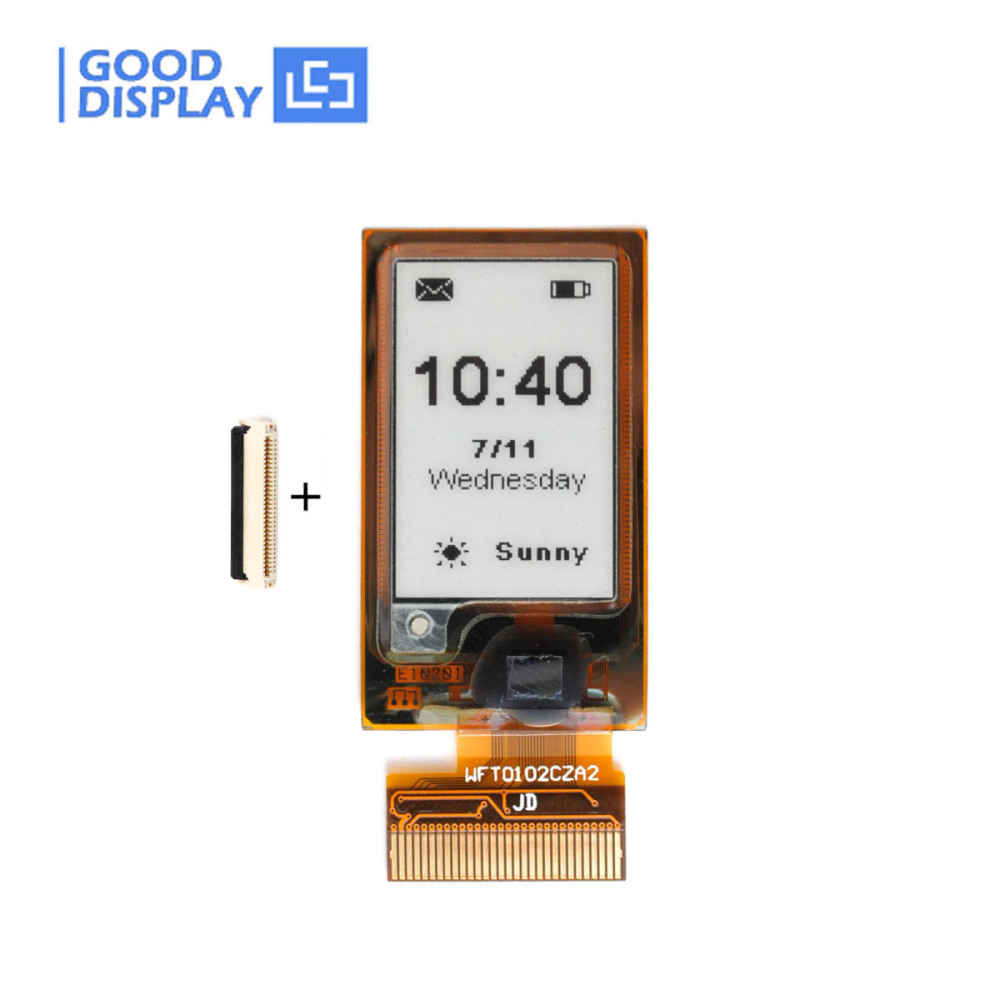

☆ THE ABOVE PRICE INCLUDE



1) 1.02 inch Mini flexible e-ink display small epaper screen * 1pc
2) FPC Connector * 1pc










 MAIN PARAMETERS




PART NUMBER

GDEW0102I3F



TYPE

Dot Matrix

STORAGE TEMP. -25℃~70℃

SIZE

1.02 inch

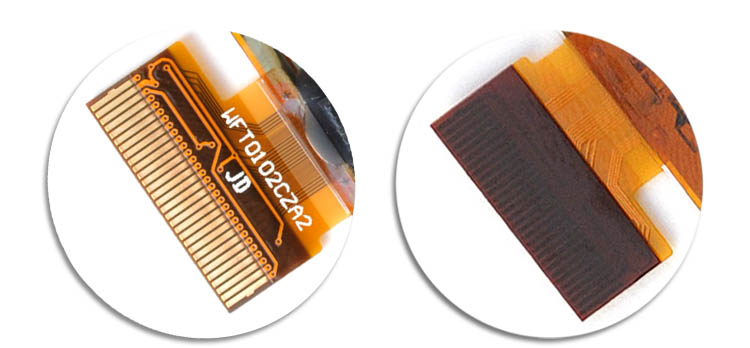

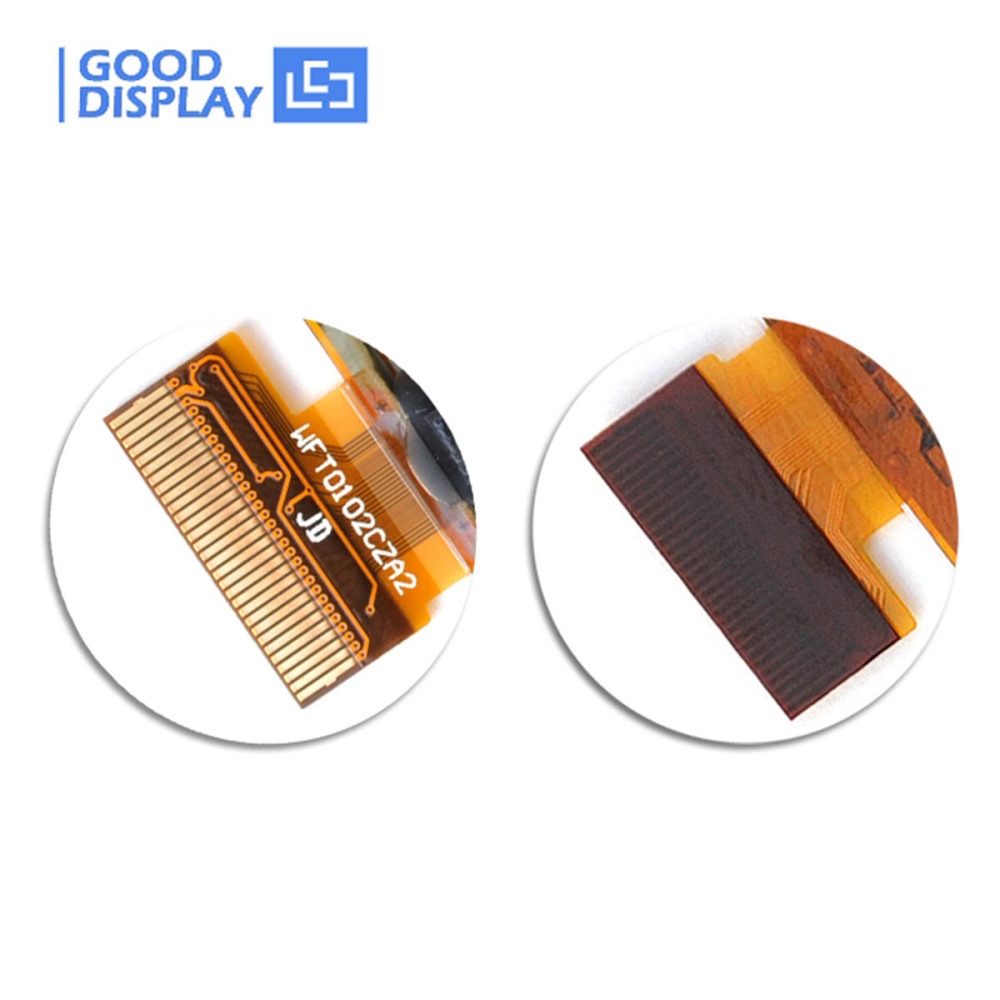

CONNECTOR 30 Pin

IC

UC8175

MAX GRAYSCALE 2

RESOLUTION

128x80

COLOR Black,White

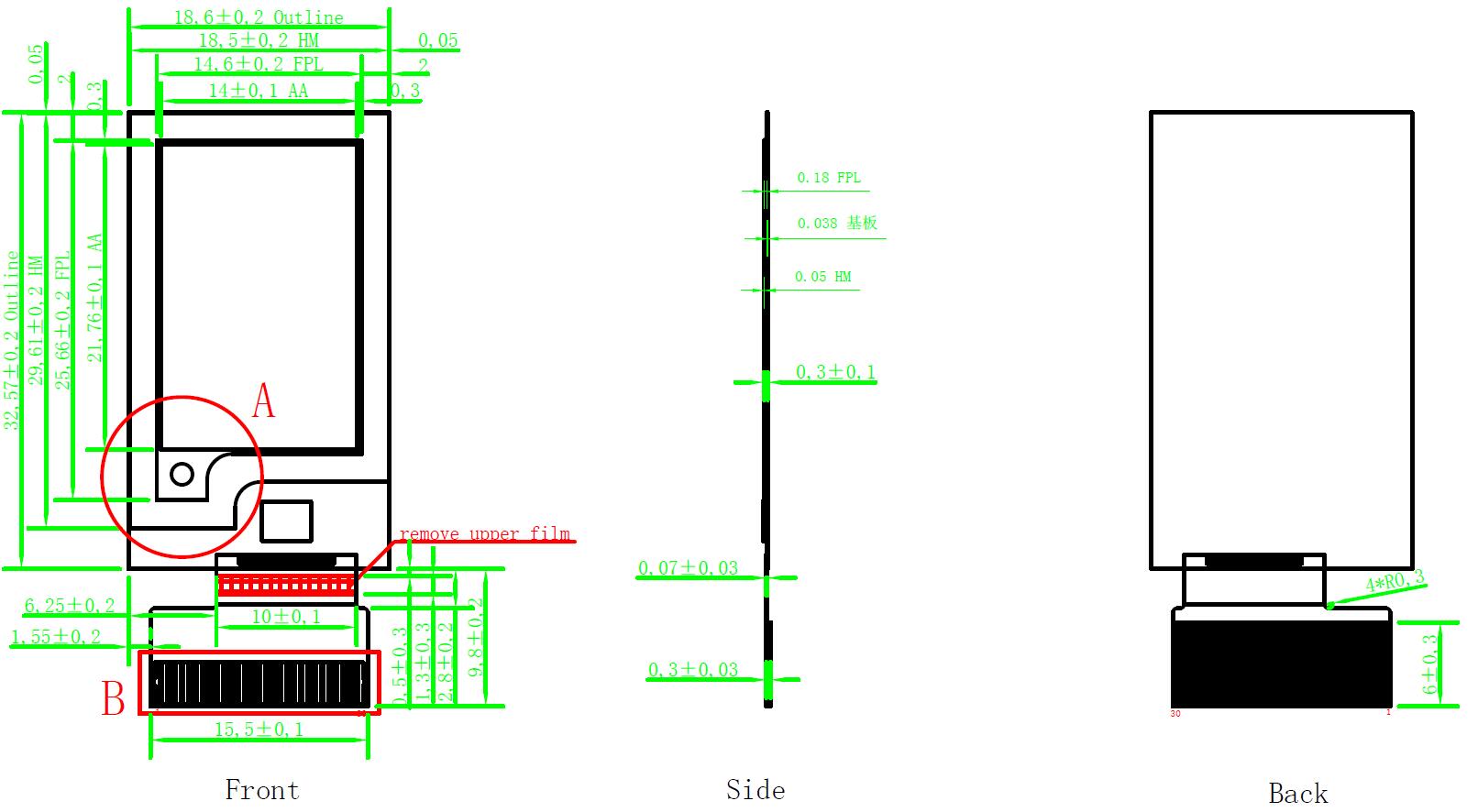

OUTLINE SIZE(mm)

32.57x18.6x0.3

INTERFACE SPI

ACTIVE SIZE(mm)

21.76x14

FULL REFRESH(s) 3

PIXEL PITCH(mm)

0.175x0.17

PARTIAL REFRESH TIME(s) 0.3

OPERATING TEMP.

0℃~50℃

FEATURE Flexible










☆ DETAILS










 FEATURE




●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  This flexible e-ink display supports small bending because its flexible feature

●  This epaper screen supports partial refresh, the refresh rate is 0.3s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / Arduino / ESP8266








 1.02'' E-INK DISPLAY




Part Number

Color

IC Resolution

Features

Refresh Time

GDEW0102T4

B/W

UC8175 128x80

Partial refresh 0.3s/frame

 3s
GDEW0102I3F B/W UC8175 128x80 Flexible, Partial refresh 0.3s/frame  3s
GDEW0102I4FC B/W UC8175 128x80 Flexible, Partial refresh 0.3s/frame  3s










☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com








 SPECIFICATION DOWNLOAD




1. Product Specification
1)  GDEW0102I3F Specification
3)  GDEW0102I3F STM32 Sample Code
4)
GDEW0102I3F Arduino Sample Code


2. E-paper Display IC Datasheet
1)  IC Driver UC8175

3. Image to E-paper Display Software
1) Slave Computer Software-Image to EPD V3.6
2) Image to EPD Instruction Manual





PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

SPI

GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 5 0℃~50℃     SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEQ042Z21 4.2'' BWR 2 400x300 84.8x63.6 19 0℃~40℃     SPI
GDEW042T2FT02
(With Touch panel and Backlight)
4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEW0583T8 5.83'' BW 2 648x480 119.232x88.32 4 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEP097TC2

9.7''

BW

16

1200x825

202.8x139.425

1

0℃~50℃



Parallel

GDEQ102T90 10.2'' BW 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEQ102Z90 10.2'' BWR 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
GDEY1248Z51 12.48'' BWR 2 1304x984 252.98x190.90 25 0℃~40℃     SPI
GDEP133UT3 13.3'' BW 16 1600x1200 270.4x202.8 1 -15℃~65℃     Parallel
